Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Letter of Agency January 19, 2011 MSD-10-F002 UL Compliance Certification Services 47173 Benicia Street Fremont, CA. 94538 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes Naoki Sakamoto of Application Section, EMC Services Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization of our mobile printer, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan or UL Compliance Certification Services, on our behalf, shall have the same effect as acts of our own. This authorization is valid for a period of one year from the date of this letter. FCC ID: ACJJT-H340PR1 Model Numbers: JT-H340PR-E1 and JT-H340PR-E8 1 FCC Rule Part / Classification: FCC Part 15 B / Class B Computing Device Peripheral FCC Part 15C / Bluetooth Transmitter (V2.1+EDR) Applicant & Grantee: Panasonic Corporation of North America (PNA) One Panasonic Way, Secaucus, NJ 07094 USA FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. (PSN) Mobility Systems Business Unit (MSD) Terminal Systems Group (TSG) 4-3-1 Tsunashima-Higashi, Kohoku-Ku Yokohama City, 223-8639 Japan Contact Person: Hiroaki Aoki E-mail: [email protected] We, the undersigned, hereby certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This application for dual equipment authorization has not been submitted to any other TCB for certification. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division 1 Models JT-H340PR-E1 and JT-H340PR-E8 are electrically and transmitter identical. The main differences is model JT-H340PR-E1 is provided with printer that supports 114 mm width paper roll and model JT-H340PR-E8 is provided with printer that supports 80mm width paper roll. These differences have no influence upon the reported test results.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality January 19, 2011 MSD-10-F002 UL Compliance Certification Services 47173 Benicia Street Fremont, CA. 94538 To Whom It May Concern: FCC ID: ACJJT-H340PR1 Model Numbers: JT-H340PR-E1 and JT-H340PR-E8 FCC Rule Part / Classification: FCC Part 15 B / Class B Computing Device Peripheral FCC Part 15C / Bluetooth Transmitter (V2.1+EDR) In accordance with provisions of 47 CFR, Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. The Bluetooth transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Parts List • Theory of Operation In additional to the above and in accordance with FCC Public DA 04-1705, we request forty-five day short- term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division

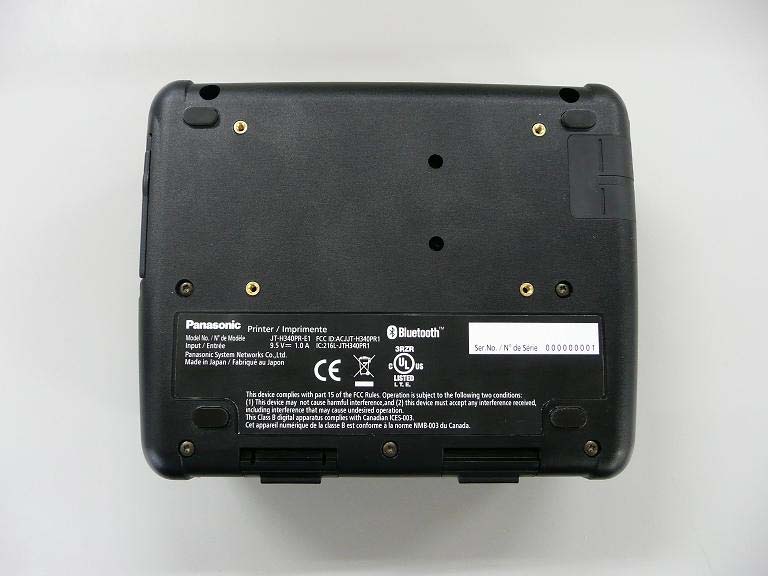

External Photo JT-H340PR-E1 FCC ID:ACJJT-H340PR1 IC NUMBER: 216L-JTH340PR1 Front Rear External Photo JT-H340PR-E1 FCC ID:ACJJT-H340PR1 IC NUMBER: 216L-JTH340PR1 Top Bottom External Photo JT-H340PR-E1 FCC ID:ACJJT-H340PR1 IC NUMBER: 216L-JTH340PR1 Right Left

External Photo JT-H340PR-E8 FCC ID:ACJJT-H340PR1 IC NUMBER: 216L-JTH340PR1 Front Rear External Photo JT-H340PR-E8 FCC ID:ACJJT-H340PR1 IC NUMBER: 216L-JTH340PR1 Top Bottom External Photo JT-H340PR-E8 FCC ID:ACJJT-H340PR1 IC NUMBER: 216L-JTH340PR1 Right Left

Internal Photo MBH7BTZ40 Inner Photo Model: JT-H340PR-E1/ JT-H340PR-E8 FCC ID: ACJJT-H340PR1 IC Number:216L-JTH340PR1

Test report No. : 31CE0189-HO-03-A Page : 19 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission Battery Charge mode DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/11/30 Company : Panasonic System Networks Co.,Ltd Report No. : 31CE0189-HO-03 Kind of EUT : Printer Power : DC7.2V Model No. : JT-H340PR Temp./Humi. : 20deg.C. / 33% Serial No. : 00007 Engineer : Hisayoshi Sato Mode / Remarks : Battery Charge mode LIMIT : FCC15.107(a) QP FCC15.107(a) AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500529.27.213.142.320.366.056.023.735.7N 0.1891142.622.113.155.735.264.154.18.418.9N 0.2553036.018.113.349.331.461.651.612.320.2N 0.3216928.213.013.341.526.359.749.718.223.4N 0.3781620.62.013.333.915.358.348.324.433.0N 0.5538220.57.613.333.820.956.046.022.225.1N 16.000000.9-3.815.116.011.360.050.044.038.7N 24.000004.5-0.215.520.015.360.050.040.034.7N 0.1500529.27.013.142.320.166.056.023.735.9L 0.1893842.521.113.155.634.264.154.18.519.9L 0.2553136.218.013.349.531.361.651.612.120.3L 0.3169930.011.913.343.325.259.849.816.524.6L 0.3832322.85.113.336.118.458.248.222.129.8L 0.5489719.410.213.332.723.556.046.023.322.5L 16.000000.5-4.015.115.611.160.050.044.438.9L 24.000004.0-0.215.519.515.360.050.040.534.7L *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31CE0189-HO-03-A Page : 20 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Bluetooth I/F continuous DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/11/30 Company : Panasonic System Networks Co.,Ltd Report No. : 31CE0189-HO-03 Kind of EUT : Printer Power : DC7.2V Model No. : JT-H340PR Temp./Humi. : 20deg.C. / 33% Serial No. : 00007 Engineer : Hisayoshi Sato Mode / Remarks : Bluetooth I/F continuous Printing mode Worst-axis (Hor: X, Ver: X) LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 48.00038.5QP12.2-33.517.20300Hori.40.022.8 66.40038.5QP7.1-33.212.40300Hori.40.027.6 48.00038.8QP12.2-33.517.5168100Vert.40.022.5 66.40039.1QP7.1-33.213.0168100Vert.40.027.0 324.05047.0QP15.5-30.032.597100Hori.46.013.5 324.05046.8QP15.5-30.032.317100Vert.46.013.7 379.33245.3QP17.3-29.633.0108100Hori.46.013.0 379.33246.9QP17.3-29.634.6179100Vert.46.011.4 451.51942.0QP18.3-29.131.2358100Hori.46.014.8 455.20345.7QP18.3-29.134.9207100Vert.46.011.2 505.79145.7QP18.7-28.935.5328100Vert.46.010.5 505.79140.4QP18.7-28.930.263100Hori.46.015.8 768.11941.3QP21.7-27.036.0250100Hori.46.010.0 768.11940.4QP21.7-27.035.1204100Vert.46.010.9 690.55941.1QP20.9-27.634.4185100Hori.46.011.6 690.55937.5QP20.9-27.630.8325100Vert.46.015.2 *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31CE0189-HO-03-A Page : 21 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission USB I/F continuous Printing mode DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/12/07 Company : Panasonic System Networks Co.,Ltd Report No. : 31CE0189-HO-03 Kind of EUT : Printer Power : DC7.2V Model No. : JT-H340PR Temp./Humi. : 20deg.C. / 35% Serial No. : 00007 Engineer : Makoto Kosaka Mode / Remarks : USB I/F continuous Printing mode Worst-axis (Hor: X, Ver: X) LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 50.00041.7QP10.8-33.519.0200203Hori.40.021.0 50.00053.4QP10.8-33.530.7236100Vert.40.09.3 60.00042.1QP8.3-33.317.1192263Hori.40.022.9 60.00046.3QP8.3-33.321.3220100Vert.40.018.7 120.00046.5QP13.2-32.227.5191152Hori.43.516.0 120.00050.2QP13.2-32.231.2128100Vert.43.512.3 240.03641.2QP17.2-30.727.787157Hori.46.018.3 240.03639.7QP17.2-30.726.2259100Vert.46.019.8 303.46052.8QP14.8-30.137.5254100Hori.46.08.5 303.46050.9QP14.8-30.135.6203139Vert.46.010.4 322.20049.8QP15.5-30.035.323710…

Text truncated - open the document above for the full version.

Test report No. : 31CE0189-HO-03-A Page : 2 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted Emission ....................................................................................... 11 SECTION 6: Radiated Emission .......................................................................................... 12 APPENDIX 1: Photographs of test setup............................................................................. 13 Conducted Emission .................................................................................................................... 13 Radiated Emission ....................................................................................................................... 14 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) ..................................................... 18 APPENDIX 2: Data of EMI test ........................................................................................... 19 Conducted Emission .................................................................................................................... 19 Radiated Emission ....................................................................................................................... 20 APPENDIX 3: Test instruments ........................................................................................... 24 Test report No. : 31CE0189-HO-03-A Page : 3 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd. Address : 4-3-1 Tsunashima-higashi, Kohoku-ku, Yokohama-shi, Kanagawa, 223-8639 Japan Telephone Number : +81-45-540-5500 Facsimile Number : +81-45-540-1272 Contact Person : Hitoshi Yoshida * Panasonic System Networks Co., Ltd. is on behalf of the applicant : Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Printer Model No. : JT-H340PR-E1 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC7.2V (Battery), DC9.5V (AC Adaptor) Receipt Date of Sample : November 26, 2010 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: JT-H340PR-E1, (referred to as the EUT in this report), is the Printer. Printer that can print thermal recording paper by four inches in width of paper and can be carried. Printed data are sent by Bluetooth, USB, and IrDA I/F from PC or Handheld PC etc. It has Charge circuit of built-in battery. General Specification Clock frequency(ies) in the system : CPU:66.4MHz, USB Controller : 48MHz, Bluetooth Controller : 16MHz, Bluetooth Communication Clock : 26MHz Power Supply : Battery: DC 7.2V 1300 / 1600mAh AC Adaptor: DC9.5V (AC120V/60Hz) Radio Specification Radio Type : Transceiver (Bluetooth Ver.2.1 + EDR Compliance (Class 2)) Frequency of Operation : 2402-2480MHz Bandwidth & Channel spacing : 1MHz & 1MHz/CH Modulation : FHSS Power Supply (radio part input) : DC 3.1 to 3.3V Antenna type : Chip Antenna Antenna Gain : +2.1 dBi Series model JT-H340PR-XX (X: maybe any alphanumeric character, dash or blank) Model Differences Suffix "X" in model name JT-H340PR-XX is replaced with any alphanumeric character, dash or blank to denote the difference in case color, logo design, appearance of operation panel, label design, and USB input connector. JT-H340PR-E1 has series model as Model No. JT-H340PR-E8. The difference: JT-H340PR-E1 (Paper roll width is 114mm) and JT-H340PR-E8 (Paper roll width is 80mm). Test report No. : 31CE0189-HO-03-A Page : 4 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Conducted emission IC: ICES-003 4.1 Class B N/A [QP] 8.4dB 0.18911MHz, N [AV] 18.9dB 0.18911MHz, N Complied FCC: ANSI C63.4: 2003 8. Radiated emission measurements Radiated emission IC: ICES-003 4.1 Class B N/A *1) 6.1dB 491.366MHz, QP Vertical Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) Measurements were limited up to 1GHz since the highest frequency of internal source of the EUT is less than 108MHz. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 31CE0189-HO-03-A Page : 5 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Conducted emission …

Text truncated - open the document above for the full version.

Test report No. : 31CE0189-HO-03-A Page : 13 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 31CE0189-HO-03-A Page : 14 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Bluetooth I/F continuous Printing mode Photo 1 Photo 2 Test report No. : 31CE0189-HO-03-A Page : 15 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission USB I/F continuous Printing mode Photo 1 Photo 2 Test report No. : 31CE0189-HO-03-A Page : 16 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission IrDA I/F continuous Printing mode Photo 1 Photo 2 Test report No. : 31CE0189-HO-03-A Page : 17 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Battery Charge mode Photo 1 Photo 2 Test report No. : 31CE0189-HO-03-A Page : 18 of 24 Issued date : December 8, 2010 FCC ID : ACJJT-H340PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
