EXHIBIT H Please read these Operating Instructions before using the unit and save for future reference. Compact Plain Paper FAX with Cordless Phone Model No. KX-FPC91 FOR OPERATION ASSISTANCE, CALL 1-800-HELP-FAX (1-800-435-7329) 2 Thank you for purchasing the Panasonic Compact Plain Paper Facsimile. Welcome to the world of Panasonic facsimiles. This Panasonic compact plain paper facsimile combines the telephone, fax and copier functions to provide you with more efficient office or home use. By utilizing these convenient features, you can maximize the effectiveness of this unit. Copyright: This manual is copyrighted by Kyushu Matsushita Electric Co., Ltd. (KME) and its licensee. Under the copyright laws, this manual may not be reproduced in any form, in whole or part, without the prior written consent of KME and its licensee. © Kyushu Matsushita Electric Co., Ltd. 2000 For your future reference Date of purchaseSerial No. (found on the rear of the unit) Dealer’s name and address Dealer’s telephone number Things you should keep records of Attach your sales receipt here Caution: l The Telephone Protection Act of 1991 requires the following information to be clearly stated either at the top or bottom margin of the first message page when transmitting messages via telephone facsimile; — Date and time of transmission, — Identification of the business, entity or person(s) sending the facsimile, and — Telephone number of the business, entity or person(s). To program this information into your facsimile machine, complete all the instructions on pages 11 through 13. l Note that the images of copied or received documents will remain on the used film. When disposing of the used film, use discretion. l Do not rub or use an eraser on the printed side, as the print may smear. 3 When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on this unit. 3.Unplug this unit from AC outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4.Do not use this unit near water, for example near a bath tub, wash bowl, kitchen sink, or the like. 5.Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6.Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7.Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8.For safety purposes this product is equipped with a three prong grounded plug. If you do not have this type of outlet, please have one installed. Do not use any type of adaptor plug to defeat this safety feature. 9.Do not place objects on the power cord. Install the unit where no one can step or trip on the cord. 10.Do not overload wall outlets and extension cords. This can result in the risk of fire or electric shock. 11.Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 12.To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorized servicenter when service is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 13.Unplug this unit from the wall outlet and refer servicing to an authorized servicenter when the following conditions occur: A. When the power supply cord or plug is damaged or frayed. B.If liquid has been spilled into the unit. C.If the unit has been exposed to rain or water. D.If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorized servicenter. E.If the unit has been dropped or physically damaged. F.If the unit exhibits a distinct change in performance. 14.During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning. 15.Do not use this unit to report a gas leak, when in the vicinity of the leak. SAVE THESE INSTRUCTIONS INSTALLATION: 1.Never install telephone wiring during a lightning storm. 2.Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3.Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4.Use caution when installing or modifying telephone lines. WARNING: To prevent the risk of fire or electrical shock, do not expose this product to rain or any type of moisture. OTHER INFORMATION l Keep the unit away from electrical noise- generating devices, such as fluorescent lamps and motors. l The unit should be kept free from dust, high temperature and vibration. l The unit should not be exposed to direct sunlight. l Do not place heavy objects on top of this unit. l Do not touch the plug with wet hands. Important safety instructions 4 Included accessories(To order, call toll free 1-800-435-7329) Power cord........1 pc.Telephone line cord ..............1 pc. Cordless handset ..................1 pc. — The rechargable battery is pre-installed. Paper tray ........1 pc. Belt clip..........1 pc. l If any items are missing or damaged, check with the place of purchase. l Save the original carton and packing materials for future shipping and transporting of the unit. Accessory order information The starter film is only 10 meters (32 1 / 2 ') long. We recommend buying regular film [50 m (164')] for extra stock. Caution: The film is not reusable. Do not rewind and use the film again. Model No. KX-FA55 Description Films Specificati…

Text truncated - open the document above for the full version.

EXHIBIT F LCD (COB) DIGITAL BOARD CIS CN503 3 4 1 2 5 6 7 8 9 10 CN502 1 2 3 4 5 COM (THON) THDAT CN505 STB2 GND THCLK TM +5V GND (PG) STB1 THLAT COM (THON) CN504 CN301 CN302 MIC IN 1 GND 2 +5V 3 JOG2 4 JOG1 5 KSTART 6 KLATCH 7 KSCLK 8 KRXD 9 KTXD 10 1 2 3 4 5 6 7 8 9 10 11 OPERATION BOARD 1 2 3 4 5 6 7 8 9 RESET 11 CN106CN507 5VD 1 DG 2 MON RX 3 CSI 4 CSO 5 CCLK 6 CBUSY1 7 CBUSY2 8 CRESET 9 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 9 S-ENB 1010 XT701 X902 X901 10.25MHz 32.768kHz CN651CN107 CN102 TO TEL LINE TO EXT TEL CN103 CN105 1 2 CHARGE BOARD 3.992MHz CN101 CN501 EX-HOOK1 1 BELL 2 LINE-RLY 3 DCN 4 SP MUTE 5 HOOK 6 MPO3 7 LINE RX 8 ANALOG BOARD CORDLESS BLOCK HANDSET BASE RF HANDSET BOARD RF THERMAL HEAD LINE TX 9 SP OUT 10 CDL TX(+) CDL TX(-) CDL RX(+) CDL RX(-) 24V 5VA AG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 11 12 13 14 15 16 17 GND +5V VO RS R/W E D4 D0 D1 D2 D3 D5 D6 D7 10 11 12 13 14 X501 32.768kHz X502 24.576MHz X503 32.256MHz M3 M2 M1 MOTOR M0 COM CLK SIG GND +5V GND SEL SI GND G. LED V. LED SPEAKER SP+ SP- XT701 10.25MHz X101 3.992MHz CN506 +5V DG PGPG +24V+24V+24V 76543 21 7 6 54321 POWER SUPPLY BOARD FPC91 Block Diagram

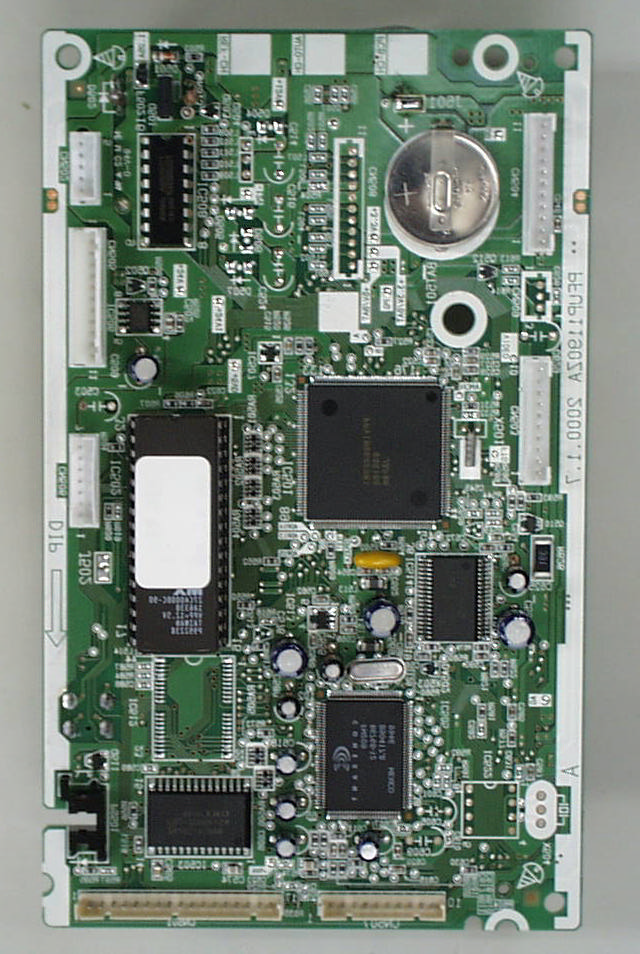

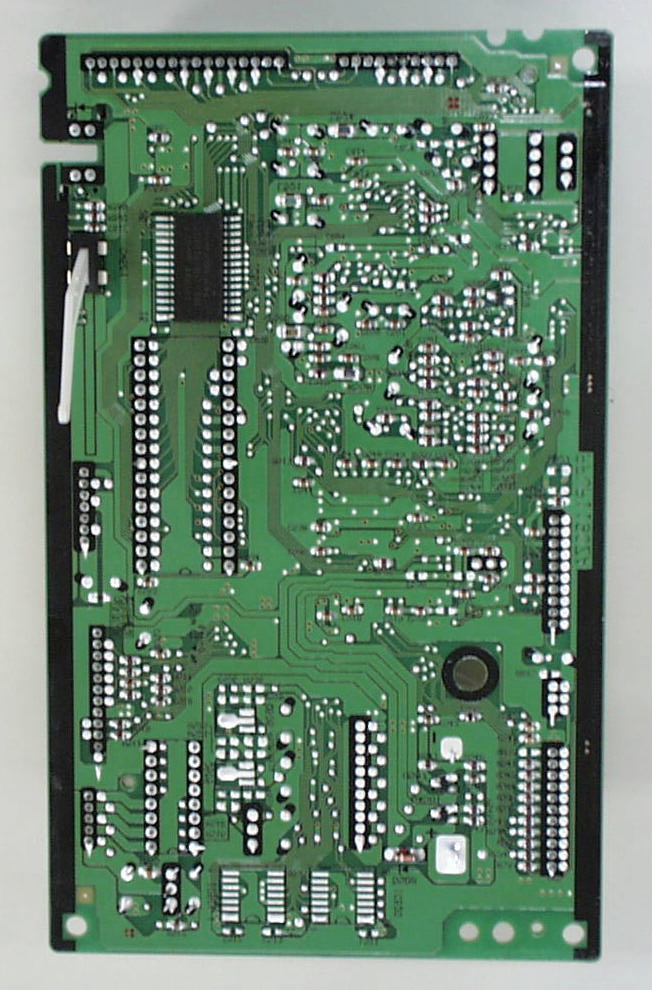

EXHIBIT D Fty Control No. : KM7-00-F002 FCC ID : ACJKM7KX-FPC91 EXHIBIT D PHOTOGRAPHS : FIG. 1 : OVERALL FRONT VIEW FIG. 2 : REAR VIEW FIG. 3 : BOTTOM VIEW FIG. 4 : BOTTOM VIEW REMOVING BOTTOM COVER FIG. 5 : POWER SUPPLY BOARD COMPONENTS SIDE FIG. 6 : POWER SUPPLY BOARD SOLDERING SIDE FIG. 7 : ANALOG (TELEPHONE INTERFACE) BOARD COMPONENTS SIDE FIG. 8 : ANALOG (TELEPHONE INTERFACE) BOARD SOLDERING SIDE FIG. 9 : DIGITAL (MAIN CONTROL) BOARD COMPONENTS SIDE FIG. 10 : DIGITAL (MAIN CONTROL) BOARD SOLDERING SIDE FIG. 11 : PORTABLE UNIT FIG. 12 : NAME PLATE OF PORTABLE UNIT FIG. 13 : HANDSET BOARD COMPONENTS SIDE FIG. 14 : HANDSET BOARD SOLDERING SIDE FIG. 15 : BASE AND HANDSET RF BOARD COMPONENTS SIDE FIG. 16 : BASE AND HANDSET RF BOARD SOLDERING SIDE FIG. 1 : OVERALL FRONT VIEW FIG. 2 : REAR VIEW FIG. 3 : BOTTOM VIEW FIG. 4 : BOTTOM VIEW REMOVING BOTTOM COVER FIG. 5 : POWER SUPPLY BOARD COMPONENTS SIDE FIG. 6 : POWER SUPPLY BOARD SOLDERING SIDE FIG. 7 : ANALOG (TELEPHONE INTERFACE) BOARD COMPONENTS SIDE FIG. 8 : ANALOG (TELEPHONE INTERFACE) BOARD SOLDERING SIDE FIG. 9 : DIGITAL (MAIN CONTROL) BOARD COMPONENTS SIDE FIG. 10 : DIGITAL (MAIN CONTROL) BOARD SOLDERING SIDE FIG. 11 : PORTABLE UNIT FIG. 12 : NAME PLATE OF PORTABLE UNIT FIG. 13 : HANDSET BOARD COMPONENTS SIDE FIG. 14 : HANDSET BOARD SOLDERING SIDE FIG. 15 : BASE AND HANDSET RF BOARD COMPONENTS SIDE BASE RF BOARD HANDSET RF BOARD FIG. 16 : BASE AND HANDSET RF BOARD SOLDERING SIDE BASE RF BOARD HANDSET RF BOARD

EXHIBIT C Fty Control No. : KM7-00-F002 FCC ID : ACJKM7KX-FPC91 EXHIBIT C MARKINGS : BASE UNIT WARNING SENTENCES PORTABLE UNIT MATERIAL OF LABEL : ALMINIUM OR TETRON FILM OR MOLDED ON THE UNIT FIG. 2 : REAR VIEW FIG. 12 : NAME PLATE OF PORTABLE UNIT

EXHIBIT A Fty Control No. : KM7-00-F002 FCC ID : ACJKM7KX-FPC91 EXHIBIT A STATEMENT OF SECURITY CODE The Facsimile with cordless telephone, Model KX-FPC91 provides with a Digital Security coding of one million combination of manufacturer changeable system. One million combinations -------- Phone section

EXHIBIT E OPERATIONI NO U T Signal ROUTE Description of Electrical Circuitry MONITORTEL LINE-T101-C111-R111-IC101(2-1)-C119-CN101(8)- {CN501(8)-C584-R576-IC514(23-34)-C551- R551-IC501(42-41)-C570-R563-IC514(32-35)-CN501(10)} -CN101(10)-C131-R133-IC102(4-5, 8)- CN105(1, 2)-SPEAKER CNG detectionTEL LINE-T102-CN106(3)- {CN507(3)-R640-C630-R581-IC514(20-31)-R610-C616-IC505(60)} Speaker DTMF Monitor {IC505(69)-C586-R574-IC514(24-34)-C551-R551-IC501(42-41)-C570-R563-IC514(32-35)-CN501(10)} - CN101(10)-C131-R133-IC102(4-5, 8)-CN105(1-2)-SPEAKER VOX detectionTEL LINE-T102-CN106(3)- {CN507(3)-R640-C630-R581-IC514(20-31)-R610-C616-IC505(60)} FAX RxTEL LINE-T101-C111-R111-IC101(2-1)-C119-CN101(8)- {CN501(8)-C584-R576-IC514(23-31)-R610- C616-IC505(60)} Note: { }: Inside the digital board DTMF for TEL LINE FAX Tx {IC505(69)-C586-R574-IC514(24-22)-CN501(9)} -CN101(9)-C122-R124-IC101(6-7)-C117-R110-T101- TEL LINE Dummy Ring Back Tone {IC501(38)-R544-Q508(E-C)-C557-R559-IC514(27-22)-CN501(9)} -CN101(9)-C122-R124-IC101(6-7)- C117-R110-T101-TEL LINE Ringing/ Alarm / Beep / Key Tone {IC501(38)-R544-Q508(E-C)-C557-R559-IC514(27-34)-C551-R551-IC501(42-41)-C570-R563- IC514(32-35)-CN501(10)} -CN101(10)-C131-R133-IC102(4-5, 8)-CN105(1, 2)-SPEAKER OPERATIONI NO U T Signal ROUTE (Portable Handset) MIC-C251-R240-IC201(24-23)-R280-C247-R234-IC201(22-19)-R232-R233-IC201(18-17)-C259-R251- VR201-RF UNIT(1-14)-C268-C270-ANT (Cordless Base Block) ANT-C200-RF UNIT(RF101(14-11))-C183-VR102-R179-C185-R184-R185-IC103(9-12)-C191-R186- IC103(13-14)-C192-R188-IC103(15-18)-CN101(11) (Main Block) {CN501(11)-R578-C587-IC514(15-22)-CN501(9)} -CN101(9)-C122-R124-IC101(6-7)-C117-R110-T101- TEL LINE Portable Handset Tx (Main Block) TEL LINE-T101-C111-R111-IC101(2-1)-C119-CN101(8)- {CN501(8)-C584-R576-IC514(23-34)-C551- R551-IC501(42-41)-C570-R563-IC514(32-11)-CN501(13)} - (Cordless Base Block) (Cordless Base Block) CN101(13)-C177-R173-IC103(1-2)-C175-IC103(3-6)-C171-R171-R170-VR101-RF UNIT-(RF101(1-14))- C200-ANT (Portable Handset) ANT-C270-C268-RF UNIT(14-11)-VR202-C210-R211-R215-IC201(53-11)-R229-C233 –IC201(10-3)–SPEAKER Portable Handset Rx IC201(10-5) Description of Electrical Circuitry Note: { }: Inside the digital board

EXHIBIT G Fty Control No. : KM7-00-F002 FCC ID : ACJKM7KX-FPC91 EXHIBIT G SCHEMATIC DIAGRAMS: FIG. 1: POWER SUPPLY BOARD BASE UNIT FIG. 2: ANALOG (TELEPHONE INTERFACE) BOARD BASE UNIT FIG. 3: DIGITAL (MAIN CONTROL) BOARD BASE UNIT FIG. 4: HANDSET BOARD PORTABLE UNIT FIG. 5: BASE RF BOARD BASE UNIT FIG. 6: HANDSET RF BOARD PORTABLE UNIT FIG.1 PO WER SUPPL Y BO ARD FIG.2 ANALOG BOARD FIG.3 DIGITAL BOARD FIG.4 HANDSET BOARD FIG.5 BASE RF BO ARD FIG.6 HANDSET RF BO ARD

IssueDate:March10,2000 Page 1 of 30 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL8090720 Name of Product: Facsimile with Cordless Telephone (900 MHz) - Base Unit Model/Type No.: KX-FPC91 FCC ID: ACJKM7KX-FPC91 Applicant : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, Japan Manufacturer : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, Japan Receive date of EUT: February 17, 2000 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to Electro- technical Lab. of MITI Japan and Communications Research Lab. of PTT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 30 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-8 Configuration of EUT / Operation mode of the EUT9 - 10 EUT Modification / Responsible Party / Deviation from standard11 Test results / Measurement Uncertainty12 - 13 Summary14 Test System-Arrangement (Drawings) 15 Preliminary Test and Test-setup (Drawings) 16 - 20 Test-setup (Photographs) at worst case 21 B) Test data Transmitter Portion Conducted Emission450 kHz - 30 MHz22 Electromagnetic Field Radiated Emission 9 kHz - 10 GHz23 - 25 Emission within the Frequency Band902 MHz - 928 MHz26 - 27 Receiver Portion Conducted Emission450 kHz - 30 MHz28 Electromagnetic Field Radiated Emission 30 MHz - 2 GHz29 - 30 JQA Application No. : KL8090720Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 3 of 30 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A, B and C (April 16, 1999) ô- Class A Digital Device ô- Class B Digital Device ò- Intentional Radiator ò- Receiver (employing superheterodyne techniques) Test procedure: Conducted emission and radiated emission test were performed according to the procedures in ANSI C63.4-1992. GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka Open Site (3, 10 and 30 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Description of the Equipment Under Test (EUT): 1) Name: Facsimile with Cordless Telephone (900 MHz) - Base Unit 2) Model/Type No.: KX-FPC91 3) Product Type: Prototype 4) Category: Intentional Radiator and Receiver (employing superheterodyne techniques) 5) EUT Authorization: - Verification- Certification- D.o.C.ôòô 6) Transmitting Frequency: 902.100 MHz - 903.550 MHz 7) Receiving Frequency: 926.100 MHz - 927.550 MHz 8) Power Rating: AC 120V 60Hz 1 3-pin plugφ Definitions for symbols used in this test report: ò- Black box indicates that the listed condition, standard or equipment is applicable for this Report. ô- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL8090720Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 4 of 30 TEST CONDITIONS AC Powerline Conducted Emission Measurement wasperformedinthefollowingtestsite. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan ò-Shieldedroom KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan ô-Shieldedroom ô- On metal plane of open site Used test instruments and sites: Model No.Device IDast Cal. DateCal. Interval L ô-ESH3A-1 ò-ESH2A-2May,19991Year ô-ESH2A-3 ò- KNW-407D - 6January, 20001 Year ô- KNW-408D - 11 ô-KNW-242D-7 ô- ESH3-Z5D - 12 ô- KNW-341CD - 13 ô- KNW-408D - 14 ô- KNW-244CD - 77 ô- KNW-408D - 78 ô- ESH2-Z5D - 10 ô- ESH2-Z3D - 17 ô- 8568BA - 10 ô- 8566BA - 13 ô- 8593AA - 15 ô- 65 BNC-50-0-1H - 26 ô- 65 BNC-50-0-1H - 27 ô-CableH-7 ò- CableH - 8January, 20001 Year Environmental conditions: Temperature: 22 ∞C Humidity: 40 % JQA Application No. : KL8090720Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 5 of 30 Magnetic Field Radiated Emission Measurement was performed in the frequency range of 9 kHz - 30 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan ò- 1st site (3 meters) ô- 2nd site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan ôôôô- Open test site- 3 m- 10 m- 30 m Used test instruments: Model No.Device IDast Cal. DateCal. Interval L ô-ESH3A-1 ò-ESH2A-2May,19991Year ô-ESH2A-3 ò- HFH2-Z2C - 2February, 19991 Year ô- HFH2-Z2C - 3 Environmental conditions: Temperature: 21 ∞C Humidity: 33 % JQA Application No. : KL8090720Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 6 of 30 Electromagnetic Field Radiated Emission Measurement was performed in horizontal and vertical polarization, in the frequency range of 30 MHz - 1000 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan ò- 1st site (3 meters) ô- 2nd site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan ôôôô- Open test site- 3 m- 10 m- 30 m Validation of Site Attenuation: 1) Last Confirmed Date : October 28, 1999 2) Interval: 1 Year Used test instruments: Model No.Device IDast Cal. DateCal. Interval L ò-ESV/ESV-Z3A-7/A-17December,19991Year ô-ESV/ESV-Z3A-6/A-18 ô-ESV/ESV-Z3A-4/A-20 ô-ESV/ESV-Z3A-8/A-19 ò- KBA-511AC - 12November, 19991 Year ò- KBA-611C - 22November, 19991 Year ô- KBA-511AC - 13 ô- KBA-611C - 1…

Text truncated - open the document above for the full version.

IssueDate:March10,2000 Page 1 of 27 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL8090761 Name of Product: Facsimile with Cordless Telephone (900 MHz) - Handset Model/Type No.: KX-FPC91 FCC ID: ACJKM7KX-FPC91 Applicant : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, Japan Manufacturer : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, Japan Receive date of EUT: February 17, 2000 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to Electro- technical Lab. of MITI Japan and Communications Research Lab. of PTT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 27 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-8 Configuration of EUT / Operation mode of the EUT9 - 10 EUT Modification / Responsible Party / Deviation from standard11 Test results / Measurement Uncertainty12 - 13 Summary14 Test System-Arrangement (Drawings) 15 Preliminary Test and Test-setup (Drawings) 16 - 19 Test-setup (Photographs) at worst case 20 B) Test data Transmitter Portion Conducted Emission450 kHz - 30 MHzN/A Electromagnetic Field Radiated Emission 9 kHz - 10 GHz21 - 23 Emission within the Frequency Band902 MHz - 928 MHz24 - 25 Receiver Portion Conducted Emission450 kHz - 30 MHzN/A Electromagnetic Field Radiated Emission 30 MHz - 2 GHz26 - 27 JQA Application No. : KL8090761Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 3 of 27 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A, B and C (April 16, 1999) ô- Class A Digital Device ô- Class B Digital Device ò- Intentional Radiator ò- Receiver (employing superheterodyne techniques) Test procedure: Radiated emission test was performed according to the procedures in ANSI C63.4-1992. GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka Open Site (3, 10 and 30 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Description of the Equipment Under Test (EUT): 1) Name: Facsimile with Cordless Telephone (900 MHz) - Handset 2) Model/Type No.: KX-FPC91 3) Product Type: Prototype 4) Category: Intentional Radiator and Receiver (employing superheterodyne techniques) 5) EUT Authorization: - Verification- Certification- D.o.C.ôòô 6) Transmitting Frequency: 926.100 MHz - 927.550 MHz 7) Receiving Frequency: 902.100 MHz - 903.550 MHz 8) Power Rating: DC 3.6 V (Ni-Cd Battery Pack : KX-A36) Definitions for symbols used in this test report: ò- Black box indicates that the listed condition, standard or equipment is applicable for this Report. ô- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL8090761Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 4 of 27 TEST CONDITIONS AC Powerline Conducted Emission Measurement wasperformedinthefollowingtestsite. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan ô-Shieldedroom KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan ô-Shieldedroom ô- On metal plane of open site Used test instruments and sites: Model No.Device IDast Cal. DateCal. Interval L ô-ESH3A-1 ô-ESH2A-2 ô-ESH2A-3 ô-KNW-407D-6 ô- KNW-408D - 11 ô-KNW-242D-7 ô- ESH3-Z5D - 12 ô- KNW-341CD - 13 ô- KNW-408D - 14 ô- KNW-244CD - 77 ô- KNW-408D - 78 ô- ESH2-Z5D - 10 ô- ESH2-Z3D - 17 ô- 8568BA - 10 ô- 8566BA - 13 ô- 8593AA - 15 ô- 65 BNC-50-0-1H - 26 ô- 65 BNC-50-0-1H - 27 ô-CableH-7 ô-CableH-8 Environmental conditions: Temperature:∞C Humidity:% JQA Application No. : KL8090761Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 5 of 27 Magnetic Field Radiated Emission Measurement was performed in the frequency range of 9 kHz - 30 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan ò- 1st site (3 meters) ô- 2nd site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan ôôôô- Open test site- 3 m- 10 m- 30 m Used test instruments: Model No.Device IDast Cal. DateCal. Interval L ô-ESH3A-1 ò-ESH2A-2May,19991Year ô-ESH2A-3 ò- HFH2-Z2C - 2February, 19991 Year ô- HFH2-Z2C - 3 Environmental conditions: Temperature: 21 ∞C Humidity: 33 % JQA Application No. : KL8090761Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPC91Issue Date : March 10, 2000 FCC ID: ACJKM7KX-FPC91 Page 6 of 27 Electromagnetic Field Radiated Emission Measurement was performed in horizontal and vertical polarization, in the frequency range of 30 MHz - 1000 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan ò- 1st site (3 meters) ô- 2nd site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan ôôôô- Open test site- 3 m- 10 m- 30 m Validation of Site Attenuation: 1) Last Confirmed Date : October 28, 1999 2) Interval: 1 Year Used test instruments: Model No.Device IDast Cal. DateCal. Interval L ò-ESV/ESV-Z3A-7/A-17December,19991Year ô-ESV/ESV-Z3A-6/A-18 ô-ESV/ESV-Z3A-4/A-20 ô-ESV/ESV-Z3A-8/A-19 ò- KBA-511AC - 12November, 19991 Year ò- KBA-611C - 22November, 19991 Year ô- KBA-511AC - 13 ô- KBA-611C - 19 ô- KBA-511AC - 11 ô- KBA-611C - 21 ô-CableH-1 ô-CableH-2 ò- CableH - 5Novembe…
