ACJKM7KX-FPG175Base unit for a 2.4 GHz DSS Cordless Phone with FAX

Please read these Operating Instructions before using the unit and save for future reference. 2.4GHz Cordless Phone with Fax Operating Instructions Model No. KX-FPG175 2 For your future reference Date of purchaseSerial number (found on the rear of the unit) Dealer’s name and address Dealer’s telephone number Caution: l The Telephone Protection Act of 1991 requires the following information to be clearly stated either at the top or bottom margin of the first message page when transmitting messages via telephone facsimile: — date and time of transmission, — identification of the business, entity or person(s) sending the facsimile, and — telephone number of the business, entity or person(s). To program this information into your unit, complete all the instructions on pages 7 to 9. l Note that the images of copied or received documents will remain on the used ink film. Use discretion when disposing of the used ink film. l Do not rub or use an eraser on the printed side of recording paper, as the print may smear. 3 Important safety instructions! When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on this unit. 3.Unplug this unit from power outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4.Do not use this unit near water, for example near a bath tub, wash bowl, kitchen sink, or the like. 5.Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6.Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7.Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8.For safety purposes this unit is equipped with a three prong grounded plug. If you do not have this type of outlet, please have one installed. Do not use any type of adaptor plug to defeat this safety feature. 9.Do not place objects on the power cord. Install the unit where no one can step or trip on the cord. 10.Do not overload wall outlets and extension cords. This can result in the risk of fire or electric shock. 11.Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 12.To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorized service center when service is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 13.Unplug this unit from the wall outlet and refer servicing to an authorized service center when the following conditions occur: A.When the power supply cord or plug is damaged or frayed. B.If liquid has been spilled into the unit. C.If the unit has been exposed to rain or water. D.If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorized service center. E.If the unit has been dropped or physically damaged. F.If the unit exhibits a distinct change in performance. 14.During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning. 15.Do not use this unit to report a gas leak, when in the vicinity of the leak. SAVE THESE INSTRUCTIONS 4 CAUTION: To reduce the risk of fire or injury to persons, read and follow these instructions. 1.Use only the battery(ies) specified. 2.Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste management codes for special disposal instructions. 3.Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed. 4.Exercise care in handling batteries in order not to short the battery to conductive materials such as rings, bracelets, and keys. The battery and/or conductor may overheat and cause burns. 5.Charge the battery(ies) provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual. INSTALLATION: l Never install telephone wiring during a lightning storm. l Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. l Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. l Use caution when installing or modifying telephone lines. WARNING: l To prevent the risk of fire or electrical shock, do not expose this product to rain or any type of moisture. OTHER INFORMATION: l Keep the unit away from electrical noise generating devices, such as fluorescent lamps and motors. l The unit should be kept free from dust, high temperature and vibration. l The unit should not be exposed to direct sunlight. l Do not place heavy objects on top of this unit. l Do not touch the plug with wet hands. Note: l Operating near 2.4GHz electrical appliances may cause interference. Move away from the electrical appliances and/or press the CH (Channel) button. l Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they are adequately shielded from external RF (radio frequency) energy. (The unit operates in the frequency range of 2401MHz to 2472MHz, and the power output level can range from 0.001 watts to 0.20 watts.) Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This facsimile with cordless telephone has four million digital security coding combinations that are provided by the following means: • Provided with 22 bits (four million) for security codes. • When the handset is not on the base unit, the 22 bit codes changes by the free-running timer. • When the user puts the handset on the base unit, the free-running timer ceases and decides the exact security code. The base unit sends the security code information to the handset. • When shipped from the factory, the security code is decided by the manufacture. However, once the user uses the cordless handset, the security code is constantly changing by the free-running timer.

Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 9 2.4GHz DSS Cordless Phone with Fax § 15.247(b) Maximum Peak Output Power Minimum Standard — The maximum peak output power of the transmitter shall not exceed 1 watt. Res. Bandwidth = 3 MHz (10dB/div) Vid. BW = 3 MHz Span = 10 MHz Ref. Level -20 dBm Sweep 5 ms sec Attenuator 0 dB ext. pad Max. Power Peak + Atten = dBm ⇒ Watts FREQ Base/Handset Channel Power Output Power Output (MHz) (B/H) (dBm) (mW) 2401.5 B 1 20.901 123.061 2434.5 B 12 21.631 145.587 2470.5 B 24 19.381 86.72 Table 4. Output Power Measurements REMARKS: PASS @ 2434.5 MHz F/S= 84.06 + 33.03 (AFCL) = 117.09 dBuv/M The antenna gain is 2.14 dBi so the numeric gain is 1.64. (FS * 3) 2 = 146 mW 31.64

Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 9 2.4GHz DSS Cordless Phone with Fax § 15.247(b) Maximum Peak Output Power Minimum Standard — The maximum peak output power of the transmitter shall not exceed 1 watt. Res. Bandwidth = 3 MHz (10dB/div) Vid. BW = 3 MHz Span = 10 MHz Ref. Level -20 dBm Sweep 5 ms sec Attenuator 0 dB ext. pad Max. Power Peak + Atten = dBm ⇒ Watts FREQ Base/Handset Channel Power Output Power Output (MHz) (B/H) (dBm) (mW) 2401.5 B 1 18.723 74.521 2434.5 B 12 19.483 88.772 2470.5 B 24 17.223 52.757 Table 4. Output Power Measurements REMARKS: PASS @ 2434.5 MHz F/S = 84.06 + 32.8 (AFCL) = 116.86dBuv/M The antenna gain is 2.14 dBi so the numeric gain is 1.64. Conducted Power = (FS * 3) 2 = 89.0 mW (30)(1.64)

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Zameel Shahat Secaucus, NJ 07094 Project Engineer Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 392-4161 e-mail: [email protected] July 27, 2001 KMTDKM7-01-F004 731 Confirmation Number: EA101201 To: Joseph Dichoso / FCC Application Processing Branch From: Zameel Shahat / Matsushita Electric Corp. of America Dear Sir: Please note following answers to your above referenced correspondence inquiry: Yes in our last correspondence our calculation has an error. The following is the correct calculation. @ 2434.5 MHz F/S = 84.06 + 32.8 (AFCL) = 116.86dBuv/M The antenna gain is 2.14 dBi so the numeric gain is 1.64. (FS * 3) 2 Conducted Power = ---------- = 89.0 mW (30)(1.64) Should you have any questions, please contact the undersigned. Thank you for your attention in this matter. Sincerely yours, Zameel Shahat Project Engineer

LCD (COB) DIGITAL BOARD CIS CN503 3 4 1 2 5 6 7 8 9 10 CN502 1 2 3 4 5 COM (THON) THDAT CN505 STB2 GND THCLK TM +5V GND (PG) STB1 THLAT COM (THON) CN504 CN301 CN302 GND +5V KSTART KLATCH KSCLK KRXD KTXD 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 CN509 CN303 1 2 3 1 2 3 OPERATION BOARD 1 2 3 4 5 6 7 8 9 RESET CN106CN510 +5VD 1 DG 2 MON RX 3 CSI 4 CSO 5 CCLK 6 CBUSY1 7 CBUSY2 8 CRESET 9 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 9 S-ENB 1010 X101 X201 24MHz 4.0MHz CN201 CN202 CN601 CN602 EX-HOOK1 1 BELL 2 LINE-RLY 3 DCN 4 SP MUTE 5 CHARGE 6 LINE RX ANALOG BLOCK HANDSET HANDSET PORTABLE BOARD RF THERMAL HEAD LINE TX SP OUT CDL TX(+) CDL TX(-) CDL RX(+) CDL RX(-) 24V +5VA AG 1 2 3 4 5 6 GND +5V VO RS R/W E D4 D0 D1 D2 D3 D5 D6 D7 10 11 12 13 14 X501 32.768kHz X502 24.576MHz X503 32.256MHz M3 M2 M1 MOTOR M0 COM CLK SIG GND +5V GND SEL SI GND G. LED V. LED CN506 +5V DG PGPG +24V+24V+24V 76543 21 7 6 54321 POWER SUPPLY BOARD Charge + MIC MIC (+) MIC (-) 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 Charge - BASE RF X101 24MHz X501 4.096MHz CORDLESS BLOCK KX-FPG175 BLOCK DIAGRAM

© 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax

Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 22 2.4GHz DSS Cordless Phone with Fax Appendix A: FCC ID Sample Label & Location LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 23 2.4GHz DSS Cordless Phone with Fax

© 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Matshushita Electric Industrial Co., Ltd. Dates of Tests: May 14-17, 2001 1006 Oaza Kadoma Test Report S/N: 15.210510291.ACJ Kadoma, Osaka 571 Japan Test Site: PCTEST Lab, Columbia MD Attention: Rich Mullen (PSCD) N. Yoshizumi-Kyushu MEICL FCC ID ACJKM7KX-FPG175 APPLICANT Matshushita Electric Industrial Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Method/System: Direct Sequence System (DSS) Equipment Type: 2.4GHz DSS Cordless Phone with Fax Frequency Range: 2401.5 — 2470.5 MHz (Base/Handset*) Model No(s).: KX-FPG175 Max. Output Power: 145.6mW EIRP (Base/Fax Machine) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. * The handset cordless phone is identical to the previously certified device FCC ID: ACJ96NKX-TG2583. 210510291.ACJ FCC Part 15.247 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 15.247 TABLE OF CONTENTS SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCT INFORMATION 3 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 4 B. RADIATED EMISSIONS 5 C. RESTRICTED BANDS 6 D. ANTENNA REQUIREMENT 7 E. DIRECT SEQUENCE BANDWIDTH 8 F. MAXIMUM PEAK POWER OUTPUT 9 G. POWER DENSITY 10 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 11-13 FREQUENCY MEASUREMENTS (SPURIOUS) 14 PROCESSING GAIN 15-19 LIST OF TEST EQUIPMENT 20 CONCLUSION 21 APPENDIX A - LABELLING REQUIREMENTS 22-23 APPENDIX B - PLOTS OF EMISSIONS 24 APPENDIX C - PHOTOGRAPHS OF TEST SET-UP 25 APPENDIX D - EUT PHOTOGRAPHS 26 APPENDIX E - USER’S MANUAL 27 Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 1 2.4GHz DSS Cordless Phone with Fax MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: Rich Mullen (PSCD) • FCC ID: ACJKM7KX-FPG175 • Class: Spread Spectrum Transceiver (DSS) • Type: 2.4GHz DSS Cordless Phone with Fax • Freq. Range: 2401.5 — 2470.5 MHz • Method/System: Direct Sequence System (DSS) • Model No(s): KX-FPG175 • Power Cord: Unshielded • Cable(s): Telco • USOC Jack: RJ-11 • Rule Part(s): § 15.247 • Dates of Tests: May 16-18, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 210510291.ACJ NOTE: 1. The receiver portion was tested and complies with Part 15B under the verification procedure. 2. The handset cordless phone is identical to the previously certified device FCC ID: ACJ96NKX-TG2583. Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 2 2.4GHz DSS Cordless Phone with Fax INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of the Panasonic 2.4GHz DSS Cordless Phone with Fax. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 3 2.4GHz DSS Cordless Phone with Fax PRODUCT INFORMATION Equipment Description: The Equipment under test (EUT) is the Panasonic 2.4GHz DSS Cordless Phone with Fax. Frequency Range: 2401.5 — 2470.5 MHz Channels: 24 (Base/handset) Channel Separation: 3.0 MHz Spread Spectrum Method: Direct Sequence (DBPSK modulation) Antenna: Omni-directional (base/handset) Power Consumption: 120VAC, 200mA (Base) Power Supply: Switching Power Supply Unit (AC 120V) (Base) Battery: Ni-Cd 3.6VDC 850m…

Text truncated - open the document above for the full version.

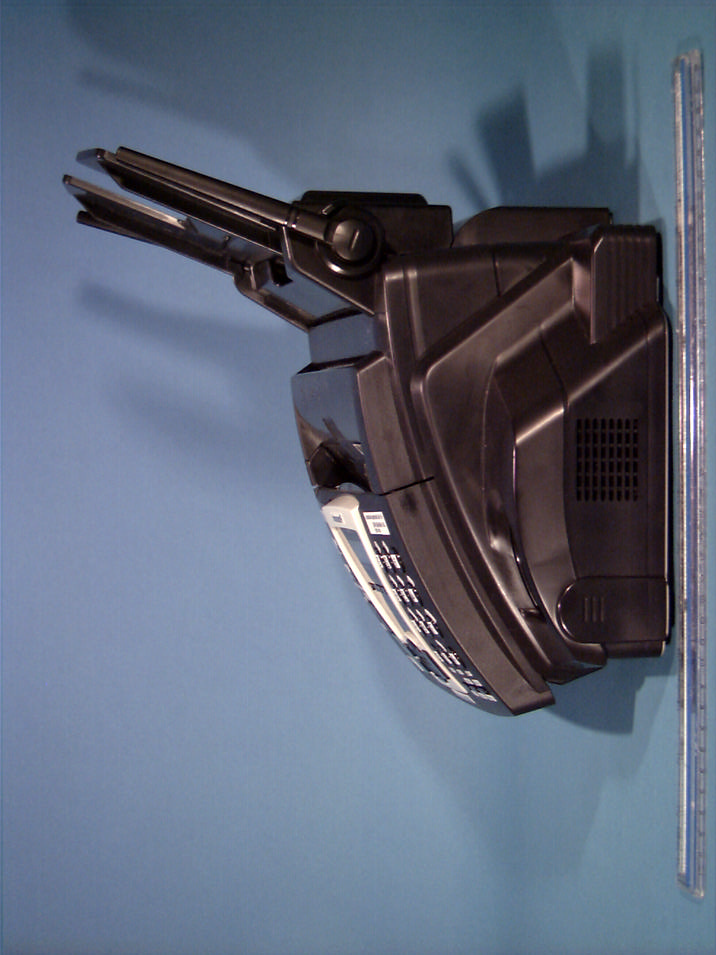

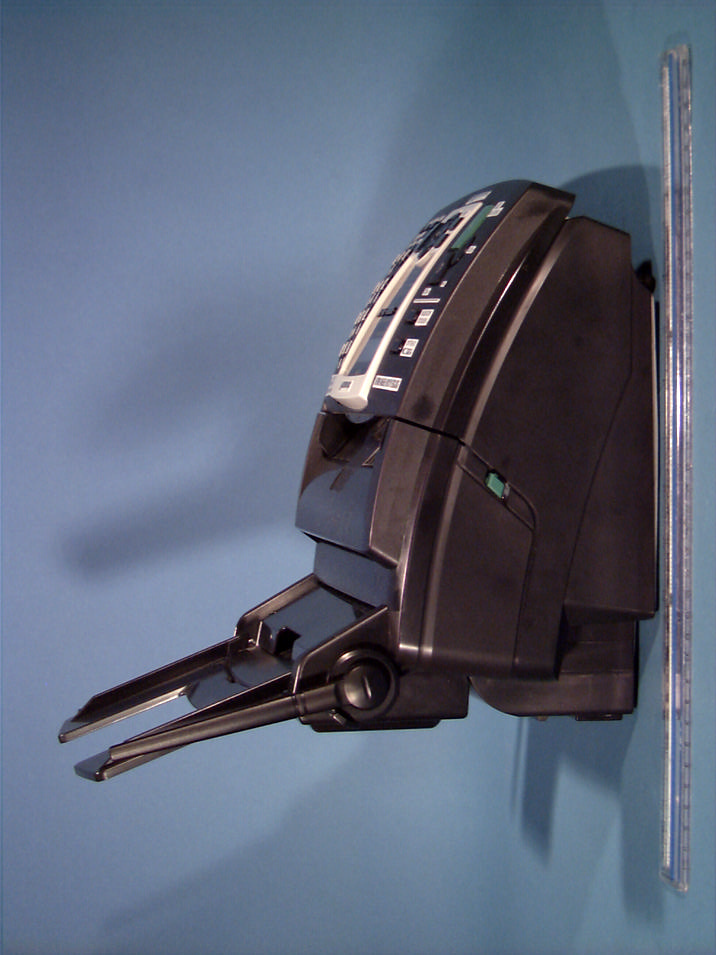

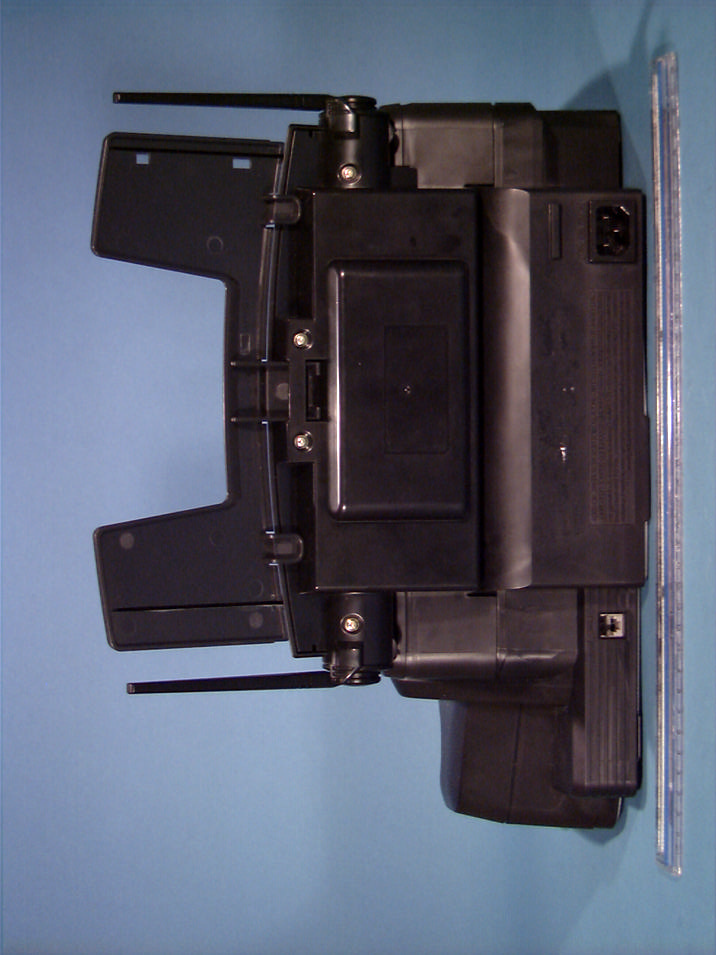

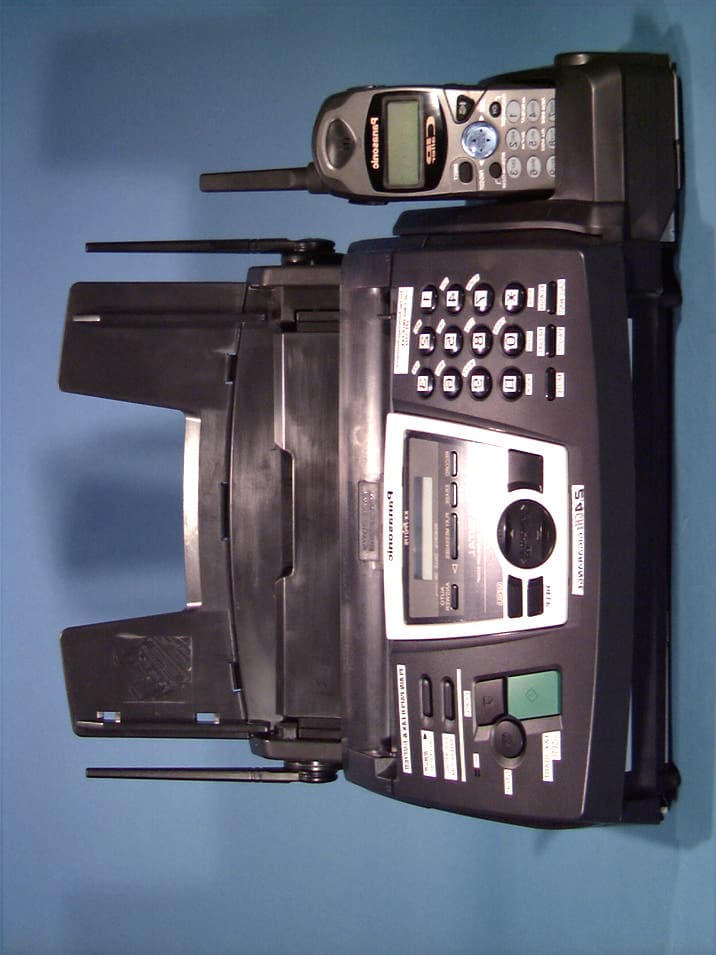

Test Report S/N: 15.210510291.ACJ FCC Part 15.247 Dates of Tests: May 16-18, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 25 2.4GHz DSS Cordless Phone with Fax Appendix C — Test Photographs © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax © 2001 PCTEST Lab Panasonic FCC ID: ACJKM7KX-FPG175 NVLAP Lab Code: 100431-0 2.4GHz DSS Cordless Phone with Fax
