ACJR07002Wireless Sound System

p q RQTX0051-Y F0107TM0 P PC Designed for Panasonic DVD Home Theater Sound Systems that are compatible with the SH-FX85.Dear customerThank you for purchasing this product. Fo r optimum performance and safety, please read these instructions carefully.Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.§ For Canada only: The word “Participant” is used in place of the word “Partner”. Operating Instructions Wireless Sound System Model No. SH-FX85 Table of ContentsIntroduction IMPORTANT SAFETY INSTRUCTIONS .................................................................. 3Maintenance............................................................................................................. 3Product service ........................................................................................................ 3 Use Setup ........................................................................................................................ 4 Connections .......................................................................................................... 4Making the wireless link ........................................................................................ 5 Control reference guide ............................................................................................ 6Enjoying audio from the home theater unit............................................................... 6Using this unit as a stand-alone amplifier................................................................. 7 Reference Limited Warranty (ONLY FOR U.S.A.) ...................................................................... 8Limited Warranty (ONLY FOR CANADA) ............................................................... 10Troubleshooting guide ............................................................................................ 11Specifications ......................................................................................................... 12 Please check and identify the supplied accessory. Use number indicated in parentheses when asking for replacement part. (Product number correct as of January 2007. This may be subject to change.) For U.S.A.: To order this accessory, refer to “Accessory Purchases” on page 9.For Canada: To order this accessory, call the dealer from whom you made your purchase.∏ 1 AC power supply cord (K2CB2CB00018) For use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with this unit. System SH-FX85 Digital transmitter SH-FX85T Wireless sound system SB-FX85 As an E N ERGY STAR Partner, Panasonic has determined thatthis prod u ct meets the E N ERGY STAR g u idelines for energy efficiency. ® ® Accessory RQTX_FX85_En.fm Page 1 Thursday, December 21, 2006 2:56 PM 2 RQTX0051 ENGLISH WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, ≥ DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. ≥ USE ONLY THE RECOMMENDED ACCESSORIES. ≥ DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION!DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash w ith arro w head sym b ol, w ithin an e qu ilateral triangle, is intended to alert the u ser to the presence of u nins u lated “dangero u s v oltage” w ithin the prod u ct’s enclos u re that may b e of s u fficient magnit u de to constit u te a risk of electric shock to persons. The exclamation point w ithin an e qu ilateral triangle is intended to alert the u ser to the presence of important operating and maintenance (ser v icing) instr u ctions in the literat u re accompanying the appliance. CAUTIO N : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO N OT REMOVE SCRE W S. N O USER-SERVICEABLE PARTS I N SIDE. REFER SERVICI N G TO QUALIFIED SERVICE PERSO NN EL. THE FOLLOWING APPLIES ONLY IN THE U.S.A.FCC Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide r easonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥ Consult the dealer or an experienced radio/T V technician for help. FCC caution: To maintain compliance with FCC regulations, shielded interface cables must be used with this equipment. Operation with non-approved equipment or unshielded cables may result in interference to radio and T V reception. Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept a…

Text truncated - open the document above for the full version.

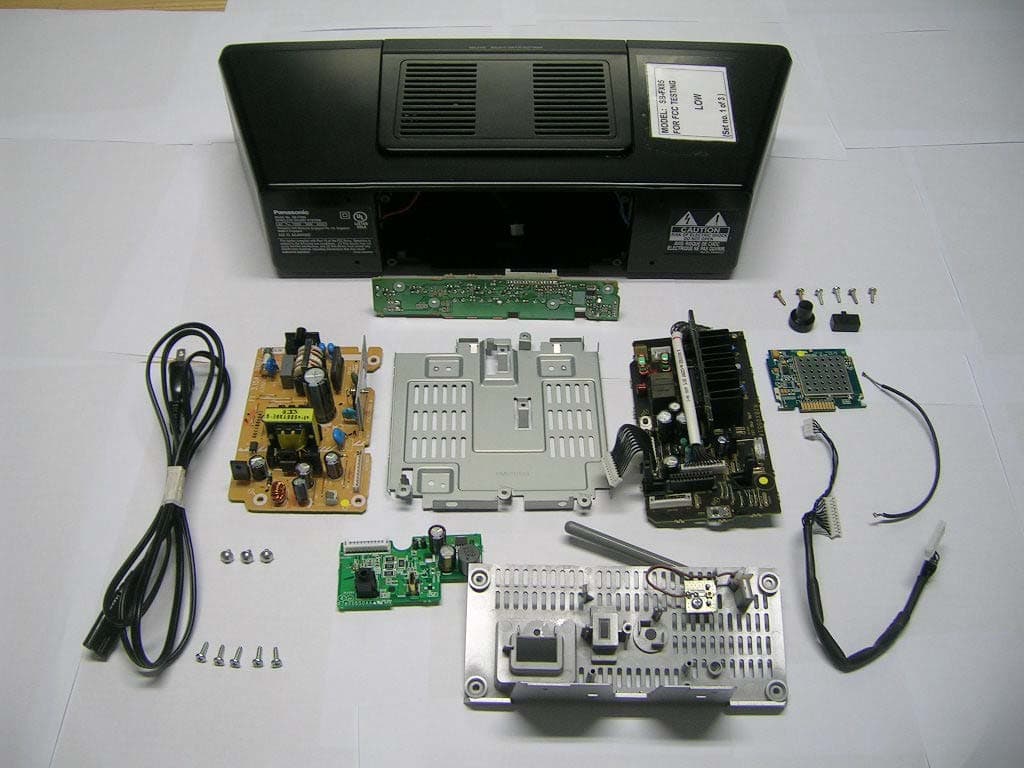

EUT PHOTOGRAPHS Front View Rear View EUT PHOTOGRAPHS Left View Right View EUT PHOTOGRAPHS Top View Bottom View EUT PHOTOGRAPHS EUT Top Housing External View EUT Top Housing Internal View EUT PHOTOGRAPHS EUT Exploded View

Sample Label Physical Location of FCC Label on EUT

EUT PHOTOGRAPHS Power Supply PCB Component Side EUT PHOTOGRAPHS Power Supply PCB Trace Side EUT PHOTOGRAPHS Main Board PCB Component Side EUT PHOTOGRAPHS Main Board PCB Trace Side EUT PHOTOGRAPHS RF Module Circuit PCB Component Side EUT PHOTOGRAPHS RF Module Circuit with RF Shield Removed EUT PHOTOGRAPHS RF Module Circuit PCB Trace Side EUT PHOTOGRAPHS RF Antenna Connection Internal View EUT PHOTOGRAPHS RF Antenna External View EUT PHOTOGRAPHS EUT PCB Component Side EUT PHOTOGRAPHS EUT PCB Trace Side EUT PHOTOGRAPHS Antenna Board PCB Component Side EUT PHOTOGRAPHS Antenna Board PCB Trace Side EUT PHOTOGRAPHS Display PCB Component Side EUT PHOTOGRAPHS Display PCB Trace Side

Test Report No. 56S061183/01 dated 09 Jan 2007 Note: This report is issued subject to TÜV SÜD PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G LA-2006-0355-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Corporation Pte. Ltd. Testing Group No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.psbcorp.com Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive #04-01/05 The Franklin Singapore 118223 Page 1 of 73 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2006 OF A WIRELESS SOUND SYSTEM [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] TEST FACILITY TÜV SÜD PSB Corporation Pte Ltd, Telecoms & EMC, Testing Group, 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) 325572 (10m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (3m and 10m Anechoic Chambers) PREPARED FOR Mr Ho Yip Leong Panasonic AVC Networks Singapore Pte Ltd 202 Bedok South Avenue 1 Singapore 469332 Tel : (65) 6240 1891Fax : (65) 6245 8804 QUOTATION NUMBER 56Q0601479 JOB NUMBER 56S061183 TEST PERIOD 29 Dec 2006 – 05 Jan 2007 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Test Report No. 56S061183/01 dated 09 Jan 2007 Panasonic AVC Networks Singapore Pte LtdPage 2 of 73 Wireless Sound System [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSION TEST SPECTRUM BANDWIDTH (6dB BANDWIDTH MEASUREMENT) TEST MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED) TEST PEAK POWER SPECTRAL DENSITY TEST MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Test Report No. 56S061183/01 dated 09 Jan 2007 Panasonic AVC Networks Singapore Pte LtdPage 3 of 73 Wireless Sound System [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2006 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209 Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.247(a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement) Pass 15.247(b)(3)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious EmissionsPass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Pass 15.35(c)Duty Cycle Factor ComputationNot Applicable * See Note 5 Test Report No. 56S061183/01 dated 09 Jan 2007 Panasonic AVC Networks Singapore Pte LtdPage 4 of 73 Wireless Sound System [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] TEST SUMMARY Notes 1.Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit Channel Frequency (GHz) Channel 02.412 Channel 12.438 Channel 22.464 2.All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. 4.All test measurement procedures are according to ANSI C63.4: 2003. 5.The Equipment Under Test (EUT) was tested in a continuous transmission mode, ie. 0dB duty cycle. Modifications 1.No modifications were made. Test Report No. 56S061183/01 dated 09 Jan 2007 Panasonic AVC Networks Singapore Pte LtdPage 5 of 73 Wireless Sound System [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a Wireless Sound System. Manufacturer: Panasonic AVC Networks Singapore Pte Ltd 202 Bedok South Avenue 1 Singapore 469332 Model Number: SB-FX85 FCC ID: ACJR07002 Serial Number: Nil Microprocessor: NEC uPD78F0501 Operating / Transmitting Frequency : 2.412GHz (lower channel) to 2.464GHz (upper channel) Clock / Oscillator Frequency: 12.288MHz, 22MHz Modulation: DSSS Port / Connectors: Refer to manufacturer's user manual / operating manual. Rated Input Power: 110V 60Hz Accessories: Nil Test Report No. 56S061183/01 dated 09 Jan 2007 Panasonic AVC Networks Singapore Pte LtdPage 6 of 73 Wireless Sound System [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] SUPPORTING EQUIPMENT DESCRIPTION The EUT was tested as a stand-alone unit without any supporting equipment. Test Report No. 56S061183/01 dated 09 Jan 2007 Panasonic AVC Networks Singapore Pte LtdPage 7 of 73 Wireless Sound System [ Model : SB-FX85 ] [ FCC ID : ACJR07002 ] EUT OPERATING CONDITIONS FCC Part 15 1. Conducted Emissions 2. Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) 3. Spectrum Bandwidth (6dB Bandwidth Measurement) 4. Maximum Peak Power 5. RF Conducted Spurious Emissions 6. Band Edge Compliance (Conducted) 7. Band Edge Compliance (Radiated) 8. Peak Power Spectral Density 9. Maximum Permissible Exposure The EUT was exercised by operating in maximum continuous transmission in test mode, i.e transmitting at lower, middle an…

Text truncated - open the document above for the full version.

Conducted Emissions Test Setup (Front View) Conducted Emissions Test Setup (Rear View) Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) Spectrum Bandwidth (6dB Bandwidth Measurement) Test Setup Maximum Peak Power Test Setup RF Conducted Spurious Emissions Test Setup Band Edge Compliance Test Setup Band Edge Compliance (Radiated) Test Setup Peak Power Spectral Density Test Setup Maximum Permissible Exposure (MPE) Test Setup
