ACJRP-WF930HWireless Headphone

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 15-Dec-2003 Sheet of File: C:\project\rf\900Mhz\PANASONIC\RF930-900.DDB Drawn By: Y1 E?ANTENNA LS1R-0utLS2L-out RF930 900Mhz RX Block Diagram 32ohm32ohm Bandpass RF Amp RF IF Lo IF AmpCh Scan AF Amp OSC Q1 Q2 IC3IC2 IC4 Q3 2V4

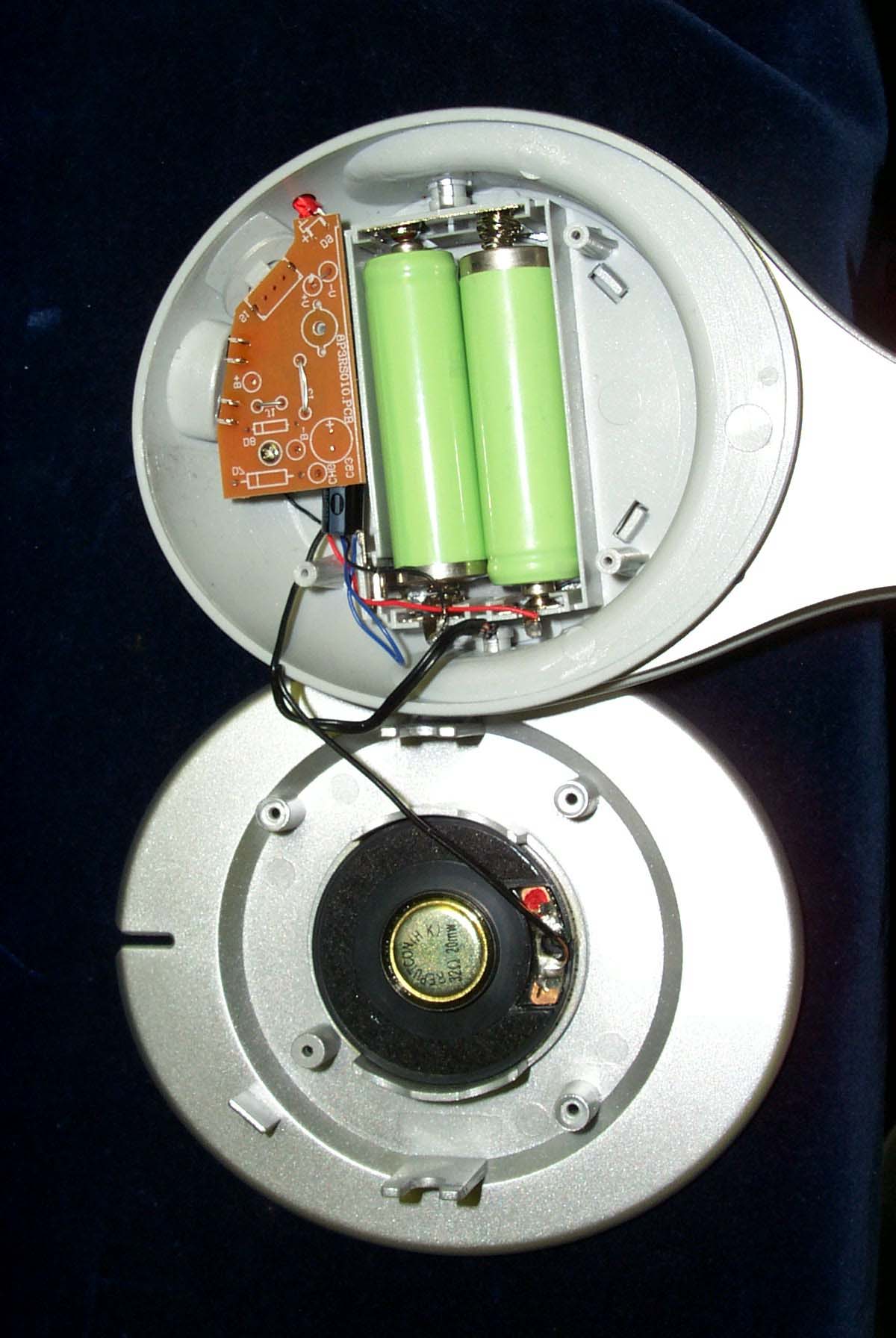

FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 20 Figure 7.2 Rear View FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 21 Figure 7.3 Left Side Open View

FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of the Label FCC LABEL This device complies with part 15 of the FCC Rules. Operating is subject to the followin g two conditions: (1) This device may not cause harmful interference, and (2) this device must accept an y interference received, includin g interference that may cause undesired operation. FCC ID: ACJRP-WF930H

FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 22 Figure 7.4 Right Side Open View FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 23 Figure 7.5 Right Side PBC Component Side FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 24 Figure 7.6 Right Side PBC Foil Side FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 25 Figure 7.7 Right Side Metal Box Open View

Model : Panasonic RP-WF930T Operation circuit description Transmitter Audio signal input from P1 then input to IC200, IC200 is a preamplifier with automatic sound level control, L200 and L201 are low pass filter make audio frequency under 19Khz, then audio signal input to Q209, Q210 and feedback to IC200 it is called “ Surround ”, S202 is to control the “ surround “ enable or not, then audio signal input to IC1, IC1 is a MPX encoder make left and right audio signal mix together and modulate, then input to Q2, Q2 is a VCO which generate 900Mhz RF signal, Q1 is a buffer make RF signal more strong, Q3 is a power amplifier which increase the RF power then pass a low pass filter transmit the RF signal through antenna. VR1 and VR3 are for RF frequency range setting and select by S200, S200 is a channel switch select CH1 or CH2 or CH3. Q200, Q203, Q208 and IC203 is an automatic power on off circuit, when no audio signal input over 120 seconds, the unit will auto off, when audio signal comes again, the unit will auto switch on, red led D202A will light on again, which is an operating index. IC202, Q204 and Q207 are a battery charger circuit, which will automatic charge the battery when put the receiver on the unit, green led D202B turn on and the transmitter will turn off, green led light off means the battery is fully charged. Receiver RF signal receive from antenna, Y1 is a band pass filter which reject most of un-want frequency, Q1 is a RF amplifier which increase RF signal go to the mixer – Q2, also Q3 and Y2 is an oscillator which generate the fixed LO frequency to Q2 and mix with RF signal then go to IC2, IC2 is an inter – frequency stage include stereo MPX decoder, it demodulate the MPX signal return to original left and right audio signal, IC3 is an auto scan frequency circuit, it make IC2 at correct frequency to receive RF signal, the left and right audio signal go to IC4, which is a power amplifier, it makes enough power to drive the speaker LS1 and LS2, VR1 is a sound volume control. Q4 and Q7 is a lock circuit to lock the correct channel. Q5 and Q6 is a mute circuit. Power supply and ground Transmitter power is supplied by an external 12V 150mA AC/DC adaptor, no external connect is available for grounding, the printed circuit board traces are the only ground. Receiver power is supplied by a built in NiMH 2.4V battery pack.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 15-Dec-2003 Sheet of File: C:\project\rf\900Mhz\PANASONIC\RF930-900.DDB Drawn By: Y1906Mhz Q15508 Q25508 Q33356 E?ANTENNA C14p R127k R3330 L212nh L415nh C2100p Y2418Mhz C1210p C163pC173p C181pC191000p C133p C154p C5100p C41000p C71p C80.01u C94p C60.01u C30.01u R518kR682k R7100 R4330 L615nh L715nh R227k Vi Vo GND IC1 1V5 C140.01u L5120nh C1010p C110.01u IC2TA2111F Y410.7M IC374HC4060 R2730kR2830kR2930kR3030kR3130k R2115kR2215kR2315kR2415kR2515kR2615k R3230k R2030kR1915k D2BB133 D1BB133 C2210p C2310p C384u7 C351000p R18180k R17330k R3330k R3468k C364700p 123456789101112 13 14 15 16 17 18 19 20 21 22 23 24 C322u2 C334u7 Y310.7Mhz C40.022u C301u C290.01u C280.1u C252p C21NC C414u7 C424u7 C272u2 L8 L9 R93k3 C26470p IC4TDA2822 3417 6 58 2 C48390pC47390p C461000pC451000p C50100u C49100u C52220uC51220u C60220u VR1b10kBVR1a10kB R4110k R398k2 R4210k R408k2 R4710 R4810 C560.1u C550.1u LS1R-0utLS2L-out R353k3R363k3 C39 0.022u C2039p C2425p R1022kR114k7 R123k3 R1322k R15180k D34148 D64148 D44148 Q73904 Q43906 R16 1k C37100u R141k 101116812 1361445 1597 R372k2 R82k2 C440.01uC430.01u RL R451kR461k Q93904 Q8 BC807 R53 10k R5410k D54148 D74001 D84148 D9LEDR49100 R50270 CHG- CHG+ BT12V4 R562k7 R5910kR5810kR5710k S1SPDT C590.1u R8330 C340.1u C310.1u C57 22u OUTBGNDOUTA VCC +A+B -A -B RF930 900Mhz RX 32ohm32ohm C53220u C540.1u D104148 D114148 Q53904 Q63904 S2SCAN C588p R445k R435k

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RF CORDLESS HEADPHONE RECEIVER MODEL: RP-WF930H FCC ID: ACJRP-WF930H December 16, 2003 This report concerns (check one): Original grant x Class II change Equipment type: Superregenerative Receiver Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. Report prepared by: Advanced Compliance Lab Report number: 0048-031210-01-RX The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Com pliance Laboratory FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .........................................................................................................1 Table of Contents ...........................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION ...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility ..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION ......................................................................9 3.1 Justification ..................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System .................................................................9 4. SYSTEM BLOCK DIAGRAM.................................................................................12 5. CONDUCTED EMISSION DATA ..........................................................................13 5.1 Test Methods and Conditions .....................................................................13 5.2 Test Data .......................................................................................................14 6. RADIATED EMISSION DATA ...............................................................................16 6.1 Field Strength Calculation ..........................................................................16 6.2 Test Methods and Conditions .....................................................................16 6.3 Test Data .......................................................................................................16 7. PHOTOS OF TESTED EUT ....................................................................................18 FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label...............................................................................................8 Figure 2.2 Location of Label on Back of the EUT ......................................................8 Figure 3.1 Radiated Front .............................................................................................10 Figure 3.2 Radiated Rear ..............................................................................................10 Figure 3.3 Conducted Front..........................................................................................11 Figure 3.4 Conducted Rear ...........................................................................................11 Figure 4.1 System Block Diagram ................................................................................12 Figure 5.1 Line Conducted............................................................................................14 Figure 5.2 Neutral Conducted ......................................................................................15 Figure 7.1 Front View....................................................................................................19 Figure 7.2 Rear View .....................................................................................................20 Figure 7.3 Left Side Open View....................................................................................21 Figure 7.4 Right Side Open View .................................................................................22 Figure 7.5 Right Side PBC Component Side ...............................................................23 Figure 7.6 Right Side PBC Foil Side ............................................................................24 Figure 7.7 Right Side Metal Box Open View...............................................................25 F…

Text truncated - open the document above for the full version.

FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Front Figure 3.2 Radiated Rear FCC ID: ACJRP-WF930H ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.3 Conducted Front Figure 3.4 Conducted Rear
