ACJRPBT10TBluetooth Dongle

Operating Instructions Digital Wireless Earphones Model No. RP-BT10 Dear Customer Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference. P RQT8993-P RQT8993 23 RQT8993 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Unplug this apparatus during lightning storms or when unused for long periods of time. 13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14) Do not operate the appliance which has a damaged output cord or enclosure or plug. 15) Always unplug the appliance when not in use. 16) The appliance is designed to supply Audio/ Video equipment, for indoor use only. 17) Do not cover the equipment when in use. 18) The main plug used as disconnect device from the mains so the disconnect device shall remain readily operable. 19) Do not expose to dripping or splashing and do not place objects filled with liquids on the apparatus. 20) Do not exceed the manufacturer’s specification when in use. 3 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, ● DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. ● USE ONLY THE RECOMMENDED ACCESSORIES. ● DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. RQT8993 45 RQT8993 The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8- BATTERY for information on how to recycle this battery The receiver (handsfree unit) is certified under FCC ID: ACJRPBT10R. The FCC ID is also located on the battery cover and inside the battery compartment. -If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC caution: To maintain compliance with FCC regulations, shielded interface cables must be used with this equipment. Operation with non-approved equipment or unshielded cables may result in interference to radio and TV reception. Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity Trade Name: Panasonic Model no.: RP-BT10 Responsible Party: Panasonic Corporation of North America One Pan…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7765 / Fax: 201-392-4564 Email: [email protected] Erica Martinez RF Engineer Product Safety and Compliance Division Amended: April 25, 2007 Issued: April 18, 2007 AVG-07-U029 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes Intertek ETL Semko to act as both our testing facility and FCC agent in the preparation of TCB Certification application for a one year period for the below described product. Product Name: Transmitter Model RP-BT10T Unique Identifier: FCC ID: ACJRPBT10T Product Function: Ipod Base Transmitter (transceiver) dongle transmits music to Receiver Model RP- BT10R, which will be separately TCB certified under FCC ID: ACJRPBT10R Product Specification: Bluetooth Version 2.0 with Enhanced Data Rate of 3.0 Mbps / Power Class 2 Carrier Frequency 2402 ~ 2480 MHz Rated RF Output: Maximum Peak RF Conducted Output Power 1.81 mW FCC Rule Parts: Part 15C, Section 15.249 Certification for Intentional Radiator Equipment Classification: Digital Transmission System Antenna: Internal antenna, multilayer ceramic with 0 dBi peak antenna gain. RF Exposure Evaluation: The maximum source-based time averaging duty factor in operation is 11.72%. The radiated and conducted E.I.R.P. source-based time-averaged output power is less then the exemption power limit for General Public Use; therefore, it is concluded that the dongle is exempt from SAR Evaluation. Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Victory Concept Industries Ltd. 4/F,CAC Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Manufacturer Contact: Ms. Phoebe Chan [email protected] Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7765 / Fax: 201-392-4564 Email: [email protected] Erica Martinez RF Engineer Product Safety and Compliance Division In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the transmitter exhibits which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Thank you for your attention to this matter. Prepared by: Erica Martinez __________________ Erica Martinez RF Engineer Product Safety & Compliance Division Reviewed by: Richard Mullen __________________ Richard Mullen Group Manager Product Safety & Compliance Division

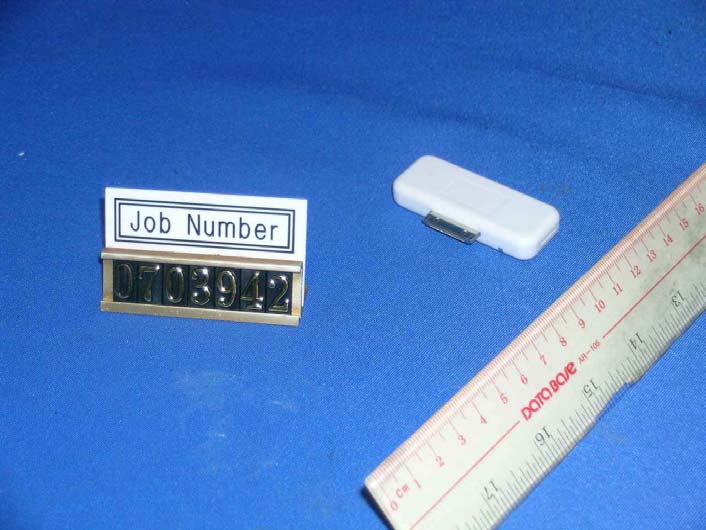

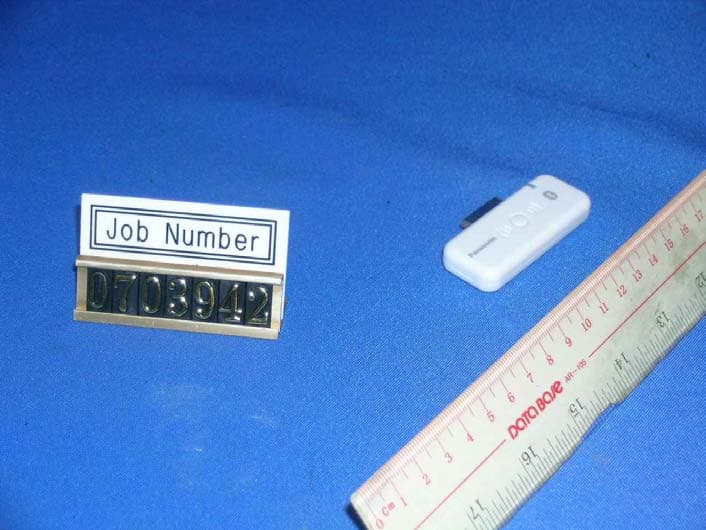

INTERTEK TESTING SERVICES External Photos FCC ID: ACJRPBT10T external photos - 1 of 1

Model: RP-BT10T Label

INTERTEK TESTING SERVICES Internal photos FCC ID: ACJRPBT10T internal photos - 1 of 2 Bluetooth Dongle assembly Bluetooth Dongle Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: ACJRPBT10T internal photos - 2 of 2 Bluetooth Dongle Main PCB solder side

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Panasonic Corporation of North America Application For Certification Bleutooth Dongle (FCC ID: ACJRPBT10T) 07039421 KL/ ac March 31, 2007 INTERTEK TESTING SERVICES FCC ID: ACJRPBT10T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: ACJRPBT10T ii MEASUREMENT/TECHNICAL REPORT Panasonic Corporation of North America - Model: RP-BT10T FCC ID: ACJRPBT10T This report concerns (check one:) Original Grant X Class II Change Equipment Type : DXT - Pt 15 Low Pwr Transceiver, Rx Verified Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: ACJRPBT10T iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................... 3 1.3 Test Methodology.................................................................................................... 3 1.4 Test Facility............................................................................................................. 3 2.0 System Test Configuration...................................................................................... 5 2.1 Justification ............................................................................................................. 5 2.2 EUT Exercising Software......................................................................................... 5 2.3 Support Equipment List and Description .................................................................. 6 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 3.0 Emission Results..................................................................................................... 9 3.1 Field Strength Calculation...................................................................................... 10 3.2 Radiated Emission Configuration Photograph........................................................ 11 3.3 Radiated Emission Data ........................................................................................ 12 3.4 Radiated Emission on the Bandedge..................................................................... 16 3.5 Radiated Emissions from Digital Portion of EUT .................................................... 17 3.6 Transmitter Duty Cycle Calculation and Measurements ......................................... 19 4.0 Equipment Photographs........................................................................................ 21 5.0 Product Labelling................................................................................................... 23 6.0 Technical Specifications........................................................................................ 25 7.0 Instruction Manual................................................................................................. 27 8.0 Confidentiality Request......................................................................................... 29 INTERTEK TESTING SERVICES FCC ID: ACJRPBT10T iv List of attached file Exhibit type File Description filename Cover Letter Confidentiality Request request.pdf Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission config photos.doc Test Report Emission Plot emission.pdf Test Report Duty Cycle Calculation and Measurement dcc.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: ACJRPBT10T emission - 1 of 1 Plot D1A Plot D1B

INTERTEK TESTING SERVICES Transmitter Duty Cycle Calculation and Measurement Plots FCC ID: ACJRPBT10T dcc - 1 of 1 Plot D2A Plot D2B

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: ACJRPBT10T config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
