ACJT10001RF Transceiver Module

until 2009/12/30 Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North AmericaOne Panasonic Way, Secaucus,New Jersey 07094http://www.panasonic.com Panasonic Canada Inc.5770 Ambler DriveMississauga, OntarioL4W 2T3www.panasonic.ca RQTX1122-Y F1209SA0 C Panasonic Corporation 2009 Printed in Malaysia p PP Designed for Panasonic Home Theater Sound Systems that are compatible with the SH-FX71. Operating Instructions Wireless System Model No. SH-FX71 If you have any questions contactIn the U.S.A. and Puerto Rico: 1-800-211-PANA (7262)In Canada: 1-800-561-5505Only for U.S.A. and Puerto Rico:The warranty can be found on page 13.Only for Canada: The warranty can be found on page 15. SH-FX71_RQTX1122-Y_En.book Page 1 Thursday, November 19, 2009 4:48 PM 2 RQTX1122 WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, ≥ DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. ≥ USE ONLY THE RECOMMENDED ACCESSORIES. ≥ DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICI NG TO QUALIFIED SERVICE PERSONNEL. CAUTION!DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WE LL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. The socket outlet shall be installed near the equipment and easily accessible.The mains plug of the power supply cord shall remain readily operable.To completely disconnect this apparat us from the AC Mains, disconnect the power supply cord plug from AC receptacle. THE FOLLOWING APPLIES ONLY IN THE U.S.A.FCC Note:This equipment has been tested and foun d to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful in terference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥ Consult the dealer or an experienced radio/TV technician for help. FCC caution: To maintain compliance with FCC regulations, shielded interface cables must be used with this equipment. Operation with non-approved equipment or unshielded cables may result in inte rference to radio and TV reception. Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate this equipment.This device complies with Pa rt 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interferen ce received, including interference that may cause undesired operation.Responsible Party:Panasonic Corporation of North AmericaOne Panasonic WaySecaucus, NJ 07094Support Contact:Panasonic Consumer Electronics CompanyTelephone No.: 1-800-211-PANA (7262) To satisfy FCC RF exposure requiremen ts for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. WARNING: SH-FX71_RQTX1122-Y_En.book Page 2 Thursday, November 19, 2009 4:48 PM RQTX1122 IMPORTANT SAFETY INSTRUCTIONS 3 IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicabl e safety instructions listed below. Keep these operating instructions handy for future reference.1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includi ng amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer.12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged,…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division December 11, 2009 AVSG-09-F001 TUV SUD PSB Pte Ltd. 1, Science Park Drive Singapore 118221 Re: Request for Confidentiality for RF Transceiver Card, Model RFAX1012 FCC ID: ACJT10001 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 and 0.459. We request confidentiality for the following materials submitted with the accompanying application: 1. Block Diagrams 2. Circuit Diagrams 3. Parts List (there is no user adjustment tune-up procedures) 4. Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Mr. Vincent Yee / Panasonic AVC Networks (S) Pte Ltd.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division December 11, 2009 AVSG-09-F001 TUV SUD PSB Pte Ltd. 1, Science Park Drive Singapore 118221 Re: Request for Full Modular Approval for Mobile Application / FCC Part 15C, Section 15.247 RF Transceiver Card, Model RFAX 1012 / FCC ID: ACJT10001 To Whom It May Concern: This Full Modular Approval Declaration for the subject product in accordance with FCC Public Notice DA 00-1407 and is intended for Mobile Application with minimum 20 cm spacing between antenna and user’s body. 1. RF shielding The module has its own RF shielding. There is a metal shield “can” which covers the RF circuitry on the PCB. Please refer to the internal photos for details. 2. Buffered modulation / data inputs The data inputs are buffered. 3. Power supply regulation The module has its own power supply regulation. A 3.3V regulator is designed into the circuit to accept up to 5VDC. 4. Antenna requirements This product is provided with two identical integral micro-strip antennas, which are mounted onto the PCB and only one of these two antennas is active at any given transmission time. 5. Tested in stand-alone configuration The module was tested in a stand-alone configuration. Please refer to the Test Report for details. 6. FCC ID label Module itself will be marked with its own FCC ID as declared above. When the module is installed inside another device or in a casing, the exterior label will make reference to the enclosed module and its FCC ID. Please refer to the FCC Label Sample for details. For the Digital Receiver, the FCC ID will be in the form of a label stuck directly onto the PCB. 7. Operating requirements applicable to the transmitter There are no specific rules or requirements that apply to the module. 8. RF exposure requirements The module complies with the FCC RF Exposure requirements for mobile application. Please refer to the Test Report for details. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Mr. Vincent Yee / Panasonic AVC Networks (S) Pte Ltd.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Letter of Attorney December 11, 2009 AVSG-09-F001 TUV SUD PSB Pte Ltd. 1, Science Park Drive Singapore 118221 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes TUV SUD PSB Pte Ltd. to act as both our testing facility and FCC agent in the preparation of TCB Certification application for a one year period. This product is being submitted for full mobile modular transmitter approval in compliance with FCC Part 15C, Section 15.247 and FCC Public Notice DA 00-1407. Product Name: RF Transceiver Card, Model RFAX1012 FCC ID: ACJT10001 Product Specification: Three Channel Operation within 2412 ~2462 MHz Type Modulation: Direct Sequence Spread Spectrum Rated RF Output: Maximum Peak Conducted RF Output Power is 0.977 Watts Maximum EIRP RF Output Power is 0.0479 Watts Antenna Gain: -3 dBi AC Adaptor: DE-922A RF Exposure Evaluation: This product satisfies RF Exposure Evaluation with calculated Maximum Permissive Exposure. RF Exposure Notice: Operating Instructions provide warning notice regarding recommended minimum 20 cm spacing between antenna and user’s body and must no be co-located or used with another antenna or transmitter. FCC Equipment Class: Part 15C, Section 15.247 / Low Power Communication Device Applicant & Grantee: Panasonic Corporation of North America (PNA) One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic AVC Networks Singapore Pte Ltd. (PAVCSG) 202, Bedok South Avenue 1 Singapore 469332 Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Mr. Vincent Yee / Panasonic AVC Networks (S) Pte Ltd.

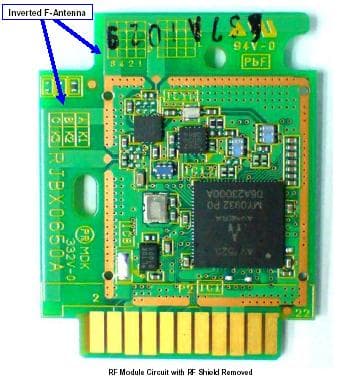

EUT PHOTO FOR THE TRANSCEIVER CARD MODEL RFAX1012

Test Report No. 719164299-EEC-01 dated 09 Dec 2009 Note: This report is issued subject to TÜV SÜD PSB's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2007-0380-A LA-2007-0380-A-1 LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. Testing Services No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-677 6 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 67 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2008 OF RF TRANSCEIVER CARDS [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, 1 Science Park Drive, Singapore 118221 FCC REG. NO.99142 (3mand 10mSemi-Anechoic Chamber) 871638 (3m Semi-Anechoic Chamber) IND. CANADA REG. NO.2932I-1 (3m and 10m Semi-Anechoic Chambers) PREPARED FORMr. Vincent Yee Panasonic AVC Networks (S) Pte Ltd 202, Bedok South Avenue 1, Singapore 469332 Tel : (+65) 6240 1891Fax : (+65) 6245 8804 QUOTATION NUMBER219102327 JOB NUMBER719164299 TEST PERIOD24 Nov 2009–02 Nov 2009 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistance Vice President Panasonic AVC Networks (S) Pte LtdPage 2 of 67 RF Transceiver Cards [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] Test Report No. 719164299-EEC-01 dated 09 Dec 2009 TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSION TEST SPECTRUM BANDWIDTH (6dB BANDWIDTH MEASUREMENT) TEST MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED)TEST PEAK POWER SPECTRAL DENSITY TEST MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B-FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Panasonic AVC Networks (S) Pte LtdPage 3 of 67 RF Transceiver Cards [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] Test Report No. 719164299-EEC-01 dated 09 Dec 2009 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2008 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.247(a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement) Pass 15.247(b)(3)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious EmissionsPass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Refer to page 55 for details Panasonic AVC Networks (S) Pte LtdPage 4 of 67 RF Transceiver Cards [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] Test Report No. 719164299-EEC-01 dated 09 Dec 2009 TEST SUMMARY Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit ChannelFrequency (GHz) Channel 02.412 Channel 12.438 Channel 22.462 2. The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. 3.All test measurement procedures are according to ANSI C63.4: 2003. 4. The Equipment Under Test (EUT) was set to continuous transmit, ie 0dB duty cycle during the transmit mode. 5. The measurements in section 15.247(d) (expects Band Edge Compliance (Radiated)) was done based on conducted measurements. Modifications No modifications were made. Panasonic AVC Networks (S) Pte LtdPage 5 of 67 RF Transceiver Cards [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] Test Report No. 719164299-EEC-01 dated 09 Dec 2009 PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) are twoRF TRANSCEIVER CARDS. Manufacturer:Panasonic AVC Networks (S) Pte Ltd 202, Bedok South Avenue 1, Singapore 469332 Model Numbers:SH-FX71 & RFAX1012 FCC IDs:ACJR10001 & ACJT10001 Serial Number:Nil Microprocessor:Integrated Operating / Transmitting Frequency :2.412GHz to 2.462GHz 3 channels in total Clock / Oscillator Frequency :16MHz Modulation: OFDM Antenna Gain:-3.0dBi Port / Connectors:Refer to manufacturer's user manual / operating manual. Rated Input Power: 5Vdc via AC/DC power adaptor Accessories: Refer to manufacturer's user manual / operating manual. Panasonic AVC Networks (S) Pte LtdPage 6 of 67 RF Transceiver Cards [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] Test Report No. 719164299-EEC-01 dated 09 Dec 2009 SUPPORTING DESCRIPTION DESCRIPTION Equipment Description (Including Brand Name) Model, Serial & FCC ID NumberCable Description (List Length, Type & Purpose) Panasonic AC/DC Adapter (for test jig) M/N: DE-922A1.30m unshielded AC power cable 1.80m unshielded DC power cable S/N: H400540DC FCC ID: Nil Panasonic AVC Networks (S) Pte LtdPage 7 of 67 RF Transceiver Cards [ Models : SH-FX71 & RFAX1012 ] [ FCC IDs : ACJR10001 & ACJT10001 ] Test Report No. 719164299-EEC-01 dated 09 Dec 2009 EUT OPERATING CONDITIONS FCC Part 15 1.Conducted Emissions 2. Radiated Emissions (Spurious…
