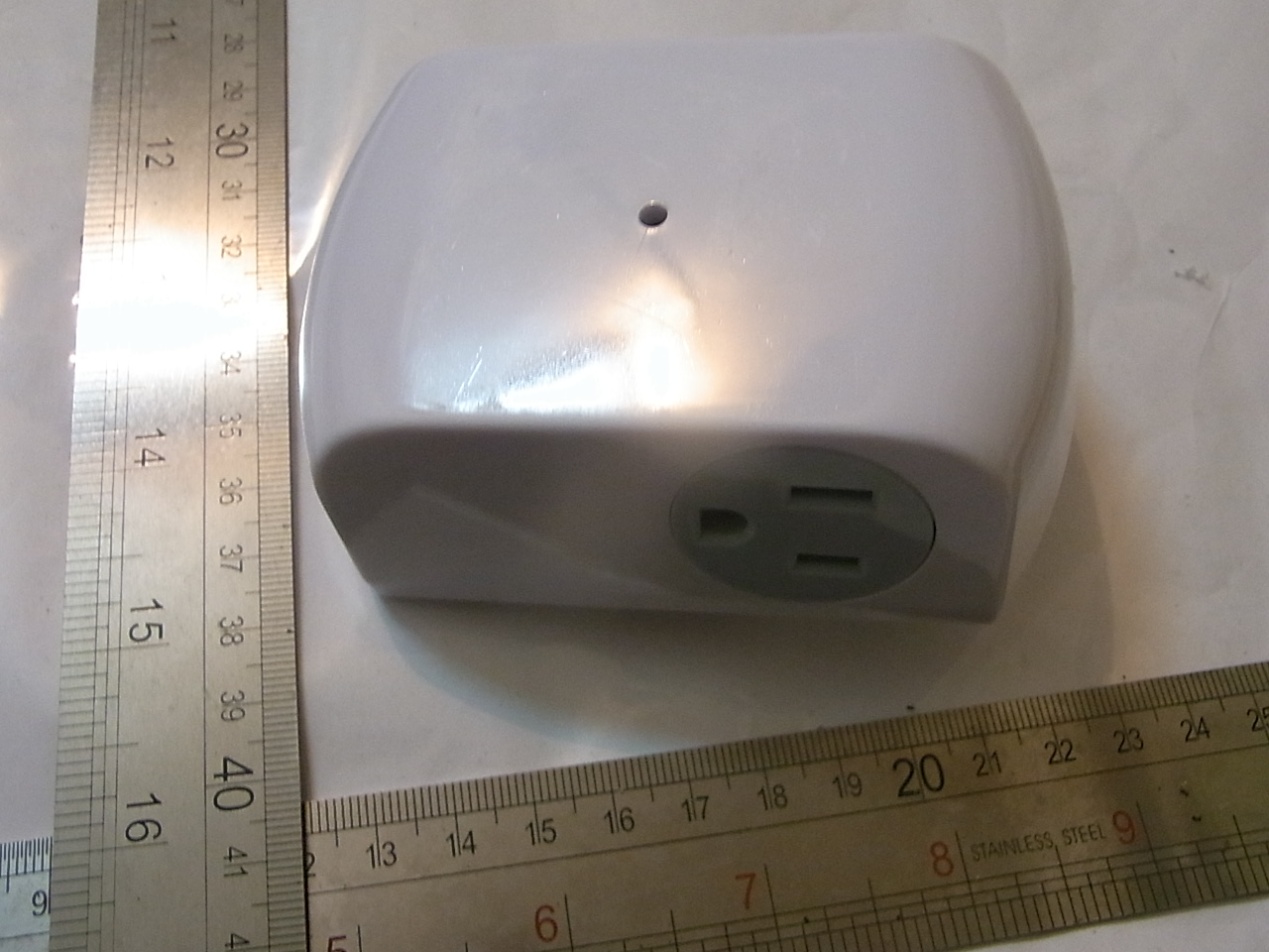

AG298801RF Receiver

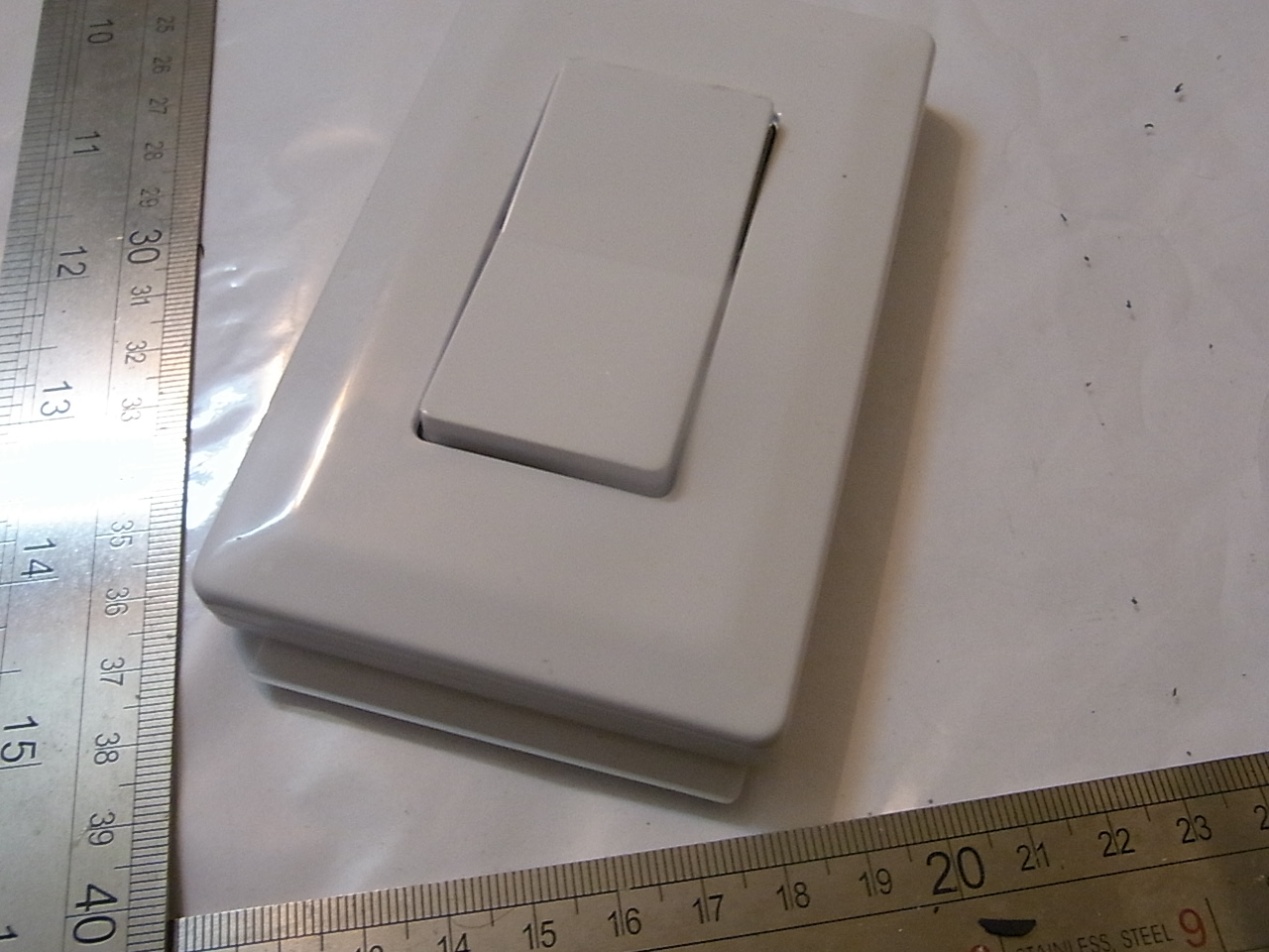

User Manual MODEL：98801(RX), AA-001(TX), AA-002(TX), 1 product description 1.1、input volt: AC 120V 12A 60Hz MAX:1440W 1.2、 input power supply and output outlet meet UL standard 1.3、 Product has wireless control function and with 2 pcs RF remote 1.4、 There is one grounded outlet on the right side of RF Receiver 2 Operating instruction 2.1、Wireless radio frequency remote controls are the easiest way to add switched outlet convenience without wiring or the need for an electrician. Simply plug the desired appliance into the receiver and the receiver into any outlet. A press of the handheld transmitter's button turns whatever is plugged into receiver On or Off. Easy handheld transmitter can be taken anywhere or attached to keys. RF Receiver RF Wall switch Remote RF Keychian Remote the interference by one or more of the following measures: television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Company Name: Aaron & Andrew Design Inc Address: 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Aaron & Andrew Design Inc 2012-1-08 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Aaron & Andrew Design Inc hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (RF Receiver , Model:98801, 98801-A, 98801-B) We affirm that between SIEMIC and Aaron & Andrew Design Inc, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Inan Chien /VP 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Aaron & Andrew Design Inc (2012-1-08) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: AG298801 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Inan Chien /VP 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan

Model: 98801, 98801-A, 98801-B 98801 No Led 98801-A Red Led 98801-B Green Led All the same, Olny Led is difference.

5*8cm

FCC ID: AG298801 Report No.: PTS20120103-3F Page 1 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com FCC PART 15.209 TEST REPORT Prepared For Aaron & Andrew Design Inc Product Name: RF Receiver Report No.: PTS20120103-3F Trade Name: N/A Model Name : 98801, 98801-A, 98801-B FCC ID: AG298801 Prepared By DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Test Date: Jan.03 ~ Jan.08, 2012 Date of Report : Jan.08, 2011 FCC ID: AG298801 Report No.: PTS20120103-3F Page 2 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com VERIFICATION OF COMPLIANCE Applicant: Aaron & Andrew Design Inc Address 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan Manufacturer Name: NINGBO SHENGYE ELECTRIC APPLIANCE CO.,LTD Address: North Guangming Road,Simen Town,Yuyao City,Zhejiang,China Product Description: RF Receiver Brand Name: N/A Model Name: 98801, 98801-A, 98801-B Model difference All the same, Olny Led is difference. Test procedure ANSI C63.4 : 2003 Prepared by : Assistant Reviewer : Supervisor Approved & Authorized Signer : Jack Ou / Manager FCC ID: AG298801 Report No.: PTS20120103-3F Page 3 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com TABLE OF CONTENTS TABLE OF CONTENTS ....................................................................................................................... 3 1. GENERAL INFORMATION ............................................................................................................ 4 1.1PRODUCT DESCRIPTION .......................................................................................................................... 4 1.2 TEST FACILITY ............................................................................................................................................ 5 1.3 PRODUCT INFORMATION ........................................................................................................................ 5 1.4SUPPORT EQUIPMENT LIST ......................................................................................................... 6 1.5. SYSTEM DESCRIPTION ............................................................................................................... 6 2. FCC LINE CONDUCTED EMISSION TEST ................................................................................ 7 2.1. TEST EQUIPMENT OF LINE CONDUCTED EMISSION TEST ........................................... 7 2.2 .LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................. 7 2.3. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................ 7 2.4. PROCEDURE OF LINE CONDUCTED EMISSION TEST ..................................................... 8 2.5 TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................... 9 3. FCC RADIATED EMISSION TEST ............................................................................................. 11 3.1. TEST EQUIPMENT OF RADIATED EMISSION .................................................................... 11 3.2. LIMITS OF RADIATED EMISSION TEST .............................................................................. 11 3.3 BLOCK DIAGRAM OF RADIATED EMISSION TEST .......................................................... 11 3.4 PROCEDURE OF RADIATED EMISSION TEST ................................................................... 12 3.5 TEST RESULT OF RADIATED EMISSION TEST .................................................................. 13 4 ANTENNA REQUIREMENT .......................................................................................................... 17 4.1 STANDARD REQUIREMENT .................................................................................................................. 17 4.2 EUT ANTENNA ........................................................................................................................................... 17 PPENDIX 1 ........................................................................................................................................... 19 PHOTOGRAPHS OF THE TEST SETUP ....................................................................................... 19 PHOTOGRAPHS OF THE TEST SETUP (>1GHZ) ...................................................................... 20 FCC ID: AG298801 Report No.: PTS20120103-3F Page 4 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The EUT is a short rang, lower power, RF Receiver. A major technical description of EUT is described as following: Equipment Under Test: RF Receiver Power Supply AC100-240V/50-60Hz Receiving frequency: 315MHz(only one channel) Housing Type: Plastic Description of EUT It is only Receive, and isn’t transmit Antenna Type Built-in Antenna Ant. Brand Model Name Antenna Type ConnectorGain (dBi) NOTE 1 N/A N/A Built-in Antenna N/A 0.78 N/A FCC ID: AG298801 Report No.: PTS20120103-3F Page 5 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com 1.2 TEST FACILITY All measurement facilities used to collect the measurement data ar…

Text truncated - open the document above for the full version.

FCC ID: AG298801 Report No.: PTS20120103-3F Page 18 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com APPENDIX 1 PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP FCC ID: AG298801 Report No.: PTS20120103-3F Page 19 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com PPENDIX 1 PHOTOGRAPHS OF THE TEST SETUP FCC ID: AG298801 Report No.: PTS20120103-3F Page 20 of 20 DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com PHOTOGRAPHS OF THE TEST SETUP (>1GHZ) ---- END OF REPORT ----
