AG2YKQ03RF Transmitter (door installation)

Manual Model YKQ03(TX) 1) Profile： 1.1、Input：4.5V(3*AAA battery) 1.2、Receiver is a UL listed product with grounded outlet 1.3、PIR Transmitter will send out a signal after detecting a signal 2) Description ： 2.1、 Plug in the RF receiver to outlet. And then connect the controlled device to the outlet of the receiver. 2.2、 Install the PIR Transmitter upon the wall. After installing 3XAAA batteries, the Transmitter flashes 40 seconds. The transmitter detects the human body movement and send out a signal to Receiver. The receiver will turn on for 10 minutes after receiving the signal (caution: there is no turn off signal. The receivers turn off automatically after 10 minutes). YKQ03 PIR Transmitter 98801 RF Receiver FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Notice:This device complies with Industry Canadalicence-exempt RSS standard(s). Operation issubject to the following two conditions: (1)Thisdevice may not cause harmful interference, and(2) This device must accept any interferencereceived, including interference that may causeundesirable operation.This Class B digital apparatus complies withCanadian ICES-003.Le prsent appareil est conforme aux CNRd'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorise auxdeux conditions suivantes : (1) l'appareil ne doit pasproduire de brouillage, et (2) l'utilisateur del'appareil doit accepter tout brouillageradiolectrique subi, mme si le brouillage estsusceptible d'en compromettre le fonctionnement.Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada Company：Ningbo Sengye electrical Co, ltd Address：87 Guangming north RD, Simen town, Yuyao city, zhenjian porvince

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Aaron & Andrew Design Inc SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/7/08 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Aaron & Andrew Design Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： RF Transmitter (door installation) Trade Name： N/A Model Name： YKQ03 Serial Model： N/A FCC ID： AG2YKQ03 We affirm that between SIEMIC and Aaron & Andrew Design Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: Inan Chien Title: VP Contact information / address : 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Aaron & Andrew Design Inc (2013-7-08) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: AG2YKQ03 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Inan Chien /VP Contact info rmation / address : 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan

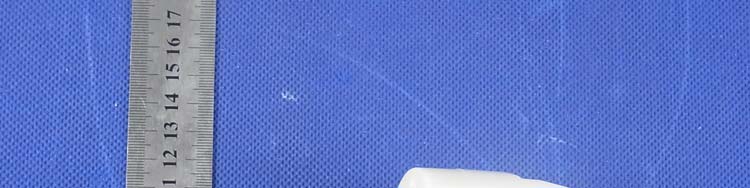

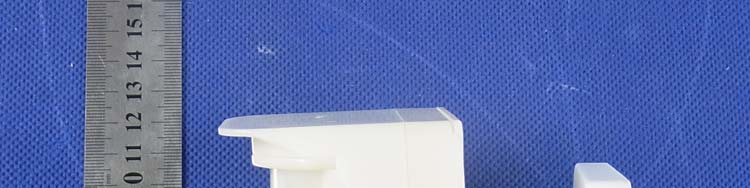

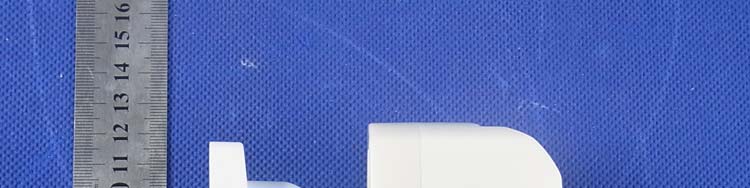

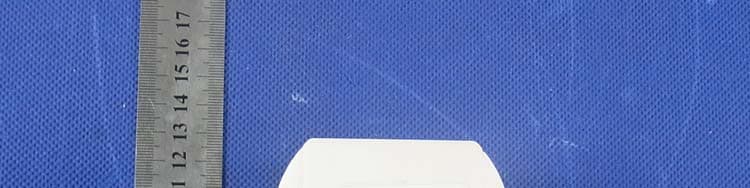

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Antenna

FCC RADIO TEST REPORT FCC ID: AG2YKQ03 IC: 10869A-YKQ03 Product： RF Transmitter (door installation) Trade Name： N/A Model Name： YKQ03 Serial Model： N/A Report No.： NTEK-2013NT072547F Prepared for Aaron & Andrew Design Inc 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2013NT072547F ` TEST RESULT CERTIFICATION Applicant’s name ................. Aaron & Andrew Design Inc Address ................................. 2F, # 2, Alley 19, Section 1, Wan-Mei Street, Mu-Ga, Taipei, Taiwan Manufacture's Name ............ NINGBO SHENGYE ELECTRIC APPLIANCE CO.,LTD Address ................................. North Guangming Road,Simen Town,Yuyao City,Zhejiang,China Product description Product name : RF Transmitter (door installation) Model and/or type reference : YKQ03 Serial Model： N/A Standards ............................. FCC Part15.231, RSS-Gen Issue 8 Test procedure ..........................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 01 July 2013~14 July 2013 Date of Issue ........................................... : 14 July 2013 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 26 Report No.: NTEK-2013NT072547F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BELOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: NTEK-2013NT072547F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207&§A7.2.4 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231b§A1.1 Radiated Spurious Emission Pass 15.231c§A1.1.2 Occupied Bandwidth Pass 15.231a(1) a(2)§A1.1.1 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: NTEK-2013NT072547F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: NTEK-2013NT072547F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment RF Transmitter (door installation) Trade Name N/A Model Name YKQ03 Serial Model N/A Model Difference N/A Product Description The EUT is a RF Transmitter (door installation) Product Type Remote Control Operation Frequency: 315MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: Built-in antenna Antenna Gain(Peak) 0.65 dBi Output Power: 71.94 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 4.5V(3 cell 1.5V AAA battery) Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Built-in antennaNA 0.65 Antenna Page 7 of 26 Report No.: NTEK-2013NT072547F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The E…

Text truncated - open the document above for the full version.

Page 26 of 26 Report No.: NTEK-2013NT072547F ` 6. EUT TEST PHOTO Radiated Measurement Photos
