AJT-GS12RII-V1VHF FM Transceiver

COE Communications Engineering Document Author: Keith Gilbertson Re v: A Da te : 3/08/02 Pag e: 1 of 33 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII FCC TECHNICAL MANUAL COE Communications Engineering Document Author: Keith Gilbertson Re v: A Da te : 3/08/02 Pag e: 2 of 33 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII FCC TECHNICAL MANUAL TABLE OF CONTENTS 1.Scope..................................................................................................................................................................................... 3 2.Revision History................................................................................................................................................................... 3 3.Reference Documents............................................................................................................................................................ 3 4.Abbreviations and Acronyms................................................................................................................................................ 3 5.12RII Radio Systems............................................................................................................................................................. 4 5.1.AAR Remote Radio System.......................................................................................................................................... 4 5.2.Clean Cab Radio systems.............................................................................................................................................. 6 5.3.Serial Remote Radio Systems (Future Option).............................................................................................................. 8 5.4.Radio Final Assembly Parts List................................................................................................................................... 8 5.5.Radio Front Assembly Parts List (LC version Only)..................................................................................................... 9 6.Radio Architecture.............................................................................................................................................................. 11 6.1.RC Radio Block Diagram............................................................................................................................................ 12 6.2.LC Radio Block Diagram............................................................................................................................................ 13 6.3.SR Radio Block Diagram............................................................................................................................................ 14 6.4.Radio Interfaces Signals.............................................................................................................................................. 15 7.Kenwood RFPA & TXRX Modules.................................................................................................................................... 20 8.POWER SUPPLY BOARD................................................................................................................................................. 20 8.1.General Description.................................................................................................................................................... 20 8.2.Block Diagram............................................................................................................................................................ 20 8.3.Board Interface Signals............................................................................................................................................... 21 8.4.External Interface Voltages.......................................................................................................................................... 21 8.5.RFPA Interface Voltages............................................................................................................................................. 21 8.6.RCB Interface Voltages............................................................................................................................................... 21 8.7.Power Supply Board Parts List................................................................................................................................... 22 8.8.Power Supply Board Schematic.................................................................................................................................. 23 9.RADIO CONTROL BOARD.............................................................................................................................................. 23 10.General Description........................................................................................................................................................ 23 10.1.Microprocessor & Digital Interface........................................................................................................................ 23 10.2.Audio Circuits......................................................................................................................................................... 24 10.3.Audio Drivers......................................................................................................................................................... 26 10.4.External I/O Interfaces............................................................................................................................................. 27 11.Block Diagram................................................................................................................................................................ 28 12.FRONT PANEL.............................................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 1 12RIIBlkDia.doc 05/1/2002 Refer to the owners manual for information about the unit and Block Diagrams.

May 1, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GE Transportation Systems Global Signaling 2712 South Dillingham Road GRAIN VALLEY, MO 64029 Phone: (816) 650-6171 x 4609 Equipment: FCC ID: AJT-GS12RII-V1A FCC Rules: Parts 22, 74, and 90 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web page site to be used in obtaining a grant of certification. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

June 11, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GE Transportation Systems Global Signaling 2712 South Dillingham Road GRAIN VALLEY, MO 64029 RE: Request for additional information Equipment: FCC ID: AJT-12RII-V1A FCC Rules: Parts 2, 22C, 22E, 74D and 90. Gentlemen: A portion of the request is reproduced below. To: Scot Rogers, null From: Stan Lyles [email protected] FCC Application Processing Branch Re: FCC ID AJT-GS12RII-V1A Applicant: GE Transportation Systems Global Signaling LLC Correspondence Reference Number: 23068 731 Confirmation Number: EA363196 1.) ) Justification for your certification request of CFR Parts 22 and 74. How and where will the device be used under these Rule Parts. Please specify all rule parts for 22 and 74 used for this device in test report. For example RF Power Output, what rule 22 and 74 was used, Modulation Characteristics, what rule part 22 and 74 was used, Occupied Bandwidth, what rule 22 and 74 was used ect. 2.) Please resubmit a new Users Manual Exhibit 8. There was an error opening this document. The file is damage and could not be repaired 3.) .) Please note that the attenuation requirement for radiated spurious emissions is referenced to the desired signal yielding dBc. The attenuation specification is not XX uV/M, or derived from absolute value of the field strength. The dBc is determined from the substitution method such as described in the ANSI/TIA/EIA-603-A-2001 document. What is needed is a determination of the actual power levels necessary to reproduce these field strength levels. Those power levels (from a signal generator source and a dipole antenna replacing the EUT) are ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 then compared to the power output of the transmitter to determine dBc. That is the basis of the "substitution method". Please submit data / results obtained in this manner. RESPONSE: 1. The original transmitter (FCC ID AJTH12RT-V) was certified for operation in the part 22, 74, and 90 for operation. This equipment is a repackaging of the Kenwood transmitter, which is now the current model available. The paragraphs of interest would include 22.355, 22.359, 22.561, 22.565, 74.402, 74.461, 74.462, and 74.464, along with applicable paragraphs of part 90. This unit will be used mainly for operation under part 90 in the railroad industry, however there may be occasion requiring licensing under parts 22 and 74. 2. The user manual was uploaded to the web site for review. 3. Testing per TIA/EIA-603-A-2001 has been completed and added to the test report. Please use the 12R2ATstRpt.pdf file for the corrected information and submittal. Thank you for your help in resolving these issues. Please continue with the grant of certification process. Scot Rogers Rogers Labs, Inc.

June 17, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GE Transportation Systems Global Signaling 2712 South Dillingham Road GRAIN VALLEY, MO 64029 RE: Request for additional information Equipment: FCC ID: AJT-12RII-V1A FCC Rules: Parts 2, 22C, 22E, 74D and 90. Gentlemen: A portion of the request is reproduced below. To: Scot Rogers, From: Stan Lyles [email protected] FCC Application Processing Branch Re: FCC ID AJT-GS12RII-V1A Applicant: GE Transportation Systems Global Signaling LLC Correspondence Reference Number: 23129 731 Confirmation Number: EA363196 1.) ) Strong and specific justification for your certification request of CFR Parts 22 and 74. Please explain. 2.) Please specify the applicable section of rule parts for 22 and 74 used for this device in test report. For example RF Power Output, what applicable section of rule part 22 and 74 was used, Modulation Characteristics, what applicable section of rule part 22 and 74 was used, Occupied Bandwidth, what applicable section of rule part 22 and 74 was used ect. 3.) Please provide emissions mask plots for the applicable sections of parts 22, 74 and 90. 4.) Is this device fix or mobile? How will this device be used. Please explain. 5.) Please provide a calculation for each emission designator. RESPONSE: 1. Please remove the request for parts 22 and 74 certification for this transmitter. 2. Disregard request for parts 22 and 74 for this transmitter. 3. Emission mask B of 90.210 (b) specifies (1) on any frequency removed the assigned frequency by more than 50% but not more than 100% of the authorized bandwidth at least 20 dB. (2) 100% to 250% 35 dB and (3) greater than 250% at least 43 + 10log(P) dB. This ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 emission mask was added to the figure 10 plot and is placed below. Note this equates to 60 dB below fundamental, which places the spurious emissions below -13 dBm. 4. The unit is a mobile transmitter placed inside the train engine with the antenna mounted outside the locomotive. 5. Calculations from 2.202. 16k0f3e Max. Modulation (M) kHz. = 3 Max. Deviation (D) kHz. = 5 Constant factor (K) = 1 Bn = 2M + 2DK = 2(3)+2(5)(1) = 16 kHz 6k0f3e Max. Modulation (M) kHz. = 3 Max. Deviation (D) kHz. = 2.5 Constant factor (K) = 1 Bn = 2M + 2DK = 2(3)+2(2.5)(1) = 11 kHz Digital information 10k0f2d Max. Modulation (M) kHz. = 2.4 k Max. Deviation (D) kHz. = 3 k Constant factor (K) = 1.2 Bn = 2M + 2DK = 2(2.4)+2(3)(1.2) = 12 kHz Thank you for your help in resolving these issues. Please continue with the grant of certification process. Scot Rogers Rogers Labs, Inc.

June 17, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GE Transportation Systems Global Signaling 2712 South Dillingham Road GRAIN VALLEY, MO 64029 Phone: (816) 650-6171 x 4609 Equipment: FCC ID: AJT-GS12RII-V1A FCC Rules: Parts 22, 74, and 90 RE: To change FCC ID. Gentlemen: Please accept this letter of notification we would like to change the FCC identifier for the above-mentioned equipment. The new FCC ID will be AJT-GS12RII-V1. Please correct the 731 form if necessary and issue the grant of certification under the number AJT-GS12RII-V1. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

June 19, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GE Transportation Systems Global Signaling 2712 South Dillingham Road GRAIN VALLEY, MO 64029 RE: Request for additional information Equipment: FCC ID: AJT-12RII-V1A FCC Rules: Parts 2, 22C, 22E, 74D and 90. Gentlemen: A portion of the request is reproduced below. To: Scot Rogers, From: Stan Lyles [email protected] FCC Application Processing Branch Re: FCC ID AJT-GS12RII-V1A Applicant: GE Transportation Systems Global Signaling LLC Correspondence Reference Number: 23152 731 Confirmation Number: EA363196 1.) You have calculated 11 kHz as your necessary bandwidth, however you have assigned a 6K00F3E designator. The emission designator must match the necessary bandwidth calculation. The same problem exist for the 10K0F2D emission were the necessary bandwidth calculation was 12 kHz. Please correct these two emission designators. 2.) Please resubmit the emission mask plots of the carrier with a 200 kHz span setting on the spectrum analyzer. Please draw in the mask limits lines according to the calculation shown in Section 90.210 (b). RESPONSE: 1. Please correct the emission designators to reflect the calculated necessary bandwidth for this transmitter. 16k0f3e, 11k0f3e, and 12k0f2d. 2. Emission mask B of 90.210 (b) specifies (1) on any frequency removed the assigned frequency by more than 50% but not more than 100% of the authorized bandwidth at least 20 dB. (2) 100% to 250% 35 dB and (3) greater than 250% at least 43 + 10log(P) dB. This emission mask has been added and is displayed below. Note this ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 equates to 60 dB below fundamental, which places the spurious emissions below -13 dBm. Thank you for your help in resolving these issues. Please continue with the grant of certification process. Scot Rogers Rogers Labs, Inc.

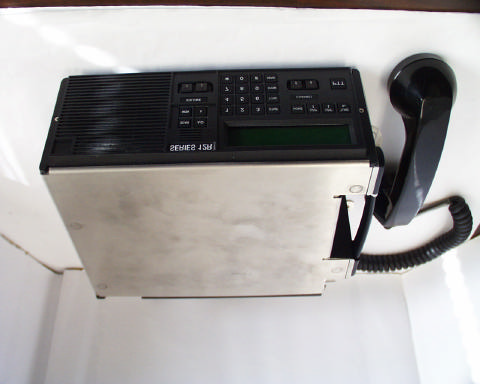

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 2 12RIIExtPho.doc 05/1/2002 External Photographs of 12RII.

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 2 12RIIIdLbl.doc 05/1/2002 FCC ID Label Location and information for 12RII Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 2 of 2 12RIIIdLbl.doc 05/1/2002 Drawing of FCC ID label artwork for 12RII. AJT - GS12RII - V1A

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1 SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 2 12RIIIdLbl.doc 03/18/2002 FCC ID Label Location and information for 12RII Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1 SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 2 of 2 12RIIIdLbl.doc 03/18/2002 Drawing of FCC ID label artwork for 12RII.

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 7 12RIIIntPho.doc 05/1/2002 Internal Photographs of 12RII. Power supply and digital circuitry side. Transmitter section inside case. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 2 of 7 12RIIIntPho.doc 05/1/2002 CPU Printed circuit board. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 3 of 7 12RIIIntPho.doc 05/1/2002 Digital interface printed circuit board. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 4 of 7 12RIIIntPho.doc 05/1/2002 Display printed circuit board. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 5 of 7 12RIIIntPho.doc 05/1/2002 Power supply printed circuit board. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 6 of 7 12RIIIntPho.doc 05/1/2002 Transmitter printed circuit board. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 7 of 7 12RIIIntPho.doc 05/1/2002

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 7 12RIIOpDesc.doc 05/1/2002 Operational Description for 12RII transceiver. 12RII Radio Digital Modulation Techniques Description General: The GETS-GS 12RII radio uses standard MSK digital data modulation. The modulation is generated by an MX829 Baseband Signal Processor chip (a PDF for the MX829 data sheet is included) with integrated filtering. The 12RII radio uses the MX829 to communicate at 2400 BAUD, half duplex, with one half cycle of 1200Hz for a ‘1’ and one cycle of 2400Hz for a ‘0’. The MSK data is continuous phase using standard deviation of +/- 3KHz for wide band operation and +/- 1.5KHz for narrow band operation.

COE Communications Engineering Document Author: Keith Gilbertson Rev: A Date: 3/8/02 Page : 1 of 6 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII Radio AlignmentRadio Alignment Procedure COE Communications Engineering Document Author: Keith Gilbertson Rev: A Date: 3/8/02 Page : 2 of 6 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII Radio AlignmentRadio Alignment Procedure TABLE OF CONTENTS 1. Scope...........................................................................................................................Error! Bookmark not defined. 2. Revision History...........................................................................................................................................................3 3. 12RII Technical Risks..................................................................................................Error! Bookmark not defined. 3.1. Mechanical Chassis..............................................................................................Error! Bookmark not defined. 3.2. Front Panel Integration.........................................................................................Error! Bookmark not defined. 3.3. RF Module Integration.........................................................................................Error! Bookmark not defined. 3.4. Power Supply Integration......................................................................................Error! Bookmark not defined. 3.5. Radio Control Board Integration...........................................................................Error! Bookmark not defined. 3.6. User Interface Compatibility with Motorola..........................................................Error! Bookmark not defined. COE Communications Engineering Document Author: Keith Gilbertson Rev: A Date: 3/8/02 Page : 3 of 6 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII Radio AlignmentRadio Alignment Procedure 1. Revision History REV DATE BY COMMENTS A 3/8/02 KLG Initial Release 2. Equipment List Personal Computer 12RII SETUP UTILITY Software Radio Test Fixture & Radio Interface Cable Power Supply Marconi 2955B Radio Test Set or Equivalent 3. Procedure 3.1. Setup ? Set the power supply for the proper input voltage of the radio (74 or 37 volts DC). ? Connect the Interface cable to the radio under test ? Connect the antenna port of the radio to the Marconi. ? Connect the audio inputs and outputs of the Marconi to the Radio TF. ? Launch 12RIIUPS (Utility Programming Software) on PC. ? Upload 12RTEST.CNF file to the radio. ? Open dynamic tune window in 12RII Utility Software. Select proper parameter when necessary in the alignment procedure to tune the digital adjustments in the radio. 3.2. Transmitter Adjustments 3.2.1. Max Power Limit & Set levels ? Select Test Channel 1 (161.100 Mhz.) ? Select the RF Power Setting on the 12RII Setup Utility of the Radio Tune window. ? Tune the Hi Power Scroll bar to Max (256) in the software control. Hit the Radio PTT button on the screen. The radio should activate the transmitter. COE Communications Engineering Document Author: Keith Gilbertson Rev: A Date: 3/8/02 Page : 4 of 6 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII Radio AlignmentRadio Alignment Procedure ? Adjust VR1 on the RFPA module for a maximum power setting of 50 Watts. ? Adjust the scroll bar control on the PC screen down until the radio power is at 45 watts. Unkey the radio by clicking the mouse on the PTT button a second time. ? Next select the Lo Power scroll bar. Key the radio and adjust the scroll bar until the radio output power is at 10 Watts. ? Un-key the radio and exit this setup window. 3.2.2. Max Deviation & Modulation Balance ? Select the Max. Deviation/Balance Window in the Setup Software ? Inject a 300 Hz. sine wave at 2 VRMS into the Handset Audio Input of the Radio. ? Set the Marconi filtering to 15KHz low pass and enable the scope display. ? Key the Radio with the Handset PTT input on the Test Fixture. Monitor the deviation on the Marconi screen. ? Adjust the Leading Edge and Trailing Edge scroll bars until the leading and trailing edges of the waveform are both at 4.4 KHz deviation. (The Marconi should also read 4.4 KHz deviation.) The waveform should resemble a square wave with a horizontal top and bottom, but with slightly rounded corners almost vertical sides. ? Change the frequency of the 300 Hz. Sine wave to 1000 Hz. Input level is 2 VRMS. Adjust the Max Deviation Control for a 4.4 KHz reading on the Marconi. < If above goes as planned, this step should not be necessary. GF> ? Un-key the radio and exit the Max. Deviation/Balance Screen. 3.2.3. Frequency Setting ? Select the Frequency Tune tab in the Setup Software. ? Key the Radio with the PTT button on the screen ? Adjust the Frequency tune scroll bar in the software window until the radio transmit frequency is at 161.100000 MHz +/- 100 Hz. ? Un-key the radio and exit the Frequency Tune Screen 3.3. QT Level ? Select the QT Level tab in the Setup Software. ? Set the Marconi filtering to 300Hz Low Pass. ? Key the Radio with the PTT button on the screen ? Adjust the QT Level scroll bar until the Marconi reads 0.75 KHz deviation. ? Un-key the radio and exit the QT Level Screen 3.3.1. Microphone Modulation Sensitivity & Distortion ? Select the Microphone Level tab in the Setup Software. ? Inject a 1000 Hz. sine wave at 250 mVRMS into the Handset Audio Input of the Radio. ? Set the Marconi filtering to 300-3400 Hz band Pass. ? Key the Radio with the PTT button on the screen COE Communications Engineering Document Author: Keith Gilbertson Rev: A Date: 3/8/02 Page : 5 of 6 GE TRANSPORTATION SYSTEMS GLOBAL SIGNALING DIVISION Title: 12RII Radio AlignmentRadio Alignment Procedure ? Adjust the Microphone Modulation Level scrollbar until the Marconi reads 3.0 +/- 0.1 KHz deviation. ? Un-key the radio and exit the Microphone Level Screen 3.3.2. DTMF Modulation Level ? Select the D…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 1 of 6 12RIlSchm.doc 05/1/2002 FCC ID Label Location and information for 12RII. Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 2 of 6 12RIlSchm.doc 05/1/2002 Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 3 of 6 12RIlSchm.doc 05/1/2002 Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 4 of 6 12RIlSchm.doc 05/1/2002 Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 5 of 6 12RIlSchm.doc 05/1/2002 Rogers Labs, Inc. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 6 of 6 12RIlSchm.doc 05/1/2002

TEST REPORT For APPLICATION of CERTIFICATION For GE Transportation Systems Global Signaling 2712 South Dillingham Road GRAIN VALLEY, MO 64029 Jeff Kleoppel, Engineer Phone :(816) 650-6171 ext 4609 MODEL: 12R II - (xx) VHF TRANSCEIVER FREQUENCY: 148 - 174 MHz FCC ID: AJT-GS12RII-V1A Test Date: March 11, 2002 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 22, 74 and 90 Page 2 of 26 CERTIFICATION\GEHH12RA 05/1/2002 TABLE OF CONTENTS FORWARD: 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION 4 2.1046 RF POWER OUTPUT 5 Measurements Required: 5 Test Arrangement: 5 Results: 5 2.1047 MODULATION CHARACTERISTICS 7 Measurements Required: 7 Test Arrangement: 7 Results: 8 2.1049 OCCUPIED BANDWIDTH 10 Measurements Required: 10 Test Arrangement : 10 Results: 10 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 13 Measurements Required: 13 Test Arrangement: 13 Results: 14 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 14 Measurements Required: 14 Test Arrangement: 14 Results : 16 2.1055 FREQUENCY STABILITY 18 Measurements Required: 18 Test Arrangement: 18 Results: 19 TRANSIENT FREQUENCY BEHAVIOR, PER 90.214 20 Test Arrangement: 20 Measurement Data: 21 APPENDIX 23 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. GE Transportation Systems Global Signaling 4405 West 259 th Terrace MODEL: 12R II – (xx) Louisburg, KS 66053 Test #:020311 FCC ID#: AJT-GS12RII-V1A SN:ENG-…

Text truncated - open the document above for the full version.
