AMH101013GO Tracker 1.6

1 Confidential User manual Model Name: Go Tracker 4G/5G Global By Locus Solutions 04/05/2021 Revision History Revision Date Description 1.00 04/05/2021 Initial Release 2 CE Regulations Caution Risk of explosion if battery replaced aced by an incorrect type. Dispose of used batteries according to the instructions. The technical documentation relevant to the above equipment will be held at Locus Solutions Please make sure the temperature for the device will be from -10 ̊C to 45 ̊C. The manufacturer specified the maximum ambient temperature for use in charging mode of 40 ̊C and for use in the non-charge mode of 45 ̊C. The minimum distance between the user and/or any bystander and the radiating structure of the transmitter is 20cm. This radio equipment operates with the following frequency bands and maximum radio-frequency power： Features Description Frequency Band GSM/GPRS: Quad band, 900/1800 LTE B1/3/8/20/28 Max. TX power Class 4 (+33dBm ±2dB) for GSM/GPRS 850/900 Class 1 (+30dBm ±2dB) for GSM/GPRS 1800/1900 23dBm for LTE B1/3/8/20/28 List of the Followed Test Standards for Assessment of RED Requirement Hereby, Locus Solutions declares that the radio equipment Go Tracker 4G/5G Global is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://europa.eu/youreurope/business/product-requirements/compliance/technical-documentation- conformity/index_en.htm Go Tracker 4G/5G Global complies with the essential requirements of Article 3 of the RED 2014/53/EU Directive, if used for its intended use and that the following standards have been applied: 1. Health (Article 3.1(a) of the RE Directive) Applied Standard(s):  EN 62311 :2020 2. Safety (Article 3.1(a) of the RE Directive) 3 Applied Standard(s):  EN 62368-1:2014+A11:2017 3. Electromagnetic compatibility (Article 3.1 (b) of the RE Directive) Applied Standard(s):  ETSI EN 301 489-1 V2.2.3  Draft ETSI EN 301 489-52 V1.1.2 4. Radiofrequency spectrum usage (Article 3.2 of the RE Directive) Applied Standard(s):  ETSI EN 301 511 V12.5.1  ETSI EN 301 908-13 V13.1.1  ETSI EN 301 908-1 V13.1.1 The technical documentation relevant to the above equipment will be held at Locus Solutions FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. 4 This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. ISED Notice This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en This device complies with the Canadian ICES-003 Class B specifications. CAN ICES-003(B)/ NMB-003(B) ISED RF Exposure Statement This device complies with ISED RSS-102 RF exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the IC RSS-102 RF exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Cet appareil est conforme aux limites d'exposition aux rayonnements de la CNR-102 définies pour un environnement non contrôlé. Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement normal. CONTACT: Contact Person: Mona Delavari Job Title: Certification Manager E-mail: [email protected] Address: 7121 Fairway Dr. #400, Palm Beach Gardens, FL 33418, USA

GO Real-Time 4G/5G Global Tracker User Manual Cargo Monitoring Solutions 2 Table of Contents Introduction Page 3 Understanding the Device Page 4 Device Status and LED Indications Page 5-6 Other Tracker Features Page 7 Activating Device Page 8 Oversight Online Dashboard Page 9 Creating A Shipment Page 10 Oversight Mobile Application Page 11 Device Placement Page 12 GO GreenSense™ Recycling Program Page 13 Technical Specifications Page 14 -15 Regulatory Page 15 Troubleshooting and FAQ’s Page 16 -18 Technical Support Page 19 3 Keeping track of shipments has never been easier with the GO Real-Time 4G/5G Global Tracker. Using cellular technology, trackers provide temperature and location alerts as your shipment moves through the supply chain. And now, with our three-mode 5G cellular technology (Cat-M, NBIoT, GSM), connectivity and access to your data is further enhanced. Rest assured that visibility to temperature, humidity, and location data will be available despite the ongoing transition in the cellular technology industry. The GO Real-Time 4G/5G Global Tracker will measure and transmit time, temperature, humidity, light, and location via tri-mode functionality (CAT-M, NBIoT, GSM) to the Oversight online database. It is well equipment to monitor perishable shipments up to 20 days in duration at -20 to 60C temperatures. An optional temperature probe can monitor temperatures down to -200C. For shipments lasting longer than 20 days in duration, the GO Real-Time 4G/5G Global Plus Tracker offers additional battery life up to 90 days. Comprehensive and automated reporting is provided through the Oversight Dashboard and the Oversight Mobile app. Data is encrypted, providing security as it moves to the cloud. Information is at your fingertips while you are on the go with Oversight Mobile. Check status and create shipments direct from a phone or tablet. View current maps, graphs, and charts of key shipments including temperature, humidity, security, and location details. Shipment summary reports include additional details such as device serial number, trip name and duration, mean kinetic temperature, and time above or below range. The Oversight Mobile app is available in English, Chinese, Spanish, Italian, German, Portuguese, Turkish and French. Introduction 4 Understanding the Device Battery “Fuel Guage” Center Status Button Network Status Charging Indicator Light Sensor Pull Tab to Start Probe Connection Cover Trip Details Note: Adhesive Strip Located on Back of Device GO Real-Time 4G/5G Tracker / NST-TH00: 20 days GO Real-Time 4G/5G Global Plus Tracker / NXT-TH00: 90 days Serial Number 5 Device Status and LED Indications Airplane Mode Two independent methods are deployed to disable transmissions when the GO Real-Time 4G/5G Global Tracker is included in air freight shipments. 1. A cellular over-the-air (OTA) command is given through the Oversight Dashboard to disable transmission through a defined geo-fence database. A user can also specify through a database configuration a duration for the unit to re-enable transmissions or come out of airplane mode. 2. An accelerometer-based algorithms disables transmissions based upon aircraft takeoff and landing. When Airplane Mode (denoted by an airplane icon) is activated, a BLUE LED flashes every 1 second for a 30 second duration. The same sequence occurs for de-activation. Battery Fuel Gauge View remaining battery capacity (denoted with a battery icon) after activation with a quick press of the center status button. Four LEDs indicate remaining battery capacity based upon estimated voltage upon activation: •Red Only: Less than or equal to 20% capacity or 3.2V •Red + Orange: Less than or equal to 40% or 3.6V •Red + Orange + Yellow: Less than or equal to 60% or 3.8V •Red + Orange + Yellow + Green: Greater than 60% capacity or 3.8 V RedOrangeYell owGreen Battery Fuel Guage: Indicates remaining battery capacity 40% < 20% 60% 60% < << Solid Blue LEDFlashing Blue LED Network Status IndicatorSearching for networkRegistered to network Network Status Indicator 6 Device Status and LED Indications Status Button The GO Real-Time 4G/5G Global Tracker status button (denoted with a lever icon) allows a user to check battery life, airplane mode and network connectivity. • A quick press of the status button, will illuminate LEDs in stepped sequence to reflect their immediate status • The BLUE LED for airplane mode will illuminate, only if active • The BLUE LED for network connectivity will illuminate, if properly connected • The fuel guage LEDs will illuminate to reflect the device’s remaining battery life • All LEDs will turn dark after 10 seconds Fault Indicator In the unlikely event of a device fault or non-conformance, selected LEDs will illuminate immediately after the device status button is pressed and battery capacity is indicated. The follow- ing fault codes can be provided to Emerson Technical Support for further troubleshooting: • Green: SIM failure • Yellow: No registration on network • Orange: Network rejection • Red: No server connection For assistance, contact Technical Support +1-877-998-7299 or [email protected]. Charging Indicator The GO Real-Time 4G/5G Global Tracker battery (part number NST-TH00) is intended to last up to 20 days in duration under normal conditions. The Global Plus Tracker (part number NXT-TH00) is intended to last up to 90 days in duration under normal conditions. A RED LED ((denoted by a flash icon) will illuminate when the GO Real-Time 4G/5G Global Tracker is being charged. • Solid RED indicates when charging cable is plugged in and battery is being charged • RED LED is off when charging is complete or cable is not attached IMPORTANT: For maximum battery life, do not remove the base tracker from the the NXT-TH00 cradle assembly. 7 Other Tracker Features Temperature Probe The GO Real-Time 4G/5G Global Tracker can be used with an optional temperature probe that connects directly to the device. These probes are typically used w…

Text truncated - open the document above for the full version.

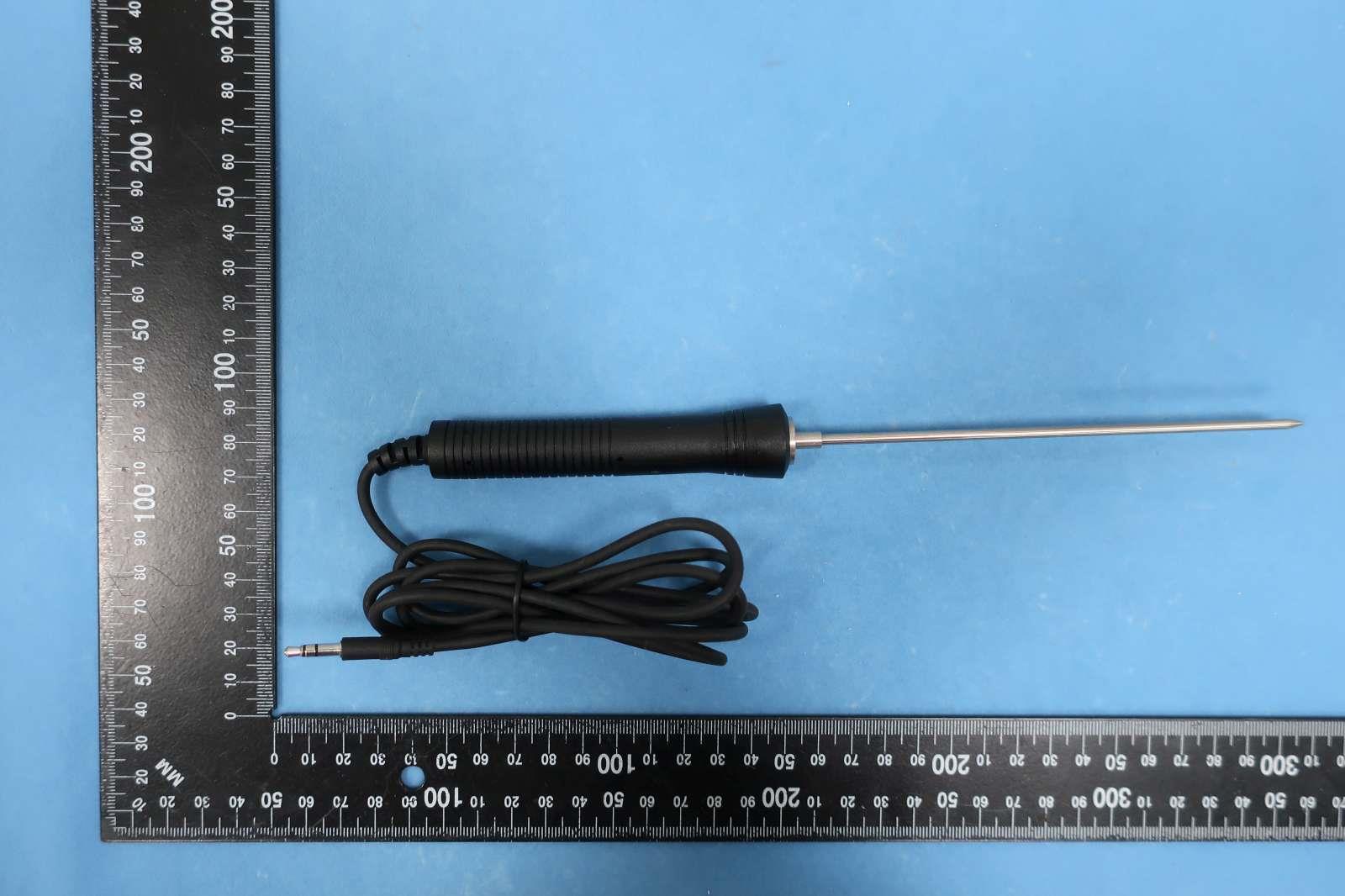

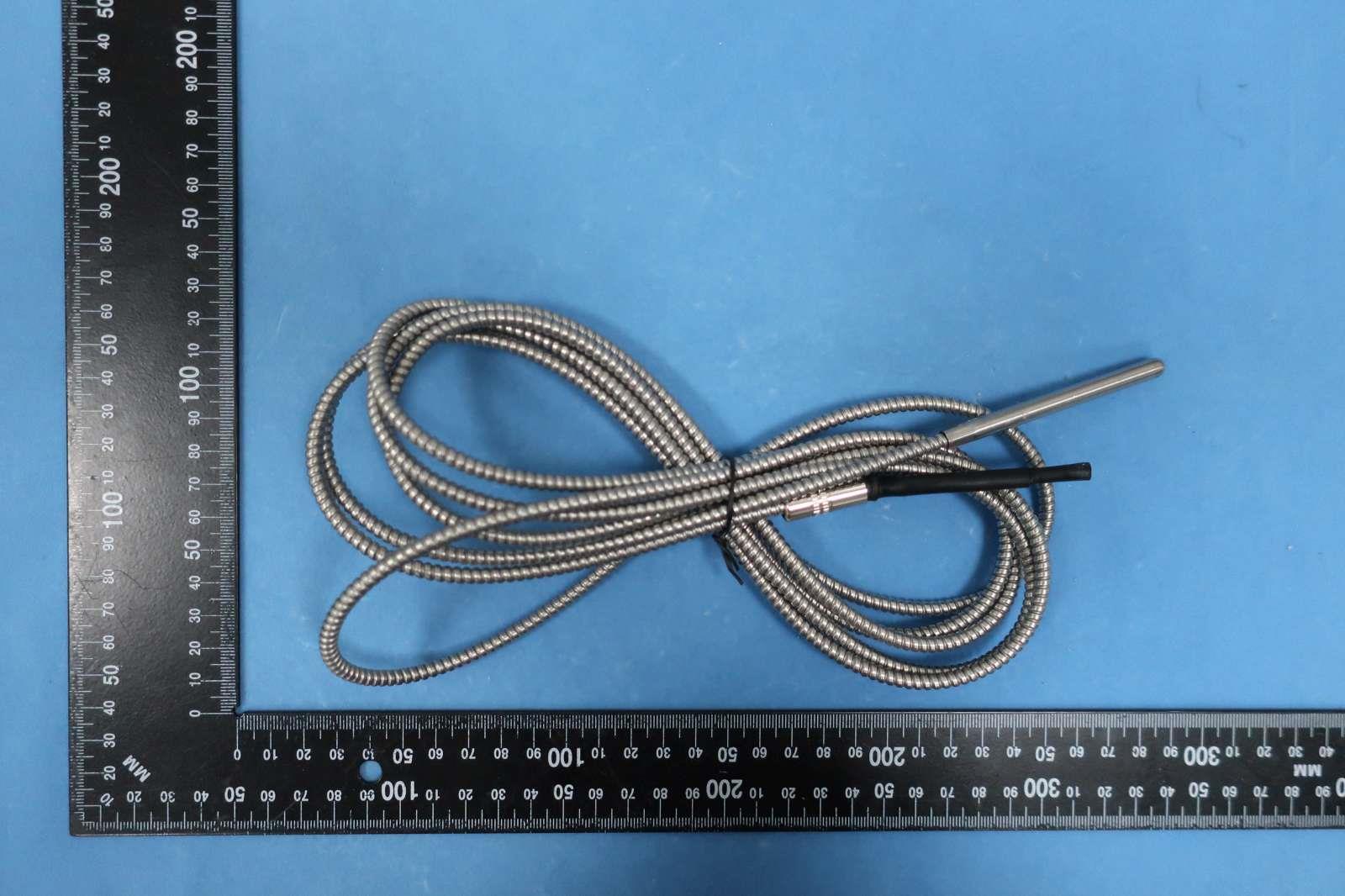

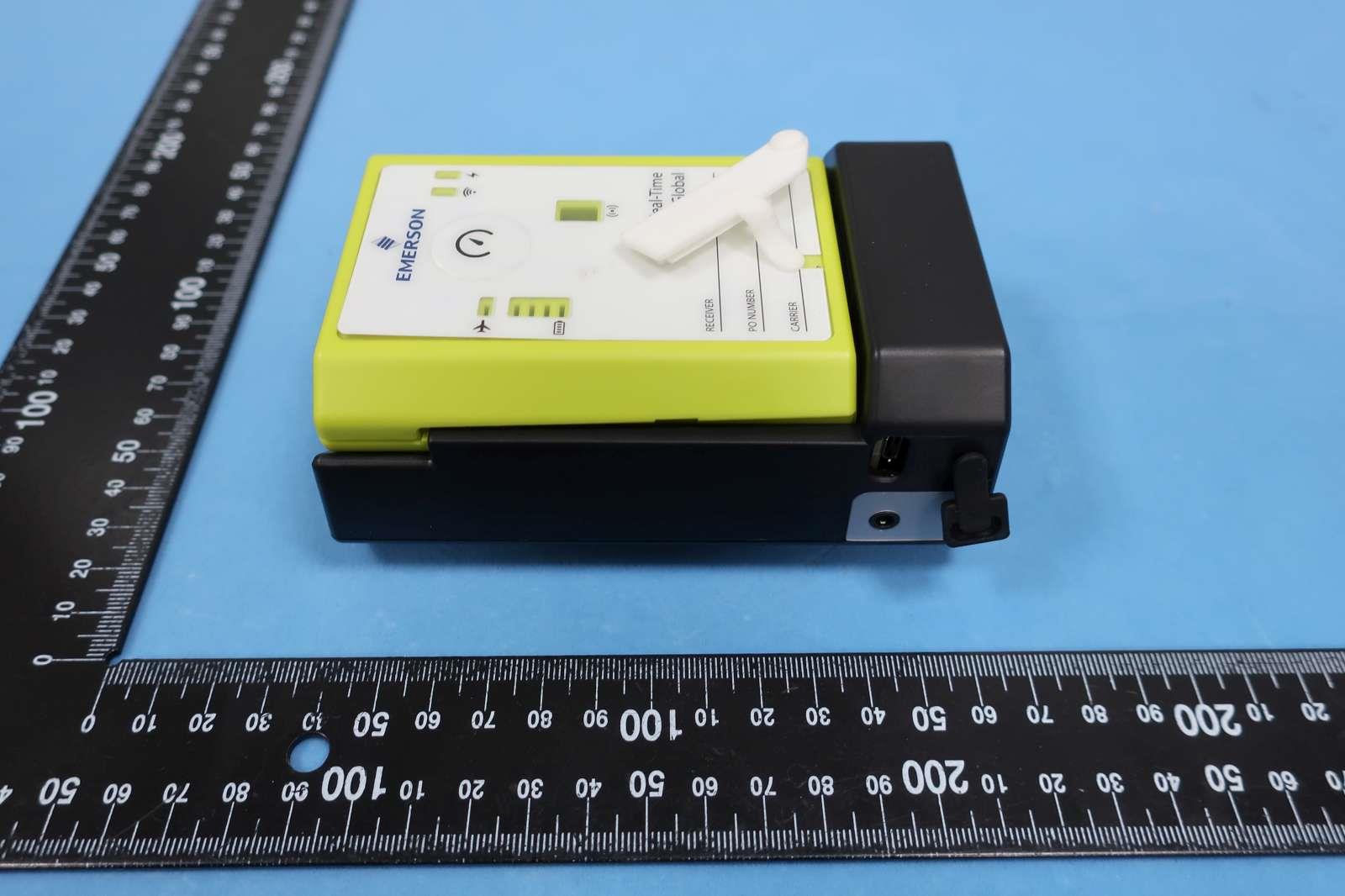

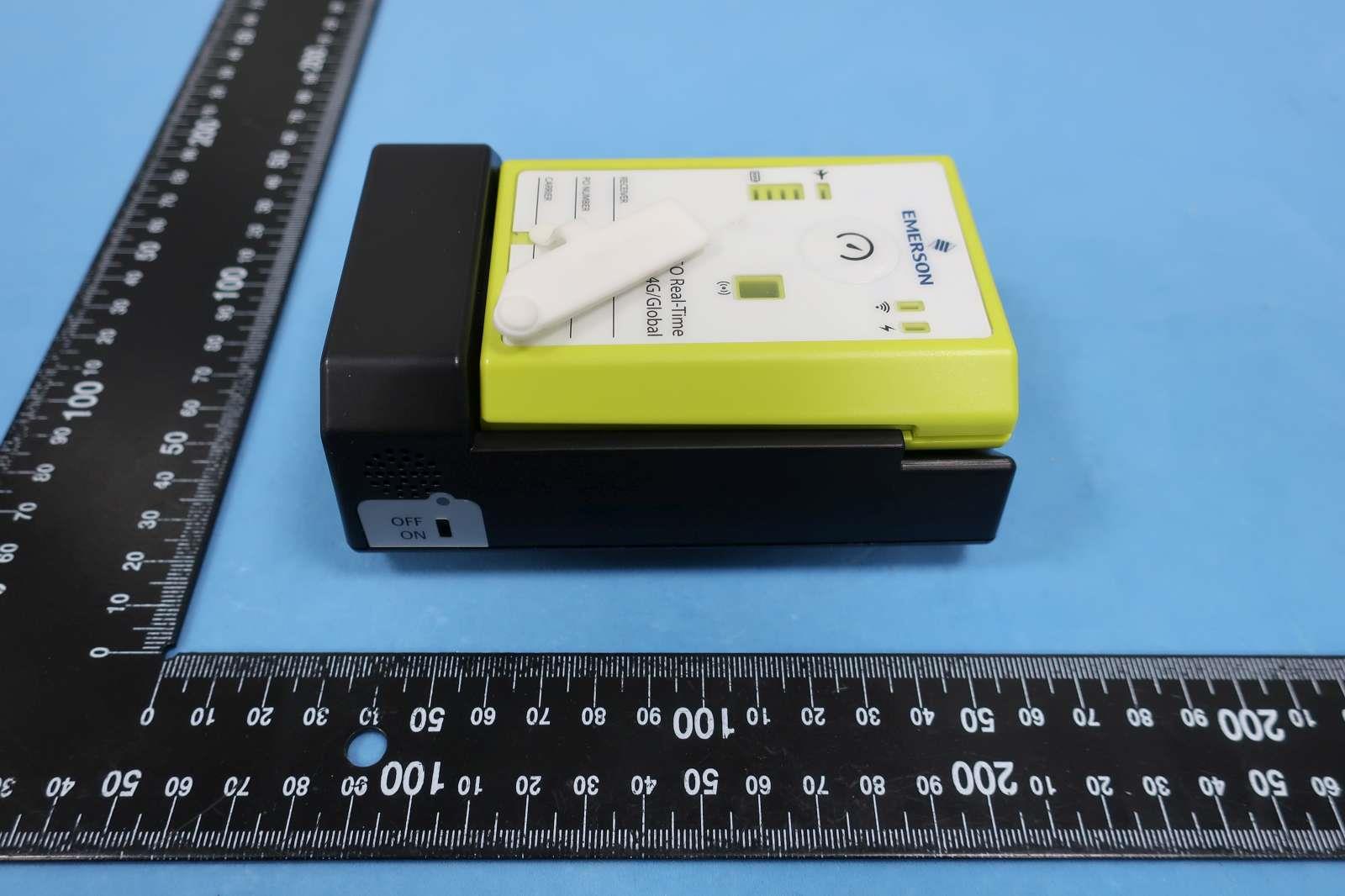

Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 1 of 1 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 720510 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 2 of 2 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 3 of 3 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 4 of 4 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 5 of 5 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 6 of 6 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 7 of 7 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Sample 2 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 8 of 8 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 9 of 9 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 10 of 10 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 11 of 11 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 12 of 12 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 13 of 13 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 List of Accessory: Specification of Accessory Sample1 Battery Brand Name N/A Model Name INR18650-2750mAh Sample2 Battery Brand Name N/A Model Name INR18650-2750mAh*2P Probe 1 Brand Name N/A Model Name N/A Probe 2 Brand Name N/A Model Name N/A Probe 3 Brand Name N/A Model Name N/A Probe 4 Brand Name N/A Model Name N/A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 14 of 14 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 720510 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 15 of 15 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Sample 1 Battery Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 16 of 16 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 17 of 17 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Sample 2 Battery Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 18 of 18 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 19 of 19 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Probe 1 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 20 of 20 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 F…

Text truncated - open the document above for the full version.

Smaller size for device requested consistent pointsize

Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 23 of 23 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 3. Internal Photograph of EUT Sample 1 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 24 of 24 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 25 of 25 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 26 of 26 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 27 of 27 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 28 of 28 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 29 of 29 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 30 of 30 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 31 of 31 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 32 of 32 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 33 of 33 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 34 of 34 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Cradle for Sample 2 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 35 of 35 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 36 of 36 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 37 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 38 of 38 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 39 of 39 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 40 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 41 of 41 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 42 of 42 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 43 of 43 TEL : 86-755-8637-9589 Report Issued Date : Apr. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : AMH101013 Photographs of EUT Report No.: EP0N2403A Brand Name: Emerson; Model Name: GO Tracker 1.6 Sporton International Inc. (Shenzhen) Page Number : 44 o…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 8 TEL : +86-755-86379589 Report Issued Date : Apr. 27, 2021 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : AMH101013 RF Exposure Evaluation Report Report No. : FA0N2403 RF Exposure Evaluation Report APPLICANT : Locus Solutions,LLC EQUIPMENT : GO Tracker 1.6 BRAND NAME : Emerson MODEL NAME : GO Tracker 1.6 FCC ID : AMH101013 STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (ShenZhen) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Hank Huang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 8 TEL : +86-755-86379589 Report Issued Date : Apr. 27, 2021 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : AMH101013 RF Exposure Evaluation Report Report No. : FA0N2403 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT TUNE UP POWER AMONG PRODUCTION UNITS ....................... 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 Sporton International (Shenzhen) Inc. Page Number : 3 of 8 TEL : +86-755-86379589 Report Issued Date : Apr. 27, 2021 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : AMH101013 RF Exposure Evaluation Report Report No. : FA0N2403 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA0N2403 Rev. 01 Initial issue of report. Apr. 27, 2021 Sporton International (Shenzhen) Inc. Page Number : 4 of 8 TEL : +86-755-86379589 Report Issued Date : Apr. 27, 2021 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : AMH101013 RF Exposure Evaluation Report Report No. : FA0N2403 1. Administration Data 1.1. Testing Laboratory Sporton International (Shenzhen) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.01. Testing Laboratory Test Firm Sporton International (Shenzhen) Inc. Test Site Location 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China TEL: +86-755-86379589 FAX: +86-755-86379595 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1256 421272 Applicant Company Name Locus Solutions,LLC Address 7121 Fairway Dr. Suite #400 | Palm Beach Gardens, FL 33418 USA Manufacturer Company Name Shenzhen Zhenhua Communication Equipment Co.Ltd Address Zhenhua Industrial Park, No.44, Tiezai Rd., Xixiang Town,BaoAn, Shenzhen, Guang Dong, China Sporton International (Shenzhen) Inc. Page Number : 5 of 8 TEL : +86-755-86379589 Report Issued Date : Apr. 27, 2021 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : AMH101013 RF Exposure Evaluation Report Report No. : FA0N2403 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type GO Tracker 1.6 Brand Name Emerson Model Name GO Tracker 1.6 FCC ID AMH101013 Wireless Technology and Frequency Range GSM850: 824 MHz ~ 849 MHz GSM1900: 1850 MHz ~ 1910 MHz LTE Category M1: LTE Band 2 : 1850 MHz ~ 1910 MHz LTE Band 4 : 1710 MHz ~ 1755 MHz LTE Band 5 : 824 MHz ~ 849 MHz LTE Band 12 : 699 MHz ~ 716 MHz LTE Band 13 : 777 MHz ~ 787 MHz LTE Band 26 : 814 MHz ~ 849 MHz NB-IOT Category NB1 : NB-IOT Band 2 : 1850 MHz ~ 1910 MHz NB-IOT Band 4 : 1710 MHz ~ 1755 MHz NB-IOT Band 5 : 824 MHz ~ 849 MHz NB-IOT Band 12 : 699 MHz ~ 716 MHz NB-IOT Band 13 : 777 MHz ~ 787 MHz NB-IOT Band 26 : 814 MHz ~ 849 MHz Mode GPRS/EGPRS LTE Category M1: QPSK / 16QAM NB-IOT Category NB1 :BPSK / QPSK HW Version 0 SW Version 6.4.A01 EUT Stage Production Unit Remark: 1. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: 1. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2. The maximum RF output tune up power, antenna gain and the safe distance used for evaluate RF exposure were declared by manufacturer. Sporton International (Shenzhen) Inc. Page Number : 6 of 8 TEL : +86-755-86379589 Report Issued Date : Apr. 27, 2021 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : AMH101013 RF Exposure Evaluation Report Report No. : FA0N2403 3. Maximum RF average output tune up power among production units <GSM> Mode Burst average power(dBm) GSM 850 GSM 1900 GPRS (GMSK, 1 Tx slot) 33.00 31.00 GPRS (GMSK, 2 Tx slots) 33.00 31.00 GPRS (GMSK, 3 Tx slots) 32.00 30.00 GPRS (GMSK, 4 Tx slots) 31.00 30.00 EDGE (8PSK, 1 Tx slot) 27.00 27.00 EDGE (8PSK, 2 Tx slots) 27.00 27.00 EDGE (8PSK, 3 Tx slots) 27.00 27.00 EDGE (8PSK, 4 Tx slots) 27.00 27.00 <LTE> Mode Maximum Average power(dBm) LTE Cat M1 Band 2 24.00 Band 4 24.00 Band 5 24.00 Band 12 24.00 Band 13 23.00 Band 26 24.00 NB-IOT Band 2 24.00 Band 4 24.00 Band …

Text truncated - open the document above for the full version.
