TECOM CO., LTD. 23, R&D ROAD 2, SBIP HSIN-CHU, TAIWAN, ROC PHONE: +886-3-577-5141 FAX: +886-3-579-7196 Subject: 1-Line Wireless Cordless Telephone System Page:61/61 Notice The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device nay not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF Safety Information: For Body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. ----- END -----

To: Federal Communications Commission FCC ID: AMW4960 Confirmation number: EA821768 Dear Sir, This is to request confidentiality on information submitted for above application. Due to we found recently that our submitted information was used by other applicant without our authorization. This is absolutely illegal. So, we would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics.

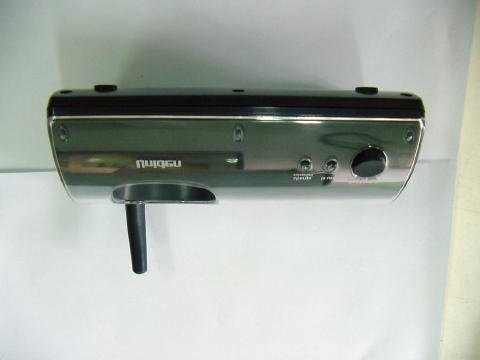

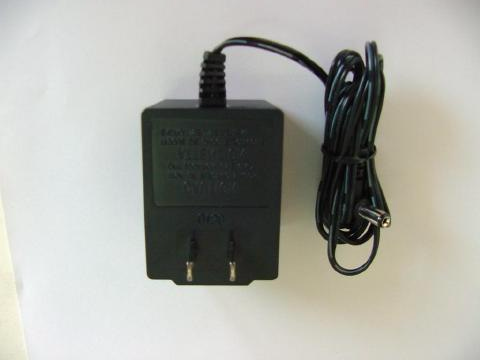

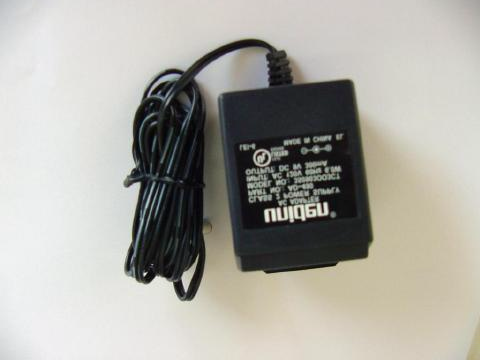

ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of Handset 2. Bottom View of Handset ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Top View of Base Unit 4. Bottom View of Base Unit ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Front View of Base Unit 6. Front View of Adaptor ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Rear View of Adaptor








       !"

XXXXXX












!

!"


  ! "
#$ % &
'!#(

)
%&
&


*
+


! ,
-

 .&


+ "

&
'(
)
%&
/

&
 +
 + &

'(
)

%&

&&
 /
 + &
&%,
0 &  "
 + &

/
&

 ,
%&/
+
& &












       !   "    #$ %      #&$
  %   '   "   %

0,
1234


ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of Handset 2. Component View of Main PCB (Handset) ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Solder View of Main PCB (Handset) 4. Component View of RF PCB (Handset) ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Solder View of RF PCB (Handset) 6. Internal Vie wof Base Unit ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Component View of Main PCB (Base Unit) 8. Solder View of Main PCB (Base Unit) ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Internal View of RF Box (Base Unit) 10. Component View of RF PCB (Base Unit) ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 11. Solder View of RF PCB (Base Unit) 12. Internal View of Adaptor ETC Report No. : ET90R-08-075-01 FCC ID. : AMW4960 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 13. Component View of Adaptor’s PCB 14. Solder View of Adaptor’s PCB



                              !"#$%&"

Rev. No 1.0 RF Maximum Permissible Exposure Measurement Report of E.U.T. : Cordless Telephone FCC ID. : AMW4960 MODEL : DCT4960-2 / DCX 490 for APPLICANT : Uniden America Corporation ADDRESS : 7F-2, NO. 9, PROSEPERITY 1ST RD., SCIENCE- BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIE, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET90R-10-039 ETC Report No. : ET90R-10-039 FCC ID.: AMW4960 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Uniden America Corporation 7F-2, NO. 9, PROSEPERITY 1ST RD., SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Manufacturer : TECOM CO., LTD. / Honor Tone Limited. No.23 R&D Road 2,Science-Based Industrial Park, Hsin-Chu Taiwan, R.O.C. / Block No.1 Tung Mun Industrial Zone, Dan Shui, Guangdong, China Description of EUT : a) Type of EUT : Cordless Telephone b) Trade Name : UNIDEN / Radio Shack c) Model No. : DCT4960-2 / DCX 490 d) Power Supply : Adaptoer Model: AD-490; I/P: 120VAC, 60Hz, 6W; O/P: 9VDC, 300mA Regulation Applied : IEEE C95.1-1991, FCC 47 CFR Part 1 and Part 2 I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in IEEE C95.1, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Oct. 15, 2001 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Detp. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET90R-10-039 FCC ID.: AMW4960 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION 1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE 2 2.1 Definition........................................................................................................................................2 2.2 Relative Requirement for Compliance..............................................................................................2 3. SYSTEM TEST CONFIGURATION 3 3.1 Justification.....................................................................................................................................3 3.2 Devices for Tested System.............................................................................................................3 4 MAXIMUM PERMISSIBLE EXPOSURE MEASUREMENT 4 4.1 Applicable Standard.......................................................................................................................4 4.2 Measurement Procedure.................................................................................................................4 4.3 Measurement Instrument.................................................................................................................5 4.4 Power Desity Data.........................................................................................................................5 ETC Report No. : ET90R-10-039 FCC ID.: AMW4960 Page 1 of 5 Pages 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT : Cordless Telephone b) Trade Name : UNIDEN / Radio Shack c) Model No. : DCT4960-2 / DCX 490 d) Power Supply : Adaptoer Model: AD-490; I/P: 120VAC, 60Hz, 6W; O/P: 9VDC, 300mA 1.2 Characteristics of Device This Cordless Telephone designed with a transmitting method of hoping spread spectrum technology. The base unit plugs into a standard analogue telephone jack and provides a digital wireless communication link with the handset using the 2400 to 2483.5 MHz ISM band. 1.3 Test Methodology The Maximum Permissible Exposure (MPE) was performed according to the procedures illustrated in IEEE C95.1-1991. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to the FCC, and accepted in a letter dated Feb. 10, 2000. ETC Report No. : ET90R-10-039 FCC ID.: AMW4960 Page 2 of 5 Pages 2 PROVISIONS APPLICABLE 2.1 Definition MPE in Occupational / Controlled Environments: Persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Also apply to a individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potatial for exposure. MPE in General Population / Uncontrolled Environments: General population / Uncontrilled exposure apply in situation in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment nay not be fully aware of the potatial for exposure or cannot execise control over their exposure. 2.2 Relative Requirement for Compliance (1) MPE for Controlled Enviroments According to section 1.1310 of FCC 47 CFR Part 1, MPE Limits for controlled enviroment are as following: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *100 6 3-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300…

Text truncated - open the document above for the full version.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 2450M FHSS WIRELESS TELEPHONE MODEL: DCT4960-2/DCX490 FCC ID: AMW4960 November 5, 2001 REPORT NO: 01U1046-1 Prepared for UNIDEN AMERICA CORPORATION 4700 AMON CARTER BOULEVARD FORT WORTH TEXAS 76155 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 01U1046-1 DATE: NOVEMBER 5,2001 FCC ID: AMW4960 EUT: 2450M FHSS WIRELESS TELEPHONE COMPLIANCE CERTIFICATION SERVICES 2 of 37 DOCUMENT NO: CCSUP4003C 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: November 4, 2001 Report No: 01U1046-1 Test Sample is a: Pre-production Unit Tx Frequency: 2402.784 – 2479.680 MHz (FHSS) Max. RF Output Power: 19.08dBm (antenna port conducted). FCC Classification: Unlicensed Intentional Radiator RF Exposure environment: General Population/Uncontrolled Application Type: Certification FCC Rule Part(s): § 15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. CCS certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). APPLICANT: UNIDEN AMERICA CORPORATION 4700 AMON CARTER BOULEVARD FORT WORTH TEXAS, 76155 U.S.A. TRADE NAME: UNIDEN MODEL: DCT4960-2/DCX490 SERIAL NUMBER: N/A (PRE-PRODUCTION) FCC ID: AMW4960 REPORT NO: 01U1046-1 DATE: NOVEMBER 5,2001 FCC ID: AMW4960 EUT: 2450M FHSS WIRELESS TELEPHONE COMPLIANCE CERTIFICATION SERVICES 3 of 37 DOCUMENT NO: CCSUP4003C 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION.........................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..........5 3. DOSIMETRIC ASSESSMENT SETUP.........................................................................6 3.1. MEASUREMENT SYSTEM DIAGRAM....................................................................................................................7 3.2. SYSTEM COMPONENTS...........................................................................................................................................8 3.3. EUT ARRANGEMENT...............................................................................................................................................12 4. EUT TUNE-UP PROCEDURE......................................................................................18 5. EVALUATION PROCEDURE.......................................................................................19 5.1. SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION........................................................................19 5.2. SYSTEM ACCURACY VERIFICATION..................................................................................................................19 5.3. SAR EVALUATION PROCEDURE.........................................................................................................................21 5.4. EXPOSURE LIMIT.....................................................................................................................................................22 6. RESULTS.........................................................................................................................23 7. REFERENCES................................................................................................................32 8. APPENDIX.......................................................................................................................33 8.1. EUT PHOTOS.............................................................................................................................................................33 8.2 EQUIPMENTS LIST & CALIBRATION INFO.........................................................................................................34 8.3 IEEE SCC-34/SC-2 P1528 RECOMMENDED TISSUE DIELECTRIC PARAMETERS.................................35 8.4 EQUIPMENTS CALIBRATION CERTIFICATE.....................................................................................................36 REPORT NO: 01U1046-1 DATE: NOVEMBER 5,2001 FCC ID: AMW4960 EUT: 2450M FHSS WIRELESS TELEPHONE COMPLIANCE CERTIFICATION SERVICES 4 of 37 DOCUMENT NO: CCSUP4003C 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and…

Text truncated - open the document above for the full version.

Page 1 of 1 SYSTEM VALIDATION DATA Ambient temperature (°C): 20.2 Date: January 27, 2002 Relative Humidity (%): 55 Measured By: Sunny Shih Liquid depth (cm): 15.1 Dipole: D1800V2 S/N: 294 Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] ε 40 40.6 +1.50 ± 5 19.2 σ 1.4 1.437 +2.64 ± 5 Head 1800 MHz 19.3 1 g SAR 38.1 38.6 +1.31 ± 10 IEEE SCC-34/SC-2 P1528 RECOMMENDED TISSUE DIELECTRIC PARAMETERS Target Frequency Head Body (MHz) ε r σ (S/m) ε r σ (S/m) 150 52.3 0.76 61.9 0.80 300 45.3 0.87 58.2 0.92 450 43.5 0.87 56.7 0.94 835 41.5 0.90 55.2 0.97 900 41.5 0.97 55.0 1.05 915 41.5 0.98 55.0 1.06 1450 40.5 1.20 54.0 1.30 1610 40.3 1.29 53.8 1.40 1800-2000 40.0 1.40 53.3 1.52 2450 39.2 1.80 52.7 1.95 3000 38.5 2.40 52.0 2.73 5800 45.3 5.27 48.2 6.00 (ε r = relative permittivity, σ = conductivity and ρ = 1000 kg/m 3 ) IEEE P1528 RECOMMENDED REFERENCE VALUE Frequency (MHz) 1 g SAR 10 g SAR Local SAR at surface (Above feed point) Local SAR at surface (y=2cm offset from feed point) 900 10.8 6.9 16.4 5.4 1800 38.1 19.8 69.5 6.8 System Validation (Dipole: D1800V2 S/N: 294) (Output power: 250 mW) Generic Twin Phantom; Flat Section; Position: (90°,90°); Frequency: 1800 MHz Probe: ET3DV6 - SN1577; ConvF(5.86,5.86,5.86); Crest factor: 1.0; Head 1900 MHz: σ = 1.44 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 9.65 mW/g, SAR (10g): 5.02 mW/g, (Worst-case extrapolation) Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0 Powerdrift: -0.03 dB Liquid Temperature: 19.3°C SAR Tot [mW/g] 9.81E-1 2.94E+0 4.91E+0 6.87E+0 8.83E+0 1/27/02 COMPLIANCE CERTIFICATION SERVICES System Validation (Dipole: D1800V2 S/N: 294) (Output power: 250 mW) Generic Twin Phantom; Section; Position: ; Frequency: 1800 MHz Probe: ET3DV6 - SN1577; ConvF(5.86,5.86,5.86); Crest factor: 1.0; Head 1900 MHz: σ = 1.44 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 : , () Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Liquid Temperature: 19.3°C 1/27/02 COMPLIANCE CERTIFICATION SERVICES -2 0 2 4 6 8 10 12 14 16 18 102030405060708090100110 SAR tot [mW/g] [mm]

Liquid confirmation Liquid Measurement date: 01/27/02 Liquid depth: 15.15cm By: Sunny Shih Simulant Freq [MHz] Parameters Liquid Temp [°C] Target Value Measured Value Deviation [%] Limit [%] ε 20.6 39.2 41.1 4.85 ±5 Head 2450 σ 20.6 1.8 1.88 4.44 ±5 ε 20.9 52.7 52.8 0.19 ±5 Body 2450 σ 20.9 1.95 2.03 4.10 ±5

Uniden (Right Cheek, Mid Channel, Antenna out) Generic Twin Phantom; Right Cheek Section; Position: (72°,65°); Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0400 mW/g, SAR (10g): 0.0224 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.08 dB; Penetration depth: 8.2 (8.1, 8.5) [mm] SAR Tot [mW/g] 4.00E-3 1.20E-2 2.00E-2 2.80E-2 3.60E-2 01/27/02 COMPLIANCE CERTIFICATION SERVICES Uniden (Right Cheek, Mid Channel, Antenna out) Generic Twin Phantom; Section; Position: ; Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 : , () Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 ; Penetration depth: 8.2 (8.1, 8.5) [mm] 01/27/02 COMPLIANCE CERTIFICATION SERVICES -0.01 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 102030405060708090 SAR tot [mW/g] [mm] Uniden (Right Tilted, Hight Channel, Antenna out) Generic Twin Phantom; Right Cheek Section; Position: (72°,65°); Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0488 mW/g, SAR (10g): 0.0261 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.12 dB; Penetration depth: 7.7 (7.5, 8.0) [mm] SAR Tot [mW/g] 4.90E-3 1.47E-2 2.45E-2 3.43E-2 4.41E-2 01/27/02 COMPLIANCE CERTIFICATION SERVICES Uniden (Right Tilted, Hight Channel, Antenna out) Generic Twin Phantom; Section; Position: ; Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 : , () Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 ; Penetration depth: 7.8 (7.7, 8.0) [mm] 01/27/02 COMPLIANCE CERTIFICATION SERVICES -0.01 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 102030405060708090 SAR tot [mW/g] [mm]

Uniden (Left Cheek, Mid Channel, Antenna out) Generic Twin Phantom; Left Cheek Section; Position: (72°,65°); Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0398 mW/g, SAR (10g): 0.0225 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.15 dB; Penetration depth: 8.2 (8.1, 8.4) [mm] SAR Tot [mW/g] 3.80E-3 1.14E-2 1.90E-2 2.66E-2 3.42E-2 01/27/02 COMPLIANCE CERTIFICATION SERVICES Uniden (Left Cheek, Mid Channel, Antenna out) Generic Twin Phantom; Section; Position: ; Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 : , () Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 ; Penetration depth: 8.1 (7.9, 8.4) [mm] 01/27/02 COMPLIANCE CERTIFICATION SERVICES -0.01 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 102030405060708090 SAR tot [mW/g] [mm] Uniden (Left Tilted, Mid Channel, Antenna out) Generic Twin Phantom; Left Cheek Section; Position: (72°,65°); Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0565 mW/g, SAR (10g): 0.0303 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.21 dB; Penetration depth: 8.0 (7.9, 8.2) [mm] SAR Tot [mW/g] 5.50E-3 1.65E-2 2.75E-2 3.85E-2 4.95E-2 01/27/02 COMPLIANCE CERTIFICATION SERVICES Uniden (Left tilted, Mid Channel, Antenna out) Generic Twin Phantom; Section; Position: ; Frequency: 2450 MHz Probe: ET3DV6 - SN1577; ConvF(4.90,4.90,4.90); Crest factor: 10.0; Head 2450MHz: σ = 1.88 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 : , () Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 ; Penetration depth: 8.2 (8.0, 8.5) [mm] 01/27/02 COMPLIANCE CERTIFICATION SERVICES -0.02 0.00 0.02 0.04 0.06 0.08 0.10 102030405060708090 SAR tot [mW/g] [mm]

Uniden (Body-worn, Mid Channel, Antenna out) Generic Twin Phantom; Flat Section; Position: (270°,270°); Frequency: 2450 MHz Probe: ET3DV6 - SN1577M; ConvF(4.40,4.40,4.40); Crest factor: 10.0; Muscle 2450 MHz: σ = 2.03 mho/m ε r = 52.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0196 mW/g, SAR (10g): 0.0110 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.75 dB; Penetration depth: 7.3 (7.2, 7.5) [mm] SAR Tot [mW/g] 1.90E-3 5.70E-3 9.50E-3 1.33E-2 1.71E-2 01/27/02 COMPLIANCE CERTIFICATION SERVICES Uniden (Body-worn, Mid Channel, Antenna out) Generic Twin Phantom; Section; Position: ; Frequency: 2450 MHz Probe: ET3DV6 - SN1577M; ConvF(4.40,4.40,4.40); Crest factor: 10.0; Muscle 2450 MHz: σ = 2.03 mho/m ε r = 52.8 ρ = 1.00 g/cm 3 : , () Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 ; Penetration depth: 7.4 (7.3, 7.7) [mm] 01/27/02 COMPLIANCE CERTIFICATION …
