AMWOVP-RD00905Radar Detector

1’st local frequency : 10.965~11.350 GHz(sweep) 2’nd local frequency : 530MHz, 1550MHz, 2085MHz SWEEP GENE- RATOR CONTROLLER IC KS 3SP8475XZZ-QZR5 PULSE GENERATOR PULSE COMPARATOR REG. POWER SW. +12V +5V +8V VIDEO AMP I / V CONVERTER PHOTO DIODE +8V GUNN 1ST L.O. 1ST MIXER 1ST IF AMP 2ND MIXER 2ND IF AMP DISCRIMINATOR COMPARATOR COMPARATOR ALARM AUDIO AMP FUNCTION KEY SIGNAL STRENGTH BAND ID X / K 2ND L.O. KA 2ND L.O. HORN ANT LASER : 800 ~ 1,100 nm +5V LRD957_VSAT BLOCK DIAGRAM DC INPUT LED DISPLAY REG. REG. +10V COMPASS

(LRD-957_VSAT Theory of Operation ) 1. SELF TEST . 1) POWER ON. (DIAL VOLUME) 2) DOT MATRIX DISPLAYS.(POWER → X → K → Ka → LASER → VG2 → S.W.S) 3) SOUND TONES.(KEY TONE) 4) TIME (4 SECONDS) 5) VISUAL & AUDIBLE. 2. STANDARD FRAME (1 ST & 2 nd local) ←100ms→  ← 145ms →  l STANDARD frame 10ms → ← 45 ms → ← * 1 ST LOCAL SWP(TP3) *2 nd LOCAL : (TPA) X/Ka VG2 *2 nd LOCAL : (TPB) K/Ka/S.W.S *2 nd LOCAL : (TPC) Ka l Radar SIGNAL INPUT * 1 ST LOCAL SWP(TP3) *2 nd LOCAL : (TPC) *2 nd LOCAL : (TPA) *2 nd LOCAL : (TPB) * TC SPEC. 3.8 〈 TC ≤ 7.0ms (X – BAND) 2.9 ≤ TC ≤ 3.8ms (K – BAND) 1.8 ≤ TC ≤ 2.8.ms (Ka – BAND) 3. VG-2 ←100ms→  ← 145ms →  l STANDARD frame * SIGNAL INPUT VG-2 : (TP11) *2 nd LOCAL : (TPA) X/Ka VG2 *2 nd LOCAL : (TPB) K/Ka/S.W.S *2 nd LOCAL : (TPC) Ka *PUSH : (TP12) 4. KEY OPERATION (A) HWY / City KEY (SW1) - HWY Mode. - “C” LED will be turned off in “HWY” mode. - While in Highway Mode the unit actuate normally. CITY Mode. - “ C ” LED will be turned on in “ CITY ” mode. - While in City Mode the unit must not actuate an audio alarm for a X-band signal(only) Unit the signal strength reaches the preset City Mode level(-90dBm/). (B) AUDIO KEY(SW2) - 1 Push : LED Display is dimmer 50%. - 1 Push : LED Display off.(POWER, CITY LED is dimmer 50%) - 1 Push : LED Display Dim off. (C) MUTE KEY(SW3) - Audio sound volume – Half Volume.

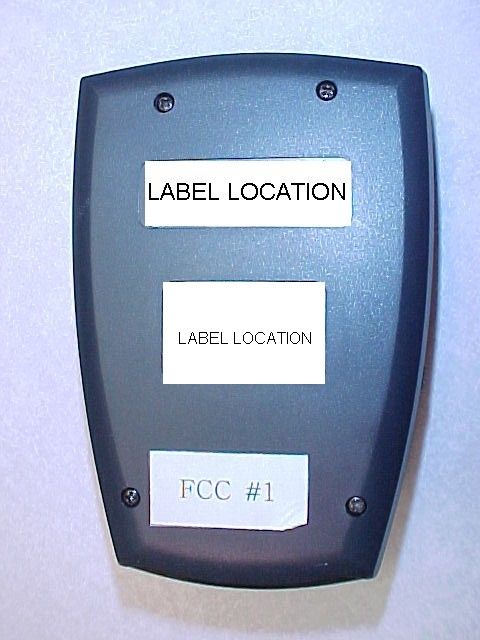

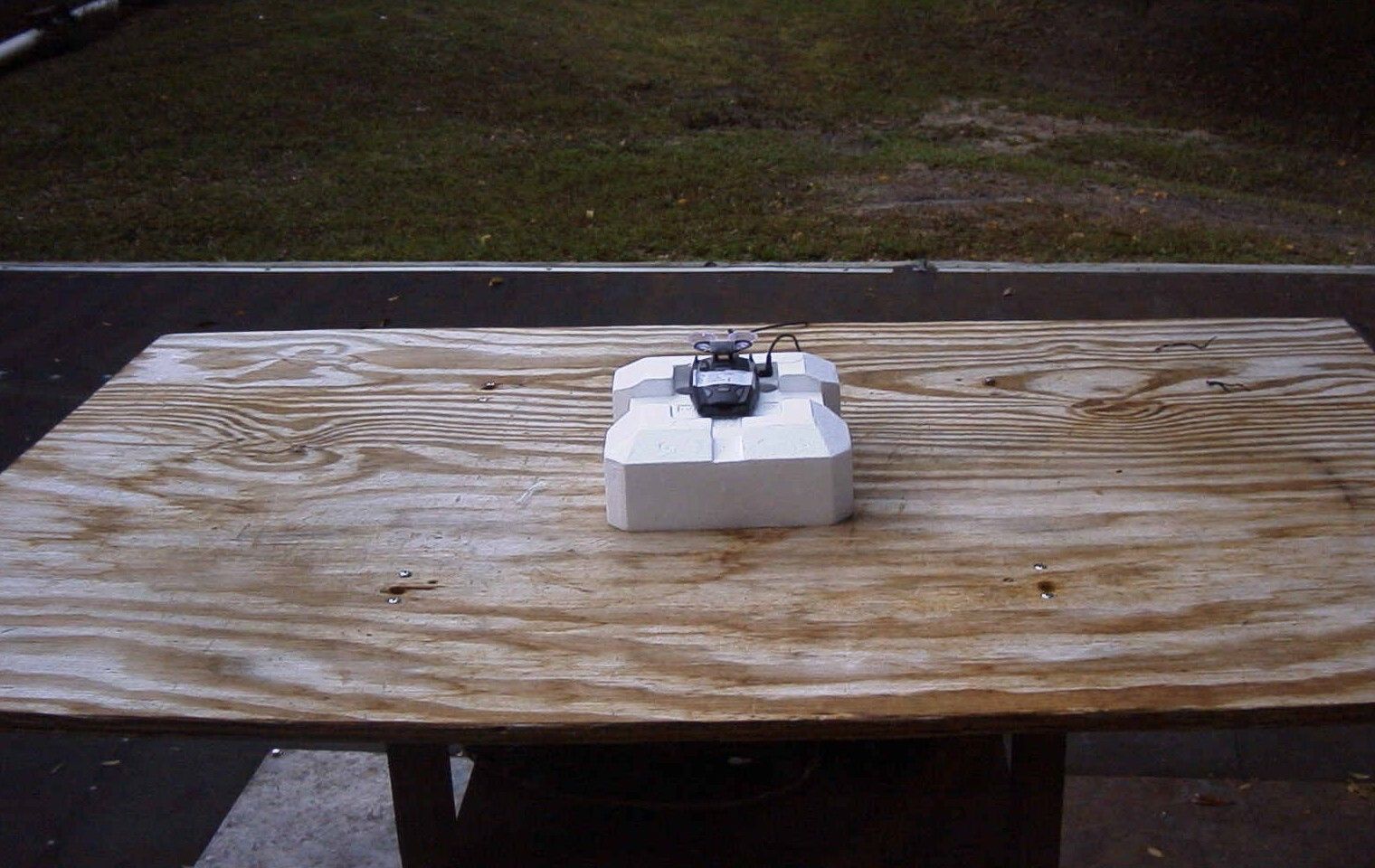

APPLICANT: UNIDEN AMERICA CORPORATION FCC ID : AMWOVP-RD00905 REPORT #: U/Uniden AMW\1040UT2\1040UT2TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: UNIDEN AMERICA CORPORATION FCC ID : AMWOVP-RD00905 TEST REPORT CONTAINING: PAGE 1-3....TEST EQUIPMENT LIST PAGE 4-5....TEST PROCEDURES PAGE 6......RADIATION INTERFERENCE TEST DATA PAGE 7......VERTICAL MEASUREMENT PLOT PAGE 8......HORIZONTAL MEASURMENT PLOT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE EXHIBIT 2............SKETCH OF LABEL LOCATION EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............SCHEMATIC EXHIBIT 5............USERS MANUAL EXHIBIT 6............EXTERNAL PHOTOGRAPHS EXHIBIT 7............INTERNAL PHOTOGRAPHS EXHIBIT 8............CIRCUIT DESCRIPTION EXHIBIT 9............TEST SET UP PHOTO APPLICANT: UNIDEN AMERICA CORPORATION FCC ID : AMWOVP-RD00905 REPORT #: U/Uniden AMW\1040UT2\1040UT2TestReport.doc Page 1 of 9 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID : AMWOVP-RD00905 REPORT #: U/Uniden AMW\1040UT2\1040UT2TestReport.doc Page 2 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID : AMWOVP-RD00905 REPORT #: U/Uniden AMW\1040UT2\1040UT2TestReport.doc Page 3 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/1/02 2/1/04 Measuring Tape, 7.5M Kraftixx 7.5M PROFI 2/1/02 2/1/04 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 Timco #51 CHAR 1/23/02 1/23/04 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 1/24/02 1/24/04 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco #65 CHAR 1/23/02 1/23/04 Coaxial Cable #106 Unknown Unknown Timco #106 CHAR 1/23/02 1/23/04 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID : AMWOVP-RD00905 REPORT #: U/Uniden AMW\1040UT2\1040UT2TestReport.doc Page 4 of 9 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2001. Section 15.35(b)specifies the use of an average detector in this band. In addition, the peak level of an emissions shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the loca…
