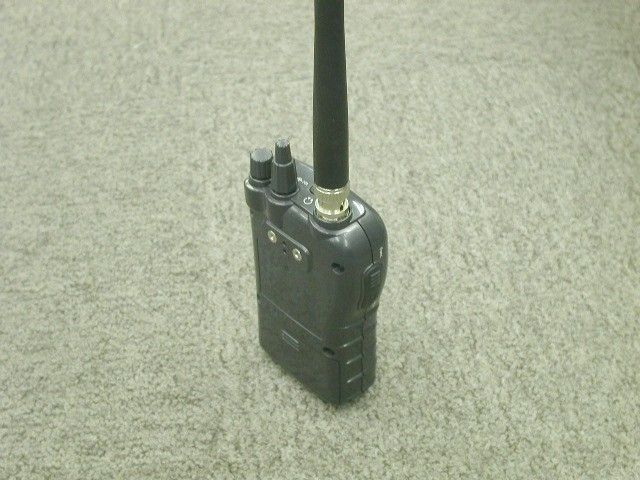

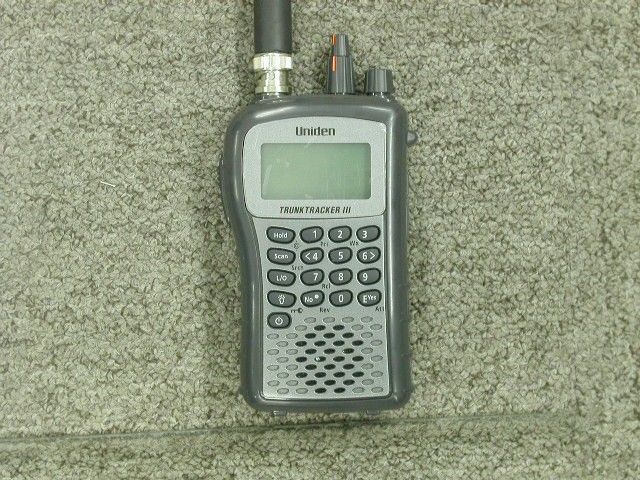

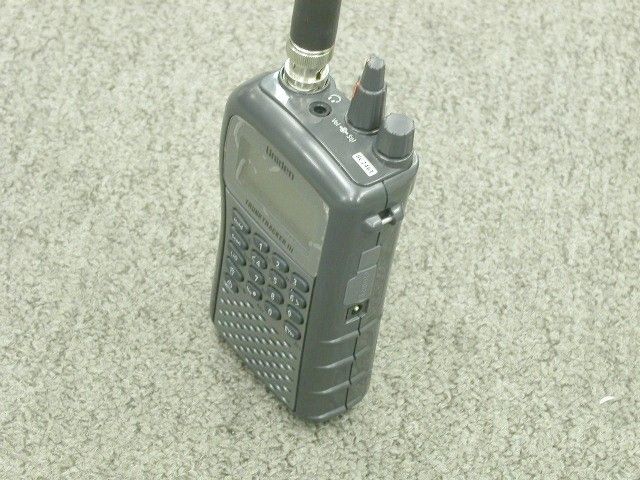

AMWUB326HANDHELD SCANNER

BC246T OWNER’S MANUAL OWNER’S MANUAL 2 Precautions Precautions Before you use this scanner, please read and observe the following. IMPORTANT! This scanning radio has been manufactured so that it will not tune to the radio frequencies assigned by the FCC for cellular telephone usage. The Electronic Communications Privacy Act of 1986, as amended, makes it a federal crime to intentionally intercept cellular or cordless tele- phone transmissions or to market this radio when altered to receive them. The installation, possession, or use of this scanning radio in a motor vehicle may be prohibited, regulated, or require a permit in certain states, cities, and/ or local jurisdictions. Your local law enforcement officials should be able to provide you with information regarding the laws in your community. Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product. EARPHONE WARNING! Be sure to use only a monaural earphone with this scan- ner. You can also use an optional 32W stereo headset. Use of an incorrect earphone or stereo headset might be potentially hazardous to your hearing. The output of the phone jack is monaural, but you will hear it in both head- phones of a stereo headset. Set the volume to a comfortable audio level coming from the speaker before plugging in the monaural earphone or a stereo headset of the proper impedance (32W). Other- wise, you might experience some discomfort or possible hearing damage if the volume suddenly becomes too loud because of the volume control or squelch control set- ting. This might be particularly true of the type of ear- phone that is placed in the ear canal. Precautions 3 Precautions WARNING! Unidendoes not represent this unit to be waterproof. To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture. Motorola ® , SMARTNET ® , PL ® , Private Line ® , and PRIVACY PLUS ® are registered trademarks of Motorola, Inc. LTR ® is a registered trademark of E.F. Johnson Co. EDACS ® is a registered trademark of M/A-COM Private Radio Systems, Inc. Uniden ® and Bearcat ® are registered trademarks of Uniden America Corporation. TrunkTracker ™ , Trunk Tracking ™ , and Close Call ™ are proprietary trademarks of Uniden America Corporation. Other trademarks used throughout this manual are the property of their respective holders. 4 Contents Contents Introduction ............................................................................... 9 Feature Highlights ................................................................. 11 About This Manual ............................................................. 15 Understanding Scanning ....................................................... 17 Understanding the Scanner’s Memory ............................... 17 What is Scanning? ............................................................. 17 What is Searching? ............................................................ 18 What is CTCSS/DCS? ....................................................... 18 Conventional Scanning ...................................................... 20 What is Trunk Tracking? .................................................... 21 Trunked Scanning .............................................................. 22 Types of Trunking Systems ................................................ 23 Where To Get More Information ......................................... 26 Using a Computer to Control Your BC246T ........................ 27 Included With Your Scanner .................................................. 28 Setting Up Your Scanner ....................................................... 28 Using Internal Batteries ...................................................... 29 Using Rechargeable Batteries ........................................... 31 Using AC Power ................................................................. 32 Connecting the Antenna ..................................................... 32 Connecting an Earphone/Headphone ................................ 33 Connecting an Extension Speaker ..................................... 33 Attaching the Belt Clip......................................................... 33 Installing the Demo Software ............................................ 34 A Look At The Keypad ....................................................... 35 A Look At The Display......................................................... 38 Basic Operation ..................................................................... 39 Turning On The Scanner and Setting the Squelch ............ 39 Using Menu ......................................................................... 39 Using Func ......................................................................... 39 Using the Scroll Control ..................................................... 40 Using the Menu ..................................................................... 41 Programming Radio Systems ................................................ 43 Programming Conventional Systems ................................. 43 Editing an Existing System Name .................................. 44 Entering a New System Name ....................................... 45 Setting the System Quick Key ........................................ 45 Setting System Lockout .................................................. 45 Setting the System Hold Time ........................................ 45 Setting the Channel Delay Time...................................... 46 Setting Data Skip............................................................. 46 Deleting a System ........................................................... 46 Copying a System ........................................................... 46 Entering/Editing Conventional Channel Groups .............. 46 Editing an Existing Group Name ......…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice President (2) FCC Identifier: FCC ID: AMWUB326 MODEL NO.: BC246T (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Note 1: This equipment is intended to use with; 2 “NH-AA” Batteries –or- AC Adapter 6V DC 500mA Note 2: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Transition provisions in section 15.37 Rules: This equipment complies with the new Part 15 of FCC rules and is not affected by section 15.37. (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

REMINDER ABOUT CONFIDENTIALITY August 13, 2004 To: TIMCO Engineering Inc. 849 NW State Road 45 Newberry, Florida 32669 and Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: 47CFR Part 0.457(d)(1)(ii) - Provisions for Confidentiality of Scanning Receivers Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs FCC IDENTIFIER: AMWUB326 Dear Sirs or Madams: FCC Docket 98-76 contains a provision that relates to applications for equipment authorization of scanning receivers. Although it is not necessary to submit a "Request for Confidentiality" and mark the application form indicating such, the Commission will not make available for public inspection portions of the application, which contain information that might assist persons to modify the subject scanning receiver to receive Cellular Service frequencies. The portions of the above referenced application material include block diagrams, schematics, technical descriptions, and internal photos showing circuitry that will normally be covered with black epoxy. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

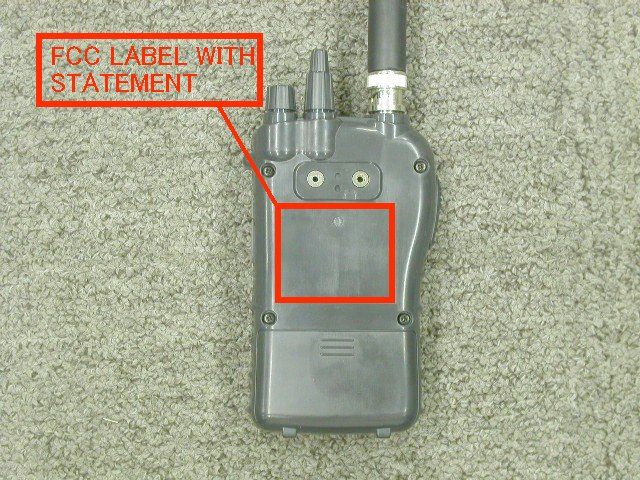

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Size: 42 mm (W) by 35 mm (H)

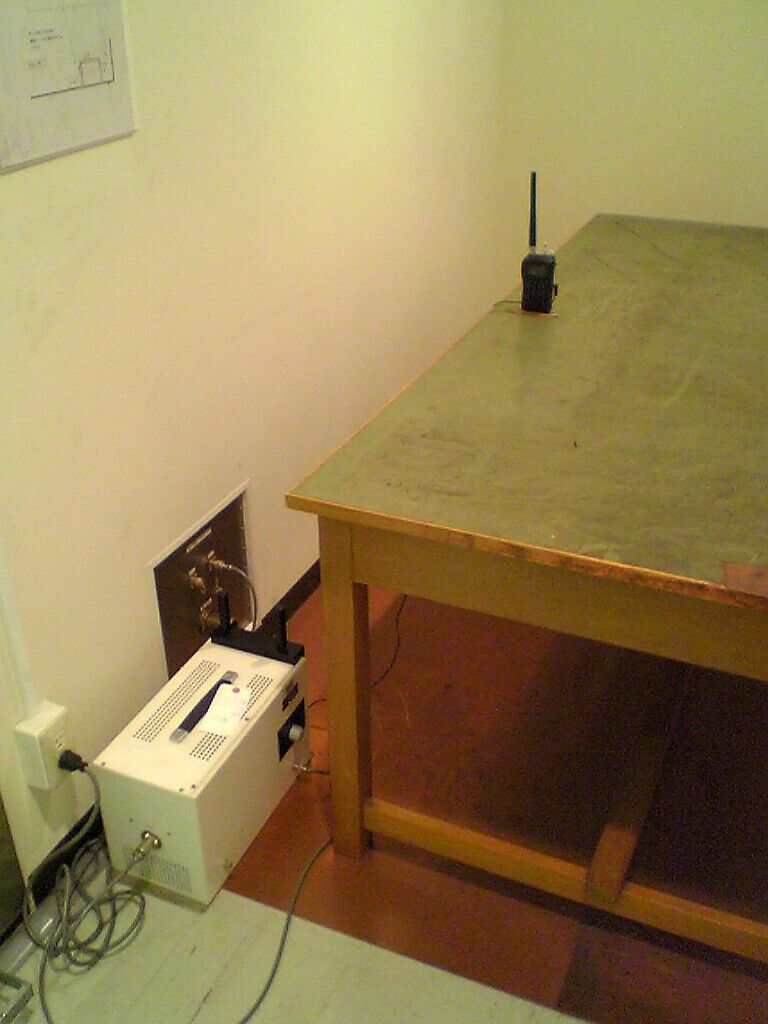

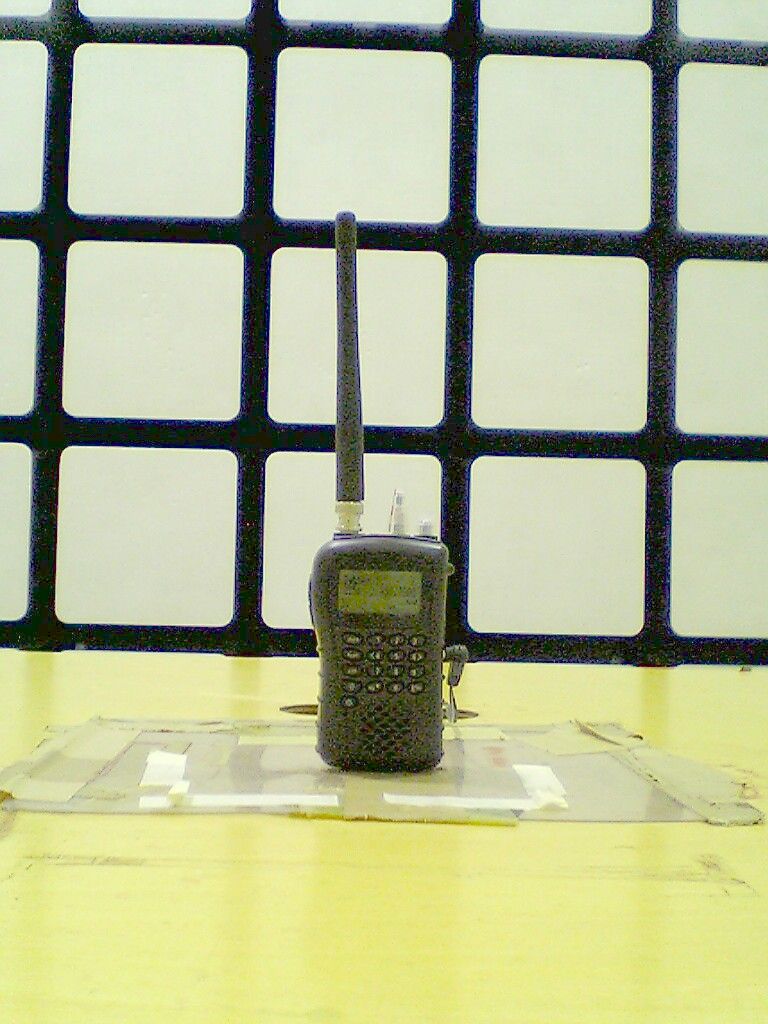

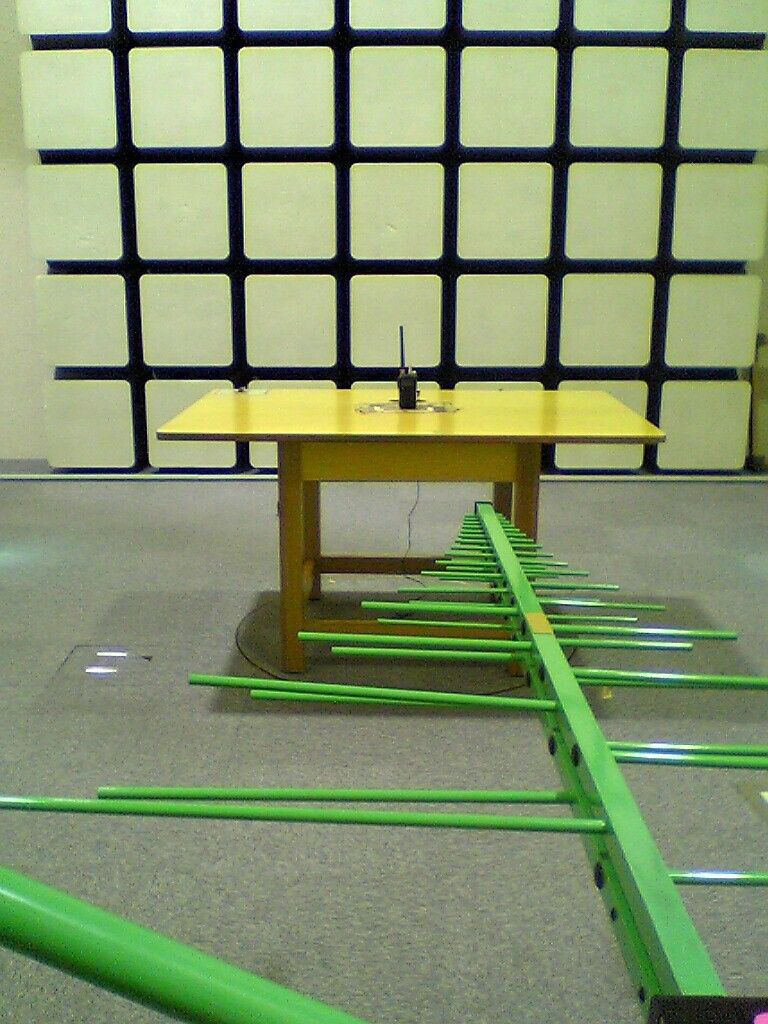

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION MEASUREMENT ITEMS 5-1 Field Strength of Spurious Radiated Emission 5-2 Power Line Conducted Emissions 5-3 Cellular image rejection NOTE: Measurements in Scan Mode vs. Non-Scan Mode -------------------------------------------------- The measurement data reported in the original file represented a non-scan mode for both of power line conducted emission and spurious radiated emission because no emission level exceeded that of the levels in the scan mode. In scan mode, the receiver only stays at a particular frequency for as short as 20 ms in certain channels as the scanning interval may change depending on the number of the memorized channels. This means that true emission levels may change along with the number of the memorized channels in the scanning mode due to changes in the duty cycle of the emission level. Therefore, we measured the device where each memorized channel was scanned for 3 different points of frequencies in each receiver coverage range as shown in the original file and we confirm that no emission level exceeds the level reported from the ones measured in the non-scan mode. 5-1 Field Strength of Spurious Radiated Emission Test procedure: The measurements were performed in accordance with the ANSI C63.4- 1992. Field Strength measurements of radiated spurious emissions were made at the open test site of a 3 meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The radio frequency spectrum was scanned in the range of 30 MHz to the 10th harmonic in accordance with the section 15.33(a) of the FCC Rules. The frequency below 1 GHz, the measurement was carried out by using CISPR quasi-peak detector, AGILENT E7400A the Spectrum Analyzer in accordance with the sections 15.33(a) and 15.35(a). The frequency above 1 GHz, using the AGILENT E7400A Spectrum Analyzer in accordance with the section 15.35(b) carried out the measurement. A bilog antenna CBL6112A was used to cover the range from 30 MHz to 1000 MHz. Narrowband tuned dipole antennas were used over the entire 30 to 1000 MHz range for precision measurements of field strength. Above 1000 MHz, a horn antenna EMCO 3115 was used. For each spurious or harmonic frequency, the antenna was raised and lowered to obtain a maximum reading on the Spectrum Analyzer with antenna horizontally polarized. Then the turntable, on which the equipment under test was placed, was rotated a minimum of 360 degrees to further increase the reading on the Spectrum Analyzer. For testing small and/or handheld product, the measurement was performed in 3 orthogonal planes (X, Y, Z). This procedure was repeated with the antenna vertically polarized. The equipment under test was connected with all of placed in its normal operating position on a turntable approximately 0.8 meter in height. During the measurement, full-featured accessory cables were connected with the equipment under test. In order to convert the measured emission levels into field strength in dBuV/m, the actual field strength (Ef) is determined by algebraically adding the measured emission level (Em) and the antenna correction factor (ACF) including the cable loss at the appropriate frequency. Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] FCC Limits: Frequency Field Strength at 3 meter 30 - 88 MHz 40 dBuV/m (100 uV/m) 88 - 216 MHz 43.5 dBuV/m (150 uV/m) 216 - 960 MHz 46 dBuV/m (200 uV/m) Above 960 MHz 54 dBuV/m (500 uV/m) Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-2 Power Line Conducted Emissions Test Procedure: The measurements were performed in accordance with the ANSI C63.4- 1992. During the measurements, a standard voltage source is fed into the unit under test through a power line impedance stabilization network. FCC Limit: The radio frequency voltage that is conducted back into the AC power line on any frequencies within the band from 150kHz to 30MHz shall not exceed the following limitation. REQUIREMENTS: FREQUENCY(MHz) LEVEL (dBuV) 0.150-0.50 66 to 56 QP 56 to 46 Ave 0.50-5.0 56 QP 46 Ave 5.0-30.0 60 QP 50 Ave Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-3 Cellular image rejection See test result. Test set-up: SSGEUTSINAD METER Dummy load 8 ohm ANTSP JACK
