AMWUB327HANDHELD SCANNER

20-501 PRO-83 200 Channel compact scanner w/signal stalker search and lighted keypad Read this user’s guide completely before using your scanner 20-501.fm Page 1 Friday, July 9, 2004 3:23 PM The Basics2 Contents The Basics The FCC wants you to know . . . . . . . . . . . . . . . . 4 powering your scanner . . . . . . . . . . . . . . . . . . . . 5 using rechargeable batteries . . . . . . . . . . . . . . . . 7 using AC power . . . . . . . . . . . . . . . . . . . . . . . . . 10 using vehicle battery power. . . . . . . . . . . . . . . . 11 setting up your scanner . . . . . . . . . . . . . . . . . . . 13 connecting the antenna . . . . . . . . . . . . . . . . . . . 13 connecting an optional antenna . . . . . . . . . . . . 13 connecting an earphone/headphone . . . . . . . . 14 listening safely . . . . . . . . . . . . . . . . . . . . . . . . . . 14 traffic safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 connecting an extension speaker . . . . . . . . . . . 15 attaching the belt clip . . . . . . . . . . . . . . . . . . . . . 16 about your scanner . . . . . . . . . . . . . . . . . . . . . . 17 a look at the keypad . . . . . . . . . . . . . . . . . . . . . . 18 a look at the display . . . . . . . . . . . . . . . . . . . . . . 22 understanding banks . . . . . . . . . . . . . . . . . . . . . 24 service banks . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 channel storage banks . . . . . . . . . . . . . . . . . . . . 24 Beyond the Basics operating your scanner . . . . . . . . . . . . . . . . . . . 25 turning on the scanner and setting squelch . . . 25 storing known frequencies into channels . . . . . 25 searching for and temporarily storing active frequencies . . . . . . . . . . . . . . . . . . . . . . 28 ©2004. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 20-501.fm Page 2 Friday, July 9, 2004 3:23 PM 3 The Basics service search . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 storing frequencies into channels during service search. . . . . . . . . . . . . . . . . . . . . . . . . . 29 scanning the stored channels . . . . . . . . . . . . . . . 30 manually selecting a channel . . . . . . . . . . . . . . . 30 signal stalker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 setting the signal stalker options . . . . . . . . . . . . 32 using signal stalker . . . . . . . . . . . . . . . . . . . . . . . 35 Skywarn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 about skywarn . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 WX alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 turning on the weather alert feature. . . . . . . . . . 38 chain search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 chain search mode . . . . . . . . . . . . . . . . . . . . . . . 39 chain search hold mode . . . . . . . . . . . . . . . . . . . 40 storing frequencies found during chain search into channel memory . . . . . . . . . . . . . . 41 program band select mode . . . . . . . . . . . . . . . . 41 direct entry search . . . . . . . . . . . . . . . . . . . . . . . 42 direct entry search hold mode . . . . . . . . . . . . . . 43 storing frequencies found during direct entry search into channel memory . . . . . . . . . 44 search skip memory . . . . . . . . . . . . . . . . . . . . . . 45 delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 turning channel-storage banks on and off . . . . . 48 locking out channels . . . . . . . . . . . . . . . . . . . . . . 48 locking out frequencies . . . . . . . . . . . . . . . . . . . 49 priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 using keylock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 wired programming . . . . . . . . . . . . . . . . . . . . . . 52 using the display/key backlight. . . . . . . . . . . . . . 53 20-501.fm Page 3 Friday, July 9, 2004 3:23 PM The Basics4 resetting the scanner . . . . . . . . . . . . . . . . . . . . . 54 frequently asked questions . . . . . . . . . . . . . . . . 55 specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult your local RadioShack store or an experienced radio/TV technician for help. • If you cannot eliminate the interference, the FCC requires that you stop using your scanner. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. You must use shielded interface cables with this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, i…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice President (2) FCC Identifier: FCC ID: AMWUB327 MODEL NO.: 20-501 (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Note 1: This equipment is intended to use with; 2 “AA” Batteries –or- AC Adapter 6V DC 300mA Note 2: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Transition provisions in section 15.37 Rules: This equipment complies with the new Part 15 of FCC rules and is not affected by section 15.37. (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

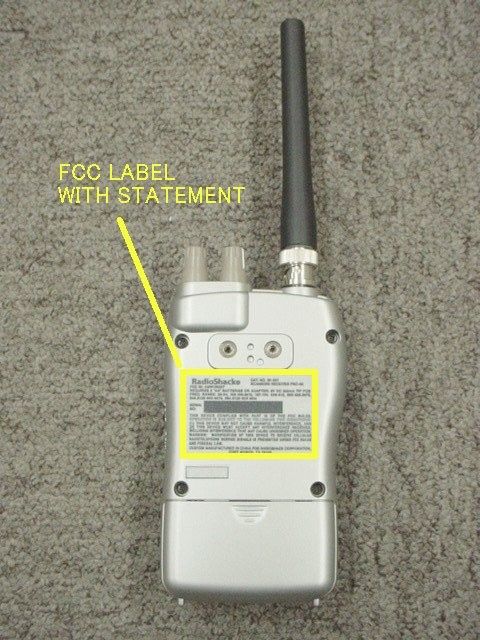

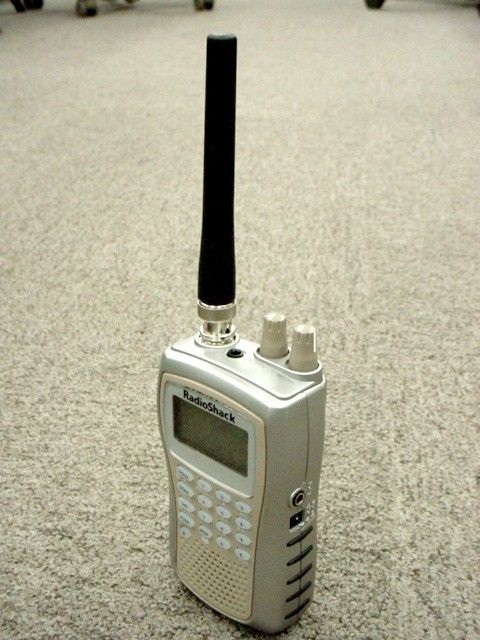

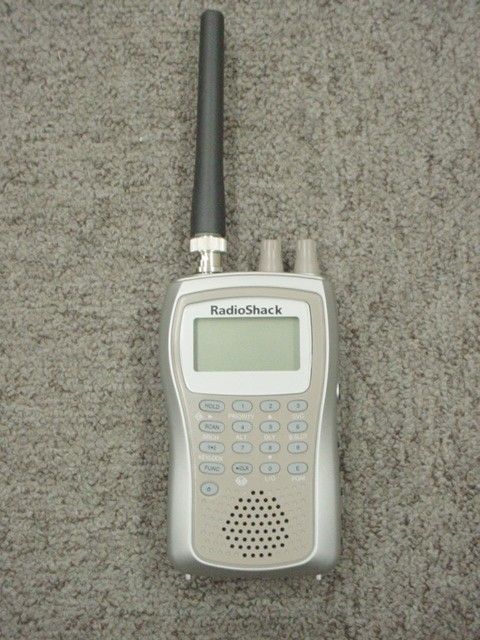

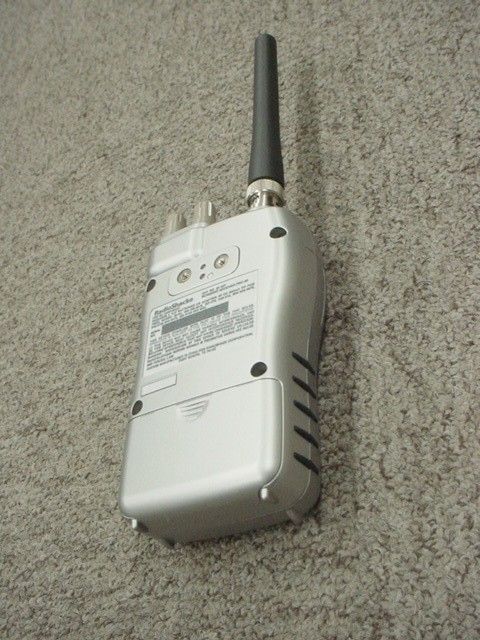

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Size: 46 mm (W) by 28 mm (H)

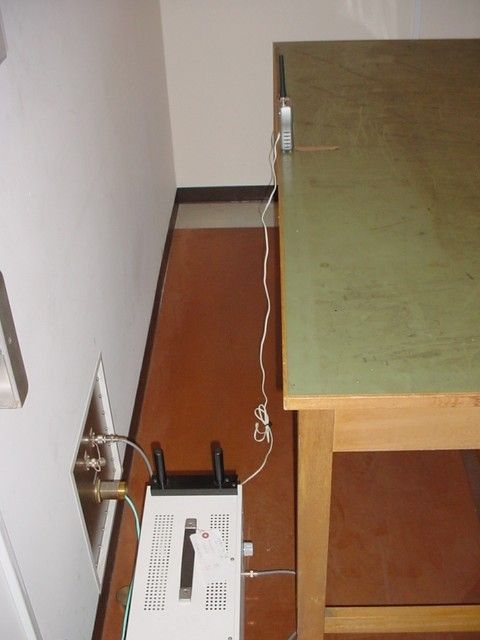

TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB327 NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NO.: 15.107 REQUIREMENTS: QUASI-PEAK AVERAGE .15 – 0.5 MHz 66-56 dBuV 56-46 dBuV 0.5 – 5.0 56 46 5.0 – 30. 60 50 TEST PROCEDURE: ANSI STANDARD C63.4-1992. The spectrum was scanned from .15 to 30 MHz. TEST DATA: THE GRAPHS ON THE FOLLOWING PAGES REPRESENT THE EMISSIONS READ FOR POWER LINE CONDUCTED FOR THIS DEVICE. TEST RESULTS: Both lines were observed. The measurements indicate that the unit DOES appear to meet the FCC requirements for this class of equipment. PERFORMED BY: NAM NGUYEN DATE: AUGUST 2, 2004 FCC ID: AMWUB327 REPORT #: U\Uniden AMW\1190UT4\1190UT4TestReport.doc Page 1 of 4 TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION POWER LINE CONDUCTED LINE 1 FCC ID: AMWUB327 REPORT #: U\Uniden AMW\1190UT4\1190UT4TestReport.doc Page 2 of 4 TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION POWER LINE CONDUCTED LINE 2 FCC ID: AMWUB327 REPORT #: U\Uniden AMW\1190UT4\1190UT4TestReport.doc Page 3 of 4 TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION POWER LINE CONDUCTED TEST SET UP PHOTOGRAPH FCC ID: AMWUB327 REPORT #: U\Uniden AMW\1190UT4\1190UT4TestReport.doc Page 4 of 4

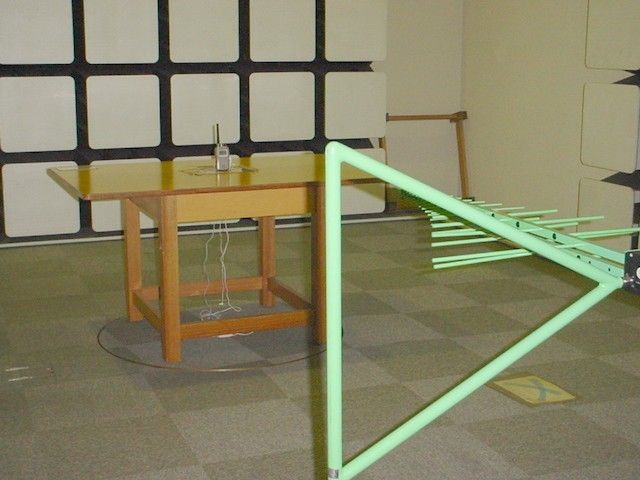

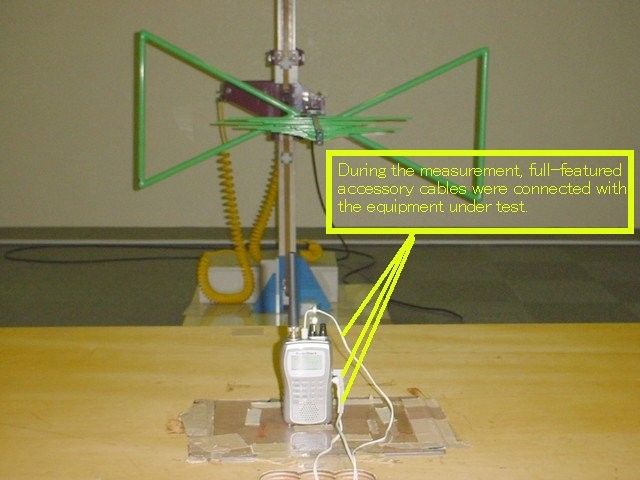

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION MEASUREMENT ITEMS 5-1 Field Strength of Spurious Radiated Emission 5-2 Power Line Conducted Emissions 5-3 Cellular image rejection NOTE: Measurements in Scan Mode vs. Non-Scan Mode -------------------------------------------------- The measurement data reported in the original file represented a non-scan mode for both of power line conducted emission and spurious radiated emission because no emission level exceeded that of the levels in the scan mode. In scan mode, the receiver only stays at a particular frequency for as short as 20 ms in certain channels as the scanning interval may change depending on the number of the memorized channels. This means that true emission levels may change along with the number of the memorized channels in the scanning mode due to changes in the duty cycle of the emission level. Therefore, we measured the device where each memorized channel was scanned for 3 different points of frequencies in each receiver coverage range as shown in the original file and we confirm that no emission level exceeds the level reported from the ones measured in the non-scan mode. 5-1 Field Strength of Spurious Radiated Emission Test procedure: The measurements were performed in accordance with the ANSI C63.4- 1992. Field Strength measurements of radiated spurious emissions were made at the open test site of a 3 meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The radio frequency spectrum was scanned in the range of 30 MHz to the 10th harmonic in accordance with the section 15.33(a) of the FCC Rules. The frequency below 1 GHz, the measurement was carried out by using CISPR quasi-peak detector, AGILENT E7400A the Spectrum Analyzer in accordance with the sections 15.33(a) and 15.35(a). The frequency above 1 GHz, using the AGILENT E7400A Spectrum Analyzer in accordance with the section 15.35(b) carried out the measurement. A bilog antenna CBL6112A was used to cover the range from 30 MHz to 1000 MHz. Narrowband tuned dipole antennas were used over the entire 30 to 1000 MHz range for precision measurements of field strength. Above 1000 MHz, a horn antenna EMCO 3115 was used. For each spurious or harmonic frequency, the antenna was raised and lowered to obtain a maximum reading on the Spectrum Analyzer with antenna horizontally polarized. Then the turntable, on which the equipment under test was placed, was rotated a minimum of 360 degrees to further increase the reading on the Spectrum Analyzer. For testing small and/or handheld product, the measurement was performed in 3 orthogonal planes (X, Y, Z). This procedure was repeated with the antenna vertically polarized. The equipment under test was connected with all of placed in its normal operating position on a turntable approximately 0.8 meter in height. During the measurement, full-featured accessory cables were connected with the equipment under test. In order to convert the measured emission levels into field strength in dBuV/m, the actual field strength (Ef) is determined by algebraically adding the measured emission level (Em) and the antenna correction factor (ACF) including the cable loss at the appropriate frequency. Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] FCC Limits: Frequency Field Strength at 3 meter 30 - 88 MHz 40 dBuV/m (100 uV/m) 88 - 216 MHz 43.5 dBuV/m (150 uV/m) 216 - 960 MHz 46 dBuV/m (200 uV/m) Above 960 MHz 54 dBuV/m (500 uV/m) Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-2 Power Line Conducted Emissions Test Procedure: The measurements were performed in accordance with the ANSI C63.4- 1992. During the measurements, a standard voltage source is fed into the unit under test through a power line impedance stabilization network. FCC Limit: The radio frequency voltage that is conducted back into the AC power line on any frequencies within the band from 150kHz to 30MHz shall not exceed the following limitation. REQUIREMENTS: FREQUENCY(MHz) LEVEL (dBuV) 0.150-0.50 66 to 56 QP 56 to 46 Ave 0.50-5.0 56 QP 46 Ave 5.0-30.0 60 QP 50 Ave Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-3 Cellular image rejection See test result. Test set-up: SSGEUTSINAD METER Dummy load 8 ohm ANTSP JACK
