AMWUB335MOBILE TYPE DIGITAL TRUNKING SCANNER

BC340CRS Before you use this scanner, please read and observe the following. IMPORTANT! This scanning radio has been manufactured so that it will not tune to the radio frequencies assigned by the FCC for cellular telephone usage. The Electronic Communications Privacy Act of 1986, as amended, makes it a federal crime to intentionally intercept cellular or cordless telephone transmissions or to market this radio when altered to receive them. The installation, possession, or use of this scanning radio in a motor vehicle may be prohibited, regulated, or require a permit in certain states, cities, and/or local jurisdictions. Your local law enforcement officials should be able to provide you with information regarding the laws in your community. Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product. EARPHONE WARNING! You can use an optional 32 Ωstereo headset or earphone with this scanner. Use of an incorrect earphone or stereo headset might be potentially hazardous to your hearing. The output of the phone jack is monaural, but you will hear it in both headphones of a stereo headset. Set the speaker volume to a comfortable level before plugging in either a monaural earphone or a stereo headset of the proper impedance (32 Ω). Otherwise, you might experience some discomfort or possible hearing damage if the volume suddenly becomes too loud because of the volume control or squelch control setting. This is particularly true for the type of earphone that is placed in the ear canal. 2 Precautions Precautions UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 2 WARNING! Uniden does notrepresent this unit to be waterproof. To reduce the risk of fire or electrical shock, do notexpose this unit to rain or moisture. Uniden ® and Bearcat ® are registered trademarks of Uniden America Corporation. Other trademarks used throughout this manual are the property of their respective holders. Important:If you use the supplied AC adapter to power the scanner but have not installed batteries in the scanner, never turn the scanner off by disconnecting the AC adapter or unplugging it from the AC outlet. This might corrupt the scanner’s memory. Always use POWERto turn the scanner off before disconnecting AC power. 3 Precautions UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 3 This scanner has been tested and found to comply with the limits for a scanning receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This scanner generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this scanner does cause harmful interference to radio or television reception, which can be determined by turning the scanner on and off, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the scanner and the receiver This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Scanning Legally Your scanner covers frequencies used by many different groups, including police and fire departments, ambulance services, government agencies, private companies, amateur radio services, military operations, pager services, and wireline (telephone and telegraph) service providers. It is legal to listen to almost every transmission your scanner can receive. However, there are some transmissions that you should never intentionally listen to. These include: • Telephone conversations (cellular, cordless, or other private means of telephone signal transmission) • Pager transmissions • Any scrambled or encrypted transmissions According to the Electronic Communications Privacy Act (ECPA), you are subject to fines and possible imprisonment for intentionally listening to, using, or divulging the contents of such a conversation unless you have the consent of a party to the conversation (unless such activity is otherwise illegal). This scanner has been designed to prevent the reception of cellular telephone transmissions and the decoding of scrambled transmissions. 6 The FCC Wants You to Know The FCC Wants You to Know UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 6 This is done to comply with the legal requirement that scanners be manufactured so they are not easy to modify to pick up these transmissions. Do not open your scanner’s case to make any modifications that could allow it to pick up transmissions that are illegal to monitor. Modifying or tampering with your scanner’s internal components or using it in a way other than as described in this manual could invalidate your warranty and void your FCC authorization to operate it. In some areas, mobile and/or portable use of this scanner is unlawful or requires a permit. Check the laws in your area. It is also illegal in many areas (and a bad idea everywhere) to interfere with the duties of public safety officials by traveling to the scene of an incident without authorization. 7 The FCC Wants You to Know UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 7 28 Care and Maintenance Care and Maintenance General Use • Turn the scanner off before disconnecting the power. • If memory is lost, simply reprogram each channel. • Always press each button firmly until you hear the entry tone for that key entry. Location • Do not use the scanner in high-moisture environments such as the kitchen or bathroom. • Avoid placing the unit in direct su…

Text truncated - open the document above for the full version.

ATTESTATION February 7, 2006 To: FEDERAL COMMUNICATIONS COMMISSION Office of Engineering & Technology Laboratory Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: EXCLUSION OF CELLULAR BAND RECEPTION Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs FCC IDENTIFIER: AMWUB335 Dear Sirs or Madams: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

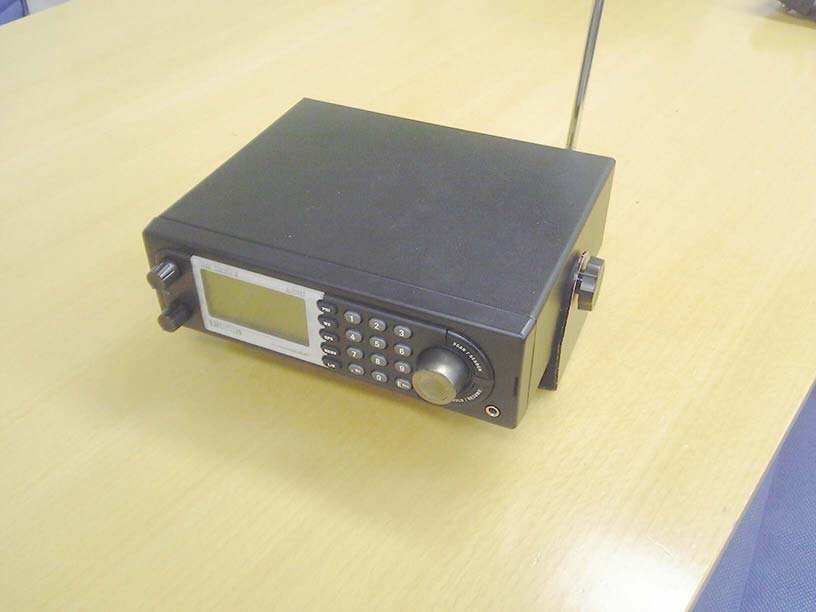

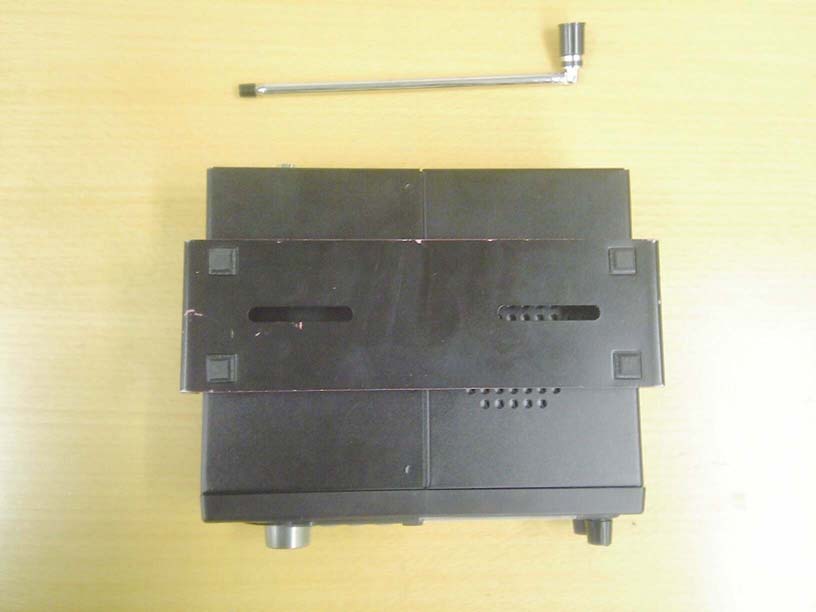

UNIDEN AMERICA CORP. FCC ID: AMWUB335 EXTERNAL PHOTOS

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. FCC LABEL: Size: 95 mm (W) by 12 mm (H) FCC STATEMENT:

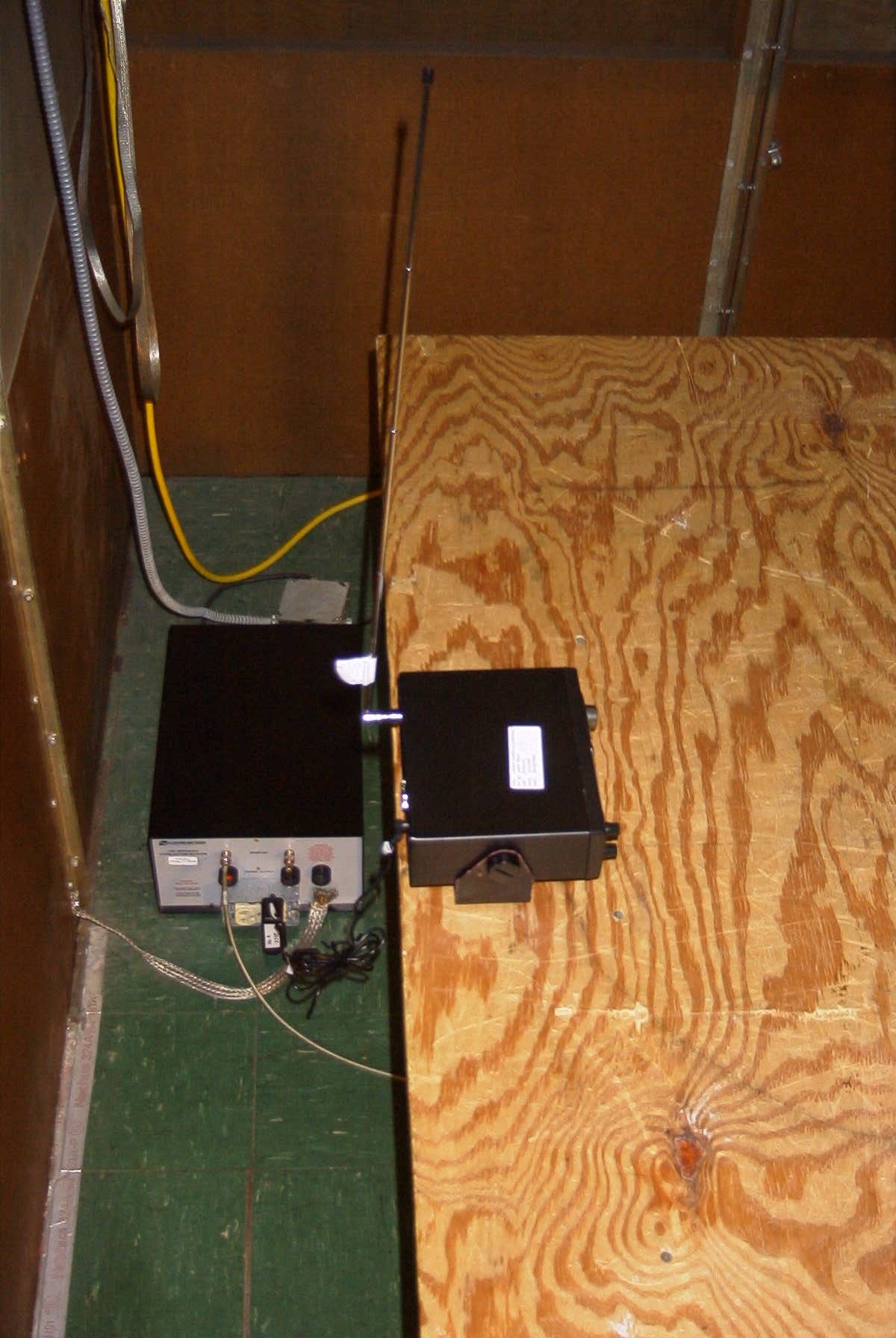

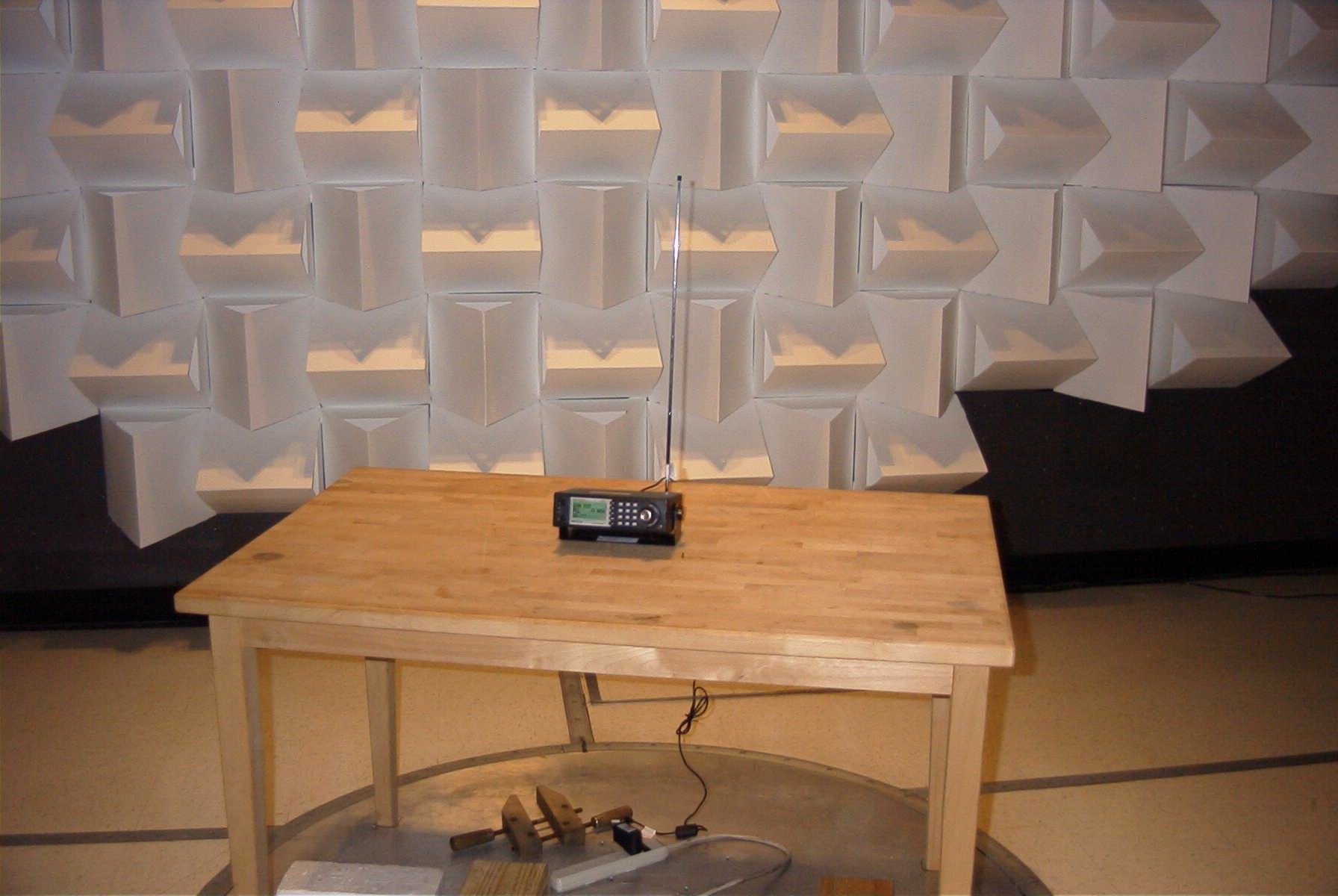

TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 REPORT #: V:\U\Uniden AMW\2570AUT5\2570AUT5TestReport.doc TABLE OF CONTENTS LIST APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST PAGE 2......TEST PROCEDURE PAGE 3-5....RADIATED EMISSIONS TEST DATA PAGE 6......38Db REJECTION RATIO PAGE 7-9....POWERLINE CONDUCTED PLOTS PAGE 10.....RECEIVER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS EXHIBITS CONTAINING: BLOCK DIAGRAMS SCHEMATICS INSTRUCTION MANUAL SAMPLE OF FCC ID LABEL AND SKETCH OF LOCATION TEST SETUP PHOTOS EXTERNAL PHOTOS INTERNAL PHOTOS CIRCUIT DESCRIPTION TABLE OF CONTENTS TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 REPORT #: V:\U\Uniden AMW\2570AUT5\2570AUT5TestReport.doc APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 12/8/04 12/8/06 Silver Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Open-Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Log-Periodic Antenna Electro- Metrics LPA-25 1122 CAL 8/26/04 8/26/06 Page 1 of 10 TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 REPORT #: V:\U\Uniden AMW\2570AUT5\2570AUT5TestReport.doc TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80oC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Page 2 of 10 TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 REPORT #: V:\U\Uniden AMW\2570AUT5\2570AUT5TestReport.doc APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB335 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.109 REQUIREMENTS: 30 to 80 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarit y Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 25.0 31.36 19.0 H 0.41 13.34 32.75 7.25 25.0 32.42 24.6 V 0.41 11.48 36.49 3.51 25.0 46.23 22.6 H 0.48 11.20 34.28 5.72 25.0 49.72 25.3 V 0.50 11.04 36.84 3.16 25.0 61.34 17.1 H 0.54 10.86 28.50 11.50 25.0 69.94 21.6 H 0.57 8.52 30.69 9.31 25.0 70.66 20.4 V 0.57 7.41 28.38 11.62 25.0 97.80 16.9 V 0.64 11.20 28.74 14.76 25.0 100.04 24.2 H 0.65 11.50 36.35 7.15 25.0 115.30 15.9 H 0.67 15.10 31.67 11.83 25.0 128.14 15.5 H 0.68 13.14 29.32 14.18 25.0 136.74 20.4 H 0.69 13.10 34.19 9.31 25.0 150.22 15.2 H 0.70 14.38 30.28 13.22 54.0 32.52 24.1 V 0.41 11.44 35.95 4.05 54.0 33.56 19.4 H 0.42 12.59 32.41 7.59 54.0 36.86 15.8 V 0.43 10.20 26.43 13.57 54.0 42.32 18.2 H 0.46 11.31 29.97 10.03 54.0 45.70 19.6 V 0.48 10.24 30.32 9.68 54.0 45.74 22.1 H 0.48 11.20 33.78 6.22 54.0 64.82 17.1 V 0.55 9.48 27.13 12.87 54.0 66.38 27.1 H 0.55 9.73 37.38 2.62 54.0 71.78 18.2 V 0.57 7.25 26.02 13.98 54.0 81.56 17.8 V 0.60 7.04 25.44 14.56 54.0 97.40 15.6 V 0.64 11.13 27.37 16.13 Page 3 of 10 TIMCO ENGINEERING INC. A2LA ACCREDITED 849 NW State Road 45 A2LA CERT # 09…
