AMWUB337Moble Type Scanner

Uniden America Corporation

Click to zoom

Application Details

Equipment Class: CSR - Scanning Receiver
Date of Grant: Dec 22, 2005
Application Purpose: Original Equipment
Date of Application: Dec 22, 2005
Equipment Note: Moble Type Scanner
Frequency Range: 406.00000000 - 512.00000000
Company: Uniden America Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BC340CRS OWNER’S MANUAL OWNER'S MANUAL UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 1 Before you use this scanner, please read and observe the following. IMPORTANT! This scanning radio has been manufactured so that it will not tune to the radio frequencies assigned by the FCC for cellular telephone usage. The Electronic Communications Privacy Act of 1986, as amended, makes it a federal crime to intentionally intercept cellular or cordless telephone transmissions or to market this radio when altered to receive them. The installation, possession, or use of this scanning radio in a motor vehicle may be prohibited, regulated, or require a permit in certain states, cities, and/or local jurisdictions. Your local law enforcement officials should be able to provide you with information regarding the laws in your community. Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product. EARPHONE WARNING! You can use an optional 32 Ωstereo headset or earphone with this scanner. Use of an incorrect earphone or stereo headset might be potentially hazardous to your hearing. The output of the phone jack is monaural, but you will hear it in both headphones of a stereo headset. Set the speaker volume to a comfortable level before plugging in either a monaural earphone or a stereo headset of the proper impedance (32 Ω). Otherwise, you might experience some discomfort or possible hearing damage if the volume suddenly becomes too loud because of the volume control or squelch control setting. This is particularly true for the type of earphone that is placed in the ear canal. 2 Precautions Precautions UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 2 WARNING! Uniden does notrepresent this unit to be waterproof. To reduce the risk of fire or electrical shock, do notexpose this unit to rain or moisture. Uniden ® and Bearcat ® are registered trademarks of Uniden America Corporation. Other trademarks used throughout this manual are the property of their respective holders. Important:If you use the supplied AC adapter to power the scanner but have not installed batteries in the scanner, never turn the scanner off by disconnecting the AC adapter or unplugging it from the AC outlet. This might corrupt the scanner’s memory. Always use POWERto turn the scanner off before disconnecting AC power. 3 Precautions UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 3 The FCC Wants You to Know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Scanning Legally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Unpacking Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Setting Up The Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Connecting an Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Using the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Using the Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Setting the Current Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Setting the Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Using Snooze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Listening to AM/FM/TV Channels . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Directly Selecting a Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Using AM/FM/TV Channel Memory . . . . . . . . . . . . . . . . . . . . . . . . . .20 Using the Scanner Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Programming Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Selecting a Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Scanning Memory Banks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Locking/Unlocking Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Using Priority Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Setting Channel Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Searching for Active Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Using Limit Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Programming an Upper/Lower Limit . . . . . . . . . . . . . . . . . . . . . . . . .25 Searching the Selected Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Using Service Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Selecting a Service to Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Saving a Found Frequency into a Scan Memory . . . . . . . . . . . . . . . .26 Search Lockouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 4 Contents Contents UB337ZH(BC340CRS)_new 11/29/05 7:24 PM Page 4 Listening to Weather Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 General Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Cleaning . . . . . . . . . …

Text truncated - open the document above for the full version.

Attestation Statements

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice President (2) FCC Identifier: FCC ID: AMWUB337 MODEL NO.: (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Note 1: This equipment is intended to use with; AC ADAPTER 12V DC Note 2: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Reserved (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

Cover Letter(s)

ID Label/Location Info

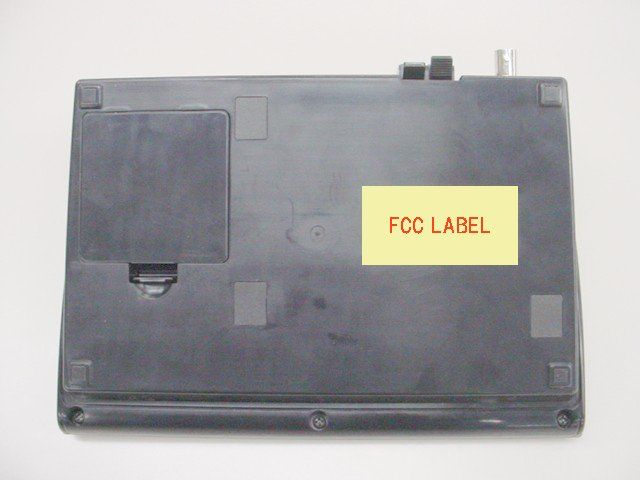

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Size: 55 mm (W) by 25 mm (H) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. FCC ID: AMWUB337 IC: 513C-UB337 POWER REQUIREMENT: 12V DC USE ONLY UNIDEN AC ADAPTER AD-1008, OR UNIDEN SPECIFIED SUPPLY UNIDEN AMERICA CORPORATION MADE IN CHINA SERIAL NO:
