AMWUB344HANDHELD SCANNER

Owner’s Manual PRO-528 1000-Channel Handheld Trucking Scanner Contents Features ..................................................................... xx FCC Notice ........................................................... xx Scanning Legally .................................................. xx Preparation .............................................................. xx Using Internal Batteries ...................................... xx Using Non-Rechargeable Batteries ............ xx Using Rechargeable Batteries .................... xx Using AC Power ................................................. xx Using Vehicle Battery Power .............................. xx Connecting the Antenna .................................... xx Connecting an Optional Antenna ................ xx Connecting an Earphone/Headphone ................ xx Listening Safely .......................................... xx Traffic Safety ............................................... xx Connecting an Extension Speaker ..................... xx Attaching the Belt Clip ........................................ xx About Your Scanner ................................................ xx A Look at the Keypad ......................................... xx A Look at the Display ......................................... xx Understanding Banks ......................................... xx Service Banks ............................................. xx Channel Storage Banks .............................. xx Operation ................................................................. xx Turning on the Scanner and Setting Squelch .... xx Storing Known Frequencies into Channels ........ xx Searching For and Temporarily Storing Active Frequencies ............................................. xx Chain Search ................................................ xx Direct Search .............................................. xx Service Bank Search .................................. xx Search Skip Memory ................................... xx Scanning the Stored Channels .......................... xx Manually Selecting a Channel ............................ xx Special Features ...................................................... xx Delay .................................................................. xx Turning Channel-Storage Banks On and Off ...... xx Locking Out Channels ........................................ xx Priority ................................................................ xx Using the Keylock ............................................... xx Wired Programming ............................................ xx Cloning Your Scanner ......................................... xx Using the Display Backlight ................................ xx Using the Auto Backlight Display ........................ xx Changing Search Speeds ................................... xx Turning the Keytone Off/On ................................ xx Turning the Battery Save Function Off/On .......... xx Skipping Data Signals ........................................ xx Receiving NWR-SAME and Weather Alert Signals ......................................... xx Turning On the Digital Weather Alert Feature ................................. xx Testing Digital Weather Alert Tone .............. xx Testing NWR-SAME Code Detection .......... xx Programming FIPS Code.... ......... ............... xx Skywarn ............. ................................................. xx Signal Stalker....................................................... xx Setting the signal stalker options ................. xx Trunking Operation .................................................. xx Types of Trunking Systems ................................ xx Setting the Scanner to the Trunking Mode ......... xx Simultaneous Trunking ................................ xx Setting Squelch for the Trunking Mode .............. xx Storing Trunked Frequencies ............................. xx Searching a Trunked Bank ................................. xx Turning a Trunked Bank On or Off .............. xx Skipping a Trunked Bank ............................ xx Turning the Status Bit Ignore (S-Bit) On or Off .......................................... xx Identifying a Trunked Frequency ................. xx Selecting the EDACS Talk Group ID Format .................................. xx EDACS Talk Group ID Range Search ......... xx Using HOLD to Monitor an Active Talk Group ID ............................... xx Locking Out Talk Group IDs ........................ xx Unlocking a Single Talk Group ID ................ xx Unlocking All Talk Group IDs ....................... xx Using Trunk Scanning Scan Delay .............. xx Monitoring Talk Group IDs ........................... xx Using Talk Group ID Lists ................................... xx Manually Storing Talk Group IDs in Talk Group ID Lists ........................................................ xx Entering EDACS Partial Talk Groups .......... xx Scanning the Talk Group ID Lists ................ xx Deleting a Stored Talk Group ID List ........... xx Priority Talk Group ID Scanning .................. xx Scanning Type I and Hybrid Trunked Systems .. xx Selecting a Preset Fleet Map ...................... xx Programming a Fleet Map .......................... xx Programming the Base and Offset Frequencies ...................................... xx Programming a Hybrid System ................... xx Turning On/Off the Motorola Disconnect Tone Detect Function ........................................... xx A General Guide to Scanning ................................ xx Guide to Frequencies ......................................... xx National Weather Frequencies ................... xx Birdie Frequencies ...................................... xx Guide to the Action Bands ................................. xx Typical Band Usage .................................... xx Primary Usage ............................................ xx Band Allocation ...........................…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice President (2) FCC Identifier: FCC ID: AMWUB344 MODEL NO.: (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Note 1: This equipment is intended to use with; 6Vdc (4 AA battery) –or- AC Adapter 9V DC 300mA Note 2: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Transition provisions in section 15.37 Rules: This equipment complies with the new Part 15 of FCC rules and is not affected by section 15.37. (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

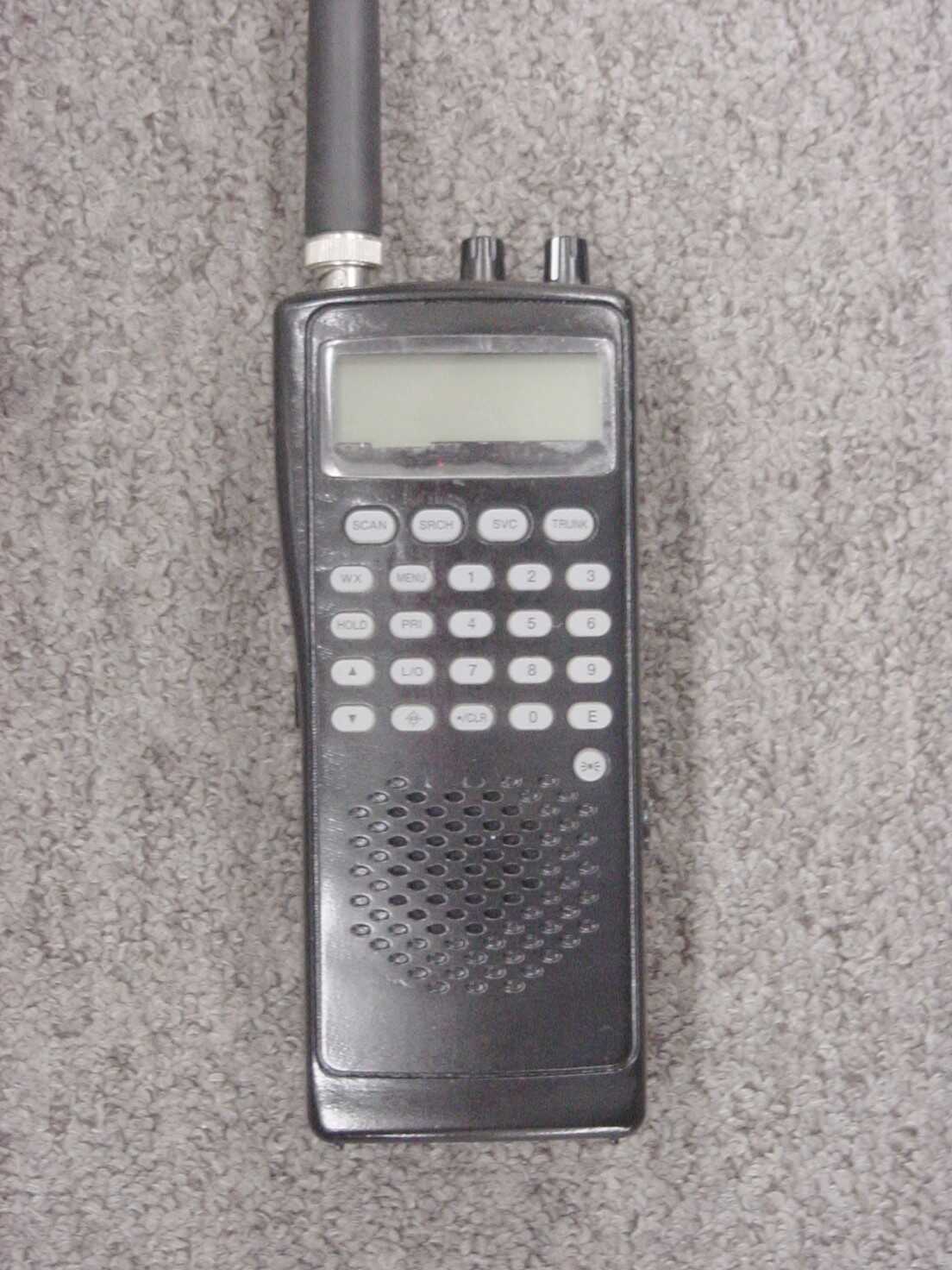

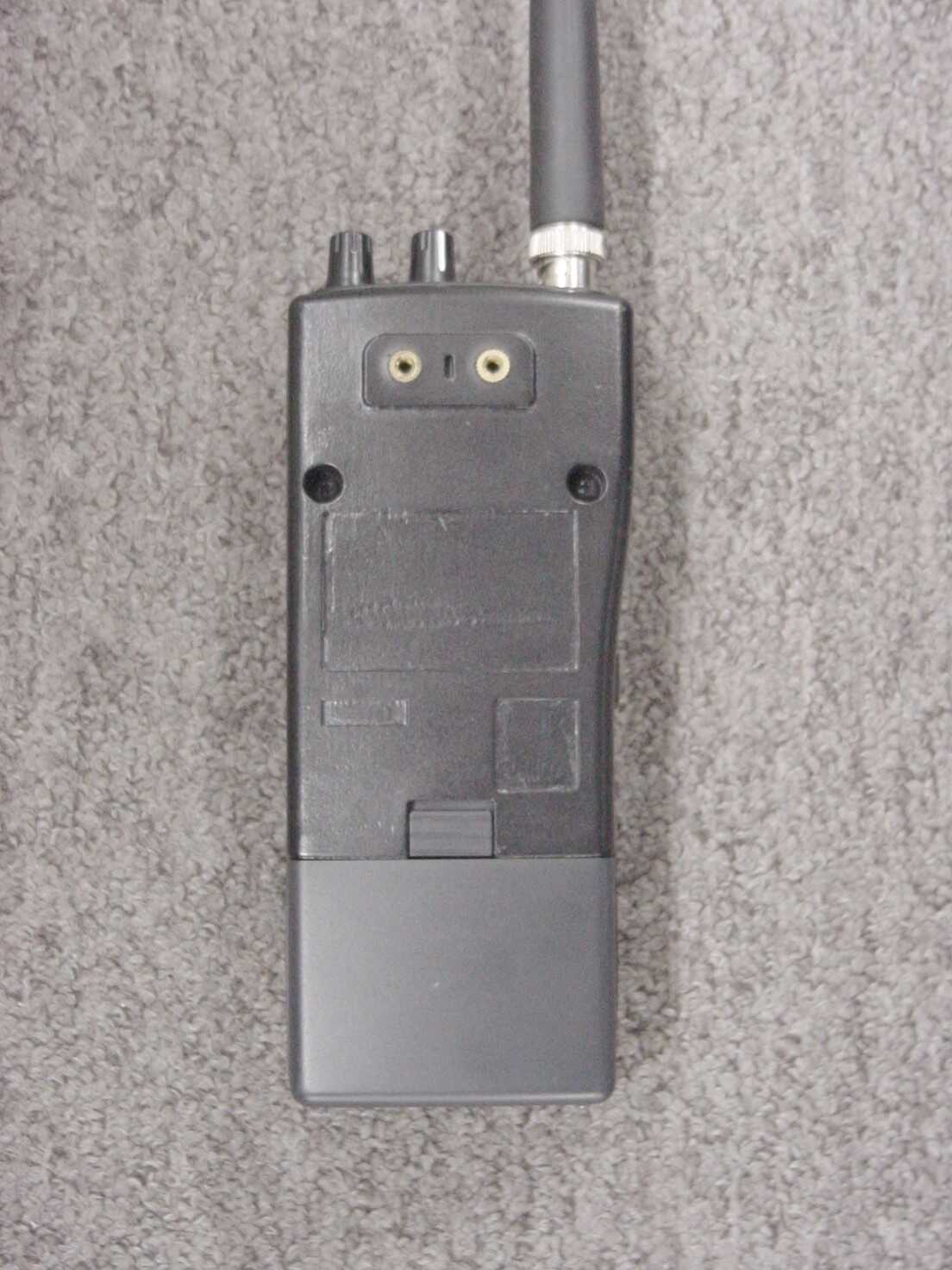

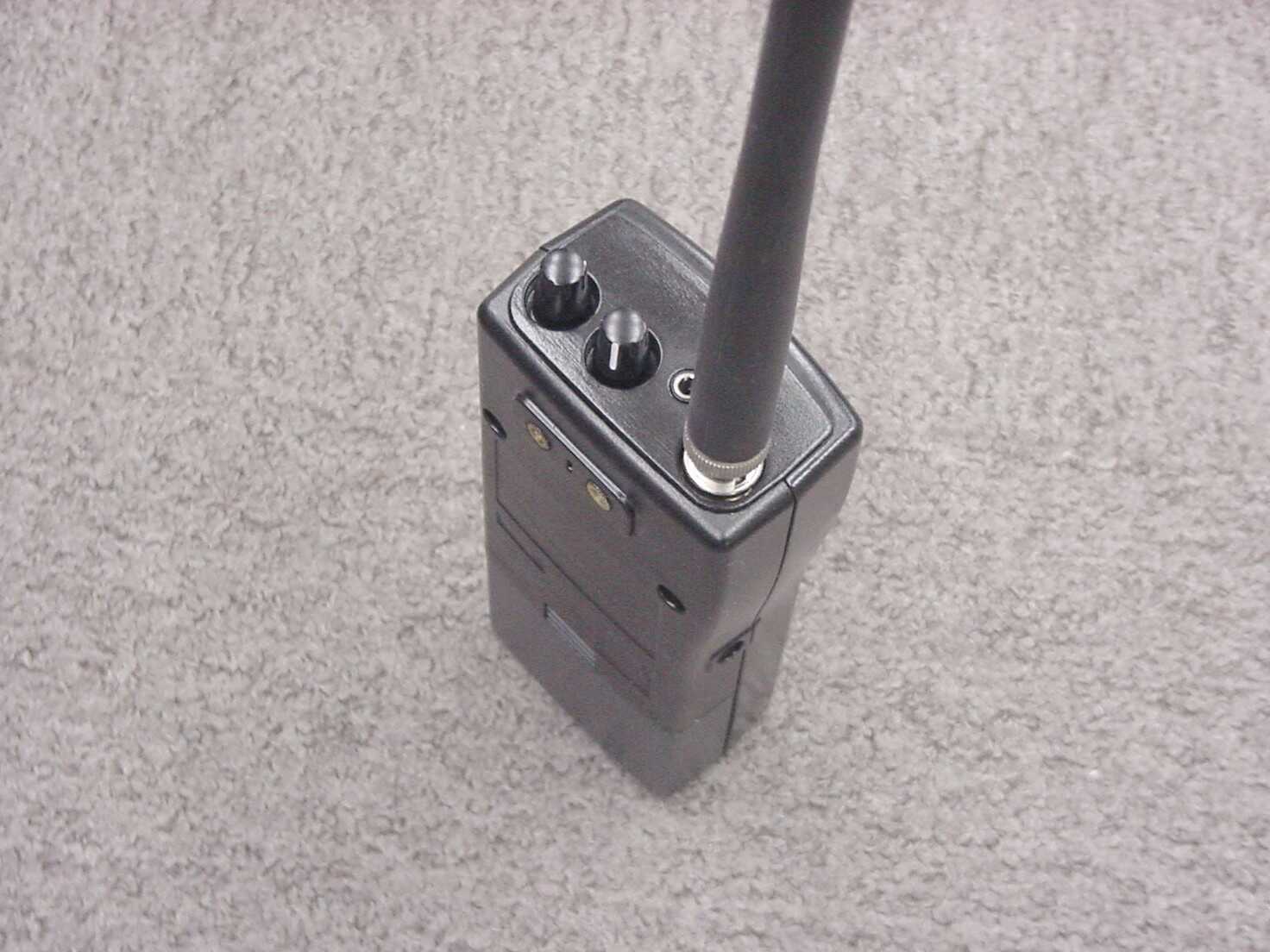

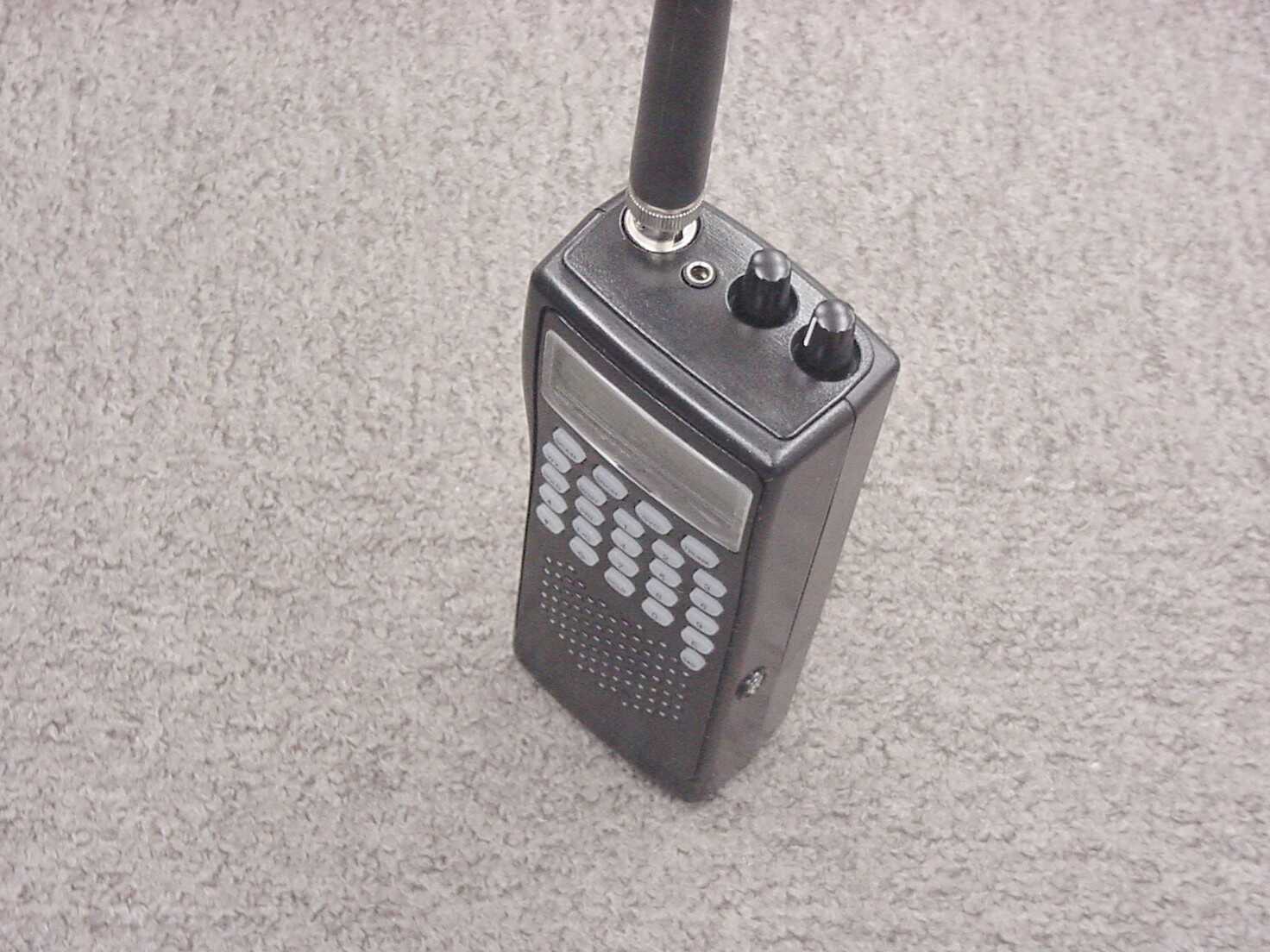

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Size: 45.5 mm (W) by 30.5 mm (H)

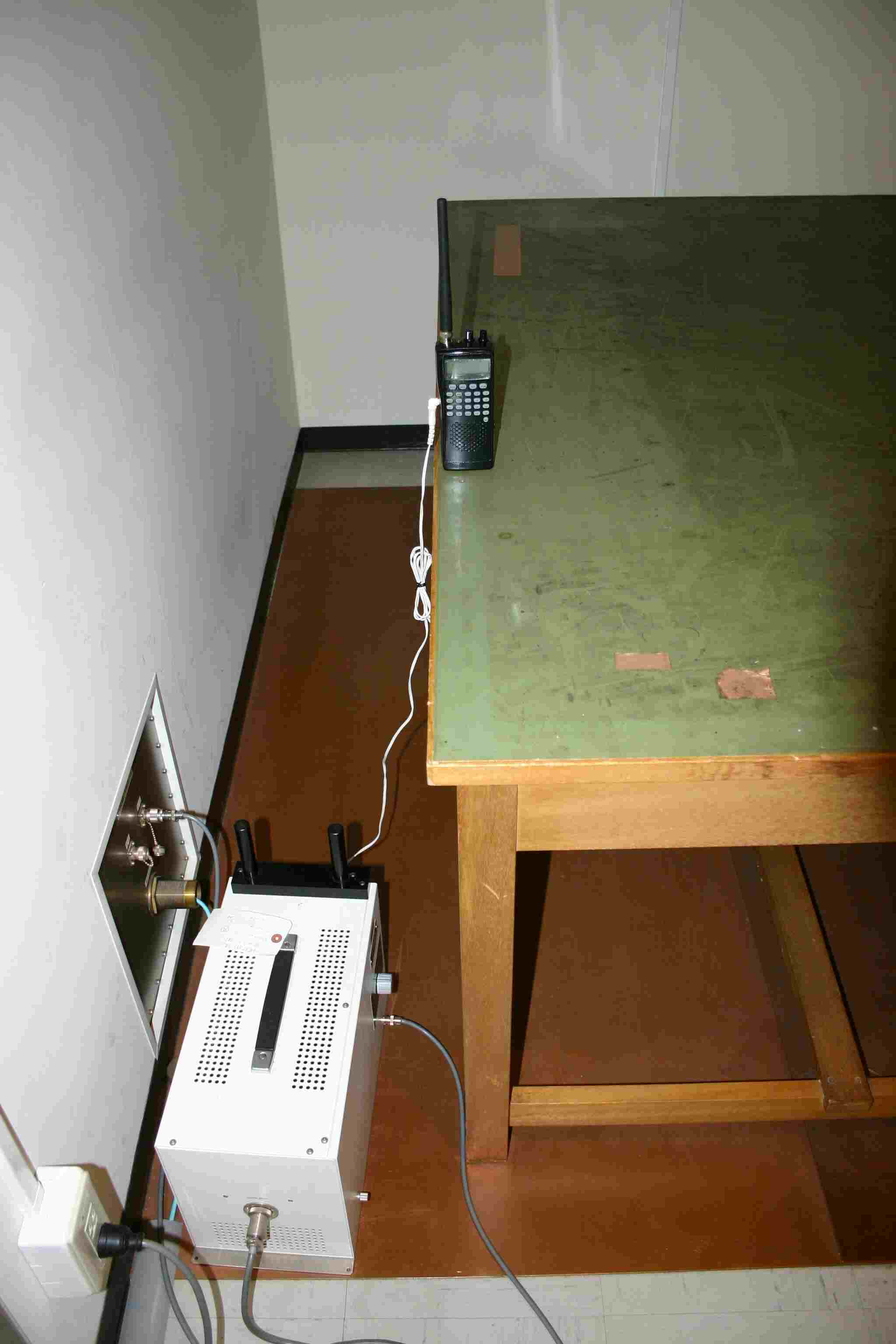

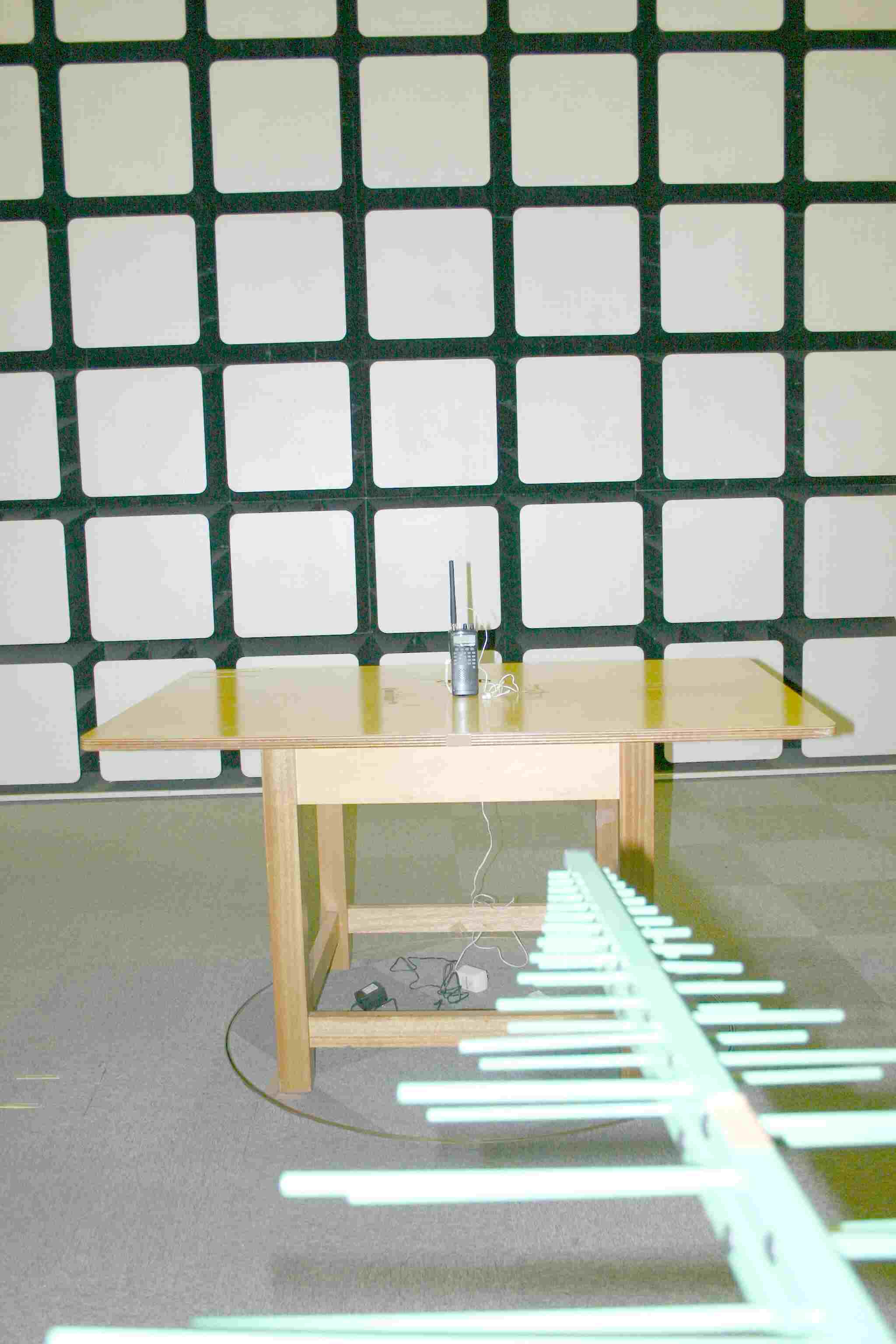

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION MEASUREMENT ITEMS 5-1 Field Strength of Spurious Radiated Emission 5-2 Power Line Conducted Emissions 5-3 Cellular image rejection NOTE: Measurements in Scan Mode vs. Non-Scan Mode -------------------------------------------------- The measurement data reported in the original file represented a non-scan mode for both of power line conducted emission and spurious radiated emission because no emission level exceeded that of the levels in the scan mode. In scan mode, the receiver only stays at a particular frequency for as short as 20 ms in certain channels as the scanning interval may change depending on the number of the memorized channels. This means that true emission levels may change along with the number of the memorized channels in the scanning mode due to changes in the duty cycle of the emission level. Therefore, we measured the device where each memorized channel was scanned for 3 different points of frequencies in each receiver coverage range as shown in the original file and we confirm that no emission level exceeds the level reported from the ones measured in the non-scan mode. 5-1 Field Strength of Spurious Radiated Emission Test procedure: The measurements were performed in accordance with the ANSI C63.4- 2003. Field Strength measurements of radiated spurious emissions were made at the open test site of a 3 meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The radio frequency spectrum was scanned in the range of 30 MHz to the 10th harmonic in accordance with the section 15.33(a) of the FCC Rules. The frequency below 1 GHz, the measurement was carried out by using CISPR quasi-peak detector, AGILENT E7400A the Spectrum Analyzer in accordance with the sections 15.33(a) and 15.35(a). The frequency above 1 GHz, using the AGILENT E7400A Spectrum Analyzer in accordance with the section 15.35(b) carried out the measurement. A bilog antenna CBL6112A was used to cover the range from 30 MHz to 1000 MHz. Narrowband tuned dipole antennas were used over the entire 30 to 1000 MHz range for precision measurements of field strength. Above 1000 MHz, a horn antenna EMCO 3115 was used. For each spurious or harmonic frequency, the antenna was raised and lowered to obtain a maximum reading on the Spectrum Analyzer with antenna horizontally polarized. Then the turntable, on which the equipment under test was placed, was rotated a minimum of 360 degrees to further increase the reading on the Spectrum Analyzer. For testing small and/or handheld product, the measurement was performed in 3 orthogonal planes (X, Y, Z). This procedure was repeated with the antenna vertically polarized. The equipment under test was connected with all of placed in its normal operating position on a turntable approximately 0.8 meter in height. During the measurement, full-featured accessory cables were connected with the equipment under test. In order to convert the measured emission levels into field strength in dBuV/m, the actual field strength (Ef) is determined by algebraically adding the measured emission level (Em) and the antenna correction factor (ACF) including the cable loss at the appropriate frequency. Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] FCC Limits: Frequency Field Strength at 3 meter 30 - 88 MHz 40 dBuV/m (100 uV/m) 88 - 216 MHz 43.5 dBuV/m (150 uV/m) 216 - 960 MHz 46 dBuV/m (200 uV/m) Above 960 MHz 54 dBuV/m (500 uV/m) Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-2 Power Line Conducted Emissions Test Procedure: The measurements were performed in accordance with the ANSI C63.4- 2003. During the measurements, a standard voltage source is fed into the unit under test through a power line impedance stabilization network. FCC Limit: The radio frequency voltage that is conducted back into the AC power line on any frequencies within the band from 150kHz to 30MHz shall not exceed the following limitation. REQUIREMENTS: FREQUENCY(MHz) LEVEL (dBuV) 0.150-0.50 66 to 56 QP 56 to 46 Ave 0.50-5.0 56 QP 46 Ave 5.0-30.0 60 QP 50 Ave Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-3 Cellular image rejection See test result. Test set-up: SSGEUTSINAD METER Dummy load 8 ohm ANTSP JACK
