AMWUB354DESKTOP SCANNING RECEIVER

Thank you for purchasing your 200 Channel Desktop Radio Scanner from RadioShack. Please read this user’s guide before installing, setting up and using your new scanner. 20-136 PRO-136 www.radioshack.com Scanner AC adapter Antenna User’s guide Preprogrammed frequency list Quick start guide Desktop Radio Scanner What’s Included 2 Contents Scanner Setup ................................................................................ 4 Scanner Features .................................................................................................4 Connecting the Antenna......................................................................................6 Powering Your Scanner........................................................................................6 Installing Batteries...........................................................................................6 Battery Notes .................................................................................................7 Recycle Rechargeable Batteries....................................................................7 Scanner Placement..............................................................................................7 Connecting Headphones .....................................................................................8 Listening Safely ................................................................................................8 Connecting the External Alert Out .....................................................................8 Understanding Your Scanner ..............................................................................8 Turning on the Scanner........................................................................................9 Setting the Clock/Alarm......................................................................................9 Alarm Function .............................................................................................. 10 Programming Frequencies into Channels ..................................................... 10 Searching ..................................................................................... 12 Fine Tune............................................................................................................. 12 Service Bank Search ......................................................................................... 12 Storing Frequencies Found During a Search ................................................. 13 Search Skip Memory......................................................................................... 13 Search Speeds ................................................................................................... 14 Scanning....................................................................................... 15 Scanning Stored Channels ............................................................................... 15 Manually Selecting a Channel ......................................................................... 15 Weather Scan..................................................................................................... 16 3 Contents Receiving NWR-SAME and Weather Alert Signals ....................................... 16 Turning On the Digital Weather Alert Feature .......................................... 16 Receiving Alerts in Standby Mode...............................................................17 Testing the Weather Alarm...........................................................................17 3URJUDPPLQJ$OHUWVIRUD6SHFLÀF&RXQW\.................................................17 Programming FIPS .....................................................................................17 Skywarn .............................................................................................................. 18 About Skywarn .............................................................................................. 19 Settings ........................................................................................ 20 Setting Delay ...................................................................................................... 20 Turning Channel-Storage Banks On or Off ..................................................... 20 Locking Out Channels ....................................................................................... 20 Setting Priority ................................................................................................... 21 Using the Display Backlight ............................................................................. 21 Advanced Programming ................................................................. 22 Cloning Your Scanner........................................................................................ 22 Wired Programming.......................................................................................... 23 Additional Information................................................................... 24 FCC Notice .......................................................................................................... 24 Scanning Legally................................................................................................ 24 Care ..................................................................................................................... 25 Service and Repair ............................................................................................ 25 6SHFLÀFDWLRQV.................................................................................................... 25 Troubleshooting ................................................................................................. 27 Resetting your Scanner ................................................................................ 27 4 Scanner Setup Scanner Setup Scanner Features • / CLR / DELAY Enter a decimal point. Clear an entry. Turn delay on or off. Sele…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice President (2) FCC Identifier: FCC ID: AMWUB354 MODEL NO.: (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Note 1: This equipment is intended to use with; AC Adapter (12V DC; 400mA; center tip positive) 3 AA Alkaline Batteries (4.5 VDC) Note 2: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Transition provisions in section 15.37 Rules: This equipment complies with the new Part 15 of FCC rules and is not affected by section 15.37. (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

LIMITED AGENCY AGREEMENT March 13, 2008 Timco Engineering, Inc. 849 NW State Road 45 Newberry, Florida 32669 RE: Equipment Authorization for FCC Certification We, Uniden America Corporation (hereinafter “Uniden”), hereby authorize Timco Engineering Inc., located at 849 NW State Road 45 in Newberry, Florida 32669, to act as our agent for the purpose of filing an equipment authorization application for our device identified by the FCC Identifier AMWUB354 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is March 13, 2008. This limited agency agreement expires on March 13, 2009, unless sooner terminated or extended by written notice to Timco Engineering, Inc. and the Federal Communications Commission. Uniden certifies that equipment manufactured, imported, or marketed under the FCC ID: AMWUB353 will comply with the parameters established in the application for equipment authorization unless the changes are in full compliance to the provisions in Part 2 of the FCC rules that allow such changes. This is to advise that Uniden is in full compliance with the Anti-Drug Abuse Act. Uniden is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

REMINDER ABOUT CONFIDENTIALITY March 13, 2008 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Scanning Receiver FCC IDENTIFIER: AMWUB354 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful if information used in this application were used to modify the unit to illegally scan or tune Cellular Radio Service channels, this letter is to remind all persons involved that scanning receivers are automatically protected under 47CFR Section 0.457(d)(1)(ii) that the following be should withheld: Circuit Description Schematic Diagrams Block Diagrams Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice President (2) FCC Identifier: FCC ID: AMWUB354 MODEL NO.: (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Note 1: This equipment is intended to use with; AC Adapter (12V DC; 400mA; center tip positive) 3 AA Alkaline Batteries (4.5 VDC) Note 2: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Transition provisions in section 15.37 Rules: This equipment complies with the new Part 15 of FCC rules and is not affected by section 15.37. (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

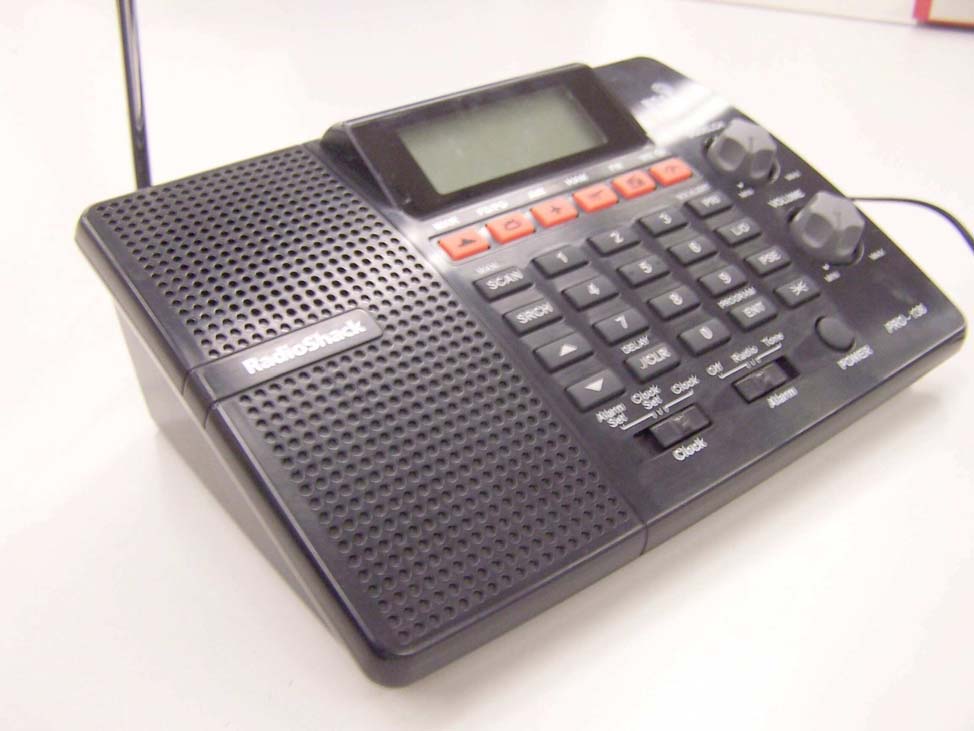

EXTERNAL PHOTOS Front View Front Left Side View Front Right Side View Rear View Bottom View

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. 1) FCC LABEL: 55 mm (W) by 17 mm (H) 2) FCC STATEMENT: 55 mm (W) by 20 mm (H)

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION MEASUREMENT ITEMS 5-1 Field Strength of Spurious Radiated Emission 5-2 Power Line Conducted Emissions 5-3 Cellular image rejection NOTE: Measurements in Scan Mode vs. Non-Scan Mode -------------------------------------------------- The measurement data reported in the original file represented a non-scan mode for both of power line conducted emission and spurious radiated emission because no emission level exceeded that of the levels in the scan mode. In scan mode, the receiver only stays at a particular frequency for as short as 20 ms in certain channels as the scanning interval may change depending on the number of the memorized channels. This means that true emission levels may change along with the number of the memorized channels in the scanning mode due to changes in the duty cycle of the emission level. Therefore, we measured the device where each memorized channel was scanned for 3 different points of frequencies in each receiver coverage range as shown in the original file and we confirm that no emission level exceeds the level reported from the ones measured in the non-scan mode. 5-1 Field Strength of Spurious Radiated Emission Test procedure: The measurements were performed in accordance with the ANSI C63.4- 2003. Field Strength measurements of radiated spurious emissions were made at the open test site of a 3 meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The radio frequency spectrum was scanned in the range of 30 MHz to the 10th harmonic in accordance with the section 15.33(a) of the FCC Rules. The frequency below 1 GHz, the measurement was carried out by using CISPR quasi-peak detector, AGILENT E7400A the Spectrum Analyzer in accordance with the sections 15.33(a) and 15.35(a). The frequency above 1 GHz, using the AGILENT E7400A Spectrum Analyzer in accordance with the section 15.35(b) carried out the measurement. A bilog antenna CBL6112A was used to cover the range from 30 MHz to 1000 MHz. Narrowband tuned dipole antennas were used over the entire 30 to 1000 MHz range for precision measurements of field strength. Above 1000 MHz, a horn antenna EMCO 3115 was used. For each spurious or harmonic frequency, the antenna was raised and lowered to obtain a maximum reading on the Spectrum Analyzer with antenna horizontally polarized. Then the turntable, on which the equipment under test was placed, was rotated a minimum of 360 degrees to further increase the reading on the Spectrum Analyzer. For testing small and/or handheld product, the measurement was performed in 3 orthogonal planes (X, Y, Z). This procedure was repeated with the antenna vertically polarized. The equipment under test was connected with all of placed in its normal operating position on a turntable approximately 0.8 meter in height. During the measurement, full-featured accessory cables were connected with the equipment under test. In order to convert the measured emission levels into field strength in dBuV/m, the actual field strength (Ef) is determined by algebraically adding the measured emission level (Em) and the antenna correction factor (ACF) including the cable loss at the appropriate frequency. Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] FCC Limits: Frequency Field Strength at 3 meter 30 - 88 MHz 40 dBuV/m (100 uV/m) 88 - 216 MHz 43.5 dBuV/m (150 uV/m) 216 - 960 MHz 46 dBuV/m (200 uV/m) Above 960 MHz 54 dBuV/m (500 uV/m) Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-2 Power Line Conducted Emissions Test Procedure: The measurements were performed in accordance with the ANSI C63.4- 2003. During the measurements, a standard voltage source is fed into the unit under test through a power line impedance stabilization network. FCC Limit: The radio frequency voltage that is conducted back into the AC power line on any frequencies within the band from 150kHz to 30MHz shall not exceed the following limitation. REQUIREMENTS: FREQUENCY(MHz) LEVEL (dBuV) 0.150-0.50 66 to 56 QP 56 to 46 Ave 0.50-5.0 56 QP 46 Ave 5.0-30.0 60 QP 50 Ave Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. 5-3 Cellular image rejection See test result. Test set-up: SSGEUTSINAD METER Dummy load 8 ohm ANTSP JACK

Test Set‐up Photos AC Line Conducted Emissions Radiated Emissions
