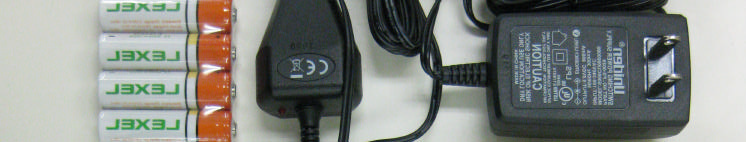

AMWUB363DIGITAL MOBILE SCANNER

This product uses one or more of the following patents: 5,199,109 5,408,692 5,428,826 5,438,688 5,465,402 5,471,660 5,483,684 5,530,296 5,548,832 5,551,071 5,574,995 5,577,076 5,598,430 5,642,424 5,710,992 5,784,388**** 5,956,648*** 5,991,346 6,025,758 6,034,573 6,064,270 6,192,223* 6,519,472*** 6,941,120* 6,839,550 7,006,797** 7,013,110 7,046,964** 7,190,937** 7,505,738 7,548,735** Other patents pending. * These patents are under license from Gray Electronics, Inc. ** These patents are under license from Counter Technologies, Inc. *** These patents are under license from G/Tracker Technologies, Inc. **** This patent is under license from Gregory D. Knox. Patented DVSI Vocoder: US Patent Nos. 5,870,405; 5,649,050; 5,630,011; 5,581,656; 5,517,511; 5,491,772; 5,247,579; and 5,226,084. These patents are all licensed from Digital Voice Systems, Inc. (DVSI). © 2010 Uniden America Corporation, Ft. Worth, Texas. HomePatrol-1 is a trademark of Uniden America Corporation, Ft. Worth, Texas. Issue 0.01, July 2010 Questions? Problems? Get help on the web at www.HomePatrol-1.com or www.uniden.com. Or call our Customer Service line at 800-292-2294. TABLE OF CONTENTS IMPORTANT INFORMATION ....................................................................................................................... 1 WHAT IS THE HOMEPATROL-1? .................................................................................................................. 3 What are HomePatrol-1’s Features ............................................................................................................ 3 How Does the HomePatrol-1 Work? ....................................................................................................... 3 What You Do ....................................................................................................................................... 3 What You Hear in the United States ................................................................................................... 4 What Else Can HomePatrol-1 Do?........................................................................................................... 4 Create Favorites Lists .......................................................................................................................... 4 Avoid Transmissions............................................................................................................................ 4 Replay Transmissions .......................................................................................................................... 4 Record Transmissions ......................................................................................................................... 4 Use GPS Input ..................................................................................................................................... 5 HOMEPATROL-1 HARDWARE AND SOFTWARE ........................................................................................... 6 Hardware ................................................................................................................................................ 6 Base Unit ............................................................................................................................................. 6 Firmware ................................................................................................................................................. 7 Main Screen Overview ........................................................................................................................ 7 How to Update HomePatrol-1 Firmware ............................................................................................ 9 HOMEPATROL-1 OPERATIONS .................................................................................................................. 10 Start-Up Wizard .................................................................................................................................... 10 Selecting Channels to Monitor .............................................................................................................. 10 Change Location................................................................................................................................ 11 Select Service Types .......................................................................................................................... 11 Set Range .......................................................................................................................................... 11 Select a Favorites List to Monitor ..................................................................................................... 11 Avoiding Transmissions ..................................................................................................................... 12 Customizing Your Monitoring Experience ............................................................................................. 12 Adjusting Listening Volume ............................................................................................................... 13 Adjusting Screen Tap Volumes .......................................................................................................... 13 ii Equalizing the Volume Level ............................................................................................................. 13 Adjusting the Screen ......................................................................................................................... 14 Adjusting Contrast and Backlight Level ............................................................................................. 14 Adjusting Auto Dim or Power Save ................................................................................................... 14 Setting Automatic Shutoff ......................................................…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. (1) Applicant: Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, Texas 76155 Mr. Jon Suehiro, Manager (2) FCC Identifier: FCC ID: AMWUB363 MODEL NO.: HomePatrol-1 (3) Instruction Manual: Refer to User Manual (4) Circuit Description: Refer to Operational Description (5) Circuit & Block Diagrams: Refer to Schematics Block diagrams (6) Measurement Data: Refer to Test Report (7) Photographs & Equipment Identification: Refer to ID Label/Location Info & External Photos (8) Peripheral or Accessory Device: Not used (9) Transition provisions in section 15.37 Rules: N/A (10) Decoding the Emergency Broadcast System Attention Signal: Not Applicable (11) Direct Sequence Spread Spectrum Transmitter: Not Applicable (12) Compliance to Cellular Band Exclusion: Pursuant to the requirements contained in Part 15.121 of the Commission's Rules, this scanning receiver does not have the capability of tuning the frequencies assigned to the Domestic Public Cellular Radio Telecommunications Service. In this circuitry, this device is not readily alterable to restore the cellular band coverage because the inventory of frequencies contained within this band is not available in the microprocessor. Also, the microprocessor is fixed soldered and not easily removable. In addition, the critical circuitry is "hardened" with a black epoxy that covers the area of the circuitry that might be modified to circumvent the design efforts referenced above. Therefore, since the clipping of leads; or the installation of a simple component such as a diode, resistor, or a jumper wire; or the reprogramming of any semiconductor device contained within this unit cannot be accomplished using a special access code or a personal computer; This is to certify that the conditions mandated in part 15.121 have been met.

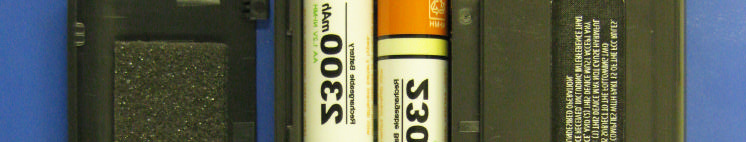

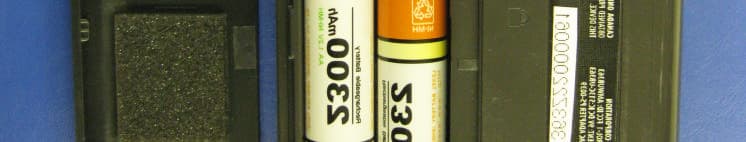

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Size of the Marking: 96 mm (W) by 15 mm (H) WARNING STATEMENT: 36 mm (W) by 25 mm (H)

Nemko Test Report: 54886RUS1 Applicant: Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 USA Equipment Under Test: HomePatrol-1 (E.U.T.) In Accordance With: FCC Part 15, Subpart B and RSS 135, Issue 2 Digital Scanner Receiver Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, Texas 75057-3136 TESTED BY: DATE: 27 July 2010 David Light, Senior Wireless Engineer APPROVED BY: DATE: 02 August 2010 Tom Tidwell, Director of Telecom Direct Number of Pages: 20 Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 2 of 20 TABLE OF CONTENTS SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. EQUIPMENT UNDER TEST (E.U.T.) 5 SECTION 3. EQUIPMENT CONFIGURATION 6 SECTION 4. RADIATED EMISSIONS 7 SECTION 5. POWERLINE CONDUCTED EMISSIONS 12 SECTION 6. CELLULAR BAND REJECTION 16 SECTION 7. BLOCK DIAGRAMS 18 SECTION 8. TEST EQUIPMENT LIST 20 Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 3 of 20 Section 1. Summary of Test Results General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B and RSS 135, Issue 2. Measurement procedure ANSI C63.4-2009 was used for all tests. Radiated Emissions were measured in a open Semi-anechoic chamber. A description of this test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 4 of 20 Summary of Test Data Name Of Test RSS 135 Para. No. CFR 47 Para. No. Results Spurious Emissions RSS-Gen 15.109 Complies Powerline Conducted Emissions RSS Gen. 15.107 Complies Cellular Band Rejection Ratio - 15.121(b) Complies Footnotes: Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 5 of 20 Section 2. Equipment Under Test (E.U.T.) Manufacturer: Uniden America Corporation Model No.: HomePatrol-1 Serial No.: 363Z22000042 Equipment Details Frequency Range: 25 to 960 MHz* Power Supply Requirements: Rechargeable batteries, AC adapter or car charger Modes: FM, AM, NFM Description of E.U.T. Mobile scanner receiver * Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 6 of 20 Section 3. Equipment Configuration Equipment Configuration List: Item Description (A) Uniden Scanning Receiver (EUT) (B) Laptop PC (C) Uniden AC adapter / Battery Charger, PS-0039 100-240VAC, 9Vdc output, 800 mA Inter-connection Cables: Item Description (1) RS-232 (1 meter) Diagram of the Equipment Under Test (E.U.T) Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 7 of 20 Section 4. Radiated Emissions NAME OF TEST: Radiated Emissions PARA. NO.: 15.109(a) TESTED BY: David Light DATE: 22 July 2010 Minimum Standard: Frequency(MHz) Field Strength (dBμV/m @ 3m) 30 - 88 40.0 88 - 216 43.5 216 - 960 46.0 Above 960 54.0 Test Results: Complies. Measurement Data: See attached table. Equipment Used: 1763-1484-1485-791-993-1016-1767 Measurement Uncertainty: +/-3.7 dB Temperature: 23 °C Relative Humidity: 45 % Analyzer Settings: Frequency RBW VBW Detector Function <1000 MHz 100 kHz 100 kHz Peak >1000 MHz 1 MHz 1 MHz Peak Handheld equipment and equipment not designed to be mounted in any fixed orientation is tested in three orthogonal axes to obtain worst case results. Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 8 of 20 Test Data - Radiated Emissions Nemko FCC Class B 30MHz -1GHz Horizontal Scan 30.0M 230.0M 430.0M630.0M830.0M Frequency (Hz) 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 Limit Level (dBuV/m) 01:04:34 PM, Thursday, July 22, 2010 Operator: Scan FCC B Limit Scan Peaks Peaks Nemko FCC Class B 30MHz -1GHz Vertical Scan 30.0M 230.0M 430.0M630.0M830.0M Frequency 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 Amplitude (dbuV/m) 01:12:02 PM, Thursday, July 22, 2010 Operator: Scan FCC B Limit Scan Peaks Peaks Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 9 of 20 Test Data - Radiated Emissions 1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10 Fr equency (GH 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 L im it L evel (d Bu V /m ) 02:34:03 P M, Thur sday, July 22, 2010 Oper ator : 1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10 Fr equency (GH 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 L im it L evel (d Bu V /m ) 02:34:03 P M, Thur sday, July 22, 2010 Oper ator : 1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10 Frequen 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplit ude ( dbuV/m) 02:44:27 PM, Thursday, July 22, 2010 Operator: 1.0G2.0G3.0G4.0G5…

Text truncated - open the document above for the full version.

Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 15 of 20 Test Setup – Conducted Emissions

Nemko USA, Inc. FCC PART 15, SUBPART B RSS 135, Issue 2 Digital Scanner Receiver EQUIPMENT: HomePatrol-1 Test Report No.: 54886RUS1 Page 11 of 20 Test Setup – Radiated Emissions
