AMWUB376DIGITAL SCANNER RECEIVER

BCD436HP and BCD536HP Owner’s Manual ©2014 Uniden America Corporation Printed in Vietnam U01UB375ZZA(0) The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. microSD is a registered trademark of SanDisk Corporation. HomePatrol is a registered trademark of Uniden America Corporation, Irving, Texas. At Uniden, we are always improving our products. This manual may not contain the latest improvements to these model. Check our Owner’s Manual downloads at www.uniden. com/Support/Owner’sManuals for the latest updates © 2014 Uniden America Corporation, Irving, Texas. Questions? Problems? Get help on the web at www.uniden.com. Or call our Customer Service line at 800-292-2294. Contents Important InformatIon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 The FCC WanTs You To KnoW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 ModiFiCaTion noTiCe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 ParT 15 inForMaTion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 General PreCauTions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 earphone Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 liquid exposure Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Power disconnection Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 sCanninG leGallY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 aVis d’indusTrie Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 IntroduCtIon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 hoW does The hoMe PaTrol® WorK? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 WhaT You hear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 CreaTe FaVoriTes lisTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 aVoid TransMissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 rePlaY TransMissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 reCord TransMissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 maIn features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 InCluded WIth Your sCanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 BCd436hP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 BCd536hP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 InstallInG Your sCanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 PoWer relaTed issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 ConneCTinG an oPTional anTenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 ConneCTinG an exTension sPeaKer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Base sTaTion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 VehiCle insTallaTion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Mounting using the Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Mounting using the din-e sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 removing the scanner from the din-e sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Mounting using iso Technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Connecting dC Cable with orange Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 usinG inTernal BaTTeries (BCd436hP onlY) . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 using rechargeable Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 understandInG the memorY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 FaVoriTes lisTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 sYsTeMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 TrunKinG siTes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 deParTMenTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 sentInel softWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 ManaGe ProFiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 ManaGe FaVoriTes lisTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 ManaGe daTaBases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

45 department optIons edit nameset location Informationdelete department set department quick Keyset avoidnew department edit Channel Edit Name See Data Naming. Set Department Quick Key This assigns a quick key to the Department and the scanner will scan the Department when the key is enabled. The default setting is . (no quick key). If you don’t assign a Quick Key to a departmtnt, it will always be scanned unless you Avoid it. 0-99 or . (for no quick key) Note: Pressing the first number of a 2-digit quick key will get you closer. For example, press 1 for 10, 2 for 20, etc., then scroll to the second digit. Edit Channel See Channel Options. Set Location Information – This allows you program a location for the Department to use with Location Control enabled or with a GPS. You can program a circle with a radial range or multiple rectangles as a location. See Set Up GPS first. Circle Set Latitude Enter the latitude. Press ./no to toggle N or S, and press E/yes. Set Longitude Enter the longitude. Press ./no to toggle E or W, and press E/yes. Set Range See also Understanding Range. 0-6000 Rectangles New Rectangle Latitude - Top Left Enter the latitude. Press ./no to toggle N or S, and press E/yes. Longitude - Top Left Enter the longitude. Press ./no to toggle E or W, and press E/yes. Latitude - Bottom Right Enter the latitude. Press ./no to toggle N or S, and press E/yes. Longitude - Bottom Right Enter the longitude. Press ./no to toggle E or W, and press E/yes. Stored Rectangle Edit Rectangle See Rectangles above. Delete Rectangle At Confirm Delete? press E/yes or ./no. Set Avoid – This determines whether a Department will be scanned or not. Temporary Avoids cancel when you cycle power. 46 The default setting is Stop Avoiding. Stop Avoiding, Temporary Avoid, or Permanent Avoid See also Scan Avoids. Delete Department – Deletes the Department. At Confirm Delete? press E/yes or ./no. New Department – See New Department. proGrammInG frequenCIes/tGIds quICKlY storInG a frequenCY/tGId In scan mode press Channel to hold on any channel. Enter the Frequency or TGID and press E/yes. See also Edit Frequency/TGID. Note: You have to enter a TGID/frequency in the proper format for the system you are holding on. Example: You can’t enter a Motorola Type II TGID when holding on an LTR system. Store a Frequency/TGID into a “Quick Save” Favorites List At Quick Freq/TGID Save?, press E/yes. The scanner will save the Frequency/ TGID in a Favorites List called Quick Save Favorites List, in a System called Quick Save System, (with no quick keys assigned), in a Department called Quick Save Department. Store a Frequency/TGID into a Current Favorites List At Quick Freq/TGID Save?, press ./no. At inquiry Press E/yes. At Select Favorites List, scroll to the Favorites List where you want to store the Frequecy/TGID and press E/yes. At Select System, scroll to the System where you want to store the Frequency/TGID and press E/yes. At Select Department, scroll to the Department where you want to store the Frequency/ TGID and press E/yes. After storing the Frequency/TGID, you will be at the Channel Options menu to complete the settings for the new channel. If you don’t want to edit the channel settings press Avoid to return. neW Channel/Channel optIons Press Menu then scroll to Manage Favorites and press E/yes. Scroll to the Favorites List and press E/yes. Scroll to Review/Edit System and press E/yes. Scroll to the System and press E/yes. Scroll to Edit Department and press E/yes. Scroll to the Department and press E/yes. Scroll to Edit Channel and press E/yes. To Create a New Channel, scroll to New Channel and press E/yes. 47 At Input Frequency/TGID, enter the frequency or TGID and press E/yes. To Edit an Existing Channel, scroll to the Channel and press E/yes. Channel optIons Note: Not all options will appear for all channels. edit nameset attenuatorset alert edit frequency or tGIdset service typeset avoid set audio typeset delay timevolume offset set number tagset prioritydelete Channel set modulationnew Channel Edit Name See Data Naming. Edit Frequency or TGID Enter the frequency or TGID and press E/yes to save. See also Entering IDs for Partial IDs. To enter a Conventional Frequency, enter the Frequency and press E/yes. To enter a Motorola Type II TGID, enter the TGID and press E/yes. To enter a Motorola Type I TGID, enter the Block Number and Fleet Number, press ./no twice for a hyphen, then enter the Subfleet and press E/yes. To enter an EDACS ID in AFS format, enter the Agency Number, press ./no twice for a hyphen, then the Fleet and Subfleet and press E/yes. To enter an EDACS TGID in Decimal format, enter the TGID and press E/yes. To enter a LTR TGID, enter the Area Code (0 or 1) and press ./no twice for a hyphen, then enter the Home Repeater Number (01-20) and press ./no once, then the User ID (1-254) and press E/yes. To enter an I-Call ID, press ./no once then enter the ID and press E/yes. To enter a Wildcard I-Call ID, press ./no once then enter 0 and press E/yes. To enter Hexadecimal IDs, see Data Naming. Note: If the channel is already stored in the group TGID or Frequency Exists Accept? (Y/N) appears. Press ./no to return. You can also Avoid wildcard IDs. Set Audio Type (Conventional/Motorola Only) – Select All if this channel might contain both digital and analog signals. If you are sure the channel is analog set the channel to Analog Only. This will prevent the P25 Waiting Time for the conventional system from losing the first part of the transmission up to the wait time you set there. All. The scanner determines whether the audio is analog or digital. Digital Only. The scanner will receive the channel only if it is carrying APCO 25 digital audio. P25 NAC Option (Conventional Only) Search - the scanner searches and displays any NAC tone received. Set P25 NAC - allows you to program a NAC code. See Data Naming. Note: You can also store a (blinking) NAC code when receiving the frequency in scan mode by pressin…

Text truncated - open the document above for the full version.

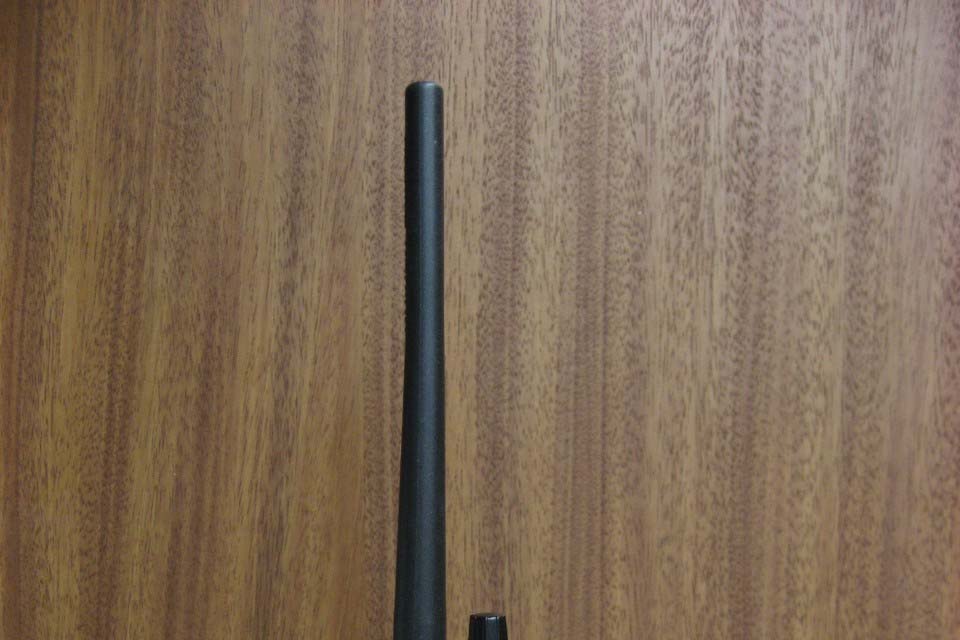

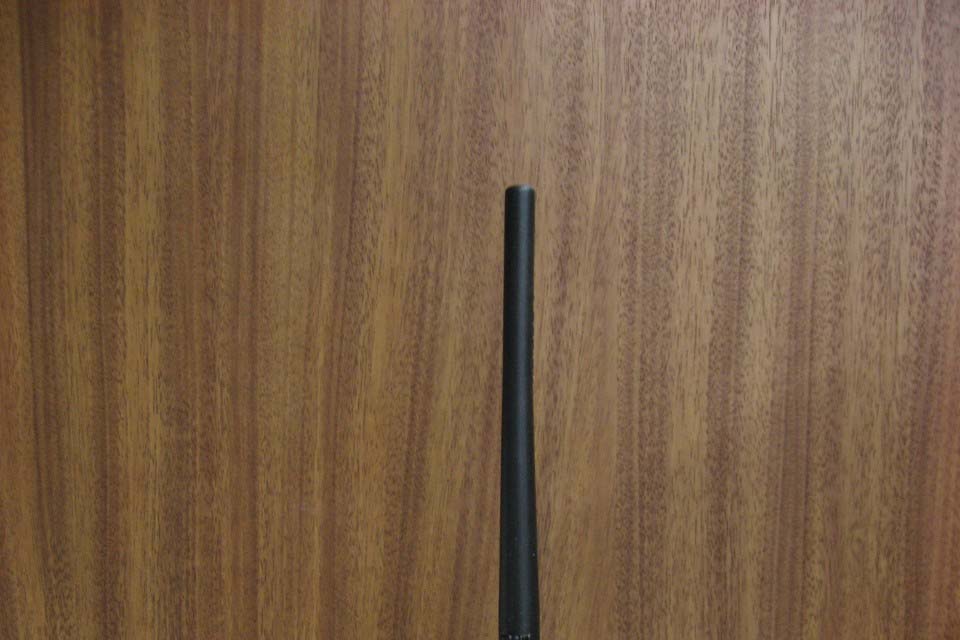

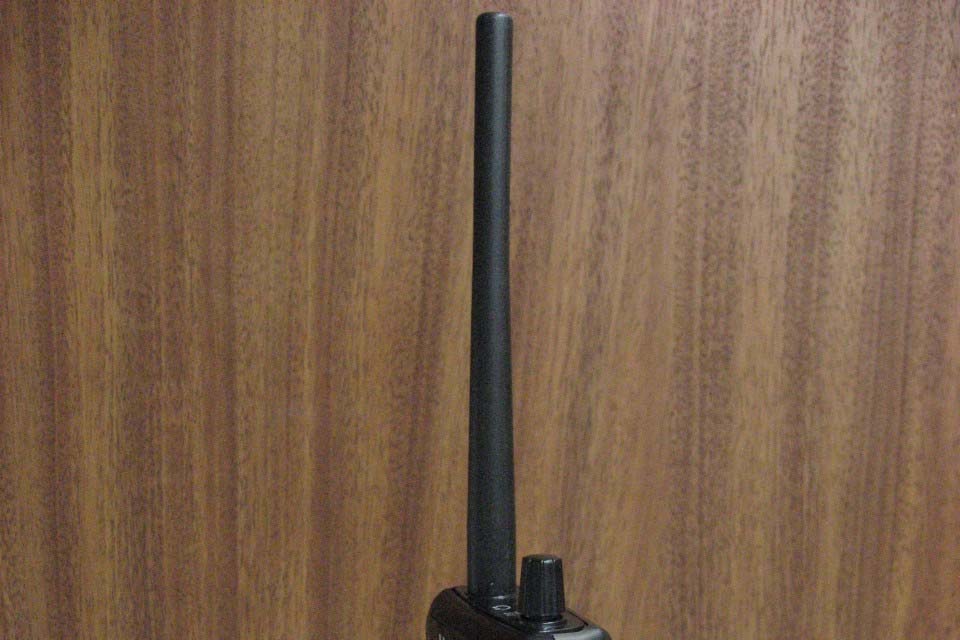

External Photos Front View External Photos Rear View External Photos Front Left External Photos Right External Photos Front Right External Photos Front Left

D34836 PLD107785ZZ LABEL ID UB376Z KURIH Oct.04’13 SAEGUSA Oct.04’13 SAEGUSA Oct.04’13 2014 513C-UB376 AMWUB376 BCD436HP 376Z 3 Oct.04’13 Oct.04’13

External Photos Rear View

FCC PART 15 SCANNING RECEIVER Applicant UNIDEN AMERICA CORPORATION Address 6225 N. State Highway 161, Suite 300 IRVING TEXAS 75038 USA FCC ID: AMWUB376 Model Number BCD436HP Product Description SCANNING RECEIVER Date Sample Received 10/16/2013 Date Tested 10/22/2013 Tested By Joe Scoglio Approved By Joe Scoglio Report Number 1736AUT13TestReport.docx Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB376 REPORT #: U\UNIDEN AMW\1736AUT13\1736AUT13TestReport.docx Page 2 of 9 TABLE OF CONTENTS GENERAL REMARKS ............................................................................................................. 3 GENERAL INFORMATION ...................................................................................................... 4 TEST EQUIPMENT LIST ......................................................................................................... 5 TEST PROCEDURE ................................................................................................................ 6 RADIATED SPURIOUS EMISSIONS ........................................................................................ 7 POWER LINE CONDUCTED INTERFERENCE ......................................................................... 8 38 dB REJECTION RATIO ...................................................................................................... 9 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB376 REPORT #: U\UNIDEN AMW\1736AUT13\1736AUT13TestReport.docx Page 3 of 9 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Joe Scoglio Project Manager/Test technician Date: 10/22/2013 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB376 REPORT #: U\UNIDEN AMW\1736AUT13\1736AUT13TestReport.docx Page 4 of 9 GENERAL INFORMATION The test results relate only to the items tested. DUT Description SCANNING RECEIVER FCC ID AMWUB376 Model Number BCD436HP DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB376 REPORT #: U\UNIDEN AMW\1736AUT13\1736AUT13TestReport.docx Page 5 of 9 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/11 12/31/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 10/28/11 10/28/13 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 10/28/11 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 10/28/11 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 10/28/11 10/28/13 Antenna: Biconnical Eaton 94455-1 1057 06/14/13 06/14/15 Antenna: Biconnical Eaton 94455-1 1096 05/10/13 05/10/15 Antenna: Biconnical Electro-Metrics BIA-25 1171 06/13/12 06/13/14 Antenna: Log- Periodic Eaton 96005 1243 05/31/13 05/31/15 Antenna: Log- Periodic Electro-Metrics LPA-25 1122 05/09/13 05/09/15 LISN Electro-Metrics ANS-25/2 2604 10/28/11 10/28/13 LISN Electro-Metrics EM-7820 2682 02/26/13 02/26/15 Signal Generator HP 8640B 2308A21464 02/23/12 02/23/14 Antenna: Double-Ridged Horn/ETS Horn 1 ETS-Lindgren 3117 00035923 12/07/11 12/07/13 Antenna: Double-Ridged Horn Electro-Metrics RGA-180 2319 06/19/12 06/19/14 Antenna: Double-Ridged Horn/ETS Horn 2 ETS-Lindgren 3117 00041534 10/05/12 10/05/14 EMI Test Receiver Rhode & Schwarz ESIB 40 100274 03/13/12 03/16/14 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUB376 REPORT #: U\UNIDEN AMW\1736AUT13\1736AUT13TestReport.docx Page 6 of 9 TEST PROCEDURE General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Radiation Interference: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The video bandwidth was always greater than or equal to the RBW. Formula Of Conversion Factors: The field strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBμV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the preselector was accounted for in the spectrum analyzer Meter Reading. Example: Freq (MHz) Meter Reading + ACF +CL = FS 33 20 dBμV + 10.36 dB/m +0.40 dB =30.76 dBμV/m @ 3m ANSI C63.4-2003 Section 10.1.7 Measurement Procedures: The unit under test was placed on a table 80 cm high and with dimensions of 1mby 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the max…
