REQUEST FOR CONFIDENTIALITY December 16, 2004 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Part 15 Cordless Telephone Handset FCC IDENTIFIER: AMWUC008R Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: General Information exhibit, which include the Circuit Description and Test Mode information Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

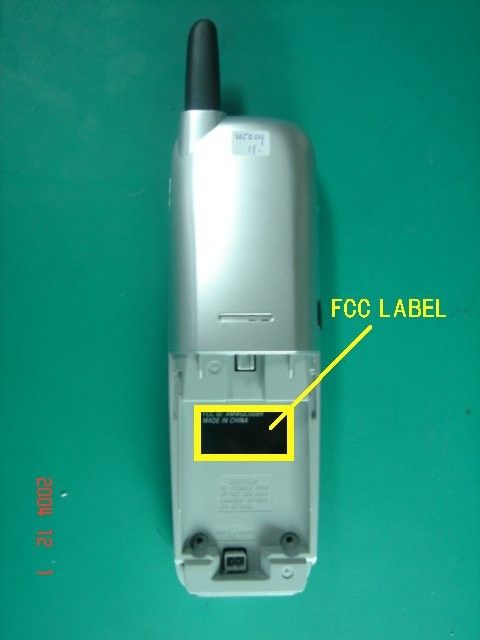

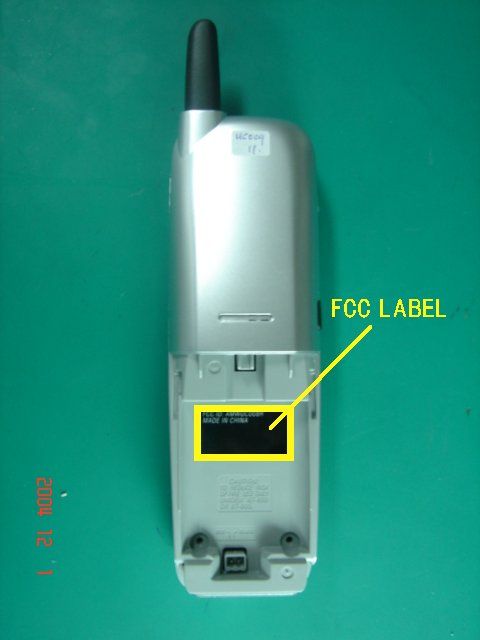

Equipment Identification Label Equipment Label: The following label is permanently affixed to the Handset. HANDSET: 30 mm (W) X 20 mm (H)

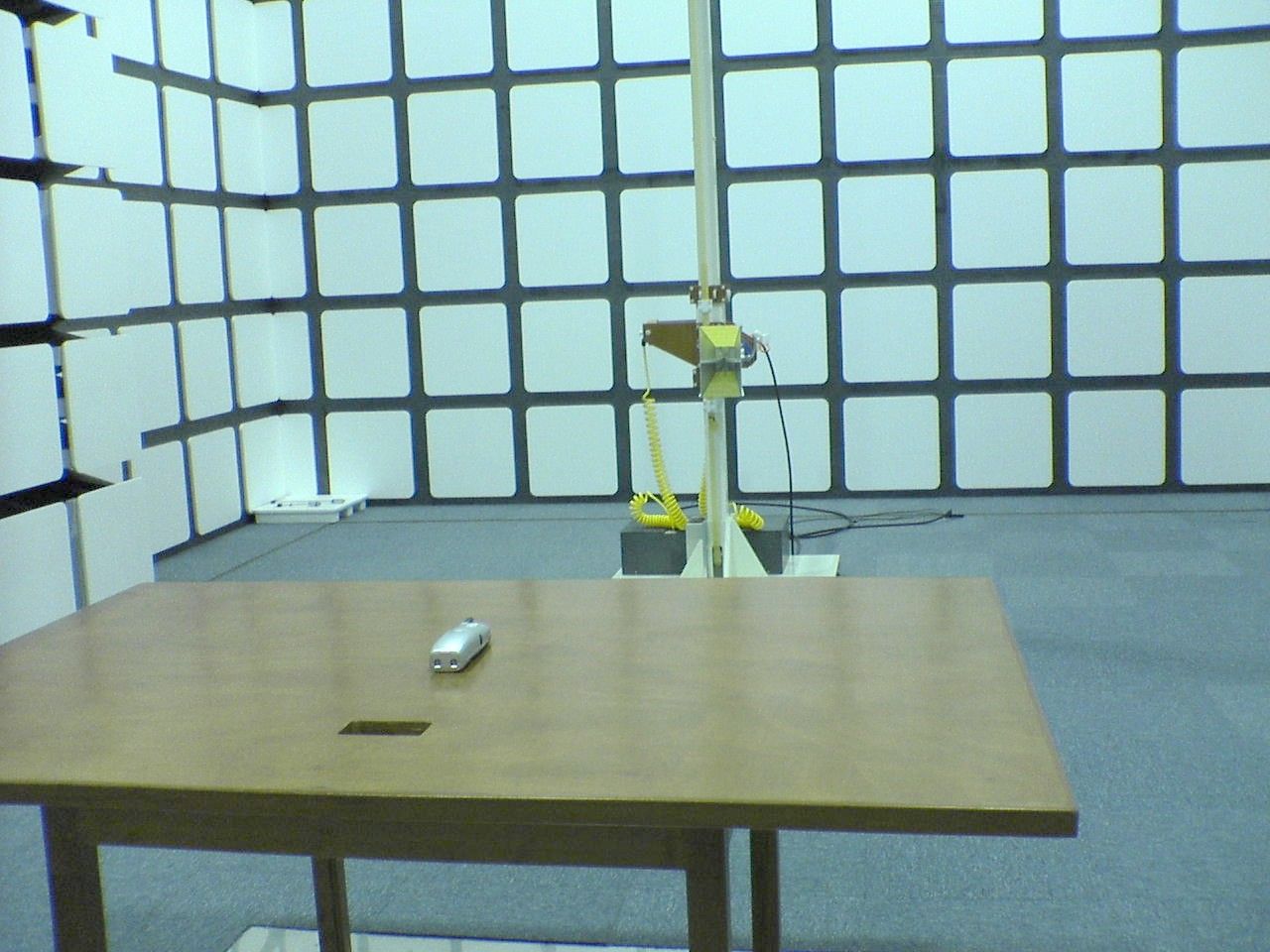

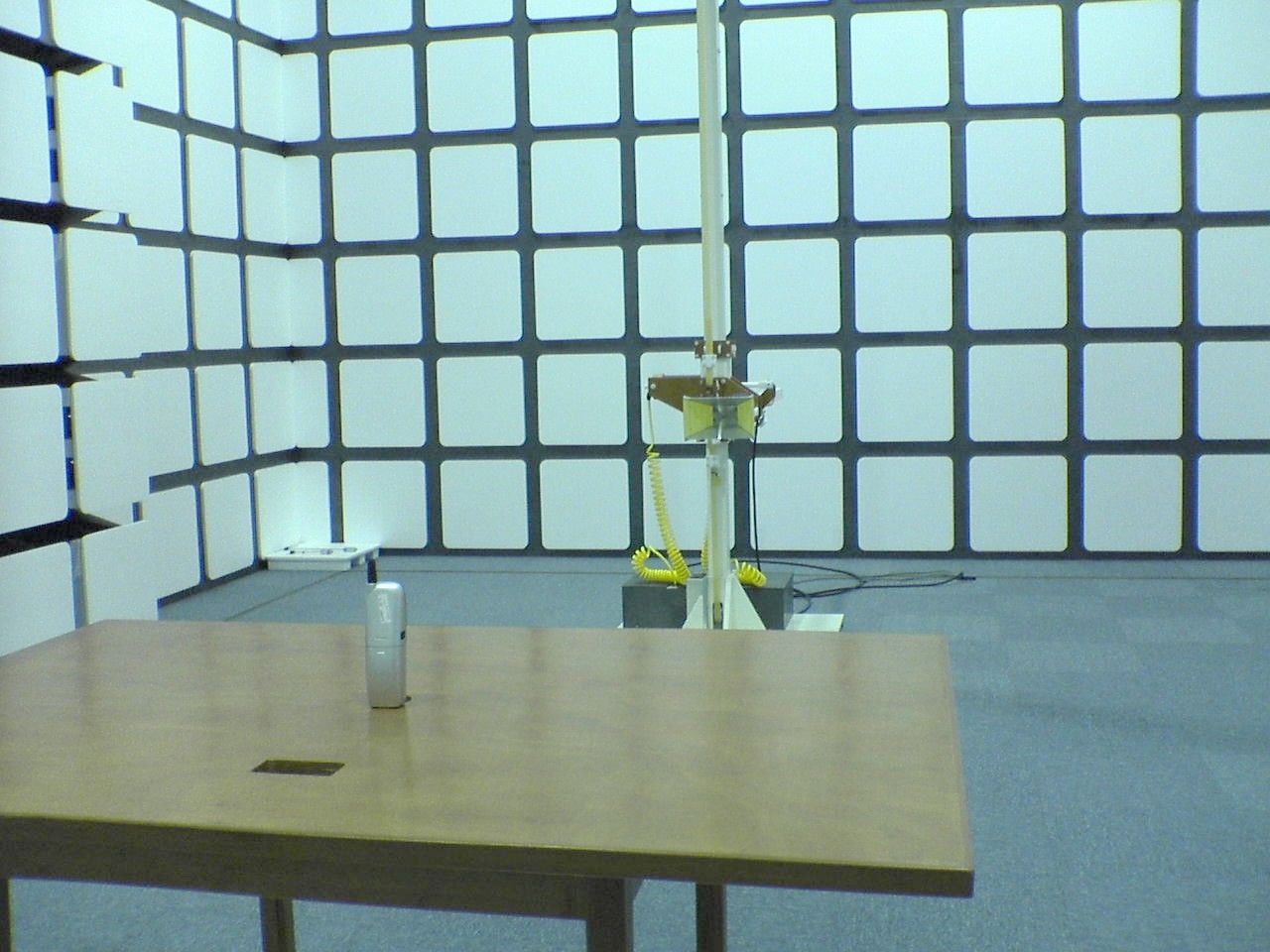

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION MEASUREMENT ITEMS Section No. 5-1 Field Strength of Radiated Emissions 15.249(a)(b) 15.205 / 15.209 5-2 Power Line Conducted Emissions 15.207 SUPPLEMENT DATA - BAND EDGE EMISSIONS FCC ID: AMWUC008R MODEL: EXAI5580(XX) EQUIPMENT: 5.8GHz ISM BAND ANALOG TRANSMITTER 5-1 Field Strength of Radiated Emissions 15.249(a)(b) 15.205 / 15.209 The measurements were performed in accordance with the ANSI C63.4-2003. Field Strength measurements of radiated spurious emissions were made at the open test site of a 3 meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The radio frequency spectrum was scanned in the range of 30 MHz to the 10 th harmonic in accordance with the section 15.33(a) of the FCC Rules. The frequency below 1 GHz, the measurement was carried out by using CISPR quasi-peak detector, AGILENT E7400A the Spectrum Analyzer in accordance with the sections 15.33(a) and 15.35(a). The frequency above 1 GHz, using the AGILENT E7400A Spectrum Analyzer in accordance with the section 15.35(b) carried out the measurement. A bilog antenna CBL6112A was used to cover the range from 30 MHz to 1000 MHz. Narrowband tuned dipole antennas were used over the entire 30 to 1000 MHz range for precision measurements of field strength. Above 1000 MHz, a horn antenna EMCO 3115 was used. For each spurious or harmonic frequency, the antenna was raised and lowered to obtain a maximum reading on the Spectrum Analyzer with antenna horizontally polarized. Then the turntable, on which the equipment under test was placed, was rotated a minimum of 360 degrees to further increase the reading on the Spectrum Analyzer. For testing small and/or handheld product, the measurement was performed in 3 orthogonal planes(X, Y, Z). This procedure was repeated with the antenna vertically polarized. The equipment under test was placed in its normal operating position on a turntable approximately 1 meter in height. In order to convert the measured emission levels into field strength in dBuV/m, the actual field strength (Ef) is determined by algebraically adding the measured emission level (Em) and the antenna correction factor (ACF) including the cable loss at the appropriate frequency. Ef [dBuV/m] = Em [dBuV/m] + ACF [dB] FCC Limits: a) Fundamental emission: 94 dBuV/m (50,000 uV/m) b) Spurious emissions: 30 - 88 MHz 40 dBuV/m (100 uV/m) 88 - 216 MHz 43.5 dBuV/m (150 uV/m) 216 - 960 MHz 46 dBuV/m (200 uV/m) Above 960 MHz 54 dBuV/m (500 uV/m) Test Results: Refer to the attached test reports. All emissions not reported were more than 20 dB below the limits. NOTE: For measurement of the handset, all of the testing were made with the internal battery that is fully charged. For measurement of base unit, all of the testing weremade with the AC Adapter which connected to a standardvoltage source. 5-2 Power Line Conducted Emissions 15.207 Test Procedure: The measurements were performed in accordance with the ANSI C63.4-2003. During the measurements, a standard voltage source is fed into the unit under test through a power line impedance stabilization network. FCC Limit: The radio frequency voltage that is conducted back into the AC power line on any frequencies within the band from 150kHz to 30MHz shall not exceed the following limitation. REQUIREMENTS: FREQUENCY(MHz) LEVEL (dBuV) 0.150-0.50 66 to 56 QP 56 to 46 Ave 0.50-5.0 56 QP 46 Ave 5.0-30.0 60 QP 50 Ave Test Results: Refer to the attached test reports. All emissionsnot reported were more than 20 dB below the limits. NOTE: Regarding the Handset, this FCC requirement is notapplicable to it since the Handset is intended to use thebattery only. SUPPLEMENT DATA - BAND EDGE EMISSION Attached data show the handset’s transmission on lowest channel and base unit’s transmission on highest channel. At the outside of emission bands, those emissions are well reduced against the operational channel frequency of the units. TEST CONDITIONS: Modulation : 1000 Hz
