AMWUC354Cordless Telephone Sysytem

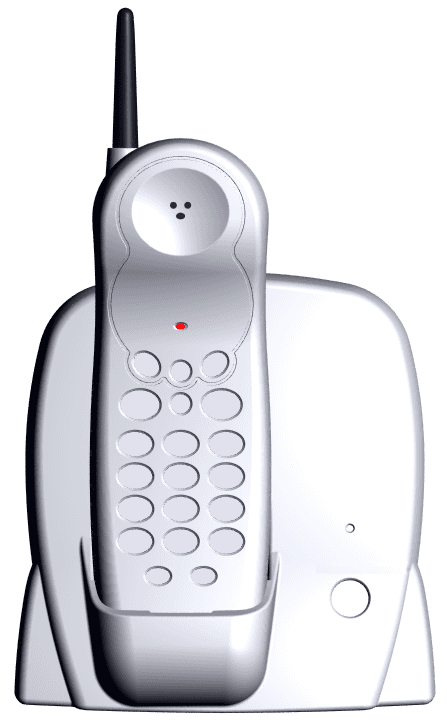

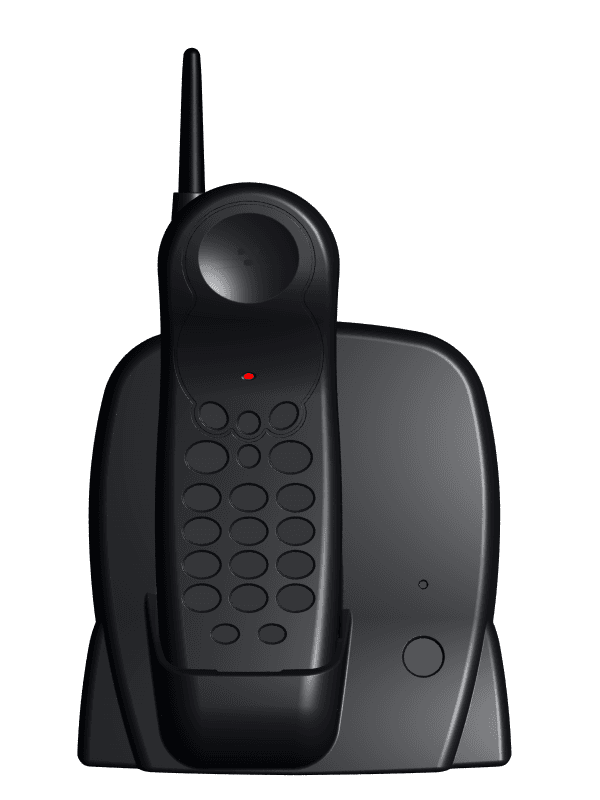

1 Introduction The Uniden EXP370 (white) and EXP371 (charcoal) 900 MHz cordless phones are designed and engineered to exacting standards for reliability, long life, and outstanding performance. Features • 900 MHz Extended Range Technology• 10-Number Memory Dialing• 20 Channel Autoscan • Pulse/Tone Dialing• Handset Volume Control• 24 Digit Redial • One Touch RocketDial™ Number• AutoTalk™• AutoStandby™ • 7 Hours Talk Time• 14 days Standby Time• Hearing Aid Compatible The EXP370/EXP371 features include AutoTalkand AutoStandby. AutoTalkallows you to answer a call by just removing the handset from the base so you don’t have to waste time pushing buttons or flipping switches. AutoStandbyallows you to hang up by simply returning the handset to the base. The UltraClear Plus™true compander circuitry virtually eliminates background noise. This innovative technology provides you with the best possible reception during all your conversations. To protect you against misbilled calls which might result from your phone being activated by other equipment, the EXP370/EXP371 has Random Code™digital security which automatically selects one of approx. 260,000 digital security codes for the handset and base. Also, the AutoSecure™feature electronically locks your phone when the handset is in the base. RocketDial™is a one-touch speed dial key that automatically dials your most important or frequently called number. The number dialed, is a preset number stored by the user. Be sure to visit our web site: www.uniden.com Uniden ® is a registered trademark of Uniden America Corporation. AutoTalk, AutoStandby, UltraClear Plus, Random Code, AutoSecure, and RocketDial are trademarks of Uniden America Corporation. As E NERGYSTAR ® Partner, Uniden has determined that this product or product models meets the E NERGYSTAR ® guide lines for energy efficiency. E NERGYSTAR ® is a U.S. registered mark. Controls and Functions 14 15 1 2 3 4 5 6 11 10 8 9 7 12 13 1. Handset earpiece 2.talk/batt lowLED - indicates when phone is in use or the battery is low 3.flash- accesses call waiting (if available) 4.talk- answers or places calls 5. * /tone - switches to tone dialing in pulse dial mode 6.redial/p- redials the last number / adds a timed pause in a memory dialing sequence. 7.m- enters or recalls numbers in memory 8.RocketDial - one touch priority key 9.end- hangs up a phone call / mutes the ringing tone temporarily 10.v- sets the ringer tone and earpiece volumes 11.channel- selects another channel for clearer reception 12. Handset Microphone 13. Battery Charging Contacts 14. Status LED 15.find handset- locates the handset EXP370 12/10/1 9:37 AM Page 1 2 Do the following steps: A. Choose the best locationC. Connect the base unit B. Install the battery packD. Choose the dialing mode A. Choose the best location Before choosing a location for your new phone, read the INSTALLATION CONSIDERATIONS included in the PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS. Here are some important guidelines you should consider: • The location should be close to both a phone jack and a continuous power outlet which is not switchable. • Keep the base and handset away from sources of electrical noise such as motors and fluorescent lighting. • The base can be placed on a desk, tabletop, or mounted on a standard wall plate. B. Install the battery pack Charge the battery pack for at least 15-20 hours before plugging the phone line into your phone. 1) Press in on the battery cover release and slide the cover down until it comes off. 2) Connect the battery pack connector observing correct polarity (black and red wires) to the jack inside the battery compartment. Do not exert any force on this connection. It could cause damage to the battery or handset. The plastic connector will fit together only one way. Once you are certain that you have made a good connection, then insert the battery pack into the battery compartment. Do not pinch the wires. 3) Securely close the battery compartment cover by sliding it up until it snaps into place. Avoid heat sources, such as radiators, air ducts, and sunlight Avoid television sets and other electronic equipment Choose a central location Avoid noise sources such as a window by a street with heavy traffic Avoid microwave ovens Avoid excessive moisture, extremely low temperatures, dust, mechanical vibration, or shock Avoid personal computers Avoid other cordless telephones • Base• AC Adapter• Rechargeable Battery • Handset• Telephone Cord Included with Your Phone Setting up the Phone EXP370 12/10/1 9:37 AM Page 2 3 4) Place the handset on the base. NOTE: Use only the Uniden Battery (BT-904) supplied with your phone.Replacement batteries are also available through the Uniden Parts Department. Battery use time (per charge) From fully charged • Seven hours continuous use • Fourteen days when the handset is in the standby mode Low Battery Alert When the battery pack is very low and needs to be charged, the phone is programmed to eliminate functions in order to save power. If the phone is not in use, the talk/batt lowLED flashes when the battery pack is low. If the phone is in use, the talk/batt lowLED flashes and the handset beeps. Complete your conversation as quickly as possible and return the handset to the base for charging. Cleaning the Battery Charging Contacts To maintain a good charge, it is important to clean the battery contacts on the handset and base unit with a dry cloth or a pencil eraser about once a month. Do not use any liquids or solvents. NOTE:Even when the battery pack is not being used, it will gradually discharge over a long period of time. For optimum performance, be sure to return the handset to the base unit after each telephone call. C. Connect the base unit 1) Connect the AC adapter to the DC IN 9Vjack and a standard 120V AC wall outlet. 2) Wrap the cord inside the molded wiring channel as shown. 3) Set the base unit on a desk or tabletop, and place the handset in the base unit. 4) Make sure the statu…

Text truncated - open the document above for the full version.

redial/pchannel talk end 7 pqrs 4 ghi 1 8 tuv 5 jkl 2 opertone 9 0 wxyz 6 mno abcdef 3 # talk batt low flash m v vol status find handset confidential ... 103101exp370 900MHz RocketDial talk end 7 pqrs 4 ghi 1 8 tuv 5 jkl 2 opertone 9 0 wxyz 6 mno abcdef 3 # talk batt low vol status find handset confidential ... 103101exp371 900MHz talk end 7 pqrs 4 ghi 1 8 tuv 5 jkl 2 opertone 9 0 wxyz 6 mno abcdef 3 # vol redial/pchannel flash m v RocketDial
