Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
UC01501BZ_1 6/16/06 6:48 PM Page i WelcomeThank you for purchasing a Uniden Multi-Handsetphone.Note: Illustrations in this manual are used forexplanation purposes. Some illustrations in thismanual may differ from the actual unit.AccessibilityUniden provides a customer service hotline foraccessibility questions. If you have a disability andneed customer service assistance or if you haveany questions about how Uniden’s products canaccommodate persons with disabilities, please callthe accessibility voice/TTY line: 1-800-874-9314. A representative is available to talk to you M-F,8:00 am to 5:00 pm, CST. After hours, you canleave us a message, and we will call you back.Information is also available on our website, www.uniden.com, under the “Accessibility” link. Introducing your Digital Cordless Telephone• Crystal clear digital sound quality• Caller ID* to see who’s calling before you pick up the phone • 30 Number Caller ID• 100 Phonebook entries• Last 10 number redial• 10 handset ringer options (6 Melodies and 4 Tones) • Room monitor**• Walkie-Talkie handset**• Sound enhancer lets you adjust the tone of your earpiece to your personal preference. • Integrated telephone answering machine (DECT1080/DECT1080-2 only) * Feature requires Caller ID service from your local telephone company. There is usually a feefor this service. ** Multiple handset are required for these features.In this guide you will find all the information youneed, explained simply to help you get the mostfrom your phone.IMPORTANTThis equipment is not designed for makingemergency calls when the power fails. Alternativearrangements should be made for access toemergency services. [1] UC01501BZ_1 6/16/06 6:48 PM Page 1 Setting up 4 Finding a location 4 Connecting your phone 4 Preparing the handsets 5 Installing and charging the handset battery pack 5 Battery Low Warning 6 Battery Performance 6 Setting the date and time 6 Connecting the telephone line cord 6 Your handset 7 Your base 8 Your handset display 9 Standby Display 10 Quick Guide 11 Using your phone 12 Make a call 12 Adjust the earpiece/speaker volume during a call 12 Make a call by pre-dialing 12 Handset range 12 Call timer 12 Handsfree 12End a call 13 Receive a call 13 Call Waiting 13 Receiving internal calls 13 Muting the ringer 13 Redial 14 Redial the last number called 14 Redial any of the last 10 numbers called 14 Store a redial number to the phonebook 14 Deleting numbers from the redial list 15 Mute (privacy) 15 Finding/paging handsets 15 Keypad lock 16 Conversation recording(DECT1080/DECT1080-2 only) 16 Using the phonebook 17 Store a phonebook name/number 17 View and dial a phonebook entry 18 Edit a phonebook name/number 18 Delete a phonebook name/number 19 Copy phonebook names/numbers 19 Check available memory space 19 Handset and base menu settings 20 Handset ringer volume 20 Handset ringer type 20 Auto talk 21 Sound enhancer 21 Appointment 21 Alarm 22 Handset name 22 Talk display 22 Language 23 Base ringer volume (DECT1080/DECT1080-2 only) 23 Base ringer type (DECT1080/DECT1080-2 only) 24 Prefix dialing 24 Seven-Digit Dialing 25 Call barring 25 [2] Contents UC01501BZ_1 6/16/06 6:48 PM Page 2 [3] Settings menu 26 Tones 26 Dial Mode 26 Tone Dialing Switch-Over 27 Registering a new handset 27 De-register a handset or a base 28 Base PIN code 29 Selecting a base 29 Resetting your phone 30 Default settings 31 Network services 32 Caller ID 32 Call Waiting Tone 32 Calls log 32 View the Calls log 33 Copy Calls log number to the phonebook 33 Delete Calls log entry(ies) 34 Message waiting (DECT1060/DECT1060-2 only) 34 Using extra handsets 35 Walkie-Talkie 35 Set Walkie-Talkie mode 35 Make a Walkie-Talkie call 36 Walkie-Talkie ringer volume 36 Walkie-Talkie ringer type 36 Exit Walkie-Talkie mode 36 Room monitor 37 Using room monitor 37 Call another handset (internal or intercom call) 37 Answer an external call while on an internal call 37 Transferring a call 38 Conference call 38 The Telephone Answering Machine(DECT1080/DECT1080-2 only) 39 Answering Machine Operation from a Handset 39 Message Playback 39 Record Memo 39 Answering Machine Settings 39 Answer on/off 40 Play/Delete/Record OGM 40 Select OGM 40 Setting Call Screen 40 Using Call Screen 40 Ring Delay 41 Message Length 41 Setting Remote PIN 41 Message Alert 41 Language 41 Using the Base Answering Machine 42 Remote Access Away from Home 43 Simple solutions 44 Handset/Base 44 Caller ID 45 Telephone Answering Machine(DECT1080/DECT1080-2 only) 45 General information 46 Specifications 46 Maintenance 46 Cleaning your product 46 Replacing the handset battery pack 46 Liquid Damage 47 Precautions 48 I.C. Notice 51 Warranty 52 UC01501BZ_1 6/16/06 6:48 PM Page 3 Setting upFollow these simple steps to prepare yourphone for use.Finding a location• The location should be close to both a phone jack and a continuous power outlet (one whichis not connected to a switch). • The base and handset should be kept away from sources of electrical noise such as motors,microwave ovens, and fluorescent lighting. • For better reception, place the base as high as possible. • The base should be placed in an open area for optimum range and reception. • If your home has wired alarm equipment connected to a phone line, be sure thatinstalling the system does not disable youralarm equipment. If you have questions aboutwhat will disable alarm equipment, contact yourtelephone company or a qualified installer. Connecting your phone1 Connect the base power supply to the back of the base. Plug the other end into the wallelectrical outlet.WARNINGUse only the power supply that came with your phone.Using another power supply could seriously damage your phone and invalidate your warranty.Do not connect the telephone line cord until your handset is fully charged. This will prevent the risk of the phone being answered before thebattery pack is charged. Answering the phone before the battery pack is fully charged mayprevent them from reaching their optimumcapacity. …
Text truncated - open the document above for the full version.
Declaration concerning Antenna Specification June 12, 2006 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs Dear Sir or Madam: I hereby declare that the product identified by FCC Identifier AMWUC501 fulfills the requirements for FCC testing as related to the antenna type. Additionally, this product conforms to the FCC recommendation with regards to the internal antenna type. It is specified as: Antenna type: Internal inverted -F PCB antenna (1/4 wave antenna) And Internal folded inverted -L metal antenna (1/4 wave antenna) Gain of the antenna.......< 3dBi Frequency range ...........1920 -1930MHz. The mounting of the antenna is fixed to the radio module and no other antenna should be used. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs
REQUEST FOR CONFIDENTIALITY June 12, 2006 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Unlicensed Personal Communications Services (PCS) Devices FCC RULES: Part 15, Subpart D FCC IDENTIFIER: AMWUC501 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Operational Description - Circuit Description - Schematic Diagrams - Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs
LIMITED AGENCY AUTHORIZATION June 12, 2006 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Limited Agency Authorization Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Unlicensed Personal Communications Services (PSC) Devices FCC RULES: Part 15, Subpart D FCC IDENTIFIER: AMWUC501 Dear Sir or Madam: We, the undersigned, hereby authorize Electronic Technology Systems Dr. Genz GmbH to act on our behalf in all matters relating to applications for equipment authorization DECT1060 for the above referenced device, including the signing of all documents relating to this matters. Any and all acts carried out by Electronic Technology Systems Dr. Genz GmbH on our behalf for the above referenced device shall have the same effect as acts of our own. We also hereby certify that no party to these applications is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs
1) if applicable rev. 1.4 UPCS_DECTbased_ICS_CLIP_BASE.doc page 1 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH UPCS (DECT based) – Implementation Conformance Statement Description : Basestation Model : CLIP Basestation Use : FP PP Repeater System Type HW version WORKING STAGE SW version Ver. 0.02 RFPI / PIN Decl. emission BW 1.4MHz Decl. lower threshold DUT Decl.upper threshold 1) -62.4 dBm Product information Standard: FCC part 15D other: Frequency band: 1920 – 1930 MHz other: Number of RF channels: 5 Number of logical channels: 60 (time and spectrum windows) Used slot type: single double Used slot(s): even odd For doubleslot connection even and odd slots are used Operating mode: simplex duplex other: 1) if applicable rev. 1.4 UPCS_DECTbased_ICS_CLIP_BASE.doc page 2 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Antennas: Antenna Type Gain [dBi] internal external 1 PCB < 3 2 Metal < 3 3 FP: Do Tx and Rx use the same antenna(s)?: Yes No Antenna Type Gain [dBi] internal external 1 2 3 PP: Do Tx and Rx use the same antenna(s)?: Yes No Antenna diversity: 1) Diversity supported Antenna Tx Rx 1 2 FP 3 1 2 Product information PP 3 1) if applicable rev. 1.4 UPCS_DECTbased_ICS_CLIP_BASE.doc page 3 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Supply and supported temperature ranges (Manufacturer declaration): FP PP Repeater U normal [V] 6.0V U min [V] 5.0V U max [V] 9.0V T min [°C] +10 T max [°C] +40 Power Source Type Manufacturer FP or WRS AC/DC Wall Adaptor ?? PP (charger) Data connection: PSTN other Used radio module 1) : Type : Manufacturer : Ancillary equipment 1) : Description : Type : Manufacturer : Product information Host device 1) : Description : Type : Manufacturer : 1) if applicable rev. 1.4 UPCS_DECTbased_ICS_CLIP_BASE.doc page 4 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Control software 1) : Name : Version : Manufacturer : Product information Additional remarks: 1) if applicable rev. 1.4 UPCS_DECTbased_ICS_CLIP_BASE.doc page 5 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH FCC 15.323 (c) (5): This device or group of co-operating devices located within 1 meter of each other shall not during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively more than one third of the time and spectrum windows defined by the system. Manufacturer agrees: Yes No FCC 15.323 (c) (12): This device shall not use the provisions of (c) (10) or (c) (11) to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Manufacturer agrees: Yes No FCC 15.307 (b): The applicant is a participating member of UTAM, Inc. and will provide a related affidavit from UTAM, Inc. in course of certification. Confirmation by applicant: Yes No FCC 15.319 (f) Automatic discontinuation of transmission: This device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. Automatic break off the transmissions means break off of connection and break of transmissions which are not control and signalling information or repetitive codes of complete frame or burst intervals. In case of devices using basics of DECT technology at least fixed parts and repeaters are using control and signalling information without direct connection to their remote station. Please fill in the table below with the reaction of the EUT (FP and/or PP) using A, B or C. Reaction of EUT Situation FP Verdict 1 Switch-off counter part B 2 Hook-on by counter part B 3 Switch-off by EUT A 4 Hook-on at EUT side Not possible 5 Remove power from EUT A 6 Remove power from counterpart B Manufacturer declarations A – Connection break down, cease of transmit B – Connection break down, EUT transmits signalling information C – Connection break down, counter part transmits signalling information 1) if applicable rev. 1.4 UPCS_DECTbased_ICS_CLIP_BASE.doc page 6 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Supplement Additional remarks: Declared by: Date: 4-11-2006 Name (print): Yoshinobu Fujiwara Signature:

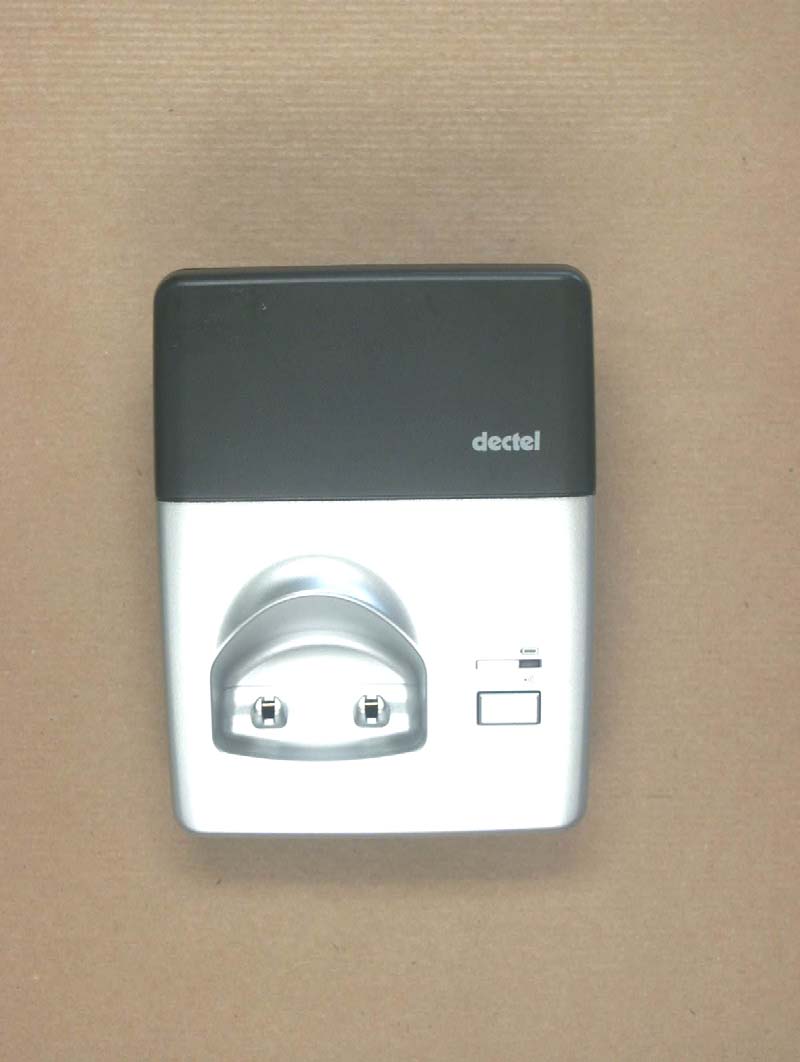

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 2 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 3 of 10
Equipment Identification Label Equipment Labels: The following Labels are permanently affixed to the equipment. 1) FCC LABEL: 53 mm (W) X 29.5 mm (H) 2) FCC STATEMENT: 44 mm (W) X 23 mm (H) HAC FCC LABEL FCC STATEMENT
ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 6 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 7 of 10
ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 30 of 55 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 3.1.11 Radio frequency radiation exposure, FCC 15.319 (i); RSS-102 UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091, 2.1093 and RSS-102, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. Consideration of radio frequency radiation exposure for EUT is done as SAR test acc. IEEE 1528 MPE calculation as below SAR test results: not applicable for this device MPE calculation: Please find the carrier field strength test results in Appendix J. The calculations below are not considering any duty cycle corrections. The EUT is considered as a mobile device according to OET Bulletin 65, Edition – 97 – 01. Therefore distance to human body of min. 20 cm is determined. The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the device will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RFE exposure compliance. Formula: S = EIRP / 4πR 2 P = E 2 * r 2 30*G Calculation: E Carrier field strength [dBμV/m] 120,92 E Carrier field strength [V/m] 1,111 EIRP Radiated Power [dBm] - EIRP Radiated Power [mW] 370,3 R Distance [cm] 20 S Power Density [mW/cm 2 ] 0.07
ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC PART 15 D for Isochronous UPCS devices RSS-213 for LE-PCS devices FCC ID: AMWUC501 Test report no.: G0M20604-0400-C-1 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 2 of 55 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 TECHNICAL TEST 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Examinations and Test Procedures 3 RESULTS OF EXAMINATIONS AND TESTS 3.1. Examinations and Test Procedures 3.1.1 Coordination with fixed microwave service, FCC 15.307 (b) 3.1.2 Reference to Subpart B, FCC 15.309 (b) 3.1.3 Conducted limits AC Power line, FCC 15.315, 15.207; RSS-213 4.2; 6.3 3.1.4 Antenna requirement, FCC 15.317, 15.203 3.1.5 Modulation techniques, FCC 15.319 (b); RSS-213 6.1 3.1.6 Emission bandwidth, FCC 15.323 (a); FCC 15.31 (e); RSS-213 6.4 3.1.7 Peak Transmit Power, FCC 15.319 (c); RSS-213 4.3.1, 6:5 3.1.8 Power spectral density, FCC 15.319 (d); RSS-213 4.3.1, 6:6 3.1.9 Directional gain of the antenna, FCC 15.319 (e); RSS-213 4.1 (e) 3.1.10 Automatic discontinuation of transmission, FCC 15.319 (f); RSS-213 4.3.4 (a) ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 3 of 55 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 3.1.11 Radio frequency radiation exposure, FCC 15.319 (i); RSS-Gen 5.5 3.1.12 Monitoring threshold; Least interfered channel; FCC 15.323 (c)(2); (c)(5) (c)(9); RSS-213 4.3.4 (b)(2) 3.1.13 Monitoring of intended transmit window and maximum reaction time, FCC 15.323 (c)(1); RSS-213 4.3.4 (b)(1) 3.1.14 Monitoring bandwidth, FCC 15.323 (c)(7); RSS-213 4.3.4 (b)(7) 3.1.15 Random waiting interval, FCC 15.323 (c)(6); RSS-213 4.3.4 (b)(6) 3.1.16 Duration of transmission, FCC 15.323 (c)(3); RSS-213 4.3.4 (b)(3) 3.1.17 Connection acknowledgement, Unacknowledged transmissions, FCC 15.323 (c)(4); RSS-213 4.3.4 (b)(5) 3.1.18 Selected channel confirmation, Segment occupancy; FCC 15.323 (c)(5) 3.1.19 Monitoring antenna, FCC 15.323 (c)(8); RSS-213 4.3.4 (b)(8) 3.1.20 Duplex connections, FCC 15.323 (c)(10); RSS-213 4.3.4 (b)(10) 3.1.21 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11); RSS-213 4.3.4 (b)(11) 3.1.22 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12); RSS-213 4.3.4 (b)(12) 3.1.23 Emissions inside and outside the sub-band, FCC 15.323 (d); RSS-213 6.7 3.1.24 Frame period, FCC 323 (e); RSS-213 4.3.(c). 3.1.25 Frequency stability, FCC 323 (f); RSS-213 6.8 3.1.26 Receiver spurious emissions; RSS-213 6.8 ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 4 of 55 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interoperate with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration are performed, for certification by competent authorities FCC; IC. This report is related to FCC Part 15 D applied to UPCS devices of which technology is derived from DECT standard. Additional this report covers the requirement of RSS-213, 2 GHz Licence exempt Personal Communications Services Devices (LE-PCS) released by Industry Canada (IC). In following the term UPCS covers the term LE-PCS too. Tester: 24.05.2006 W. Treffke Date ETS-Lab. Name Signature Technical responsibility for area of testing: 24.05.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 5 of 55 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 Bluetooth Qualification Test Facility (BQTF) Accredited by Bluetooth Qualification Review Board (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : Uniden America Corporation Street : 181 N. Country Club Road P.O. Box 580, Town : Lake City, South Carolina, 29560 Country : USA Telephone : 843-374-3852 Fax : 843-374-8393 Contact : Mr. James R. Haynes Telephone : 843-374-3852 E-mail : [email protected] ETS Dr. Genz GmbH, Germa…
Text truncated - open the document above for the full version.
ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 8 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 9 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 10 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 11 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20604-0400-C-1 Page 12 of 10
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15D | 1.92 GHz - 1.93 GHz | 78.00 mW |
