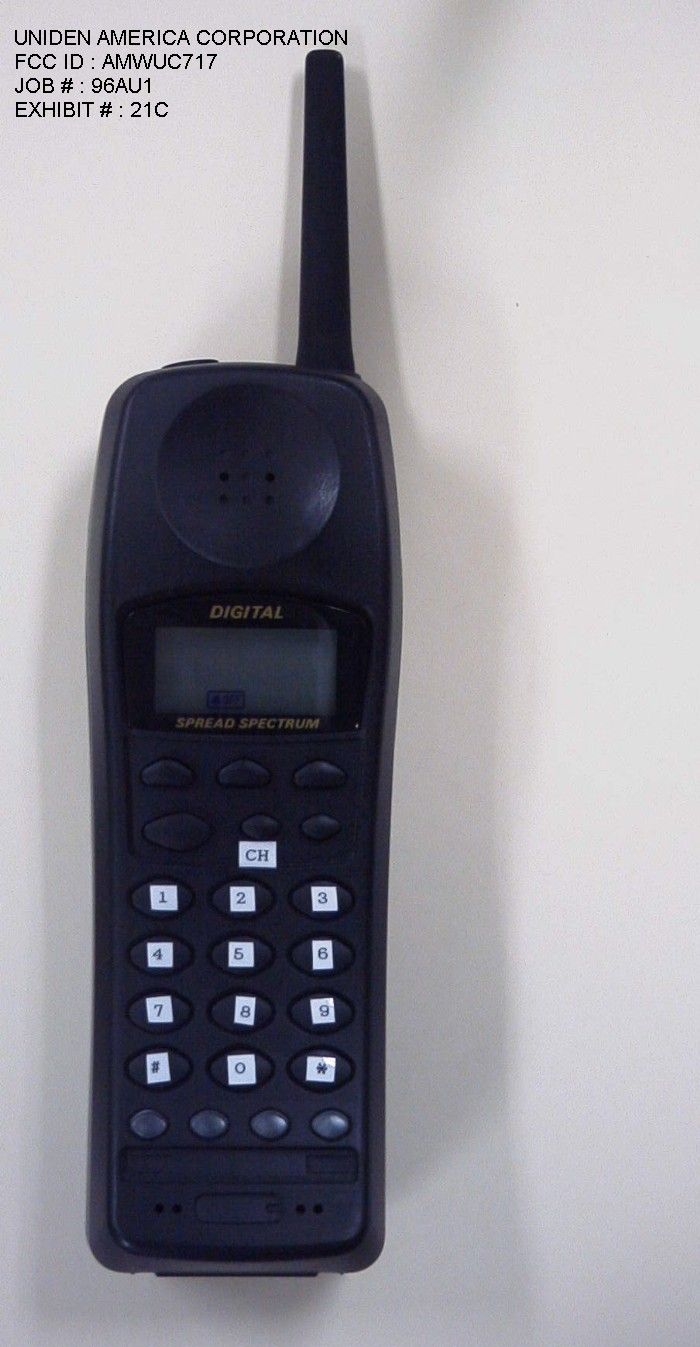

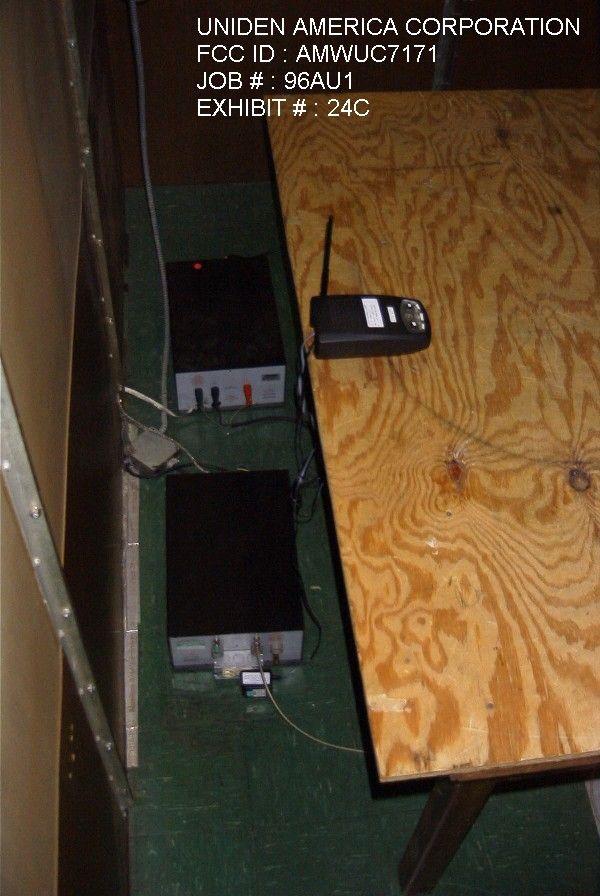

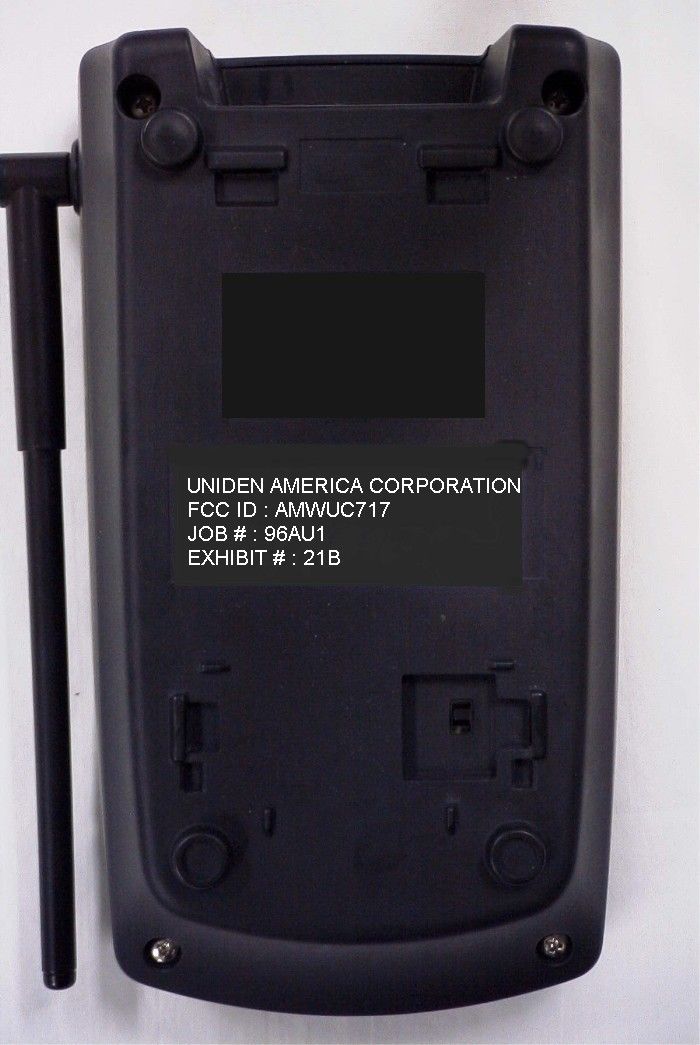

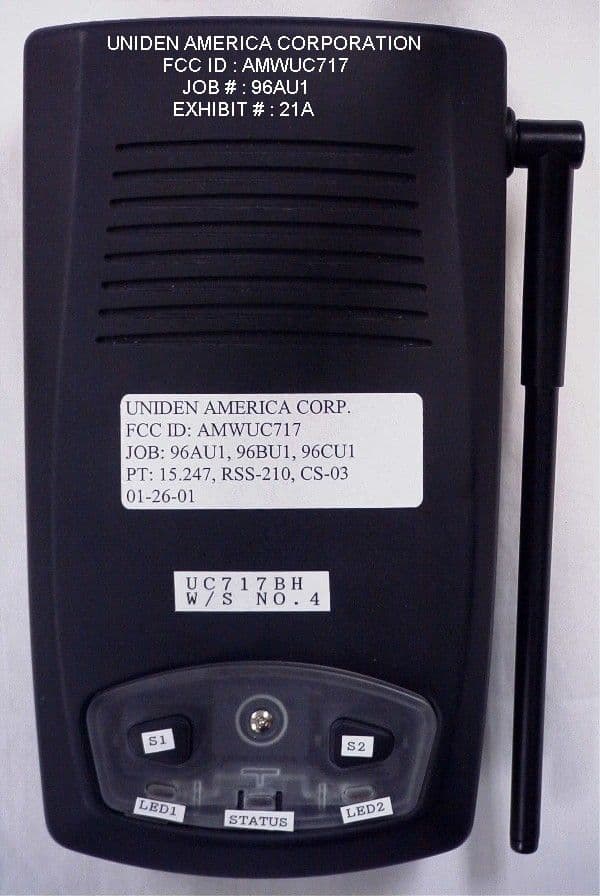

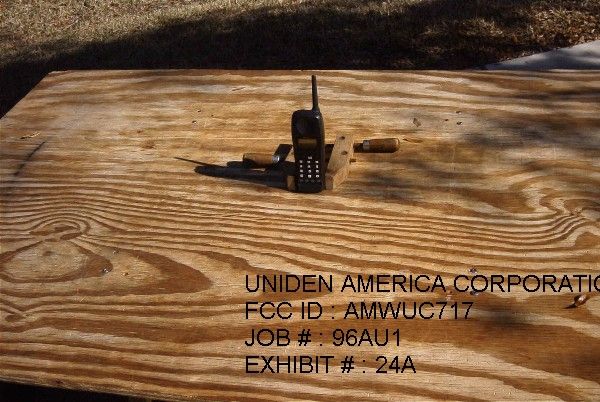

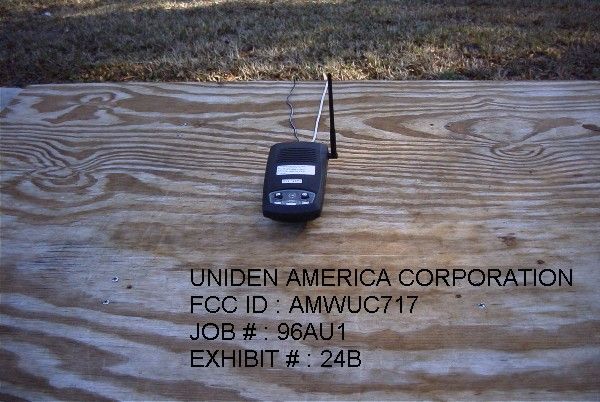

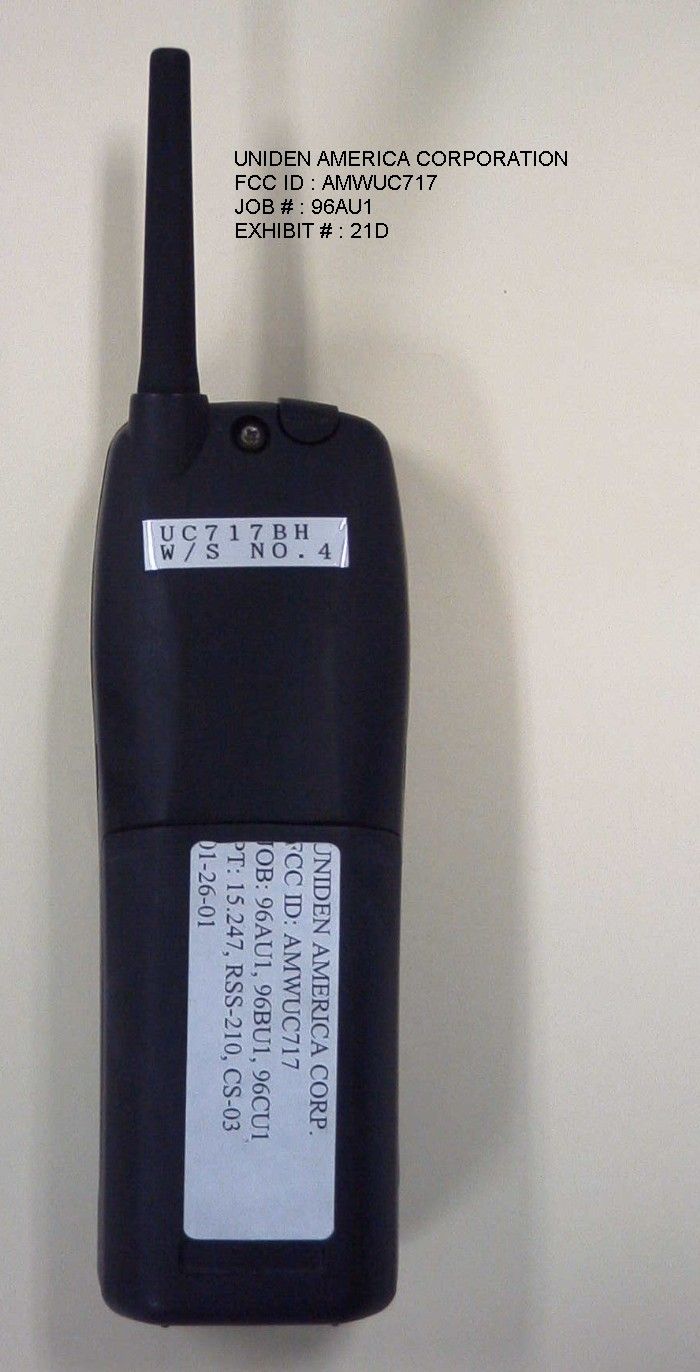

AMWUC717900 MHz Spread Spectrum Cordless Phone

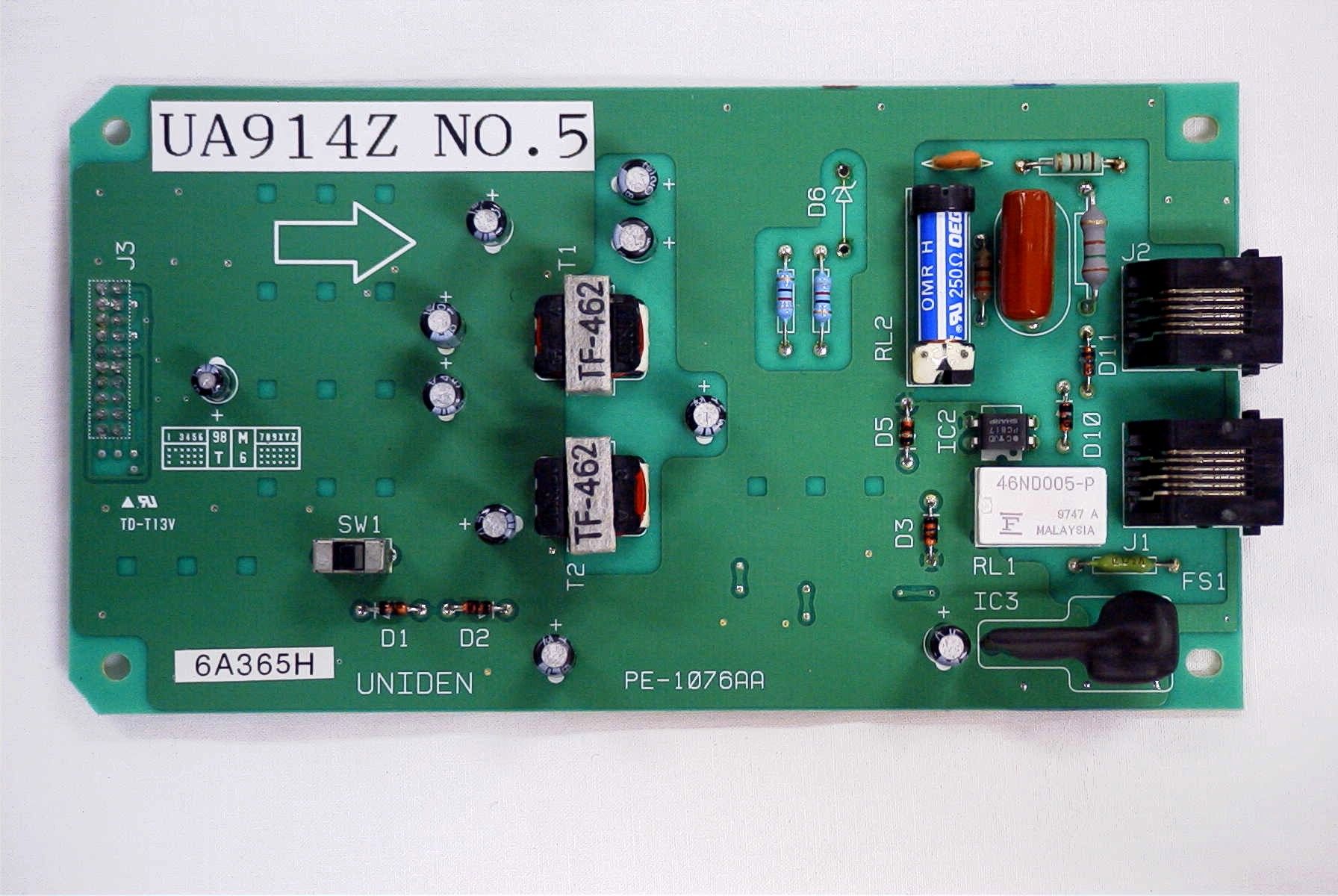

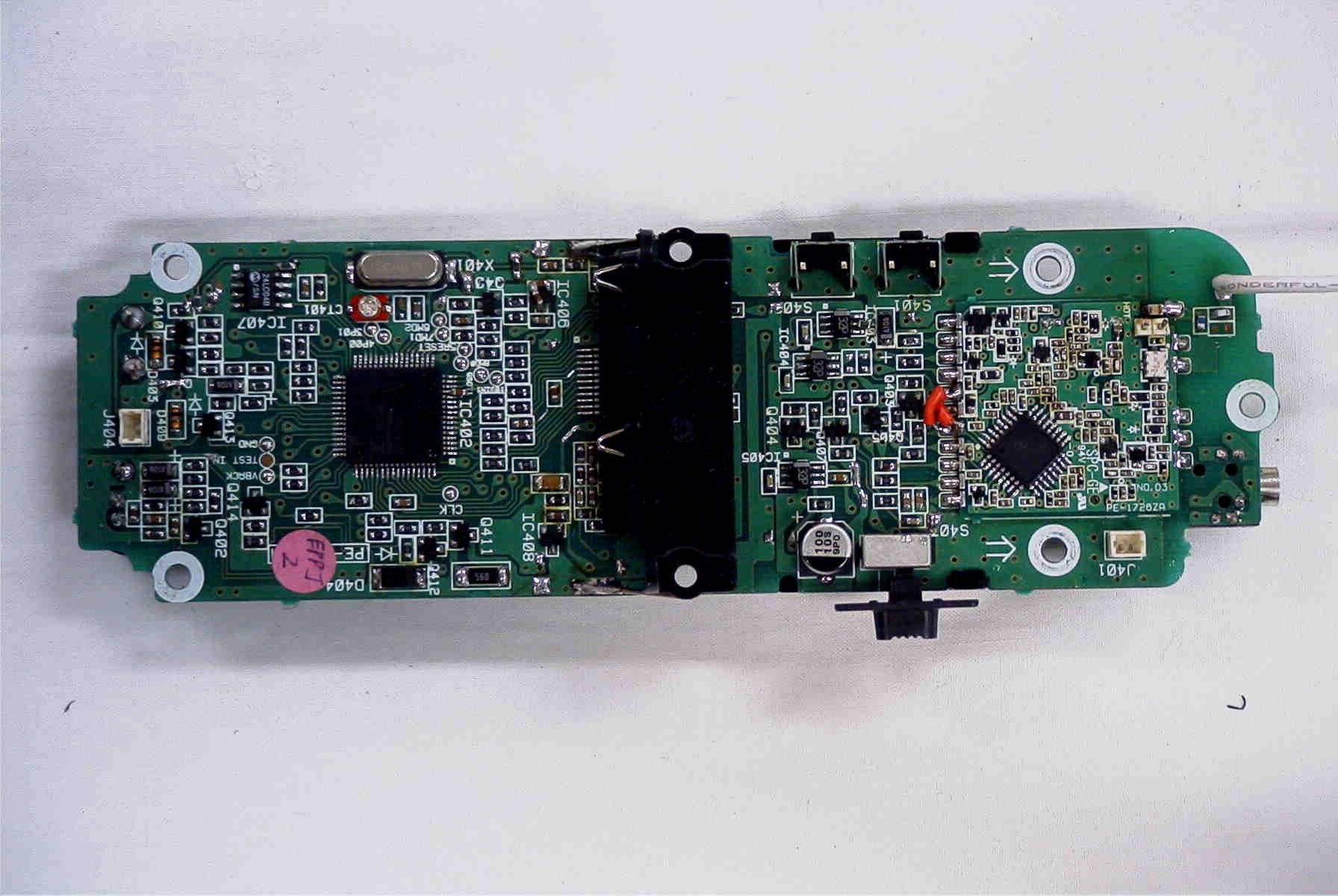

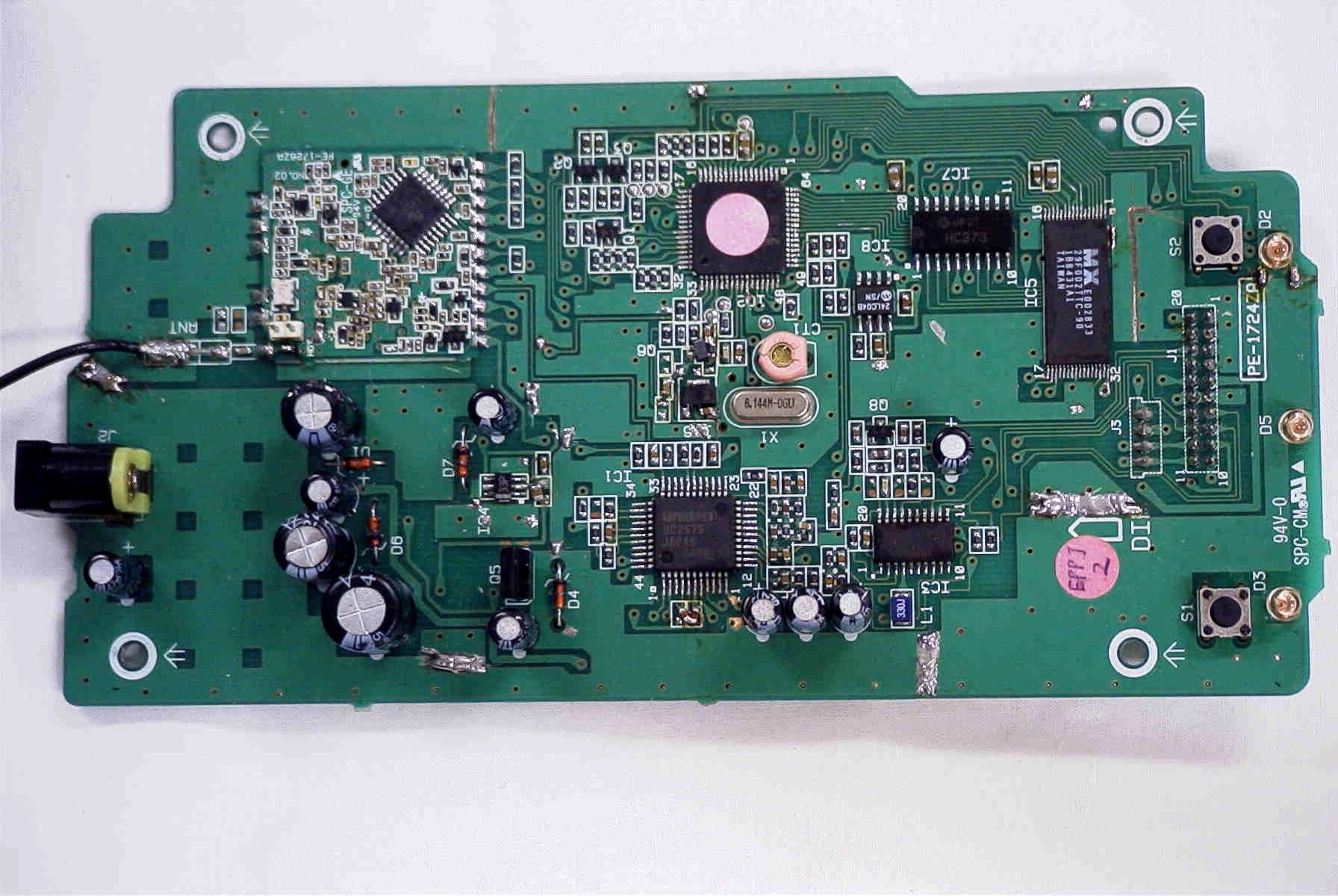

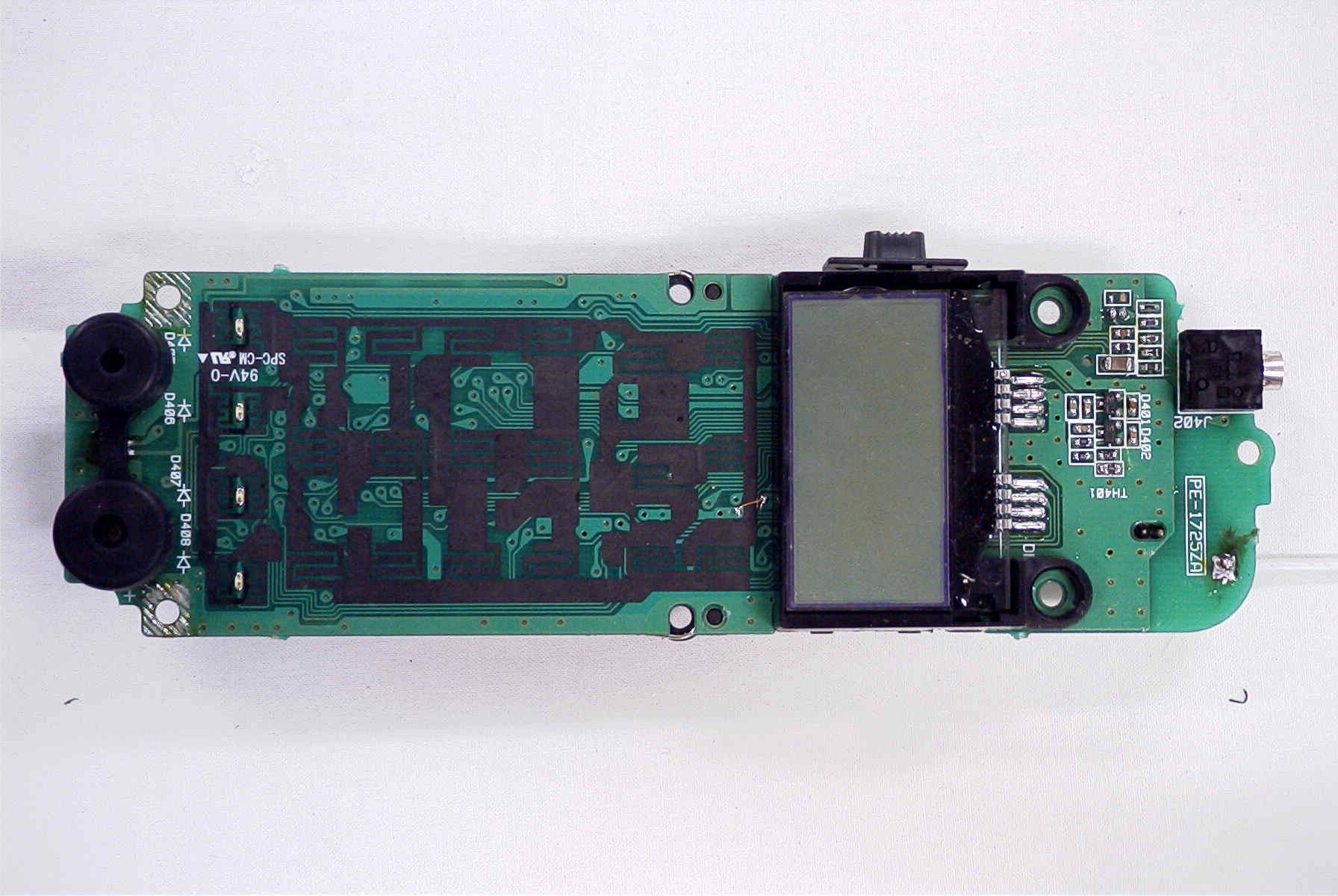

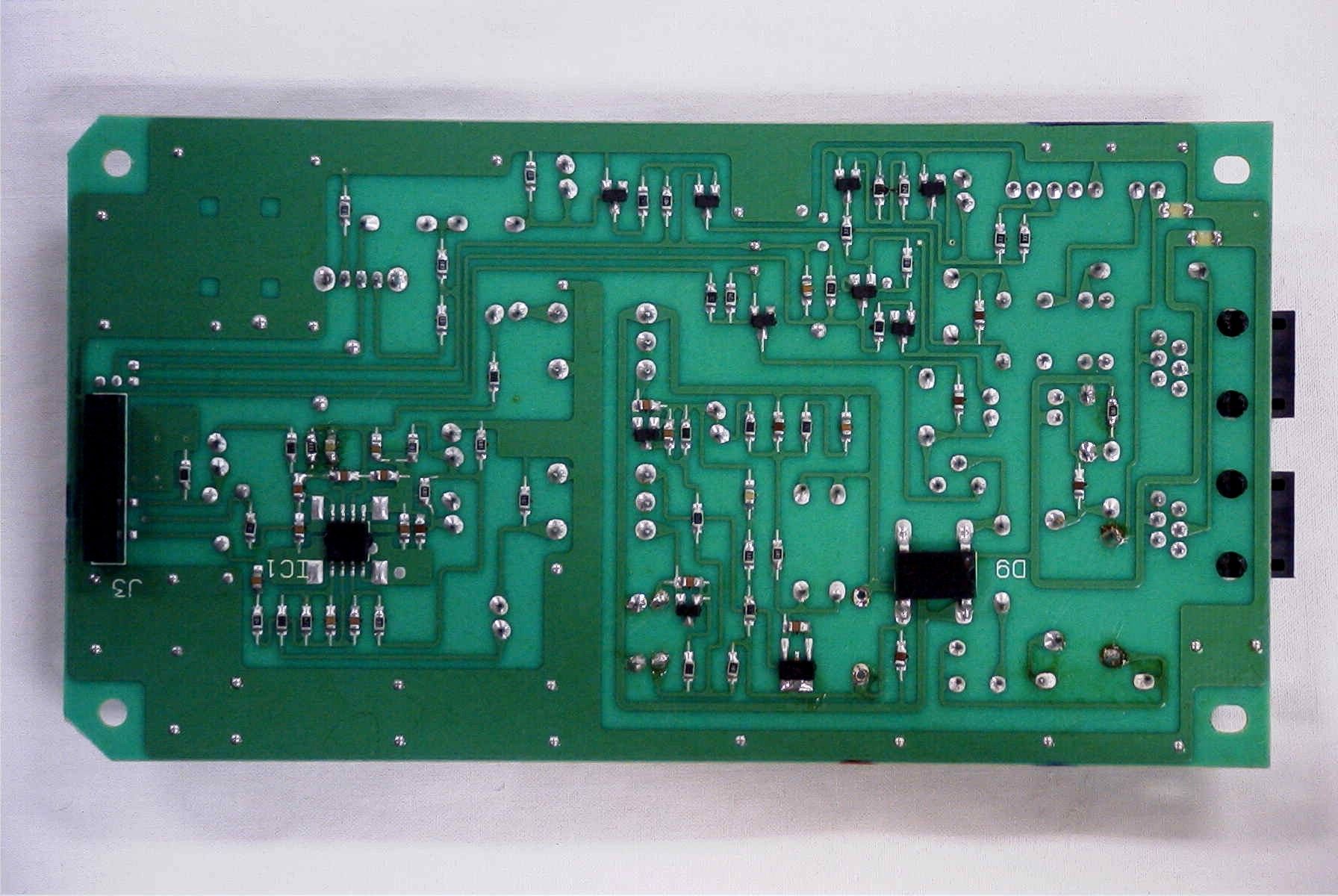

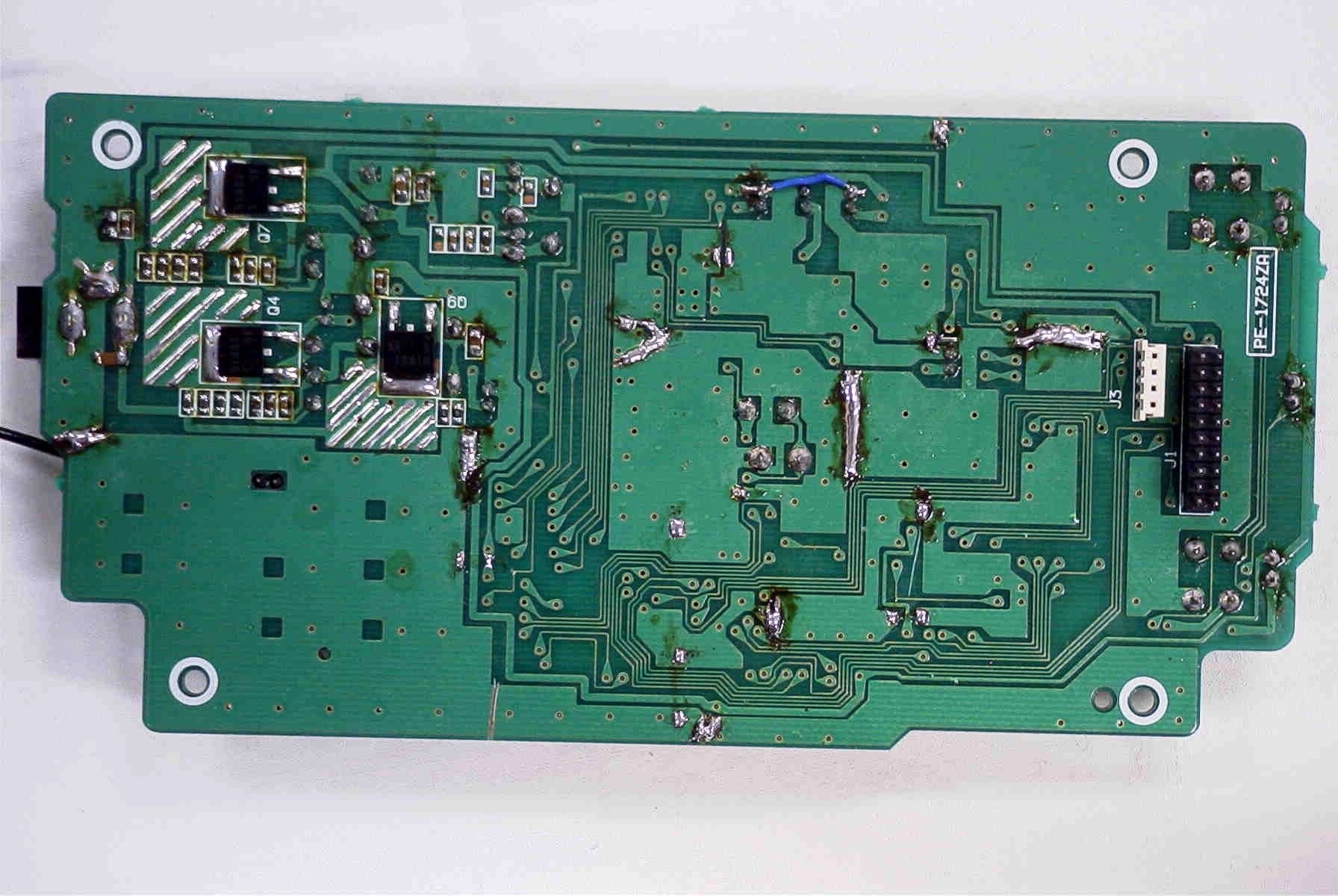

D:\Ready_To_Convert\Doc\150913.DOC TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] 21 May 2001 Mr. Joe Dichoso FCC Subject: UNIDEN AMERICA CORP. FCCID: AMWUC717 REFERENCE: EA100464 Mr. Dichoso, With reference to your email; 1. Some how the processing gain got mixed up, attached is the correct processing gain measurements. 2. Attached at the internal photographs. 3. Attached you will find an RF exposure warning information sheet to be included in the User Manual. The circuit description that refers to 19mW is left over from a previous model & I have asked the manufacturer to remove it and I will forward you a copy as soon as I receive it. I cannot find any reference to 15dBm & 19dBm. 4. The radiated ERP measured on the Handset EUT was 10mW and the conducted power was 63mWatts so I do not understand what you are referring to with the 1000mW EIRP. If anything else is required please let me know. Regards, Sid Sanders Encl: Internal photos, correct processing Gain, RF Exposures Statement

849 NW State Road 45 • P. O. Box 370 • Newberr y, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] May 25, 2001 Mr. Joe Dichoso Federal Communications Commission Authorization ad Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: UNIDEN AMERICA CORP’S FCC ID: AMWUC717, CONFIRMATION # EA100464 YOUR CORRESPONDENCE ID #: 19340 Dear Joe: On 5/21/01, Summer Hester from our office had uploaded a letter and an RF exposure statement in response to your correspondence ID # 19340. Uniden Corp. has asked that I discuss the necessity of having an RF exposure statement because of the low output power. The 127 dBuV/m that you mention in your correspondence is the FCC limit on the radiated emissions page; it is not the output power. Please refer to page 5 of the test report that advises the output data. The users manual figures for power output are the customers wish as to the output power and the test report reflects the actual measured values of the output power. If you want the users manual to match the measured values we can have the customer reflect this change in the users manual. Based on the highest output power of .063 watts, please confirm that no RF statement is required in the user’s manual. Regards, Sharon Hoffman TIMCO ENGINEERING, INC.

TIMCO ENGINEERING, INC. P.O. BOX 370 849 N.W. STATE ROAD 45 NEWBERRY, FL 32669 PHONE: 888-472-2424 OR 352-472-5500 FAX: 352-472-2030 EMAIL: [email protected] May 31, 2001 Mr. Joe Dichoso Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Uniden America Corporation’s FCC ID: AMWUC717 Confirmation #: EA100464, Your correspondence ID # 19437 Dear Joe: Per your request of 5/25/01; 1. I have uploaded the new processing gain information. 2. The antenna gain for the base is +3.34 dBi, for the handset it is 1.74 dBi. I’ve uploaded the information. 3. The conducted output power measurements are shown on page 5 of our report and they are correct. BASE PEAK POWER OUTPUT = + 18 dBm or 63 mWatts HANDSET PEAK POWER OUTPUT = +18 dBm OR 63 mWatts Ref the radiated emissions data – Please refer to pages 8-9 of our test report – NAME OF TEST – RADIATED SPURIOUS EMISSIONS – there are several columns and the columns that you are reading with the 127.34 dBuV/m is the FCC LIMIT column. The FIELD STRENGTH dBuV/m column is the data. The highest emission on the Handset (Page 8) is 107.26 dBuV/m and the highest emission on the Base (Page 9) is 116.48 dBuV/m. 5/31/01 PAGE 2 OF 2 The conducted output power is on Page 5 of the test report. BASE PEAK POWER OUTPUT = + 18 dBm or 63 mWatts HANDSET PEAK POWER OUTPUT = +18 dBm OR 63 mWatts b. The EIRP is .135 Watts for the Base and .094 for the Handset. Based on the correct output power requested of .063, I believe no SAR information is required. Should you have any questions or require any further information, please advise. Regards, Sharon A. Hoffman TIMCO ENGINEERING, INC.

RF Exposure Information Your cordless telephone contains a low power transmitter. When the Push to Talk button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. CAUTION : To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 0.5 inches (1.25 centimeters) from your face, with the antenna pointed up and away from the face, if you wear the handset on your body while using the headset accessory, use only the manufacturers supplied belt chip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations.

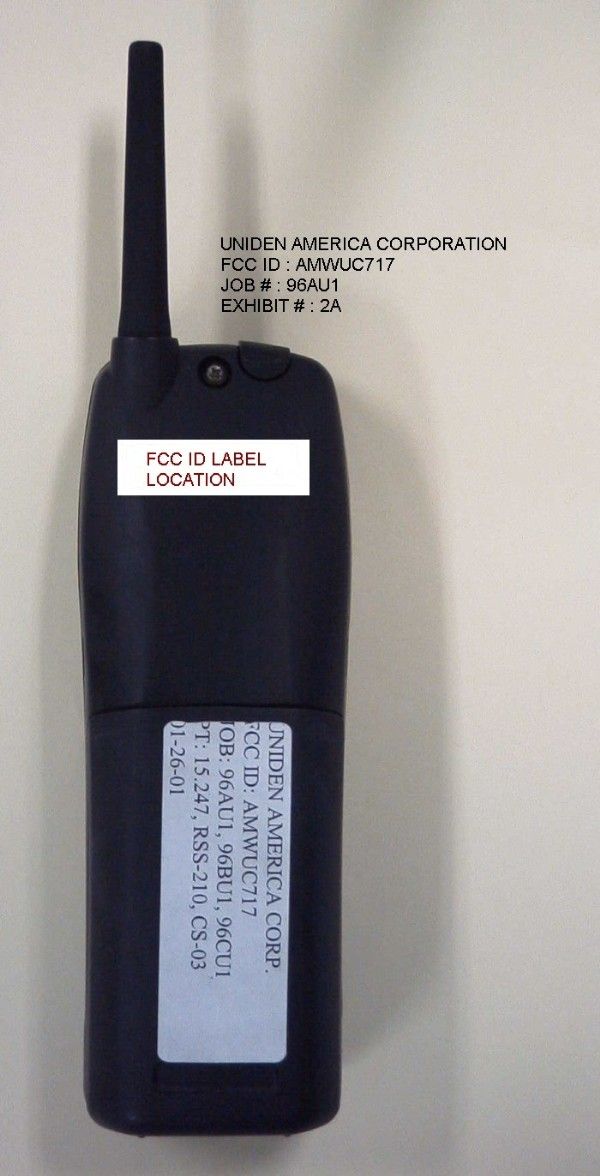

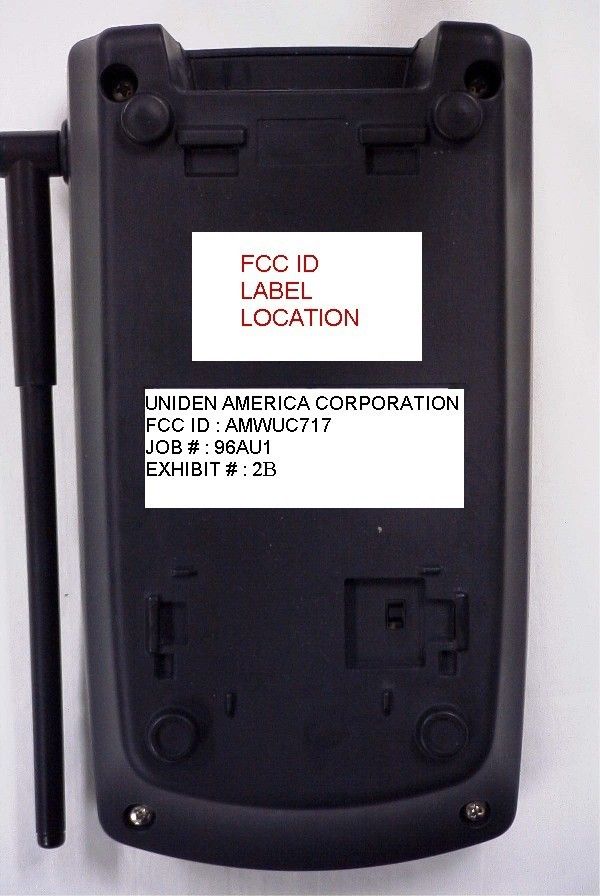

TABLE OF CONTENTS LIST APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUC717 TEST REPORT: PAGE 1..........SECURITY CODING INFORMATION PAGE 2-3........TEST PROCEDURE AND TEST EQUIPMENT LIST PAGE 4..........POWER LINE CONDUCTED INTERFERENCE PAGE 5..........OCCUPIED BANDWIDTH AND PEAK POWER OUTPUT PAGE 6-7........ANTENNA CONDUCTED EMISSIONS PAGE 8..........RADIATED SPURIOUS EMISSIONS HANDSET PAGE 9..........RADIATED SPURIOUS EMISSIONS BASE PAGE 10..........SPECTRAL POWER DENSITY AND PROCESSING GAIN EXHIBITS: EXHIBIT 1........FCC ID LABEL SAMPLES EXHIBIT 2A.......SKETCH OF LABEL LOCATION - HANDSET EXHIBIT 2B.......SKETCH OF LABEL LOCATION BASE EXHIBIT 3........BLOCK DIAGRAM - BASE EXHIBIT 4........BLOCK DIAGRAM - PORTABLE EXHIBIT 5A-B.....SCHEMATIC - MAIN - BASE EXHIBIT 6........SCHEMATIC - RF - BASE EXHIBIT 7........SCHEMATIC – MAIN - HANDSET EXHIBIT 8........SCHEMATIC – RF - HANDSET EXHIBIT 9-10.....POWERLINE CONDUCTED EMISSIONS PLOT EXHIBIT 11.......6dB B/W PLOT CHANNEL 1 BASE EXHIBIT 12.......6dB B/W PLOT CHANNEL 1 HANDSET EXHIBIT 13.......6dB B/W PLOT CHANNEL 5 BASE EXHIBIT 14.......6dB B/W PLOT CHANNEL 5 HANDSET EXHIBIT 15.......6dB B/W PLOT CHANNEL 10 BASE EXHIBIT 16.......6dB BANDWIDTH PLOT CHANNEL 10 HANDSET EXHIBIT 17.......SPECTRAL DENSITY PLOT CH 1 BASE EXHIBIT 18.......SPECTRAL DENSITY PLOT CH 1 HANDSET EXHIBIT 19A-B....SPECTRAL DENSITY PLOT CH 5 BASE & HANDSET EXHIBIT 20A-B....SPECTRAL DENSITY PLOT CH 10 BASE & HANDSET EXHIBIT 21A......EXTERNAL PHOTO – FRONT VIEW – BASE EXHIBIT 21B......EXTERNAL PHOTO – BOTTOM VIEW – BASE EXHIBIT 21C......EXTERNAL PHOTO – FRONT VIEW – HANDSET EXHIBIT 21D......EXTERNAL PHOTO – REAR VIEW – HANDSET EXHIBIT 21E......INTERNAL COMPONENT SIDE PHOTO - BASE EXHIBIT 21F......INTERNAL SOLDER SIDE PHOTO - BASE EXHIBIT 21G......INTERNAL COMPONENT SIDE PHOTO – HANDSET EXHIBIT 21H......INTERNAL SOLDER SIDE PHOTO - HANDSET EXHIBIT 22A-E....INSTRUCTION MANUAL EXHIBIT 23A-C....CIRCUIT DESCRIPTION EXHIBIT 24A......RADIATED TEST SET UP PHOTO - HANDSET EXHIBIT 24B......RADIATED TEST SET UP PHOTO - BASE EXHIBIT 24C......POWERLINE CONDUCTED TEST SET UP PHOTO – BASE EXHIBIT 25A-F....PROCESSING GAIN TEST DATA APPLICANT: UNIDEN AMERICA CORPORATION FCCID: AMWUC717 DATE: MARCH 16, 2001 REPORT #: T:\CUS\U\UNIDEN\96ZA1\96ZA1RPT.DOC APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUC717 15.214(d) THIS DEVICE COMPLIES WITH THE SECURITY CODE REQUIREMENTS OF 15.214(d)(1)(2) AND (3) BY MEANS OF THE FOLLOWING: THIS DEVICE HAS 65536 POSSIBLE SECURITY CODES. ONE SECURITY CODE OUT OF 65536 IS PRE-PROGRAMMED WHEN MANUFACTURED AT THE FACTORY. THE CPU CONTROLS THE RF FREQUENCY CHANNEL. AND THE ASIC CONTROLS ADPCM CODEC AND AUDIO SIGNAL SWITCHING ALSO SET UP THE SPREADING CODE. BEFORE THE COMMUNICATION LINK IS ESTABLISHED, THE DEVICE SEARCHES FOR A VACANT RF CHANNEL AND THEN TRANSMITS RF SIGNAL ON THE VACANT CHANNEL. APPLICANT: UNIDEN AMERICA CORPORATION FCCID: AMWUC717 DATE: MARCH 16, 2001 REPORT #: T:\CUS\U\UNIDEN\96ZA1\96ZA1RPT.DOC PAGE #: 1 APPLICANT: UNIDEN AMERICA CORPORATION FCCID : AMWUC717 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/00 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9._X_Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17._X_Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Shielded interface cables were used in all cases except for cables connecting to the telephone line and the power cords. A test program was run which simulated a normal data transmission on a network. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 74°F with a humidity of 44%. BANDWIDTH 6.0dB: The measurements were made with the spectrum analyz- er's resolution bandwidth(RBW)=100kHz and the video bandwidth(VBW) =300KHz and the span set as shown on plot. FCC ID : AMWUC717 DATE: MARCH 16, 2001 REPORT #: T:\CUS\U\UNIDEN\96ZA1\96ZA1RPT.DOC PAGE # : 2 APPLICANT : UNIDEN AMERICA CORPORATION FCC ID : AMWUC717 TEST PROCEDURES CONTINUED POWER OUTPUT: The RF power output was measured at the antenna feed point by removing the permanent antenna and connecting the UUT to a peak power meter, HP Model No. 8900C. ANTENNA CONDUCTED EMISSIONS: The RBW=100kHz, VBW > or = RBW and the spectrum was scanned from 30MHz to the 10th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum a…
