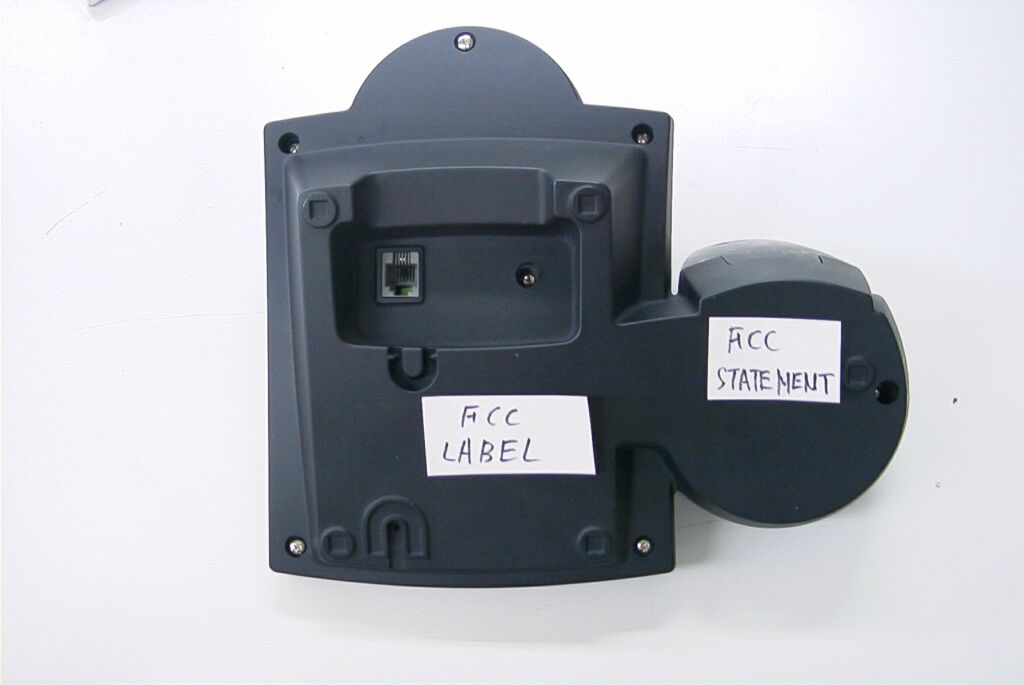

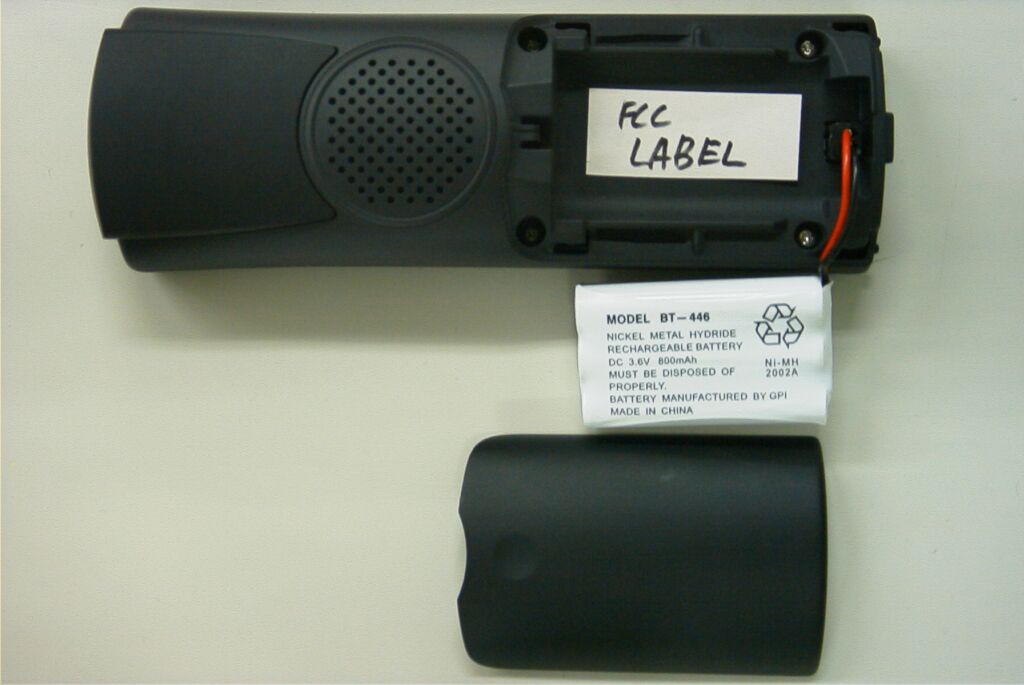

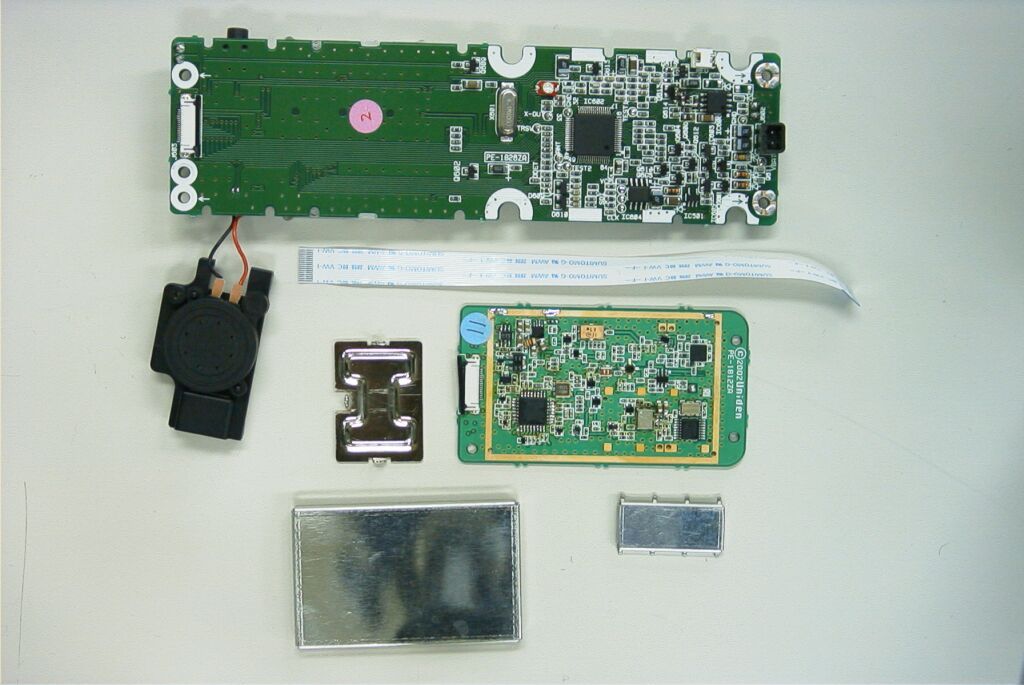

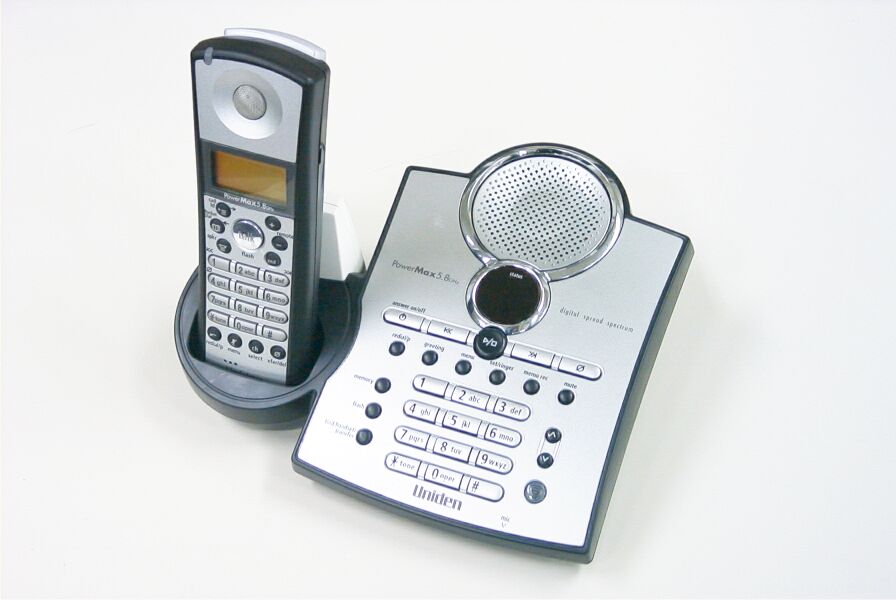

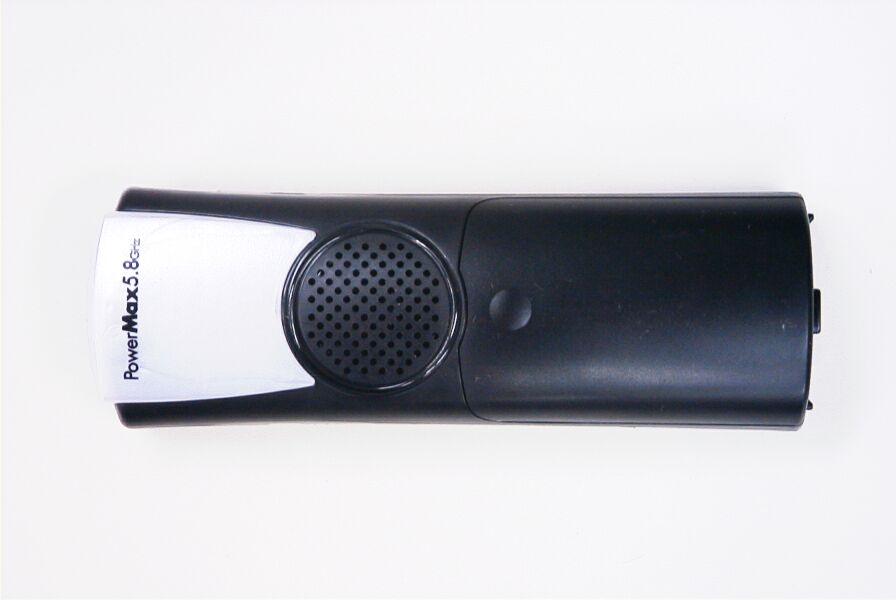

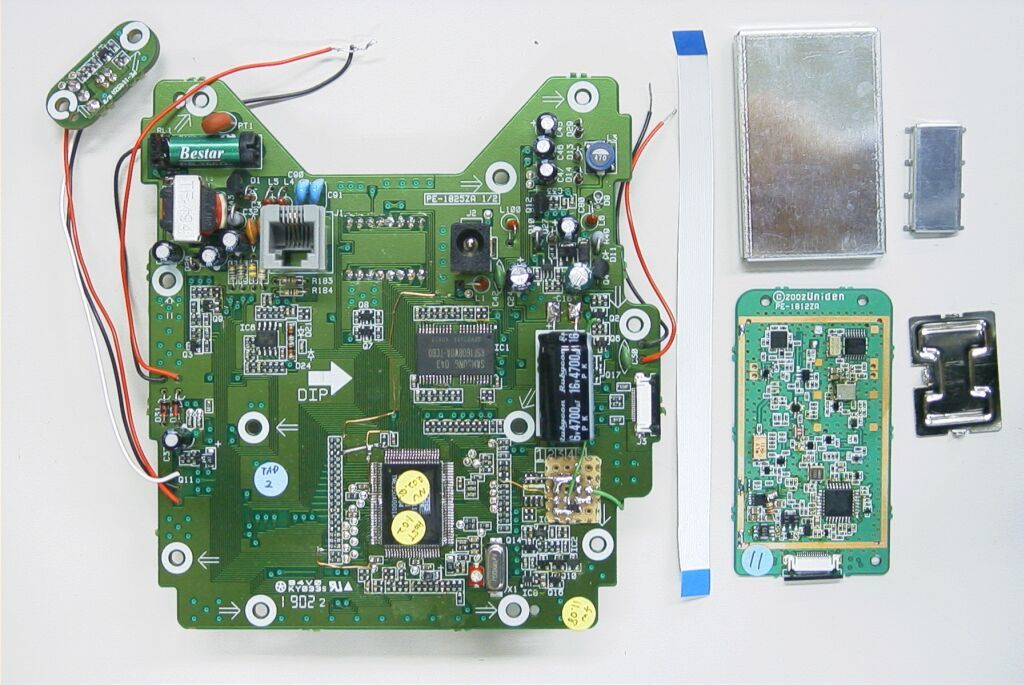

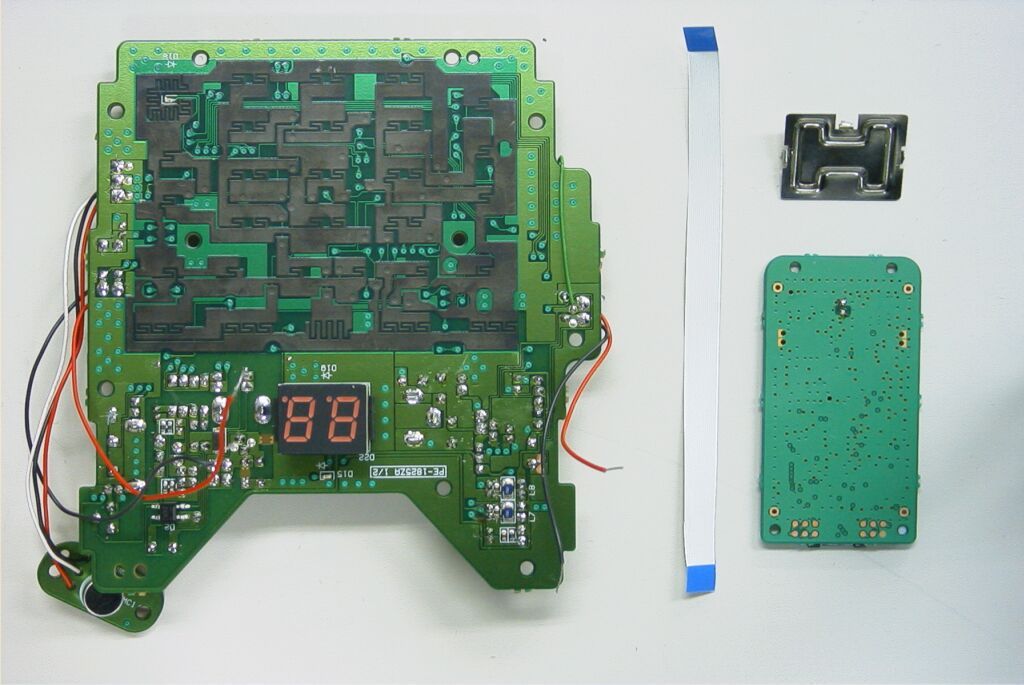

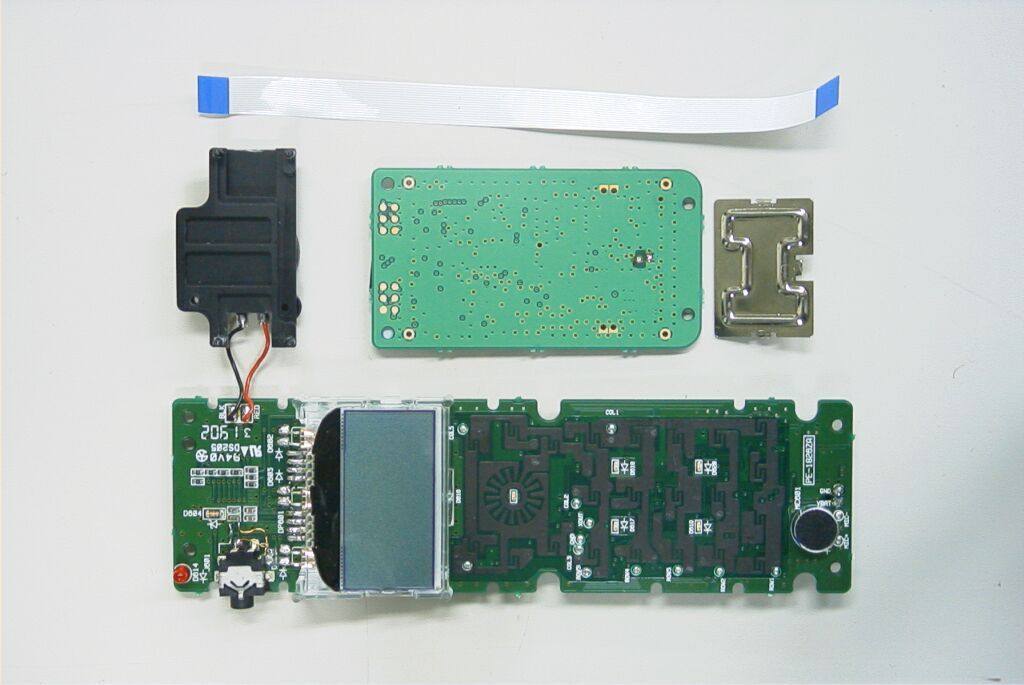

AMWUC7895.8 GHz DSS Cordless Telephone

front cover TRU5885_OM_B6 6/12/02 1:17 PM Page i www.uniden.com TRU5885_OM_B6 6/12/02 1:17 PM Page iii Contents WELCOME/FEATURES 3 QUICK REFERENCE GUIDE 5 CONTROLS AND FUNCTIONS 6 GETTING STARTED 8 Read This First 8 Checking the Package Contents 9 Setting up the Phone 10 Terminology 14 Setting Caller ID Options 15 Selecting a Language 17 BASICS 18 Making and Receiving Calls 18 Redialing a Call 19 Ringer Volume Setup 20 Ringer Tone Setting 20 Distinctive Ringer Setup 21 Adjusting the Earpiece and handset Speaker Volume 21 Mute Microphone 22 Tone Dialing Switch-over 22 Traveling Out-of-Range 22 Selecting a Different Channel 23 Find Handset 23 3-way Conferencing 23 Transferring a Call 24 Flash and Call Waiting 25 New Message LED 25 PHONEBOOK 26 Storing Phone Numbers, Names, Distinctive Rings, and Speed Dial 26 Steps for Entering Names and Special Characters 28 Viewing the Phonebook 30 Making Calls Using the Phonebook 31 Speed Dialing 31 Editing or Erasing a Stored Name, Phone Number Distinctive Ring, and Speed Dial 32 RocketDial (One Touch Dialing) 33 Chain Dialing 34 Memory Dialing (base only) 34 CALLER ID 35 Viewing the Caller ID List 36 Deleting Information from the Caller ID List 37 Using the Caller ID Message List 38 Call Waiting Deluxe Features 39 THE INTEGRATED ANSWERING DEVICE 40 Turning the Answering System On/Off 40 Setting up your Answering System 41 Using your Answering System 47 Remote Operation 50 EXPANDING YOUR PHONE 53 How to Distinguish the Original Handset and the Second Handset 53 Registering the Second Handset 53 Call Transfer Feature 54 Second Handset Operation 55 ADDITIONAL INFORMATION 57 Changing the Digital Security Code 57 Installing the Beltclip 58 Headset Installation 58 Note on Power Sources 59 Maintenance 59 General Information 60 TROUBLESHOOTING 61 PRECAUTIONS & WARRANTY 63 I.C. NOTICE 65 INDEX 66 REMOTE OPERATION CARD 67 [ 2 ] TRU5885_OM_B6 6/12/02 1:17 PM Page 2 WelcomeFeatures Congratulations on your purchase of the Uniden cordless telephone. This phone is designedand engineered to exacting standards for reliability, long life and outstanding performance.To enjoy the best performance from this phone’s features, please read this manual carefullyand save it for future reference.Note: Some illustrations in this manual may differ from the actual unit for explanation purposes. As an Energy Star® Partner, Uniden has determined that this product or productmodels meets the Energy Star® guidelines for energy efficiency.Energy Star® is a U.S. registered mark. • 5.8 GHz Spread Spectrum Technology• Integrated Answering Device (Trilingual Announcement Option) • Two Handset Expandability• Hands Free Speakerphone in the Handset• Caller ID and Call Waiting Caller ID• Dynamic Memory Location for Caller ID Messages and Phonebook Locations(up to 100 numbers in total) • Trilingual Language Option• 4 Hour Talk Time• 8 Day Standby Battery Life• 3-Line, 16 Character Backlit Handset Display • One Touch Dialing• Call Transfer WELCOME/FEATURES [ 3 ] • 32 Digit Redial / 3 Last Number Redial Locations (handset only) • 10 Distinctive Ring Options (6 ringers and 4 melodies) • Flash and Pause• Find Handset• Hearing Aid Compatible• Tone/Pulse Dialing• Handset Earpiece and Ringer Volume Control• 10 Number Memory on the Base• Base Speakerphone with Keypad• Base Speaker Volume• 3-way Conference Operation• Handset Remote Operation TRU5885_OM_B6 6/12/02 1:17 PM Page 3 WELCOME/FEATURES [ 4 ] The TRU5885 series features include AutoTalk™ and AutoStandby™ . AutoTalk allows you to answer a call by just removing the handset from the base so you don’t have to waste time pushing buttons. AutoStandby allows you tohang up by simply returning the handset to the base.To protect you against mis-billed calls, which might result from your phone being activated by other equipment,the TRU5885 series has Random Code™ digital security, which automatically selects one of over 65,000 digital security codes for the handset and base. Also, AutoSecure™ electronically locks your phone when the handset is in the base.RocketDial™ is a one touch speed dial key that automatically dials your most important or frequently called number. The number dialed, is a preset number stored by the user.Digital Spread Spectrum Technology utilizes a “wider frequency band” vs. a “single narrow band” used in standarddigital transmissions. The result is a more secure conversation with the clarity of digital sound, extended range,and minimal interference from other cordless phones.Be sure to visit our web site: www.uniden.comUniden® is a registered trademark of Uniden America Corporation.AutoTalk, AutoStandby, Random Code, AutoSecure, and RocketDial are trademarks of Uniden America Corporation. TRU5885_OM_B6 6/12/02 1:17 PM Page 4 QUICK REFERENCE GUIDE [ 5 ] Q UICK R EFERENCE G UIDE INSTALL THE HANDSET BATTERY Remove the cover.Connect the batterypack connector withthe correct polarity.Replace the cover. PLUG INTO AC POWER Plug the AC adapter cord into the base unit and then to a 120V AC outlet.Place the handset in the base . Note: You must charge the battery packcontinuous for 15-20 hours before using the phone. Step 1 Charging the Battery Step 2 ConnectingStep 3 Setting up the Caller ID Options/Language Step 4 Setting up Answering System CONNECT TO A PHONE LINEWhen the handset battery pack is fullycharged, plug the telephone cord into the base unit and then into a telephonewall jack. Your phone is set for tone dialing. If yourlocal network requires pulse dialing, pleasesee “Setting up the phone, Choose thedialing mode” in your owner’s manual.Note : Three Caller ID options are available: Auto Talk, CallerID on Call Waiting (CIDCW) andArea Code. TO TURN THE ANSWERING SYSTEM ON/OFFPress answer on/off to turn On the system. To turn Off the system, press answer on/off again. TO SET GREETING MESSAGE Press and hold greeting . Start recording your message.Position yourself as near to thebase as possible.When finished, press greeting or . TO SELECT…

Text truncated - open the document above for the full version.

PRECAUTIONS & WARRANTY PRECAUTIONS & WARRANTY[ 63] Precautions!Before you read anything else, please observe the following:Warning!Uniden America Corporation DOES NOT represent this unit to bewaterproof. To reduce the risk of fire, electrical shock, or damage tothe unit, DO NOT expose this unit to rain or moisture. Rechargeable Nickel-Metal-Hydride Battery Warning• This equipment contains a rechargeable Nickel-Metal-Hydride battery. • Nickel is a chemical known to state of California to cause cancer.• The rechargeable Nickel-Metal-Hydride battery contained in this equipment may explode if disposed of in a fire. • Do not short-circuit the battery.• Do not charge the rechargeable Nickel-Metal-Hydride battery used in this equipment in any charger other than the one designed to charge this battery as specified in the owner’s manual. Using another charger may damage the battery or cause the battery to explode. Rechargeable Nickel-Metal-HydrideBatteries Must Be Recycled orDisposed of ProperlyImportant Safety InstructionsWhen using your telephone equipment, these basic safety precautionsshould always be followed to reduce the risk of fire, electrical shock,and injury to persons:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Unplug this product from the wall outlet before cleaning. Use a dry cloth for cleaning without liquid or aerosol cleaners. 4. Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, ornear a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The telephone may fall, causing serious damage to the unit. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect the product from overheating,these openings must not be blocked or covered. This productshould never be placed near or over a radiator or heat register.This product should not be placed in a built-in installation unlessproper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of thetype of power supply to your home, consult your dealer or localpower company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be damaged by persons walkingon it. 9. Do not overload wall outlets and extension cords, as this can result in the risk of fire or electrical shock. 10. Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage points or short outparts that could result in a risk of fire or electric shock. Neverspill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product.Take it to qualified service personnel when service or repair work isrequired. Opening or removing covers may expose you to dangerousvoltages or other risks. Incorrect reassembly can cause electric shockwhen the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:A. When the power supply cord is damaged or frayed.B. If liquid has been spilled into the product.C. If the product has been exposed to rain or water.D. If the product does not operate normally when following the operating instructions. (Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive repair work by a qualified technician.) E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance. 13. Do not use the telephone to report a gas leak in the vicinity of the leak. Additional Battery Safety PrecautionsCaution! To reduce the risk of fire or injury to persons by the battery, read and follow these instructions: 1. Use only the Uniden battery pack specified in the owner ’ s manual. 2. Do not dispose of the battery pack in a fire. The cell may explode. Check the Nickel Metal Hydride battery disposal package insert fordisposal instructions. 3. Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may betoxic if swallowed. 4. Exercise care in handling the battery in order not to short the battery with co nducting materials such as rings, bracelets, and keys. The battery or co nductor may overheat and cause burns. 5. Charge the battery pack provided with or identified for use with this product only in accordance with the instructions andlimitations specified in the owner ¬ s manual provided for this product. 6. Observe proper polarity orientation between the battery pack and battery charger. SAVE THESE INSTRUCTIONS! Important Electrical ConsiderationsUnplug all electrical appliances when you know an electrical storm isapproaching. Lightning can pass through your household wiring anddamage any device connected to it. This phone is no exception. WW aa rr nn ii nn gg !! Please do not attempt to unplug any appliance during an electrical storm. The FCC Wants You To KnowChanges or modifications to this product not expressly approved byUniden, or operation of this product in any way other than as detailedby the owner ’ s manual, could void your authority to operate this product. The equipment cannot be used on public coin phone serviceprovided by the telephone company. Connection to party line serviceis subject to state tariffs. (Contact the state public utilitycommission, public service commission or corporation commission forinformation.)To ensure safety of users, the FCC has established criteria for theamount of radio frequency energy various products may producedepending on their intended usage. This product has been tested andfound to comply with the FCC exposure criteria. The base unit andthe base antenna was designed to be inst…

Text truncated - open the document above for the full version.

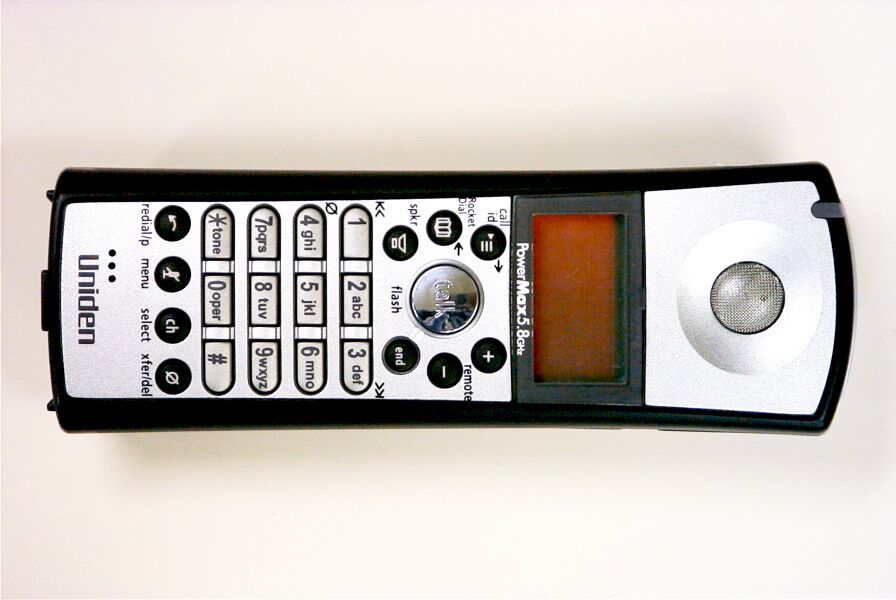

f lash - + cid 2 abc 3 def 1 7 pqrs 9 w xyz 8 tuv 0 oper 5 jkl 4 ghi 6 mno # tone menuredial/p xfer/del select ch spkr Rocket  Dial talk end dhq | 04.12.02 5865 / 580 portable design <LED LENS> color: milk white texture: polish <SPKR COVER> color: punch metal <JACK COVER> color: same as case color texture: HN3006G <KEY RUBBER> (METALLIC KEY) color letters: dark gray texture:polish (COLOR KEY) color : same as case letters: metallic texture : HN3006G <CASE FRONT> (PAINT AREA) color : silk: C-197 texture:HN3006G (MOLD AREA) color texture : HN30012G <TALK KEY> color : chome plate texture : polish backlight : YES <ANTENNA COVER> color : texture : HN3012G silk color : C-197 <CASE REAR> color : texture : HN3012G (SPKR AREA) texture : HN3006G (RING) texture : polish <BATT COVER> color : texture : HN3012G <WINDOW> color : clear texture : polish silk : metallic (bgrd), dark metallic (letters)

dhq | 04.11.02 5.8GHz base design 2 abc 3 def 1 7 pqrs 9 w xyz 8 tuv 0 oper 5 jkl 4 ghi 6 mno # tone status redial/pgreetingmenuset/ringermemo recmute memory flash mic find handset/ transfer answer on/off <ANT COVER (front + rear)> color : texture: HN3012G rear silk : C-197 <TOP> (PAINT AREA) texture : HN3006G paint color : silk color : C-197 (MOLD AREA) texture : HN3012G color: <SPKR DECORATION> color: chrome plating texture: polish <WINDOW> color: smoke red texture: polish silk: pms428c <PLAY KEY> color: texture: HN3006G silk color: C-197 <FUNCTION KEYS> color: same as case color texture: HN3006G <SPKR KEY> material : UJ matter color: milk white (or just a little red) texture: HN3006G silk color: C-197 <VOL KEY> color : same as case silk color : pms428c <PAINT KEY> paint color: texture: polish silk color : C-197 <BOTTOM> color: texture: HN3012G f lash - + cid 2 abc 3 def 1 7 pqrs 9 w xyz 8 tuv 0 oper 5 jkl 4 ghi 6 mno # tone menuredial/p xfer/del select ch remote spkr Rocket  Dial talk end dhq | 04.11.02 5.8GHz portable design <LED LENS> color: milk white texture: polish <SPKR COVER> color: punch metal <JACK COVER> color: same as case color texture: HN3006G <KEY RUBBER> (METALLIC KEY) color letters: dark gray texture:polish (COLOR KEY) color : same as case letters: metallic texture : HN3006G <CASE FRONT> (PAINT AREA) color : silk: C-197 texture:HN3006G (MOLD AREA) color texture : HN30012G <TALK KEY> color : chome plate texture : polish backlight : YES <ANTENNA COVER> color : texture : HN3012G silk color : C-197 <CASE REAR> color : texture : HN3012G (SPKR AREA) texture : HN3006G (RING) texture : polish <BATT COVER> color : texture : HN3012G <WINDOW> color : clear texture : polish silk : metallic (bgrd), dark metallic (letters)

Certification Report on Specific Absorption Rate (SAR) Experimental Analysis UNIDEN AMERICA Corporation Cordless Phone (Handset) UC789BH Test Date: June 2002 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] This report shall not be reproduced, except in full, without the express written permission of APREL Laboratories UESB-TRU5885-CORDLESS PHONE-3916 UC789BH * Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] CERTIFICATE OF COMPLIANCE Applicant name and address Uniden America Corp. 216 John St., PO Box: 580 Lake City, SC 29560 USA. Date and Location of Testing Date of Test: June 2002 Project No. : UESB-TRU5885-cordless phone-3907 Test Location: APREL Laboratories, Nepean, ON CANADA Product:Cordless Phone Model:TRU5885(xx)/UC789BH Classification:Spread Spectrum Transceiver (DSS) Method/System:Direct Sequence System (DSS) Max. RF Power:Base 0.132 W(EIRP); Handset 0.118 W(EIRP) RF Band:5.8 GHz Max. SAR Value:0.25 W/kg Head SAR, Handset 1.05 W/kg Base FCC Rule Parts:2.1093, FCC/OET Bulletin 65 Supplement C(2001) Application Type:Certification This application has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (May, 2002). I attest to the accuracy of the data. All measurements reported were carried out under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the compliance of these measurements and vouch for the qualifications of the persons taking them. This relates only to the sample tested. FCC ID: AMWUC789 APPLICANT: Uniden America Corp. Page 2 of 69 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. FCC ID:AMWUC789 Applicant:UNIDEN America Corporation Equipment:Cordless Phone (Handset) Model:UC789BH Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on the Uniden UC789BH Cordless Phone (Handset), operating in Direct Sequence Spread Spectrum mode. The measurements were carried out in accordance with FCC 96- 326. Scientific and technical details as presented in IEEE P-1528 were also used for the assessment of the device tested. The Device Under Investigation (DUI) was evaluated for its maximum power level of 20.7dBm (0.118W) EIRP while operating with a 50% duty cycle. The end user will not be able to change the duty circle. The UC789BH Cordless Phone (Handset) is a Handheld unit with an internal antenna. The UC789BH Cordless Phone (Handset) also has a belt-clip and a headset for body-worn application. The UC789BH Cordless Phone (Handset) was tested at low(ch#1), middle(ch#18) and high(ch#35) channels for the right and left sides of the head in both the touch and tilt positions. Body-worn exposure was also tested. For head exposure, the maximum 1g SAR was found to be 0.25 W/kg for the peak RF output power of low channel (ch#1, 5742.980MHz) for the right head side in the tilt position. For body-worn application, the maximum 1g SAR was found to be 1.23 W/kg for the peak RF output power of low channel (ch#1, 5742.980MHz) with the belt-clip and headset connected. Test data and graphs are presented in this report. Based on the test results and on how the device will be marketed and used, it is certified that the product meets the requirements as set forth in the above specifications, for the RF exposure environment. The results presented in this report relate only to the sample evaluated . Page 3 of 69 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. TABLE OF CONTENTS ENGINEERING SUMMARY.................................................................................................2 1.Introduction...................................................................................................................4 2.Applicable Documents................................................................................................4 3.Device Under Investigation........................................................................................5 4.Test Equipment............................................................................................................6 5.SET Up..........................................................................................................................7 6.Test Results...............................................................................................................14 6.1.TRANSMITTER CHARACTERISTICS..................................................................14 6.2.SAR MEASUREMENTS..........................................................................................15 6.3.USER'S HEAD EXPOSURE...................................................................................16 6.4.BODY-WORN EXPOSURE.....................................................................................17 7.Conclusions................................................................................................................19 Appendix A: Test Data and Graphic Plots.................................................................20 Appendix B:…

Text truncated - open the document above for the full version.

Certification Report on Specific Absorption Rate (SAR) Experimental Analysis UNIDEN AMERICA Corporation Cordless Phone (Base) TRU5885(xx) Test Date: June 2002 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] This report shall not be reproduced, except in full, without the express written permission of APREL Laboratories UESB-TRU5885-CORDLESS PHONE-3916 TRU5885(XX) * Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] CERTIFICATE OF COMPLIANCE Applicant name and address Uniden America Corp. 216 John St., PO Box: 580 Lake City, SC 29560 USA. Date and Location of Testing Date of Test: June 2002 Project No. : UESB-TRU5885-cordless phone-3907 Test Location: APREL Laboratories, Nepean, ON CANADA Product:Cordless Phone Model:TRU5885(xx)/UC789BH Classification:Spread Spectrum Transceiver (DSS) Method/System:Direct Sequence System (DSS) Max. RF Power:Base 0.132 W(EIRP); Handset 0.118 W(EIRP) RF Band:5.8 GHz Max. SAR Value:0.25 W/kg Head SAR, Handset 1.05 W/kg Base FCC Rule Parts:2.1093, FCC/OET Bulletin 65 Supplement C(2001) Application Type:Certification This application has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (May, 2002). I attest to the accuracy of the data. All measurements reported were carried out under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the compliance of these measurements and vouch for the qualifications of the persons taking them. This relates only to the sample tested. FCC ID: AMWUC789 APPLICANT: Uniden America Corp. Page 2 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. FCC ID:AMWUC789 Applicant:UNIDEN America Corporation Equipment:Cordless Phone (Base) Model:TRU5885(xx) Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on a TRU5885(xx) Cordless Phone (Base). The measurements were carried out in accordance with FCC 96-326. The TRU5885(xx) Cordless Phone (Base) was evaluated for compliance to FCC RF exposure requirements at maximum power level of 21.2dBm (0.132W) EIRP while operating with a 50% duty cycle. The TRU5885(xx) Cordless Phone (Base) is a Base unit with an internal antenna. The TRU5885(xx) Cordless Phone (Base) has no body worn applications. The TRU5885(xx) Cordless Phone (Base) was evaluated for both body exposure and direct contact SAR (extremities) at low(ch#1), middle(ch#18) and high(ch#35) channels for the frequency range 5742.980MHz to 5834.780MHz, with keyboard side up, keyboard side down, left side up and top side up positions. The maximum 10g SAR was found to be 0.63 W/kg for the peak RF output power of low channel (ch#1, f=5742.980MHz) with the top side of the device facing up (Graph 1). At a separation distance of 10.0 mm from the top side of the device the maximum 1g SAR was found to be 1.05 W/kg for the peak RF output power of low channel (ch#1, f=5742.980MHz). The operational manual will contain a warning stating that bystanders and parts of the user’s body other than extremities, must be at least 10.0mm away from the device and its antenna. Evaluation data and graphs are presented in this report. All measurements conducted and documented in this report were performed while the DUI was connected to the A/C supply. Based on the measured results and on how the device will be marketed and used, it is certified that the product meets the requirements as set forth in the above specifications, for the RF exposure environment. The results presented in this report relate only to the sample evaluated. Page 3 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. TABLE OF CONTENTS ENGINEERING SUMMARY.................................................................................................2 1.Introduction...................................................................................................................4 2.Applicable Documents................................................................................................4 3.Device Under Investigation........................................................................................5 4.Test Equipment............................................................................................................6 5.SET Up..........................................................................................................................7 6.Test Results...............................................................................................................14 6.1.TRANSMITTER CHARACTERISTICS..................................................................14 6.2.SAR MEASUREMENTS..........................................................................................15 6.3.DIRECT CONTACT SAR.........................................................................................15 6.4.BODY EXPOSURE...................................................................................................15 7.Conclusions................................................…

Text truncated - open the document above for the full version.

Page 20 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. Appendix A TEST DATA AND GRAPHIC PLOTS Page 21 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. SAR Data Report Uniden Base scan15 Start : 24-Jun-02 01:50:51 pm End : 24-Jun-02 01:59:27 pm Code Version : 4.12 Robot Version: 4.08 Product Data: Type : Uniden Base Frequency : 5800 MHz Antenna Type : Plate Antenna Posn. : In Measurement Data: Phantom Name : APREL-Uni Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 46.100 Tissue Conductivity : 6.900 Tissue Density : 1.000 Crest Factor : 2.000 Robot Name : CRS Probe Data: Probe Name : 163 Probe Type : E Fld Triangle Frequency : 5800 MHz Tissue Type : Muscle Calibrated Dielectric : 46.100 Calibrated Conductivity : 6.900 Probe Offset : 2.500 mm Conversion Factor : 2.500 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.580 0.580 0.580 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 1.21 1.34 1.13 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: Top Side Up Low Channel 0 Separation Area Scan - Max Local SAR Value at x=23.0 y=-18.0 = 1.04 W/kg Zoom Scan - Max Local SAR Value at x=23.0 y=-17.0 z=0.0 = 3.94 W/kg Max 1g SAR at x=23.0 y=-16.0 z=0.0 = 1.53 W/kg Max 10g SAR at x=23.0 y=-15.0 z=0.0 = 0.63 W/kg Page 22 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. SAR – Z Axis At Hotspot x:23.0 y:-17.0 Page 23 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. GRAPH 1 (SCAN15) TOP SIDE UP Distance 0 mm Frequency: 5742.980 MHz Page 24 of 65 Project # UESB-TRU5885-cordless phone-3916 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. SAR Data Report Uniden Base scan16 Start : 24-Jun-02 12:03:24 pm End : 24-Jun-02 12:11:55 pm Code Version : 4.12 Robot Version: 4.08 Product Data: Type : Uniden Base Frequency : 5800 MHz Antenna Type : Plate Antenna Posn. : In Measurement Data: Phantom Name : APREL-Uni Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 46.100 Tissue Conductivity : 6.900 Tissue Density : 1.000 Crest Factor : 2.000 Robot Name : CRS Probe Data: Probe Name : 163 Probe Type : E Fld Triangle Frequency : 5800 MHz Tissue Type : Muscle Calibrated Dielectric : 46.100 Calibrated Conductivity : 6.900 Probe Offset : 2.500 mm Conve…

Text truncated - open the document above for the full version.
