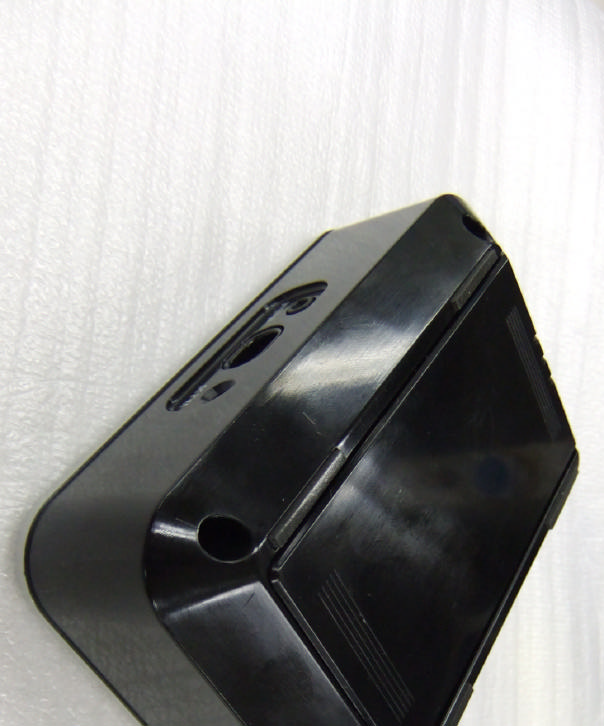

AMWUF054BLUETOOTH SPEAKER

BTS200 High-Definition Speaker Haut-parleur haute définition BTS 200 Questions? Problems? Get help on the web at www.uniden.com or call our Customer Service line at 800-292-2294. Questions? Problèmes? Obtenez de l’aide au www.uniden.com ou en communiquant avec le soutien à la clientèle au 800-292-2294. 2 - English TABLE OF CONTENTS Important Safety Instructions ......3 BTS200 HIGH-DEFINITION SPEAKER........................................4 What’s Included...............................5 SET UP YOUR BTS200 SPEAKER .....5 Install the Battery ...........................5 Charge the Battery .........................5 Turn on Your Speaker .....................6 Pair Your Bluetooth Device to Your Speaker ........................................6 GETTING TO KNOW THE BTS200 SPEAKER........................................7 BTS200 Top/Front ...........................7 BTS200 Side .....................................9 BTS200 Back ..................................10 BTS200 SPEAKER OPERATION .....10 Basic Cell Phone Operations ........11 Basic Music Operation ..................13 SPECIAL FEATURES .......................14 Charge Cellphone using a USB Cable ...............................14 Play Music through a Wired Connection ................................15 Manage SRS WOW HD™ On/Off ...16 TROUBLESHOOTING .....................16 Reset your BTS200 Speaker .........18 Battery Features ...........................18 SPECIFICATIONS ...........................19 English - 3 Important Safety Instructions •Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. •Do not use this product while driving. •Use only the power cord and batteries indicated in this manual. Do not expose the battery (or the device) to flames or dispose of it in a fire: the battery may explode. Check with local authorities for possible battery disposal instructions. •Do not disassemble, modify, or attempt to repair any component of this product. •Check the laws and regulations on the use of mobile phones and hands-free equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions require. SAVE THESE INSTRUCTIONS! BTS200 HIGH-DEFINITION SPEAKER Uniden’s BTS200 high definition Bluetooth speaker provides clear stereo sound in a compact, portable package. With Bluetooth V2.1 compatability, the BTS200 pairs with your cell phone to become a speakerphone for hands free conversations. You can also connect your music player (wired or wireless) for crisp, clear audio. •Bluetooth V2.1 + EDR. •Supporting A2DP/AVRCP/HFP profiles. -A2DP: Advanced Audio Distribution Profile -AVRCP: Audio/Video Remote Control Profile -HFP: Hands Free Profile 4 - English •Rechargeable Lithium-Ion polymer battery. •Portable •Up to 5 hours of play from a fully-charged battery. •Call Waiting feature •SRS WOW HD™ : Available when playing music through a 3.5 mm minijack cable (not included) connection. The BTS200 speaker is not a data storage device; do not attempt to copy files to it. What’s Included •BTS200 Speaker •AC Adapter (PS-0043) •Lithium-Ion polymer battery (BT-1026) SET UP YOUR BTS200 SPEAKER Install the Battery 1. Remove the battery from any protective packaging and discard the packaging accordingly. 2. Align the battery pack with the guides along the inside of the battery area. Be sure the contact slots are in the correct position to close on the contacts. 3. Slide the battery in until you hear the latch click. English - 5 Charge the Battery 1. Insert the adapter’s DC jack into the DC connection. 2. Plug the adapter into an AC power supply (standard wall outlet). Your battery must be fully charged (more than 7.5 hours) before you can use your speaker. Turn on Your Speaker When you turn on your speaker for the first time, it automatically goes into pairing mode. The Bluetooth icon ( ) flashes rapidly and is ready to pair, The next time you turn on your speaker, it searches for already paired devices and then moves into a standby state. 1. Press and hold for at least 3 seconds. 2. All LEDs light and a power on tone sounds. 3. flashes slowly while looking for Bluetooth devices. It remains steady on when Bluetooth devices are discovered; otherwise, it goes out. 4. and LEDs go out. 6 - English Pair Your Bluetooth Device to Your Speaker Make sure your speaker has been fully charged and is in pairing mode. 1. Select a BT V2.1 or above device (mobile phone or music player) to pair. 2. Select the Searching mode on your Bluetooth device (refer to your Bluetooth device’s owner’s manual for details if necessary). 3. Your Bluetooth device should find BTS200; select it and use 0000 for a pairing code if necessary. 4. Verify that you are connected to your speaker. The Bluetooth icon moves to a steady ON state when pairing is complete. English - 7 GETTING TO KNOW THE BTS200 SPEAKER BTS200 Top/Front Key nameIconPress to ... Mute Mute your conversation from the caller. Talk Handle phone calls. Power Turn on your BTS200 speaker. Volume Down Decrease the volume. Volume Up Increase the volume. Play/Pause Start, pause, and stop music. Bluetooth link LED UP POWER Microphone Battery Release MUTE PLAY/PAUSE Power LED DOWN Talk 8 - English LEDs IconStatusMeaning PowerOn (green)BTS200 is turned on and operating. OffBTS200 is turned off. Bluetooth Slow blinkBTS200 is looking for paired Bluetooth devices. Fast blinkBTS200 is ready to pair to a Bluetooth device. Steady onBTS200 is connected to a Bluetooth device. English - 9 BTS200 Side Battery release latch Battery indicator LEDs USB portBattery indicator button Use this...To... Battery indicator buttonDisplay the level of power left in the battery through the LEDs. Battery Indicator LEDsDisplay the remaining power level when you press the battery indicator button (see p.XX). USB portUse the BTS200 battery to charge your cell phone (see p. X…

Text truncated - open the document above for the full version.

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 REQUEST FOR CONFIDENTIALITY January 17, 2010 To: Federal Communications Commission Equipment Authorization Branch, Lab Div., OET 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, Texas 76155 Jon Suehiro, Manager - Engineering and Regulatory Affairs TYPE OF EQUIPMENT: DXX – Bluetooth speaker FCC IDENTIFIERS: AMWUF054 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description – file: BTS200 Circuit Description.pdf Schematic Diagram – file: BTS200 Schematic Diagram.pdf Block Diagram - file: BTS200 Block Diagram.pdf Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 849 NW State Road 45 P. O. Box 370 Newberry, Florida 32669 USA Telephone (352) 472-5500 (888) 472-2424 FAX (352) 472-2030 email: [email protected] February 23, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045 Ref: Uniden America Corp.’s FCC ID: AMWUF054, TC894734 To Whom It May Concern: This letter is a request to remove the document titled USERS GUIDE in the uploading from the filing. It is not the user’s manual – it is an engineering only document by the chip manufacturer and was submitted as an exhibit in error. Regards, Sharon Hoffman

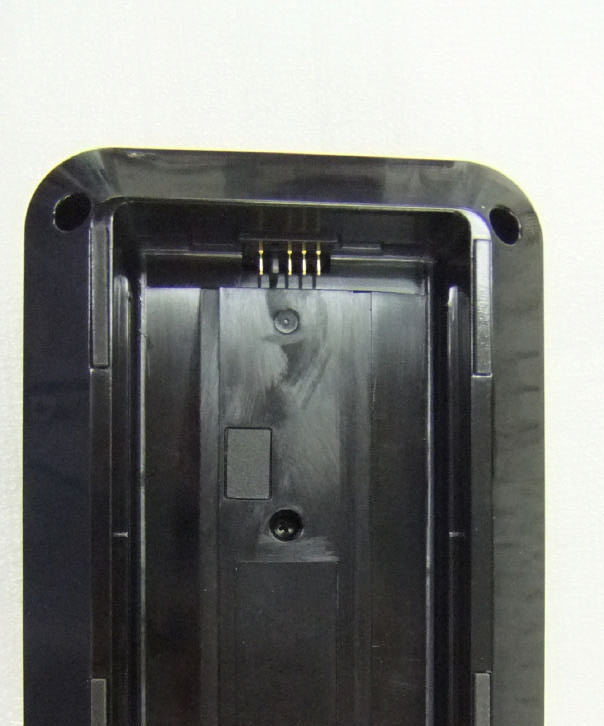

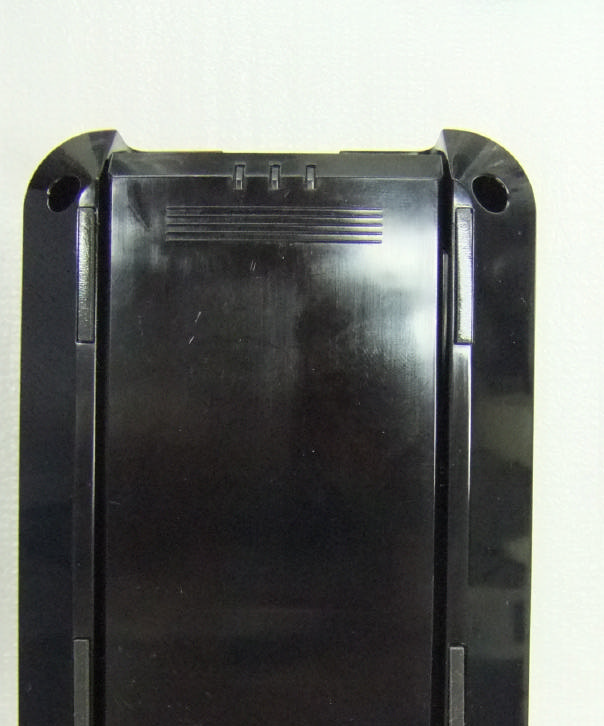

ID Label/Location Info The FCC Label complies with the section 2.925(d) of the FCC Rules and will be placed in the battery compartment due to limited space. This label will be readily visible at the time of purchase. 1) STATEMENT label: 31 mm(W) x 17 mm(H) 2) Rating label: 64 mm(W) x 3 mm(H)

FCC PART 15.249 AND IC RSS-210 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant UNIDEN AMERICA CORPORATION Address 4700 AMON CARTER BLVD. FORT WORTH TEXAS 76155 USA FCC ID AMWUF054 IC 513C-UF054 Model Number BTS200 Product Description BLUETOOTH SPEAKER Date Sample Received 12/20/2010 Date Tested 12/30/2010 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 2878AT10TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUF054 IC: 513C-UF054 REPORT: U\UNIDEN AMW\2878AT10\2878AT10TestReport.doc Page 2 of 19 Mdea 9.20.2007 TABLE OF CONTENT GENERAL REMARKS ............................................................................................................... 3 GENERAL INFORMATION ........................................................................................................ 4 EMC EQUIPMENT LIST............................................................................................................ 5 TEST PROCEDURES................................................................................................................6 RADIATION INTERFERENCE ................................................................................................... 7 OCCUPIED BANDWIDTH ......................................................................................................... 8 BAND EDGE COMPLIANCE ................................................................................................... 10 DUTY CYCLE ......................................................................................................................... 14 DUTY CYCLE PLOTS.............................................................................................................. 15 POWER LINE CONDUCTED INTERFERENCE ........................................................................ 17 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUF054 IC: 513C-UF054 REPORT: U\UNIDEN AMW\2878AT10\2878AT10TestReport.doc Page 3 of 19 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 12/30/2010 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUF054 IC: 513C-UF054 REPORT: U\UNIDEN AMW\2878AT10\2878AT10TestReport.doc Page 4 of 19 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description BLUETOOTH SPEAKER FCC ID AMWUF054 Model Number BTS200 Operating Frequency TX: 2402 – 2480 MHz. RX: Same 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications None Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUF054 IC: 513C-UF054 REPORT: U\UNIDEN AMW\2878AT10\2878AT10TestReport.doc Page 5 of 19 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUF054 IC: 513C-UF054 REPORT: U\UNIDEN AMW\2878AT10\2878AT10TestReport.doc Page 6 of 19 Mdea 9.20.2007 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in b…

Text truncated - open the document above for the full version.

UNIDEN AMERICA CORP. FCC ID: AMWUF054 TEST SET UP PHOTOS RADIATED EMISSIONS POWERLINE CONDUCTED EMISSIONS
