AMWUN3681.9GHz UPCS CORDLESS TELEPHONE-BASE UNIT

D1680 base with answering system and cordless handset Battery cover Accessory handset and charger If you purchased model number: You should have: D1680None D1680-21 of each D1680-32 of each D1680-43 of each ...... D1680-1110 of each D1680-1211 of each You will also find: Not pictured: Rechargeable battery (BT-1021) AC adapter (PS-0035) Telephone cord    If any items are missing or damaged, contact our Customer Care Line immediately. Never use damaged products! Need help? Get answers 24/7 at our website: www.uniden.com. If You...Contact Uniden’s...Phone Number have a question or problemCustomer Care Line* 817-858-2929 or 800-297-1023 need a replacement part or an accessory Parts Department*800-554-3988 need special assistance due to a disability Accessibility Help Line 800-874-9314 (voice or TTY) * During regular business hours, Central Standard Time; see our website for de- tailed business hours. ♦ ♦ D1680 Series User's Guide What's in the box? Not pictured: Rechargeable battery (BT-1021) Battery cover AC adapter (PS-0035)    © 2010 Uniden America Corp. Printed in Vietnam Ft. Worth, Texas UNZZ01175BA(0)  Getting Started ................................3 Installing Your Phone .................................3 Getting to Know Your Phone...................4 Using the Handset Menu ..........................6 Using Your Phone .............................8 Using the Phonebook .............................10 Using Special Features ..................10 Silent Mode .................................................10 Multihandset Features .............................11 Chain Dialing ...............................................12 Voice Message Notification ....................12 Using the Answering System .......13 Answering System Options (Ans. Setup)..........................................................13 Personalizing the Greeting ....................13 Accessing the Answering System ........14 Getting Your Messages ............................14 Using the System While You're Away from Home ................................................15 Important Information ..................16 Solving Problems ......................................16 Resetting Handsets ..................................18 Registering Handsets ..............................18 Adapter and Battery Information .......18 Compliance Information .........................19 1-Year Limited Warranty .........................21 Important Safety Instructions! When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: This unit is NOT waterproof. DO NOT expose it to rain or moisture. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. Do not place the handset in any charging cradle without the battery installed and the battery cover securely in place. SAVE THESE INSTRUCTIONS! CAUTION! Risk of explosion if battery is replaced by an incorrect type! Dispose of used batteries according to the instructions. Do not open or mutilate the battery. Disconnect the battery before shipping this product. For more details, see the Important Information section. ♦ ♦ ♦ ♦ ♦ ♦ What’s in the manual?  Installing Your Phone Charge the Battery Unpack all handsets, battery packs, and battery covers. If you need to remove a cover, press in on the notch and slide the cover down and off. Line up the battery connector with the jack inside the handset; the connector only fits one way. Push the connector in until it clicks into place; tug gently on the wires to make sure the battery is securely connected. Replace the battery cover and slide it into place. Use an AC adapter to connect the power jack on the base to a regular indoor (120V AC) power outlet. Connect any chargers the same way. Place a handset in the base with the display facing forward. If the display doesn’t light up, reseat the handset or connect the base to a different outlet. For 2 or more handsets, place each handset in a charger. Charge all handsets completely (about 15 hours) before using. 1. 2. 3. 4. 5. 6.  Connect the Telephone Cord Use the telephone cord to connect the TEL LINE jack on the base to a standard telephone wall jack. Test the Connection Pick up the handset and press Talk . The handset sounds a dial tone, and the display shows Talk. If you don't hear a dial tone or the display says Check Tel Line, check the connection between the base and the phone jack. Make a quick test call. (Press End to hang up.) If you keep hearing a dial tone, change to pulse dialing. If there’s a lot of noise, check for interference (see p. 17 ). Test all handsets the same way. If you can't get a dial tone, move the handset closer to the base. Changing to Pulse Dialing Your phone uses tone dialing by default. If your phone company uses pulse dialing, you need to change your phone’s dial mode. On a handset, press MEnu/sElEcT and choose Global Setup. Select Dial Mode then Pulse. You’ll hear a confirmation tone. To send DTMF tones during a call (e.g., for an automated response system), press * to temporarily switch to tone dialing. When you hang up, the phone automatically returns to pulse dialing. 1. – 2. – – 3. 1. 2. GETTING STARTED  Getting to Know Your Phone Parts of the Handset Key (icon)What it does PhonEbook () In standby or during a call: open the phonebook. In the menu: go back to the previous screen. When entering text: move the cursor to the left.    sPEakEr () Switch …

Text truncated - open the document above for the full version.

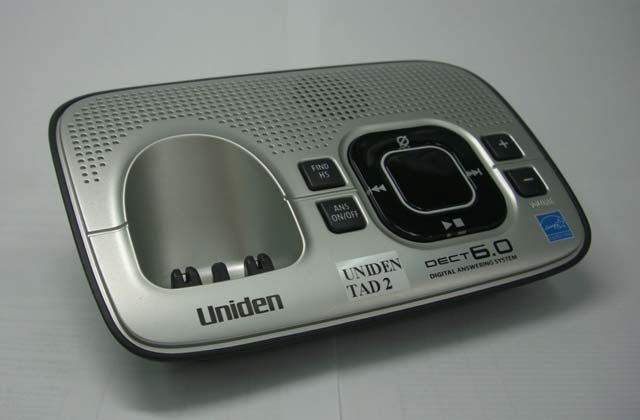

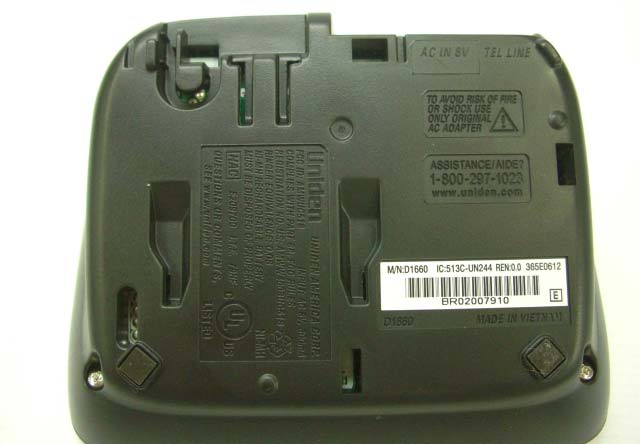

External Photos (FCC ID: AMWUN368) Front View (D1660v) Bottom View (D1660v) (Note: Label and IDs are not final) External Photos (FCC ID: AMWUN368) Rear View (D1660v) ) Front View (D1680v) External Photos (FCC ID: AMWUN368) Bottom View (D1680v) (Note: Label and IDs are not final) Rear View (D1680v)

FCC ID Label Loca FCC ID L Model N and Seri ation Inform Label (Engrav Name, IC Nu ial Number ation (AMW ving) mber WUN368) D1 6 D16 660v Base Bo 680v Base Bo ottom ottom Model N and Seri FCC ID Name, IC Nu ial Number Label (Engra mber aving)

FCC ID Label Info D1 ormation (AM D1 1660v Base M MWUN368) 1660v/D1680 Model Name, 0v Base FCC , IC Number ID (41 mm ( W and Serial N u W) x 24.5 mm umber (21.5 m (H), Engrav mm (W) x 8. ving) .0 mm (H), La abel) FCC ID Label Info D ormation (AM D1680v Base MWUN368) Model Nam ee, IC Numberr and Serial N Number (36 mmm (W) x 9.0 0 mm (H), Label)

Internal Photos (FCC ID: AMWUN368) Top Cover opened (D1660v) Internal Photos (FCC ID: AMWUN368) Main PCB Top View (D1660v) Internal Photos (FCC ID: AMWUN368) Main PCB Bottom View (D1660v) Internal Photos (FCC ID: AMWUN368) ) Top Cover opened (D1680v) Internal Photos (FCC ID: AMWUN368) Main PCB Top View (D1680v) Internal Photos (FCC ID: AMWUN368) Main PCB Bottom View (D1680v)

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:17.0(dBm)* Maximum peak output power at antenna input terminal:49.9(mW) Antenna gain(maximum):2.1(dBi)* Maximum antenna gain:1.62(numeric) Time Averaging:100(%)* Prediction distance:20(cm)* Prediction frequency:1928.448(MHz)* MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.016 (mW/cm^2) This equates to:0.16 W/m^2 2 4R PG S  

Nemko USA, Inc. 802 N. Kealy Ave. Lewisville, TX USA Page 1 of 92 Tel: +1 972-436-9600 Fax: +1 972-436-9600 NVLAP Lab Code 100426-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory . Test Report issued under the responsibility of: www.nemko.com TEST REPORT CFR 47, Part 15, Subpart D RSS 213, Issue 2 Isochronous UPCS Device 1920 – 1930 MHz Report Reference No. ..................... : 10236228_trf1 Compiled by (+ signature) ............... : David Light Approved by (+ signature) ................ : Michael Cantwell Date of issue ................................... : 14-Mar-13 Report Revision ............................... : 5 Total number of pages .................... : 92 Testing Laboratory ......................... : Nemko USA, Inc. (Dallas) Address ........................................... : 802 N. Kealy Ave. Lewisville, TX 75057 USA Tel: +1 972 436 9600 Fax: +1 972 436 2667 Applicant’s name ............................ : Uniden America Corporation Address ............................................. : 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 Model(s) Tested ............................... : D1680v and D1660v cordless telephone base FCC ID .............................................. : AMWUN368 Test specification: Standard ........................................... : CFR 47, Part 15, Subpart D and RSS 213, Issue 2 Test procedure .................................. : ANSI C63.17-2006 Non-standard test method ................ : N/A TRF Revision .................................... : 14-Mar-13 CFR 47, Part 15, Subpart D and RSS 213, Issue 2 Report Number: 10236228_trf1 Revision: 5 Issue Date: 14-Mar-13 Nemko USA, Inc. 802 N. Kealy Ave. Lewisville, TX USA Page 2 of 92 Tel: +1 972-436-9600 Fax: +1 972-436-9600 Revision History # Description Date 0 Original Report Release 28-Feb-13 1 Corrected s/n of D1680v and added s/n for D1660v(pg. 5); Added engineering judgment(pg. 6); changed “AC/DC” to “AC/AC” and corrected s/n(pg. 7) 4-Mar-13 2 Corrected model no. pg. 6 7-Mar-13 3 Added powerline conducted emissions data for D1660v model 14-Mar-13 4 Changed D1660 to D1660v and D1680 to D1680v throughout report 21-Mar-13 5 Corrected frequency range throughout test report 21-Mar-13 Notices: 1. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. 2. The test results presented in this report relate only to the object tested. 3. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. 4. “(see Enclosure #)” refers to additional information appended to the report. 5. Throughout this report a point is used as the decimal separator. 6. Dimensions in English units for convenience only, metric units prevail. 7. It is the manufacturer’s responsibility to provide special instructions, if needed, to the user regarding the use of special cables (length, shielded/unshielded, type, grounding, etc.), clamp-on ferrite beads, etc for use with their product(s). CFR 47, Part 15, Subpart D and RSS 213, Issue 2 Report Number: 10236228_trf1 Revision: 5 Issue Date: 14-Mar-13 Nemko USA, Inc. 802 N. Kealy Ave. Lewisville, TX USA Page 3 of 92 Tel: +1 972-436-9600 Fax: +1 972-436-9600 Table of Contents Revision History ................................................................................................................................................................. 2 Normative References ........................................................................................................................................................ 4 Equipment Under Test (EUT) ............................................................................................................................................. 5 Details: ........................................................................................................................................................................... 5 EUT Configuration ......................................................................................................................................................... 7 EUT Photo(s) ................................................................................................................................................................. 8 Summary of Testing – CFR Title 47, Part 15, Subpart D .................................................................................................. 11 Summary of Testing – RSS 213, Issue 2 ......................................................................................................................... 13 Testing Location ........................................................................................................................................................... 14 Test Methods .................................................................................................................................................................... 14 Frequency Measurements ........................................................................................................................................... 15 Timing Measurements ................................................................................................................................................. 15 Antenna Conducted Emission Measurement .............................................................................................................. 15 Radiated Emissions Testing ........................................................................................................................................ 16 Power Line Conducted Emissions ............................................…

Text truncated - open the document above for the full version.

CFR 47, Part 15, Subpart D and RSS 213, Issue 2 Report Number: 10236228_trf1 Revision: 2 Issue Date: 7-Mar-13 Nemko USA, Inc. 802 N. Kealy Ave. Lewisville, TX USA Page 88 of 90 Tel: +1 972-436-9600 Fax: +1 972-436-9600 Setup Photos CFR 47, Part 15, Subpart D and RSS 213, Issue 2 Report Number: 10236228_trf1 Revision: 2 Issue Date: 7-Mar-13 Nemko USA, Inc. 802 N. Kealy Ave. Lewisville, TX USA Page 89 of 90 Tel: +1 972-436-9600 Fax: +1 972-436-9600 Photo 6 Test Setup – Radiated Emissions Supplemental Information: Photo 7 Test Setup – Radiated Emissions Supplemental Information: CFR 47, Part 15, Subpart D and RSS 213, Issue 2 Report Number: 10236228_trf1 Revision: 2 Issue Date: 7-Mar-13 Nemko USA, Inc. 802 N. Kealy Ave. Lewisville, TX USA Page 90 of 90 Tel: +1 972-436-9600 Fax: +1 972-436-9600 Photo 8 Test Setup – Radiated Emissions Supplemental Information: Photo 9 Test Setup – Power line conducted emissions Supplemental Information:
