AMWUN4051.9 GHz UPCS CORDLESS PHONT-BASE UNIT

Uniden America Corporation
1.9 GHz UPCS CORDLESS PHONT-BASE UNIT - FCC ID AMWUN405 - Uniden America Corporation
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
Apr 17, 2012
Application Purpose
Original Equipment
Date of Application
Mar 19, 2012
Equipment Note
1.9 GHz UPCS CORDLESS PHONT-BASE UNIT
Frequency Range
1921.53600000 - 1928.44800000
Company
Uniden America Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

D3580 base with answering system and cordless handset Battery cover Accessory handset and charger If you purchased model number: You should have: D3580None D3580-21 of each ...... D3580-1110 of each D3580-1211 of each * If the model number ends in R, your package includes a DRX100 range extender. Refer to the DRX100 User’s Guide for details. You will also find: Not pictured: xRechargeable battery (BT-1031) xAC adapter (PS-0046) xTelephone cord xBelt clip ♦♦If♦any♦items♦are♦missing♦or♦damaged,♦contact♦our♦Customer♦Care♦Line♦immediately.♦ Never♦use♦damaged♦products! ♦♦Need♦help?♦Get♦answers♦24/7♦at♦our♦website: www.uniden.com. If You...Contact Uniden’s...Phone Number have a question or problemCustomer Care Line* 817-858-2929 or 800-297-1023 need a replacement part or an accessory Parts Department*800-554-3988 need special assistance due to a disability Accessibility Help Line 800-874-9314 (voice or TTY) *♦During♦regular♦business♦hours,♦Central♦Standard♦Time;♦see♦our♦website♦for♦detailed♦business♦hours. D3580 Series User's Guide What's in the box? Not pictured: xRechargeable battery (BT-1031) xBelt clip xBattery cover xAC adapter (PS-0035) © 2012 Uniden America Corp. Printed in Vietnam Ft. Worth, Texas U01UN405BZA(0) 2 - English Getting Started ....................................... 3 Installing Your Phone ............................... 3 Getting to Know Your Phone ................. 5 Parts of the Base ......................................... 5 Parts of the Handset ................................. 6 R eading the Display ................................. 7 Using the Handset Menu .................... 8 Entering Text on Your Phone .............. 10 Using Your Phone .................................. 11 Using Your Bluetooth Connection .... 11 Finding a Lost Handset .......................... 12 Changing the Volume ............................ 12 Staying in Range ....................................... 1 2 Using the Caller ID and Redial Lists ... 13 Using Call Waiting .................................... 14 Using the Phonebooks .......................... 14 Using an Optional Headset ................. 16 Silent Mode ............................................... 16 Call Block .................................................... 16 Multihandset Features ........................... 17 Chain Dialing ............................................. 19 Voice Message Notification .................. 19 Using the Answering System .............. 20 Answering System Options (Answering Setup) .............................. 20 Personalizing the Greeting ................. 20 Accessing the Answering System ..... 21 Using the System While You're Away from Home ................... 22 Important Information ......................... 23 Solving Problems .................................... 23 Resetting Handsets ................................ 25 Registering Handsets ............................ 25 Important Safety Instructions! When♦using♦your♦telephone♦equipment,♦basic♦safety♦precautions♦should♦always♦be♦ followed♦to♦reduce♦the♦risk♦of♦fire,♦electric♦shock♦and♦injury♦to♦persons,♦including♦the♦ following:♦ ♦♦This unit is NOT waterproof.♦DO♦NOT♦expose♦it♦to♦rain♦or♦moisture. ♦♦Do♦not♦use♦this♦product♦near♦water,♦for♦example,♦near♦a♦bath♦tub,♦wash♦bowl,♦ kitchen♦sink♦or♦laundry♦tub,♦in♦a♦wet♦basement♦or♦near♦a♦swimming♦pool.♦ ♦♦Avoid♦using♦a♦telephone♦(other♦than♦a♦cordless♦type)♦during♦an♦electrical♦storm.♦ There♦may♦be♦a♦remote♦risk♦of♦electric♦shock♦from♦lightning.♦ ♦♦Do♦not♦use♦the♦telephone♦to♦report♦a♦gas♦leak♦in♦the♦vicinity♦of♦the♦leak.♦ ♦♦Use♦only♦the♦power♦cord♦and♦batteries♦indicated♦in♦this♦manual.♦Do♦not♦dispose♦of♦ batteries♦in♦a♦fire.♦They♦may♦explode.♦Check♦with♦local♦codes♦for♦possible♦special♦ disposal♦instructions.♦ ♦♦Do♦not♦place♦the♦handset♦in♦any♦charging♦cradle♦without♦the♦battery♦installed♦and♦ the♦battery♦cover♦securely♦in♦place. SAVE THESE INSTRUCTIONS! CAUTION! Risk of explosion if battery is replaced by an incorrect type! Dispose of used batteries according to the instructions. Do not open or mutilate the battery. Disconnect the battery before shipping this product. For♦more♦details,♦see♦the♦Important Information♦section. What’s in the manual? English - 3 GETTING STARTED Installing Your Phone Charge the Battery 1.♦Unpack♦all♦handsets,♦ battery♦packs,♦and♦ battery♦covers.♦If♦you♦ need♦to♦remove♦a♦ cover,♦press♦in♦on♦the♦ notch♦and♦slide♦the♦cover♦down♦and♦ off. 2.♦ L ine♦up♦the♦battery♦connector♦with♦ t he♦jack♦inside♦the♦handset;♦the♦ c onnector♦only♦fits♦one♦way.♦ 3.♦Push♦the♦connector♦in♦until♦it♦clicks♦ into♦place;♦tug♦gently♦on♦the♦wires♦ to♦make♦sure♦the♦battery♦is♦securely♦ c onnected. 4. ♦Replace♦the♦battery♦cover♦and♦slide♦it♦ i nto♦place. 5. ♦ U se♦an♦AC♦adapter♦to♦connect♦the♦ power♦jack♦on♦the♦base♦to♦a♦regular♦ i ndoor♦(120V♦AC)♦power♦outlet.♦ Connect♦any♦chargers♦the♦same♦way.♦ 6 .♦ P lace♦a♦handset♦in♦the♦base♦with♦the♦ d isplay♦facing♦forward.♦If♦the♦display♦ d oesn’t♦light♦up,♦reseat♦the♦handset♦or♦ c onnect♦the♦base♦to♦a♦different♦outlet.♦ F or♦2♦or♦more♦handsets,♦place♦each♦ h andset♦in♦a♦charger.♦ #Charge all handsets completely (about 15 hours) before using. Connect the Telephone Cord Use♦the♦telephone♦cord♦to♦connect♦the♦ TEL LINE ♦jack♦on♦the♦base♦to♦a♦standard♦ telephone♦wall♦jack. Test the Connection 1.♦Pick♦up♦the♦handset♦and♦press♦ Home/ Flas H .♦The♦handset♦sounds♦a♦dial♦ tone,♦and♦the♦display♦shows♦Talk.♦ ♦–If♦you♦don't♦hear♦a♦dial♦tone♦or♦the♦ d isplay♦says♦ Check Tel Line, check♦ the♦connection♦between♦the♦base♦ and♦the♦phone♦jack.♦ 2.♦Make♦a♦quick♦test♦call.♦(Press♦ end♦to♦ hang♦up.)♦ ♦–If♦you♦keep♦hearing♦a♦dial♦tone,♦ change♦to♦pulse♦dialing. ♦–If♦there’s♦a♦lot♦of♦noise,♦check♦for♦ interference♦(see♦page♦23).♦ 3.♦Test♦all♦handsets♦the♦same♦way.♦If♦ you♦can't♦get♦a♦dial♦tone,♦move♦the♦ handset♦closer♦to♦the♦base.♦ Changing to Pulse Dialing Your♦phone♦uses♦tone♦dialing♦by♦default.♦ If♦your♦phone♦company♦uses♦pulse♦ dialing,♦you♦need♦to♦change♦your♦phone’s♦…

Text truncated - open the document above for the full version.

Cover Letter(s)

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 REQUEST FOR CONFIDENTIALITY February 3, 2012 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155 Jon Suehiro, Manager – Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 1.9GHz UPCS Cordless Telephone Base Unit FCC IDENTIFIER: AMWUN405 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description (AMWUN405_Circuit Description.pdf) Schematic Diagrams (AMWUN405_Schematics Diagram.pdf) Block Diagrams (AMWUN405_Block Diagram.pdf) Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

Cover Letter(s)

FCC Part 15D – Compliance Information d3580 part 15d declarations_rev.doc 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Uniden America Corporation Address 4700 Amon Carter Blvd, Fort Worth, Texas 76155 U.S.A. Contact Jon Suehiro FP PP Repeater EUT Type/System FCC ID AMWUN405 AMWUN405R Model name D3580 D3580 HW Version 1.0 1.0 SW Version 0.08 0.08 Max antenna Gain -2dBi -3dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 4 1 Test standard: FCC part 15D Other: RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 10 ms Min. Burst Length 10 ms # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex FCC Part 15D – Compliance Information d3580 part 15d declarations_rev.doc 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Dipole 2 Dipole 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 monopole 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120 V AC 2.4 V DC Cut-Off Voltage (if applicable) N/A 2.15V POWER SOURCE Type Manufacturer Base or Repeater AC Adaptor Ten Pao International Ltd. Handset (PP) (charger) Ni-MH Battery Yiyang Corun Battery Co., Ltd. Data Connections PSTN Others (please specify) .... FCC Part 15D – Compliance Information d3580 part 15d declarations_rev.doc 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description Type Manufacturer HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION FCC Part 15D – Compliance Information d3580 part 15d declarations_rev.doc 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: > Date: January 30, 2012 > Name (print): Jon Suehiro Signature

External Photos

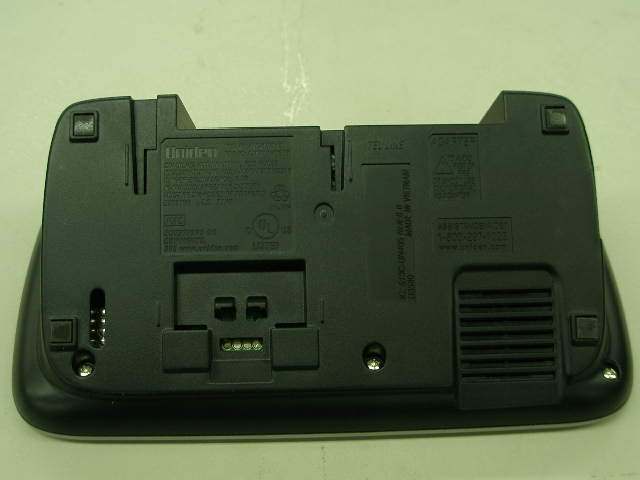

FCC ID: AMWUN405 1 External Photos Front View Rear View

ID Label/Location Info

FCC ID: AMWUN405 1 Equipment Identification Label Equipment Labels: The following markings are permanently affixed to the Base Unit: 1) 35 mm(W) x 31 mm(H) by Engraving 2) 13 mm(W) x 37 mm(H) by Engraving 3) 8 mm(W) x 36 mm(H) by label

Internal Photos

FCC ID: AMWUN405 1 Internal Photos Top Cover opened Main PCB Top View FCC ID: AMWUN405 2 Main PCB Bottom View Key PCB Top View FCC ID: AMWUN405 3 Key PCB Bottom View

RF Exposure Info

FCC ID: AMWUN405 MPE Calculation at 20 cm for Uncontrolled Environme nt Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 17.00 (dBm) Maximum peak output power at antenna input terminal : 0.050 (W) Maximum antenna gain: 4.30 (dBi) Maximum antenna gain: 2.692 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1928 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0268 (mW/cm^2) Power density at prediction frequency: 0.268 (W/m^2) Maximum allowable antenna gain: 20.01 (dBi) Margin of Compliance: 15.71 (dB) 2 4 R PG S π =

Test Report

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 193682-2 Item tested : D3580 Type of equipment : UPCS Base Unit FCC ID : AMWUN405 Client : Uniden America Corporation FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 2 February 2012 Authorized by : .............................................. G. Suhanthakumar Technical Verificator TEST REPORT FCC part 15D Report no.: 193682-2 FCC ID: AMWUN405 Nemko AS, N-2007 Kjeller Page 2 (57) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Manufacturer (if other than client) ...................................................................................................... 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 4 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 10 4.3 Digital Modulation Techniques ........................................................................................................ 10 4.4 Labeling Requirements ................................................................................................................... 10 4.5 Antenna Requirement...................................................................................................................... 11 4.6 Channel Frequencies ...................................................................................................................... 11 4.7 Automatic Discontinuation of Transmission .................................................................................... 12 4.8 Peak Power Output ......................................................................................................................... 13 4.9 Emission Bandwidth B ..................................................................................................................... 18 4.10 Power Spectral Density ................................................................................................................... 21 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 24 4.12 Carrier Frequency Stability .............................................................................................................. 26 4.13 Frame Repetition Stability ............................................................................................................... 27 4.14 Frame Period and Jitter ................................................................................................................... 27 4.15 Monitoring Threshold, Least Interfered Channel ............................................................................. 29 4.16 Threshold Monitoring Bandwidth ..................................................................................................... 31 4.17 Reaction Time and Monitoring Interval ............................................................................................ 32 4.18 Time and Spectrum Window Access Procedure ............................................................................. 34 4.19 Acknowledgements and Transmission Duration ............................................................................. 37 4.20 Dual Access …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: AMWUN405 Project no.: 193682 Page 1 of 1 PHOTOS OF TEST SET-UP – D3580 Base Radiated Emissions Test Set-up Power line Conducted Emissions Test Set-up

Contact Information

Applicant

Paul Roby
[email protected]817-858-3624Fax: 817-858-3333

Test Firm

Nemko ASFrode Sveinsen
[email protected]47-22-96-03-35Fax: 47-22-96-05-50

Technical Specifications

#Rule PartsFrequency RangePower Output
115D1.92 GHz - 1.93 GHz85.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this particular Grantee�s product. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Any other configuration other than described in this filing will require a Class II Change or new Grant of Certification.
