AMWUP3002.4GHz FHSS Cordless Phone w/ Belt-Clip

Contents WELCOME/FEATURES 3 QUICK REFERENCE GUIDE 5 CONTROLS AND FUNCTIONS 6 DISPLAYS AND ICONS 8 ABOUT SOFT KEY FUNCTION 9 TERMINOLOGY 9 GETTING STARTED 10 Read this First 10 Checking the Package Contents 11 Setting up the Phone 12 DCT5260 flow chart 16 About Menu 18 Setting up the Menu 20 BASICS 26 Making and Receiving Calls 26 Holding a Call 27 Redialing a Call 28 Ringer Mute (temporarily) 29 Adjusting the Earpiece and Handset Speaker Volume 29 Mute Microphone 29 Tone Dialing Switch-over 30 Traveling Out-of-Range 30 Clarity Booster 30 Find Handset 31 Flash and Call Waiting 31 Using One Touch Voice Mail Access 32 PHONEBOOK 33 Storing Phone Numbers, Names, Distinctive Rings, and Speed Dial 33 Steps for Entering Names and Special Characters 35 Viewing the Phonebook 37 Making Calls Using the Phonebook 38 Speed Dialing 38 Editing or Erasing a Stored Name, Phone Number, Distinctive Ring, and Speed Dial 39 Chain Dialing 40 CALLER ID 41 Viewing the Caller ID List 42 Deleting Information from the Caller ID List 43 Using the Caller ID Message List 44 Call Waiting Deluxe Features 45 EXPANDING YOUR PHONE 46 Setting up an Extra Handset 47 Registering an Extra Handset 47 Using the Transceiver 48 3-Way Conferencing 49 Intercom/Call transfer Feature 49 Replacing the Base 50 ADDITIONAL INFORMATION 51 Changing the Digital Security Code 51 Installing the Beltclip 51 Headset Installation 51 Note on Power Sources 52 Maintenance 52 General Information 53 TROUBLESHOOTING 54 liquid Damage 56 PRECAUTIONS & WARRANTY 57 I.C. NOTICE 59 INDEX 60 [ 2 ] DCT5260_OM 10/1/02 5:29 PM Page 2 WelcomeFeatures Congratulations on your purchase of the Uniden DCT5260 series Multi Handset CordlessSystem telephone. This unit is different from conventional cordless telephones. When the base unit is connected to AC power and a telephone line, it can support upto 8 handsets. Using extra handsets, you can establish a 3-way conference (2 handsetsand an outside line), while two other handsets are making an intercom call. You cannow place a fully featured cordless handset anywhere in your home or office where ACpower is available to connect the handset chargers.Note: Some illustrations in this manual may differ from the actual unit for explanation purposes. As an Energy Star® Partner, Uniden has determined that this product orproduct models meets the Energy Star® guidelines for energy efficiency.Energy Star® is a U.S. registered mark. • 2.4 GHz Frequency Hopping Spread Spectrum• Multi Handset Expandability (Max 8 handsets)• Hands Free Speakerphone in the Handset• Call Waiting Deluxe• Caller ID on Call Waiting• Dynamic Memory Location for Caller ID Messages and Phonebook Locations (up to 100 numbers in total) • Trilingual Language Option• 6 Hour Talk Time• 14 Day Standby Battery Life• 4-Line, 16 Character Backlit Handset Display/Backlit Handset Key• Intercom/Call Transfer• 32 Digit Redial / 3 Last Number Redial Locations (handset only)• 16 Distinctive Ring Options (8 ringers and 8 melodies)• Mute Feature• Flash and Pause• Find Handset WELCOME/FEATURES [ 3 ] DCT5260_OM 10/1/02 5:29 PM Page 3 WELCOME/FEATURES [ 4 ] The DCT5260 series features include AutoTalk™ and AutoStandby™ . AutoTalk allows you to answer a call by just removing the handset from the base so you don’t have to waste time pushing buttons. AutoStandby allows youto hang up by simply returning the handset to the base.To protect you against mis-billed calls, which might result from your phone being activated by otherequipment, the DCT5260 series has Random Code™ digital security, which automatically selects one of over approx. 130,000 digital security codes for the handset and base.Frequency Hopping Spread Spectrum (FHSS) technology improves calling range and clarity, and eliminates crosstalk. Because it rapidly changes transmission frequencies within the 2.4 GHz badwidth, this cordless phonehelps reduce the possibility of eavesdropping.Be sure to visit our web site: www.uniden.comUniden® is a registered trademark of Uniden America Corporation.AutoTalk, AutoStandby, and Random Code are trademarks of Uniden America Corporation. • Hearing Aid Compatible• Tone/Pulse Dialing• Handset Earpiece, Handset Speaker, and Ringer Volume Control• 88 Channel Auto Scan• DirectLink Mode• Voice Mail Access• Banner Display• Battery Level Indicator• Clock Display• Call Timer• 3-way Conference Operation DCT5260_OM 10/1/02 5:29 PM Page 4 QUICK REFERENCE GUIDE [ 5 ] Q UICK R EFERENCE G UIDE INSTALL THE HANDSET BATTERY Remove the cover.Install the batterysupplied with yourphone. Check forcorrect + - polarity.Replace the cover. PLUG INTO AC POWER Plug the AC adapter cord into the base unit andthen to a 120V AC outlet.Place the handset in the base. Note: You must charge the battery pack continuously for 15-20 hours before using the phone. Step 1 Charging the Battery Step 2 Connecting CONNECT TO A PHONE LINEWhen the handset battery pack is fully charged, plugthe telephone cord into the base unit and then into atelephone wall jack. Your phone is set for tone dialing. If your local networkrequires pulse dialing, please see “Dial Mode Setting”on page 24. TO MAKE A CALL Press talk/flash and listen for the dial tone. Dial the desired number (for phonebook dialfeature, see “Phonebook” on page 33 in theowner’s manual.Press end or return the handset to the base. TO ANSWER A CALLPress talk/flash and speak. Adjust handset volume louder or softer.Louder - press volume  Softer - press volume  Step 3 Using the Phone TO ADJUST HANDSET RINGER Press the MENU soft key in the standby mode. Press  or  to select “ Handset Setup ”, then the OK soft key. Press  or  to select “ Ringer Volume ”, then the OK soft key. Press  or  to select a ringer setting, then the OK soft key. SUN 12:00A Handset #1 New:100 MENU CID RDL PB DCT5260_OM 10/1/02 5:29 PM Page 5 Controls and Functions CONTROLS AND FUNCTIONS [ 6 ] 21354 6789 1011 1913 121617141815 1. Handset Antenna2. Headset Jack Cover3. Beltclip Hole4. Hands Free Speaker5.…

Text truncated - open the document above for the full version.

October 10, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: UNIDEN America Corp. FCC ID: AMWUP300 Gentlemen: Attached herewith, on behalf of UNIDEN America Corp. is an application for Part 15.247 Certification of the following FHSS Cordless Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), Circuit description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: UNIDEN America Corp.

December 3, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Tim Harrington SUBJECT: Uniden America Corporation FCC ID: AMWUP300 731 Confirmation No.: TC566101 Request for Tech. Info.: 11/08/2002 Correspondence Ref. Num.: 5766 Dear Tim: Transmitted herewith, on behalf of Uniden America Corporation, is an amendment provided (see attached page 15) in response to the request for technical information dated November 08, 2002. 1. Software was provided by Uniden, for maximum power control and channel selection in a no hop mode. This is to confirm that the frequency hopping was disabled during the EMC and SAR Testing. If you have any further questions, please do not hesitate to contact us. cc: Uniden America Corporation

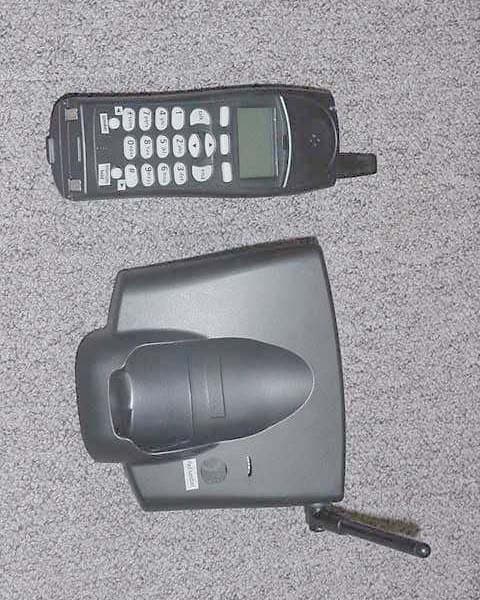

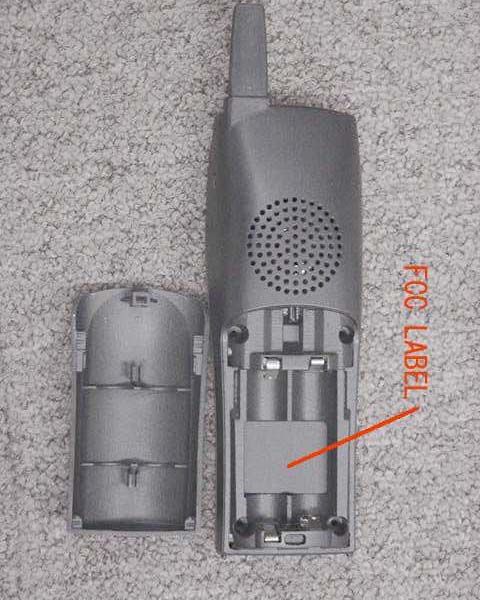

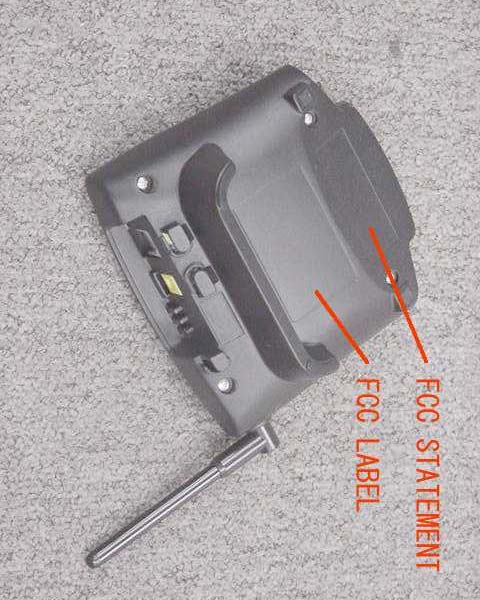

© 2002 PCTEST Lab FCC ID LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC SAR Report Reviewed by: Quality Manager SAR Filename: SAR.220918491.AMW Test Dates: October 7-8, 2002 EUT Type: 2.4GHz FHSS Cordless Phone FCC ID: AMWUP300 Page 1 of 21 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN ENGINEERING SERVICES Dates of Tests: October 7-8 2002 216 John Street Test Report S/N: SAR.220918491.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia MD Lake City, SC 29560-0580 Attn: Mr. Jim Haynes, Vice President ~ Engineering & Regulatory Affairs FCC ID: AMWUP300 APPLICANT: UNIDEN AMERICA CORP. EUT Type: 2.4 GHz FHSS Cordless Phone Tx Frequency: 2400 — 2483.5 MHz (FHSS) Rx Frequency: 2400 — 2483.5 MHz (FHSS) Max. RF Output Power: 0.182W Conducted (Base/Head Set) Max. SAR Measurement: 0.08 W/kg over 1 gm (Body) (Base/Head Set) 0.18 W/kg over 1 gm (Head) (Base/Head Set) Trade Name/Model(s): DCT5260 FCC Classification: Part 15 Spread Spectrum Transmitter (FHSS) FCC Rule Part(s): §2.1093; ET Docket 96.326 Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.22040424182.ACJ PCTEST SAR TEST REPORT FCC SAR Report Reviewed by: Quality Manager SAR Filename: SAR.220918491.AMW Test Dates: October 7-8, 2002 EUT Type: 2.4GHz FHSS Cordless Phone FCC ID: AMWUP300 Page 2 of 21 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Body Holster /Belt Clip Configurations.................................................................. 11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 12 Uncontrolled Environment .................................................................................... 12 Controlled Environment ........................................................................................ 12 11. MEASUREMENT UNCERTAINTIES ....................................................................... 13 12. SYSTEM VERIFICATION ....................................................................................... 14 Tissu…

Text truncated - open the document above for the full version.

SAR Data Report 02092002 Start : 2-Sep-02 9:01:36 am End : 2-Sep-02 9:07:36 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Dipole Frequency : 2450 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.000 Tissue Conductivity : 1.820 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 2450 MHz Validation CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=3.0 y=2.0 = 11.45 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=-1.0 z=0.0 = 25.80 W/kg Max 1g SAR at x=4.0 y=2.0 z=0.0 = 13.07 W/kg Max 10g SAR at x=4.0 y=1.0 z=0.0 = 5.99 W/kg Validation Results at 0.25 W: Peak Nominal = 26.1, Error: -0.94 % 1g Nominal = 13.1, Error: -0.24 % 10g Nominal = 6.0, Error: -0.11 % 0 2 4 6 8 10 12 14 16 18 20 22 24 26 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:4.0 y:-1.0 1g SAR Values 13.07 12.24 11.41 10.59 9.76 8.93 8.10 7.27 6.45 5.62 4.79 SAR Data Report 02092012 Start : 20-Sep-02 11:20:12 am End : 20-Sep-02 11:26:12 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : UNIDEN Model Number : DCT5260 Frequency : 2400.917 MHz Transmit Pwr : 0.182 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM LEFT2 Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 39.000 Tissue Conductivity : 1.820 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS Mode CH-01 CHEEK CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=-30.0 y=16.0 = 0.03 W/kg Zoom Scan - Max Peak SAR Value at x=-14.0 y=16.0 z=0.0 = 0.17 W/kg Max 1g SAR at x=-19.0 y=15.0 z=0.0 = 0.04 W/kg Max 10g SAR at x=-25.0 y=15.0 z=0.0 = 0.02 W/kg -0.02 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-14.0 y:16.0 1g SAR Values SAR Data Report 02092013 Start : 20-Sep-02 11:28:19 am End : 20-Sep-02 11:34:22 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : UNIDEN Model Number : DCT5260 Frequency : 2400.917 MHz Transmit Pwr : 0.182 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM LEFT2 Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 39.000 Tissue Conductivity : 1.820 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS Mode CH-01 Tilt CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=-30.0 y=16.0 = 0.10 W/kg Zoom Scan - Max Peak SAR Value at x=-25.0 y=16.0 z=0.0 = 0.59 W/kg Max 1g SAR at x=-24.0 y=16.0 z=0.0 = 0.18 W/kg Max 10g SAR at x=-25.0 y=15.0 z=0.0 = 0.06 W/kg -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-25.0 y:16.0 1g SAR Values 0.185 0.167 0.148 0.130 0.112 0.094 0.076 0.058 0.040 0.022 0.004 SAR Data Report 02092008 Start : 20-Sep-02 10:36:07 am End : 20-Sep-02 10:42:15 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : UNIDEN Model Number : DCT5260 Frequency : 2479.401229 MHz Transmit Pwr : 0.119 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM RIGHT2 Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.000 Tissue Conductivity : 1.820 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS Mode CH-89 CHEEK CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=-20.0 y=6.0 = 0.07 W/kg Zoom Scan - Max Peak SAR Value at x=-28.0 y=6.0 z=0.0 = 0.28 W/kg Max 1g SAR at x=-27.0 y=6.0 z=0.0 = 0.08 W/kg Max 10g SAR at x=-20.0 y=9.0 z=0.0 = 0.03 W/kg -0.10 0.00 0.10 0.20 0.30 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-28.0 y:6.0 1g SAR Values 0.0809 0.0741 0.0673 0.0605 0.0537 0.0469 0.0401 0.0332 0.0264 0.0196 0.0128 SAR Data Report 02092006 Start : 20-Sep-02 10:17:19 am End : 20-Sep-02 10:23:26 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : UNIDEN Model Number : DCT5260 Frequency : 2400.916581 MHz Transmit Pwr : 0.182 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM RIGHT2 Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.000 Tissue Conductivity : 1.820 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.00…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip

© 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip © 2002 PCTEST Lab UNIDEN FCC ID: AMWUP300 2.4 GHz FHSS Cordless Phone with Belt Clip

SAR Data Report 02092002 Start : 2-Sep-02 9:01:36 am End : 2-Sep-02 9:07:36 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Dipole Frequency : 2450 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.000 Tissue Conductivity : 1.820 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 2450 MHz Validation CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=3.0 y=2.0 = 11.45 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=-1.0 z=0.0 = 25.80 W/kg Max 1g SAR at x=4.0 y=2.0 z=0.0 = 13.07 W/kg Max 10g SAR at x=4.0 y=1.0 z=0.0 = 5.99 W/kg Validation Results at 0.25 W: Peak Nominal = 26.1, Error: -0.94 % 1g Nominal = 13.1, Error: -0.24 % 10g Nominal = 6.0, Error: -0.11 % 0 2 4 6 8 10 12 14 16 18 20 22 24 26 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:4.0 y:-1.0 1g SAR Values 13.07 12.24 11.41 10.59 9.76 8.93 8.10 7.27 6.45 5.62 4.79

PCTEST SAR TEST REPORT FCC SAR Report Reviewed by: Quality Manager SAR Filename: SAR.220918491a.AMW Test Dates: October 7-8, 2002 EUT Type: 2.4GHz FHSS Cordless Phone FCC ID: AMWUP300 Page 15 of 21 (amendment) © 2002 PCTEST Engineering Laboratory, Inc. 13. SAR TEST DATA SUMMARY See Measurement Result Data Pages Procedures Used To Establish Test Signal Software was provided by Uniden for maximum power control and channel selection in a no hop mode. This is to confirm that the frequency hopping was disabled during the EMC and SAR Testing. Device Test Conditions The handset is battery operated. Each SAR measurement was taken with a fully charged battery. In order to verify that the device was tested at full power, conducted output power measurements were performed before and after each SAR measurement to confirm the output power. If a conducted power deviation of more than 5% occurred, the test was repeated.

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220918518.AMW Test Dates: OCT. 7-8, 2002 EUT Type: 2.4GHZ FHSS CORDLESS PHONE FCC ID: AMWUP300 Page 1 of 18 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE UNIDEN ENGINEERING SERVICES Dates of Tests: October 7-8, 2002 216 John Street Test Report S/N: 15.220918518.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia MD Lake City, SC 29560-0580 Attn: Mr. Jim Haynes, Vice President ~ Engineering & Regulatory Affairs FCC ID AMWUP300 APPLICANT UNIDEN AMERICA CORP. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver Max Output Power: 0.182W Conducted (Base/Head Set) Method/System: Frequency Hopping Spread Spectrum (FHSS) Equipment Type: 2.4 GHz FHSS Cordless Phone Frequency Range: 2400 — 2483.5 MHz (FHSS) Model No(s).: DCT5260 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220401140.A3L PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220918518.AMW Test Dates: OCT. 7-8, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: AMWUP300 Page 2 of 19 TABLE OF CONTENTS APPENDIX A – COVER LETTER APPENDIX B - ATTESTATION STATEMENT APPENDIX C - TEST REPORT SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCT INFORMATION 5 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 6 B. RADIATED EMISSIONS 7 C. RESTRICTED BANDS 8 D. ANTENNA REQUIREMENT 9 E. MAXIMUM PEAK POWER OUTPUT 10 F. CHANNEL SPACING 11 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 12-16 FREQUENCY MEASUREMENTS (SPURIOUS) 17 LIST OF TEST EQUIPMENT 18 CONCLUSION 19 APPENDIX D - TEST PLOTS APPENDIX E - FCC ID LABEL & LOCATION APPENDIX F - TEST SETUP PHOTOGRAPHS APPENDIX G - EXTERNAL PHOTOGRAPHS APPENDIX H - INTERNAL PHOTOGRAPHS APPENDIX I - BLOCK DIAGRAM(S) APPENDIX J- SCHEMATIC DIAGRAM(S) APPENDIX K - CIRCUIT DESCRIPTION APPENDIX L - USER’S MANUAL APPENDIX M - SAR MEASUREMENT REPORT APPENDIX N - SAR TEST DATA APPENDIX O - SAR TEST SETUP PHOTOGRAPHS APPENDIX P - DIPOLE VALIDATION APPENDIX Q - PROBE CALIBRATION APPENDIX R - COPY OF FHSS LAN RADIO CARD FCC GRANT PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220918518.AMW Test Dates: OCT. 7-8, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: AMWUP300 Page 3 of 19 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: UNIDEN Engineering Services Address: 216 John Street, P.o.Box 580 Lake City, SC 29560-0580 Attention: Mr. Jim Hayes, Vice President - Engineering & Requlatory Affairs • FCC ID: AMWUP300 • Class: Spread Spectrum Transceiver (FHSS) • Type: 2.4 GHz FHSS Cordless Phone • Freq. Range: 2400 — 2485.3 MHz • Method/System: GFSK • Model No(s): DCT5260 • Max. RF Output Power: 0.182W Conducted (Base/Head Set) • Rule Part(s): § 15.247 • Dates of Tests: October 7-8, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 220918518.AMW NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220918518.AMW Test Dates: OCT. 7-8, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: AMWUP300 Page 4 of 19 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Uniden Spread Spectrum 2.4 GHz FHSS Cordless Phone. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220918518.AMW Test Dates: OCT. 7-8, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: AMWUP300 Page …

Text truncated - open the document above for the full version.

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220918518.AMW Test Dates: OCT. 7-8, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: AMWUP300 Page 10 of 19 §15.247(a)(2) — 20dB Bandwidth (Head Set) Res. Bandwidth = 100 kHz (7dB/div) Vid. BW = 100 kHz Span = 3.0MHz Ref. Level - 21.5 dBm Sweep 5ms (see attached spectrum plots) FREQ Channel 20dB Bandwidth (MHz) (MHz) 2401 1 .965 2439 44 .983 2479 89 .977 Table 3. 20dB Bandwidth measurements Minimum Standard — The transmitter shall have a minimum 6dB bandwidth of 500Hz (0.5 MHz). These are radiated measurements. REMARKS: PASS PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220918518.AMW Test Dates: OCT…
