AMWUP6831.9 GHz UPCS IP CORDLESS TELEPHONE-BASE UNIT

Model: D100 DECT NA Model: D100 DECT Repeater NA Model: D160 DECT Handset NA July 2012 - Avaya IMPORTANT NOTICE Read all safety, installation, and user documentation prior to installing or operating this product. To view and download safety, installation, and user documentation go to: http://support.avaya.com. All information is subject to change without notice. Always check Avaya’s Support web site for updates – http://support.avaya.com. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: This unit is NOT waterproof. DO NOT expose it to rain or moisture. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. Use only the power cord and batteries indicated in the manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. Do not place the handset in any charging cradle without the battery installed and the battery cover securely in place. SAVE THESE INSTRUCTIONS! CAUTION! Risk of explosion if battery is replaced by an incorrect type! Dispose of used batteries according to the instructions. Do not open or mutilate the battery. Disconnect the battery before shipping this product. Rechargeable Battery Warning If your equipment contains a rechargeable Nickel-Metal-Hydride (Ni-MH) battery; Nickel is a chemical known to the state of California to cause cancer. Do not short-circuit the battery. The batteries in this equipment may explode if disposed of in a fire. Do not charge the batteries in any charger other than the one specified in the owner's manual. Using another charger may damage the battery or cause it to explode. As part of our commitment to protecting our environment and conserving natural resources, Uniden voluntarily participates in an RBRC® industry program to collect and recycle used Ni- MH batteries within the United States. Please call 1-800-8-BATTERY for information on Ni-MH battery recycling in your area. (RBRC® is a registered trademark of the Rechargeable Battery Recycling Corporation.) Rechargeable batteries must be recycled or disposed of properly. COMPLIANCE INFORMATION FCC Part 15 Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. FCC PART 15.105(b): Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Information This product complies with FCC radiation exposure limits under the following conditions: The base must be placed to allow a minimum of 20 cm (8 inches) between the antenna and all persons during normal operation. The base must not be collocated or operated in conjunction with any other antenna or transmitter. The handset is designed for body-worn operation and meets FCC RF exposure guidelines when used with any belt clip, carrying case, or other accessory supplied with this product. (All necessary accessories are included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Third party accessories (unless approved by the manufacturer) should be avoided as these might not comply with FCC RF exposure guidelines. Industry Canada (I.C.) Notice Terminal equipment NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation IC before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. Radio equipment The term IC before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. "Privacy of communications may not be ensured when using this telephone". Environmental Requirements  Only use the cordless telephone in temperatures between -10 ºC to +50 ºC (+14 ºF to +122 ºF).  Avoid exposing the cordless telephone to direct sunlight or close to other heat sources.  Do not expose the cordless telephone to open flame.  Keep the cord…

Text truncated - open the document above for the full version.

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 REQUEST FOR CONFIDENTIALITY September 3, 2012 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155 Jon Suehiro, Manager – Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 1.9GHz UPCS Cordless Telephone Base Unit FCC IDENTIFIER: AMWUP683 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description AMWUP683_CIRCUIT DESCRIPTION.pdf Schematic Diagrams AMWUP683_Schematic Diagram.pdf Block Diagrams AMWUP683_Block Diagram.pdf Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

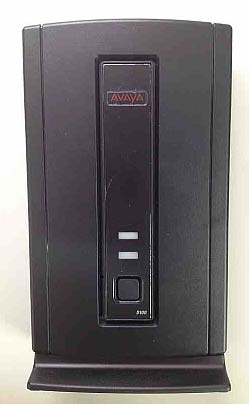

“D100 DECT NA” External Photos Front View (“D100 DECT NA” Base) Rear View (“D100 DECT NA” Base)

Equipment Identification Label (D100 DECT NA Base) Equipment Labels: The following markings are permanently affixed to the Base Unit: 1) 40 mm(W) x 15 mm(H) by Engraving 2) 40.5 mm(W) x 24 mm(H) by Label 3) 41 mm(W) x 24.5 mm(H) by Label 5) 35 mm(W) x 5.5 mm(H) by Label 4) 38 mm(W) 11 mm(H) by Label 6) 8 mm(W) 4 mm(H) by Label

FCC ID:AMWUP683 MPE Calculation at 20 cm for Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Source Based Time Averaged Du ty Cycles is 100% in calculation below Maximum peak output power at antenna input terminal : 20.09 (dBm) Refer to FCC TRaC report"TRA-007213-W-US-2.pdf” for Power. Maximum peak output power at antenna input terminal : 102.09 (mW) Maximum antenna gain : 2.0 (dBi) Maximum antenna gain : 1.58 (numeric) Prediction distance : 20.0 (cm) Prediction frequency : 1928 (MHz) Time Averaged Duty Cycle : 100 (%) MPE limit for unco ntrolled exposure at prediction frequency : 10.00 (W/m 2 ) Power density at prediction frequency : 0.03234 (mW/cm 2 ) Power density at prediction frequency : 0.3234 (W/m 2 ) Maximum allowable antenna gain : 16.9 (dBi) Margin of Compliance : 14.9 (dB)

A RADIO TEST REPORT FOR UNIDEN CORPORATION ON 700503098 (D100 DECT NA) DOCUMENT NO. TRA-007213-W-US-2 Total number of pages: 68 TRaC Wireless Test Report : TRA-007213-W-US-2 Applicant : Uniden Corporation Apparatus : 700503098 (D100 DECT NA) Specification(s) : CFR47 Part 15D Purpose of Test : Certification FCCID : AMWUP683 Authorised by : : Radio Product Manager Issue Date : 9 th August 2012 Authorised Copy Number : PDF TRaC Global Test Report: TRA-007213-W-US-2 3 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 System Description 6 1.6 Test Result Summary 7 1.7 Notes Relating to the Assessment 9 1.8 Deviations from Test Standards 9 Section 2: Measurement Uncertainty 10 2.1 Measurement Uncertainty Values 10 Section 3: Modifications 12 3.1 Modifications Performed During Assessment 12 Appendix A: Formal Emission Test Results 13 A1 Cross Reference To Subpart B 14 A2 Labelling Information 14 A3 Antenna Requirements 14 A4 Modulation Techniques 14 A5 Radio Frequency Radiation Exposure 14 A6 Transmitter Emission Bandwidth 15 A7 Peak Transmit Power 16 A8 Power Spectral Density 17 A9 Antenna Gain 18 A10 Automatic Discontinuation of Transmissions 19 A11 Monitoring Thresholds 20 A12 Monitoring of Intended Transmit Window & Maximum Reaction Time 21 A13 Monitoring Bandwidth & Antenna 22 A14 Power Accuracy 23 A15 Segment Occupancy 24 A16 Access Criteria Test Interval 25 A17 Access Criteria Functional Test 26 A18 Duration Of Transmission 27 A19 Connection Acknowledgement 28 A20 Least Interfered Channel (LIC) Procedure 29 A21 Selected Channel Confirmation 30 A22 Fair Access To Spectrum 31 A23 Emissions Inside and Outside the Sub-Band - Conducted 32 A24 Frame Repetition Stability 34 A25 Frequency Stability 35 A26 Unintentional Radiated Emissions 36 Appendix B: Supporting Graphical Data 39 Appendix C: Additional Test and Sample Details 58 Appendix D: Additional Information 64 Appendix E: Photographs and Figures 65 TRaC Global Test Report: TRA-007213-W-US-2 4 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley Report author: D. Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. TRaC Global Test Report: TRA-007213-W-US-2 5 1.2 Tests Requested By This testing in this report was requested by : Uniden Corporation 2-12-7 Hatchobori Chuo-ku Tokyo 104-8512 Japan 1.3 Manufacturer Uniden Vietnam Ltd LOT 5.1 Tan Truong Industrial Zon e Cam Giang District Hai Duong Province Vietnam 1.4 Apparatus Assessed The followin g apparatus was assessed between the dates 20 th February – 30 th May 2012: 700503098 (D100 DECT NA) TRaC Global Test Report: TRA-007213-W-US-2 6 1.5 System Description The system is made up of two parts, a fixed part and a portable part. The portable part is a cordless handset device. The portable part is capable of operating on a maximum of 60 channels (time spectrum windows). The fixed part is a wall mounted base station transmitter. The system operates in the 1920MHz -1930MHz band. The system use 5 different frequency channels 1.728MHz apart using MC/TDMA/TDD (Multi Carrier / Time Division Multiple Access / Time Division Duplex) using GFSK modulation. The system employs a 10ms frame, divided into 24 equal timeslots, numbered 0-23. The Base station always transmits in the first half of the frame, and the Portable always transmits on the duplex mate in the second half of the frame. The portable part is the initiating device. A physical bearer is composed of a transmit single-slot and a receive single-slot for narrowband communications. The two halves of a given bearer are always exactly half a frame (5ms, 12 single slots) apart. During the testing operation was restricted to certain channels during the tests by the use of out of operating region interference. A portable part and a fixed part with a temporary antenna connector were supplied to allow conducted measurements where applicable. TRaC Global Test Report: TRA-007213-W-US-2 7 1.6 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The table overleaf summarises the results of the assessment. Abbreviations used in the overleaf table: CFR : Code of Federal Regulations ANSI : American National Standards Institution RSS : Radio Standards Specification PLCE : Power Line Conducted Emissions TRaC Global Test Report: TRA-007213-W-US-2 8 TEST/EXAMINATION Part 15 RSS-213 Result Coordination with Fixed Microwave Service 15.307 (b) 2.1 No Note 1 Cross reference to Subpart B 15.309 (b) N/A - Labelling Requirements 15.311 15.19 (a)(3) RSS-GEN 5.2 - Measurement Procedures 15.313 4.1 - Antenna Requirement 15.317 15.203 4.1(e) Pass Modulation Techniques 15.319 (b) 4.3.1 Pass Conducted AC Powerline 15.315 15.207 4.2 N/A Note 5 Emission Bandwidth 15.323 (a) 4.3.2.1 Pass Peak Transmit Power 15.319 (c) 4.3.1 Pass Power Spectral Density 15.319 (d) 4.3.2.1 Pass Antenna Gain 15.319 (e) 4.1 (e) Pass Automatic Discontinuation of Transmission 15.319 (f) 4.3.4(a) Pass Radio Frequency Radiation Exposure 15.319 (i) RSS-102 Pass Monitoring Thresholds 15.323 (c)(2) 15.323 (c)(9) 4.3…
