User Operation Specification Cordless Phone for PBX DTZ-8R-1 Ver 0.02 APRVD CHECKED(E) CHECKED(S) CHECKED(M) ISSUED Copyright  2014 Uniden. All rights reserved. 1 Table of Contents 1. Overview____________________________________________________ 5 1.1 Introduction ___________________________________________________ 5 1.2 Digital interface mode ___________________________________________ 5 2. Features ____________________________________________________ 6 2.1 Handset _______________________________________________________ 8 2.2 Base Station ___________________________________________________ 9 2.3 Charge unit ___________________________________________________ 10 2.4 Key & SW ____________________________________________________ 11 2.4.1 Handset _____________________________________________________ 11 2.4.2 Base ________________________________________________________ 11 2.4.3 Charger ______________________________________________________ 11 2.5 Tone Type and Volume _________________________________________ 12 2.5.1 Frequency definition ___________________________________________ 12 2.5.2 Handset tone types ____________________________________________ 12 2.5.3 Handset volume _______________________________________________ 13 2.5.4 Ring cadence _________________________________________________ 14 2.5.5 Base Station tone _____________________________________________ 15 2.5.6 Charger ______________________________________________________ 15 2.6 Display ______________________________________________________ 16 2.6.1 Handset LCD display __________________________________________ 16 2.6.1.1 Message from PBX Expansion board ________________________________ 17 2.6.2 Handset LCD Icons ____________________________________________ 18 2.6.3 Handset LED _________________________________________________ 19 2.6.4 Base LED ____________________________________________________ 21 2.6.5 Charger LED _________________________________________________ 21 3. Operation & Setup ___________________________________________ 22 3.1 Power Up ____________________________________________________ 22 3.1.1 Handset _____________________________________________________ 22 3.1.2 Base Station __________________________________________________ 22 3.2 Power Down __________________________________________________ 22 3.2.1 Handset _____________________________________________________ 22 3.2.2 Base ________________________________________________________ 22 3.3 Communication to the PBX ______________________________________ 23 3.3.1 Serial interface ________________________________________________ 23 3.3.2 Local operation _______________________________________________ 23 3.3.3 PBX command from the Base Station to PBX Expansion board _______ 24 3.3.4 PBX command from PBX Expansion board to the Base Station _______ 25 3.4 NEC PBX operation ____________________________________________ 26 3.4.1 Change wired phone and cordless phone (DTL-8R-1 Handset) ________ 26 3.4.2 Making call to other Expansion __________________________________ 26 3.4.3 Receiving a Call from other Expansion ____________________________ 29 2 3.4.4 Making call to outside line ______________________________________ 30 3.4.5 Receiving a Call from outside line (Depend on PBX line) _____________ 31 3.4.6 Finish Talk Mode ______________________________________________ 32 3.4.7 Training mode (entry) __________________________________________ 33 3.4.8 Training mode (Next (Softkey 1)key: select item) ___________________ 33 3.4.9 Training mode (Func(Softkey2) key: change each item setting) _______ 33 3.4.10 Training mode (0 key: no function) _______________________________ 33 3.4.11 Training mode (Exit(softkey 4) key: exit from the Training mode) _____ 34 3.5 REDIAL (Option) _______________________________________________ 34 3.6 Channel change _______________________________________________ 35 3.7 Auto Stand-by _________________________________________________ 35 3.8 PBX No Service _______________________________________________ 35 3.9 Out Of Range _________________________________________________ 36 3.10 Low Battery _________________________________________________ 37 3.10.1 Battery status ________________________________________________ 37 3.11 Mute _______________________________________________________ 37 3.12 Hands Free _________________________________________________ 37 3.13 Headset ____________________________________________________ 37 3.14 Volume setting ______________________________________________ 38 3.15 Ring Volume Setting _________________________________________ 39 3.15.1 Ringer volume selection ________________________________________ 39 3.16 Menu setting mode ___________________________________________ 40 3.16.1 Menu Top ____________________________________________________ 40 3.16.2 Contacts(List) ________________________________________________ 41 3.16.3 Contacts(show one by one) _____________________________________ 41 3.16.4 Contacts(Delete Contact) _______________________________________ 42 3.16.5 Contacts(Edit/Add) ____________________________________________ 42 3.16.6 Settings(List) _________________________________________________ 44 3.16.7 Settings(Menu Timeout) ________________________________________ 44 3.16.8 Settings(Brightness) ___________________________________________ 44 3.16.9 Settings(Power Save) __________________________________________ 45 3.16.10 Settings(Audio Equalizer) _____________________________________ 45 3.16.11 Settings(Key Lock) __________________________________________ 46 3.16.12 Sounds(List) ________________________________________________ 46 3.16.13 Sounds(Ring Tones) _________________________________________ 47 3.16.14 Sounds(Vibrate) _____________________________________________ 47 3.16.15 Sounds(Out Of Range Alert) ___________________________________ 48 3.16.16 Sounds(Key Tone) ___________________________________________ 48 3.16.17 Language __________________________________________________ 49 3.16.18 Administrator Set…

Text truncated - open the document above for the full version.

Uniden America Corporation 3001 Gateway Drive Irving, TX 75063 817-858-3300 Fax: 817-858-3333 REQUEST FOR CONFIDENTIALITY July 18, 2014 To:Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject:Data for FCC Certification Applicant:Uniden America Corporation 3001 Gateway Drive, Suite 130 Irving, Texas 75063 Renji Inuzuka, Director of Engineering and Quality TYPE OF EQUIPMENT:1.9GHz UPCS Cordless Telephone Base Unit FCC IDENTIFIER:AMWUP689 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Operation Description (AMWUP689_CIRCUIT_DESCRIPTION.pdf) Schematic Diagrams (AMWUP689_Schematic_Diagram.pdf) Block Diagrams (AMWUP689_Block_Diagram.pdf) Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Renji Inuzuka Director, Engineering and Quality

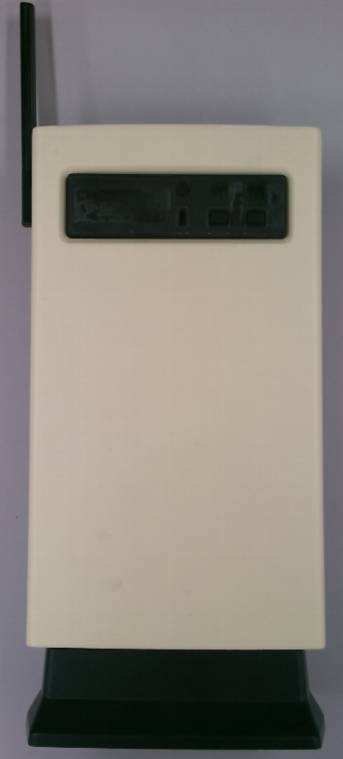

[“EXP11000” Base] External Photos Front View [“EXP11000”Base] Rear View [“EXP11000”Base]

FCC ID Label Location Information (AMWUP689) DTZ-8R-1 Base Bottom Model Name,FCC ID,IC Number and Serial Number

FCC ID Label Information (AMWUP689) DTZ-8R-1 Base FCC ID (48.5 mm (W) x 27.5 mm (H))

[“EXP11000” Base] Internal Photos Front Cover Opened [“EXP11000” Base] I/F PCB Bottom View [“EXP11000” Base] Main PCB Top View & Key PCB Bottom View [“EXP11000” Base] Main PCB Bottom View & Key PCB Top View [“EXP11000” Base]

§1.1307 (b) (1) & §2.1091- MaximuM Permissible exposure (MPE) FCC ID.: AMWUP689 Model(s): EXP11000 Manufacturer: Uniden America Corporation Type of equipment: Cordless Telephone According to FCC §15.319(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Channel Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) High 1928.448 2.0 1.58 17.7960.12 20 0.0189 1.0 Result: The device meets MPE limit at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15D MEASUREMENT AND TEST REPORT For Uniden America Corporation 3001 Gateway Drive, STE130, Irving TX 75063 USA FCC ID: AMWUP689 Report Type: Original Report Product Type: Cordless Telephone (Base Unit) Test En gineer: Simon Wang Re port Number: RSZ140603005-00FP Re port Date: 2014-06-23 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00FP FCC Part 15D Page 2 of 57 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 §1.1307 (B) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................ 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST RESULT ............................................................................................................................................................... 8 FCC§15.317 & §15.203 - ANTENNA REQUIREMENT ........................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC§15.315 & §15.207 - CONDUCTED EMISSIONS ............................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC§15.323 (A) - EMISSION BANDWIDTH .......................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00A FCC Part 15 B, Class B Page 45 of 50 EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View (Test Mode 1) Conducted Emissions - Side View (Test Mode 1) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00A FCC Part 15 B, Class B Page 46 of 50 Conducted Emissions - Front View (Test Mode 2) Conducted Emissions - Side View (Test Mode 2) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00A FCC Part 15 B, Class B Page 47 of 50 Radiated Emissions-Front View (Test Mode 1, 30~1000 MHz) Radiated Emissions – Rear View (Test Mode 1, 30~1000 MHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00A FCC Part 15 B, Class B Page 48 of 50 Radiated Emissions – Rear View (Test Mode 2, 30~1000 MHz) Radiated Emissions-Front View (Test Mode 2, 30~1000 MHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00A FCC Part 15 B, Class B Page 49 of 50 Radiated Emissions-Front View (Test Mode 1, Above 1 GHz) Radiated Emissions – Rear View (Test Mode 1, Above 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140603005-00A FCC Part 15 B, Class B Page 50 of 50 Radiated Emissions-Front View (Test Mode 2, Above 1 GHz) Radiated Emissions – Rear View (Test Mode 2, Above 1 GHz) ***** END OF REPORT *****
