AMWUP7445.8 GHz Cordless Telephone w/Bluetooth

ELBT 595 SERIES OWNER'S MANUAL [1] www.uniden.com Welcome/Features/Terminology 3 Accessibility 4 Controls & Functions 5 Setting up the Phone 7 Choose the best location 7 Power Backup Feature 8 Install the rechargeable battery pack 9 Low battery alert 10 Cleaning the battery charging contacts 10 Connect the base unit and charge the handset 11 Mounting the Base Unit on a Wall 12 Standard wall plate mounting 12 Expanding Your Phone 13 Backwards/Forwards Compatibility 13 Connect the expansion handset's charger 14 Register the Handset 14 Register the ELX500 expansion handset to main base 15 Changing the Digital Security Code 16 Installing the Holster 16 Optional Headset Installation 17 Installation of PC Application CD-ROM 17 Using the Interface 19 Display Icons 20 Soft Key Function 21 Entering text 23 Main Menu Options 24 Setup Menu 25 System Setup 25 Global Setup 29 Setting the Ringer Options 31 Display Setting (Handset Only) 36 Using Bluetooth Feature 39 Registering Your Cellular Phone to Your Phone 39 Using Bluetooth headset 43 De-register the Bluetooth Headset 46 Using Your Phone 47 Making Calls 47 From the Handset Speakerphone 48 From the base 49 Receiving a call/AutoTalk set to OFF 49 Hanging Up 50 Switching to the Handset Speakerphone During a Call 50 Moving out of range 50 Call Waiting 51 Placing a Call on Hold 52 Conferencing 52 Mobile Line Transfer 54 Redialing Calls 55 Adjusting the Base Ringer and Speaker 56 Using the Handset Volume Setting Menu 57 Mute 59 Mute the Handset Microphone 59 Tone Dialing Switch Over 59 Privacy Mode 60 Find Handset 60 Reminder (Handset only) 61 Using the Phonebook 63 Creating and Editing Phonebook Entries 63 Storing Caller ID or Redial Numbers in the Phonebook 66 Managing the Phonebook 66 Checking the number of stored entries 67 Changing the sorting order 68 Naming phonebook groups 68 Making Calls with the Phonebook 68 Caller ID Features 70 Using the Caller ID List 70 Deleting Caller ID numbers 71 Answering Machine 72 Features 72 Setting Up the Answering Machine 73 Setting Your Outgoing Greeting 76 Using the Answering Machine 77 Contents UP744.book Page 1 Friday, November 5, 2004 4:22 PM [2] www.uniden.com Recording a phone conversation 80 Screening Calls 80 Do Not Disturb (DND) 81 Remote Operation 82 Multi-Handset Features 84 Using DirectLink Mode 84 Room/Baby Monitor 85 Intercom 86 Transferring a Call 86 Note on Power Sources 88 Power Failure 88 Battery replacement and handling 88 Warning 88 General Information 89 AC Adapter Information 89 Battery Information 89 Troubleshooting 90 System Reset 92 Liquid Damage 94 Precautions & Warranty 95 I.C. Notice 97 Index 98 UP744.book Page 2 Friday, November 5, 2004 4:22 PM Welcome/Features/ Terminology [ 3 ] Welcome/Features/Terminology www.uniden.com Thank you for purchasing a Uniden Multi-Handset phone. This phone is compatible with Bluetooth enabled mobile telephones and headsets, plus USB connection for convenient system setup. Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this manual may differ from the actual unit. As an Energy Star £ Partner, Uniden has determined that this product or product models meets the Energy Star £ guidelines for energy efficiency. Energy Star £ is a U.S. registered mark. • 5.8GHz Direct Spread Spectrum• Full Color Backlit Display • Integrated Answering Device• Caller ID/Call Waiting Deluxe Options• Compatible with Bluetooth Enabled Mobile Handset/Headsets • USB Cable/CD-Rom included for System Setup• 100 Programmable Phonebook Names with 400 Numbers• Recordable Ringer Tones• Battery Backup During Power Failure • Calendar w/Programmable Reminders Uniden £ is a registered trademark of Uniden America Corporation. AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America. WelcomeFeatures Welcome/ UP744.book Page 3 Friday, November 5, 2004 4:22 PM Welcome/Features/Terminology Welcome/Features/Te rminology [ 4 ] www.uniden.comTerminology • Standby Mode - The handset maybe sitting on or off the cradle, but is NOT in use. talk/flash or key (or the LAND or MOBILE soft key) has not been pressed. No dial tone is present. • Talk Mode - The handset is not in the cradle, and talk/flash or key has been pressed and enabling a dial tone. AccessibilityUniden provides a customer service hotline for accessib ility questions. If you have a disability and need customer service assistance or if yo u have any questions about how Uniden's products can accommodate persons with disabilities, please call the accessibility voice/TTY line: 1-800-874-9314A representative is available to talk to you M-F, 8:00 am to 5:00 pm , CST. After hours, you can leave us a message, and we will call you back. Information is also available on our website, www.uniden.com, under the "Accessibility" link. UP744.book Page 4 Friday, November 5, 2004 4:22 PM [5] Controls & Functions www.uniden.com Controls & Functions 1. New Message LED 2. Speakerphone Speaker and Ringer3. Sub LCD4. Handset Earpiece5. LCD display6. Volume up/down key (P.xX)7. (phonebook)/ (P.xx & xx) 8. talk/flash (P.xx & xx)9. back/hold/intercom (P.xx & xx)10. * (P.xx) 11.Soft keys (P.xx)12. / (increase volume) (P.xx & xx) 13.menu/select key (P.xx & xx)14.cid (Caller ID) / (P.xx & xx)15.redial/ (decrease volume)16.end (P.xx)17.# (P.xx) 18.Handset Microphone19.Handset Charging Contacts20.USB jack cover 21.Handset Antenna22.Headset Jack Cover23. (speaker phone) 24.Handset Battery Compartment 2120222324 1112131415161718 19 123 456789 10 UP744.book Page 5 Friday, November 5, 2004 4:22 PM Controls & Functions Controls & Functions [ 6 ] www.uniden.com 2526 27 28 29 30 31 32 45 46 42 43 44 34 3335363738394041 47 25. Base Charge Contacts26. Base Speaker27. Base Antenna28. dnd key (P.xx)29. LCD Display 30. Soft keys (P.xx)31. back/hold/intercom (P.xx xx & xx)32. Phonebook/ key (P.xx & xx)33. Volume up (P.xx) 34. menu/select (P.xx & xx)35. cid (Caller ID)/ (P.xx & xx)36. Volume down (P.xx)37. end/f…

Text truncated - open the document above for the full version.

COVER LETTER AND GENERAL INFORMATION November 24, 2004 To: Federal Communications Commission Subject: Data for FCC Certification Application Applicant: Uniden America Corporation 181 North Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone Base Unit with 2.4 GHz Bluetooth FCC RULES: Part 15.247 FCC IDENTIFIER: AMWUP744 Dear Sirs and/or Madams: The accompanying documentation represents out application for Equipment Authorization under FCC Parts 2 and 15. Quantity production is planned. EMC testing, which is required by the Commission, was performed at PCTEST Engineering Laboratory, Inc. of Columbia, Maryland. Their reports are included as Exhibits to this application. The above referenced cordless telephone, identified as AMWUP744 will be manufactured and marketed under various model numbers, including ELBT595. However, all models will be representative of the test data and specifications included in this application except for cosmetic variations and features not effecting compliance. The production of the models identified as AMWUP744 will be representative of the test data and specifications within the expected tolerances in mass-production. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

REQUEST FOR CONFIDENTIALITY November 19, 2004 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone Base with Bluetooth FCC IDENTIFIER: AMWUP744 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

BRIEF EXPLANATION OF DEVICE AND RELATIONSHIP OF FCC IDENTIFIERS: AMWUP744 AND AMWUP744R November 30, 2004 To: Federal Communications Commission Subject: FCC Certification Application Applicant: Uniden America Corporation 181 North Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone Base Unit with 2.4 GHz Bluetooth FCC RULES: Part 15.247 FCC IDENTIFIERS: AMWUP744 (for Base Unit) & AMWUP744R (for Remote Handset) Dear Sirs and/or Madams: The above referenced FCC Identifier represent a 5.8 GHz cordless telephone that operates using Direct Sequence Spread-Spectrum modulation; however, both the base unit as well as the handset contain a Bluetooth transmitter operating at 2.4 GHz utilizing Frequency Hopping Spread-Spectrum modulation. Together, they comprise our model ELBT595, although not exclusively. Another model (ELBT585) will be submitted soon that will utilize another base unit (AMWUP743) and the AMWUP744R remote handset. Still, another model will be submitted that will not contain any Bluetooth feature. Because of the fact that the two Equipment Classes (DSS & DTS) are contained in each base unit and remote handset, two separate applications are being submitted for the base unit as well as two additional applications are being submitted for the remote handset. I did not mark the applications as being part of a “system” since more than a single FCC Identifier could be used with the device being submitted. However, please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

January 21, 2005 To: Mr. Andrew Leimer Federal Communications Commission Re: FCC ID: AMWUP744 Applicant: Uniden America Corporation CRN: 28320 Dear Mr. Leimer: The information shown on the attached page of this letter was received from ALPS, the actual manufacturer of the Bluetooth Module that is incorporated within the subject device, AMWUP744. I trust that this information provides a satisfactory response to your request as stated in your email of January 12, 2005. Thank you for your consideration and please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs Received from ALPS on January 17, 2005 =========== Regarding the DUTY, there are two different kind of duty operating with bluetooth mode, one for frequency domain and other for time domain. 1) Frequency domain: 0.013 By assigning the 2402MHz for 2 ch and 2480MHz for 80ch, the duty for frequency sharing would be expressed as 0.013 (= 1/79) due to 79 of total available channels operated with 1 MHz step. 2) Time domain: Duty may be varied from 0.5 to 0.17 depend on actual usage of packet type such as for; a) In case of HV1 packet; When respecting 625us of the Bluetooth slot as a transmission unit, 1 slot transmission is made caused by every 2 slot. Therefore, duty is expressed as 0.5 (= 1/2). b) In case of HV2 packet; When respecting 625us of the Bluetooth slot as a transmission unit, 1 slot transmission is made caused by every 4 slot. Therefore, duty is expressed as 0.25 (= 1/4). c) In case of HV3 packet; When respecting 625us of the Bluetooth slot as a transmission unit, 1 slot transmission is made caused by every 6 slot. Therefore, duty is expressed as 0.17 (= 1/6). For more better understaing this matter, circuit description is attached herewith; (See attached file: Operation_UGZZ2_UGXZ2.PDF) Please note that the attachment being referenced was uploaded with the original filing as the Circuit Description file marked as “Confidential”.

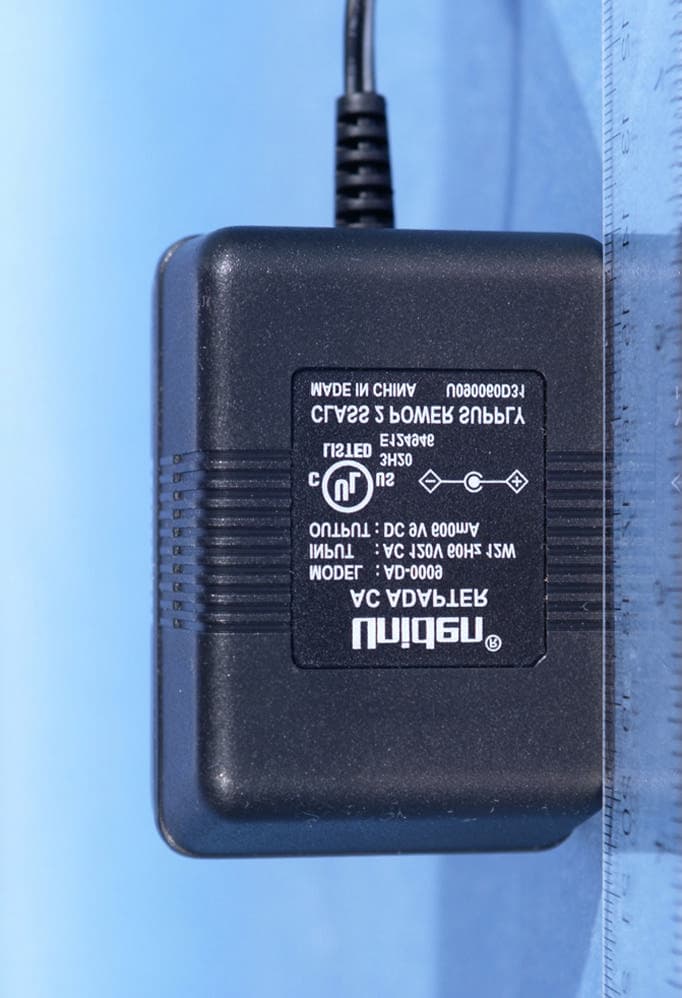

UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595

Equipment Identification Label Equipment Labels: The following Labels are permanently affixed to the Handset and the Base Unit respectively. 1)BASE UNIT: 52 mm (W) X 28 mm (H) 2) BASE UNIT (FCC STATEMENT): 52 mm (W) X 18 mm (H) 2) HANDSET: 40 mm (W) X 22 mm (H)

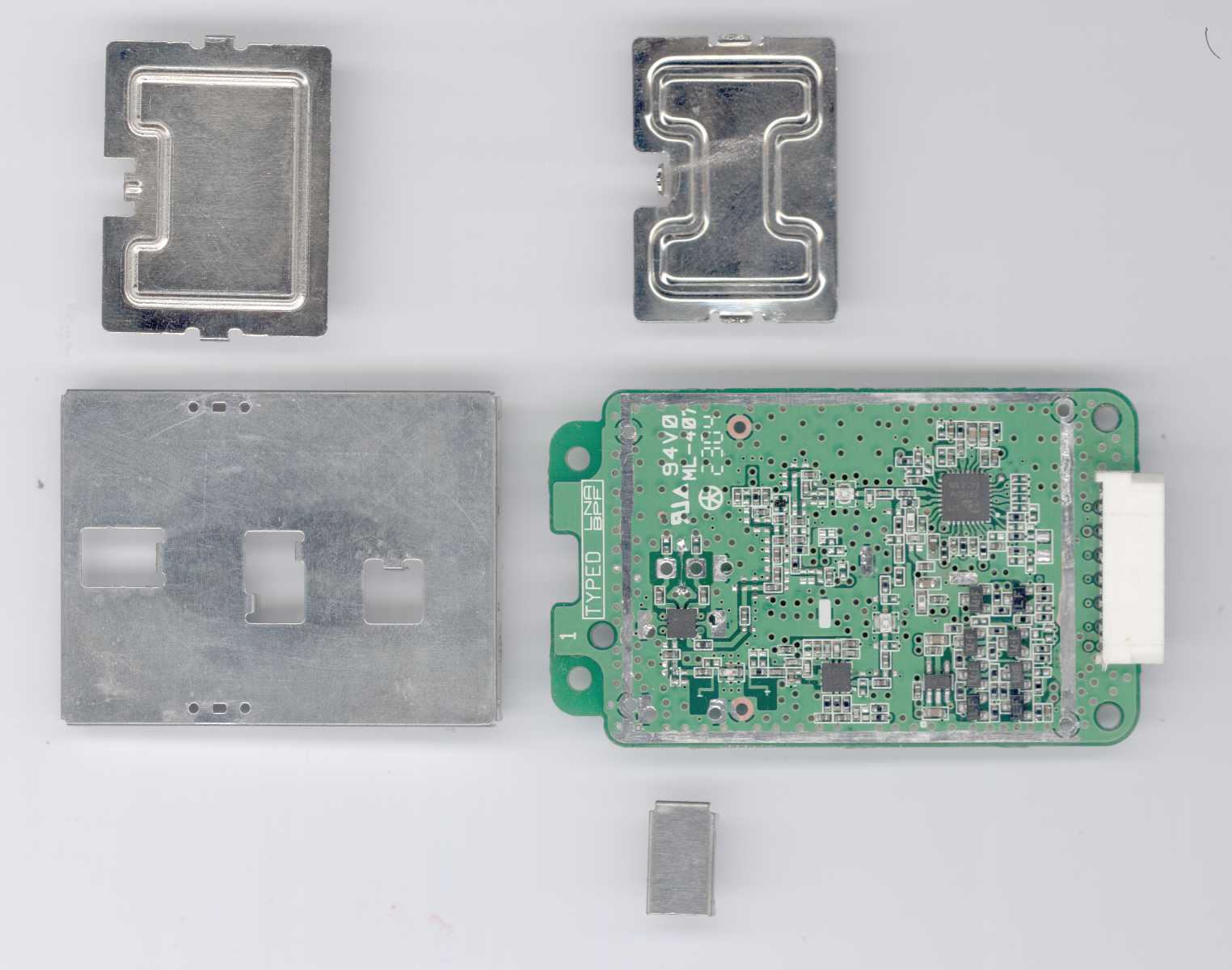

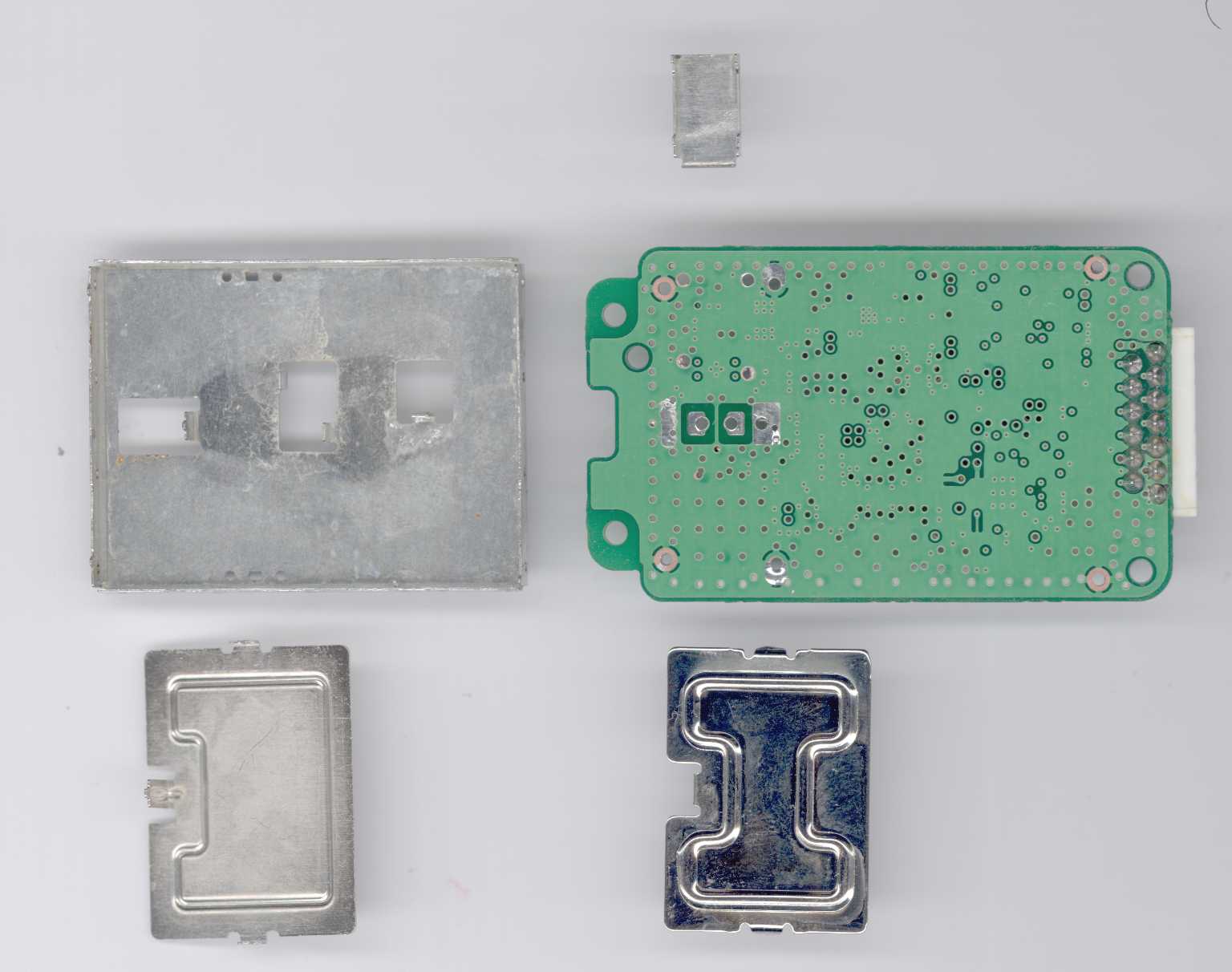

UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595

© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN Corporation Date(s) of Tests: October 11-13, 2004 2-12-7 Hatchobori, Chuo-ku Test Report S/N: 15.241011600.AMW Tokyo, JAPAN 104-8512 Test Site: PCTEST Lab, Columbia, MD FCC ID: AMWUP744 APPLICANT: UNIDEN CORPORATION SUMMARY: Model No.: ELBT595 Equipment EUT Type: 5.8 GHz Cordless Phone w/ Bluetooth Max. Output Power: 0.072 W 5.8 GHz (18.59 dBm) Frequency Range: 5741 – 5828 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2003 Test Device Serial No.: S/N: 1 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Digital Transmission System (DTS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 15.241011600.AMW Test Dates: Oct. 11-13, 2004 EUT Type: 5.8 GHz Cordless Phone w/ Bluetooth FCC ID: AMWUP744 Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC 15.247 MEASUREMENT REPORT COVER PAGE......................................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS........................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT.................................................................................................................10-12 EXHIBIT A. OUTPUT POWER MEASUREMENT ...............................................................................................................13 EXHIBIT A. POWER SPECTRAL DENSITY..........................................................................................................................14-16 EXHIBIT A. BANDEDGE.....................................................................................................................................................17 EXHIBIT A. RADIATED FUNDAMENTAL & HARMONIC MEASUREMENTS...................................................................18-21 EXHIBIT A. RADIATED SPURIOUS BAND MEASUREMENTS..........................................................................................22 EXHIBIT A. RECEIVER MODE LINE CONDUCTED........................................................................…

Text truncated - open the document above for the full version.

UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744 EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595
