AMWUP744R5.8 GHz Cordless Telephone w/Bluetooth

ELBT 595 SERIES OWNER'S MANUAL [1] www.uniden.com Welcome/Features/Terminology 3 Accessibility 4 Controls & Functions 5 Setting up the Phone 7 Choose the best location 7 Power Backup Feature 8 Install the rechargeable battery pack 9 Low battery alert 10 Cleaning the battery charging contacts 10 Connect the base unit and charge the handset 11 Mounting the Base Unit on a Wall 12 Standard wall plate mounting 12 Expanding Your Phone 13 Backwards/Forwards Compatibility 13 Connect the expansion handset's charger 14 Register the Handset 14 Register the ELX500 expansion handset to main base 15 Changing the Digital Security Code 16 Installing the Holster 16 Optional Headset Installation 17 Installation of PC Application CD-ROM 17 Using the Interface 19 Display Icons 20 Soft Key Function 21 Entering text 23 Main Menu Options 24 Setup Menu 25 System Setup 25 Global Setup 29 Setting the Ringer Options 31 Display Setting (Handset Only) 36 Using Bluetooth Feature 39 Registering Your Cellular Phone to Your Phone 39 Using Bluetooth headset 43 De-register the Bluetooth Headset 46 Using Your Phone 47 Making Calls 47 From the Handset Speakerphone 48 From the base 49 Receiving a call/AutoTalk set to OFF 49 Hanging Up 50 Switching to the Handset Speakerphone During a Call 50 Moving out of range 50 Call Waiting 51 Placing a Call on Hold 52 Conferencing 52 Mobile Line Transfer 54 Redialing Calls 55 Adjusting the Base Ringer and Speaker 56 Using the Handset Volume Setting Menu 57 Mute 59 Mute the Handset Microphone 59 Tone Dialing Switch Over 59 Privacy Mode 60 Find Handset 60 Reminder (Handset only) 61 Using the Phonebook 63 Creating and Editing Phonebook Entries 63 Storing Caller ID or Redial Numbers in the Phonebook 66 Managing the Phonebook 66 Checking the number of stored entries 67 Changing the sorting order 68 Naming phonebook groups 68 Making Calls with the Phonebook 68 Caller ID Features 70 Using the Caller ID List 70 Deleting Caller ID numbers 71 Answering Machine 72 Features 72 Setting Up the Answering Machine 73 Setting Your Outgoing Greeting 76 Using the Answering Machine 77 Contents UP744.book Page 1 Friday, November 5, 2004 4:22 PM [2] www.uniden.com Recording a phone conversation 80 Screening Calls 80 Do Not Disturb (DND) 81 Remote Operation 82 Multi-Handset Features 84 Using DirectLink Mode 84 Room/Baby Monitor 85 Intercom 86 Transferring a Call 86 Note on Power Sources 88 Power Failure 88 Battery replacement and handling 88 Warning 88 General Information 89 AC Adapter Information 89 Battery Information 89 Troubleshooting 90 System Reset 92 Liquid Damage 94 Precautions & Warranty 95 I.C. Notice 97 Index 98 UP744.book Page 2 Friday, November 5, 2004 4:22 PM Welcome/Features/ Terminology [ 3 ] Welcome/Features/Terminology www.uniden.com Thank you for purchasing a Uniden Multi-Handset phone. This phone is compatible with Bluetooth enabled mobile telephones and headsets, plus USB connection for convenient system setup. Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this manual may differ from the actual unit. As an Energy Star £ Partner, Uniden has determined that this product or product models meets the Energy Star £ guidelines for energy efficiency. Energy Star £ is a U.S. registered mark. • 5.8GHz Direct Spread Spectrum• Full Color Backlit Display • Integrated Answering Device• Caller ID/Call Waiting Deluxe Options• Compatible with Bluetooth Enabled Mobile Handset/Headsets • USB Cable/CD-Rom included for System Setup• 100 Programmable Phonebook Names with 400 Numbers• Recordable Ringer Tones• Battery Backup During Power Failure • Calendar w/Programmable Reminders Uniden £ is a registered trademark of Uniden America Corporation. AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America. WelcomeFeatures Welcome/ UP744.book Page 3 Friday, November 5, 2004 4:22 PM Welcome/Features/Terminology Welcome/Features/Te rminology [ 4 ] www.uniden.comTerminology • Standby Mode - The handset maybe sitting on or off the cradle, but is NOT in use. talk/flash or key (or the LAND or MOBILE soft key) has not been pressed. No dial tone is present. • Talk Mode - The handset is not in the cradle, and talk/flash or key has been pressed and enabling a dial tone. AccessibilityUniden provides a customer service hotline for accessib ility questions. If you have a disability and need customer service assistance or if yo u have any questions about how Uniden's products can accommodate persons with disabilities, please call the accessibility voice/TTY line: 1-800-874-9314A representative is available to talk to you M-F, 8:00 am to 5:00 pm , CST. After hours, you can leave us a message, and we will call you back. Information is also available on our website, www.uniden.com, under the "Accessibility" link. UP744.book Page 4 Friday, November 5, 2004 4:22 PM [5] Controls & Functions www.uniden.com Controls & Functions 1. New Message LED 2. Speakerphone Speaker and Ringer3. Sub LCD4. Handset Earpiece5. LCD display6. Volume up/down key (P.xX)7. (phonebook)/ (P.xx & xx) 8. talk/flash (P.xx & xx)9. back/hold/intercom (P.xx & xx)10. * (P.xx) 11.Soft keys (P.xx)12. / (increase volume) (P.xx & xx) 13.menu/select key (P.xx & xx)14.cid (Caller ID) / (P.xx & xx)15.redial/ (decrease volume)16.end (P.xx)17.# (P.xx) 18.Handset Microphone19.Handset Charging Contacts20.USB jack cover 21.Handset Antenna22.Headset Jack Cover23. (speaker phone) 24.Handset Battery Compartment 2120222324 1112131415161718 19 123 456789 10 UP744.book Page 5 Friday, November 5, 2004 4:22 PM Controls & Functions Controls & Functions [ 6 ] www.uniden.com 2526 27 28 29 30 31 32 45 46 42 43 44 34 3335363738394041 47 25. Base Charge Contacts26. Base Speaker27. Base Antenna28. dnd key (P.xx)29. LCD Display 30. Soft keys (P.xx)31. back/hold/intercom (P.xx xx & xx)32. Phonebook/ key (P.xx & xx)33. Volume up (P.xx) 34. menu/select (P.xx & xx)35. cid (Caller ID)/ (P.xx & xx)36. Volume down (P.xx)37. end/f…

Text truncated - open the document above for the full version.

Using Your Phone [ 5 3 ] Using Your Phone www.uniden.com From the base1) Press corresponding soft key (LAND or MOBILE) on the base to join the conference call. 2) To hang up, press /flash on the base. The handset(s) will still be connected to the call. From a second handset1) Press corresponding soft key (LAND or MOBILE ) on the handset to join the call. 2) To hang up, return the handset to the cradle, or press end on the handset. The base or other handset will stil l be connected to the call. Conferencing with one outside lineTo hold a conference call with one outside line, simply have the handsets or base join the call.Conferencing with telephone line (LAND / MOBILE)Follow the steps below to allow both outside lines to participate in a conference call:1) During a call, press back/hold/intercom twice to put the first caller on hold. 2) Press the line soft key (LAND or MOBILE) for a free line to make or answer a second call. 3) When the second call is connected, press menu/select and select %QPHGTGPEG to initiate a conference call. 4) To disconnect a single caller, press the corresponding soft key (LAND or MOBILE) to place the caller you wish to keep speaking to on hold and then press the END soft key to hang up the other caller. UP744.book Page 53 Friday, November 5, 2004 4:22 PM Using Your Phone Using Your Phone [54] www.uniden.com For example, to hang up MOBILE line but leave LAND line connected:-Press LAND soft key to put LAND line on hold. -Press end to hang up MOBILE line. -Press the LAND soft key to take LAND line off hold and continue the conversation. To hang up both lines, press talk/flash or (or / flash on the base). Mobile Line TransferTo forward or receive a call from or to MOBILE line. Follow the steps below; F rom MOBILE line Press the MOBILE soft key during a call, and then the CONNECT soft key. To MOBILE linePress menu/select during a call, and select 6TCPUHGT /QDKNG . 6TCPUHGTTGF appears and the phone return to standby mode. UP744.book Page 54 Friday, November 5, 2004 4:22 PM Using Your Phone [ 5 5 ] Using Your Phone www.uniden.com Redialing CallsYou can quickly redial the last 20 phone numbers for each handset and 10 numbers for the base.With the phone in standby mode, press redial/ on the handset (or press the MENU soft key, and then select redial on the base). This brings up the redial list. Use up/down key to scroll through the numbers, and select the number you want to dial.Press talk/flash (or /flash ) or on the base to dial the selected number. If you want to call using Mobile line, press the CALL soft key, then MOBILE soft key. Use up/down key to select the cellular phone to use and press CONNECT soft key. You can also display the list for redial number with the phone in talk mode. After select the redial number, press the DIAL soft key to redial the number.Deleting Redial RecordsIf you want to delete a phone number from the redial list, go to the redial list in standby mode, and select the number you want to delete. Press the OPTIONS soft key, and select &GNGVG5GNGEVKQP , and then ;GU . If you want to delete all the redial records, select &GNGVG#NN and then ;GU . 4GFKCN  126+105126+105 %#..%#.. •Each redial record can store up to 32 digits. •To store redial numbers in the Phonebook, see page 66. note UP744.book Page 55 Friday, November 5, 2004 4:22 PM Using Your Phone Using Your Phone [56] www.uniden.com Adjusting the Base Ringer and SpeakerAdjusting the base ringer volumeYou can choose from three ringer settings on the base: off, low, and high. When the phone is in standby mode, go to Rings/Volumes menu, and then select 4KPIGT8QNWOG . Use up/down key to select the Tel type (LAND or MOBILE), and press menu/select . Use up/down key to select the ringer volume, and menu/select . You will here a confirmation tone. Adjusting the base speaker volumeYou can adjust the volume of the answering machine speaker while a message is playing. Press volume up/down during a message to choose one of the 10 volume levels.You can also set the speaker volume from the base. Go to Rings/Volumes menu, and then select 5RGCMGT8QNWOG . Use the up/down key to select the speaker volume, and then menu/select . You will here a confirmation tone. UP744.book Page 56 Friday, November 5, 2004 4:22 PM Using Your Phone [ 5 7 ] Using Your Phone www.uniden.com Using the Handset Volume Setting MenuRinger: Adjust the handset ringer volume You can choose from three different ringer volume settings on your handset: off, low, and high. When the phone is in standby mode, go to the Rings/Volumes menu, and then select Ringer Options. Use up/down key to select the Tel type (LAND or MOBILE), and press menu/select. Use up/down key to select the ringer volume, and menu/select. You will here a confirmation tone.Ear speaker: Adjust the handset earpiece volume During a call.You can choose from six volume levels for the earpiece speaker. To adjust the earpiece volume, go to Speaker Setup menu, and select 'CTRKGEG8QNWOG and select the volume level you want to use.You can also adjust the earpiece volume during a call by pressing volume up/down keys, and then up (to make it louder) or down (to make it softer). 4KPIGT8QNWOG *KIJ 5'.'%6 5'.'%6   4KPIGT1RVKQPU 'CTRKGEG 5'.'%65'.'%6 5'.'%6   5RGCMGT5GVWR UP744.book Page 57 Friday, November 5, 2004 4:22 PM Using Your Phone Using Your Phone [58] www.uniden.com Speaker: Adjust the handset speaker volume You can choose from six volume levels for the handset speakerphone. To adjust the speaker volume, go to Speaker Setup menu, and select 5RGCMGT XQNWOG select the volume level you want to use.You can also adjust the handset speak er volume during a call by and then (to make it louder) or down (to make it softer). Audio ToneIf you aren't satisfied with the audio quality of your phone, you can adjust the Audio Tone of the earpiece. Your phone gives you three audio tone options: low…

Text truncated - open the document above for the full version.

[95] Precautions & Warranty www.uniden.com Precautions!Before you read anything else, please observe the following:Warning!Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.Rechargeable Lithium Ion and Nickel-Metal-Hydride Battery Warning• This equipment contains rechargeable Lithium Ion Nickel-Metal- Hydride battery. • The rechargeable batteries contained in this equipment may explode if disposed of in a fire. • Nickel is a chemical known to state of California to cause cancer.• Do not short-circuit the battery.• Do not charge the rechargeable battery used in this equipment in any charger other than the one designed to charge this battery as specified in the owner's manual. Using another charger may damage the battery or cause the battery to explode. Rechargeable Batteries Must Be Recycled or Disposed of Properly The exclamation point within an equilateral is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Uniden works to reduce lead content in our PVC coated cords in our products and accessories.Warning!The cords on this product and/or accessories contain lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling . Important Safety InstructionsWhen using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible battery disposal instructions. 5. Do not disassemble any component of this product. SAVE THESE INSTRUCTIONS CAUTIONRisk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Do not open or mutilate the battery, and disconnect the battery before shipping this product.The FCC Wants You To KnowThis equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.An applicable Universal Service Order Codes (USOC) certification for the jacks used in this equipment is provided (i.e., RJ11C) in the packaging with each piece of approved terminal equipment. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. Please follow instructions for repairing, if any (e.g. battery replacement section); otherwise do not substitute or repair any parts of the device except as specified in this manual.Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.This equipment is hearing aid compatible.Should you experience trouble with this equipment, please contact Uniden customer service at 800-297-1023. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.NOTICE: According to telephone company reports, AC electrical surges, typically resulting from lightning strikes, are very destructive to telephone equipment connected to AC power sources. To minimize damage from these types of surges, a surge arrestor is recommended.Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by the owner's manual, could void your authority to operate this product.This device complies with part 15 of the FCC rules. Operation is su…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY December 1, 2004 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone Remote Handset with Bluetooth FCC IDENTIFIER: AMWUP744R Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

BRIEF EXPLANATION OF DEVICE AND RELATIONSHIP OF FCC IDENTIFIERS: AMWUP744 AND AMWUP744R November 30, 2004 To: Federal Communications Commission Subject: FCC Certification Application Applicant: Uniden America Corporation 181 North Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone Base Unit with 2.4 GHz Bluetooth FCC RULES: Part 15.247 FCC IDENTIFIERS: AMWUP744 (for Base Unit) & AMWUP744R (for Remote Handset) Dear Sirs and/or Madams: The above referenced FCC Identifier represent a 5.8 GHz cordless telephone that operates using Direct Sequence Spread-Spectrum modulation; however, both the base unit as well as the handset contain a Bluetooth transmitter operating at 2.4 GHz utilizing Frequency Hopping Spread-Spectrum modulation. Together, they comprise our model ELBT595, although not exclusively. Another model (ELBT585) will be submitted soon that will utilize another base unit (AMWUP743) and the AMWUP744R remote handset. Still, another model will be submitted that will not contain any Bluetooth feature. Because of the fact that the two Equipment Classes (DSS & DTS) are contained in each base unit and remote handset, two separate applications are being submitted for the base unit as well as two additional applications are being submitted for the remote handset. I did not mark the applications as being part of a “system” since more than a single FCC Identifier could be used with the device being submitted. However, please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

COVER LETTER AND GENERAL INFORMATION December 1, 2004 To: Federal Communications Commission Subject: Data for FCC Certification Application Applicant: Uniden America Corporation 181 North Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone Remote Handset with 2.4 GHz Bluetooth FCC RULES: Part 15.247 FCC IDENTIFIER: AMWUP744R Dear Sirs and/or Madams: The accompanying documentation represents out application for Equipment Authorization under FCC Parts 2 and 15. Quantity production is planned. This letter will be filed in both applications for the two separate Equipment Codes, one for DSS and the other for DTS EMC testing, which is required by the Commission, was performed at PCTEST Engineering Laboratory, Inc. of Columbia, Maryland. Their reports are included as Exhibits to this application. The above referenced cordless telephone remote handset, identified as AMWUP744R will be manufactured and marketed under various model numbers, including ELBT595. However, all models will be representative of the test data and specifications included in this application except for cosmetic variations and features not effecting compliance. The production of the models identified as AMWUP744R will be representative of the test data and specifications within the expected tolerances in mass-production. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

January 21, 2005 To: Mr. Andrew Leimer Federal Communications Commission Re: FCC ID: AMWUP744R Applicant: Uniden America Corporation CRN: 28311 Dear Mr. Leimer: A typographical error was found in the SAR report. Now both the SAR and EMC reports show the same power. A revised SAR Report is being uploaded along with this cover letter.. The RF Exposure instructions are shown on page 43/53 in the Owner’s Manual (Part 2). This is basically the same language that we use for most all of our cordless telephones with similar RF Exposure concerns. A file entitled “RF Exposure information in OM.pdf” is being uploaded for your review. Concerning item 3 of your email, this was entirely my mistake which I recently uploaded the correct files. Please accept my apologies for this error. I trust that this information, plus the files being uploaded, provide a satisfactory response to your request as stated in your email of January 12, 2005. Thank you for your consideration and please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

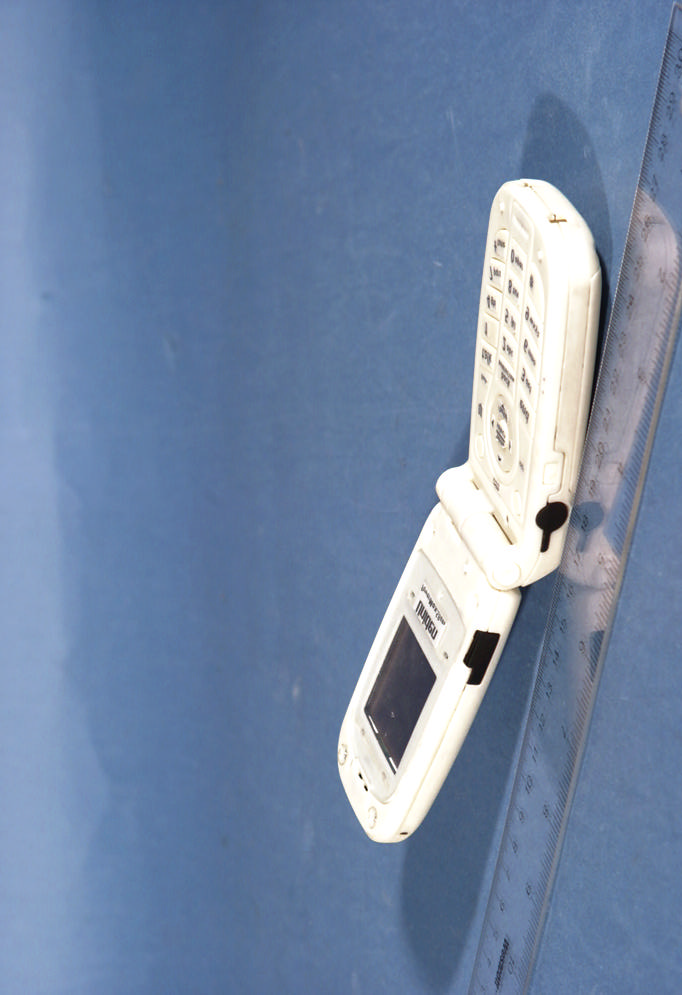

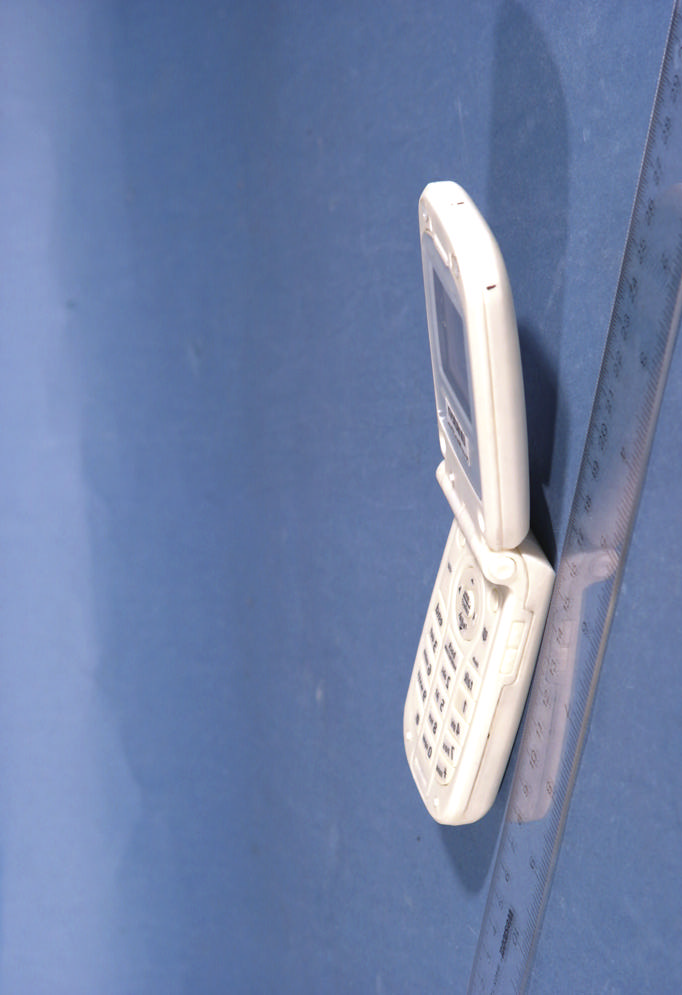

UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth & WLAN Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595

Equipment Identification Label Equipment Labels: The following Labels are permanently affixed to the Handset and the Base Unit respectively. 1)BASE UNIT: 52 mm (W) X 28 mm (H) 2) BASE UNIT (FCC STATEMENT): 52 mm (W) X 18 mm (H) 2) HANDSET: 40 mm (W) X 22 mm (H)

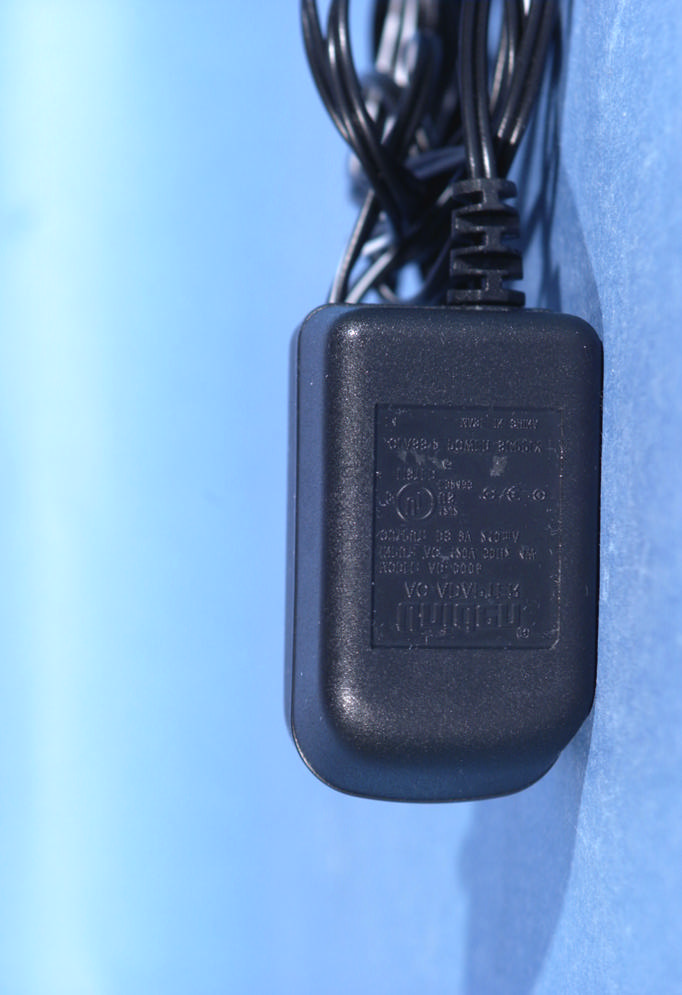

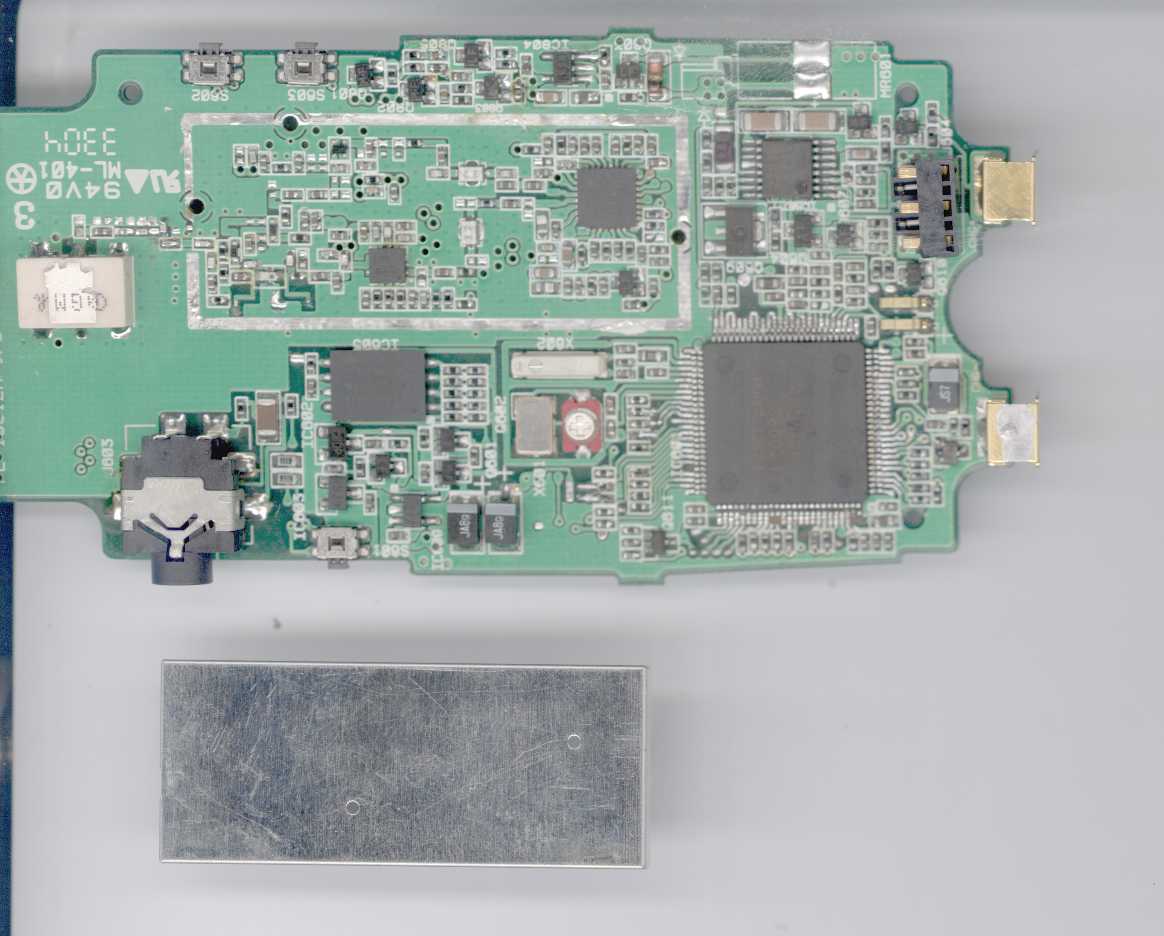

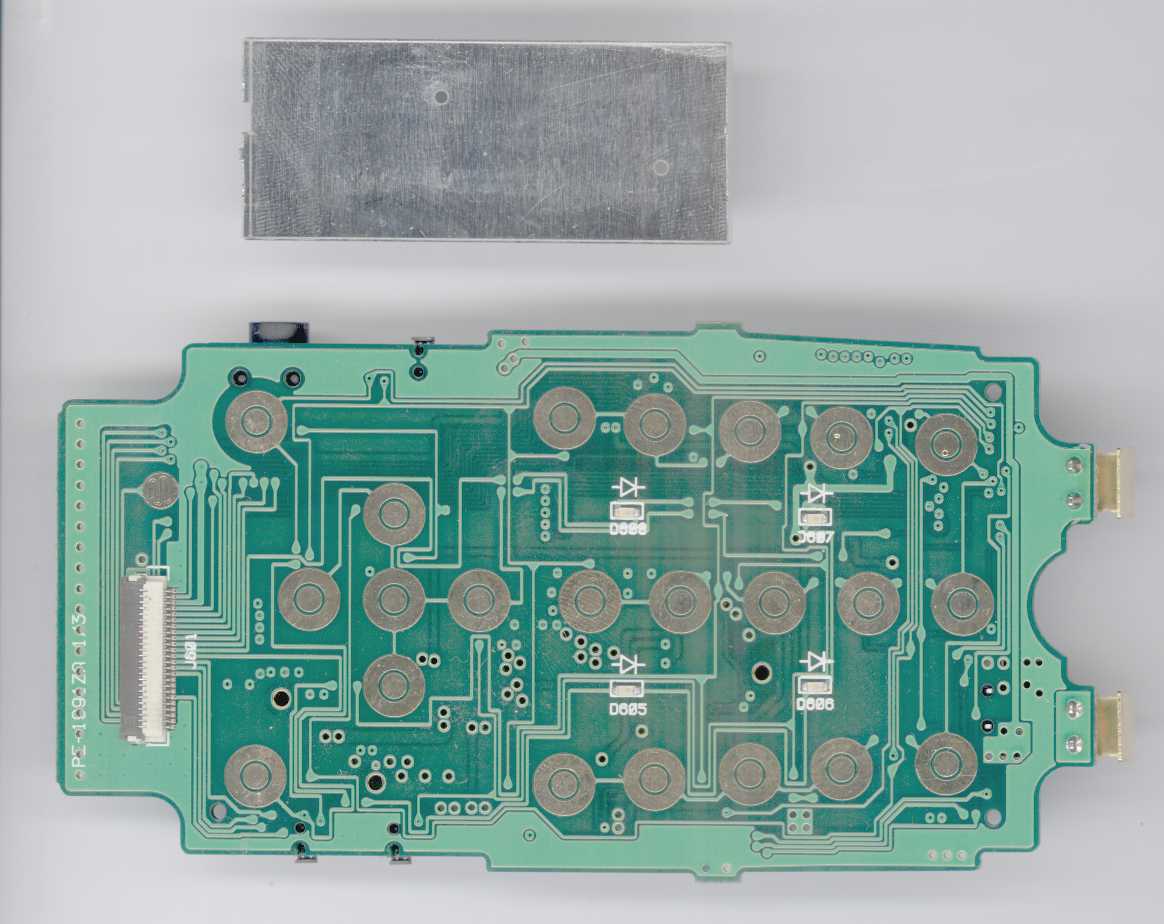

UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595 UNIDEN FCC ID: AMWUP744R EUT Photographs © 2004 PCTEST Lab. 5.8 GHz Cordless Phone w/ Bluetooth Model: ELBT595

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.241011601.AMW Test Dates: October 11-13, 2004 Phone Type: 5.8 GHz Cordless Phone w/ Bluetooth FCC ID: AMWUP744R Page 1 of 26 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN Corporation Dates of Tests: October 11-13, 2004 2-12-7 Hatchobori, Chuo-ku Test Report S/N: SAR.241011601.AMW Tokyo, JAPAN 104-8512 Test Site: PCTEST Lab, Columbia MD FCC ID: AMWUP744R APPLICANT: UNIDEN CORPORATION EUT Type: 5.8 GHz Cordless Phone w/ Bluetooth Tx Frequency: 5741 – 5828 MHz/ 2402 – 2480 MHz Rx Frequency: 5741 – 5828 MHz/ 2402 - 2480 MHz Max. RF Output Power: 0.069 W 5.8 GHz (18.37 dBm) 0.013 W 2.4 GHz (1.07 dBm) Max. SAR Measurement: 0.109 W/kg Head SAR; 1.110 W/kg Body SAR; Trade Name/Model(s): ELBT595 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.241011601.AMW Test Dates: October 11-13, 2004 Phone Type: 5.8 GHz Cordless Phone w/ Bluetooth FCC ID: AMWUP744R Page 2 of 26 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................18-32 15. SAR TEST EQUIPMENT..........................................................................................33 16. CONCLUSION...............................................................................................................25 17. REFERENCES...........................................................…
