65 Precautions! Before you read anything else, please note the following: Warning! Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture. Rechargeable Nickel-Metal-Hydride Battery Warning • This equipment contains a rechargeable Nickel-Metal- Hydride battery. The rechargeable batteries contained in this equipment may explode if disposed of in a fire. • Nickel is a chemical known to state of California to cause cancer. • Do not short-circuit the battery. • Do not charge the rechargeable battery used in this equipment in any charger other than the one designed to charge this battery as specified in the owner's manual. Using another charger may damage the battery or cause the battery to explode. Rechargeable Batteries Must Be Recycled or Disposed of Properly Uniden works to reduce lead content in our PVC coated cords in our products and accessories. Warning! The cords on this product and/or accessories contain lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local authorities for possible battery disposal instructions. 5. Do not disassemble any component of this product. SAVE THESE INSTRUCTIONS CAUTION! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Do not open or mutilate the battery, and disconnect the battery before shipping this product. 66 The FCC Wants You To Know This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US: AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. An applicable Universal Service Order Codes (USOC) certification for the jacks used in this equipment is provided (i.e., RJ11C) in the packaging with each piece of approved terminal equipment. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the telephone provider. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. Please follow instructions for repairing, if any (e.g. battery replacement section); otherwise do not substitute or repair any parts of the device except as specified in this manual. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. This equipment is hearing aid compatible Should you experience trouble with this equipment, please contact Uniden customer service at 800-297-1023. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. NOTICE: According to telephone company reports, AC electrical surges, typically resulting from lightning strikes, are very destructive to telephone equipment connected to AC power sources. To minimize damage from these types of surges, a surge arrestor is recommended. Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by the owner’s manual, could void your authority to operate this product. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not b…

Text truncated - open the document above for the full version.

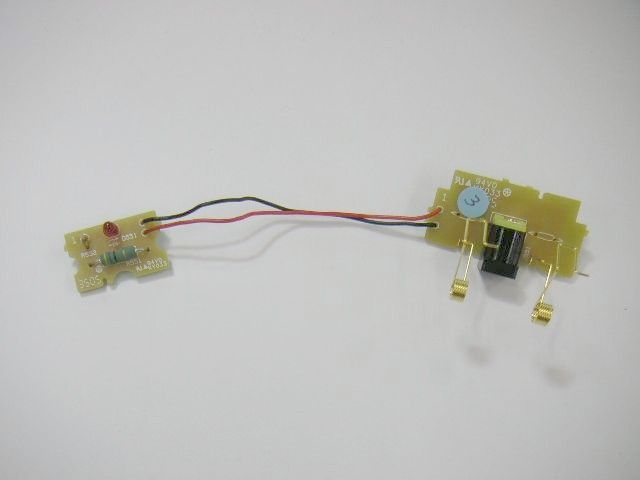

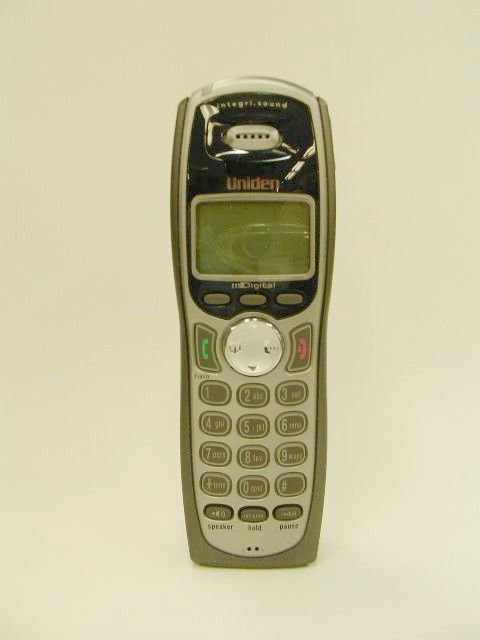

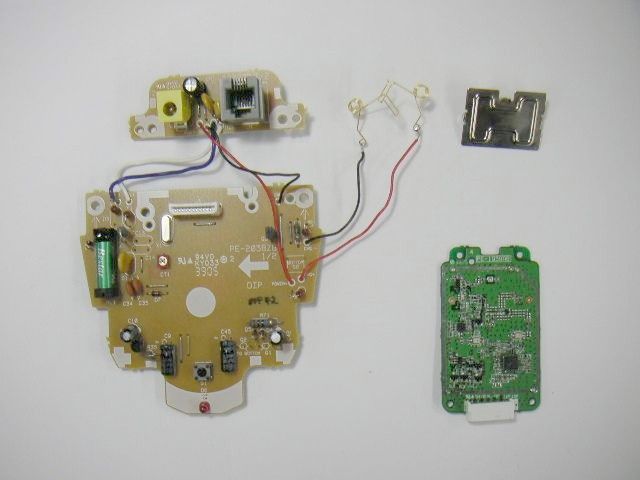

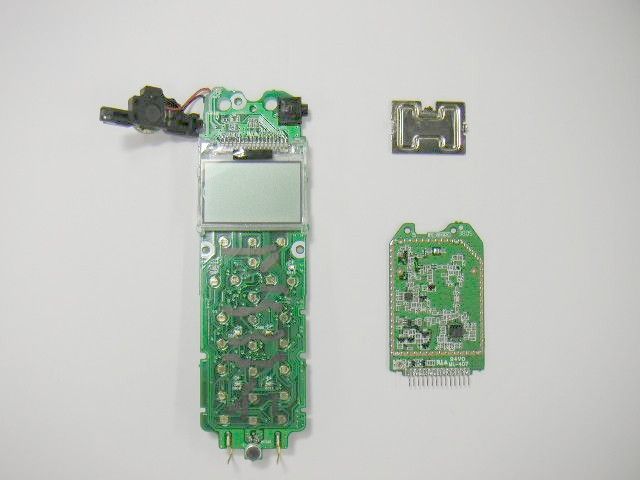

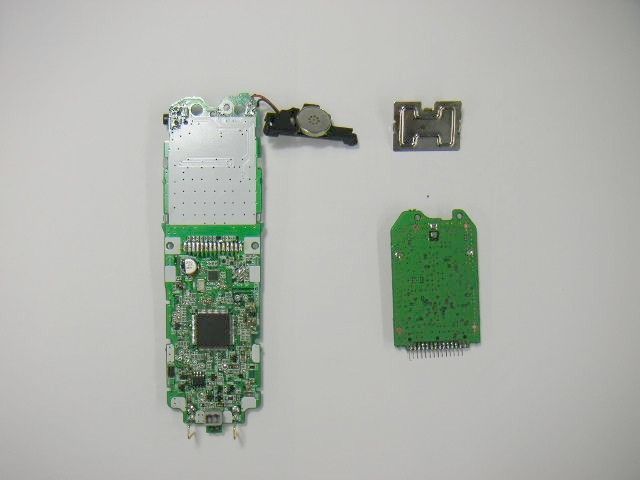

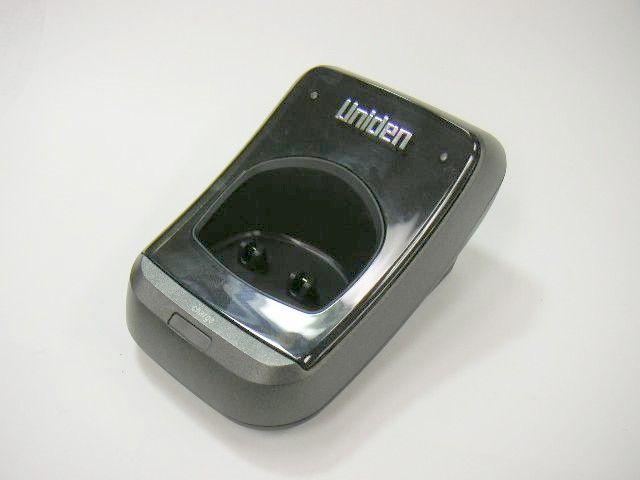

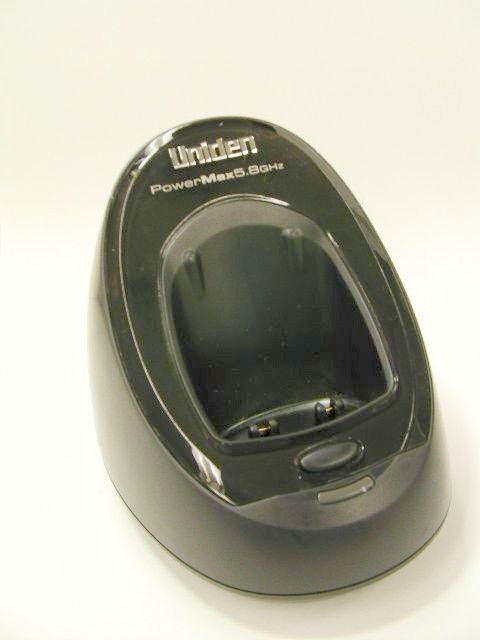

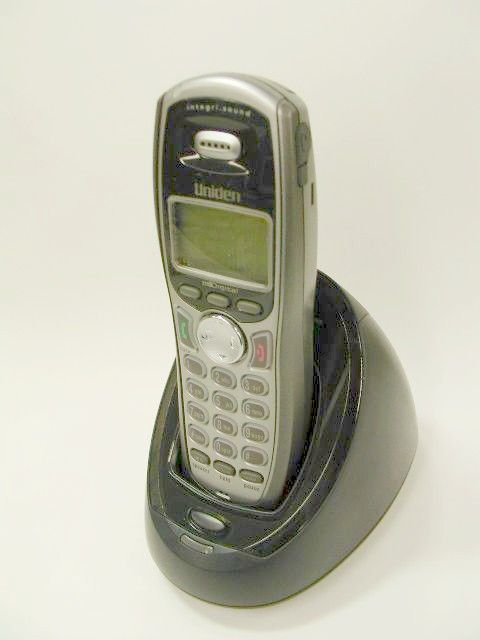

GENERAL INFORMATION AND ATTESTATION STATEMENT December 9, 2005 To: Federal Communications Commission Subject: Data for FCC Certification Application Applicant: Uniden America Corporation 181 North Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone FCC RULES: Part 15.247 FCC IDENTIFIER: AMWUP758 Dear Sirs and/or Madams: The accompanying documentation represents our application for Equipment Authorization under FCC Parts 2 and 15. Quantity production is planned. Both EMC and SAR testing, which is required by the Commission, have been performed by TIMCO Engineering and Celltech Labs respectively. Their reports are included as Exhibits to this application. The 5.8 GHz cordless telephones, identified as AMWUP758 will be manufactured and marketed under various model numbers, including TRU9460. However, all models will be representative of the test data and specifications included in this application except for cosmetic variations and features not effecting compliance. The production of the models identified as AMWUP758 will be representative of the test data and specifications within the expected tolerances in mass-production. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

REQUEST FOR CONFIDENTIALITY December 9, 2005 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification under Part 15 Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone FCC IDENTIFIER: AMWUP758 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

EXPLANATION OF CORRECTED IDENTIFICATION LABEL December 11, 2005 To: Federal Communications Commission Subject: Data for FCC Certification Application Applicant: Uniden America Corporation 181 North Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: 5.8 GHz Cordless Telephone FCC RULES: Part 15.247 FCC IDENTIFIER: AMWUP758 Dear Sirs and/or Madams: Subsequent to uploading the above referenced application for equipment authorization, I noticed that inadvertently the wrong identification label drawing exhibit file [Label Drawing.pdf] had been submitted instead of the proper exhibit. Please accept my sincere apology for this error. However, I have uploaded a new identification label drawing exhibit with a file name [Corrected Label Drawing.pdf], which replaces the one submitted by mistake. Thank you for your consideration in this matter. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

From: Mario de Aranzeta Engineer Timco Engineering Inc. To: Steve Dayhoff FCC Equipment Authorization Branch Re: FCC ID: AMWUP758 Applicant: Uniden America Corporation Correspondence Reference Number: 30354 731 Confirmation Number: EA244412 Subject: Request for additional information 1. Please determine the actual antenna gains of the handset and base units, and calculate the conducted powers based on the following formula from KDB Publication No. 558074 "Guidance on Measurements for Digital Transmission Systems (47 CFR 15.247)" Alternative procedures: P= (E*d)^2 / 30*G Where G= gain of handset and base antennas over an isotropic. Steve, The manufacturer states the antenna gains are +4 dBi. So using the formula we get for the handset (peak): mWattsPomW 141.619= Watts PoW 0.142= PomW Po .001⋅:=PoW Po .000001⋅:= Po 1.416 10 5 ×= Po D efsmV⋅() 2 30 gn⋅() := gn 2.512= efsmV 1.089 10 3 ×= gain numeric gn 10 G 10 := efsmV efs .001⋅:= efs 1.089 10 6 ×= efs 10 dBuV 20 := Distance in meters D3:= in dBi G4:=dBuV 120.74:= For the base (peak) we get: mWattsPomW 94.65= Watts PoW 0.095= PomW Po .001⋅:=PoW Po .000001⋅:= Po 9.465 10 4 ×= Po D efsmV⋅() 2 30 gn⋅() := gn 2.512= efsmV 890.225= gain numeric gn 10 G 10 := efsmV efs .001⋅:= efs 8.902 10 5 ×= efs 10 dBuV 20 := Distance in meters D3:= in dBi G4:=dBuV 118.99:= 2. SAR report shows 152mW radiated power, but EMC report has 360mW. Explain, or revise for consistency. Please note in Celltech’s report that the 152.05 mW is source based time averaged. The peak powers are listed on page 7 (bottom) of their report in the “Free-Space Power Measurements” table. The field strength values obtained by Celltech and us compare as follows: Frequency Celltech Timco 5828 123.07 dBuV/m 120.74 dBuV/m 608 mW 360 mW If we then use the free space equation and unity gain antennas to obtain power. We get 608 mW (peak) versus 360 mW (peak). A difference of 2.3 dB. We are revising the TIMCO report to show source based time averaging power for consistency.

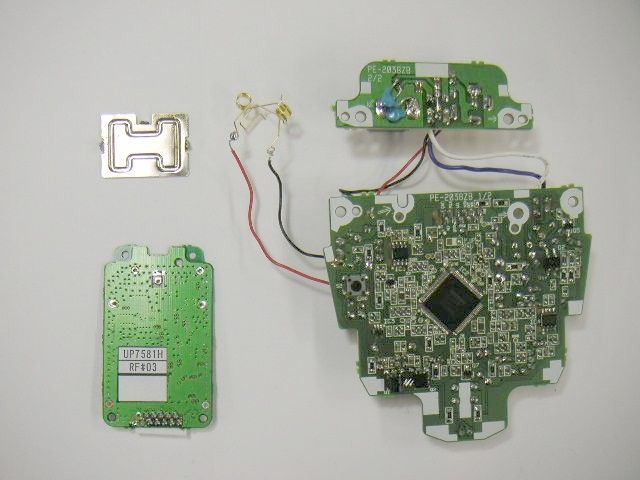

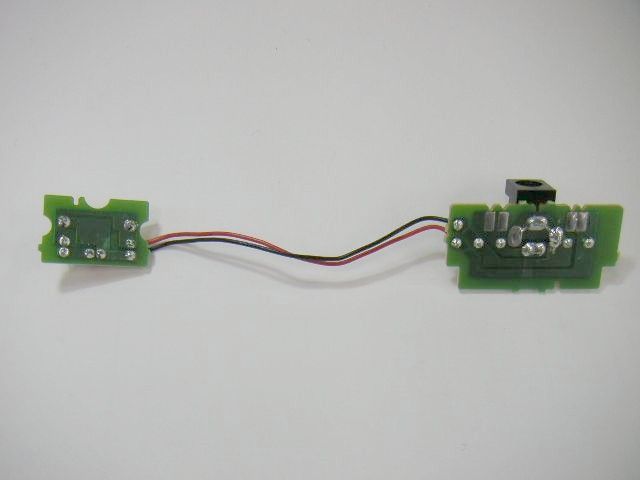

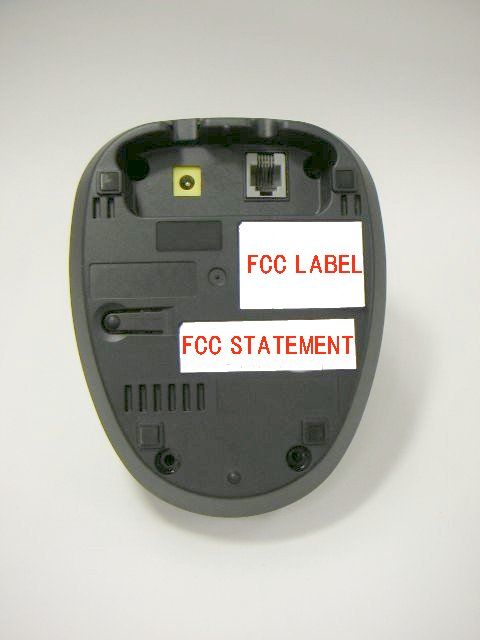

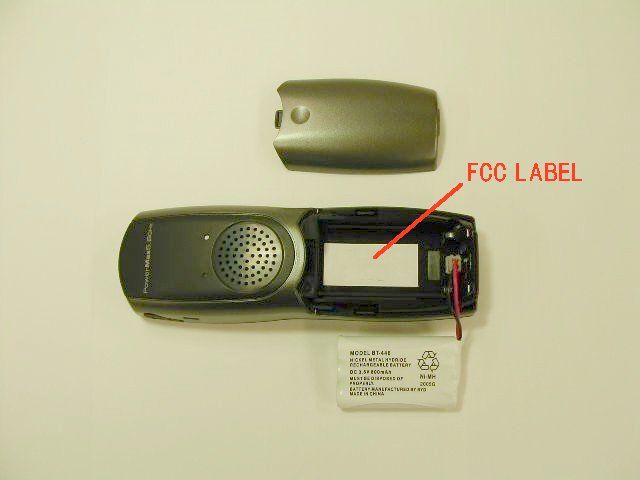

Equipment Identification Label Equipment Labels: The following Labels are permanently affixed to the Handset and the Base Unit respectively. 1) BASE UNIT: 52 mm (W) X 28 mm (H) 2) BASE UNIT (FCC STATEMENT): 52 mm (W) X 18 mm (H) 2) HANDSET: 31 mm (W) X 53 mm (H) HAC

label.doc 1 Equipment Identification Label Equipment Labels: The following Labels are permanently affixed to the Handset and the Base Unit respectively. 1) BASE UNIT: 52 mm (W) X 28 mm (H) 2) BASE UNIT (FCC STATEMENT): 52 mm (W) X 18 mm (H) 2) HANDSET: 31 mm (W) X 53 mm (H) MADE IN CHINA UNIDEN AMERICA CORPORATION MODEL: TRU9460 FCC ID: AMWUP758 COMPLIES WITH PART 68, FCC RULES REGISTRATION NO. US:AMWWI00BUP320 RINGER EQUIVALENCE: 0.0B SERIAL NO: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. NICKEL METAL HYDRIDE RECHARGEABLE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY HAC Uniden MODEL: TRU9460 FCC ID: AMWUP758 MADE IN CHINA

Applicant: Uniden America Corporation FCC ID: AMWUP758 IC ID: 513C-UP758 Model(s): TRU9460-2(XX) Portable 5.8GHz Cordless Telephone Handset 5741.056-5828.096 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 55 Test Report Serial No.: 112405AMW-F697-S15T Report Issue Date: Dec. 09, 2005 Date(s) of Evaluation: December 01, 06-07, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR UNIDEN AMERICA CORPORATION PORTABLE 5.8GHz CORDLESS TELEPHONE HANDSET MODEL: TRU9460-2(XX) FCC ID: AMWUP758 IC ID: 513C-UP758 Test Report Serial Number 112405AMW-F697-S15T Revision 0 Test Report Issue Date December 09, 2005 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Uniden America Corporation FCC ID: AMWUP758 IC ID: 513C-UP758 Model(s): TRU9460-2(XX) Portable 5.8GHz Cordless Telephone Handset 5741.056-5828.096 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 2 of 55 Test Report Serial No.: 112405AMW-F697-S15T Report Issue Date: Dec. 09, 2005 Date(s) of Evaluation: December 01, 06-07, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), IEEE 1528-2003, and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information UNIDEN AMERICA CORPORATION 181 N. Country Club Road Lake City, SC 29560 United States FCC IDENTIFIER: AMWUP758 IC IDENTIFER: 513C-UP758 Model No.(s): TRU9460-2(XX) Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 2 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) IEEE Standard 1528-2003 FCC Device Classification: Digital Transmission System (DTS) IC Device Classification: Low Power License-Exempt Radiocommunication Device (RSS-210 Issue 6) Device Description: 5.8 GHz Cordless Telephone Handset Modulation Scheme(s): TDD / TDMA Transmission System(s): WDSS - 2 slots (25% Duty Cycle) QDSS - 4 slots (12.5% Duty Cycle) Tx Frequency Range(s): 5741.056 - 5828.096 MHz Max. RF Output Power Tested: WDSS: 152.05 mW / 21.82 dBm (5828.096 MHz) - Source-Based Time-Averaged QDSS: 59.02 mW / 17.71 dBm (5784.576 MHz) - Source-Based Time-Averaged Power Measurement Method: Radiated Free Space Power Battery Type(s) Tested: Ni-MH 3.6 V, 800 mAh (P/N: BT-446) Antenna Type(s) Tested: Internal Body-Worn Accessories Tested: Plastic Belt-Clip Headset with Boom-Microphone (P/N: TRUC46) Max. SAR Level(s) Evaluated: Head: 0.0232 W/kg (1g average) - 25% duty cycle Body: 0.473 W/kg (1g average) - 25% duty cycle Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUP758 IC ID: 513C-UP758 Model(s): TRU9460-2(XX) Portable 5.8GHz Cordless Telephone Handset 5741.056-5828.096 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 3 of 55 Test Report Serial No.: 112405AMW-F697-S15T Report Issue Date: Dec. 09, 2005 Date(s) of Evaluation: December 01, 06-07, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 DESCRIPTION of DEVICE UNDER TEST (DUT) __________________________________________4 3.0 SAR MEASUREMENT SYSTEM _______________________________________________________5 4.0 MEASUREMENT SUMMARY __________________________________________________________6 5.0 DETAILS OF SAR EVALUATION ______________________________________________________8 6.0 EVALUATION PROCEDURES _________________________________________________________9 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________11 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________12 9.0 SAR SAFETY LIMITS _______________________________________________________________12 10.0 ROBOT SYSTEM SPECIFICATIONS__________________________________________________13 11.0 PROBE SPECIFICATION (EX3DV4) __________________________________________________14 12.0 SAM PHANTOM V4.0C_____________________________________________________________14 13.0 DEVICE HOLDER ____________________________…

Text truncated - open the document above for the full version.

Applicant: Uniden America Corporation FCC ID: AMWUP758 IC ID: 513C-UP758 Model(s): TRU9460-2(XX) Portable 5.8GHz Cordless Telephone Handset 5741.056-5828.096 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 54 of 55 Test Report Serial No.: 112405AMW-F697-S15T Report Issue Date: Dec. 09, 2005 Date(s) of Evaluation: December 01, 06-07, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 APPENDIX G - PROBE CALIBRATION

Applicant: Uniden America Corporation FCC ID: AMWUP758 IC ID: 513C-UP758 Model(s): TRU9460-2(XX) Portable 5.8GHz Cordless Telephone Handset 5741.056-5828.096 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 53 of 55 Test Report Serial No.: 112405AMW-F697-S15T Report Issue Date: Dec. 09, 2005 Date(s) of Evaluation: December 01, 06-07, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 APPENDIX F - SYSTEM VALIDATION

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 REPORT #: U\UNIDEN AMW\2213UT5\2213UT5TestReport.doc COVER SHEET Test Report Product Name: 5.8GHz CORDLESS TELEPHONE FCC ID: AMWUP758 Applicant: UNIDEN AMERICA CORPORATION 181 N. COUNTRY CLUB RD. / P. O. BOX 580 LAKE CITY SC 29560 USA Date Receipt: 10/31/2005 Date Tested: 11/16/2005 Revision Date: 2/10/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 REPORT #: U\UNIDEN AMW\2213UT5\2213UT5TestReport.doc TABLE OF CONTENTS APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 TABLE OF CONTENTS LIST TEST REPORT: PAGE 1............EQUIPMENT LIST PAGE 2............TEST PROCEDURE PAGE 3............POWER LINE CONDUCTED INTERFERENCE PAGE 4-7..........POWER LINE CONDUCTED INFERENCE PLOT PAGE 8-9..........OCCUPIED BANDWIDTH PAGE 10...........PEAK POWER OUTPUT PAGE 11...........RADIATED SPURIOUS EMISSIONS - HANDSET PAGE 12...........RADIATED SPURIOUS EMISSIONS - BASE PAGE 13...........POWER SPECTRAL DENSITY EXHIBITS: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 REPORT #: V:\U\Uniden AMW\2213ut5\2213UT5REVTestReport.doc Page 1 of 13 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 12/29/04 12/29/06 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 REPORT #: V:\U\Uniden AMW\2213ut5\2213UT5REVTestReport.doc Page 2 of 13 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4-2003 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. The ambient temperature of the UUT was 74°F with a humidity of 44%. BANDWIDTH 6.0dB: The measurements were made with the spectrum analyzer’s resolution bandwidth (RBW)= 100 kHz and the video bandwidth (VBW) =300 kHz and the span set as shown on plot. ANTENNA CONDUCTED EMISSIONS: The RBW=100 kHz, VBW > or = RBW and the spectrum was scanned from 30 MHz to the 10th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth (RBW) of the spectrum analyzer was 100 kHz up to 1GHz and 1.0MHz above 1 GHz with an appropriate sweep speed. The VBW above 1.0 GHz was = 1.0 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the UUT was 74°F with a humidity of 44%. 15.247(d) POWER SPECTRAL DENSITY: The peak within the pass band was located with a RBW set to 30 kHz and a span of 5 MHz, slightly greater than the 6 dB bandwidth, then the emission was centered on the display and the span and RBW reduced. A 1.5MHz span, 3 kHz RBW, and a sweep time to sweep time set to 500 seconds. Since spectral line spacing could not be resolved, the noise power density method was used. The response was then plotted, a correction factor of measured using the noise power density and adding the correction of 35 dB and any attenuation used was added. 15.214(d): This device complies with the security code requirements of 15.214(d)(1)(2) and (3) by means of the following: This device is a spread spectrum direct sequence transmitter. Security codes are inherent to the design and as such changed every time the handset and base are re- synchronized. 2.1033(b)(4) ANTENNA AND GROUND SYSTEM: This unit uses a short, inductively loaded, antenna element for the base unit and the handset. The antenna is permanently attached to the unit and no provision is made for connection to an external antenna. No ground connection is provided. The only ground in use is the ground plane on the printed circuit board. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 REPORT #: V:\U\Uniden AMW\2213ut5\2213UT5REVTestReport.doc Page 3 of 13 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUP758 (BASE UNIT) NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NO.: 15.207 REQUIREMENTS: QUASI-PEAK AVERAGE .15 – 0.5 MHz 66-56 dBuV 56-46 dBuV 0.5 – 5.0 56 46 5.0 – 30. 60 50 TEST PROCEDURE: ANSI STANDARD C63.4-2003. The spectrum was scanned from .15 to 30 MHz. TEST DATA BASE UNIT: THE PLOTS ON THE FOLLOWING PAGES REPRESENT THE EMISSIONS READ FOR POWER LINE CONDUCTED FOR THIS DEVICE. TEST RESULTS: Both lines were observed with the UUT transmitting. The measurements indicate that the unit DOES appear to meet the FCC requirements for this class of equipment. PERFORMED BY: JOE SCOGLIO DATE: 11/16/2005 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 …

Text truncated - open the document above for the full version.

UNIDEN AMERICA CORP. FCC ID: AMWUP758 TEST SET UP PHOTOS
