AMWUT007GMRS/ FRS 22 Channel Portable Radio

Choosing a Channel Your radio has 22 channels and 99 Sub codes you can use to talk to others. In order to speak to someone, each of you must set to the same channel and Sub code. To choose a channel: With the radio in "Normal" operating mode press the ch/scankey and press the or key to increase or decrease the channel number displayed. Note:FRS channels 8-14 have an expectancy range of up to 3 miles. GMRS channels 1-7, 15-22 have an expectancy range of up to 10 miles by pressing the Power boostbutton. You can know which GMRS or FRS channel is active by the icon. The icon indicates GMRS channel, and the icon indicates FRS channel. Choosing a Sub Code Each of the channels 1-22 may have any one of the codes, OFF or 1-99 selected. Code oF(OFF) indicates no Sub code selected and your radio can receive a signal regardless of the code settings of the transmitting radio. 1) Enter the Menu. The Sub code on the LCD display will appear. 2) Press the or key to increase or decrease the code number displayed. You can also select oF(OFF) at this stage. 3) Exit the Menu. Talking on Your Radio To talk to others using the radio: 1) Press and hold the PTTbutton and speak in a clear, normal voice about 2-3 inches away from the microphone. While you are transmitting, the icon will appear on the display. To avoid cutting off the first part of your transmission, pause slightly after pressing the PTTbutton before you start talking. 2) When you are finished speaking, release the PTT button. You can now receive incoming calls. While receiving, the icon will appear on the display. GMR1088-2CK sel/ call ch/ scan mon wx/ alert vol/ch *Range may vary depending on environmental and/or topographical conditions. • 15 GMRS / 7 FRS Channels • 99 Sub Codes (CTCSS Tone and DCS Code) • Up to 10 Mile Range* • Internal VOX Circuitry • Silent Call • 5 Selectable Call Tone Alerts • Backlit LCD Display • Optional Headset Accessories • Headset Jack • Roger Beep 1 Antenna 2 PTT (Push-To-Talk) Button 3 Power Boost Button 4 Call Key 5 WX/Alert Key 6 Channel/Scan Key 7 Speaker 8 Headset Jack 9 Volume/ch Up Key 10 Volume/ch Down Key 11 On/Off/Select Key 12 Monitor Key 13 Microphone 14 Battery Level Meter 15 Receive Indicator 16 Boost Indicator 17 Call Indicator 18 Scan Indicator 19 Channel Indicator 20 Alert Indicator 21 Weather Indicator 22 Transmit Indicator 23 Keypad Lock Indicator 24 Volume Setting Indicator 25 VOX Indicator 26 GMRS/FRS Indicator 27 Silent Indicator 28 Sub Code Indicator 29 Charging contacts 30 Charging LED Congratulations on your purchase of the Uniden GMR1088-2CK (General Mobile Radio Service) radio. This product is a lightweight, palm-sized radio. Use it at sporting events to stay in contact with family and friends, hiking, skiing, outdoors, or in a neighborhood watch for vital communication. This compact, state-of-the-art device is equipped with many features. PACKAGE CONTENTS Your package contains two GMR1088 radios, two rechargeable NiMH battery packs (#BP38), two AC adapters (#AD-0001), two Charging cradles (#RC6489), two belt clips and this reference guide. You may operate the unit using the rechargeable NiMH battery pack or 4 AAA alkaline batteries (not included). To order headsets, replacement batteries, or other accessories, visit our website @ www.uniden.com or call 1-800-554-3988, Mon-Fri, 8 a.m. to 5 p.m. CST.Use only Uniden accessories. • NiMH Battery Pack - #BP38 • Charging Cradle - #RC6489 • Headset - #HS2467 GMRS LICENSE The GMR1088-2CK operates on General Mobile Radio Service (GMRS) frequencies when using Channels 1-7 and 15-22. You must have a GMRS license issued by the Federal Communications Commission to legally use these channels. For licensing information and application forms, visit the FCC online at: www.fcc.gov/wtb/uls or call the FCC hotline at 1-800-418-3676. If you have any questions, you can contact the FCC direct at 1-888-225-5322. No license is required for operation on channels 8-14 or operation on any channel in Canada. INSTALL THE BATTERY Your GMR1088-2CK radio uses the NiMH battery pack or 4 AAA alkaline batteries (not included). To install the NiMH battery pack: 1) Make sure your radio is OFF. 2) Release the battery cover clip, then remove the battery cover. 3) Install the NiMH battery pack into the battery compartment. Be certain to follow the instruction written on the label on the battery pack. Installing the battery pack incorrectly will prevent the unit from operating. USING THE RADIO In order to get the most out of your new radio, read this reference guide completely before attempting to operate the unit. Turning the Radio On and Adjusting the Volume 1) Press and hold the sel/key to turn the radio ON, and increase the speaker volume by pressing the  key. To decrease the volume, press the key. 2) Press and hold the sel/key again to turn the radio OFF. Adjusting the Sound (Key Beeps) Your radio emits a beep each time one of the keys (except for the PTT, Power boostbutton, and call key) is pressed. To turn this sound OFF, press and hold the callkey while turning ON the radio. Repeat this step to turn the sound ON. Navigating through the Menu To access the advanced features of the GMR1088-2CK, your radio has a Menu function. •Power Boost Button for Maximum Range •Battery Charger •Battery Level Meter •Channel Monitor •Channel Scan •Keypad Lock •NOAA Emergency / Weather Channels •Emergency Weather Alert BATTERY LEVEL AND LOW BATTERY ALERT This unit has a battery level meter on the display to indicate the status of the batteries. When the battery in the unit is low, the battery level meter icon will flash. Recharge the NiMH battery pack immediately or if you are using the alkaline batteries, you must replace the alkaline batteries in order to continue using the radio. Warning!To avoid the risk of personal injury or property damage from fire or electrical shock, only use the Uniden accessories specifically designated for this product. 1) To enter the Menu, press the sel/key…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY February 8, 2005 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 TYPE OF EQUIPMENT: Part 95 FRS/GMRS Transmitter FCC IDENTIFIER: AMWUT007 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

ID Label/Location Info 1) Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. 1) Rating label: 32 mm (W) x 7.2 mm (H) 2) STATEMENT label: 28 mm (W) x 20 mm (H)

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.0501040001.AMW Test Dates: January 4-7, 2005 Phone Type: GMRS/ FRS 22 Channel Portable Radio FCC ID: AMWUT007 Page 1 of 20 © 2005 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN ENGINEERING SERVICES Dates of Tests: January 4 - 7, 2005 181 N. Country Club Road Test Report S/N: SAR.0501040001.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia MD Lake City, SC 29560-0580 FCC ID: AMWUT007 APPLICANT NAME: UNIDEN ENGINEERING SERVICES EUT Type: GMRS/ FRS 22 Channel Portable Radio Tx Frequency: 462.55 – 462.72 (GMRS)/ 462.56 – 467.71 (FRS) Rx Frequency: 462.55 – 462.72 (GMRS)/ 462.56 – 467.71 (FRS) Max. RF Output Power: 0.61 W ERP (GMRS)/ 0.85 W ERP (GMRS) (Boost) 0.41 W ERP (FRS) Max. SAR Measurement: 0.42 W/kg GMRS & FRS Face SAR; 1.45 W/kg GMRS & FRS Body SAR Trade Name/Model(s): GMR1088-2CK FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #UTEP2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: The output power listed is ERP. This device is authorized to operate in the following radio services: FRS (Part 95B) or GMRS (Part 95A). There must be an informational insert inside the box (product package) or the User’s Manual must include information that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies require an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. This transmitter has been tested for SAR compliance in Push-to-Talk and body-worn configurations. Body-worn SAR compliance is limited to the specific belt-clip tested in this filing. This device must operate at duty factor not exceeding 50%. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.0501040001.AMW Test Dates: January 4-7, 2005 Phone Type: GMRS/ FRS 22 Channel Portable Radio FCC ID: AMWUT007 Page 2 of 20 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY............................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY...................................................................................19-20 PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.0501040001.AMW Test Dates: January 4-7, 2005 Phone Type: GMRS/ FRS 22 Channel Portable Radio FCC ID: AMWUT007 Page 3 of 20 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Level…

Text truncated - open the document above for the full version.

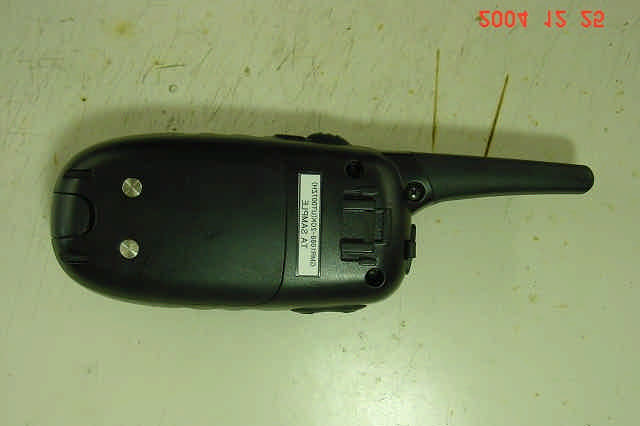

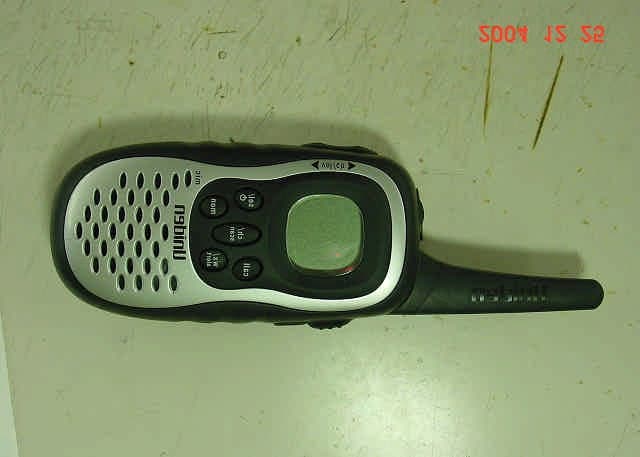

UNIDEN FCC ID: AMWUT007 EUT Photographs © 2005 PCTEST Lab. GMRS/ FRS 22 Channel Family Radio Model: GMR1088-2CK UNIDEN FCC ID: AMWUT007 EUT Photographs © 2005 PCTEST Lab. GMRS/ FRS 22 Channel Family Radio Model: GMR1088-2CK UNIDEN FCC ID: AMWUT007 EUT Photographs © 2005 PCTEST Lab. GMRS/ FRS 22 Channel Family Radio Model: GMR1088-2CK UNIDEN FCC ID: AMWUT007 EUT Photographs © 2005 PCTEST Lab. GMRS/ FRS 22 Channel Family Radio Model: GMR1088-2CK UNIDEN FCC ID: AMWUT007 EUT Photographs © 2005 PCTEST Lab. GMRS/ FRS 22 Channel Family Radio Model: GMR1088-2CK UNIDEN FCC ID: AMWUT007 EUT Photographs © 2005 PCTEST Lab. GMRS/ FRS 22 Channel Family Radio Model: GMR1088-2CK

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION DATE: 12-25-04 FCC ID: AMWUT007 MODEL: GMR1088(XX) DESCRIPTION: 22CH FRS/GMRS RADIO MEASUREMENT ITEMS Section No. 1. DC Voltage & Current into Final Device 2.1033(C)(8) 2. RF Output Power 2.1046 3. Modulation Characteristics (Audio Roll-off) 2.1047 4. Modulation Characteristics (Audio Frequency Response) 2.1047 5. Modulation Characteristics (Modulation Limiting) 2.1047 & 95.637(a) 6. Occupied Bandwidth 2.1049(c)(1) & 95.635(b)(1)(3)(7) 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 8. Field Strength of Spurious/Harmonic Radiation 2.1053 & 95.635(b)(7) 9. Frequency Stability (Temperature) 2.1055 10. Frequency Stability (Voltage) 2.1055 NOTE: List of measurement equipment and test site description are included in this EXHIBIT. 1. DC Voltage & Current into Final Device 2.1033(C)(8) ------------------------------------------ To measure the DC Voltage and Current into Final Amplifying Device, the measuring equipment was connected to the actual P.C.Board of the transmitter. FCC limits: Not specified Test Results: Refer to test data 2. RF Output Power 2.1046 & 95.639 ------------------- The unit was tuned-up in accordance with the alignment procedure stated in the EXHIBIT-6, and was loaded into a 50-ohm resistive termination. The unit was powered through its normally supplied power cable by a DC power supply. Power supply voltage was set to nominal voltage at the power supply terminals with the transmitter off. The unit was operated for three consecutive test cycles of 15 minutes standby and 5 minutes in transmitting. At the end of the third 5 minutes period, the RF output power is measured. During the test, no components of the emission spectrum exceed the limit specified in the applicable rule part for occupied bandwidth or emission limitations. FCC limits: 0.5 W ERP for FRS and 5W ERP for GMRS Test Results: Refer to test data 3. Modulation Characteristics (Audio Roll-off) 2.1047 ----------------------------------------------- To measure the audio roll-off filter response, an audio frequency oscillator and AF VTVM were connected to the actual P.C.Board of the transmitter. AF VTVM and an oscilloscope monitored the output of the audio filter. An AF input level was maintained was maintained constant at least 10 dB below the saturation level at maximum response frequency. The measurement was made under the above conditions by varying the frequency between 1 kHz and 100 kHz. FCC limits: 3 kHz - 20 kHz: -60 log 10 (F/3) dB Test Results: Refer to test data 4. Modulation Characteristics (Audio Frequency Response) 2.1047 --------------------------------------------------------- The audio frequency response was measured in accordance with TIA/EIA Specification 603. Operate the unit under the standard test conditions and monitor the output with a modulation or a calibrated test receiver. The input required to produce 30 percent modulation level was measured. 5. Modulation Characteristics (Modulation Limiting) 2.1047 & 95.637(a) ---------------------------------------------------- The transmitter shall be adjusted for full rated system deviation, 1000 Hz and reference it as 0dB input. With modulation frequencies of 300, 1000 and 3000 Hz respectively, vary the audio input to a level 20dB above that required at 100 Hz to produce 60% of rated system deviation. This is required for both up to and down modulation. Record the percent of full system deviation obtained as a function of input level. FCC limits: +/-2.5 kHz deviation Test Results: Refer to test data 6. Occupied Bandwidth 2.1049(c)(1) & 95.635(b)(1)(3)(7) ---------------------- The spectrum of the modulated carrier was monitored by a panoramic method capable of 60dB amplitude range. The unit was modulated with a 2500 Hz audio signal at an input level 16dB above that required for 50% of maximum system deviation. In case the 100Hz of CTCSS tone or 100 bps of digital coded data modulation is indicated for this transmitter, a representative measurement data for this operation is also presented. Since the total deviation of the unit is designed as 4.7 kHz Div., the deviation of 2500Hz audio signal was set to 3.7 kHz Div., as the maximum deviation of tone or digital coded signal was continuously set to 1.0 kHz Div. At first, tone or digital signal was disabled and set the 2500 Hz audio signal to 1.85 kHz deviation (= 50% of 3.7 kHz deviation). Then, the input level of 2500Hz audio signal was increased by 16dB. In this condition, the tone or digital coded signal was then enabled and imposed with 2500Hz audio signal. FCC limits: a) -25dB (50 - 100% of assigned frequency) b) -35dB (100 - 250% of assigned frequency) c) 43 + 10log 10 (RF output power in Watts) dB or 80dB, whichever is lesser attenuation for more than 250% of assigned frequency Test Results: Refer to test data 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 ---------------------------------------------------- Spurious radiation are the radio frequency voltage or power generated within the equipment and appearing at the equipment's output terminals when properly loaded with its characteristic non-radiating load. The unit was modulated with a 2500 Hz tone at an input level 16dB greater than that required 50% modulation. The spectrum was scanned from the lowest frequency generated in the equipment to the tenth harmonic of the carrier. FCC limits: 43 + 10log 10 (RF output power in Watts) dB Test Results: Refer to test data . 8. Field Strength of Spurious & Harmonic Radiation 2.1053 --------------------------------------------------- Measurement Procedure & Test Site Description Field strength measurements of radiated spurious emissions were made on a 3-meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The equipment was scanned for radiated emissions in a scheduled enclosure prior to open field testing. For each sp…
