AMWUT018PORTABLE FRS/GMRS RADIO

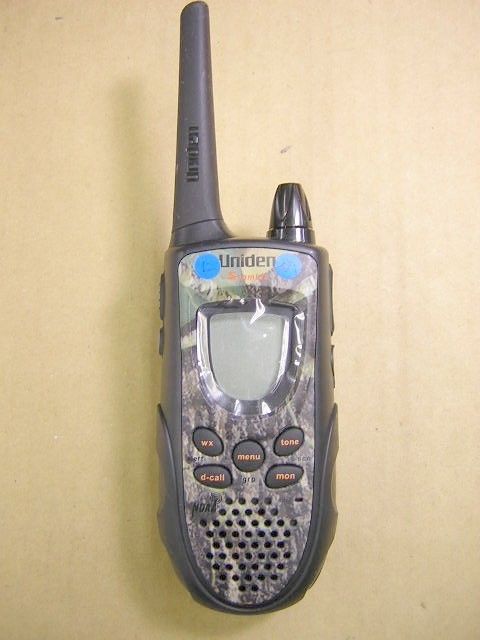

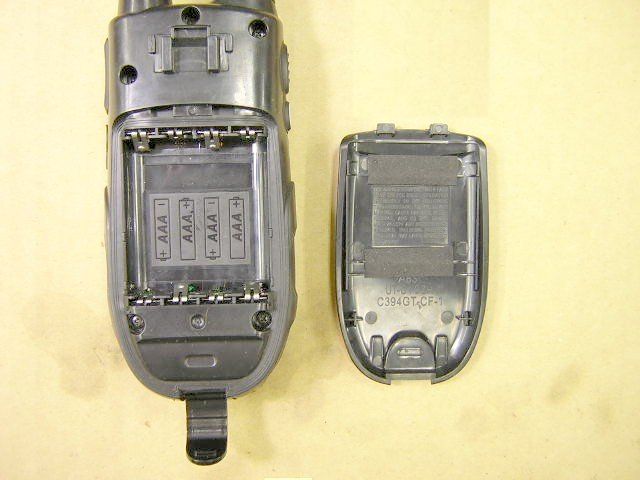

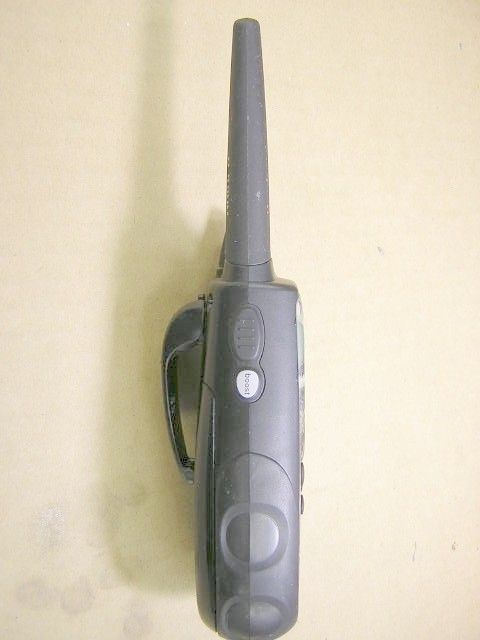

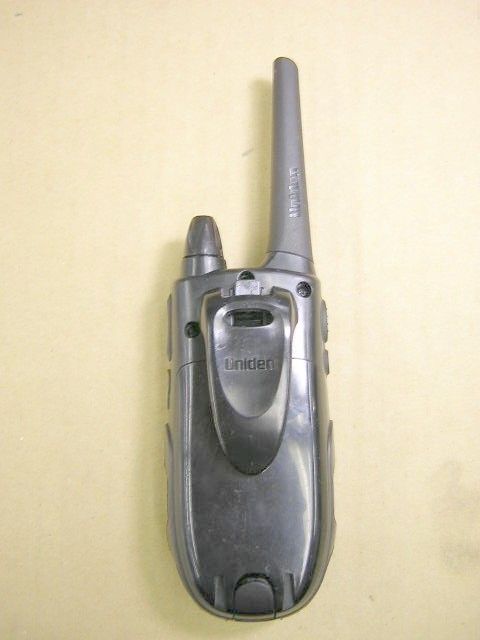

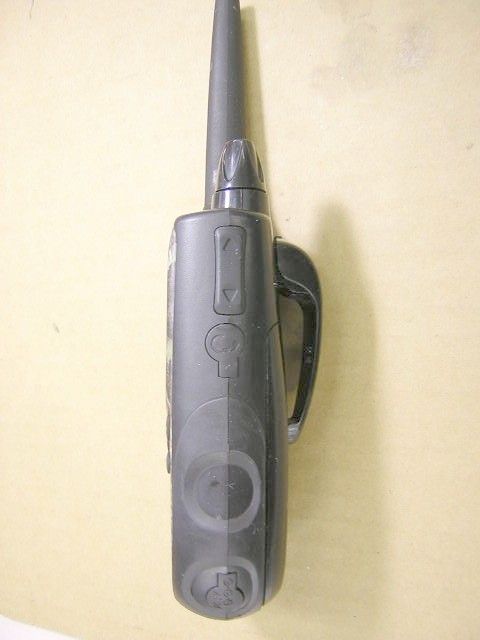

GMR1588-2CK/GMR1595-2CK *Range may vary depending on environmental and/or topographical conditions. •15 GMRS / 7 FRS Channels •142 Privacy Codes (CTCSS Tone and DCS Code) •Up to 15 Mile Range* •Direct Call •Scramble •143 Group Codes •Silent Mode •Internal VOX Circuitry •10 Selectable Call/Ring Tone Alerts •Backlit LCD Display •Optional Headset Accessories •Headset Jack •Roger Beep 1 Antenna 2 PTT (Push-To-Talk) Button 3 Monitor Button 4 Weather/Alert Key 5 D-call Key 6 Menu/group Key 7 Speaker 8 Volume Setting Nob 9 Up/Down Button 10 Headset Jack 11 Tone/Scan Key 12 Monitor Key 13 Microphone 14 DC IN 9V 15 Channel Indicator 16 Sub Code Indicator 17 Alert Indicator 18 Receive Indicator 19 Miss Call Indicator 20 Battery Level Indicator 21 SCRM Indicator 22 VOX Indicator 23 Charging Contacts Congratulations on your purchase of the Uniden GMR1588-2CK/GMR1595-2CK (General Mobile Radio Service) radio. This lightweight, palm-sized, radio is a state-of-the-art device, equipped with many valuable features. Use it at sporting events, to stay in contact with family and friends, hiking, skiing, outdoors, or in a neighborhood watch for vital communication. PACKAGE CONTENTS Your package contains two GMR1588-2CK / GMR1595-2CK radios, two rechargeable NiMH battery packs (#BP38), two AC adapters (#AD- 1004), two charging cradles (#RC1581), two belt clips and this reference guide. You can operate the unit using the rechargeable NiMH battery pack or 4 AAA alkaline batteries (not included). To order the following optional accessories, visit our web site @www.uniden.com or call 1-800-554-3988, Mon-Fri, 8 a.m. to 5 p.m. CST. Use only Uniden accessories. • NiMH Battery Pack - #BP38 • Charging Cradle - #RC1581 • VOX Headset - #HS910/HS915 • AC Adapter - #AD-1004 • DC Adapter - #DC-1002 GMRS LICENSE The GMR1588-2CK/GMR1595-2CK radio operates on the General Mobile Radio Service (GMRS) frequencies when using Channels 1-7 and channels 15-22.You must have a GMRS license issued by the Federal Communications Commission to legally use these channels. For licensing information and application forms, visit the FCC online at: www.fcc.gov/wtb/uls or call the FCC hotline at 1-800-418-3676. If you have any questions, you can contact the FCC direct at 1-888-225-5322. No license is required for operation on channels 8-14 or operation on any channel in Canada. INSTALL THE BATTERY Your GMR1588-2CK/GMR1595-2CK radio uses a supplied NiMH battery pack or 4 AAA alkaline batteries (not included). To install the NiMH battery pack: 1) Make sure the radio is off. 2) Remove the battery compartment door by pressing the tab at the bottom of the compartment door, and remove the cover. 3) Put the NiMH battery pack in the battery USING THE RADIO SETTING UP GROUP MODE •Power Boost Button for Maximum Range •All Call •Auto Channel Change Call •Battery Charger •Battery Level Meter •Channel Monitor •Channel Scan •Group Scan •Keypad Lock •NOAA Emergency / Weather Channels •Emergency Weather Alert •DC IN 9V Jack USING THE RADIO BATTERY LEVEL AND LOW BATTERY ALERT This radio has a battery level meter that indicates the status of the batteries. When the battery level is low, BATT appears and the battery level meter icon flashes. Recharge the NiMH battery pack immediately or, if you are using the alkaline batteries, replace the alkaline batteries in order to continue using the radio. Warning!To avoid the risk of personal injury or property damage from fire or electrical shock, only use the Uniden accessories specifically designated for this product. GMR1588-2CK/GMR1595-2CK RADIO CHARGING THE RADIO If you use the rechargeable NiMH battery pack, two GMR1588-2CK/GMR1595-2CK radios can be charged directly or by using the supplied charging cradle. Charge Using the Radio 1) Connect the AC adapter to or optional DC adapter to DC IN 9V jack of the radio and connect it to the appropriate power source. 2) Charge the battery pack for 16 hours until the battery indicator stop flashing. Using the Charging Cradle 1) Connect the AC adapter or optional DC adapter to DC IN 9V jack of the radio and connect it to the appropriate power source. 2) Set the charging cradle on the desk or tabletop, and place the radio in the charging cradle with the keypad facing forward. 3) Charge the battery pack for 16 hours until the battery indicator stops flashing. Then remove the radio from the charging cradle after completing charging. Note: • Use only the supplied battery and AC adapter or approved DC adapter from Uniden. • Charge time may vary depending on the battery life remaining. • Do not recharge alkaline batteries. Doing so can create a safety hazard or damage the radio. • For fastest charging, turn off the radio before charging. compartment. Be sure to follow the instructions written on the battery pack’s label. Installing the battery pack incorrectly will prevent the unit from operating. 4) Replace the battery compartment door. In order to get the most out of your new radio, read this reference guide completely before attempting to operate the unit. Turning the Radio On and Adjusting the Volume 1) Rotate vol/offclockwise until it clicks. 2) To turn off the radio, rotate vol/off counterclockwise until it clicks. Adjusting the Sound (Key Beeps) Your radio sounds a beep each time you press a key (except for PTTand Power boost). To turn this sound off, press and hold d-callwhile turning on the radio. Repeat this step to turn the sound on. Choosing a Channel Your radio has 22 channels and 142 Privacy codes you can use to talk to others. In order to speak to someone, both your radios must be set to the same channel and Privacy code. To choose a channel: Press or to increase or decrease the channel number displayed. Note:Channels 1-7 and 15-22 have a typical range of up to 5 miles, or 15 miles when you press Power Boost. Channels 8-14 have a typical range of up to 5 miles. You can see an indication of the range as you change channels.HIappears when you select channels 1-7 or 15-2…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY February 14, 2006 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Part 95 FRS/GMRS Transmitter FCC IDENTIFIER: AMWUT018 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. 1. Applicant: Uniden America Corporation Engineering Services Office 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice president 2. Equipment Identification: FCC ID: AMWUT018 MODEL : GMR1588(XX) 3. Quantity: Quantity Production is planned. 4. Emission Type: 11K0F3E 5. Frequency Range: 462.5625 – 467.7125MHz (FRS) 462.5500 – 462.7250MHz (GMRS) 6. Operating Power (ERP): 0.30 W erp(FRS) 1.36 W erp(GMRS: Boost mode) 7. Max. Power Rating: According to the section 95.135 and 95.639 of the FCC Rules. 8. DC voltage and current into Final Amplifying Device: Refer to test data 9. Solid State Devices: Refer to Parts List/Tune-up Info 10. Circuit & Block Diagrams: Refer to EXHIBITS 11. Instruction Manual: Refer to User Manual 12. Tune-up Procedures: Refer to Parts List/Tune-up Info 13. Circuit Descriptions: Refer to Operational Description Means for Frequency Stabilization Means for Attenuation of Spurious Emissions Means for Limiting Modulation 14. Description of Digital Modulation Techniques: Not Applicable 15. Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Power Supply Voltage: 4.8V - NiMH Battery Pack (BP38) or 6.0V - 4 AAA Alkaline Batteries Note: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. 16. Equipment Identification: A drawing of the equipment's Identification Label and, its location are as shown in ID Label/Location Info. 17. Photographs: External photographs of the unit as well as internal photos of the printed circuit boards are found in External Photos and Internal photographs.

ID Label/Location Info Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Rating label: 32 mm (W) x 7.2 mm (H) STATEMENT label: 28 mm (W) x 20 mm (H)

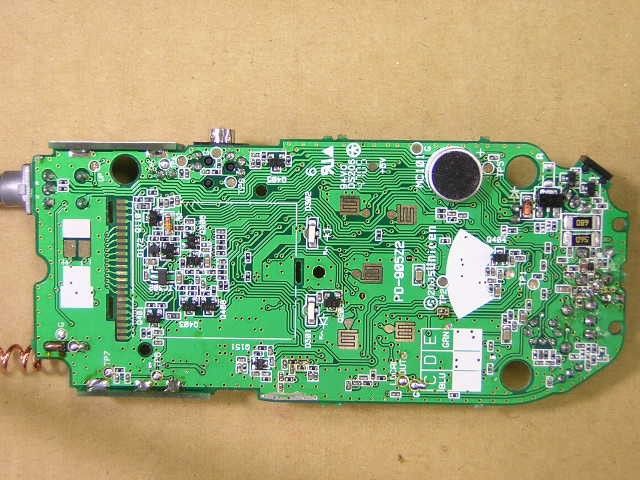

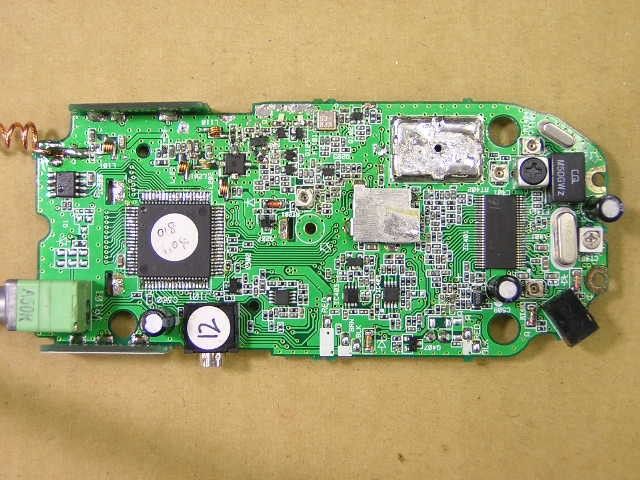

FORM-4 REFERENCE DIAGRAM NO. PAGE MODEL UNIT BLOCKISSUE DATE ISSUED 2006/2/1ONO TITLE ADJUST POINT SUB TITLE REF DIAGRAM 1. MAIN PCB B101 (TOP VIEW)2. MAIN PCB B101 (BOTTOM VIEW) TP1 : VCONT+6V:DC 6VL182 : VCONT ADJ. TP2 : DISC OUT(De_Em )LOCAL OUTL401 : DISC.ADJ. TP3 : BALANCERF IN/OUTRT201 : TX POWER ADJ. TP4 : AF OUTUPCT401 : FREQ. ADJ. TP5 : MIC INDNRT402 : MOD. BALANCE ADJ TP6 : BOOSTCHG:DC 11VRT403 : MAX DEV. ADJ. TP7 : PTT with CHARGE JIGRT404 : SQ ADJ. TP8 : BATT SEL REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY ENGLISH VERSION02.09 JQD818ZF011 R0 UT0181H/UT0191H ALIGNMENT PROCEDURE CHG JACK

Applicant: Uniden America Corporation FCC ID: AMWUT018 IC ID: 513C-UT018 Model(s): GMR1588(XX) Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 39 Test Report Serial No.: 020106AMW-T718-S95U Report Issue Date: February 10, 2006 Date(s) of Evaluation: February 07, 2006 Report Issue No.: S718-021006-R0 Description of Test(s): RF Exposure SARFCC 47 CFR §2.1093 IC RSS-102 Issue 2 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR UNIDEN AMERICA CORPORATION PORTABLE FM UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): GMR1588(XX) FCC ID: AMWUT018 IC: 513C-UT018 Test Report Serial Number 020106AMW-T718-S95U Test Report Issue No. S718-021006-R0 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Uniden America Corporation FCC ID: AMWUT018 IC ID: 513C-UT018 Model(s): GMR1588(XX) Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 39 Test Report Serial No.: 020106AMW-T718-S95U Report Issue Date: February 10, 2006 Date(s) of Evaluation: February 07, 2006 Report Issue No.: S718-021006-R0 Description of Test(s): RF Exposure SARFCC 47 CFR §2.1093 IC RSS-102 Issue 2 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information UNIDEN AMERICA CORPORATION Engineering Services Office 181 N. Country Club Road Lake City, SC 29560 United States FCC IDENTIFIER: AMWUT018 IC IDENTIFER: 513C-UT018 Model(s): GMR1588(XX) SAR Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 SAR Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable UHF FRS/GMRS PTT Radio Transceiver Modulation Type: FM (UHF) Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 1.36 Watts (31.34 dBm) ERP (462.5625 MHz) GMRS Ch. 1 (Boost Mode) Power Mode(s) Tested: Boost Mode (for face-held operation with NIMH battery only) Normal Mode Antenna Type(s) Tested: Fixed External Battery Type(s) Tested: NiMH Battery Pack 4.8 V, 700 mAh (Model: BP38) Alkaline Duracell Procell AAA x4 (1.5 V, 1150 mAh) Body-Worn Accessories Tested: Plastic Belt-Clip (P/N: UT018ZH) Audio Accessories Tested: Headset-Microphone with PTT (P/N: n/a) Max. SAR Level(s) Evaluated: Face-Held: 1.26 W/kg (1g) - 50% duty cycle Body-Worn: 0.765 W/kg (1g) - 50% duty cycle Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT018 IC ID: 513C-UT018 Model(s): GMR1588(XX) Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 39 Test Report Serial No.: 020106AMW-T718-S95U Report Issue Date: February 10, 2006 Date(s) of Evaluation: February 07, 2006 Report Issue No.: S718-021006-R0 Description of Test(s): RF Exposure SARFCC 47 CFR §2.1093 IC RSS-102 Issue 2 TABLE OF CONTENTS 1.0 INTRODUCTION___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT) _________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM _______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION ______________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _______________________________________________________________ 9 10.0 ROBOT SYSTEM SPECIFICATIONS _________________________________________________ 10 11.0 PROBE SPECIFICATION (ET3DV6) __________________________________________________ 11 12.0 SIDE PLANAR PHANTOM _________________________________________________________ 11 13.0 VALIDATION…

Text truncated - open the document above for the full version.

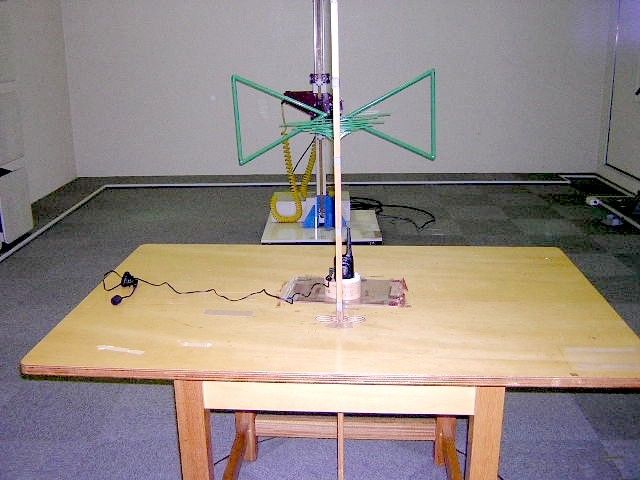

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION DATE: 2-1-06 FCC ID: AMWUT018 MODEL: GMR1588(XX) DESCRIPTION: 22CH FRS/GMRS RADIO Tested by: Mr. Shunpei Takamizawa, Uniden Corporation MEASUREMENT ITEMS Section No. 1. DC Voltage & Current into Final Device 2.1033(C)(8) 2. RF Output Power 2.1046 3. Modulation Characteristics (Audio Roll-off) 2.1047 4. Modulation Characteristics (Audio Frequency Response) 2.1047 5. Modulation Characteristics (Modulation Limiting) 2.1047 & 95.637(a) 6. Occupied Bandwidth 2.1049(c)(1) & 95.635(b)(1)(3)(7) 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 8. Field Strength of Spurious/Harmonic Radiation 2.1053 & 95.635(b)(7) 9. Frequency Stability (Temperature) 2.1055 10. Frequency Stability (Voltage) 2.1055 NOTE: List of measurement equipment and test site description are included in this EXHIBIT. 1. DC Voltage & Current into Final Device 2.1033(C)(8) ------------------------------------------ To measure the DC Voltage and Current into Final Amplifying Device, the measuring equipment was connected to the actual P.C.Board of the transmitter. FCC limits: Not specified Test Results: Refer to test data 2. RF Output Power 2.1046 & 95.639 ------------------- The unit was tuned-up in accordance with the alignment procedure stated in the EXHIBIT-6, and was loaded into a 50-ohm resistive termination. The unit was powered through its normally supplied power cable by a DC power supply. Power supply voltage was set to nominal voltage at the power supply terminals with the transmitter off. The unit was operated for three consecutive test cycles of 15 minutes standby and 5 minutes in transmitting. At the end of the third 5 minutes period, the RF output power is measured. During the test, no components of the emission spectrum exceed the limit specified in the applicable rule part for occupied bandwidth or emission limitations. FCC limits: 0.5 W ERP for FRS and 5W ERP for GMRS Test Results: Refer to test data 3. Modulation Characteristics (Audio Roll-off) 2.1047 ----------------------------------------------- To measure the audio roll-off filter response, an audio frequency oscillator and AF VTVM were connected to the actual P.C.Board of the transmitter. AF VTVM and an oscilloscope monitored the output of the audio filter. An AF input level was maintained was maintained constant at least 10 dB below the saturation level at maximum response frequency. The measurement was made under the above conditions by varying the frequency between 1 kHz and 100 kHz. FCC limits: 3 kHz - 20 kHz: -60 log 10 (F/3) dB Test Results: Refer to test data 4. Modulation Characteristics (Audio Frequency Response) 2.1047 --------------------------------------------------------- The audio frequency response was measured in accordance with TIA/EIA Specification 603. Operate the unit under the standard test conditions and monitor the output with a modulation or a calibrated test receiver. The input required to produce 30 percent modulation level was measured. 5. Modulation Characteristics (Modulation Limiting) 2.1047 & 95.637(a) ---------------------------------------------------- The transmitter shall be adjusted for full rated system deviation, 1000 Hz and reference it as 0dB input. With modulation frequencies of 300, 1000 and 3000 Hz respectively, vary the audio input to a level 20dB above that required at 100 Hz to produce 60% of rated system deviation. This is required for both up to and down modulation. Record the percent of full system deviation obtained as a function of input level. FCC limits: +/-2.5 kHz deviation Test Results: Refer to test data 6. Occupied Bandwidth 2.1049(c)(1) & 95.635(b)(1)(3)(7) ---------------------- The spectrum of the modulated carrier was monitored by a panoramic method capable of 60dB amplitude range. The unit was modulated with a 2500 Hz audio signal at an input level 16dB above that required for 50% of maximum system deviation. In case the 100Hz of CTCSS tone or 100 bps of digital coded data modulation is indicated for this transmitter, a representative measurement data for this operation is also presented. Since the total deviation of the unit is designed as 4.7 kHz Div., the deviation of 2500Hz audio signal was set to 3.7 kHz Div., as the maximum deviation of tone or digital coded signal was continuously set to 1.0 kHz Div. At first, tone or digital signal was disabled and set the 2500 Hz audio signal to 1.85 kHz deviation (= 50% of 3.7 kHz deviation). Then, the input level of 2500Hz audio signal was increased by 16dB. In this condition, the tone or digital coded signal was then enabled and imposed with 2500Hz audio signal. FCC limits: a) -25dB (50 - 100% of assigned frequency) b) -35dB (100 - 250% of assigned frequency) c) 43 + 10log 10 (RF output power in Watts) dB or 80dB, whichever is lesser attenuation for more than 250% of assigned frequency Test Results: Refer to test data 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 ---------------------------------------------------- Spurious radiation are the radio frequency voltage or power generated within the equipment and appearing at the equipment's output terminals when properly loaded with its characteristic non-radiating load. The unit was modulated with a 2500 Hz tone at an input level 16dB greater than that required 50% modulation. The spectrum was scanned from the lowest frequency generated in the equipment to the tenth harmonic of the carrier. FCC limits: 43 + 10log 10 (RF output power in Watts) dB Test Results: Refer to test data . 8. Field Strength of Spurious & Harmonic Radiation 2.1053 --------------------------------------------------- Measurement Procedure & Test Site Description Field strength measurements of radiated spurious emissions were made on a 3-meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The equipment was scanned for radiated emissions in a schedule…
