AMWUT027PORTABLE FRS/ GMRS RADIO

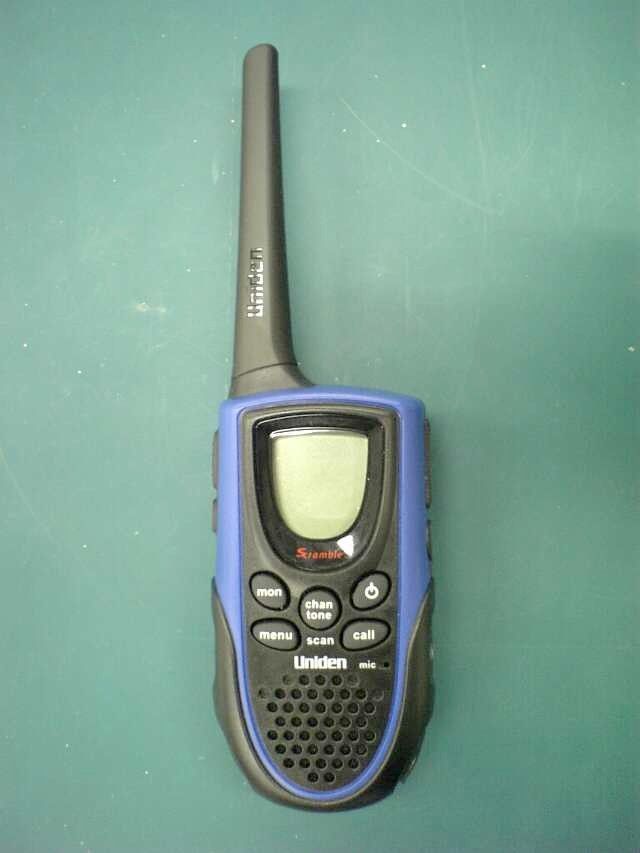

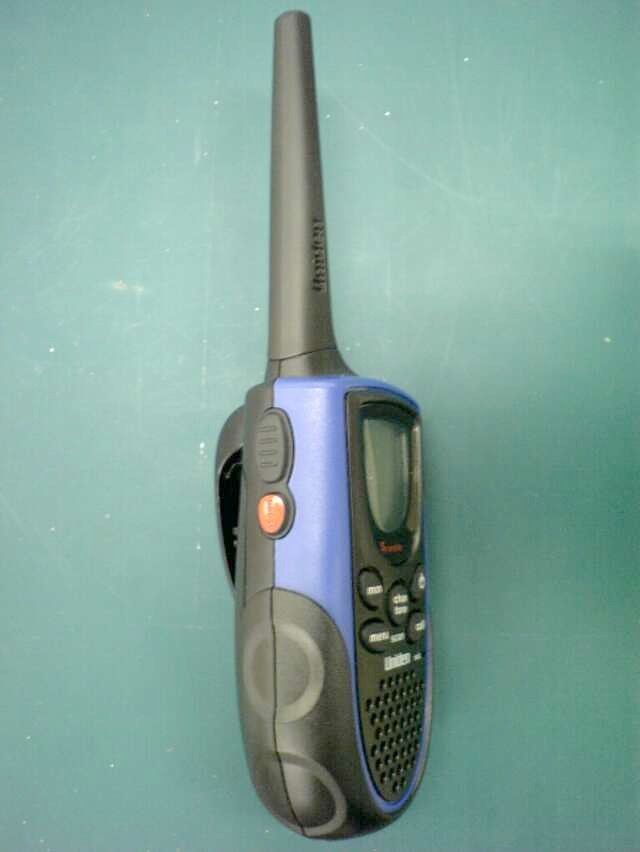

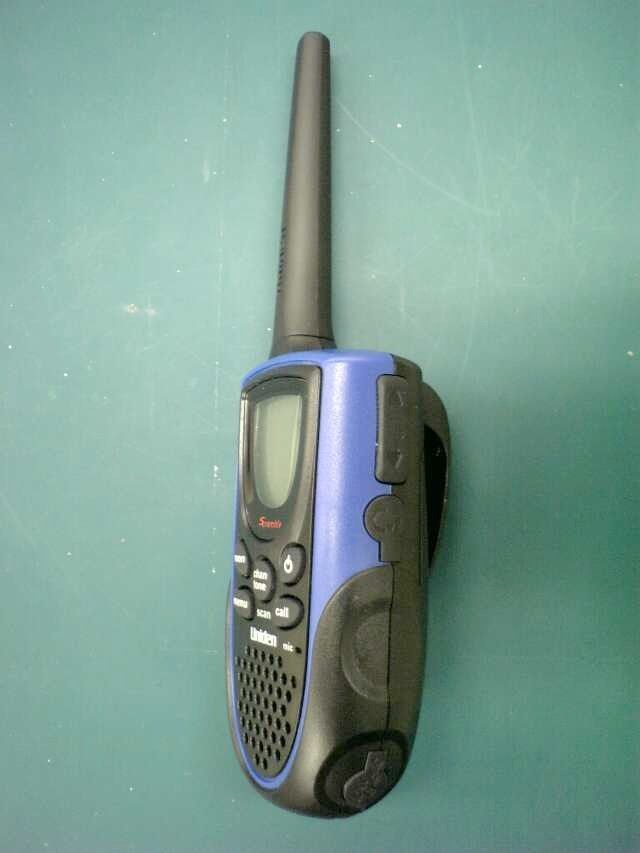

GMR2059-2CK *Range may vary depending on environmental and/or topographical conditions. • 15 GMRS / 7 FRS Channels• 142 Privacy Codes (CTCSS Tone and DCS Code) • Up to 20 Mile Range*• Scramble• Internal VOX Circuitry• 5 Selectable Call Tone Alerts• Backlit LCD Display• Optional Headset Accessories• Headset Jack• Roger Beep 1 Antenna2 PTT (Push-To-Talk) Button3 Power Boost Button4 Monitor Key5 Menu Key6 Channel Tone/Scan Key7 Speaker8 Up/Down Button9 Headset Jack 10 On/Off Key11 Call Key12 Microphone13 DC IN 9V14 Battery Level Meter 15 Receive Indicator16 boost Indicator17 Call Indicator18 Scan Indicator19 Channel Indicator20 Hi Power Indicator21 Low Power Indicator22 Transmit Indicator23 Volume Setting Indicator24 Keypad Lock Indicator25 VOX Indicator26 Privacy Code Indicator27 Scramble Indicator28 Charging Contacts Congratulations on your purchase of the UnidenGMR2059-2CK (General Mobile Radio Service)radio. This lightweight, palm-sized, radio is a state-of-the-art device, equipped with many valuable features. Use it at sporting events, to stayin contact with family and friends, hiking, skiing,outdoors, or in a neighborhood watch for vital communication. PACKAGE CONTENTS Your package contains two GMR2059-2CK radios,two rechargeable NiMH battery packs (#BP38), twoAC adapters (#AD-0001), two charging cradles(#RC1202), two belt clips and this reference guide.You can operate the unit using the rechargeableNiMH battery pack or 4 AAA alkaline batteries (not included).To order the following optional accessories, visit ourweb site at www.uniden.com or call 1-800-554-3988during regular business hours. Use only Uniden accessories.• NiMH Battery Pack - #BP38• Charging Cradle - #RC1202• Headset - #HS910/HS915/ZA-133• AC Adapter - #AD-0001• DC Adapter - #DC-1002 GMRS LICENSE The GMR2059-2CK radio operates on theGeneral Mobile Radio Service (GMRS) frequencies when using Channels 1-7 and channels 15-22. You must have a GMRS licenseissued by the Federal CommunicationsCommission to legally use these channels.For licensing information and application forms,visit the FCC online at: www.fcc.gov/wtb/uls orcall the FCC hotline at 1-800-418-3676. If youhave any questions, you can contact the FCCdirect at 1-888-225-5322. No license is requiredfor operation on channels 8-14 or operation onany channel in Canada. INSTALL THE BATTERY Your GMR2059-2CK radio uses a supplied NiMHbattery pack or 4 AAA alkaline batteries (not included).To install the NiMH battery pack:1) Make sure your radio is OFF.2) Remove the battery compartment door by pressing the tab at the bottom of the compartment door, and remove the cover. USING THE RADIO • Power Boost Button for Maximum Range • Battery Charger• Battery Level Meter• Channel Monitor• Channel Scan• Keypad Lock• DC IN 9V Jack BATTERY LEVEL AND LOW BATTERY ALERT This unit has a battery level meter on the display to indicate the status of the batteries. When the battery in the unit is low, the battery level metericon flashes. Recharge the NiMH battery pack immediately or, if you are using the alkalinebatteries, you must replace the alkaline batteries inorder to continue using the radio.Warning! To avoid the risk of personal injury or property damage from fire or electrical shock, onlyuse the Uniden accessories specifically designatedfor this product. GMR2059-2CK RADIO CHARGING THE RADIO If you use the rechargeable NiMH battery pack, twoGMR2059-2CK radios can be charged directly or byusing the supplied charging cradle.Charge by Using the Radio1) Connect the DC adapter’s plug to the radio’s DC IN 9V jack and plug the other end into yourvehicle's accessory power outlet. 2) Charge the battery pack for 16 hours until the battery indicator stop flashing. Using the Charging Cradle1) Connect the AC adapter’s plug to the radio’s DC IN 9V jack and plug the other end into an ACoutlet. 2) Set the charging cradle on the desk or tabletop, and place the radio in the charging cradle withthe keypad facing forward. 3) Make sure that the LED illuminates. Charge the battery pack for 16 hours and remove the radiofrom the charging cradle after charge. Note:• For charging batteries directly without the cradle, use only the #DC-1002 Cigarette Lighter Adaptercord, available from www.Uniden.com.Other power cords could damage your radio. • DC IN 9V Jack of the radio is for charge only. Be sure to install the battery before charging. • Use only the supplied battery, AC or DC adapter or approved accessories from Uniden. 3) Install the NiMH battery pack into the battery compartment applying the battery contacts tothe lower charge contacts. Be certain to followthe instructions written on the label on the battery pack. Installing the battery pack incorrectly will prevent the unit from operating. 4) Replace the battery compartment door. In order to get the most out of your new radio, readthis reference guide completely before attempting tooperate the unit.Turning the Radio On and Adjusting the Volume1) Press and hold the key to turn the radio ON, and increase the speaker volume by pressing the▲ button. To decrease the volume, press the ▼ button. 2) Press and hold the key again to turn the radio OFF. Adjusting the Sound (Key Beeps)Your radio emits a beep each time one of the keys(except for the PTT and Power boost button and call key) is pressed. To turn this sound OFF, press and hold the call key while turning ON the radio. Repeat this step to turn the sound ON.Choosing a ChannelYour radio has 22 channels and 142 Privacy codesyou can use to talk to others. In order to speak to someone, each of you must be set to the same channel and Privacy Code.To choose a channel:With the radio in "Normal" operating mode pressthe chan tone/scan key and press the ▲ or ▼ button to increase or decrease the channel number displayed.Note: Channels 1-7 and 15-22 have a typical range of up to 20 miles by pressing the Power boost button. hi is displayed when you select a GMRS channel, and lo is displayed when you select a FRS channels.…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. 1. Applicant: Uniden America Corporation Engineering Services Office 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice president 2. Equipment Identification: FCC ID: AMWUT027 MODEL : GMR2059 3. Quantity: Quantity Production is planned. 4. Emission Type: 11K0F3E 5. Frequency Range: 462.5625 – 467.7125MHz (FRS) 462.5500 – 462.7250MHz (GMRS) 6. Operating Power (ERP): 0.39 W erp(FRS) 0.99 W erp(GMRS) 7. Max. Power Rating: According to the section 95.135 and 95.639 of the FCC Rules. 8. DC voltage and current into Final Amplifying Device: Refer to test data 9. Solid State Devices: Refer to Parts List/Tune-up Info 10. Circuit & Block Diagrams: Refer to EXHIBITS 11. Instruction Manual: Refer to User Manual 12. Tune-up Procedures: Refer to Parts List/Tune-up Info 13. Circuit Descriptions: Refer to Operational Description Means for Frequency Stabilization Means for Attenuation of Spurious Emissions Means for Limiting Modulation 14. Description of Digital Modulation Techniques: Not Applicable 15. Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Power Supply Voltage: 4.8V - NiHM Battery pack Note: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. 16. Equipment Identification: A drawing of the equipment's Identification Label and, its location are as shown in ID Label/Location Info. 17. Photographs: External photographs of the unit as well as internal photos of the printed circuit boards are found in External Photos and Internal photographs.

REQUEST FOR CONFIDENTIALITY February 6, 2007 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification under Part 95 Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: FRS/GMRS Hand Held Transmitter FCC IDENTIFIER: AMWUT027 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

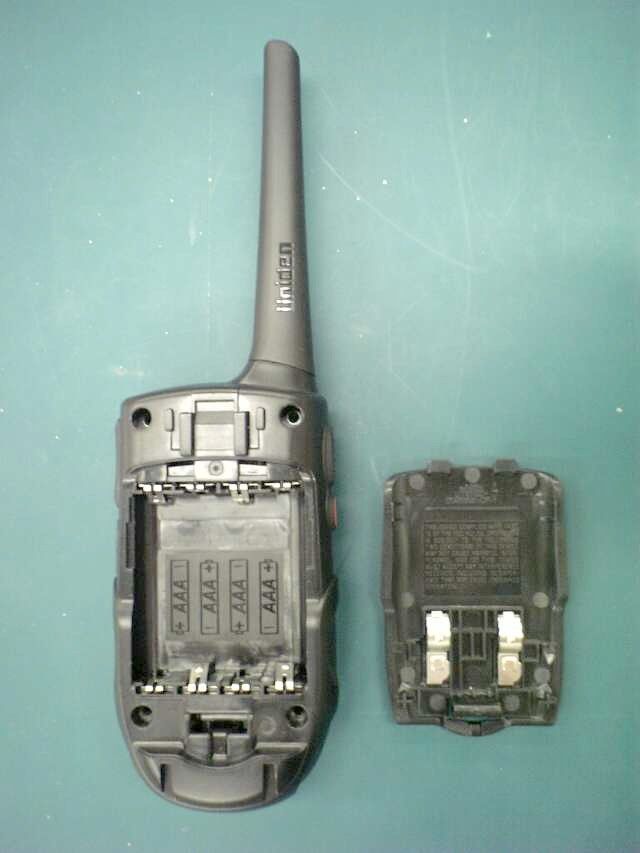

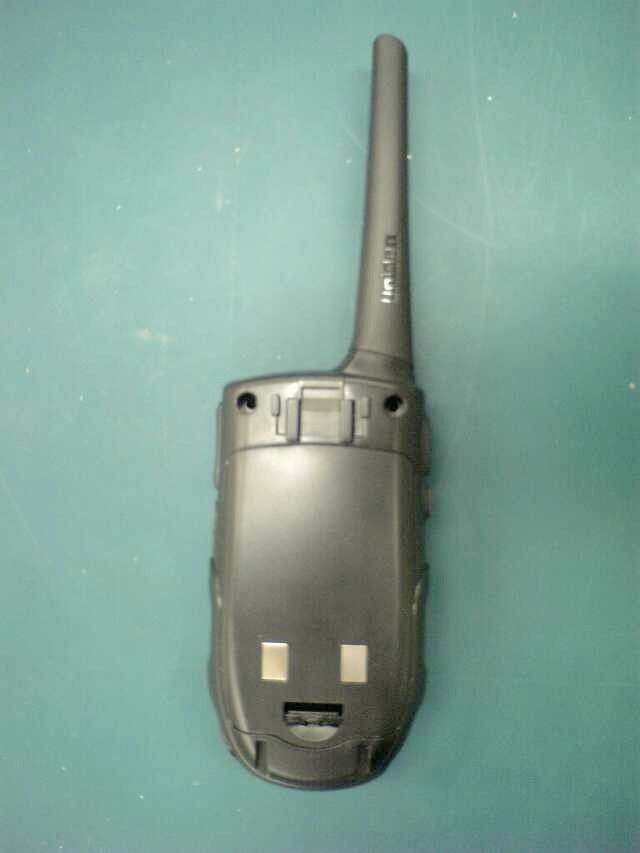

ID Label/Location Info The FCC Label complies with the section 2.925(d) of the FCC Rules and will be placed in the battery compartment due to limited space. This label will be readily visible at the time of purchase. 1) Rating label: 32 mm (W) x 7.2 mm (H) 2) STATEMENT label: 31 mm (W) x 17 mm (H) Approx 200 mm Approx 58 mm

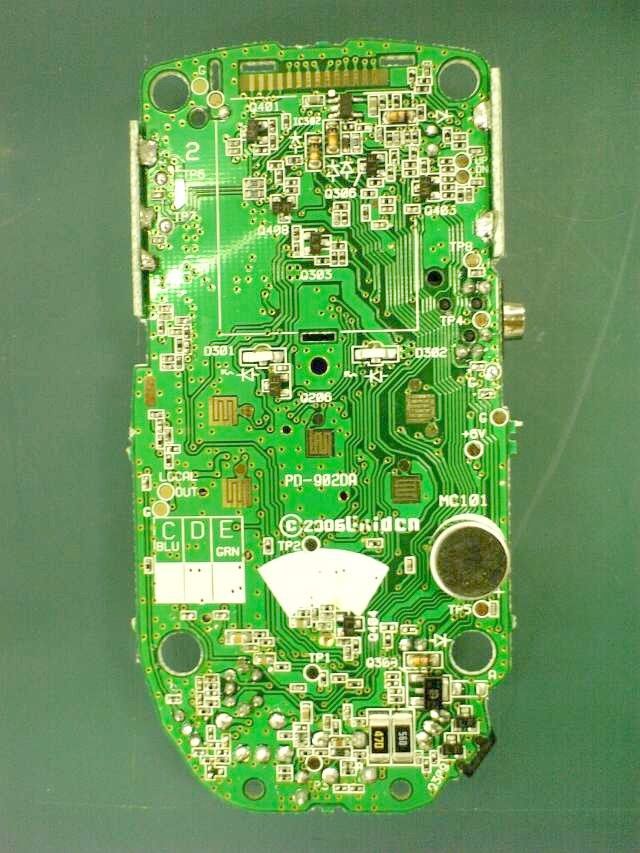

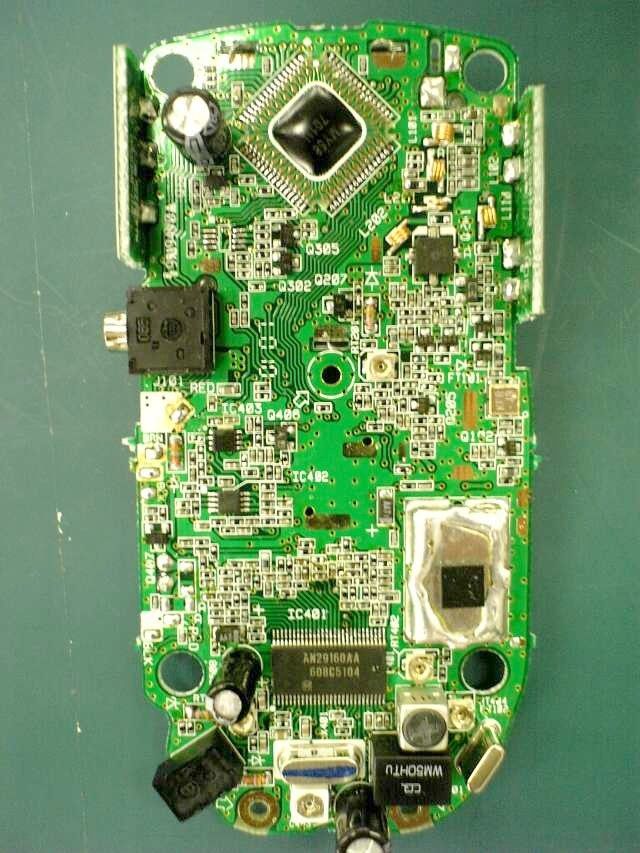

FORM-4 REFERENCE DIAGRAM NO. PAGE MODEL UNIT BLOCKISSUE DATE ISSUED 2007/1/29IWABUCHI TITLE ADJUST POINT SUB TITLEREF DIAGRAM 1. MAIN PCB B101 (TOP VIEW)2. MAIN PCB B101 (BOTTOM VIEW) TP1 : VCONT+6V:DC 6VL182 : VCONT ADJ. TP2 : DISC OUT(De_Em) LOCAL OUTL401 : DISC.ADJ. TP3 : BALRF IN/OUTRT201 : TX POWER ADJ. TP4 : AF OUTUPCT401 : FREQ. ADJ. TP5 : MIC INDWNRT402 : MOD. BALANCE ADJ TP6 : PTTCHG:DC 11VRT403 : MAX DEV. ADJ. TP7 : BOOST with CHARGE JIGRT404 : SQ ADJ. TP8 : BATT SEL REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY ENGLISH VERSION02.09 JQD818ZF011 R0 AMWUT027 ALIGNMENT PROCEDURE ALI GNMENT PROCEDURE RT403 RT402 L401 RT404 RT401 L182 RT201 TP1 TP2 TP4 TP5 LOCAL OUT +6V GND GND RF IN/OUT GND TP3 GND TP6 UP DWN TP7 TP8 RT403 RT402 L401 RT404 CT401 L182 RT201 TP1 TP2 TP4 TP5 LOCAL OUT +6V GND GND RF IN/OUT GND TP3 GND TP6 UP DWN TP7 TP8 CHG GND GND CHG JACK ALIGNMENT PROCEDURE FORM - 3 PAGE MODEL UNIT BLOCKISSUE DATE ISSUED 2007/1/29 TITLETEST MODESUB TITLECONFIRMATION REF DIAGRAM TEST MODE USE TX TEST MODE ONLY REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY ENGLISH VERSION02.09 JQD818ZF013 R0 AMWUT027IWABUCHI

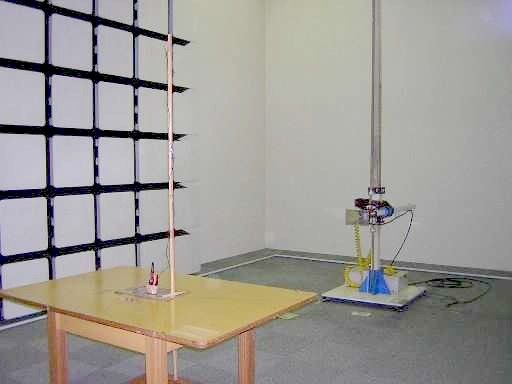

Company: Uniden America Corporation FCC ID: AMWUT027 IC ID: 513C-UT027 Model(s): GMR2059 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 37 Date(s) of Evaluation January 23, 2007 Test Report Serial No. 012207AMW -T811-S95U Report Revision No. Revision 1.0 Report Issue Date January 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR UNIDEN AMERICA CORPORATION PORTABLE UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): GMR2059 Test Report Serial No. 012207AMW-T811-S95U Test Report Revision No. Revision 1.0 (Initial Release) Test Lab and Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes General Manager Celltech Labs Inc. IDENTIFIER(S) FCC ID: AMWUT027 IC: 513C-UT027 FCC OET Bulletin 65, Supplement C (01-01) Test Standard(s) and Procedure(s) Industry Canada RSS-102 Issue 2 Certificate No. 2470.01 Company: Uniden America Corporation FCC ID: AMWUT027 IC ID: 513C-UT027 Model(s): GMR2059 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 37 Date(s) of Evaluation January 23, 2007 Test Report Serial No. 012207AMW -T811-S95U Report Revision No. Revision 1.0 Report Issue Date January 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Company Information UNIDEN AMERICA CORPORATION Engineering Services Office 181 N. Country Club Road Lake City, SC 29560 United States FCC IDENTIFIER: AMWUT027 IC IDENTIFIER: 513C-UT027 Device Model(s): GMR2059 Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 0.99 Watts (29.96 dBm) ERP (462.5625 MHz) GMRS Ch. 1 (Boost Mode) Power Mode(s) Tested: Boost Mode (for face-held operation with NIMH battery only) Normal Mode Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: Ni-MH 4.8 V, 700 mAh (Model: BP38) Alkaline AAA x4 (6 V) Body-Worn Accessories Tested: Plastic Belt-Clip (P/N: UT018ZH) Audio Accessories Tested: Headset (Ear-Loop with Boom-Microphone P/N: ZA-133) Max. SAR Level(s) Evaluated: Face-held: 1.16 W/kg (1g) - 50% duty cycle Body-worn: 1.14 W/kg (1g) - 50% duty cycle Test Report Approved By: Sean Johnston SAR Lab Manager Celltech Labs Inc. Company: Uniden America Corporation FCC ID: AMWUT027 IC ID: 513C-UT027 Model(s): GMR2059 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 37 Date(s) of Evaluation January 23, 2007 Test Report Serial No. 012207AMW -T811-S95U Report Revision No. Revision 1.0 Report Issue Date January 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT)_________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION______________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _________________________________________…

Text truncated - open the document above for the full version.
