AMWUT030Portable FRS/ GMRS Radio

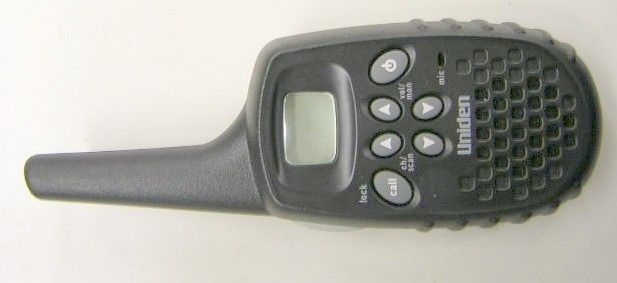

GMR1035-2 *Range may vary depending on environmental and/or topographical conditions. • 15 GMRS / 7 FRS Channels • Long Battery Life • Up to 10-mile Range* • Channel Scan • Channel Monitor • Battery Strength Meter • Call Button • Roger Beep • Keytone on/off 1 Antenna 2 PTT (Push-To-Talk) Button 3 Channel/Scan up Key 4 Call/lock Key 5 Channel/Scan down Key 6 Speaker 7 Volume up/Monitor Key 8 Power On/Off Key 9 Volume down/Monitor Key 10 Microphone 11 Channel Indicator 12 Receive Indicator 13 Battery Level Indicator 14 Transmit Indicator Congratulations on your purchase of the Uniden GMR1035-2 (General Mobile Radio Service) radio. This lightweight, palm-sized, radio is a state-of-the-art device, equipped with many valuable features. Use it at sporting events, to stay in contact with family and friends, hiking, skiing, outdoors, or in a neighborhood watch for vital communication. PACKAGE CONTENTS Your package contains the 2 GMR1035 radios, 6 AAA alkaline batteries, this reference guide and 2 belt clips. FCC GMRS LICENSE The GMR1035-2 radio operates on the General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission license to operate. For licensing information and application forms, visit the FCC on-line at:www.fcc.gov/wtb/uls or call the FCC hotline at 1-800-418-3676. If you have any questions you can contact the FCC direct at 1-888-225-5322. INSTALL THE BATTERIES Your GMR1035-2 radio uses 3 AAA alkaline batteries for power. We recommend using high quality alkaline batteries. To install the batteries: 1) Make sure your radio is OFF. 2) Remove the battery compartment door by pressing on and sliding the compartment door, and remove the cover. 3) Install 3 AAA Alkaline batteries into the battery compartment. Be certain to follow the + and – symbols in the compartment. Installing the batteries incorrectly will prevent the unit from operating. 4) Replace the battery compartment door by sliding the door into place. USING THE RADIO In order to get the most out of your new radio, read this reference guide completely before attempting to operate the radio. Turning the Radio On and Adjusting the Volume 1) Press and hold the key to turn the radio ON. 2) To change the volume level press the vol/mon or key to increase or decrease the volume level. 3) Press and hold the key to turn the radio OFF. Adjusting the Sound (Key Beeps) Your radio emits a beep each time one of the keys (except for the PTTbutton and call/lockkey) is pressed. The sound of the Key Beep will increase or decrease depending on the volume level setting. To turn OFF this beep: Press and hold the call/lockkey while turning ON the radio. To turn ON this beep: Turn the radio OFF and ON again without pressing the call/lockkey. Choosing a Channel Your GMR1035-2 radio has 22 channels you can use to talk to others. In order to speak to someone, each of you must be set to the same channel. To choose a channel: Press the ch/scanor key to increase or decrease the channel number displayed. Channel Scan Feature Your GMR1035-2 radio has a channel scan feature that allows you to easily scan all 22 channels. When an active channel is detected, the unit pauses on that channel until the channel is clear. Then after a 2 second delay, the radio continues scanning. Pressing PTTbutton while the scan is paused on a channel will allow you to transmit on that channel. To turn ON channel scan: Press and hold either the ch/scanor key for 3 seconds. The channel number on the display will rapidly cycle through the channels. To turn OFF channel scanning: Press either the ch/scanor key. Talking on Your Radio To talk to others using the radio: 1) Press and hold the PTTbutton and speak in a clear, normal voice about 2-3 inches away from the microphone. While you are transmitting, the txicon is displayed. To avoid cutting off the first part of your transmission, pause slightly after pressing the PTTbutton before you start talking. 2) When you are finished speaking, release the PTTbutton. You can now receive incoming calls. While receiving, the rxicon is displayed. Transmitting a Call Alert Tone Your GMR1035-2 radio is equipped with a call tone that will be transmitted when the call/lockkey is pressed. To transmit the call tone, tap the call/lockkey. The tone will be transmitted. Auto Squelch Feature The GMR1035-2 is equipped with an automatic squelch system which shuts off weak transmissions and unwanted noise due to terrain conditions or if you have reached your range limit. Monitor Mode Feature Your GMR1035-2 radio allows you to listen for weak signals on the current channel at the press of a key. To turn ON monitor mode: Press and hold the vol/mon or key. The rxicon will blink. To turn OFF monitor mode: Press the vol/mon or key. The rxicon will stop blinking and disappears. Automatic Power Save Feature Your GMR1035-2 has a unique circuit designed to dramatically extend the life of the batteries. If there is neither a transmission nor an incoming call within 2 seconds, your radio switches to the Power Save mode. The radio is still able to receive transmissions in this mode. KEYLOCK ON/OFF Press and hold the call/lockkey until the "L" appears. After 1 second, the LCD will return to the channel display. To exit Keylock on mode, press and hold call/lock again. Note:While in keylock on mode, it will still receive transmissions. SPECIFICATIONS Channels15 GMRS / 7 FRS Operating FrequencyUHF 462.5500- 467.7125 MHz Power Source3 AAA Alkaline Batteries Battery Life 20 Hours typical (5/5/90 duty cycle) Frequency Chart Ch. Freq.[MHz]Cross Ref.Ch. Freq.[MHz]Cross Ref. 1462.5625 FRS & GMRS 112 467.6625 FRS 12 2462.5875 FRS & GMRS 213 467.6875 FRS 13 3462.6125 FRS & GMRS 314 467.7125 FRS 14 4462.6375 FRS & GMRS 415 462.5500 GMRS 11 5462.6625 FRS & GMRS 516 462.5750 GMRS 8 6462.6875 FRS & GMRS 617 462.6000 GMRS 12 7462.7125 FRS & GMRS 718 462.6250 GMRS 9 8467.5625 FRS 819 462.6500 GMRS 13 9467.5875 FRS 920 462.6750 GMRS 10 10 467.612…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY March 29, 2007 To: Federal Communications Commission Equipment Authorization Branch, Lab Div., OET 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: FRS/GMRS PART 95 TRANSMITTER FCC IDENTIFIER: AMWUT030 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description - file: AMWUT030_Circuit Description.pdf Schematic Diagram - file: AMWUT030_SCHEMATIC_DIAGRAM.pdf Block Diagram - file: AMWUT030_BLOCK DIAGRAM.pdf Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. 1. Applicant: Uniden America Corporation Engineering Services Office 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Vice president 2. Equipment Identification: FCC ID: AMWUT030 MODEL : GMR1035 3. Quantity: Quantity Production is planned. 4. Emission Type: 11K0F3E 5. Frequency Range: 462.5625 – 467.7125MHz (FRS) 462.5500 – 462.7250MHz (GMRS) 6. Operating Power (ERP): 0.23 W erp(FRS/GMRS) 7. Max. Power Rating: According to the section 95.135 and 95.639 of the FCC Rules. 8. DC voltage and current into Final Amplifying Device: Refer to test data 9. Solid State Devices: Refer to Parts List/Tune-up Info 10. Circuit & Block Diagrams: Refer to EXHIBITS 11. Instruction Manual: Refer to User Manual 12. Tune-up Procedures: Refer to Parts List/Tune-up Info 13. Circuit Descriptions: Refer to Operational Description Means for Frequency Stabilization Means for Attenuation of Spurious Emissions Means for Limiting Modulation 14. Description of Digital Modulation Techniques: Not Applicable 15. Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Power Supply Voltage: 4.5V - 3 AAA Alkaline Batteries Note: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. 16. Equipment Identification: A drawing of the equipment's Identification Label and, its location are as shown in ID Label/Location Info. 17. Photographs: External photographs of the unit as well as internal photos of the printed circuit boards are found in External Photos and Internal photographs.

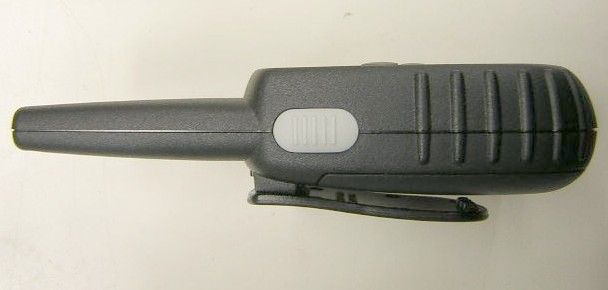

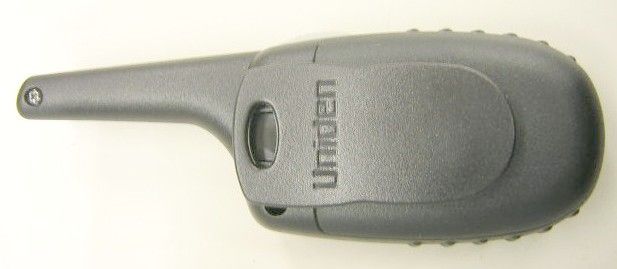

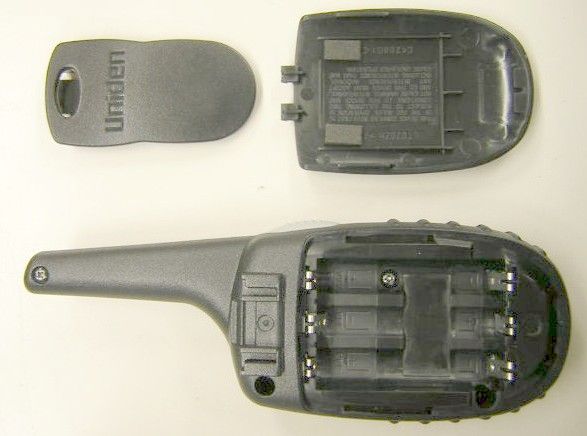

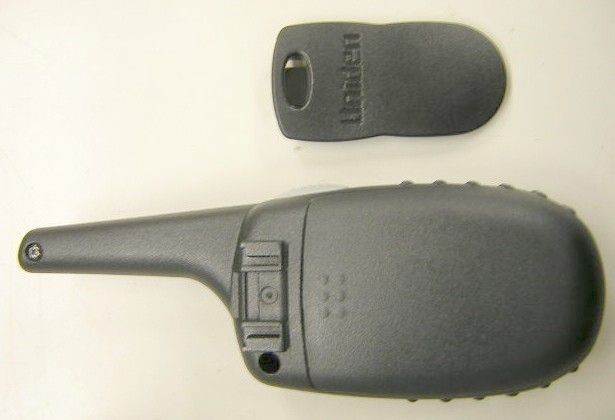

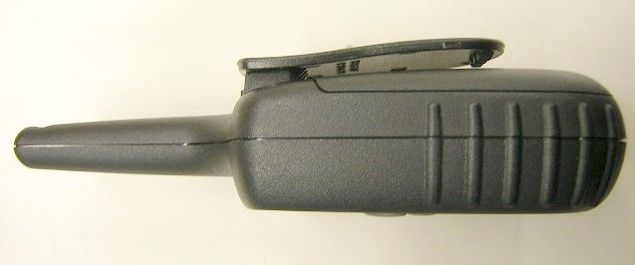

ID Label/Location Info The FCC Label complies with the section 2.925(d) of the FCC Rules and will be placed in the battery compartment due to limited space. This label will be readily visible at the time of purchase. 1) Rating label: 27 mm (W) x 11 mm (H) 2) STATEMENT label: 31 mm (W) x 17 mm (H) Belt clip Approx.140 Approx. 50

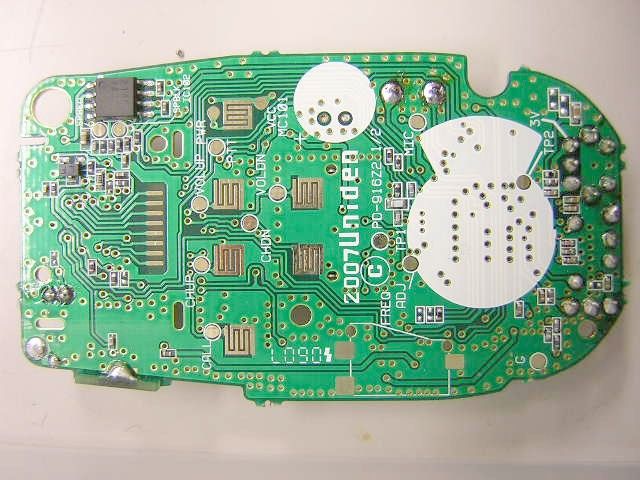

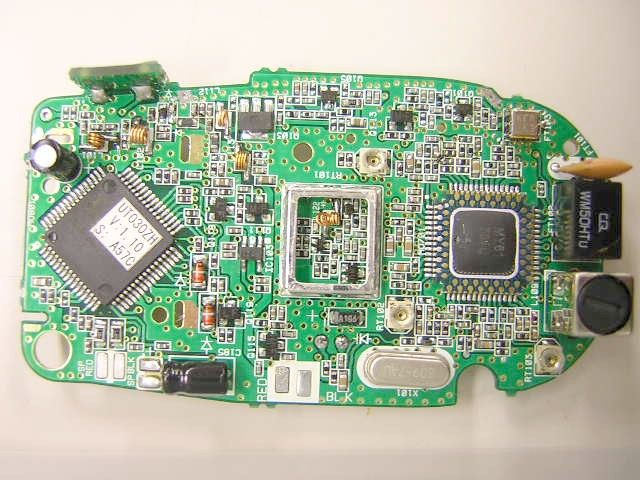

ALIGNMENT PROCEDUR FORM - 3 PAGE MODEL UNIT BLOCKISSUE DATE ISSUED TITLE ADJUST POINT SUB TITLE REF DIAGRAM 1. MAIN PCB PD-916 (TOP VIEW)2. MAIN PCB PD-916 (BOTTOM VIEW) RF IN/OUT TP1 L122RT101 RT102 FREQ ADJ TP2 GND RT103 L109 TP1 : VCONTL109 : DISC.ADJ. TP2 : DISC OUTL122 : VCONT ADJ.. FREQ. ADJ.RT101 : MAX DEV. ADJ. RF IN/OUTRT102 : FREQ. ADJ. MICRT103 : SQ ADJ. SP RED SP BLK REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY ENGLISH VERSION02.09 JQD818ZF013 R0 UT030ZHNEKOZUKA

Company: Uniden America Corporation FCC ID: AMWUT030 IC ID: 513C-UT030 Model(s): GMR1035 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 30 Date(s) of Evaluation March 23, 2007 Test Report Serial No. 032107AMW -T824-S95U Report Revision No. Revision 1.0 Report Issue Date March 27, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR UNIDEN AMERICA CORPORATION PORTABLE UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): GMR1035 Test Report Serial No. 032107AMW-T824-S95U Test Report Revision No. Revision 1.0 (Initial Release) Test Lab and Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes General Manager Celltech Labs Inc. IDENTIFIER(S) FCC ID: AMWUT030 IC: 513C-UT030 FCC OET Bulletin 65, Supplement C (01-01) Test Standard(s) and Procedure(s) Industry Canada RSS-102 Issue 2 Certificate No. 2470.01 Company: Uniden America Corporation FCC ID: AMWUT030 IC ID: 513C-UT030 Model(s): GMR1035 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 30 Date(s) of Evaluation March 23, 2007 Test Report Serial No. 032107AMW -T824-S95U Report Revision No. Revision 1.0 Report Issue Date March 27, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Company Information UNIDEN AMERICA CORPORATION Engineering Services Office 181 N. Country Club Road Lake City, SC 29560 United States FCC IDENTIFIER: AMWUT030 IC IDENTIFIER: 513C-UT030 Model(s): GMR1035 Rule Part(s) Applied: FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 230 mW (23.6 dBm) ERP (462.5625 MHz) GMRS Ch. 1 Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: Alkaline AAA x3 (4.5 V) Body-Worn Accessories Tested: n/a (radio does not have provision for body-worn transmit operation) Audio Accessories Tested: n/a (radio does not have provision for audio accessory) Max. SAR Level(s) Evaluated: Face-held: 0.437 W/kg (1g) - 50% duty cycle Test Report Approved By: Sean Johnston SAR Lab Manager Celltech Labs Inc. Company: Uniden America Corporation FCC ID: AMWUT030 IC ID: 513C-UT030 Model(s): GMR1035 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 30 Date(s) of Evaluation March 23, 2007 Test Report Serial No. 032107AMW -T824-S95U Report Revision No. Revision 1.0 Report Issue Date March 27, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT)_________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION______________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _______________________________________________________________ 9 10.0 ROBOT SYSTEM SPECIFICATIONS _________________________________________________ 10 11.0 PROBE SPECIFICATION (ET3DV6) ____________________…

Text truncated - open the document above for the full version.

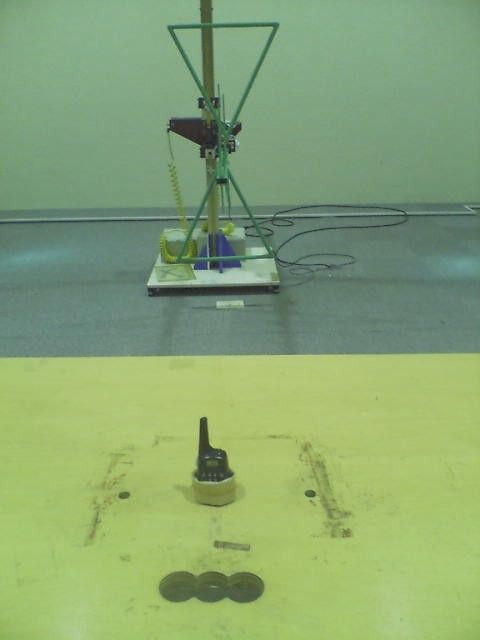

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION DATE: 3-20-2007 FCC ID: AMWUT030 MODEL: GMR1035 DESCRIPTION: 22CH FRS/GMRS RADIO Tested by: Mr. K. Nekozuka, Uniden Corporation MEASUREMENT ITEMS Section No. 1. DC Voltage & Current into Final Device 2.1033(C)(8) 2. RF Output Power 2.1046 3. Modulation Characteristics (Audio Roll-off) 2.1047 4. Modulation Characteristics (Audio Frequency Response) 2.1047 5. Modulation Characteristics (Modulation Limiting) 2.1047 & 95.637(a) 6. Occupied Bandwidth 2.1049(c)(1) & 95.635(b)(1)(3)(7) 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 8. Field Strength of Spurious/Harmonic Radiation 2.1053 & 95.635(b)(7) 9. Frequency Stability (Temperature) 2.1055 10. Frequency Stability (Voltage) 2.1055 NOTE: List of measurement equipment and test site description are included in this EXHIBIT. 1. DC Voltage & Current into Final Device 2.1033(C)(8) ------------------------------------------ To measure the DC Voltage and Current into Final Amplifying Device, the measuring equipment was connected to the actual P.C.Board of the transmitter. FCC limits: Not specified Test Results: Refer to test data 2. RF Output Power 2.1046 & 95.639 ------------------- The unit was tuned-up in accordance with the alignment procedure stated in the EXHIBIT-6, and was loaded into a 50-ohm resistive termination. The unit was powered through its normally supplied power cable by a DC power supply. Power supply voltage was set to nominal voltage at the power supply terminals with the transmitter off. The unit was operated for three consecutive test cycles of 15 minutes standby and 5 minutes in transmitting. At the end of the third 5 minutes period, the RF output power is measured. During the test, no components of the emission spectrum exceed the limit specified in the applicable rule part for occupied bandwidth or emission limitations. FCC limits: 0.5 W ERP for FRS and 5W ERP for GMRS Test Results: Refer to test data 3. Modulation Characteristics (Audio Roll-off) 2.1047 ----------------------------------------------- To measure the audio roll-off filter response, an audio frequency oscillator and AF VTVM were connected to the actual P.C.Board of the transmitter. AF VTVM and an oscilloscope monitored the output of the audio filter. An AF input level was maintained was maintained constant at least 10 dB below the saturation level at maximum response frequency. The measurement was made under the above conditions by varying the frequency between 1 kHz and 100 kHz. FCC limits: 3 kHz - 20 kHz: -60 log 10 (F/3) dB Test Results: Refer to test data 4. Modulation Characteristics (Audio Frequency Response) 2.1047 --------------------------------------------------------- The audio frequency response was measured in accordance with TIA/EIA Specification 603. Operate the unit under the standard test conditions and monitor the output with a modulation or a calibrated test receiver. The input required to produce 30 percent modulation level was measured. 5. Modulation Characteristics (Modulation Limiting) 2.1047 & 95.637(a) ---------------------------------------------------- The transmitter shall be adjusted for full rated system deviation, 1000 Hz and reference it as 0dB input. With modulation frequencies of 300, 1000 and 3000 Hz respectively, vary the audio input to a level 20dB above that required at 100 Hz to produce 60% of rated system deviation. This is required for both up to and down modulation. Record the percent of full system deviation obtained as a function of input level. FCC limits: +/-2.5 kHz deviation Test Results: Refer to test data 6. Occupied Bandwidth 2.1049(c)(1) & 95.635(b)(1)(3)(7) ---------------------- The spectrum of the modulated carrier was monitored by a panoramic method capable of 60dB amplitude range. The unit was modulated with a 2500 Hz audio signal at an input level 16dB above that required for 50% of maximum system deviation. In case the 100Hz of CTCSS tone or 100 bps of digital coded data modulation is indicated for this transmitter, a representative measurement data for this operation is also presented. Since the total deviation of the unit is designed as 4.7 kHz Div., the deviation of 2500Hz audio signal was set to 3.7 kHz Div., as the maximum deviation of tone or digital coded signal was continuously set to 1.0 kHz Div. At first, tone or digital signal was disabled and set the 2500 Hz audio signal to 1.85 kHz deviation (= 50% of 3.7 kHz deviation). Then, the input level of 2500Hz audio signal was increased by 16dB. In this condition, the tone or digital coded signal was then enabled and imposed with 2500Hz audio signal. FCC limits: a) -25dB (50 - 100% of assigned frequency) b) -35dB (100 - 250% of assigned frequency) c) 43 + 10log 10 (RF output power in Watts) dB or 80dB, whichever is lesser attenuation for more than 250% of assigned frequency Test Results: Refer to test data 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 ---------------------------------------------------- Spurious radiations are the radio frequency voltage or power generated within the equipment and appearing at the equipment's output terminals when properly loaded with its characteristic non-radiating load. The unit was modulated with a 2500 Hz tone at an input level 16dB greater than that required 50% modulation. The spectrum was scanned from the lowest frequency generated in the equipment to the tenth harmonic of the carrier. FCC limits: 43 + 10log 10 (RF output power in Watts) dB Test Results: Refer to test data. 8. Field Strength of Spurious & Harmonic Radiation 2.1053 --------------------------------------------------- Measurement Procedure & Test Site Description Field strength measurements of radiated spurious emissions were made on a 3-meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test site have been placed on file with the Commission. The equipment was scanned for radiated emissions in a scheduled enclos…
