AMWUT052PORTABLE FRS/GMRS PTT RADIO

GMR3689-2CK/GMR3699-2CK 24 1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 22 23 LIQUID CRYSTAL DISPLAY 21 20 8 *Range may vary depending on environmental and/or topographical conditions. • 15 GMRS / 7 FRS Channels • 142 Privacy Codes (CTCSS Tone and DCS Code) • Up to 36 Mile Range* • Internal VOX Circuitry • Submersible design • Direct Call • 143 Group Codes • Silent Mode • 10 Selectable Call/Ring Tone Alerts • Backlit LCD Display • Roger Beep • Vibrate Reminder (GMR3699 Only) 1 Antenna 2 PTT (Push-To-Talk) Button 3 Power Boost Button 4 Monitor Button 5 Channel Up/Down Key 6 Tone/Group Key 7 D-call Key 8 Headset Jack 9 Menu/Power key 10 Volume Up/Down key 11 Enter/Lock Key 12 Weather/Alert Key 13 Microphone 14 Speaker 15 Battery Level Indicator 16 Sub Code Indicator 17 Alert Indicator 18 Group Indicator 19 Receive Indicator 20 VOX Indicator 21 Call Indicator 22 Channel Indicator 23 Missed Call Indicator 24 Charging Contacts Congratulations on your purchase of the Uniden GMR3689-2CK/GMR3699-2CK (General Mobile Radio Service) waterproof radio. This lightweight, palm-sized, radio is a state-of-the-art device, equipped with many valuable features. Use it at sporting events, to stay in contact with family and friends, hiking, skiing, outdoors, or in a neighborhood watch for vital communication - even outside by the pool! Your radio complies with JIS7 water-resistant standards, which means the radio can be submerged in 1.0 meters of water for 30 minutes without damage. • The radio will only meet this rating if fully assembled and all rubber seals and the jack cover is well maintained and correctly fitted. This means that the Headset plug is not inserted, and the Headset jack cover and the battery pack are attached and securely fastened. • After your radio is submerged in water, you might notice that the sound is distorted. This is because there is still water remaining in and around the speaker and microphone. Just shake the radio to clear excess water, and the sound should return to normal. Note: If your radio is exposed to salt water, clean your radio thoroughly with fresh water, and dry it before turning it on. PACKAGE CONTENTS Your package contains two radios, two rechargeable NiMH battery packs (#BP38), one AC adapter (#AD- 314), one charging cradle (#RC1282), two belt clips and this reference guide. You can operate the unit using the rechargeable NiMH battery pack. To order the following optional accessories, visit our web site @www.uniden.com or call 1-800-554-3988 during business hours. Use only Uniden accessories. • NiMH Battery Pack - #BP38 • Charging Cradle - #RC1282 • VOX Headset - #ZA-133 • AC Adapter - #AD-314 GMRS LICENSE The radio operates on the General Mobile Radio Service (GMRS) frequencies when using Channels 1-7 and channels 15-22. You must have a GMRS license issued by the Federal Communications Commission to legally use these channels. For licensing information and application forms, visit the FCC online at: www. fcc.gov/wtb/uls or call the FCC hotline at 1-800- 418-3676. If you have any questions, you can contact the FCC direct at 1-888-225-5322. No license is required for operation on channels 8-14 or operation on any channel in Canada. INSTALL THE BATTERY Your radio uses a supplied NiMH battery pack. To install the NiMH battery pack: 1) Make sure the radio is off. 2) Turn the screw holding the battery compartment counterclockwise with a screwdriver, and hold up the battery cover. 3) Put the NiMH battery pack in the battery compartment applying the battery contacts to the lower charge contacts. Be sure to follow the instructions written on the battery pack’s label. Installing the battery pack incorrectly will prevent the unit from operating. 4) Before placing the battery cover back on the radio, check the rubber seal around the battery compartment and the ribbon of the battery pack: make sure that the seal is in good condition and that there is no foreign matter under the seal. 5) Replace the battery compartment door. Tighten the screws securely. Note: If the rubber seal appears worn, nicked, or dried out, replacement seals are available from www.uniden.com or call 1-800-554-3988 during business hours. USING THE RADIO SETTING UP GROUP MODE USING THE RADIO BATTERY LEVEL AND LOW BATTERY ALERT This radio has a battery level meter that indicates the status of the batteries. When the battery level is low, the battery level meter icon flashes and then BATT appears after 30 seconds. Recharge the NiMH battery pack immediately. Warning! To avoid the risk of personal injury or property damage from fire or electrical shock, only use the Uniden accessories specifically designated for this product. GMR3689-2CK/GMR3699-2CK RADIO CHARGING THE RADIO Your radio includes charging cradle and rechargeable battery packs. Follow these instructions to recharge the radios in a charging cradle. Make sure to turn the radio OFF before placing the radio in the charging cradle. In order to get the most out of your new radio, read this reference guide completely before attempting to operate the unit. Turning the Radio On and Adjusting the Volume 1) Press and hold the MENU/ to turn the radio ON. 2) To change the volume level, press the VO or to increase or decrease the volume level then press ENTER/ . 3) Press and hold the MENU/ to turn the radio OFF. Choosing a Channel Your radio has 22 channels and 142 Privacy codes you can use to talk to others. In order to speak to someone, both your radios must be set to the same channel and Privacy code. To choose a channel: Press CH or to increase or decrease the channel number displayed. • To change the channel continuously, press CH or , then repeatedly press and hold CH or for more than 1 second. Note: Channels 1-7 and 15-22 have a typical range of up to 36 miles by pressing the Power Boost. HI is displayed when you select a GMRS channel, and LO is displayed when you select a FRS channel. Using the Charging Cradle 1) Connect the adapter's plug to DC IN 9V j…

Text truncated - open the document above for the full version.

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 LIMITED AGENCY AGREEMENT May 20, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Director of Certification RE: Equipment Authorization for FCC Certification We, Uniden America Corporation (hereinafter “Uniden”), hereby authorize Jonathan Hughes, Product Manager of Celltech Labs, Inc., located at 21-364 Lougheed Road in Kelowna, BC V1X 7R8, to act as our agent for the purpose of testing and preparing an equipment authorization application for our device identified by the FCC Certification number AMWUT052 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is today, May 20, 2010. This limited agency agreement expires on May 20, 2011, unless sooner terminated or extended by written notice to Celltech Labs, Inc. and Federal Communications Commission. Uniden certifies that equipment manufactured, imported, or marketed under the FCC Certification number AMWUT052 will comply with the parameters established in the application for equipment authorization unless the changes are in full compliance to the provisions in the FCC Rules and Regulations that allow such changes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Celltech Labs, Inc., resides with Uniden America Corporation located at 4700 Amon Carter Blvd, Fort Worth, Texas 76155. Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 If you have any questions or comments, please do not hesitate to contact me. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. Canada V1X 7R8 Tel. 250-765-7650 • Fax. 250-765-7645 • e-mail: [email protected] www.celltechlabs.com Date: June 28, 2010 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Uniden America Corporation FCC ID: AMWUT052 Parts 95A/B - Certification On behalf of Uniden America Corporation is an application for Parts 95A/B Certification of the Portable FRS/GMRS Push- To-Talk (PTT) Radio Transceiver described below. This device has been tested and complies with the requirements for certification under FCC Rule Parts 95A/B. Device Classification: Part 95 Family Radio Face Held Transmitter (FRF) Device Description: Portable FM FRS/GMRS PTT Radio Transceiver Model Name / No.(s): GMR3689-2CK, GMR3699-2CK (Difference in chassis color only) Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channel 8-14) Antenna Type: Fixed External (Non-detachable) Max. RF Output Power: 1.53 Watts ERP (GMRS) 0.46 Watts ERP (FRS) Submitted within this application is the TCB Form 731, applicant’s authorization letter, applicant’s long-term confidentiality request, FCC Parts 95A/B measurement report and test setup photographs, SAR RF Exposure measurement report and test setup photographs, FCC ID label and location, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), circuit description (confidential) and the user manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes Project Manager Celltech Labs Inc. cc: Uniden America Corporation

REQUEST FOR CONFIDENTIALITY June 25, 2010 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification under Part 95 Applicant: Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155 Jon Suehiro, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: FRS/GMRS Hand Held Transmitter FCC IDENTIFIER: AMWUT052 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description (File Name: UT052Z_Circuit Description (CONFIDENTIAL).pdf) Schematic Diagrams (File Name: UT052Z_Schematic Diagrams (CONFIDENTIAL).pdf) Block Diagram (File Name: UT052Z_Block Diagram (CONFIDENTIAL).pdf) Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Engineering and Regulatory Affairs Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155

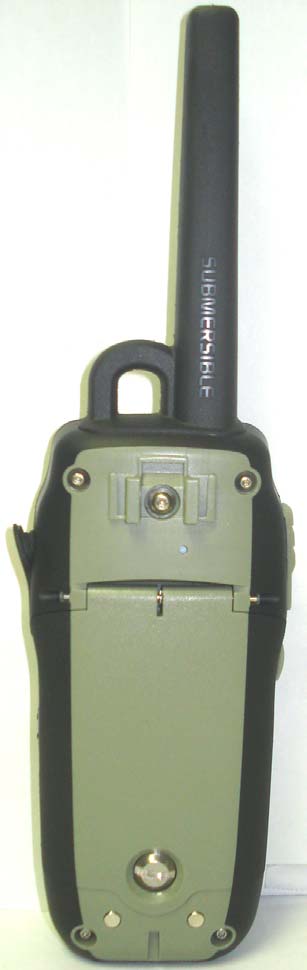

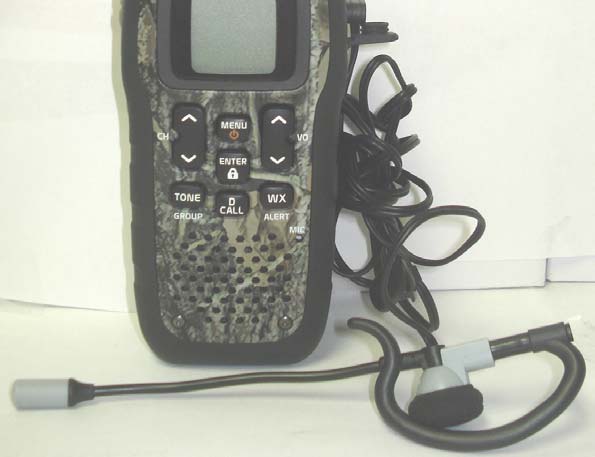

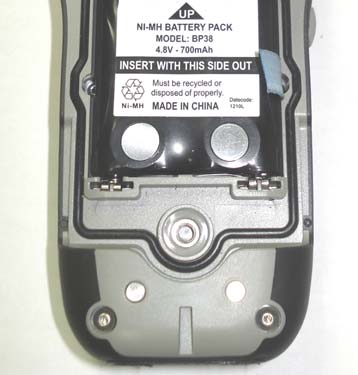

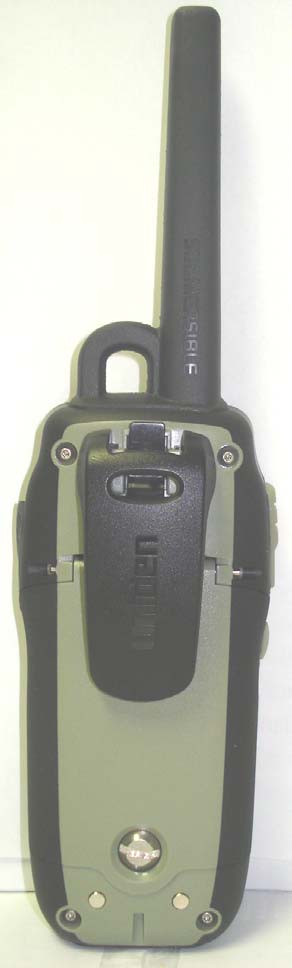

Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 EXTERNAL DUT PHOTOGRAPHS Front Side of DUT Back Side of DUT Back Side of DUT with Belt-Clip Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 EXTERNAL DUT PHOTOGRAPHS DUT with Headset/Boom-Microphone audio accessory (P/N: ZA-133) Plastic Belt-Clip accessory Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 EXTERNAL DUT PHOTOGRAPHS Top end of DUT Bottom end of DUT Left and Right Sides of DUT Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 EXTERNAL DUT PHOTOGRAPHS DUT with Battery installed DUT with Battery removed Front Side of Ni-MH Battery Model: BP38 Back Side of Ni-MH Battery Model: BP38

UT052.DOC 1 FCC ID Label/Location Info The FCC Label complies with the section 2.925(d) of the FCC Rules and will be placed in the battery compartment due to limited space. This label will be readily visible at the time of purchase. 1) Rating label: 32 mm (W) x 7.2 mm (H) For GMR3699 For GMR3689 2) STATEMENT label: 31 mm (W) x 17 mm (H) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 INTERNAL DUT PHOTOGRAPHS Bottom Side of PCB (with shielding) Bottom Side of PCB (shielding removed) Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 INTERNAL DUT PHOTOGRAPHS VCO Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 INTERNAL DUT PHOTOGRAPHS Top Side of PCB (with LCD Display) Top Side of PCB (LCD Display removed)

Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Tx Freq. Range: 462.5500 - 467.7125 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 32 Date(s) of Evaluation May 31, 2010 Test Report Serial No. 052610AMW -T1026-S95U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date June 29, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 SAR TEST REPORT (FCC/IC) R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER UNIDEN AMERICA CORPORATION DEVICE UNDER TEST (DUT) PORTABLE FM GMRS/FRS UHF PTT RADIO TRANSCEIVER 462.5500 - 462.7250 MHz GMRS Channels 15-22 462.5625 - 462.7125 MHz GMRS/FRS Channels 1-7 DUT FREQUENCY RANGE(S) 467.5625 - 467.7125 MHz FRS Channels 8-14 FCC GMR3689-2CK GMR3699-2CK IC GMR3689 GMR3699 DUT MODEL(S) (Note: Model difference is for chassis color purpose only) DEVICE IDENTIFIER(S) FCC ID: AMWUT052 IC: 513C-UT052 APPLICATION TYPE FCC/IC Certification FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC KDB 447498 D01v04 Industry Canada RSS-102 Issue 4 IEEE 1528-2003 PROCEDURE(S) APPLIED IEC 62209-2 (Draft) RF EXPOSURE CATEGORY General Population / Uncontrolled RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE OF SAMPLE RECEIPT May 26, 2010 DATE(S) OF EVALUATION(S) May 31, 2010 TEST REPORT SERIAL NO. 052610AMW-T1026-S95U TEST REPORT REVISION NO. Revision 1.0 Initial Release June 29, 2010 Testing Performed ByTest Report Prepared By TEST REPORT SIGNATORIES Sean Johnston Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing and Engineering Laboratory TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Tx Freq. Range: 462.5500 - 467.7125 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 32 Date(s) of Evaluation May 31, 2010 Test Report Serial No. 052610AMW -T1026-S95U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date June 29, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States FCC 47 CFR §2.1093 Standard(s) Applied IC Health Canada Safety Code 6 OET Bulletin 65, Supplement C (Edition 01-01) FCC KDB 447498 D01v04 IC RSS-102 Issue 4 IEEE1528-2003 Procedure(s) Applied IEC62209-2 (Draft) FCC ID: AMWUT052 Device Identifier(s) IC:513C-UT052 GMR3689-2CK, GMR3699-2CK (FCC Model No.s) GMR3689, GMR3699 (IC Model No.s) Device Model(s) Note: The difference in the model numbers is for chassis color only (elect. and mech. identical) Test Sample Serial No. None (Identical Prototype) Device Description Portable FM UHF GMRS/FRS Push-To-Talk (PTT) Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) Transmit Frequency Range(s) 467.5625 - 467.7125 MHz (FRS Channels 8-14) 1.53 Watts 31.85 dBm ERP462.5625 MHz GMRS Ch. 1 (Boost Mode) RF Output Power Measured 0.75 Watts 28.75 dBm ERP462.5625 MHz GMRS Ch. 1 (Normal Mode) Battery Type(s) Tested Ni-MH Battery Pack 4.8 V 700 mAh Model: BP38 Antenna Type(s) Tested External Non-detachable Body-worn Accessories Tested Plastic Belt-Clip (supplied with DUT) Audio Accessories Tested Headset-Microphone (P/N: ZA-133) Face-held 1.02 W/kg 1g50% PTT duty cycle Max. SAR Level(s) Evaluated Body-worn 0.875 W/kg 1g50% PTT duty cycle FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg1g50% PTT duty cycle General Population / Uncontrolled RF Exposure Environment Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and International Standard IEC 62209-2 (Draft). All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved BySean JohnstonCelltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable GMRS/FRS UHF PTT Radio Transceiver Tx Freq. Range: 462.5500 - 467.7125 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in…

Text truncated - open the document above for the full version.

Test Report Serial No.: 052610AMW -T1026-C95U Test Report Issue Date: June 29, 2010 Measurement Date(s): June 23-24, 2010 Test Report Revision No.: Revision 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95A, §95B Industry Canada RSS-210 (7), RSS-Gen (2) Test Site Registration(s): FCC Site Registration #: 714830 Industry Canada Site File #: IC 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable FRS/GMRS PTT Radio Transceiver Frequency Range: 462.5500 - 467.7125 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 33 EMC MEASUREMENT REPORT (FCC/IC) FCC PART 95 SUBPART A/B & IC RSS-210 ISSUE 7 MANUFACTURER / APPLICANT UNIDEN AMERICA CORPORATION DEVICE UNDER TEST (DUT) PORTABLE HANDHELD FRS/GMRS PTT RADIO TRANSCEIVER FCC GMR3689-2CK GMR3699-2CK IC GMR3689 GMR3699 DEVICE MODEL(S) (Note: Model difference is for chassis color purpose only) DEVICE IDENTIFIER(S) FCC ID: AMWUT052 IC: 513C-UT052 462.5500 - 462.7250 MHz GMRS Channels 15-22 462.5625 - 462.7125 MHz GMRS/FRS Channels 1-7 DUT FREQUENCY RANGE(S) 467.5625 - 467.7125 MHz FRS Channels 8-14 1.53 Watts - ERP GMRS Boost Mode 0.75 Watts - ERP GMRS Normal Mode MAX. RF OUTPUT POWER LEVELS 0.46 Watts - ERP FRS Mode APPLICATION TYPE FCC Part 95A/B Certification IC RSS-210 Certification Part 2 Part 95 Subpart A FCC 47 CFR Part 95 Subpart B RSS-210 Issue 7 Industry Canada RSS-Gen Issue 2 TIA/EIA-603-C-2004 STANDARD(S) & PROCEDURE(S) ANSI C63.4-2003 FCC DEVICE CLASSIFICATION Part 95 Family Face Held Transmitter (FRF) 47 CFR §95A/B IC DEVICE CLASSIFICATION Low-Power Licence-exempt Radiocomm. Device RSS-210 Issue 7 DATE OF SAMPLE RECEIPT May 26, 2010 DATE(S) OF EVALUATION(S) June 23-24, 2010 TEST REPORT SERIAL NO. 052610AMW-T1026-C95U TEST REPORT REVISION NO. Revision 1.0 Initial Release June 29, 2010 Jon Hughes Test Report Writer Celltech Labs Inc. TEST REPORT SIGNATORIES Sean Johnston Lab Manager Celltech Labs Inc. Celltech Compliance Testing and Engineering Laboratory TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com Test Report Serial No.: 052610AMW -T1026-C95U Test Report Issue Date: June 29, 2010 Measurement Date(s): June 23-24, 2010 Test Report Revision No.: Revision 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95A, §95B Industry Canada RSS-210 (7), RSS-Gen (2) Test Site Registration(s): FCC Site Registration #: 714830 Industry Canada Site File #: IC 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable FRS/GMRS PTT Radio Transceiver Frequency Range: 462.5500 - 467.7125 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 33 DECLARATION OF COMPLIANCE ELECTROMAGNETIC COMPATIBILITY Name CELLTECH LABS INCORPORATED Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada Test Site Registration No.(s) FCC 714830 IC 3874A-1 Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort W orth, Texas 76155 United States FCC 47 CFR Part 2 47 CFR Part 95 Subpart A 47 CFR Part 95 Subpart B IC RSS-210 Issue 7 RSS-Gen Issue 2 Standard(s) & Procedure(s) ANSI TIA/EIA-603-C-2004 C63.4-2003 FCC Part 95 Family Face Held Transmitter (FRF) 47 CFR §95 (Subpart A/B) Device Classification(s) IC Low-power Licence-exempt Radiocommunication Device RSS-210 Issue 7 Device Category FCC/IC Portable RF Exposure Category General Population / Uncontrolled Application Type FCC/IC New Certification Device Identifier(s) FCC ID: AMW UT052 IC: 513C-UT052 Device Under Test (DUT) Portable FM FRS/GMRS UHF Push-To-Talk (PTT) Radio Transceiver GMR3689-2CK, GMR3699-2CK (FCC Model No.s) GMR3689, GMR3699 (IC Model No.s) Device Model(s) Note: The difference in model numbers is for chassis color purpose only (electrically and mechanically identical) Test Sample Serial No.(s) None (Conducted Tests) - Identical Prototype None (Radiated Tests) - Identical Prototype Number of Channels 22 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) Transmit Frequency Range(s) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Mode Power Setting Frequency Channel dBm Watts Method Boost 462.5625 MHz 1 31.85 1.53 ERP GMRS Normal 462.5625 MHz 1 28.75 0.75 ERP Max. RF Output Power Tested FRS Normal 467.5625 MHz 8 26.63 0.46 ERP Modulation Type(s) FM Emission Designator(s) 11K0F3E Antenna Type(s) Tested External Non-detachable Antenna Gain Specification 2.3 dBi Power Source(s) Tested NiMH Battery Pack 4.8 V 700 mAh Model: BP38 This wireless device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Part 2, Part 95 Subpart A, Part 95 Subpart B; Industry Canada RSS-210 Issue 7, RSS-Gen Issue 2; ANSI TIA/EIA-603-C-2004 and ANSI C63.4-2003. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Test Report Serial No.: 052610AMW -T1026-C95U Test Report Issue Date: June 29, 2010 Measurement Date(s): June 23-24, 2010 Test Report Revision No.: Revision 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95A, §95B Industry Canada RSS-210 (7), RSS-Gen (2) Test Site Registra…

Text truncated - open the document above for the full version.

Applicant: Uniden America Corporation FCC ID: AMWUT052 IC: 513C-UT052 DUT Type: Portable FM GMRS/FRS PTT Radio Transceiver Tx Freq. Range: 462.5500 - 467.7125 MHz Celltech Project No.: 1026 TEST SETUP PHOTOGRAPHS ERP Test Setup
