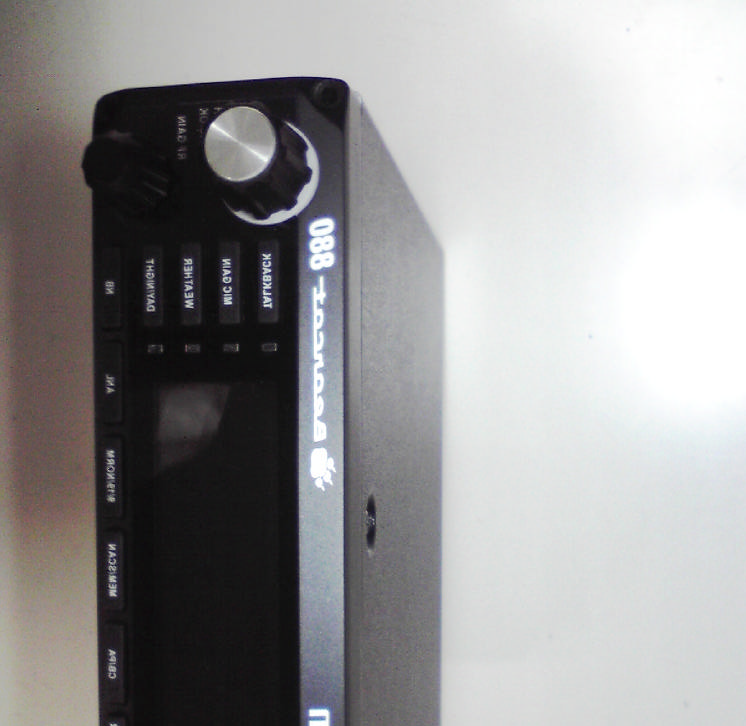

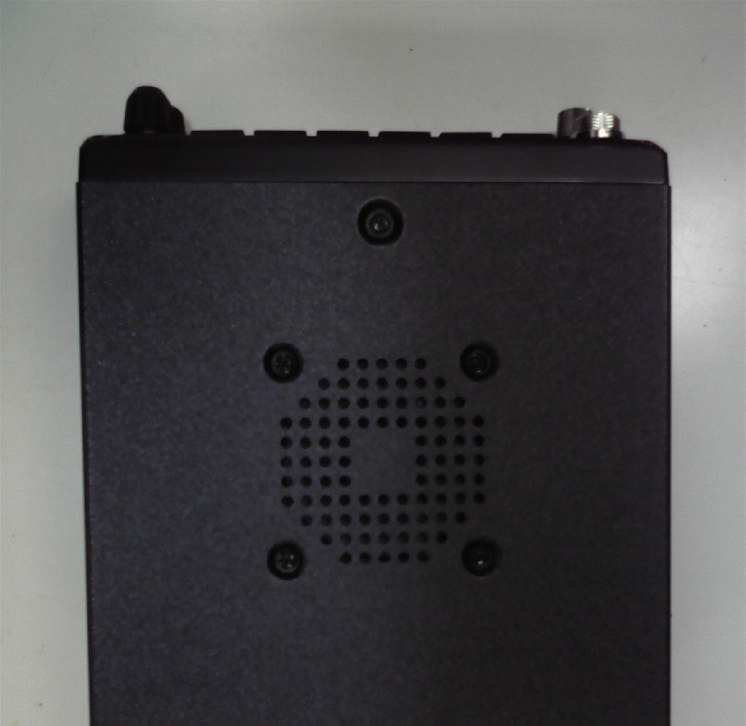

AMWUT390AM MOBILE CB TRANSCEIVER WITH WEATHER ALERT

Owner’s Manual Printed in China U01UT389ZZZ(0) ® 880 2 Contents Unpacking ...............................................................................................................2 Description ............................................................................................................2 Elimination of Licensing ...................................................................................3 Emergency Operation .......................................................................................3 Controls and Functions ......................................................................................4 Installation ..............................................................................................................6 Mobile Station Installation .............................................................................6 Connecting the Power Cords ........................................................................6 Ground Information .........................................................................................7 Marine Installation ............................................................................................7 Using Your Bearcat 880 .......................................................................................7 S/RF/SWR Meter .................................................................................................7 To Receive.............................................................................................................8 To Transmit ..........................................................................................................9 Preventive Maintenance ...................................................................................9 Maintenance .........................................................................................................9 Troubleshooting ...............................................................................................10 Servicing Your Transceiver ............................................................................11 Specifications ......................................................................................................11 Two-Year Extended Warranty .......................................................................12 Radio Code Definitions ..................................................................................14 Uniden is a registered trademark of Uniden America Corporation. Bearcat is a registered trademark of Uniden America Corporation. Features, specifications, and availability of optional accessories are all subject to change without notice. 3 UnpaCking Carefully unpack your Bearcat 880 and check the contents against this list: ƒBearcat 880 CB 2-way mobile radio ƒMicrophone ƒMounting Bracket Kit ƒDC Power Cord ƒReference Guide ƒPart 95 Subpart D (FCC Rules) If any items are missing or damaged, contact your place of purchase immediately. DesCription Your Uniden Bearcat 880 represents the highest quality communications device designed for use in the Citizens Band Radio Service. It will operate on any of the 40 AM frequencies authorized by the Federal Communications Commission (FCC). The Citizens Band Radio Service is under the jurisdiction of the Federal Communications Commission (FCC). Any adjustments or alterations which would alter the performance of the transceiver's original FCC type acceptance, or which would change the frequency determining method, are strictly prohibited. Replacement or substitution of crystal, transistors, ICs, regulator diodes, or any other part of a unique nature, with parts other than those recommend by Uniden, may cause violations of the technical regulations in Part 95 of the FCC Rules or in violation of type acceptance requirements in Part 2 of the rules. elimination of liCensing The FCC has ruled that CB Radio Service operators are no longer required to obtain an FCC License to operate their CB equipment. In doing so, the FCC now also permits CB station operation without station identification. Elimination of individual station licenses does not reduce the operating privileges or responsibilities of CB users. An operator of a CB radio station is still required to comply with the Communications Act and with the rules of Citizens Band Radio Service. 4 emergenCy operation 1. Press 9/19/NORM or turn Channel selector knob to Channel 9. 2. Press PTT switch on microphone and speak clearly. 3. If there is no response, select an active channel and ask that party to relay your emergency broadcast on Channel 9. All channels except Channel 9 may be used for normal communication. The FCC reserves Channel 9 for emergency communications involving the immediate safety of individuals or protection of property. Use Channel 9 to render assistance to a motorist. This is an FCC rule and applies to all CB radio operators. Controls anD fUnCtions 14256 7 151413 111098 12 3 16 1. Volume Control knob with Power On/OFF 2. SQUELCH knob: Reduces background noise when there is no incoming signal. 3. S/RF/SWR Meter: Displays Send/Receive signal strength, RF Power, and SWR reading. 4. Channel Number display. 5. Operation buttons: ƒTalkback: Press to hear what you sound like when transmitting. ƒMIC Gain: Adjusts microphone sensitivity. Delivers up to 100% modulation. ƒWeather: NOAA weather channels ƒDay/Night: Adjusts LCD backlight sensitivity between Day and Night modes. 5 6. Channel/Select knob: Selects transmission and reception chan- nels. Push knob to select. All channels, except Channel 9, may be used for normal communication. Channel 9 is reserved by the FCC for emergency communications involving the immediate safety of individuals or protection of property. Channel 9 may also be used to render assistance to a motorist. This is an FCC rule and applies to all CB operators. 7. Microphone socket: 6 poles. 8. LEDs light when their corresponding function is active. 9. S/RF/CAL/SWR: Push to to check s…

Text truncated - open the document above for the full version.

September 15, 2011 TIMCO Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Letter of Statement for Model Bearcat 880 FCC Part 95Subpart D Compliance FCC Identifier: AMWUT390 To Whom It May Concern: In accordance with the requirements set forth in FCC Part 95 Subpart D, I hereby confirm that the Citizens Band Radio Service Rules will be provided with the user’s manual at the time each unit of equipment model is offered for sale and/or lease in the market. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Engineering and Regulatory Affairs Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155

Uniden America Corporation 4700 Amon Carter Blvd. Fort W orth, TX 76155 817-858-3300 Fax: 817-858-3328 REQUEST FOR CONFIDENTIALITY September 15, 2011 To: Federal Communications Commission Equipment Authorization Branch, Lab Div., OET 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, Texas 76155 Jon Suehiro, Manager - Engineering and Regulatory Affairs TYPE OF EQUIPMENT: CB Transceiver FCC IDENTIFIERS: AMWUT390 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description – file: AMWUT390_Circuit Description.pdf Schematic Diagram – file: AMWUT390_Schematic Diagram.pdf Block Diagram - file: AMWUT390_Block Diagram.pdf Alignment Procedure – file: AMWUT390_Alignment Procedure.pdf Parts List – file: AMWUT390_Parts List.pdf Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

ID Label/Location Info ID label will be permanently affixed to the chassis. Size: 39 mm (W) x 32 mm (H)

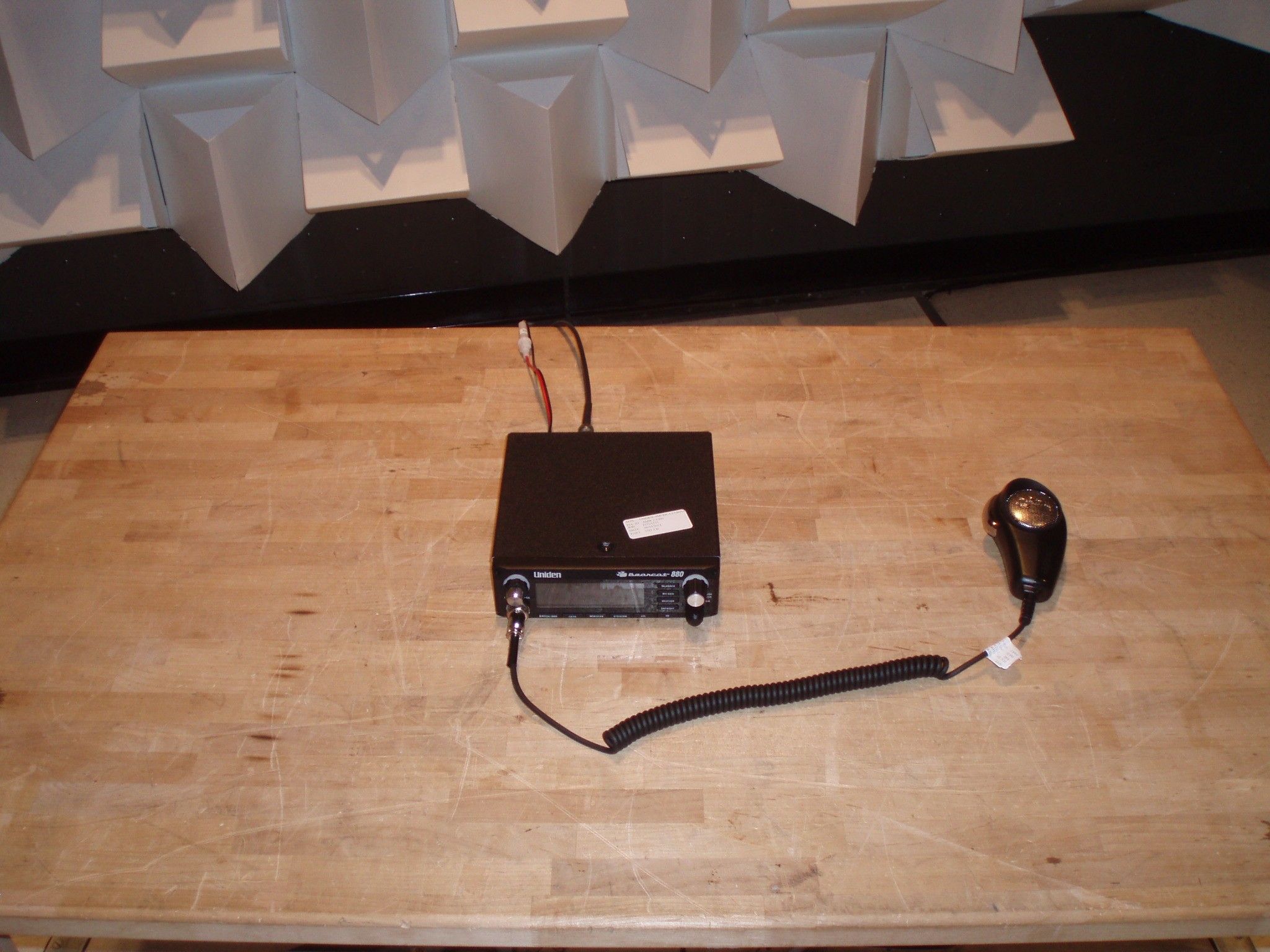

FCC PART 95 SUBPART D FOR CB TRANSCEIVERS APPLICANT UNIDEN AMERICA CORPORATION 4700 AMON CARTER BLVD. FORT WORTH TEXAS 76155 USA FCC ID AMWUT390 MODEL NUMBER BEARCAT 880 PRODUCT DESCRIPTION AM MOBILE CB TRANSCEIVER WITH WEATHER ALERT DATE SAMPLE RECEIVED 9/15/2011 DATE TESTED 9/20/2011 TESTED BY Joe Scoglio APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 2152AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Testing Certificate # 0955-01 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUT390 REPORT #: U\UNIDEN AMW\2152AT11\2152AT11TestReport.doc Page 2 of 18 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST ENVIRONMENT ................................................................................................ 5 TEST SETUP SUMMARY ............................................................................................ 5 EQUIPMENT LIST ...................................................................................................... 6 TEST PROCEDURE ................................................................................................... 7 RF POWER OUTPUT .................................................................................................. 8 MODULATION CHARACTERISTICS ............................................................................ 9 AUDIO FREQUENCY RESPONSE ............................................................................... 9 AUDIO LOW PASS FILTER RESPONSE .................................................................... 10 AUDIO INPUT VS MODULATION .............................................................................. 11 OCCUPIED BANDWIDTH ......................................................................................... 12 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ........................... 14 FIELD STRENGTH OF SPURIOUS EMISSIONS ......................................................... 16 METHOD OF MEASUREMENT ................................................................................. 17 FREQUENCY STABILITY .......................................................................................... 18 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUT390 REPORT #: U\UNIDEN AMW\2152AT11\2152AT11TestReport.doc Page 3 of 18 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 9/26/2011 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUT390 REPORT #: U\UNIDEN AMW\2152AT11\2152AT11TestReport.doc Page 4 of 18 GENERAL INFORMATION DUT Specification DUT Description AM MOBILE CB TRANSCEIVER WITH WEATHER ALERT FCC ID AMWUT390 Model Number BEARCAT 880 Serial Number N/A Operating Frequency 26.965-27.405 MHz No. of Channels 40 Type of Emission 6KOOA3E Bn = 2M M = 3000 Bn = 6000 Modulation AM DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUT390 REPORT #: U\UNIDEN AMW\2152AT11\2152AT11TestReport.doc Page 5 of 18 TEST ENVIRONMENT Test Facility Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition in the laboratory Temperature: 26ºC Relative humidity: 50% TEST SETUP SUMMARY Test Setup Diagram/ Description The DUT was placed on the turntable per setup per ANSI C63.4: 2003. A test set up photo is provided for clarification. Deviation from the standard/procedure No deviation Modification of DUT No modification Applicable Standards EIA/TIA-382-A, FCC CFR 47 PART 95, RSS-GEN, RSS-136 APPLICANT: UNIDEN AMERICA CORPORATION FCC ID: AMWUT390 REPORT #: U\UNIDEN AMW\2152AT11\2152AT11TestReport.doc Page 6 of 18 EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Active Loop ETS-Lindgren 6502 00062529 CAL 9/23/10 9/23/12 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 10/1/09 10/2/11 Frequency Counter HP 5385A 2730A03025 CAL 8/17/11 8/17/13 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 7/18/11 7/18/13 Digital Multimeter Fluke FLUKE-77 35053830 CAL 11/18/09 11/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11…
