AMWUT408AM 4W, Mobile CB Station Transceiver

Owner’s Manual ® PC68LTD Printed in Vietnam U01UT408ZZZ(0) CUSTOMER CARE At Uniden®, we care about you! If you need assistance, please do NOT return this product to your place of purchase. Our customer care specialists are available to serve you. Quickly find answers to your questions by: 1. Reading your owner’s manual. 2. Visiting our customer support website at www.uniden.com. 3. Calling our customer care specialists at 1-800-658-8068. Images in this manual may differ slightly from your actual product. Save your receipt/proof of purchase for warranty. © 2015. All rights allowed by law are hereby reserved. Uniden is a registered trademark of Uniden America Corporation. Bearcat is a registered trademark of Uniden America Corporation. Features, specifications, and availability of optional accessories are all subject to change without notice. CONTENTS CUSTOMER CARE ..........................................................................................2 DESCRIPTION ..............................................................................5 EMERGENCY OPERATIONS ..........................................................................5 WHAT’S IN THE BOX ......................................................................................5 FRONT VIEW ..................................................................................................6 REAR VIEW .....................................................................................................7 INSTALLATION ............................................................................7 MOBILE INSTALLATION ...............................................................................7 Mobile Antenna ...........................................................................................8 Connecting the Power Cords ......................................................................8 Ground Information ...................................................................................8 USING YOUR PC68LTD ...............................................................9 TURN PC68LTD ON/OFF ...............................................................................9 CB MODE ........................................................................................................9 PA MODE ......................................................................................................10 HI CUT/OFF ..................................................................................................10 TO TRANSMIT/RECEIVE ..............................................................................10 MULTI-FUNCTION METER ..........................................................................11 PREVENTIVE MAINTENANCE ..................................................11 TROUBLESHOOTING ................................................................11 SPECIFICATIONS .......................................................................12 RADIO CODE DEFINITIONS .....................................................13 10-CODES .....................................................................................................13 FCC PART 15 INFORMATION ...................................................15 ONE-YEAR EXTENDED WARRANTY .......................................16 4 5 DESCRIPTION Your Uniden PC68LTD represents the highest quality communications device designed for use in the Citizens Band Radio Service. It will operate on any of the 40 AM frequencies authorized by the Federal Communications Commission (FCC). The Citizens Band Radio Service is under the jurisdiction of the Federal Communications Commission (FCC). Any adjustments or alterations which would alter the performance of the transceiver’s original FCC type acceptance, or which would change the frequency determining method, are strictly prohibited. Replacement or substitution of crystal, transistors, ICs, regulator diodes, or any other part of a unique nature, with parts other than those recommend by Uniden, may cause violations of the technical regulations in Part 95 of the FCC Rules or in violation of type acceptance requirements in Part 2 of the rules. EMERGENCY OPERATIONS 1. Set the switch to CH9 or turn Channel Selector knob to Channel 9. 2. Press PTT switch on microphone and speak clearly. 3. If there is no response, select an active channel and ask that party to RELAY YOUR EMERGENCY BROADCAST ON CHANNEL 9. All channels, except Channel 9 may be used for normal communication. Channel 9 is reserved by the FCC for emergency communications involving the immediate safety of individuals or protection of property. Channel 9 may also be used to render assistance to a motorist. This is an FCC rule and applies to all operators of CB radios. WHAT’S IN THE BOX Carefully unpack your PC68LTD and check the contents against this list: • PC68LTD CB 2-way mobile radio • Microphone • Mounting Bracket Kit • DC Power Cord • Reference Guide • Part 95 Subpart D (FCC Rules) If any items are missing or damaged, contact our Customer Care Line immediately at 1-800-658-8068. 6 Never use damaged products! FRONT VIEW 1014151312 287654319 11 ItemDefinition 1Function Meter: Measures RF and S signal strength. 2NB/ANL/ANL/OFF: Reduces external noise and interference from vehicle ignition systems. Select OFF to turn off this function. 3CB/PA: Selects the PA (Public Address) or CB (Citizens Band). Do not use PA function unless an external speaker is connected. 4BRT/DIM: Adjusts the brightness of LED Channel Display and RF Signal Meter. 5CH9/OFF: Instantly tunes to emergency CB Channel 9. Turn off to resume normal channel operations. 6HI CUT/OFF: When turned on, cuts high audio frequencies. 7RX/TX Indicator: Red-transmitting; green-receiving. 8CH 9 Indicator: Red-Channel 9 switch is on. 9Channel Display: Displays current channel selection. 10Channel Knob: Selects transmission and reception channels. 11MIC GAIN: Adjusts microphone sensitivity. 12RF GAIN: Improves reception in strong sig…

Text truncated - open the document above for the full version.

Uniden America Corporation 3001 Gateway Drive, Suite 130 Irving, TX 75063 817-858-3300 Fax: 817-858-3333 8/27/2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: AMWUT408. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational Description PC68LTD-OpDes.pdf Block Diagram PC68LTD-BlkDia.pdf Schematics PC68LTD-Schem.pdf Alignment Procedure PC68LTD-TunPro.pdf Parts List PC68LTD-PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Renji Inuzuka Director, Engineering and Quality Uniden America Corporation

Uniden America Corporation 3001 Gateway Drive, Suite 130 Irving, TX 75063 817-858-3300 Fax: 817-858-3333 8/11/2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, Uniden America Corporation, hereby authorize Ben Hewson of Celltech Labs Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Ben Hewson of Celltech Labs Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, Renji Inuzuka Director, Engineering and Quality Uniden America Corporation

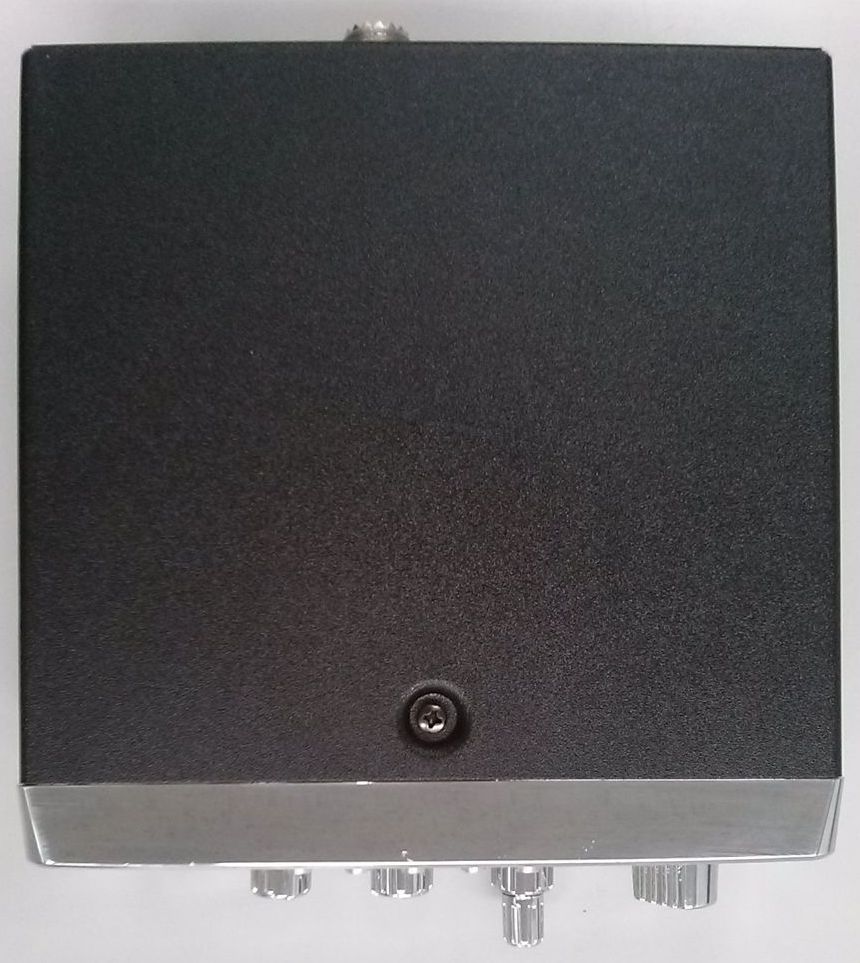

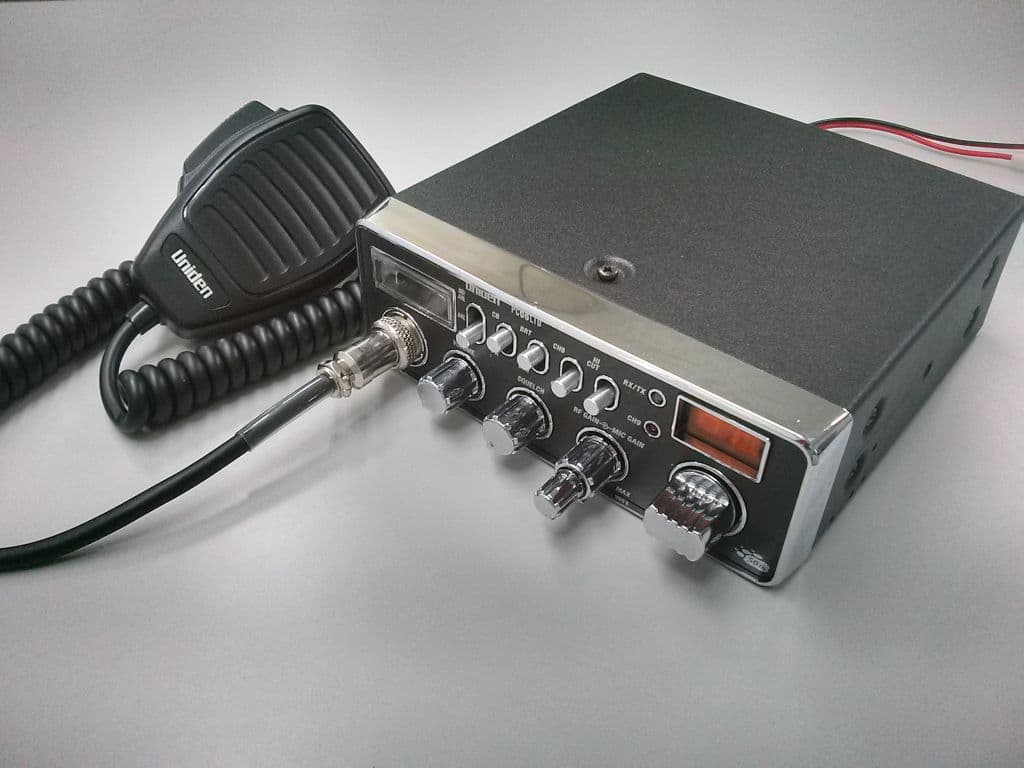

PC68LTD w/ MIC PC68LTD Front View PC68LTD Rear View PC68LTD Left View PC68LTD Right View PC68LTD Top View PC68LTD Bottom View

PC68LTD Rear View Label Location

PC68LTD Main Top View w/ Speaker Wiring PC68LTD Main Bottom View w/ Cover PC68LTD Main Top View PC68LTD Main Bottom View PC68LTD Main RF Amplifier PC68LTD Main Holder PC68LTD Main Audio IC PC68LTD Front Inner View PC68LTD Front Bottom PC68LTD Front Top

Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 20 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.1 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 32 COMPLIANCE TEST REPORT FCC PART 95D RSS-236 EMC/RF MEASUREMENT REPORT Name CELLTECH LABS INCORPORATED Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO 17025:2005 (A2LA Test Lab Certificate No. 2470.01) FCC Accredited Site Test Site Registration No. IC 3874A-1 Name UNIDEN AMERICA CORPORATION Applicant Information Address 6225 North State Highway 161, Suite 300 Irving, Texas 75038 FCC IC. 47 CFR Part 95 Subpart D RSS-236 Measurement Standard(s) & Procedure(s) Applied ANSI TIA/EIA-382-A C63.4-2014 Device Classification(s) FCC/IC Licensed Non-Broadcast Station Transmitter (TNB) Device RF Exposure Category FCC Mobile Device Identifier(s) FCC ID: IC AMWUT408 513C-UT408 Application Type FCC/IC Certification Device Under Test (DUT) Mobile CB Radio Transceiver Device Model PC68LTD Test Sample Serial No.(s) TA Sample - Identical Prototype Transmit Frequency Range(s) 26.965 - 27.405 MHz Channels 1-40 Rated MAX. TX Power 4.0W AM, Modulation Type(s) AM. Emission Designator(s) 6K00A3E Antenna External Whip, 0dBi nominal (3dBi maximum). Power Source(s) Tested DC Power Supply (13.8 V) This device has demonstrated compliance with the applicable technical standards indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2, Part 15B and Part 95D,RSS-236, RSS-GEN ANSI TIA/EIA-382-A and ANSI C63.4-2014. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Art Voss 7 Aug 2015 Celltech Labs Inc. Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 20 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.1 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 32 TABLE OF CONTENTS 1.0 REVISION LOG ................................................................................................................................................... 4 2.0 SCOPE................................................................................................................................................................. 5 3.0 REFERENCES..................................................................................................................................................... 5 4.0 PASS/FAIL CRITERIA ......................................................................................................................................... 5 5.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 6 6.0 GENERAL INFORMATION.................................................................................................................................. 6 APPENDIX A - RF CONDUCTED OUTPUT POWER MEASUREMENT.................................................................. 7 APPENDIX B - MODULATION CHARACTERISTICS (MODULATION LIMITING) ................................................... 9 APPENDIX C - MODULATION CHARACTERISTICS (AUDIO FREQUENCY) ...................................................... 11 APPENDIX D - OCCUPIED BANDWIDTH AND EMISSION MASK........................................................................ 13 APPENDIX E - SPURIOUS EMISSIONS AT THE ANTENNA TERMINAL ............................................................. 17 APPENDIX F - RADIATED SPURIOUS EMISSIONS ............................................................................................. 20 APPENDIX G - FREQUENCY STABILITY .............................................................................................................. 24 APPENDIX H - DEVICE PHOTOGRAPHS.............................................................................................................. 26 Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 20 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.1 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 32 TEST SUMMARY Referenced Standard(s): FCC CFR Title 47 Parts 2, 95(D), 15(B) Appendix Description of Test Procedure Refere…

Text truncated - open the document above for the full version.

Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 7 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 26 of 32 APPENDIX H - Device Photographs Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 7 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 27 of 32 H.1 Modulation Response Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 7 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 28 of 32 H.2 Radiated Emissions Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 7 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 29 of 32 H.3 Radiated Emissions Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 7 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 30 of 32 H.4 Radiated Emissions Test Report Serial No.: 071515AMW-T1330-E95D Test Report Issue Date: 7 Aug 2015 Measurement Date(s): July 20-28, 2015 Test Report Revision No.: 1.0 Rule Part(s) Applied: FCC 47 CFR §2, §95D, RSS-236, RSS_GEN Test Site Registration(s): FCC Accredited Site Test Lab Certificate No. 2470.01 Applicant: Uniden America Corporation FCC ID: IC: AMWUT408 513C-UT408 Model(s): PC68LTD DUT Type: Mobile AM CB Radio Transceiver. Frequency Range: 26.965 - 27.405 MHz 2015 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 31 of 32 H.5 Frequency Stability
