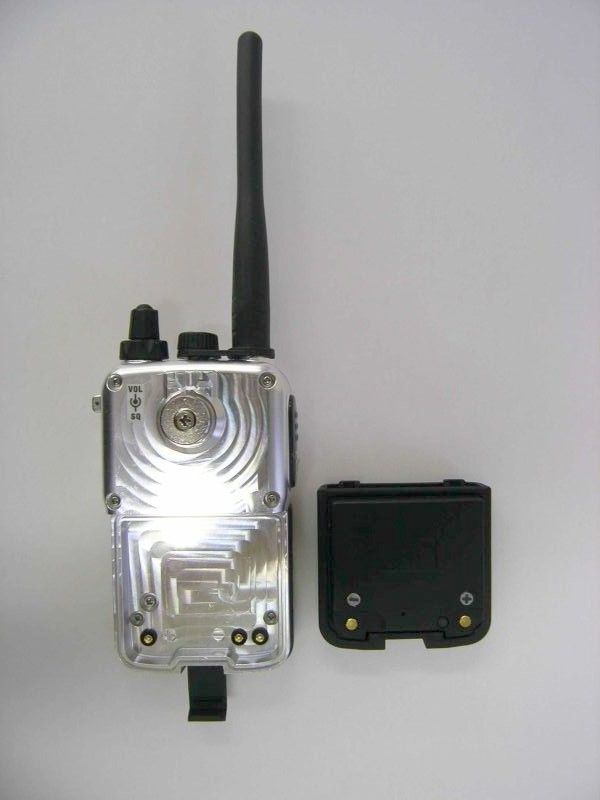

AMWUT607Portable Marine VHF Radio

TEMPORARY FRONT COVER West Marine VHF 150 2 West Marine VHF150 Radio Owner’s Manual Table of Contents Quick Start Guide .......................................................................4 Maritime Radio Services Operation ............................................6 FCC/Industry Canada Information ..............................................2 FCC RF Exposure Information ...................................................6 Lithium Ion Battery Pack Warning ..............................................7 Introduction .................................................................................8 Features .....................................................................................8 VHF 150 Controls .....................................................................10 LCD Display..............................................................................13 Owner Manual Conventions .....................................................14 Indicator Sounds.......................................................................14 Batteries ...................................................................................15 Installing the Lithium Ion Battery Pack ...............................15 Using the Alkaline Battery Pack .........................................15 Mounting the Charging Cradle..................................................17 To Mount the Cradle on a Counter Top ..............................17 Mounting on a Wall .............................................................17 Attaching the Belt Clip ..............................................................18 Operation — Getting Started ....................................................19 Operation – Setting the Radio Options .....................................19 USA/CAN/INT — UIC Settings .................................................19 Lamp (Backlight) Adjust ............................................................20 Adjusting Display Contrast .......................................................20 Setting Dual or Tri Watch ..........................................................20 Setting the Key Beep ................................................................21 PAGE NUMBERS NOT FINAL 3West Marine VHF150 Radio Owner’s Manual Setting the Key Lock.................................................................21 Using the Weather Channels ....................................................22 Manually Selecting Emergency Channels ................................23 Storing a Channel in Memory ...................................................23 Adding FIPS Codes ..................................................................24 Changing Channel Names .......................................................25 Restoring Default Names .........................................................26 Operation – Selecting a Channel..............................................26 Operation – Transmitting Power Level .....................................26 Operation – Transmitting ..........................................................27 Using the Triple Watch or Dual Watch Mode ............................28 Using Scan with Triple Watch,Dual Watch, or Weather Alert ...29 Triple Watch and Dual Watch Only ....................................29 Weather Channel Only ......................................................30 Both Watches and Weather Channel .................................30 Troubleshooting ........................................................................31 Specifi cations ...........................................................................33 Care and Maintenance .............................................................34 USA Channel Frequencies .......................................................34 Canadian Channel Frequencies ...............................................35 International Channel Frequencies...........................................37 NOAA Weather Channels and Frequencies .............................40 Three Year West Marine Warranty ...........................................42 4 West Marine VHF150 Radio Owner’s Manual A Quick Start Guide for the VHF150 Follow these steps to get going! RotateVOLUME until the display lights. The Power On tone sounds. The default display shows channel 16 in the US marine band, a 5 watt level and the label DISTRESS at the bottom edge. PressŸ or ź to change channels. The marine channels begin at 01 and continue, in a closed loop, through 88A. 1. 2. # #865%QO #%)1PN [ #865%QO 5CHGV [ #%QOOGTE /CTQ RT /CT1 RT /GOQT[ # #865%QO #%)1PN [ #865%QO 5CHGV [ #%QOOGTE /CTQ RT /CT1 RT /GOQT[ 5West Marine VHF150 Radio Owner’s Manual To listen to your local NOAA weather channel, press WX/ALERT. One channel of the 10 available will be best. Press WX/ALERT to return to marine channels 1 to 88. To transmit, repeated press 1/2.5/5W to select a pow- er level. Then, press Ÿ or ź to select a channel. PressPTT. The display confi rms transmitting at the bottom of the screen and your power level as well. 3. 4. 5. To learn about other sections which contain details dealing with General Setup, Battery Operation and Charging, Menu Options, Storing Channels, Scanning Channels, and using the special features of either Triple or DualWatch, consult the Table of Contents which immediately preceeds these Quick Start pages. 6 West Marine VHF150 Radio Owner’s Manual Maritime Radio Services Operation Warning! This transmitter will operate on channels/frequen- cie that have restricted use in the United States. The channel assignments include frequencies assigned for exclusive use of the U.S. Coast Guard, use in Canada, and use in interna- tional waters. Operation on these frequencies without proper authorization is strictly forbidden. For frequencies/channels that are currently for use in the U.S. without an individual li- cense, please contact the FCC Call Center at 1-888-CALL-…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. 1. Applicant: Uniden America Corporation Engineering Services Office 216 John Street, P.O. Box 580 Lake City, South Carolina 29560 Mr. James R. Haynes, Chief Engineer 2. Equipment Identification: FCC ID: AMWUT607 MODEL : VHF150 3. Quantity: Quantity Production is planned. 4. Emission Type: 16K0F3E 5. Frequency Range: 156.025 - 157.425 MHz (TX) 156.025 - 163.275 MHz (RX) 6. Operating Power: 5/1 W 7. Max. Power Rating: According to the section 80.215 of the FCC Rules. 8. DC voltage and current into Final Amplifying Device: Refer to test data 9. Solid State Devices: Refer to Parts List/Tune-up Info 10. Circuit & Block Diagrams: Refer to EXHIBITS 11. Instruction Manual: Refer to User Manual 12. Tune-up Procedures: Refer to Parts List/Tune-up Info 13. Circuit Descriptions: Refer to Operational Description Means for Frequency Stabilization Means for Attenuation of Spurious Emissions Means for Limiting Modulation 14. Description of Digital Modulation Techniques: Not Applicable 15. Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Power Supply Voltage: 7.2V DC (Lithium Ion Battery Pack) -or- 6.0V DC (four AAA type alkaline batteries) Note: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. 16. Equipment Identification: A drawing of the equipment's Identification Label and, its location are as shown in ID Label/Location Info. 17. Photographs: External photographs of the unit as well as internal photos of the printed circuit boards are found in External Photos and Internal photographs.

ID Label/Location Info 1) Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. 1) Rating label: 30 mm (W) x 20 mm (H)

FORM-4 REFERENCE DIAGRAM NO. PAGE MODELUNITBLOCKISSUE DATEISSUED UT607ZH2005/10/6- TITLESUB TITLEREF DIAGRAM TX ADJ LEVEL L110DISCRI RX AF ADJUST- L111RX BPF ADJUST- L112RX BPF ADJUST- RT421PLL REF ADJUSTTX FREQ ADJ 156.7MHz @14CH RT422MIC DEVIATION LEVEL ADJUST4.5KHz DEV @0.1V ENGLISH VERSION02.09 JQD818ZF014 R0 ADJUST POINT REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY REVISION FORM-4 REFERENCE DIAGRAM NO. PAGE MODELUNITBLOCKISSUE DATEISSUED UT607ZH2005/10/6- TITLESUB TITLEREF DIAGRAM TX ADJ LEVEL RT502TX HI-POWER ADJUSTTX POWER : 5W ADJ @14CH RT507TX MID-POWER ADJUSTTX POWER : 2.5W ADJ @14CH RT506TX LO-POWER ADJUSTTX POWER : 1W ADJ @14CH RT505RX SQ ADJUST- ENGLISH VERSION02.09 JQD818ZF014 R0 ADJUST POINT REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY REVISION

Applicant: Uniden America Corporation FCC ID: AMWUT607 Model: VHF150 DUT Type: Portable VHF PTT Marine Radio Transceiver Freq. Range: 156.025 - 157.425 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 38 of 38 Test Report Serial No.: 100605AMW-F681-S80V Report Issue Date: Oct. 14, 2005 Date(s) of Evaluation: October 11-12, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 APPENDIX F - PROBE CALIBRATION

Applicant: Uniden America Corporation FCC ID: AMWUT607 Model: VHF150 DUT Type: Portable VHF PTT Marine Radio Transceiver Freq. Range: 156.025 - 157.425 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 38 Test Report Serial No.: 100605AMW-F681-S80V Report Issue Date: Oct. 14, 2005 Date(s) of Evaluation: October 11-12, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR THE UNIDEN AMERICA CORPORATION PORTABLE VHF PTT MARINE RADIO TRANSCEIVER MODEL: VHF150 FCC ID: AMWUT607 Test Report Serial Number 100605AMW-F681-S80V Revision 0 Test Report Issue Date October 14, 2005 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Uniden America Corporation FCC ID: AMWUT607 Model: VHF150 DUT Type: Portable VHF PTT Marine Radio Transceiver Freq. Range: 156.025 - 157.425 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 38 Test Report Serial No.: 100605AMW-F681-S80V Report Issue Date: Oct. 14, 2005 Date(s) of Evaluation: October 11-12, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information UNIDEN AMERICA CORPORATION 181 N. Country Club Road P.O. Box 580 Lake City, SC 29560 United States FCC IDENTIFIER: AMWUT607 Model(s): VHF150 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Part 80 VHF Hand Held Transmitter (GMDSS) - GHH Device Description: Portable VHF PTT Marine Radio Transceiver Modulation Type: FM (VHF) Tx Frequency Range: 156.025 - 157.425 MHz Max. RF Output Power Measured: 37.58 dBm (5.73 Watts) Conducted (156.8 MHz) Antenna Type(s) Tested: Flexible Whip (P/N: ANT150) Battery Type(s) Tested: Li-ion Battery Pack 7.4 V, 1400 mAh (P/N: NTA2343) Body-Worn Accessories Tested: Plastic Swivel Belt-Clip with Metal Spring (P/N: CLIP250) Audio Accessories Tested: Speaker-Microphone (Model: HHVTA07) Max. SAR Level(s) Evaluated: Face-held: 0.681 W/kg (50% Duty Cycle) Body-worn: 0.538 W/kg (50% Duty Cycle) Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT607 Model: VHF150 DUT Type: Portable VHF PTT Marine Radio Transceiver Freq. Range: 156.025 - 157.425 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 38 Test Report Serial No.: 100605AMW-F681-S80V Report Issue Date: Oct. 14, 2005 Date(s) of Evaluation: October 11-12, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 TABLE OF CONTENTS 1.0 INTRODUCTION __________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT) ________________________________ 4 3.0 SAR MEASUREMENT SYSTEM _____________________________________________ 5 4.0 MEASUREMENT SUMMARY ________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION_____________________________________________ 7 6.0 EVALUATION PROCEDURES _______________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ___________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES _________________________________________ 9 9.0 SAR SAFETY LIMITS ______________________________________________________ 9 10.0 ROBOT SYSTEM SPECIFICATIONS ________________________________________ 10 11.0 PROBE SPECIFICATION (ET3DV6) ________________________________________ 11 12.0 PLANAR PHANTOM_____________________________________________________ 11 13.0 VALIDATION PLANAR PHANTOM _________________________________________ 11 14.0 DEVICE HOLDER _______________________________________________________ 11 15.0 TEST EQUIPMENT LIST__________________________________________________ 12 16.0 MEASUREMENT UNCERTAINTIES_________________________________________ 13 MEASUREMENT UNCERTAINTIES (CONT.) ______________________________________ 14 17.0 REFERENCES _________________________________________________________ 15 APPENDIX A - SAR MEA…

Text truncated - open the document above for the full version.

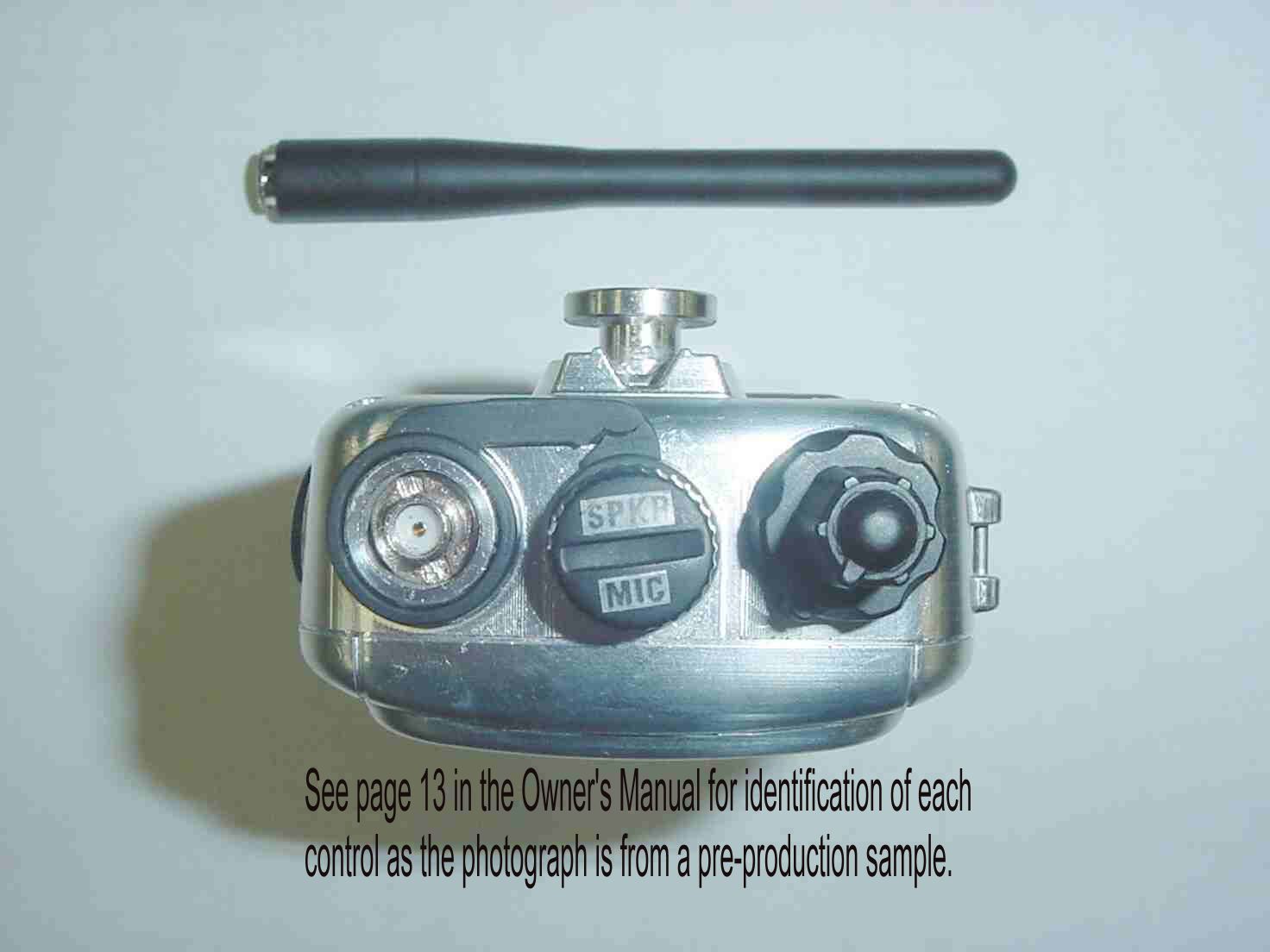

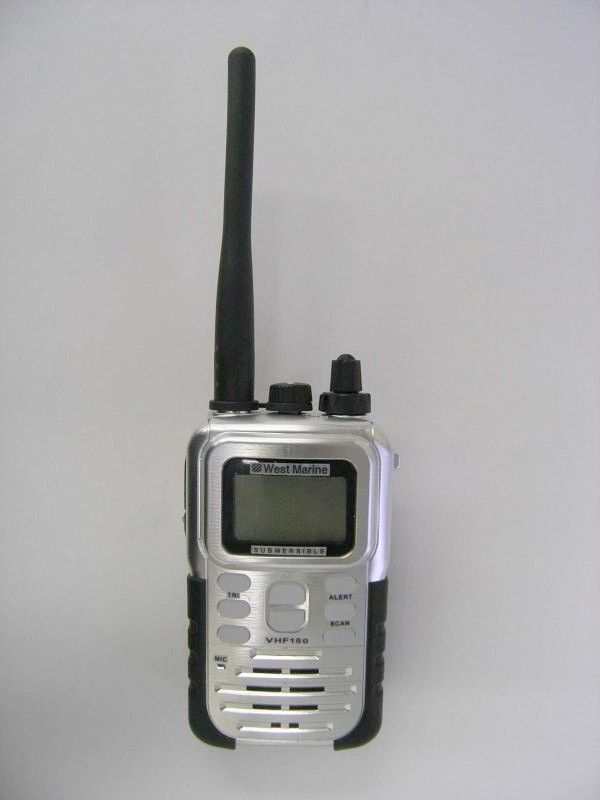

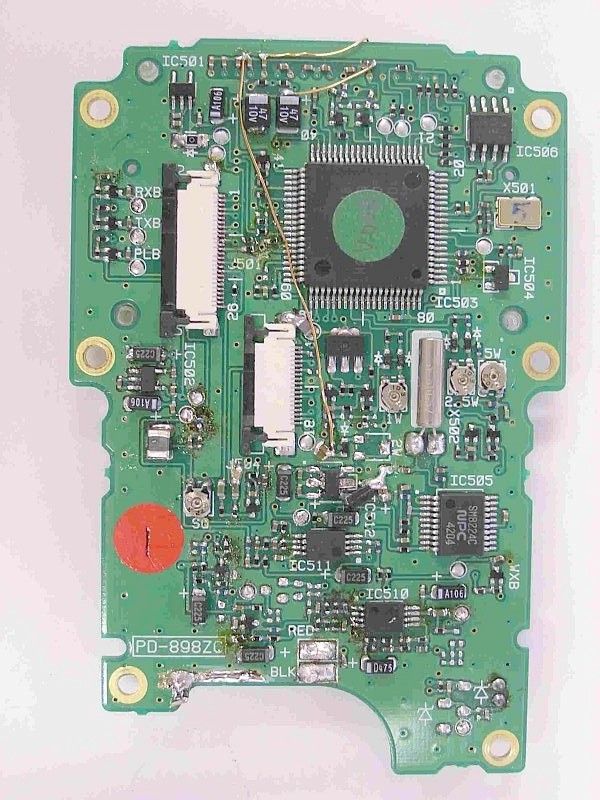

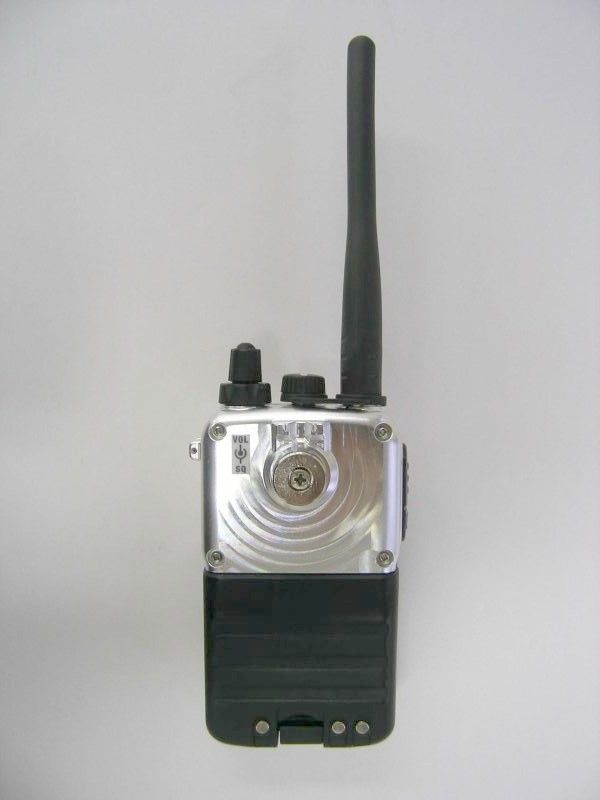

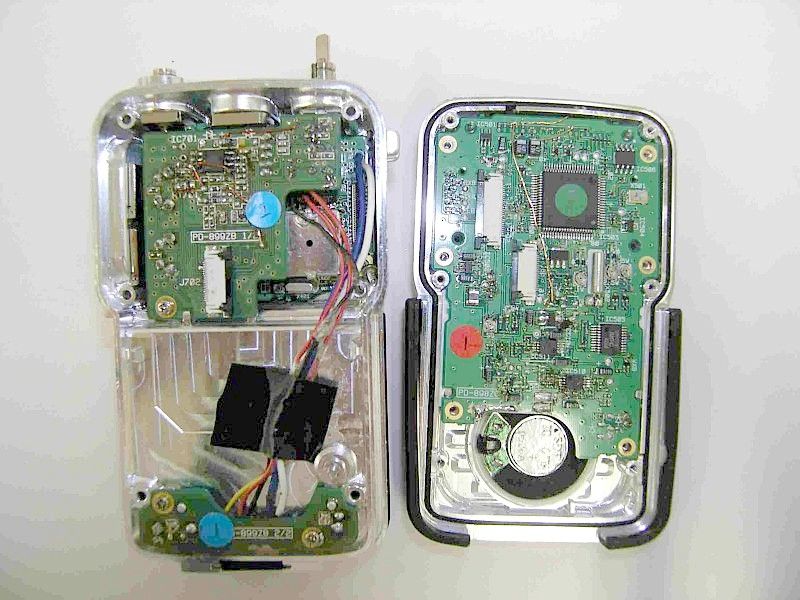

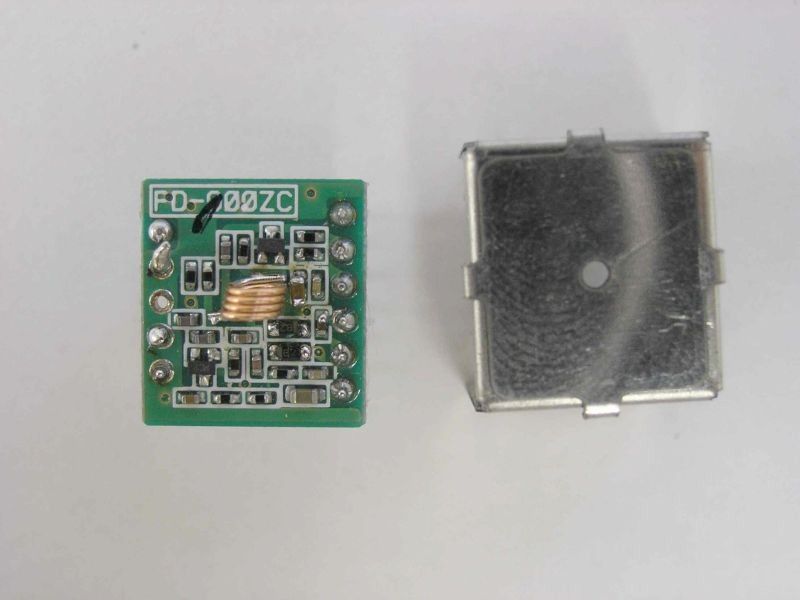

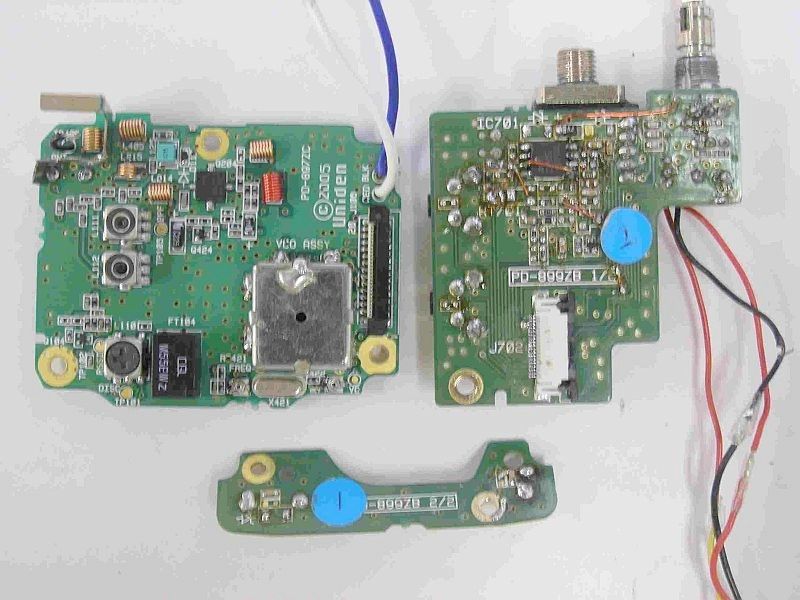

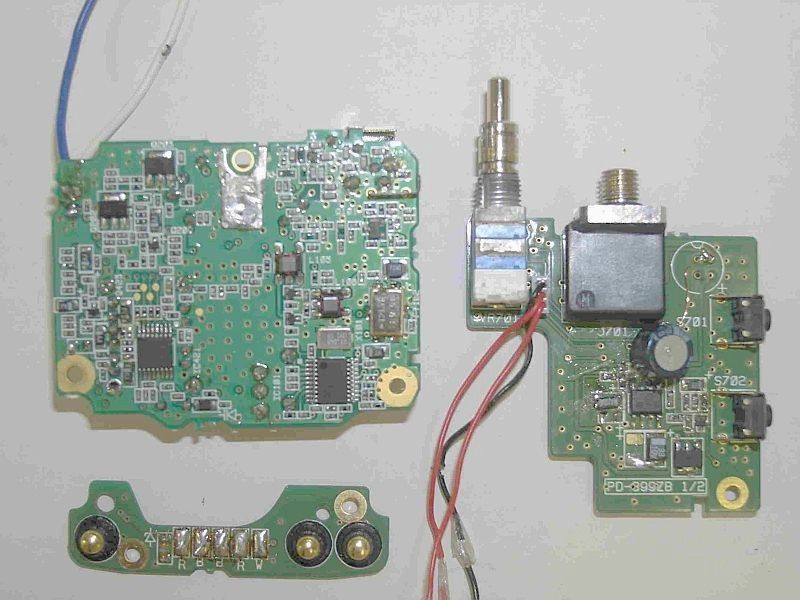

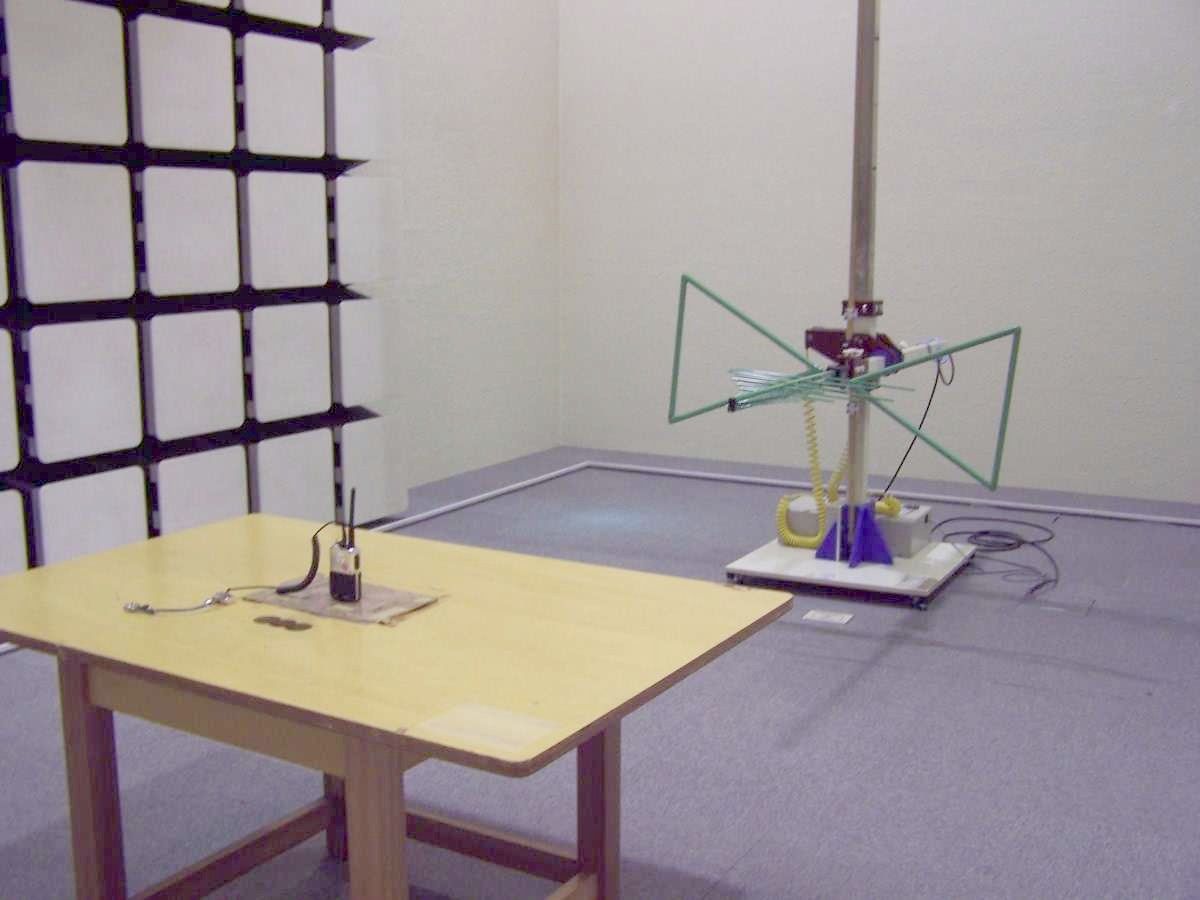

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION DATE: October 7, 2005 FCC ID: AMWUT607 UNI-NO.: UT607ZH MODEL: VHF150 Description: VHF HANDHELD MARINE RADIO MEASUREMENT ITEMS Section No. 1. DC Voltage & Current into Final Device 2.1033(C)(8) 2. RF Output Power 2.1046 3. Modulation Characteristics (Audio Roll-off) 2.1047 & 80.213 4. Modulation Characteristics (Audio Frequency Response) 2.1047 5. Modulation Characteristics (Modulation Limiting) 2.1047 6. Occupied Bandwidth 2.1049(c)(1) & 80.211 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 8. Field Strength of Spurious & Harmonic Radiation 2.1053 9. Frequency Stability (Temperature) 2.1055 & 80.209 10. Frequency Stability (Voltage) 2.1055 & 80.209 11. Receiver radiated spurious emissions 80.217(b) NOTE: List of measurement equipment and test site description are included in this EXHIBIT. 1. DC Voltage & Current into Final Device 2.1033(C)(8) ------------------------------------------ To measure the DC Voltage and Current into Final Amplifying Device, the measuring equipment was connected to the actual P.C.Board of the transmitter. FCC limits: Not specified Test Results: Refer to test data 2. RF Output Power 2.1046 ------------------- The unit was tuned-up in accordance with the alignment procedure stated in the EXHIBIT-6, and was loaded into a 50-ohm resistive termination. The unit was powered through its normally supplied power cable by a DC power supply. Power supply voltage was set to nominal voltage at the power supply terminals with the transmitter off. The unit was operated for three consecutive test cycles of 15 minutes standby and 5 minutes in transmitting. At the end of the third 5 minutes period, the RF output power is measured. During the test, no components of the emission spectrum exceed the limit specified in the applicable rule part for occupied bandwidth or emission limitations. FCC limits: Not specified Test Results: Refer to test data 3. Modulation Characteristics (Audio Roll-off) 2.1047 & 80.213 ----------------------------------------------- To measure the audio roll-off filter response, an audio frequency oscillator and AF VTVM were connected to the actual P.C.Board of the transmitter. AF VTVM and an oscilloscope monitored the output of the audio filter. An AF input level was maintained was maintained constant at least 10 dB below the saturation level at maximum response frequency. The measurement was made under the above conditions by varying the frequency between 1 kHz and 100 kHz. FCC limits: 3 kHz - 15 kHz: -40 log 10 (F/3) dB Above 20kHz : At least -28 dB Test Results: Refer to test data 4. Modulation Characteristics (Audio Frequency Response) 2.1047 --------------------------------------------------------- Operate the unit under the standard test conditions and monitor the output with a modulation or a calibrated test receiver. With a 1000 Hz sine wave (applied through a dummy microphone circuit) used as a 0 dB reference, vary the modulating frequency from 300 to 3000 Hz and observe the level necessary to maintain a constant 30% modulation. FCC limits: 300 - 3000 Hz: 6dB/octave roll-off (+1/-3 dB) Test Results: Refer to test data 5. Modulation Characteristics (Modulation Limiting) 2.1047 ---------------------------------------------------- The transmitter shall be adjusted for full rated system deviation, 1000 Hz and reference it as 0dB input. With modulation frequencies of 300, 1000 and 3000 Hz respectively, vary the audio input to a level 20dB above that required at 100 Hz to produce 60% of rated system deviation. This is required for both up to and down modulation. Record the percent of full system deviation obtained as a function of input level. FCC limits: +/-5 kHz deviation Test Results: Refer to test data 6. Occupied Bandwidth 2.1049(c)(1) & 80.211 ---------------------- The spectrum of the modulated carrier was monitored by a panoramic method capable of 60dB amplitude range. The unit was modulated with a 2500 Hz audio signal at an input level 16dB above that required for 50% of maximum system deviation. In case the 100Hz of CTCSS tone or 100 bps of digital coded data modulation is indicated for this transmitter, a representative measurement data for this operation is also presented. Since the total deviation of the unit is designed as 4.7 kHz Div., the deviation of 2500Hz audio signal was set to 3.7 kHz Div., as the maximum deviation of tone or digital coded signal was continuously set to 1.0 kHz Div. At first, tone or digital signal was disabled and set the 2500 Hz audio signal to 1.85 kHz deviation (= 50% of 3.7 kHz deviation). Then, the input level of 2500Hz audio signal was increased by 16dB. In this condition, the tone or digital coded signal was then enabled and imposed with 2500Hz audio signal. FCC limits: a) -25dB (50 - 100% of assigned frequency) b) -35dB (100 - 250% of assigned frequency) c) 43 + 10log 10 (RF output power in Watts) dB or 80dB, whichever is lesser attenuation for more than 250% of assigned frequency Test Results: Refer to test data 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 ---------------------------------------------------- Spurious radiation is the radio frequency voltage or power generated within the equipment and appearing at the equipment's output terminals when properly loaded with its characteristic non-radiating load. The unit was modulated with a 2500 Hz tone at an input level 16dB greater than that required 50% modulation. The spectrum was scanned from the lowest frequency generated in the equipment to the tenth harmonic of the carrier. FCC limits: 43 + 10log 10 (RF output power in Watts) dB Test Results: Refer to test data 8. Field Strength of Spurious & Harmonic Radiation 2.1053 --------------------------------------------------- Measurement Procedure & Test Site Description Field strength measurements of radiated spurious emissions were made on a 3-meter range maintained by Uniden Corporation in Japan. Complete description and meas…
