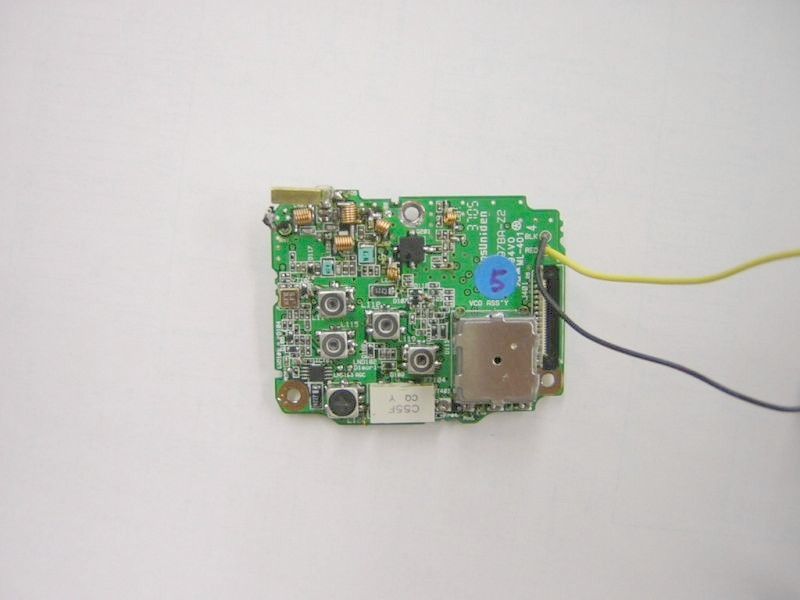

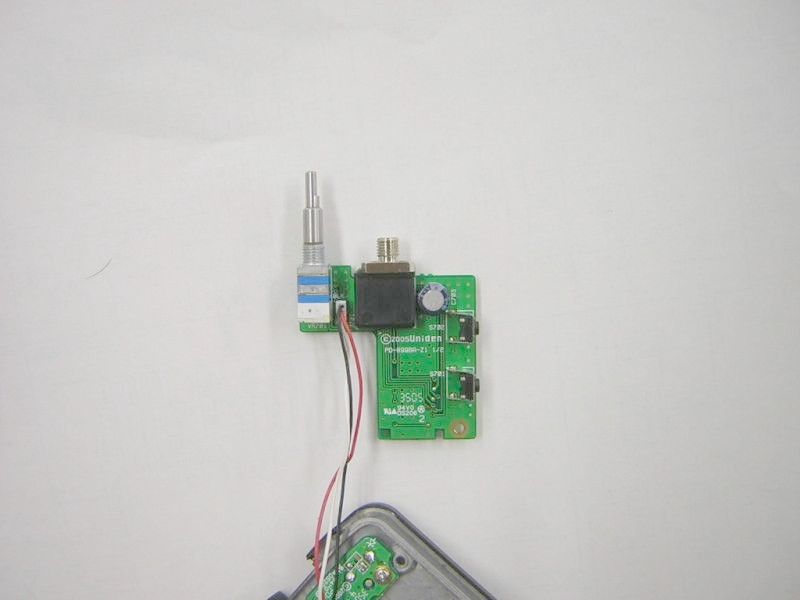

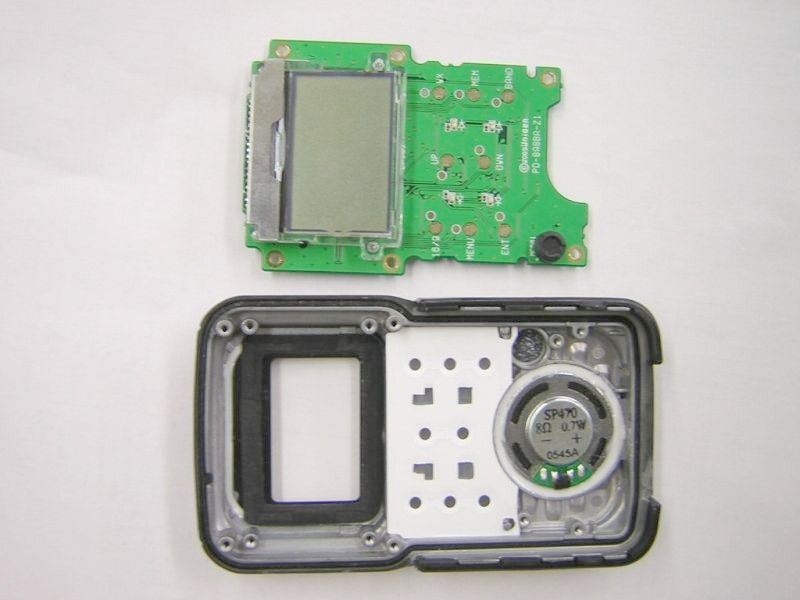

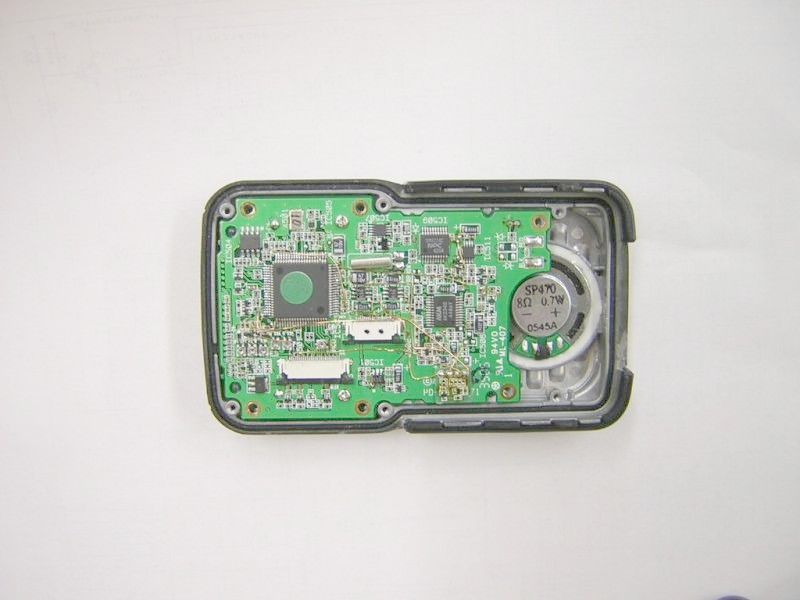

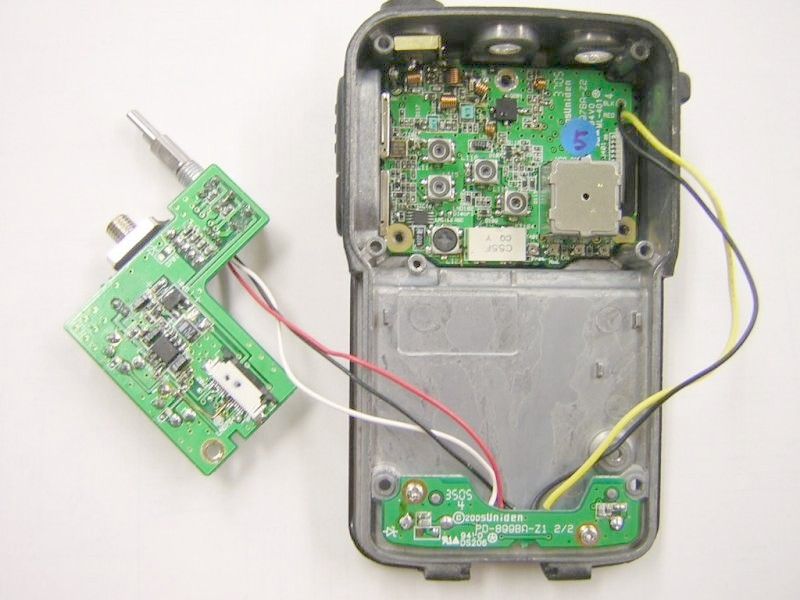

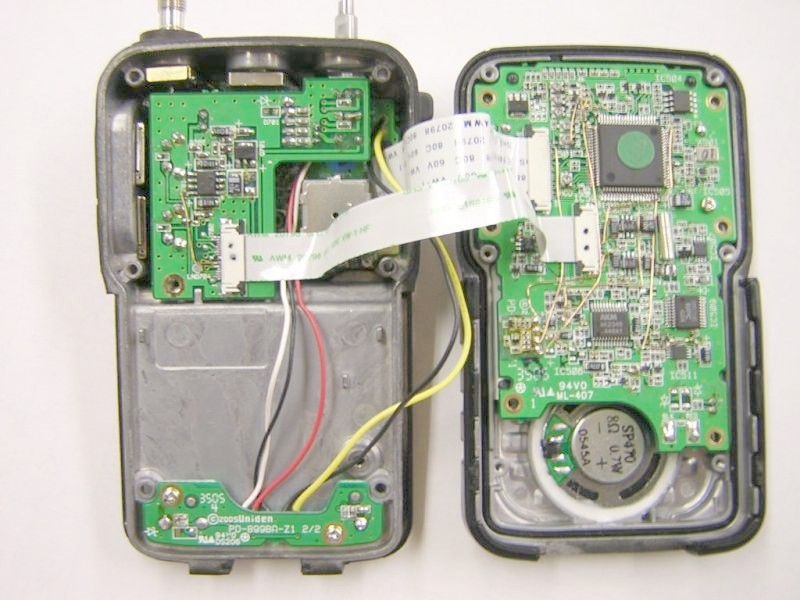

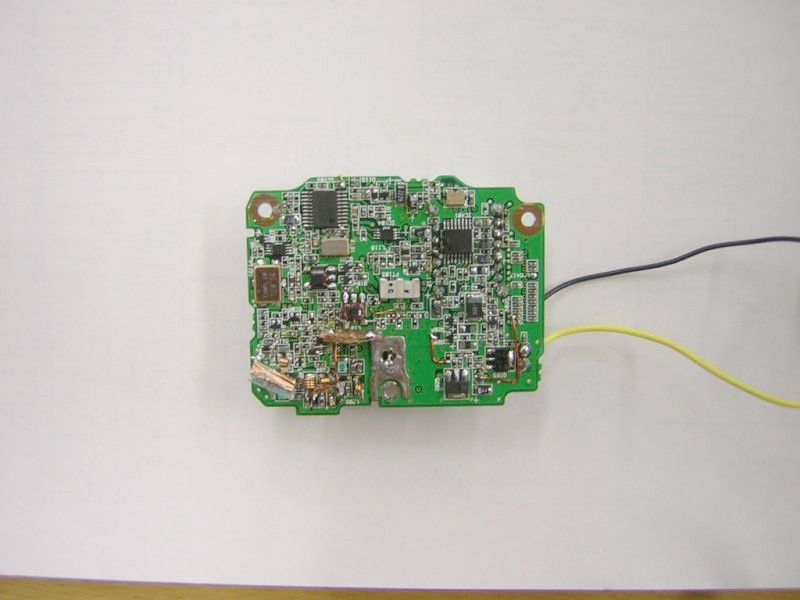

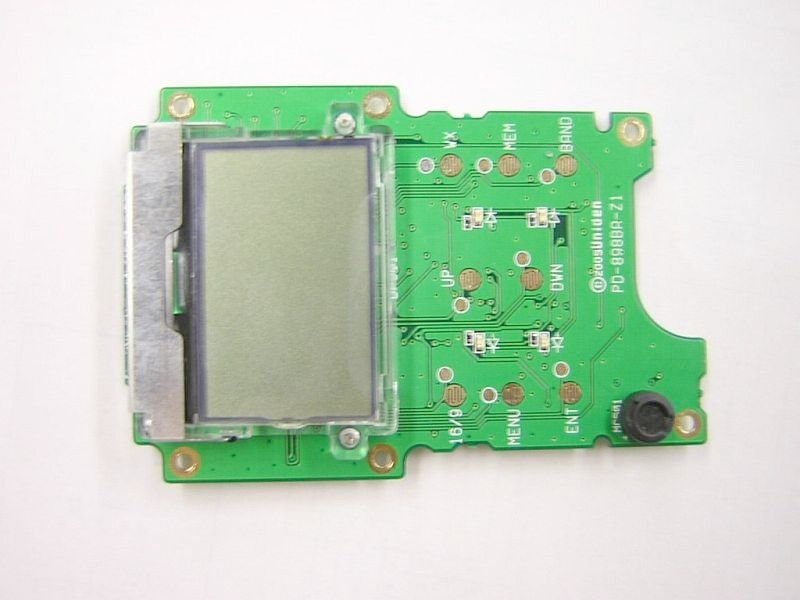

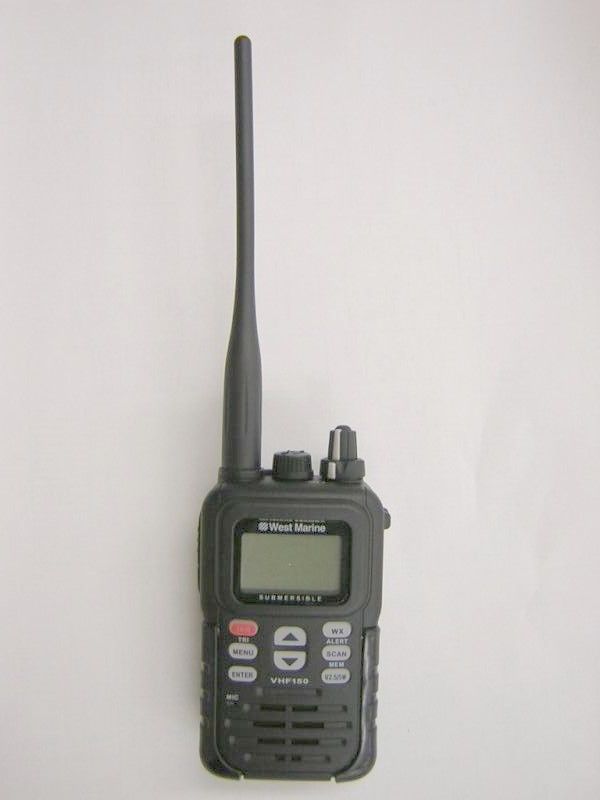

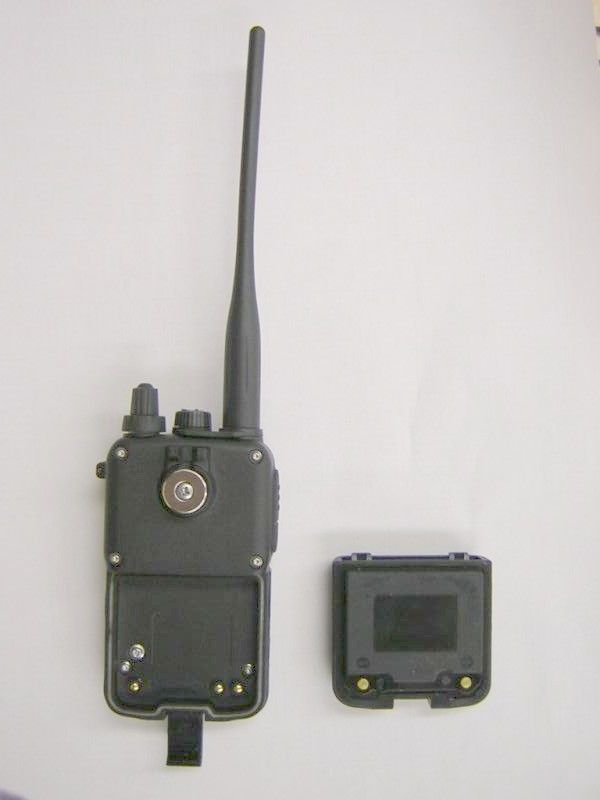

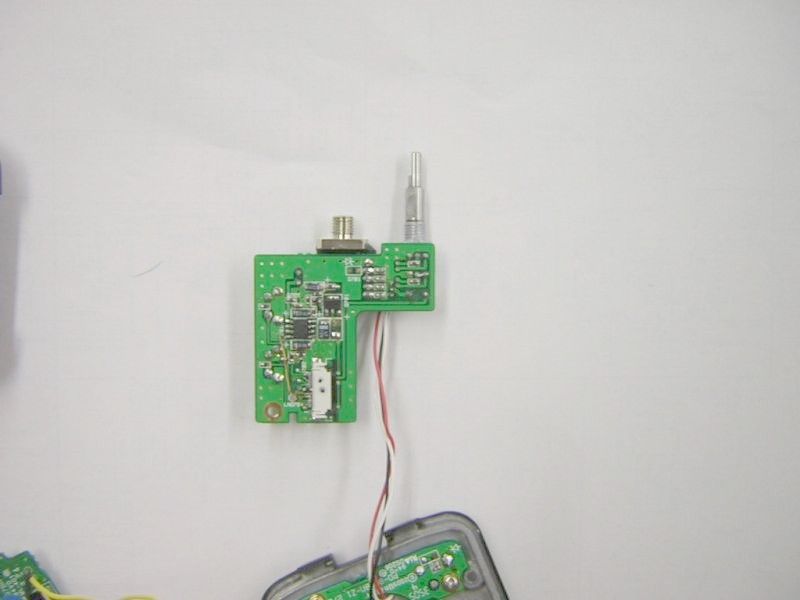

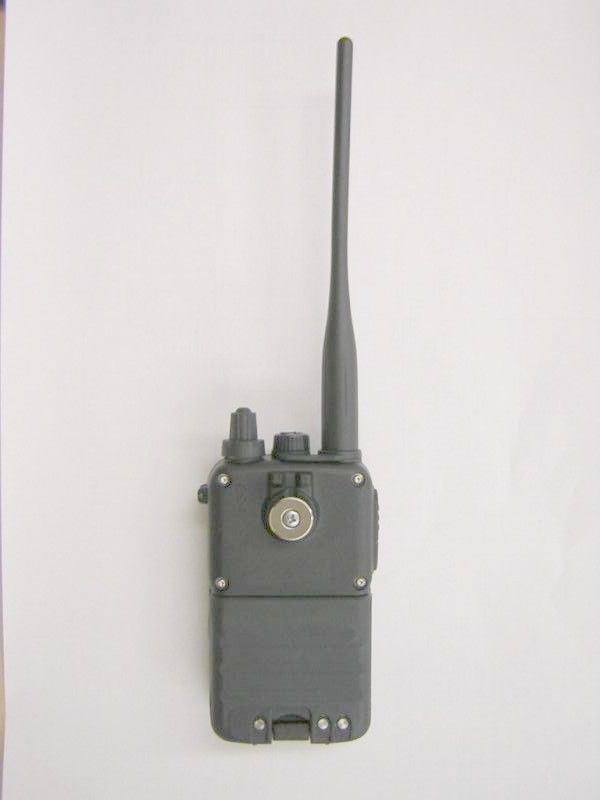

AMWUT608Combination Portable Marine VHF and FRS Radio

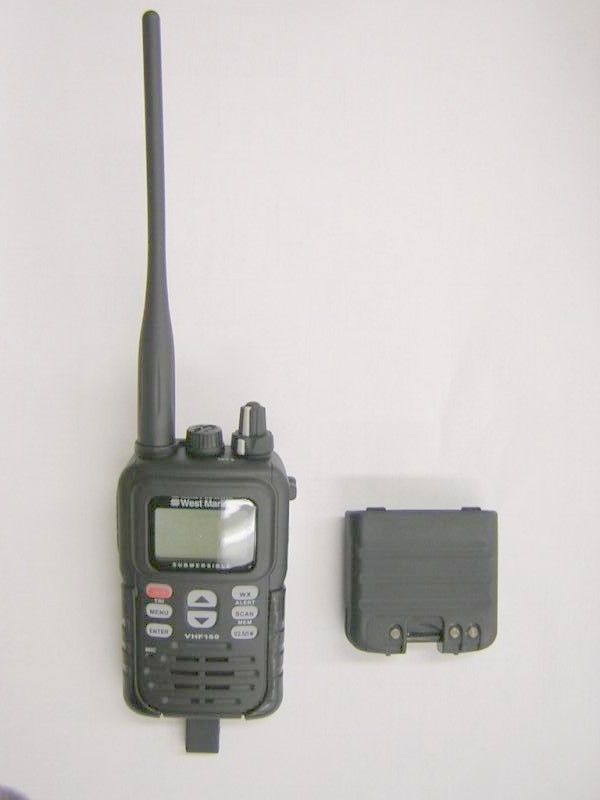

1 WEST MARINE VHF250 (MULTI-BAND) HANDHELD MARINE RADIO UNIDEN AMERICA CORPORATION 6 West Marine VHF150 Radio Owner’s Manual Maritime Radio Services Operation Warning! This transmitter will operate on channels/frequen- cie that have restricted use in the United States. The channel assignments include frequencies assigned for exclusive use of the U.S. Coast Guard, use in Canada, and use in interna- tional waters. Operation on these frequencies without proper authorization is strictly forbidden. For frequencies/channels that are currently for use in the U.S. without an individual li- cense, please contact the FCC Call Center at 1-888-CALL- FCC (1-888-225-5322). For individuals requiring a license, such as commercial us- ers, you should obtain a license application from your near- est FCC fi eld offi ce (for US users) or Industry Canada (for Canadian users). FCC/Industry Canada Information Certifi cation FCC Part 80 or RSS-182/188 Output Power 5W Emmision 16K0F3E, 16K0F2D Transmitter Frequency Range 156.025 to 157.425 MHz FCC Identifi er AMWUT601 IC Certifi cation Number 513C-UT601D This device complies with the GMDSS provisions with Part 80 of the FCC Rules, as well as Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unauthorized changes or modifi cations to this equipment may void compliance with the FCC Rules. Any change or modifi cation must be approved in writing by West Marine. Changes or modifi cations not approved by West Marine could void the user’s authority to operate the equipment. 8 West Marine VHF150 Radio Owner’s Manual FCC RF Exposure Information WARNING! Read this information before using the radio In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96- 326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety stan- dard previously set by both U.S. and international standards bod- ies. The design of the radio complies with the FCC guidelines and these international standards. Never allow children to operate the radio without adult supervision and the knowledge of the following guidelines. WARNING! It is up to the user to properly operate this radio trans- mitter to insure safe operation. Please adhere to the following: Use only the supplied or an approved antenna. Unauthorized an- tennas, modifi cations, or attachments could impair call quality, damage the radio, or result in violation of FCC regulations. Do not use the radio with a damaged antenna. If a damaged an- tenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. Body-worn Operation This device was tested for typical body- worn operations using the supplied belt-clip. To maintain compli- ance with FCC RF exposure requirements, body-worn operations are restricted to the supplied belt-clip. For hand-held operation, the radio should be held 1 inch from the user’s face. The use of accessories that do not satisfy these requirements may not com- ply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov 2 Table Of Contents Section & Item Page 1. Executive Summary 4 2. Product Specifications 4 3. Keys and Controls 5 4. Printed Materials and Packaging 5 5. Frequencies & Channels 6 6. Key Layout 9 7. LCD Screen 9 7.1 Opening Screen 9 8. ON/OFF/Volume Knob 10 9. Squelch Knob 10 10. Channel UP & DOWN Keys 10 11. Band/1/2.5/5W Key 11 11.1 Marine VHF 12 11.2 FRS Radio 12 11.3 AM Radio 14 11.4 FM Radio 15 11.5 Air Band 17 11.6 Marine Transmit Power 18 12. MEM / SCAN Key 19 13. WX/ALERT Key 22 14. 16/9/TRI Key 24 15. PTT (Push To Talk) Key 26 16. Light / Lock Key 27 17. Menu Key 28 17.1 Channel Names 30 17.2 Contrast Adjust 31 17.3 Lamp Adjust 31 17.4 Key Beep 32 17.5 U.I.C. 32 17.6 F.I.P.S. 33 17.7 FM Muting 34 17.8 FRS CTCSS/DCS 35 17.9 AM Radio Frequencies 36 17.10.0 Dual or Tri Watch 36 18. Enter Key 37 19. S.A.M.E. Event Codes 38 20 CTCSS/DCS Code List 41 21. FRS Channel Chart 42 3 1. Executive Summary The VHF250 will be designed to be a step up model to the current West Marine VHF100/200 radio. This radio will incorporate a full featured dot matrix display, Marine transceiver, AM radio receiver, FM radio receiver, AM Aircraft band receiver, FRS transceiver, a 1200mAh LiON battery, and a swivel belt clip to assure compliance with the FCC SAR requirements. 2. Product Specifications Channels All US, International, and Canadian Transmit Power (5W Default) 1 Watt/2.5 Watt/5 Watt, User Selectable Submersible Yes, JIS Level 7 LiON Capable Yes, 12 hours (minimum) of operation based upon the 90/5/5 rule Drop-in Charging Cradle (4 Hour Charge) Yes, Included. Rapid Charge. Includes Stainless Steel Mounting Hardware Cigarette Lighter DC Plug Yes, included. Alkaline Battery Tray Yes, included. 4xAAA (9 Hour, 2 Watt) AM Band Radio Receiver Yes FM Band Radio Receiver Yes Air Band Radio Receiver Yes 14 Channel FRS Transceiver Yes (0.5W ERP output) Tri-Watch Yes Weather All 10 Weather Channels S.A.M.E. Weather Alert Yes F.I.P.S. Code Memory Size 20 Locations Memory Channel Scan Yes, up to all channels Backlit LCD & Keys Yes, Green Color Instant Channel 16 Yes, second press is channel 9 Belt Clip Yes, detachable and swivel AC Adapter Yes, Input AC 100~240V 50/60Hz/ Output DC. Flexible Soft Rubber Antenna (Non-removable type, FCC rule) Yes, West Marine “ROPE” logo embedded in the rubber cover of the antenna Speaker/Microphone Jacks Yes, to be compatible with the new Uniden speaker microphone (model# HHVTA07) Jacks are to keep JIS level 7 spec. Screw-on Submersible cap required. Sensitivity 0.20uV for 12 dB SINAD Nominal Squelch Sensitivity Threshold 0.10 uV Nominal Adjacent Channel Selectivity 70 dB @ +or – 25kHz Operating Tempera…

Text truncated - open the document above for the full version.

GENERAL INFORMATION General Information in accordance with the Federal Communications Commission Rules and Regulations, Volume II, Part 2. 1. Applicant: Uniden America Corporation Engineering Services Office 181 N. Country Club Road, P.O. Box 580 Lake City, SC 29560 Mr. James R. Haynes, Vice president 2. Equipment Identification: FCC ID: AMWUT608 MODEL : VHF250 3. Quantity: Quantity Production is planned. 4. Emission Type: 16K0F3E (MARINE) 11K0F3E(FRS) 5. Frequency Range: 156.025 - 157.425 MHz (MARINE) 462.5625 – 467.7125MHz (FRS) 6. Operating Power: 5W conducted (MARINE) 0.34W ERP (FRS) 7. Max. Power Rating: According to the section 80.215, 95.135 and 95.639 of the FCC Rules. 8. DC voltage and current into Final Amplifying Device: Refer to test data 9. Solid State Devices: Refer to Parts List/Tune-up Info 10. Circuit & Block Diagrams: Refer to EXHIBITS 11. Instruction Manual: Refer to User Manual 12. Tune-up Procedures: Refer to Parts List/Tune-up Info 13. Circuit Descriptions: Refer to Operational Description Means for Frequency Stabilization Means for Attenuation of Spurious Emissions Means for Limiting Modulation 14. Description of Digital Modulation Techniques: Not Applicable 15. Standard Test Conditions: The following conditions and procedures were followed during testing of the equipment. Room Temperature: 23 - 27 Degrees Celsius Room Humidity: 40 - 60 % Power Supply Voltage: 7.5V DC (Lithium Ion Battery Pack) -or- 6.0V DC (four AAA type alkaline batteries) Note: Prior to testing, the unit is tuned-up according to the manufacturer's alignment procedure. All presented data will represent the "worst case" parameter being measured. 16. Equipment Identification: A drawing of the equipment's Identification Label and, its location are as shown in ID Label/Location Info. 17. Photographs: External photographs of the unit as well as internal photos of the printed circuit boards are found in External Photos and Internal photographs.

ID Label/Location Info 1) Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. 1) Rating label: 30 mm (W) x 20 mm (H)

FORM-4 REFERENCE DIAGRAM NO. PAGE MODELUNITBLOCKISSUE DATEISSUED UT608ZH2005/11/16- TITLESUB TITLEREF DIAGRAM L301FRS FREQ. ADJUST- L302MRN FREQ. ADJUST- L110DISCRI RX AF ADJUST- L114,L115 MRN RX BPF ADJUST- L118,L119 AIR WFM RX BPF ADJUST- RT401PLL REF ADJUSTTX FREQ ADJ 156.7MHz @14CH RT402FRS MIC DEVIATION LEVEL ADJUST RT403MRN MIC DEVIATION LEVEL ADJUS T RT404TONE BALLANCE ADJUST1V 20Hz SQUEAR WAVE ENGLISH VERSION02.09 JQD818ZF014 R0 ADJUST POINT 1.8KHz DEV @0.1V 1KHz SINE WAVE 4.4KHz DEV @0.1V 1KHz SINE WAVE REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY REVISION L302 L30 FORM-4 REFERENCE DIAGRAM NO. PAGE MODELUNITBLOCKISSUE DATEISSUED UT608ZH2005/11/16- TITLESUB TITLEREF DIAGRAM TX ADJ LEVEL RT501 MRN TX HI-POWER ADJUSTTX POWER : 5W ADJ @14CH RT502 MRN TX LO-POWER ADJUSTTX POWER : 1W ADJ @14CH RT503 FRS TX POWER ADJUSTTX POWER : 0.5W ADJ @01CH RT504 MRN TX MID-POWER ADJUSTTX POWER : 2.5W ADJ @14CH RT505 MRN TX HI-POWER ADJUST@ALKLINE BATT TX POWER : 2.5W ADJ @14CH ENGLISH VERSION02.09 JQD818ZF014 R0 ADJUST POINT REV. CODE DATE LOT # / RN # REVISED BY CHECKED BY REVISION

Applicant: Uniden America Corporation FCC ID: AMWUT608 Freq.: 156.025 - 157.425 MHz DUT Type: Portable VHF/UHF MRN/FRS PTT Radio Transceiver Model: VHF250 (VHF75r) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 38 Test Report Serial No.: 110305AMW-F686-S80V Report Issue Date: Nov. 15, 2005 Date(s) of Evaluation: November 09, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SAR FCC §2.1093 IC RSS-102 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR UNIDEN AMERICA CORPORATION PORTABLE MRN / FRS PTT RADIO TRANSCEIVER MODEL: VHF250 (VHF75r) FCC ID: AMWUT608 IC ID: 513C-UT608V Test Report Serial Number 110305AMW-F686-S80V Revision 0 Test Report Issue Date November 15, 2005 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Uniden America Corporation FCC ID: AMWUT608 Freq.: 156.025 - 157.425 MHz DUT Type: Portable VHF/UHF MRN/FRS PTT Radio Transceiver Model: VHF250 (VHF75r) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 38 Test Report Serial No.: 110305AMW-F686-S80V Report Issue Date: Nov. 15, 2005 Date(s) of Evaluation: November 09, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SAR FCC §2.1093 IC RSS-102 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information UNIDEN AMERICA CORPORATION 181 N. Country Club Road P.O. Box 580 Lake City, SC 29560 United States FCC IDENTIFIER: AMWUT608 IC IDENTIFIER: 513C-UT608V Model(s): VHF250 (VHF75r) Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 2 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Part 80 VHF Hand Held Transmitter (GMDSS) - GHH Part 95 Family Radio Face Held Transmitter - FRF Device Description: Portable MRN / FRS PTT Radio Transceiver Modulation Type: FM (VHF/UHF) Transmitter Frequency Range(s): 156.025 - 157.425 MHz (MRN VHF) 462.5625 - 467.7125 MHz (FRS UHF) Manufacturer’s Rated Output Power: 5 Watts (MRN) / 0.5 Watts (FRS) Max. RF Output Power Measured: 37.0 dBm (5.01 Watts) 156.7 MHz (Conducted) - MRN VHF 25.29 dBm (0.338 Watts) 156.7 MHz (ERP) - MRN VHF Antenna Type(s) Tested: Fixed Whip Battery Type(s) Tested: Li-ion Battery Pack 7.4 V, 1400 mAh (P/N: BP250LI) Body-Worn Accessories Tested: Plastic Swivel Belt-Clip with Metal Spring (P/N: CLIP250) Audio Accessories Tested: Speaker-Microphone with Lapel-Clip (Model: HHVTA07) Max. SAR Level(s) Evaluated: Face-held: 0.633 W/kg - 1g average (50% Duty Cycle) Body-worn: 1.21 W/kg - 1g average (50% Duty Cycle) Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT608 Freq.: 156.025 - 157.425 MHz DUT Type: Portable VHF/UHF MRN/FRS PTT Radio Transceiver Model: VHF250 (VHF75r) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 38 Test Report Serial No.: 110305AMW-F686-S80V Report Issue Date: Nov. 15, 2005 Date(s) of Evaluation: November 09, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SAR FCC §2.1093 IC RSS-102 TABLE OF CONTENTS 1.0 INTRODUCTION___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT) _________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION _____________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _______________________________________________________________ 9 10.0 ROBOT SYSTEM SPECIFICATIONS_________________________________________________ 10 11.0 PROBE SPECIFICATION (ET3DV6) _________________________________________________ 11 12.0 SIDE PLANAR PHANTOM _________________________________________________________ 11 13.0 VALIDATION PLANAR PHANTOM _______________________________…

Text truncated - open the document above for the full version.

Applicant: Uniden America Corporation FCC ID: AMWUT608 Freq.:156.025 - 157.425 MHz DUT Type: Portable VHF/UHF MRN/FRS PTT Radio Transceiver Model: VHF250 (VHF75r) 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 38 of 38 Test Report Serial No.: 110305AMW-F686-S80V Report Issue Date: Nov. 15, 2005 Date(s) of Evaluation: November 09, 2005 Report Rev. No.: Revision 0 Description of Tests: RF Exposure SARFCC §2.1093 IC RSS-102 APPENDIX F - PROBE CALIBRATION

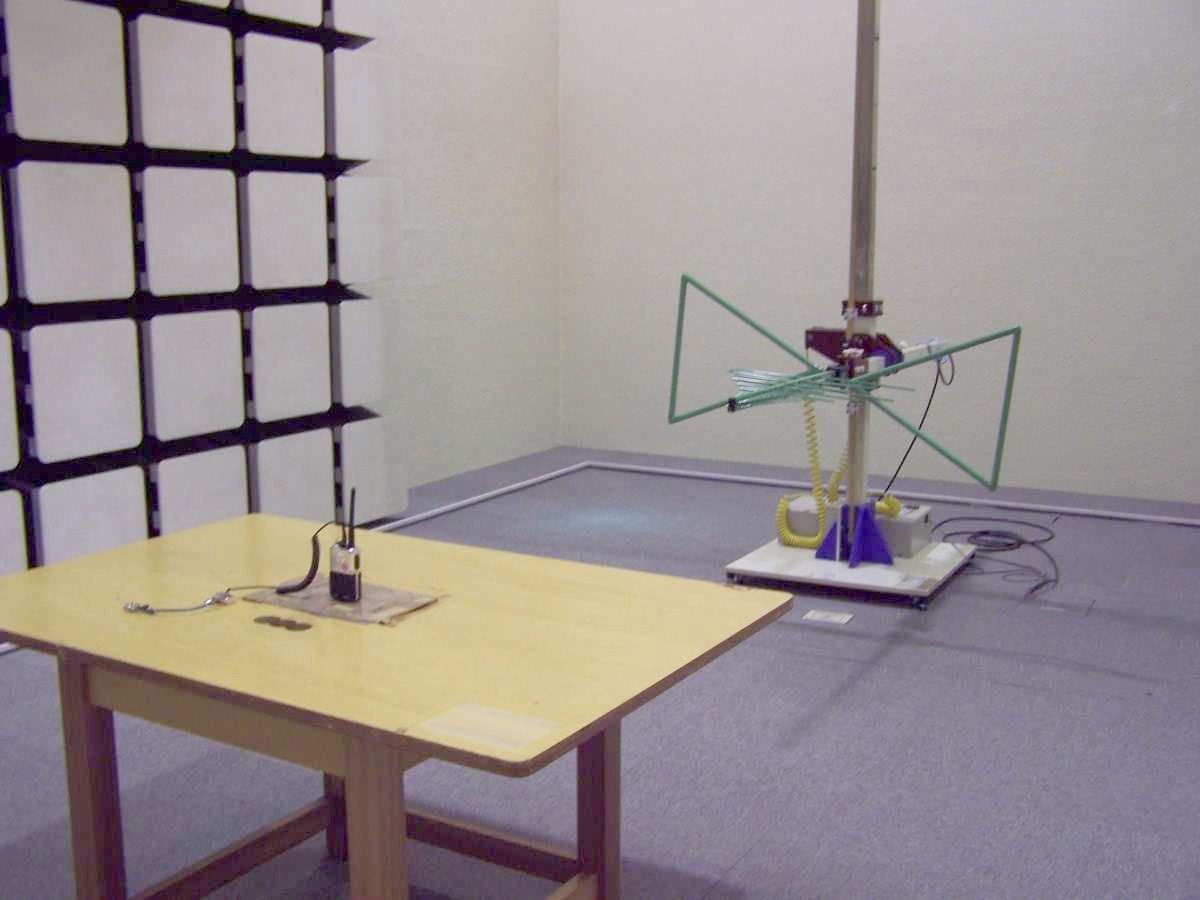

Test Report(Marine portion) TEST PROCEDURES AND TEST SITE DESCRIPTION DATE: November 14, 2005 FCC ID: AMWUT608 UNI-NO.: UT608ZH MODEL: VHF250 DESCRIPTION: VHF MARINE WITH FRS RADIO Tested by: Mr. Hiroshi Kambara, Uniden Engineering Dept. MEASUREMENT ITEMS Section No. 1. DC Voltage & Current into Final Device 2.1033(C)(8) 2. RF Output Power 2.1046 3. Modulation Characteristics (Audio Roll-off) 2.1047 & 80.213 4. Modulation Characteristics (Audio Frequency Response) 2.1047 5. Modulation Characteristics (Modulation Limiting) 2.1047 6. Occupied Bandwidth 2.1049(c)(1) & 80.211 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 8. Field Strength of Spurious & Harmonic Radiation 2.1053 9. Frequency Stability (Temperature) 2.1055 & 80.209 10. Frequency Stability (Voltage) 2.1055 & 80.209 11. Receiver radiated spurious emissions 80.217(b) NOTE: List of measurement equipment and test site description are included in this EXHIBIT. 1. DC Voltage & Current into Final Device 2.1033(C)(8) ------------------------------------------ To measure the DC Voltage and Current into Final Amplifying Device, the measuring equipment was connected to the actual P.C.Board of the transmitter. FCC limits: Not specified Test Results: Refer to test data 2. RF Output Power 2.1046 ------------------- The unit was tuned-up in accordance with the alignment procedure stated in the EXHIBIT-6, and was loaded into a 50-ohm resistive termination. The unit was powered through its normally supplied power cable by a DC power supply. Power supply voltage was set to nominal voltage at the power supply terminals with the transmitter off. The unit was operated for three consecutive test cycles of 15 minutes standby and 5 minutes in transmitting. At the end of the third 5 minutes period, the RF output power is measured. During the test, no components of the emission spectrum exceed the limit specified in the applicable rule part for occupied bandwidth or emission limitations. FCC limits: Not specified Test Results: Refer to test data 3. Modulation Characteristics (Audio Roll-off) 2.1047 & 80.213 ----------------------------------------------- To measure the audio roll-off filter response, an audio frequency oscillator and AF VTVM were connected to the actual P.C.Board of the transmitter. AF VTVM and an oscilloscope monitored the output of the audio filter. An AF input level was maintained was maintained constant at least 10 dB below the saturation level at maximum response frequency. The measurement was made under the above conditions by varying the frequency between 1 kHz and 100 kHz. FCC limits: 3 kHz - 15 kHz: -40 log 10 (F/3) dB Above 20kHz : At least -28 dB Test Results: Refer to test data 4. Modulation Characteristics (Audio Frequency Response) 2.1047 --------------------------------------------------------- Operate the unit under the standard test conditions and monitor the output with a modulation or a calibrated test receiver. With a 1000 Hz sine wave (applied through a dummy microphone circuit) used as a 0 dB reference, vary the modulating frequency from 300 to 3000 Hz and observe the level necessary to maintain a constant 30% modulation. FCC limits: 300 - 3000 Hz: 6dB/octave roll-off (+1/-3 dB) Test Results: Refer to test data 5. Modulation Characteristics (Modulation Limiting) 2.1047 ---------------------------------------------------- The transmitter shall be adjusted for full rated system deviation, 1000 Hz and reference it as 0dB input. With modulation frequencies of 300, 1000 and 3000 Hz respectively, vary the audio input to a level 20dB above that required at 100 Hz to produce 60% of rated system deviation. This is required for both up to and down modulation. Record the percent of full system deviation obtained as a function of input level. FCC limits: +/-5 kHz deviation Test Results: Refer to test data 6. Occupied Bandwidth 2.1049(c)(1) & 80.211 ---------------------- The spectrum of the modulated carrier was monitored by a panoramic method capable of 60dB amplitude range. The unit was modulated with a 2500 Hz audio signal at an input level 16dB above that required for 50% of maximum system deviation. In case the 100Hz of CTCSS tone or 100 bps of digital coded data modulation is indicated for this transmitter, a representative measurement data for this operation is also presented. Since the total deviation of the unit is designed as 4.7 kHz Div., the deviation of 2500Hz audio signal was set to 3.7 kHz Div., as the maximum deviation of tone or digital coded signal was continuously set to 1.0 kHz Div. At first, tone or digital signal was disabled and set the 2500 Hz audio signal to 1.85 kHz deviation (= 50% of 3.7 kHz deviation). Then, the input level of 2500Hz audio signal was increased by 16dB. In this condition, the tone or digital coded signal was then enabled and imposed with 2500Hz audio signal. FCC limits: a) -25dB (50 - 100% of assigned frequency) b) -35dB (100 - 250% of assigned frequency) c) 43 + 10log 10 (RF output power in Watts) dB or 80dB, whichever is lesser attenuation for more than 250% of assigned frequency Test Results: Refer to test data 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 ---------------------------------------------------- Spurious radiation is the radio frequency voltage or power generated within the equipment and appearing at the equipment's output terminals when properly loaded with its characteristic non-radiating load. The unit was modulated with a 2500 Hz tone at an input level 16dB greater than that required 50% modulation. The spectrum was scanned from the lowest frequency generated in the equipment to the tenth harmonic of the carrier. FCC limits: 43 + 10log 10 (RF output power in Watts) dB Test Results: Refer to test data 8. Field Strength of Spurious & Harmonic Radiation 2.1053 --------------------------------------------------- Measurement Procedure & Test Site Description Field strength measurements of radiated spurious emissions were made on a 3-meter ran…
