AMWUT621Mobile Marine Transceiver

Making a Distress Call Lift the red cover. Press and hold the DISTRESS button for three seconds. The VHF650 transmits your boat’s location every few minutes until you receive a response. NOTE: If the radio displays Enter User MMSI, cancel the automatic distress call and make a normal voice distress call. Lift the red cover and press the DISTRESS button. Making a voice distress call Speak slowly -- clearly -- calmly. Make sure your radio is on. On the microphone, press the 16/9-TRI button to switch to Channel 16 (156.8 MHz). (If the corner of the display does not show 16, press the 16/9-TRI button again until it does.) Press the PUSH TO TALK button on the microphone and say: "MAYDAY --MAYDAY-- MAYDAY." Say "THIS IS ___________ ÅWrite your boat’s name in the blank space Say "MAYDAY ___________ ÅWrite your boat’s name in the blank space. Tell where you are: (what navigational aids or landmarks are near, or read the latitude and longitude from your GPS). State the nature of your distress, e.g. are you sinking, medical HPHUJHQF\PDQRYHUERDUGRQ¿UHDGULIWHWF Give number of persons aboard and conditions of any injured persons. Estimate present seaworthiness of your ship, e.g. how immediate is the GDQJHUGXHWRÀRRGLQJRU¿UHRUSUR[LPLW\WRVKRUH %ULHÀ\GHVFULEH\RXUVKLS OHQJWKW\SHFRORUKXOO  Say: “I will be listening on Channel 16." End message by saying "THIS IS ___________, OVER." ÅWrite your boat’s name or call sign in the blank space. Release the PUSH TO TALK button and listen. If you do not get an answer after 30 seconds, repeat your call, beginning at step 3, above. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Making a Distress Call E-2 Table of Contents Making a Distress Call .................i Making a voice distress call ........ i Table of Contents ......................... 2 Introduction...................................4 Features .....................................4 Manual overview ........................4 Conventions ............................4 Terms used in this manual ....... 4 Getting Started..............................6 What's included ............................. 6 Parts of the radio ........................... 7 Turning on the radio..................... 10 Setting the UIC channel mode (USA/CAN/INT) ........................... 10 How it Works...............................10 Normal mode operation............ 11 Using the radio in normal mode .....................................12 Normal mode with Weather Alert Watch ............................12 Normal mode with Triple and Dual Watch ............................13 Normal mode with both Weather Alert and Triple/Dual Watch ... 13 Scan mode ...............................14 Using the radio in scan mode .....................................14 Scan mode with Weather Alert Watch ....................................15 Scan mode with Triple and Dual Watch ....................................15 Scan mode with both Weather Alert and Triple/Dual Watch ... 16 Weather mode..........................16 Using the radio in weather mode .....................................16 Weather mode with Weather Alert Watch ............................17 Weather mode with Triple and Dual Watch ............................17 Using Your Radio........................18 Making a voice MAYDAY call............................................19 Setting the volume ...................19 Setting the squelch level .......... 19 Changing the channel ..............20 Making a transmission .............20 Boosting the transmission power .....................................20 Choosing Triple Watch or Dual Watch .......................................21 Using FIPS codes for weather alerts ........................................21 Changing display and sound options......................................23 Contrast .................................20 Lamp adjust ...........................20 Turning the key beep on and off ..........................................20 Setting the GPS position manually...................................23 Using Digital Selective Calling (DSC) Features............................25 What is DSC?...........................25 Advanced DSC features...........25 Getting an MMSI number ......... 26 Entering MMSI numbers ..........26 Individual or user MMSI number ..................................26 Group MMSI number .............27 Using the directory ...................28 Making DSC calls.....................30 Calling a single station (Individual Call) ......................31 Calling a particular group of stations (Group Call) .............32 Calling all stations (All-Ships Call) ......................................... 32 Making an automatic distress call............................................ 33 Canceling an automatic distress call ............................33 Receiving a DSC call ...............34 Receive log ..............................34 Returning a call .....................35 Requesting another station's position (POS Request) ...........35 Receiving a position request (Position Reply)........................36 Enabling automatic position reply .......................................36 Sending your own position (Position Send) ..........................37 Putting the radio into standby .... 37 Disabling automatic channel switching....................................38 Renaming Channels ...................39 Table of Contents E-3 Table of Contents (Cont'd) List of Tables Table 1- Terms used in this manual ............................................5 Table 2- Rear panel .......................7 Table 3- Front panel ......................8 Table 4 - Microphone button connector ........................................9 Table 5- Normal mode status messages .....................................12 Table 6&KDUDFWHUDQGWH[WHQWU\ order .............................................29 Table 7- Receive log ...................35 Table 8- Common GPS receiver and connections ............................…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY February 13, 2007 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Part 80 Marine VHF Ship Station Transceiver FCC IDENTIFIER: AMWUT621 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Parts List of Active Components Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 EXTERNAL PHOTOS

ID Label/Location Info The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. Size: 50 mm (W) x 22 mm (H)

UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 INTERNAL PHOTOS

MODEL UNIT BLOCKISSUE DATE ISSUED TITLEADJUST POINTSUB TITLE REF DIAGRAM UT6211H 2003/1/4HOKA RT20 R66 RT1 L12 L116 L102 L103 L10 L107 L10 RT20 TP5 RT20 RT205 RT20 R180 VCO ASSY RT10 L4 L3 L2 TP10

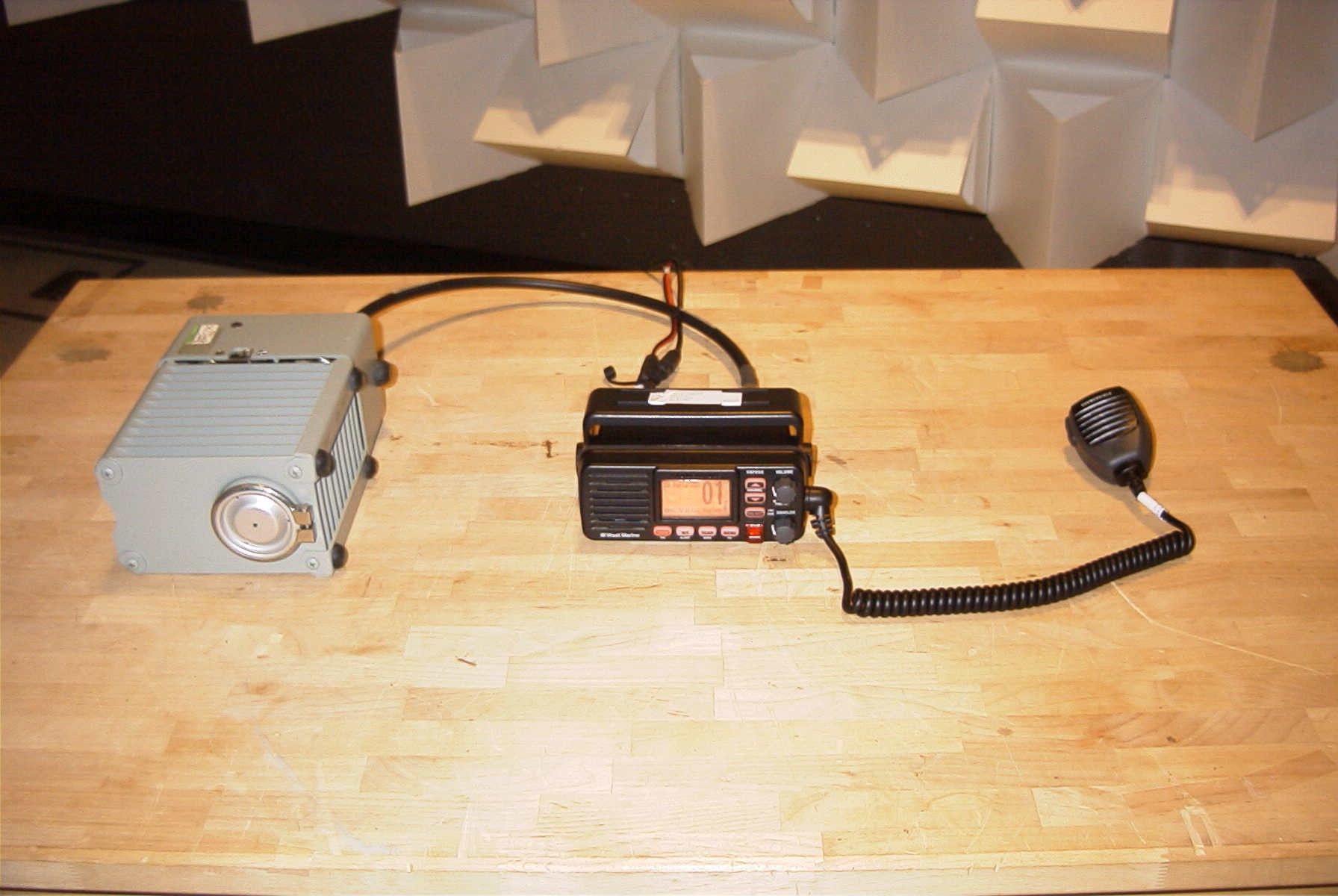

FCC PART 80 TEST REPORT APPLICANT UNIDEN AMERICA CORPORATION 181 N. COUNTRY CLUB ROAD P.O. BOX 580 LAKE CITY, SC 29560 FCC ID AMWUT621 MODEL NUMBER VHF650 PRODUCT DESCRIPTION VHF MARINE TRANSCEIVER DATE SAMPLE RECEIVED 1/23/2007 DATE TESTED 2/2/2007 TESTED BY JOSEPH SCOGLIO APPROVED BY MARIO DE ARANZETA TIMCO REPORT NO. 189AUT7TestReport.doc TOTAL PAGES 21 TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Certificate # 0955-01 Applicant: UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 Report: W:\U\Uniden AMW\189AUT7\Extra189AUT7\189AUT7TestReport.doc Page 2 of 21 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST PROCEDURES ................................................................................................. 5 RF POWER OUTPUT .................................................................................................. 6 TECHNICAL DATA: .................................................................................................... 7 AUDIO FREQUENCY RESPONSE ............................................................................... 9 AUDIO LOW PASS FILTER ....................................................................................... 10 AUDIO INPUT VERSUS MODULATION ..................................................................... 11 OCCUPIED BANDWIDTH ......................................................................................... 12 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)........................... 15 METHOD OF MEASURING CONDUCTED SPURIOUS EMISSIONS............................ 16 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 17 RADIATED EMISSIONS TEST SET UP PHOTO ......................................................... 19 FREQUENCY STABILITY.......................................................................................... 20 EMC EQUIPMENT LIST ........................................................................................... 21 Certificate # 0955-01 Applicant: UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 Report: W:\U\Uniden AMW\189AUT7\Extra189AUT7\189AUT7TestReport.doc Page 3 of 21 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: < Mario de Aranzeta> Function: Engineer Date: 2/13/2007 Certificate # 0955-01 Applicant: UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 Report: W:\U\Uniden AMW\189AUT7\Extra189AUT7\189AUT7TestReport.doc Page 4 of 21 GENERAL INFORMATION The test results relate only to the items tested. DUT Description VHF MARINE TRANSCEIVER FCC ID AMWUT621 Model Number VHF650 Operating Frequency 156.025-157.425 MHz No. of Channels 88 Type of Emission 16K0F3E, 16K0G2B Modulation FM 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna External VHF Antenna Antenna Connector S0-239 Test Condition The DUT was tested in the laboratory in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards TIA 603 –C:2004 FCC CFR 47 Part 80 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Certificate # 0955-01 Applicant: UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 Report: W:\U\Uniden AMW\189AUT7\Extra189AUT7\189AUT7TestReport.doc Page 5 of 21 TEST PROCEDURES Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C:2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. Certificate # 0955-01 Applicant: UNIDEN AMERICA CORPORATION FCC ID: AMWUT621 Report: W:\U\Uniden AMW\189AUT7\Extra189AUT7\189AUT7TestReport.doc Page 6 of 21 RF POWER OUTPUT Rule Part No.: Part 2.1046(a), 80.215 (e)(1) Test Requirements: Method of Measurement: RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWER: HIGH – 25 Watts LOW - 1 Watt 80.911 (d)(5) For primary supply voltages, measured in accordan…

Text truncated - open the document above for the full version.
