AMWUT641PORTABLE VHF PTT MARINE RADIO TRANSCEIVER

Atlantis 200 RADIO VHF MARITIME GUIDE D’UTILISATION TWO-WAY VHF MARINE RADIO OWNER’S MANUAL Making a Distress Call For future reference, write your boat’s name & call sign here: Speak slowly - clearly - calmly. 1. Make sure your radio is on. 2. Press the 16/9-TRI button to switch to Channel 16 (156.8 MHz). (If the display does not show 16, press the 16/9-TRI button again until it does.) 3. Press the Push To Talk button and say: “MAYDAY -- MAYDAY -- MAYDAY.” 4. Say “THIS IS {name of your boat (three times) and call sign/ boat registration number (once)}.” 5. Repeat “MAYDAY {name of your boat}” once. 6. Tell where you are: (what navigational aids or landmarks are near, or read the latitude and longitude from your GPS). 7. State the nature of your distress (e.g. sinking, medical emergency, man overboard, on fire, adrift, etc.). 8. State the type of assistance you need (medical, towing, pumps, etc.). 9. Give the number of persons aboard and describe the condition of any injured persons. 10. Estimate present seaworthiness of your ship (e.g. how immediate is the danger due to flooding or fire). 11. Briefly describe your ship, giving ship name (i.e., “Blue Duck is 32 foot cabin cruiser, white hull, blue deck house”). 12. Say: “I WILL BE LISTENING ON CHANNEL 16.” 13. End the message by saying “THIS IS {name or call sign of your boat}, OVER.” 14. Release the Push To Talk button and listen. 15. If you do not get an answer after 30 seconds, repeat your call beginning at step 3 above. Faire un appel de détresse Pour toute référence ultérieure, transcrivez ci-dessous le nom et l’indicatif d’appel de votre bateau: Parlez lentement – clairement – calmement. 1. Vérifiez si votre radio est en marche. 2. Appuyez sur la touche 16/9-TRI du microphone afin de commuter au canal 16 (156,8 MHz). (Si le canal 16 n’apparaît pas à l’affichage, appuyez de nouveau sur la touche 16/9-TRI jusqu’à ce qu’il soit affiché.) 3. Appuyez sur le bouton de microphone Push To Talk et dites:“MAYDAY -- MAYDAY -- MAYDAY”. 4. Donnez l’identité de votre navire en disant : “ICI {nom de votre bateau (trois fois) ou indicatif d’appel et le numéro d’identification de votre bateau (une fois)}”. 5. Dites “MAYDAY {nom ou indicatif d’appel de votre bateau} une fois”. 6. Donnez votre position : (quels sont les points de repère ou aides à la navigation près de vous ou lisez les coordonnées de longitude et de latitude apparaissant sur votre dispositif GPS). 7. Révélez la nature de votre détresse (par exemple, nous sommes en train de couler, urgence médicale, un homme à la mer, un incendie, nous sommes à la dérive, etc. 8. Révélez la nature de l’aide désirée (médicale, remorquage, essence, etc.) 9. Donnez le nombre de personnes à bord et les conditions des blessés, s’il y en a. 10. Donnez la condition de navigabilité actuelle de votre navire, tel que le degré de l’urgence par rapport une inondation, et une incendie. 11. Donnez une brève description de votre navire en donnant le nom d u b ateau ( par e xemple, “ Blue D uck e st u n y acht d e c roisière d e 32 pieds, avec une coque blanche et un rouffle bleu.). 12. Dites : “JE VAIS ÉCOUTER SUR LE CANAL 16”. 13. Terminez le message en disant “ICI {nom ou indicatif d’appel de votre bateau}, À VOUS”. 1 4. Relâchez l e b outon Push To Talk d u m icrophone et écoutez. 15. Si vous n’obtenez pas de réponse après 30 secondes, r épétez l ’appel e ncommençant à l ’étape 3 c i-dessus . Table of Contents Introduction ................................................................2 Features......................................................................................2 Included in Your Package .........................................3 Controls and Indicators ............................................4 LCD.Display................................................................................5 Getting Started ...........................................................6 Attaching.the.Antenna.................................................................6 Set.Battery.Type.........................................................................6 Install.Batteries...........................................................................6 Charging.Ni-MH.Batteries...........................................................7 Battery.Level.Display..................................................................7 Attach.and.Remove.Belt.Clip......................................................8 Operation ....................................................................9 T urn.On.and.Set.Squelch............................................................9 Selecting.a.Channel..................................................................10 Change.Channel.Mode.............................................................10 Transmitting.and.Receiving.......................................................10 One-touch.Channel.16/9...........................................................11 Triple.Watch..............................................................................11 Monitoring.Weather.Channels..................................................11 Emergency/Weather. Alert .........................................................12 USA,.International.and.Canadian.Channels.............................12 Programming.a.Channel.into.Memory......................................13 Deleting.a.Channel.from.Memory.............................................13 Scanning...................................................................................13 Transmit....................................................................................14 Turn.On.Keypad.and.Display.Light...........................................14 Enable.or.Disable.Key.Beep.....................................................15 Key.Lock...................................................................................15 Maintenance.&.Troubleshooting...............................................15 Common.Questions..............…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. Canada V1X 7R8 Tel. 250-765-7650  Fax. 250-765-7645  e-mail: [email protected] www.celltechlabs.com Date: February 01, 2012 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Uniden America Corporation FCC ID: AMWUT641 Part 80 Certification On behalf of Uniden America Corporation is an application for FCC Part 80 Certification of the Uniden Portable Push-To-Talk (PTT) VHF Marine Radio Transceiver described herein. This device has been tested and complies with the requirements for FCC Certification under Rule Part 80. Device Classification(s): Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable VHF PTT Marine Radio Transceiver Model Name / No.: Atlantis 200 Tx Frequency Range(s): 156.025 - 157.425 MHz Max. Rated Output Power: 3.5 Watts Conducted (+ 0.1 W) Submitted within this application is the TCB Form 731, applicant’s authorization letter, applicant’s long-term confidentiality request, FCC Part 80 measurement report and test setup photographs, SAR RF Exposure measurement report, FCC ID label and location, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), operational description (confidential), parts list (confidential), alignment procedure (confidential) and the user manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes Project Manager Celltech Labs Inc. cc: Uniden America Corporation

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 LIMITED AGENCY AGREEMENT January 10, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Director of Certification RE: Equipment Authorization for FCC Certification We, Uniden America Corporation (hereinafter “Uniden”), hereby authorize Jonathan Hughes, Project Manager of Celltech Labs, Inc., located at 21-364 Lougheed Road in Kelowna, BC V1X 7R8, to act as our agent for the purpose of testing and preparing an equipment authorization application for our device identified by the FCC Certification number AMWUT641 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is today, January 10, 2012. This limited agency agreement expires on January 10, 2013, unless sooner terminated or extended by written notice to Celltech Labs, Inc. and Federal Communications Commission. Uniden certifies that equipment manufactured, imported, or marketed under the FCC Certification number AMWUT641 will comply with the parameters established in the application for equipment authorization unless the changes are in full compliance to the provisions in the FCC Rules and Regulations that allow such changes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Celltech Labs, Inc., resides with Uniden America Corporation located at 4700 Amon Carter Blvd, Fort Worth, Texas 76155. Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 If you have any questions or comments, please do not hesitate to contact me. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 REQUEST FOR CONFIDENTIALITY January 10, 2012 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification under Part 95 Applicant: Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155 Jon Suehiro, Manager – Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Marine VHF Hand Held Transmitter FCC IDENTIFIER: AMWUT641 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Operational Description (Atlantis200_Operational_description_20120113 - Confidential.pdf) Schem a tic Diagrams (ATLANTIS200 SCHEMATIC DIAGRAM - Confidential.pdf) Block Diagrams (ATLANTIS200 BLO CK DIAGRAM - Confidential.pdf) Alignment Procedure (ATLANTIS200 ALIGNMENT PROCEDURE - Confidential.pdf) Parts List (Atlantis200_Parts_List.pdf) Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

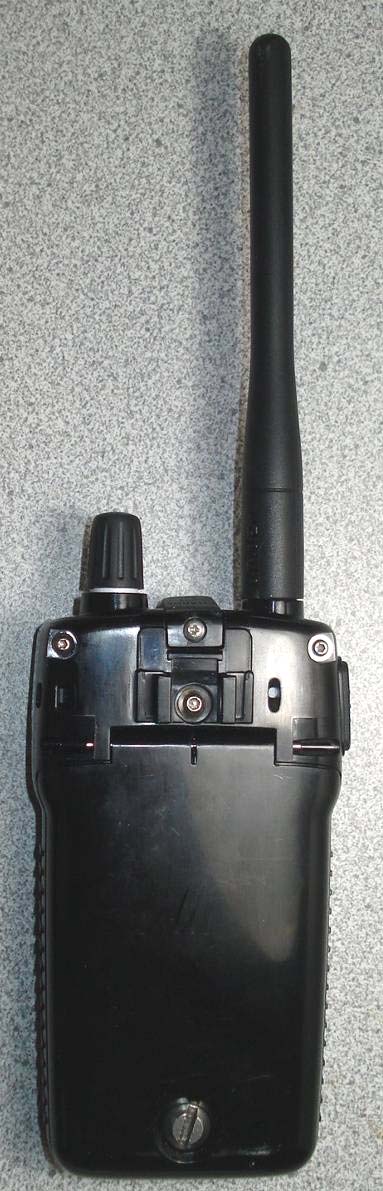

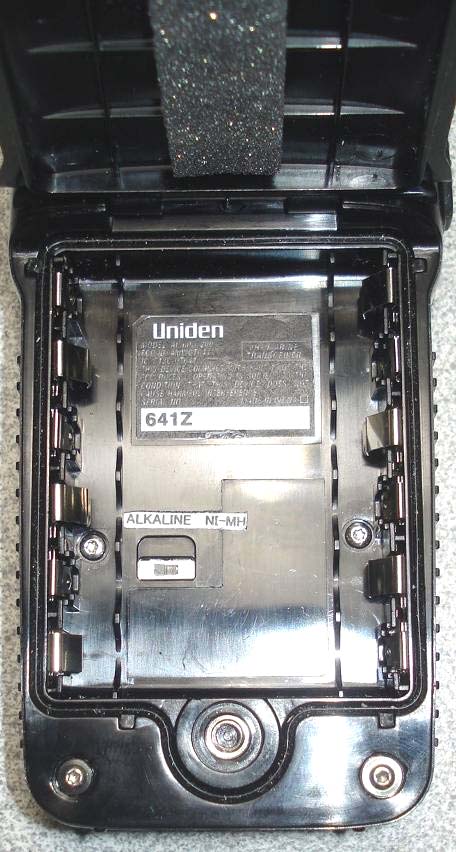

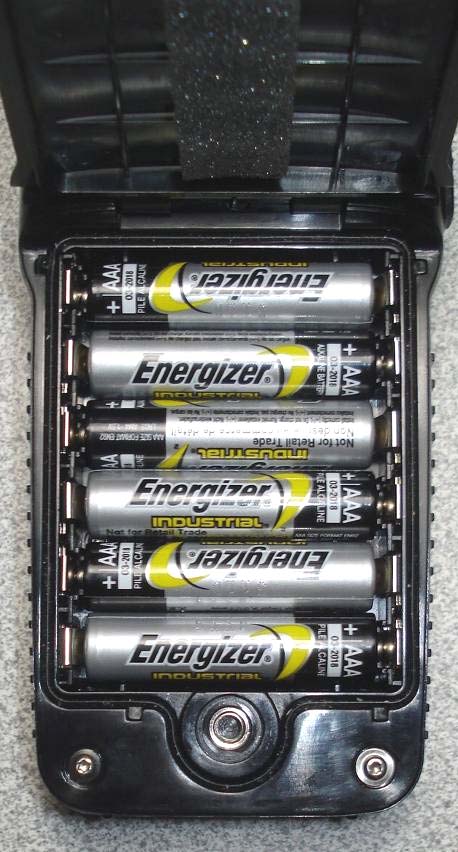

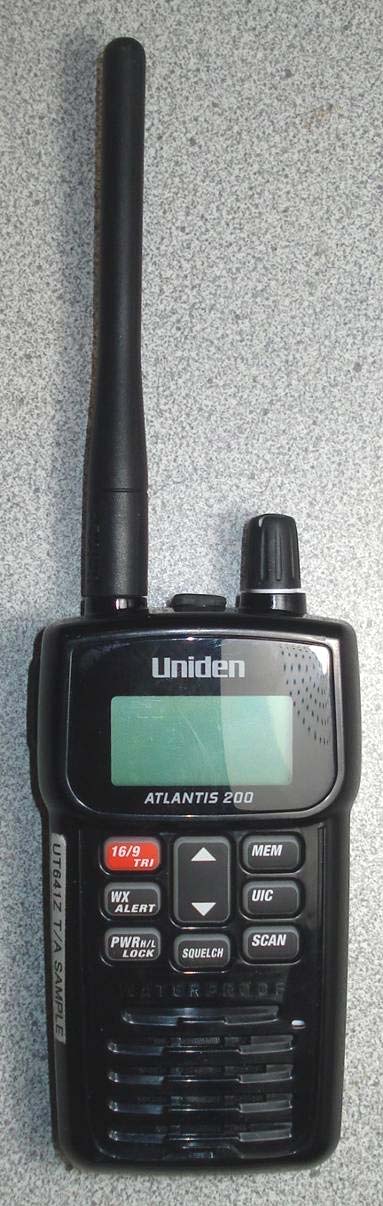

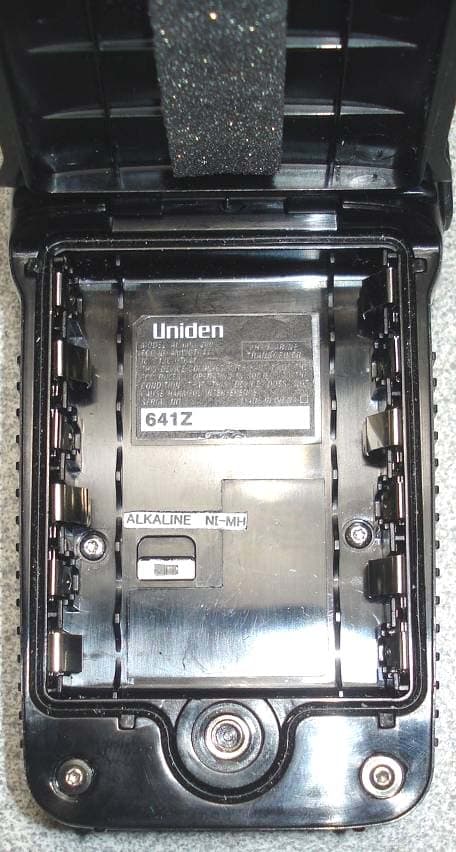

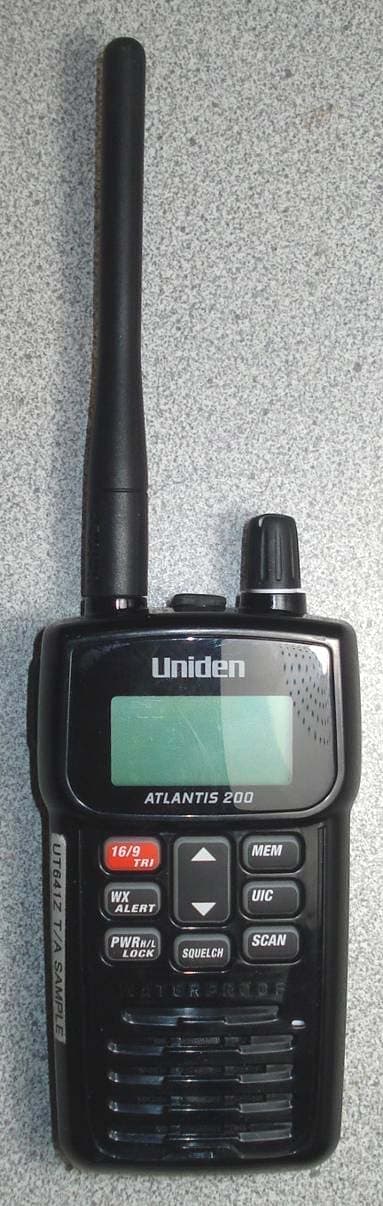

DUT Front Side DUT Left Side DUT Back Side DUT Right Side DUT Top end DUT Bottom end Flexible Whip Antenna (P/N: BATG0565001) DUT with Plastic Belt-clip accessory DUT with Ni-MH AAA Batteries DUT with Alkaline AAA Batteries DUT Battery Compartment

Label & Location ID Label (Size: 28(W) x 20(H) mm) Location

Front Enclosure removed Main PCB removed Main PCB Bottom View VOL Key PCB Top VOL Key PCB Bottom

Applicant: Uniden America Corporation FCC ID: AMWUT641 IC: 513C-UT641 Model(s): Atlantis 200 DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 47 Date(s) of Evaluation January 11, 2012 Test Report Serial No. 011012AMW-T1145-S80V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date February 01, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Maritime Radio Transmitter and Receiver (RSS-182) Device RF Exposure Category FCC/IC General Population / Uncontrolled Environment FCC ID: AMWUT641 Device Identifier(s) IC: 513C-UT641 Device Model(s) Model(s) Atlantis 200 Test Sample Serial No. UT641Z T/A (Identical Prototype) Date of Sample Receipt January 10, 2012 Date(s) of Evaluation January 11, 2012 Test Sample Hardware Revision No. EPP Test Sample Firmware Rev. No. 1.23 Device-Under-Test Description (DUT) Portable FM VHF Push-To-Talk (PTT) Marine Radio Transceiver VHF Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) Manuf. Max. Rated Output Power 3.5 Watts Conducted Manuf. Tolerance Specification +/- 0.1 W Measured RF Output Power 3.6 Watts 35.56 dBm Conducted 156.7 MHz Ni-MH 6x AAA (7.2V) 1.2V, 900mAh Battery Type(s) Tested Alkaline 6x AAA Energizer Industrial (9V) 1.5V Flexible Whip external detachable Length: 120 mm P/N: BATG0565001 Antenna Type Tested Note: Per applicant, the above-listed antenna is the only antenna supplied with the device Plastic Belt-Clip (does not contain metal) P/N: none Body-worn Accessory Tested Note: Per applicant, the above-listed belt-clip is the only body-worn accessory supplied with the device Audio Accessory Tested Speaker-Microphone SM81 Face-held 0.685 W/kg 1g 50% PTT duty factor Max. Measured SAR Level(s) Body-worn 0.570 W/kg 1g 50% PTT duty factor FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg 1g 50% PTT duty factor General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT641 IC: 513C-UT641 Model(s): Atlantis 200 DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 47 Date(s) of Evaluation January 11, 2012 Test Report Serial No. 011012AMW-T1145-S80V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date February 01, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________4 3.0 FCC POWER THRESHOLDS FOR PTT DEVICES (F < 0.5 GHZ) _____________________________5 4.0 RF OUTPUT POWER MEASUREMENT _________________________________________________5 5.0 NO. OF TEST CHANNELS (N C ) ________________________________________________________5 6.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ____________________________5 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING __________________________________6 8.0 FLUID DIELECTRIC PARAMETERS ____________________________________________________7 9.0 SAR MEASUREMENT SUMMARY ____________________________________________________10 10.0 SAR LEVEL CORRECTION FOR FLUID DEVIATION (IC RSS-102 / IEC 62209-2) _____________11 11.0 DETAILS OF SAR EVALUATION ____________________________________________________12 12.0 SAR EVALUATION PROCEDURES __________________________________________________12 13.0 SYSTEM PERFORMANCE CHECK ___________________________________________________13 14.0 SIMULATED EQUIVALENT TISSUES _________________________________________________14 15.0 SAR LIMITS _____________________________________________________________________14 16.0 ROBOT SYSTEM SPECIFICATIONS__________…

Text truncated - open the document above for the full version.

Test Report Serial No.: 011012AMW-T1145-E80V Test Report Issue Date: February 01, 2012 Measurement Date(s): January 11-13, 2012 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT641 IC: 513C-UT641 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: Atlantis 200Freq.: 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 28 DECLARATION OF COMPLIANCE FCC PART 80 IC RSS-182 (Issue 4) Name CELLTECH LABS INCORPORATED Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada FCC Accredited Site (ISO 17025:2005 - A2LA Test Lab Certificate No. 2470.01) Test Site Registration No.(s) IC 3874A-1 Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States FCC 47 CFR Part 2; Part 80 IC RSS-182 Issue 4; RSS-Gen Issue 3 Standard(s) & Procedure(s) ANSI TIA/EIA-603-C-2004 C63.4-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) 47 CFR §80 Device Classification(s) IC Maritime Radio Transmitter/Receiver in the Band 156-162.5 MHz RSS-182 Issue 5 RF Exposure Category FCC/IC General Population / Uncontrolled Application Type(s) FCC/IC New Certification FCC ID: AMWUT641 Device Identifier(s) IC: 513C-UT641 Device Under Test (DUT) Portable Push-To-Talk (PTT) VHF Marine Radio Transceiver Date of Sample Receipt January 10, 2012 Date(s) of Evaluation January 11-13, 2012 Device Model(s) Atlantis 200 Test Sample Serial No.(s) UT641Z T/A (Identical Prototype) Hardware Revision No. EPP Stage Firmware Revision No. 1.23 Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) 3.5 Watts Conducted (+ 0.1 W) - High Power Manuf. Rated Output Power 0.7 Watts Conducted (+ 0.1 W) - Low Power Max. RF Output Power Tested 3.6 Watts Conducted Modulation Type(s) FM Emission Designator(s) 15K0F3E Antenna Type(s) Tested Flexible Whip (external detachable) -1 dBi Gain Power Source(s) Tested Ni-MH Batteries (1.2V, 900mAh) AAA x6 This wireless device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2 and Part 80; Industry Canada RSS- 182 Issue 5 and RSS-Gen Issue 3; ANSI TIA/EIA-603-C-2004 and ANSI C63.4-2003. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Test Report Serial No.: 011012AMW-T1145-E80V Test Report Issue Date: February 01, 2012 Measurement Date(s): January 11-13, 2012 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT641 IC: 513C-UT641 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: Atlantis 200Freq.: 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 28 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 5 2.0 REFERENCES .................................................................................................................................................... 5 2.1 Normative References ......................................................................................................................................... 5 3.0 PASS/FAIL CRITERIA......................................................................................................................................... 5 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 6 5.0 GENERAL INFORMATION ................................................................................................................................. 6 5.1 Applicant Information ........................................................................................................................................... 6 5.2 DUT Description .................................................................................................................................................. 6 5.3 Rule Part(s) & Classification(s)............................................................................................................................ 6 5.4 Mode(s) of Operation Tested............................................................................................................................... 7 5.5 Modification(s) ..................................................................................................................................................... 7 6.0 RANGE OF OPERATING POWER (FCC §2.1033(C)(6))................................................................................... 7 Appendix A RF Output Power Measurement...................................................................................................... 8 …

Text truncated - open the document above for the full version.
