AMWUT642PORTABLE VHF PTT MARINE RADIO TRANSCEIVER

MHS135 RADIO VHF MARITIME FLOTTANTE GUIDE D’UTILISATION FLOATING VHF MARINE RADIO OWNER’S MANUAL Making a Distress Call Lift the black cover. Press and hold the DISTRESS button for three seconds. Your radio transmits your boat’s location every few minutes until you receive a response. #nOte: if the radio displays Enter User MMSI , cancel the automatic distress call and make a normal voice distress call. Making a Voice Distress Call Speak slowly - clearly - calmly. For future reference, write your boat’s name & call sign here: 1. Make sure your radio is on. 2. On the microphone, press the 16/9-TRI button to switch to Channel 16 (156.8 MHz). (If the corner of the display does not show 16, press the 16/9-TRI button again until it does.) 3. Press the PUSH TO TALK button on the microphone and say: “MAYDAY -- MAYDAY -- MAYDAY.” 4. Say “THIS IS {name of your boat (three times) and call sign/boat registration number (once).” 5. Repeat “MAYDAY {name of your boat}” once. 6. Tell where you are: (what navigational aids or landmarks are near, or read the latitude and longitude from your GPS). 7. State the nature of your distress (e.g. are you sinking, medical emergency, man overboard, on fire, adrift, etc. ). 8. State the type of assistance you need (medical, towing, pumps, etc.). 9. Give number of persons aboard and conditions of any injured persons. 10. Estimate present seaworthiness of your ship (e.g. how immediate is the danger due to flooding or fire or proximity to shore). 11. Briefly describe your ship, giving ship name (e.g. “Blue Duck is 32 foot cabin cruiser, white hull, blue deck house”). 12. Say: “I WILL BE LISTENING ON CHANNEL 16.” 13. End message by saying “THIS IS {name or call sign of your boat}, OVER. ” 14. Release the PUSH TO TALK button and listen. If you do not get an answer after 30 seconds, repeat your call, beginning at step 3, above. Lift the black cover and press the red DISTRESS button underneath. Faire un appel De Détresse Pour toute référence ultérieure, transcrivez ci-dessous le nom et l’indicatif d’appel de votre bateau: Parlez lentement – clairement – calmement. 1. Vérifiez si votre radio est en marche. 2. Appuyez sur la touche 16/9-TRI du microphone afin de commuter au canal 16 (156,8 MHz). (Si le canal 16 n’apparaît pas à l’affichage, appuyez de nouveau sur la touche 16/9-TRI jusqu’à ce qu’il soit affiché.) 3. Appuyez sur le bouton de microphone Push to Talk et dites:“MAYDAY -- MAYDAY -- MAYDAY”. 4. Donnez l’identité de votre navire en disant : “ICI {nom de votre bateau (trois fois) ou indicatif d’appel et le numéro d’identification de votre bateau (une fois)}”. 5. Dites “MAYDAY {nom ou indicatif d’appel de votre bateau} une fois”. 6. Donnez votre position : (quels sont les points de repère ou aides à la navigation près de vous ou lisez les coordonnées de longitude et de latitude apparaissant sur votre dispositif GPS). 7. Révélez la nature de votre détresse (par exemple, nous sommes en train de couler, urgence médicale, un homme à la mer, un incendie, nous sommes à la dérive, etc. 8. Révélez la nature de l’aide désirée (médicale, remorquage, essence, etc.) 9. Donnez le nombre de personnes à bord et les conditions des blessés, s’il y en a. 10. Donnez la condition de navigabilité actuelle de votre navire, tel que le degré de l’urgence par rapport une inondation, et une incendie. 11. Donnez une brève description de votre navire en donnant le nom du bateau (par exemple, “Blue Duck est un yacht de croisière de 32 pieds, avec une coque blanche et un rouffle bleu.). 12. Dites : “JE VAIS ÉCOUTER SUR LE CANAL 16”. 13. Terminez le message en disant “ICI {nom ou indicatif d’appel de votre bateau}, À VOUS”. 14. Relâchez le bouton Push to Talk du microphone et écoutez. Si vous n’obtenez pas de réponse après 30 secondes, répétez l’appel encommençant à l’étape 3 ci-dessus. table of Contents Introduction ..........................E-1 Features ..............................E-1 Getting Started .....................E-4 What’s included ...................E-4 Parts of the MHS135 ...........E-5 Front view .......................E-5 Back view ........................E-5 Charger ...........................E-7 Reading the display .............E-7 Display icons and what they mean ..............................E-7 How It Works ........................E-8 Menus ..................................E-8 Normal Menu ..................E-9 Call Menu ......................E-10 GPS Menu ....................E-11 Operation Modes ...............E-11 Normal ..........................E-13 Scan ..............................E-14 Weather ........................E-17 Setting Up the Hardware ....E-18 Attaching the Antenna .......E-18 Installing the Battery ..........E-18 Using Alkaline Batteries .....E-18 Mounting the Charger ........E-20 Charging the Battery ..........E-20 Important notes on charging the battery ....................E-20 Setting Up Your Radio .........E-21 Turning It On .....................E-21 Setting It Up .......................E-21 Changing the Volume ..E-21 Setting the Squelch Level E-21 Setting the UIC Channel Mode (USA/CAN/INT) ............E-22 Setting Key Lock ...........E-22 Setting WX Alert Mode ..E-22 Setting FIPS Codes ......E-22 Adjusting the Lamp .......E-22 Adjust the LCD Contrast E-23 Setting the Temperature Measure .......................E-23 Turning the Key Beep On and Off.................................E-23 Operating the Radio .........E-24 Changing the Channel ..E-24 Making a Transmission .E-24 Changing the transmission level ..............................E-24 Digital Selective Calling Features E-25 What is DSC? ...................E-25 Advanced DSC features ...E-26 MMSI Numbers ..................E-27 Entering MMSI numbers E-27 Entering Your User MMSI Number .......................E-28 Entering a group MMSI number .........................E-29 Entering an individual MMSI number .........................E-29 Using the Directory ............E-30 Making DSC Calls .............E-3…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. Canada V1X 7R8 Tel. 250-765-7650  Fax. 250-765-7645  e-mail: [email protected] www.celltechlabs.com Date: November 17, 2011 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Uniden America Corporation FCC ID: AMWUT642 Part 80 Certification On behalf of Uniden America Corporation is an application for FCC Part 80 Certification of the Uniden Portable Push-To-Talk (PTT) VHF Marine Radio Transceiver described below. This device has been tested and complies with the requirements for FCC Certification under Rule Part 80. Device Classification(s): Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable VHF PTT Marine Radio Transceiver with DSC Model Name / No.(s): MHS135DSC Tx Frequency Range(s): 156.025 - 157.425 MHz Antenna Type: Flexible Whip (detachable) Max. Rated Output Power: 5.7 Watts Conducted (+0.2 W / -0.3 W) Submitted within this application is the TCB Form 731, applicant’s authorization letter, applicant’s long-term confidentiality request, FCC Part 80 measurement report and test setup photographs, SAR measurement report, FCC ID label and location, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), operational description (confidential), parts list (confidential), alignment procedure (confidential) and the user manual (draft). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes Project Manager Celltech Labs Inc. cc: Uniden America Corporation

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 LIMITED AGENCY AGREEMENT October 28, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Director of Certification RE: Equipment Authorization for FCC Certification We, Uniden America Corporation (hereinafter “Uniden”), hereby authorize Jonathan Hughes, Project Manager of Celltech Labs, Inc., located at 21-364 Lougheed Road in Kelowna, BC V1X 7R8, to act as our agent for the purpose of testing and preparing an equipment authorization application for our device identified by the FCC Certification number AMWUT642 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is today, October 28, 2011. This limited agency agreement expires on October 28, 2012, unless sooner terminated or extended by written notice to Celltech Labs, Inc. and Federal Communications Commission. Uniden certifies that equipment manufactured, imported, or marketed under the FCC Certification number AMWUT642 will comply with the parameters established in the application for equipment authorization unless the changes are in full compliance to the provisions in the FCC Rules and Regulations that allow such changes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Celltech Labs, Inc., resides with Uniden America Corporation located at 4700 Amon Carter Blvd, Fort Worth, Texas 76155. Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 If you have any questions or comments, please do not hesitate to contact me. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

REQUEST FOR CONFIDENTIALITY October 28, 2011 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification under Part 80 Applicant: Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155 Jon Suehiro, Manager – Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Marine VHF Hand Held Transmitter FCC IDENTIFIER: AMWUT642 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Exhibit Type: Alignment Procedure / File Name: MHS135DSC_Alignment Procedure Rev1 – CONFIDENTIAL.pdf Exhibit Type: Block Diagram / File Name: MHS135DSC_BLOCK DIAGRAM – CONFIDENTIAL.pdf Exhibit Type: Operational Description / File Name: MHS135DSC_Ope rational Description – CONFIDENTIAL.pdf Exhibit Type: Parts List / File Name: MHS135DSC_Parts list – CONFIDENTIAL.pdf Exhibit Type: Schematic Diagrams / File Name: MHS135DSC_SCHEMATIC – CONFIDENTIAL.pdf Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Engineering and Regulatory Affairs Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155

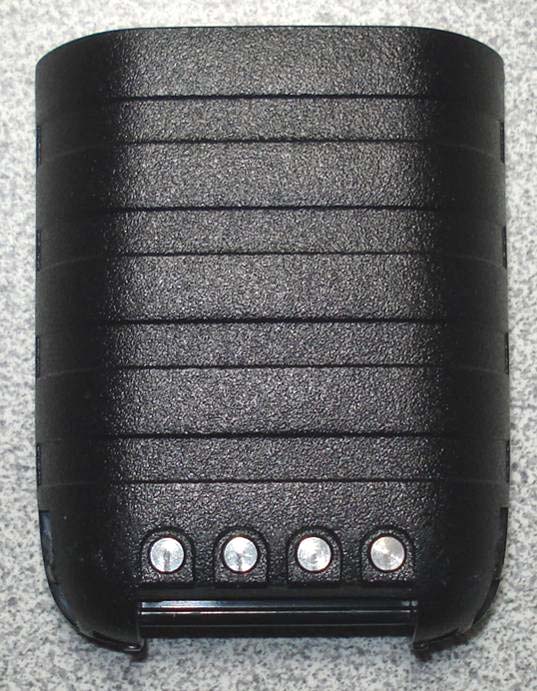

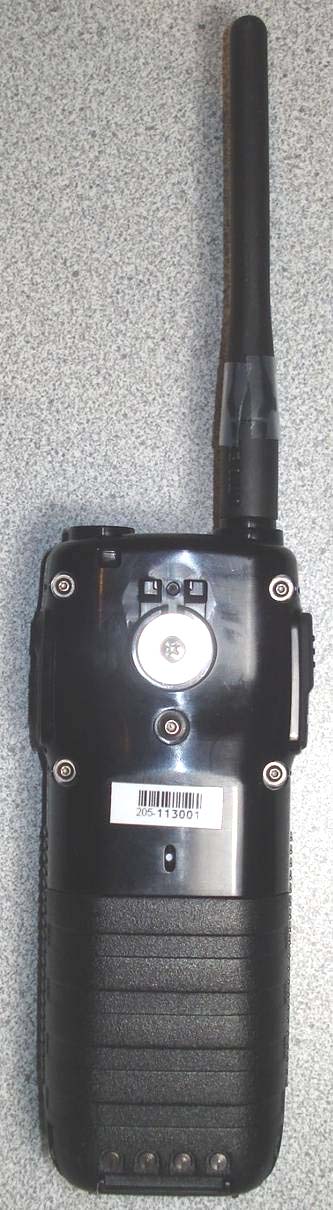

DUT Front DUT Back (with Li-Ion battery) DUT Left side DUT Right side DUT Top end DUT Bottom end Flexible Whip Antenna (P/N: AT-565) Swivel Belt-clip accessory Front of Li-Ion Battery Back of Li-Ion Battery Back of DUT with battery removed Front of Alkaline Battery case Back of Alkaline Battery case Alkaline Battery case

Label & Location info ID Label: (Size 30 x 20 mm) Location

Applicant: Uniden America Corporation FCC ID: AMWUT642 IC: 513C-UT642 Model(s): MHS135DSC DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 39 Date(s) of Evaluation November 08, 2011 Test Report Serial No. 110411AMW-T1130-S80V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date November 28, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 Procedure(s) Applied IC RSS-102 Issue 4 IEEE Standard 1528-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Maritime Radio Transmitter and Receiver (RSS-182) Device RF Exposure Category FCC/IC General Population / Uncontrolled Environment FCC ID: AMWUT642 Device Identifier(s) IC: 513C-UT642 Device Model(s) Model(s) MHS135DSC Test Sample Serial No. None (Identical Prototype) Date of Sample Receipt Nov. 04, 2011 Date(s) of Evaluations Nov. 08, 2011 Test Sample Hardware Revision No. 0.55 Test Sample Firmware Rev. No. 0.55 Device-Under-Test Description (DUT) Portable FM VHF Push-To-Talk (PTT) Marine Radio Transceiver VHF Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) 5.7 Watts Conducted +0.2 W / -0.3 W Hi Power Li-Ion Battery 2.5 Watts Conducted +0.2 W / -0.3 W Mid Power Alkaline Battery Manuf. Rated Output Power and Tolerance Specification Note: The alkaline battery was not evaluated for SAR based on lower output power level Measured RF Output Power 5.7 Watts 37.56 dBm Conducted 156.7 MHz Battery Type Tested Lithium-ion 7.4 V 1040 mAh M/N: BT-1020 Flexible Whip (external detachable) P/N: AT-565 Antenna Type Tested Note: Per applicant, the above-listed antenna is the only antenna supplied with the device Swivel Belt-Clip (contains metal) P/N: none Body-worn Accessory Tested Note: Per applicant, the above-listed belt-clip is the only body-worn accessory supplied with the device Audio Accessory Tested Speaker-Microphone P/N: ZA-147 Face-held 0.700 W/kg 1g 50% PTT duty factor Max. SAR Level(s) Evaluated Body-worn 0.720 W/kg 1g 50% PTT duty actor FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg 1g 50% PTT duty factor General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT642 IC: 513C-UT642 Model(s): MHS135DSC DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 39 Date(s) of Evaluation November 08, 2011 Test Report Serial No. 110411AMW-T1130-S80V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date November 28, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________4 3.0 FCC POWER THRESHOLDS FOR PTT DEVICES (F < 0.5 GHZ) _____________________________5 4.0 RF CONDUCTED OUTPUT POWER MEASUREMENT _____________________________________5 5.0 NO. OF TEST CHANNELS (N C ) ________________________________________________________5 6.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ____________________________5 7.0 FLUID DIELECTRIC PARAMETERS ____________________________________________________6 8.0 SAR MEASUREMENT SUMMARY _____________________________________________________9 9.0 SAR SCALING (MANUFACTURER TOLERANCE) ________________________________________9 10.0 DETAILS OF SAR EVALUATION ____________________________________________________10 11.0 SAR EVALUATION PROCEDURES __________________________________________________10 12.0 SYSTEM PERFORMANCE CHECK ___________________________________________________11 13.0 SIMULATED EQUIVALENT TISSUES _________________________________________________12 14.0 SAR LIMITS _____________________________________________________________________12 15.0 ROBOT SYSTEM SPECIFICATIONS_…

Text truncated - open the document above for the full version.

Test Report Serial No.: 110411AMW-T1130-E80V Test Report Issue Date: November 17, 2011 Measurement Date(s): November 04-14, 2011 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT642 IC: 513C-UT642 DUT Type: Portable VHF PTT Marine Radio Transceiver with DSCModel: MHS135DSC 156.025 - 157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 29 DECLARATION OF COMPLIANCE FCC PART 80 IC RSS-182 (Issue 4) Name CELLTECH LABS INCORPORATED Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada FCC Accredited Site (ISO 17025:2005 - A2LA Test Lab Certificate No. 2470.01) Test Site Registration No.(s) IC 3874A-1 Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States FCC 47 CFR Part 2; Part 80 IC RSS-182 Issue 4; RSS-Gen Issue 3 Standard(s) & Procedure(s) ANSI TIA/EIA-603-C-2004 C63.4-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) 47 CFR §80 Device Classification(s) IC Maritime Radio Transmitter/Receiver in the Band 156-162.5 MHz RSS-182 Issue 4 RF Exposure Category FCC/IC General Population / Uncontrolled Application Type FCC/IC New Certification FCC ID: AMWUT642 Device Identifier(s) IC: 513C-UT642 Device Under Test (DUT) Portable Push-To-Talk (PTT) VHF Marine Radio Transceiver with DSC Date of Sample Receipt November 04, 2011 Date(s) of Evaluation November 04-14, 2011 Device Model(s) MHS135DSC Test Sample Serial No.(s) None (Identical Prototype) Hardware Revision No. Version 0.55 Firmware Revision No. Version 0.55 Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) Manuf. Max. Rated Output Power 5.7 Watts Conducted (+0.2 W / -0.3 W) Max. RF Output Power Tested 5.7 Watts Conducted Modulation Type(s) FM Emission Designator(s) 16K0G3E, 6K0G2B Antenna Type(s) Tested Flexible Whip (Detachable) + 2 dBi Gain (P/N: AT-565) Power Source(s) Tested Li-Ion Battery Pack (7.4V, 1040mAh) Model: BT-1020 This wireless device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2 and Part 80; Industry Canada RSS-182 Issue 4 and RSS-Gen Issue 3; ANSI TIA/EIA-603-C-2004 and ANSI C63.4-2003. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Test Report Serial No.: 110411AMW-T1130-E80V Test Report Issue Date: November 17, 2011 Measurement Date(s): November 04-14, 2011 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT642 IC: 513C-UT642 DUT Type: Portable VHF PTT Marine Radio Transceiver with DSCModel: MHS135DSC 156.025 - 157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 29 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 5 2.0 REFERENCES .................................................................................................................................................... 5 2.1 Normative References ......................................................................................................................................... 5 3.0 PASS/FAIL CRITERIA......................................................................................................................................... 5 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 6 5.0 GENERAL INFORMATION ................................................................................................................................. 6 5.1 Applicant Information ........................................................................................................................................... 6 5.2 DUT Description .................................................................................................................................................. 6 5.3 Rule Part(s) & Classification(s)............................................................................................................................ 6 5.4 Mode(s) of Operation Tested............................................................................................................................... 7 5.5 Modification(s) ..................................................................................................................................................... 7 6.0 RANGE OF OPERATING POWER (FCC §2.1033(C)(6))................................................................................... 7 Appendix A RF Output Power Measurement...................................................................................................... 8 Ap…

Text truncated - open the document above for the full version.

Test Report Serial No.: 110411AMW-T1130-E80V Test Report Issue Date: November 17, 2011 Measurement Date(s): November 04-14, 2011 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT642 IC: 513C-UT642 DUT Type: Portable VHF PTT Marine Radio Transceiver with DSCModel: MHS135DSC 156.025 - 157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 26 of 29 G.10 TEST SETUP PHOTOGRAPH
