AMWUT644PORTABLE VHF PTT MARINE RADIO TRANSCEIVER

MHS126 RADIO VHF MARITIME GUIDE D’UTILISATION VHF MARINE RADIO OWNER’S MANUAL Making a Distress Call Speak slowly - clearly - calmly. For future reference, write your boat’s name & call sign here: 1. Make sure your radio is on. 2. On the radio, press the 16/9-Tri button to switch to Channel 16 (156.8 MHz). (If the corner of the display does not show 16, press the 16/9-Tri button again until it does.) 3. Press the push to talk button and say: “MAYDAY -- MAYDAY -- MAYDAY.” 4. Say “THIS IS {name of your boat (three times) and call sign/boat registration number (once)}. ” 5. Say “MAYDAY {name or call sign of your boat}.” 6. Tell where you are: (what navigational aids or landmarks are near, or read the latitude and longitude from your GPS). 7. State the nature of your distress, (e.g. are you sinking, medical emergency, man overboard, on fire, adrift, etc. 8. State the type of assistance you need (medical, towing, pumps, etc.). 9. Give number of persons aboard and conditions of any injured persons. 10. Estimate present seaworthiness of your ship (e.g. how immediate is the danger due to flooding or fire or proximity to shore). 11. Briefly describe your ship, giving the ship name (e.g. “Blue Duck is 32 foot cabin cruiser, white hull, blue deck house”). 12. Say: “I WILL BE LISTENING ON CHANNEL 16.” 13. End message by saying “THIS IS {name or call sign of your boat}, OVER.” 14. Release the push to talk button and listen. If you do not get an answer after 30 seconds, repeat your call, beginning at step 3, above. Faire un appel de détresse Faire un appel de détresse vocal Parlez lentement – clairement – calmement. Pour toute référence ultérieure, transcrivez ci-dessous le nom et l’indicatif d’appel de votre bateau : 1. Vérifiez si votre radio est en marche. 2. Appuyez sur la touche 16/9-Tri de la radio afin de commuter au canal 16 (156,8 MHz). (Si le canal 16 n’apparaît pas à l’affichage, appuyez de nouveau sur la touche 16/9-Tri jusqu’à ce qu’il soit affiché.) 3. Appuyez sur le bouton de microphone push to talk et dites :“MAYDAY - MAYDAY – MAYDAY”. 4. Donnez l’identité de votre navire en disant : “ ICI {nom de votre bateau (trois fois) ou indicatif d’appel et le numéro d’identification de votre bateau (une fois)}”. 5. Dites “MAYDAY {nom ou indicatif d’appel de votre bateau} une fois”. 6. Donnez votre position : (quels sont les points de repère ou aides à la navigation près de vous ou lisez les coordonnées de longitude et de latitude apparaissant sur votre dispositif GPS). 7. Révélez la nature de votre détresse (par exemple, nous sommes en train de couler, urgence médicale, un homme à la mer, un incendie, nous sommes à la dérive, etc. 8. Révélez la nature de l’assistance désirée (médicale, remorquage, essence, etc.) 9. Donnez le nombre de personnes à bord et les conditions des blessés, s’il y en a. 10. Donnez la condition de navigabilité actuelle de votre navire, tel que le degré de l’urgence par rapport à l’inondation, à l’incendie ou à votre proximité de la côte. 11. Donnez une brève description de votre navire en donnant le nom du bateau (par exemple, “Blue Duck est un yacht de croisière de 32 pieds, avec une coque blanche et un rouffle bleu.”). 12. Dites : “ JE VAIS ÉCOUTER SUR LE CANAL 16”. 13. Terminez le message en disant “ ICI {nom ou indicatif d’appel de votre bateau}, À VOUS”. 14. Relâchez le bouton push to talk du microphone et écoutez. Si vous n’obtenez pas de réponse après 30 secondes, répétez l’appel encommençant à l’étape 3 ci-dessus. Making a Distress Call ............(inside front cover) Table of Contents Introduction ............................E-1 Features ..................................E-1 Getting Started .......................E-4 What’s Included .......................E-4 Parts of the MHS126 ...............E-5 Front view ..........................E-5 Back view ...........................E-5 Charger ..............................E-7 Reading the Display ................E-7 Display icons and what they mean .....................E-8 How It Works ..........................E-9 Normal Mode Operation ........E-10 Normal mode with Weather Alert Watch ...E-10 Normal mode with Triple Watch or Dual Watch .. E-11 Scan Mode Operation ............E-11 Using the radio in Scan mode ..........................E-12 Scan mode with Weather Alert Watch .................E-12 Scan mode with Triple Watch or Dual Watch ..E-13 Both Weather Alert and Triple/Dual Watch in Scan mode .................E-14 Weather Mode .......................E-14 Using the radio in weather mode...........................E-15 Weather mode with Weather Alert Watch ...E-15 Weather mode with Triple Watch or Dual Watch ..E-15 Setting Up the Hardware .....E-16 Attaching the Antenna ...........E-16 Installing the Battery ..............E-16 Using the Alkaline Battery Tray ...................................E-16 Mounting the Charger ............E-18 Charging the Battery ..............E-18 Important notes on charging the battery ....E-19 Attaching the Belt Clip ...........E-19 Using Your Radio .................E-20 Turning It On .........................E-20 Setting It Up ...........................E-20 Changing the volume ......E-20 Setting the Squelch level .E-20 Reading volume and squelch level on battery icon ............E-21 Setting the UIC channel mode (USA/CAN/INT) E-22 Using the WX Mode ...............E-22 Making a Transmission ..........E-22 Selecting a channel ..........E-22 Making a transmission .....E-22 Boosting the transmission power.....E-23 Saving Channels to Memory .E-24 Special Features ....................E-24 E-1 Uniden MHS126 Radio Owner’s Manual Introduction Features Your radio provides the following key features: ŠSubmersible design. Complies with floating JIS8/IPX8 water-resistant standards, which means the radio can be submerged in 1.5 meters of water for 1 hour without damage. #Notes: The radio will only meet this rating if fully assembled and all rubber seals and sealing plugs are well maintained and correct…

Text truncated - open the document above for the full version.

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 REQUEST FOR CONFIDENTIALITY December 19, 2012 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 4700 Amon Carter Blvd., Fort Worth, Texas 76155 Jon Suehiro, Manager – Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Marine VHF Handheld Transceiver FCC IDENTIFIER: AMWUT644 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description MHS126_Circuit Description.pdf Schematic Diagrams MHS126_Schematic Diagram.pdf Block Diagrams MHS126_Block Diagram.pdf Alignment Procedure MHS126_Alignment Procedure.pdf Parts List MHS126_Parts List.pdf Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 LIMITED AGENCY AGREEMENT December 1, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Director of Certification RE: Equipment Authorization for FCC Certification We, Uniden America Corporation (hereinafter “Uniden”), hereby authorize Ben Hewson, President of Celltech Labs, Inc., located at 21-364 Lougheed Road in Kelowna, BC V1X 7R8, to act as our agent for the purpose of testing and preparing an equipment authorization application for our device identified by the FCC Certification number AMWUT644 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is today, December 1, 2012. This limited agency agreement expires on November 30, 2013, unless sooner terminated or extended by written notice to Celltech Labs, Inc. and Federal Communications Commission. Uniden certifies that equipment manufactured, imported, or marketed under the FCC Certification number AMWUT644 will comply with the parameters established in the application for equipment authorization unless the changes are in full compliance to the provisions in the FCC Rules and Regulations that allow such changes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Celltech Labs, Inc., resides with Uniden America Corporation located at 4700 Amon Carter Blvd, Fort Worth, Texas 76155. Uniden America Corporation 4700 Amon Carter Blvd. Fort Worth, TX 76155 817-858-3300 Fax: 817-858-3328 If you have any questions or comments, please do not hesitate to contact me. Regards, Jon Suehiro Manager, Engineering and Regulatory Affairs

Label & Location info ID Label: (Size 30 x 20 mm) Location

Label & Location info ID Label: (Size 30 x 20 mm) Location

Applicant: Uniden America Corporation FCC ID: AMWUT644 IC: 513C-UT644 Model(s): MHS126 DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 52 Date(s) of Evaluation Dec. 13 & 17, 2012 Test Report Serial No. 120412AMW-T1208-S80V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Dec. 19, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET 65, Supplement C FCC KDB 447498 D01v05 Procedure(s) Applied IC RSS-102 Issue 4 IEEE Standard 1528-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Maritime Radio Transmitter and Receiver (RSS-182) Device RF Exposure Category FCC/IC General Population / Uncontrolled Environment FCC ID: AMWUT644 Device Identifier(s) IC: 513C-UT644 Device Model(s) Model(s) MHS126 Test Sample Serial No. None (Identical Prototype) Date of Sample Receipt Dec. 4, 2012 Date(s) of Evaluations Dec. 13 & 17, 2012 Test Sample Hardware Rev. No. PCB re. Z2 Test Sample Firmware Rev. No. Ver. 0.17 Device-Under-Test Description (DUT) Portable FM VHF Push-To-Talk (PTT) Marine Radio Transceiver VHF Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) Manuf. Rated Output Power 5.7 Watts Conducted +0.2 W / -0.0 W Hi Power (Boost mode) Measured RF Output Power 5.9 Watts 37.7 dBm Conducted 156.7 MHz (Ch. 14) Battery Type Tested Lithium-Ion 7.4 V 1160 mAh P/N: BT-913 Flexible Whip (external detachable) P/N: AT-565 Antenna Type Tested Note: Per applicant, the above listed antenna is the only antenna supplied with the device Swivel Belt-Clip (contains metal) P/N: 14225304 Body-worn Accessory Tested Note: Per applicant, the above listed belt-clip is the only body-worn accessory supplied with the device Audio Accessory Tested Speaker-Microphone P/N: SM81 Face-held 0.472 W/kg 1g 50% PTT duty factor Max. SAR Level(s) Evaluated Body-worn 1.23 W/kg 1g 50% PTT duty factor FCC/IC Spatial Peak SAR Limit HEAD 1.6 W/kg 1g 50% PTT duty factor General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Mike Meaker Engineering Technologist Celltech Labs Inc. Applicant: Uniden America Corporation FCC ID: AMWUT644 IC: 513C-UT644 Model(s): MHS126 DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 52 Date(s) of Evaluation Dec. 13 & 17, 2012 Test Report Serial No. 120412AMW-T1208-S80V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Dec. 19, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENT _____________________________________5 4.0 NO. OF TEST CHANNELS (N C ) ________________________________________________________5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ____________________________5 6.0 FLUID DIELECTRIC PARAMETERS ____________________________________________________6 7.0 SAR MEASUREMENT SUMMARY ____________________________________________________11 8.0 SAR SCALING (MANUFACTURER TOLERANCE) _______________________________________11 9.0 DETAILS OF SAR EVALUATION _____________________________________________________12 10.0 SAR EVALUATION PROCEDURES __________________________________________________12 11.0 SYSTEM PERFORMANCE CHECK ___________________________________________________13 12.0 SIMULATED EQUIVALENT TISSUES _________________________________________________14 13.0 SAR LIMITS _____________________________________________________________________14 14.0 ROBOT SYSTEM SPECIFICATIONS__________________________________________________15 15.0 PROBE SPECIFICATION (ET3DV6) __________________________________________________16 16.0 BARSKI PLANAR PHANTOM _______________________________________________________16 17.0 DEVICE HOLDER _____________________________________…

Text truncated - open the document above for the full version.

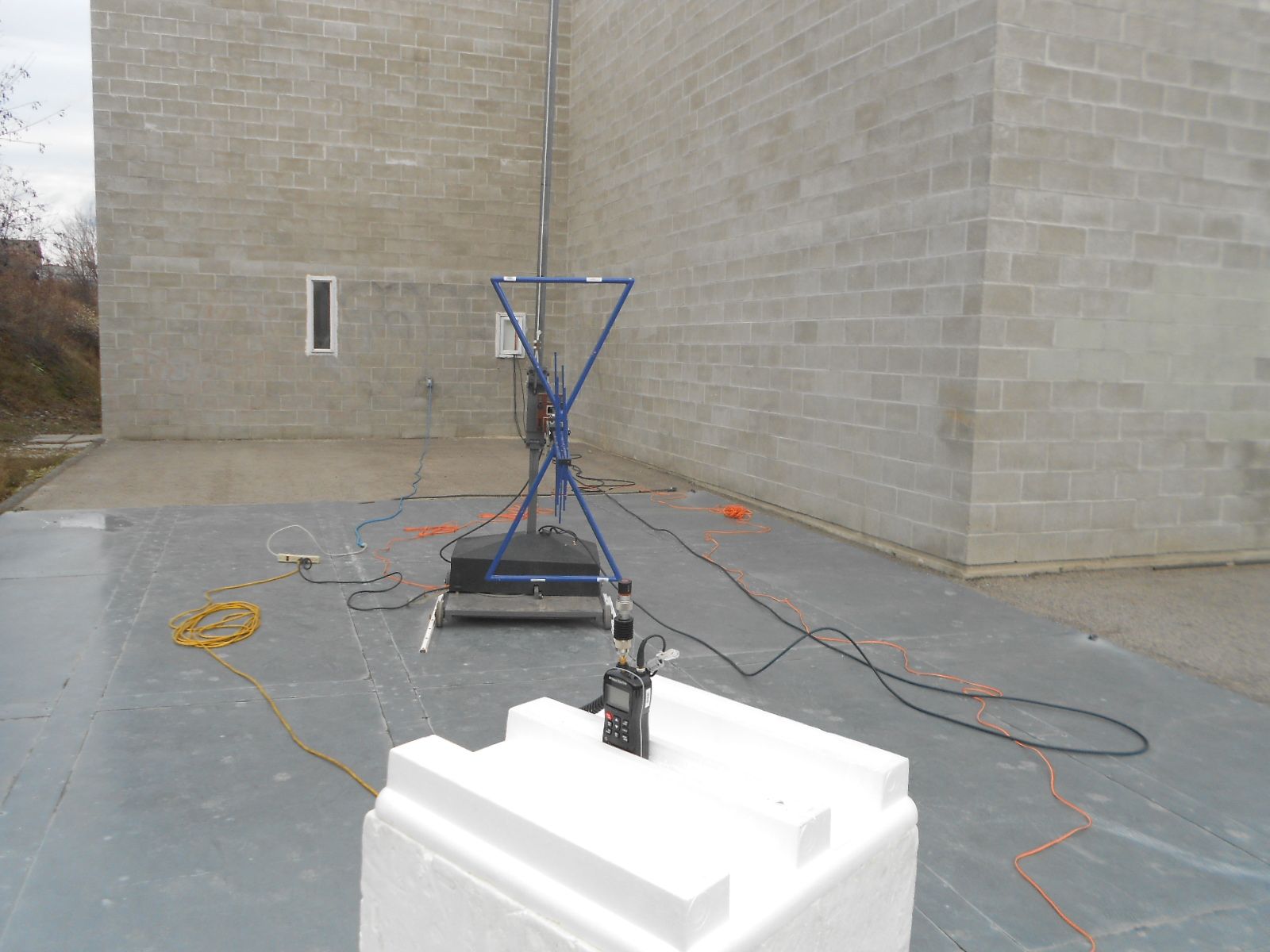

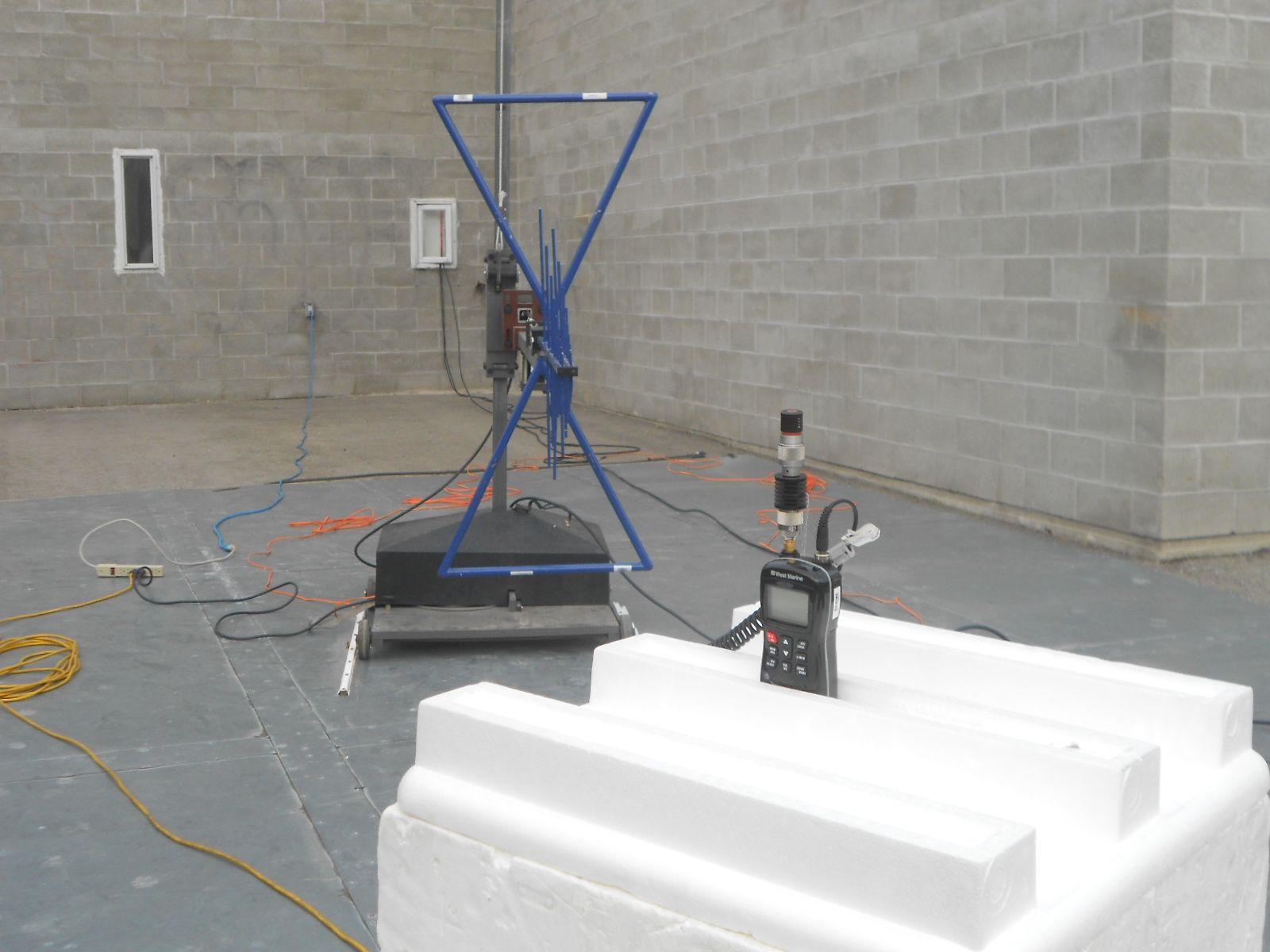

Test Report Serial No.: 120412AMW-T1208-E80V Test Report Issue Date: Dec. 19, 2012 Measurement Date(s): 8-10, Dec 2012 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT644 IC: 513C-UT644 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: MHS126 Freq.: 156-162.5 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 45 DECLARATION OF COMPLIANCE FCC PART 80 IC RSS-182 (Issue 4) Name CELLTECH LABS INCORPORATED Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada FCC Accredited Site (ISO 17025:2005 - A2LA Test Lab Certificate No. 2470.01) Test Site Registration No.(s) IC 3874A-1 Name UNIDEN AMERICA CORPORATION Applicant Information Address 4700 Amon Carter Boulevard, Fort Worth, Texas 76155 United States FCC 47 CFR Part 2; Part 80 IC RSS-182 Issue 4; RSS-Gen Issue 3 Standard(s) & Procedure(s) ANSI TIA/EIA-603-C-2004 C63.4-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) 47 CFR §80 Device Classification(s) IC Maritime Radio Transmitter/Receiver in the Band 156-162.5 MHz RSS-182 Issue 5 Application Type(s) FCC/IC New Certification FCC ID: AMWUT644 Device Identifier(s) IC: 513C-UT644 Device Under Test (DUT) Portable Push-To-Talk (PTT) VHF Marine Radio Transceiver Device Model(s) MHS126 Test Sample Serial No.(s) None (Identical Prototype) Frequency Band of Operation 156-162.5 MHz Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) Authorized Bandwidth 20kHz (US), 16kHz (Can) Manuf. Rated Output Power 5.7 Watts Conducted +0.2 W / -0.0 W Modulation Type(s) FM Emission Designator(s) 16K0G3E Antenna Type(s) Tested Flexible Whip (external detachable) , -1dBi Power Source(s) Tested Lithium-ion, 7.4 V This wireless device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2 and Part 80; Industry Canada RSS- 182 Issue 5 and RSS-Gen Issue 3; ANSI TIA/EIA-603-C-2004 and ANSI C63.4-2003. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Glen Westwell Lab Manager Celltech Labs Inc. Test Report Serial No.: 120412AMW-T1208-E80V Test Report Issue Date: Dec. 19, 2012 Measurement Date(s): 8-10, Dec 2012 Test Report Revision No.: Rev. 1.0 (1st Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Test Site Registration No. 3874A-1 Applicant: Uniden America Corporation FCC ID: AMWUT644 IC: 513C-UT644 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: MHS126 Freq.: 156-162.5 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 45 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 5 2.0 REFERENCES .................................................................................................................................................... 5 2.1 Normative References ......................................................................................................................................... 5 3.0 PASS/FAIL CRITERIA......................................................................................................................................... 5 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 5 5.0 MODE(S) OF OPERATION TESTED.................................................................................................................... 6 5.2 Modification(s) ..................................................................................................................................................... 6 Appendix A RF Output Power Measurement...................................................................................................... 7 Appendix B Spurious Emissions at the Antenna Terminal ................................................................................. 9 Appendix C Modulation Characteristics (Modulation Limiting).......................................................................... 24 Appendix D Modulation Characteristics (Audio Frequency Response) ............................................................ 27 Appendix E Occupied Bandwidth and Emission Mask ..................................................................................... 29 Appendix F Radiated Spurious Emissions - TX................................................................................................39 Appendix G Frequency Stability ........................................................................................................................ 43 END OF DOCUMENT ............................................................................................................................................. 45 FIGURES Figure A.4-1 - Setup Drawing – RF Output Power ...................................…

Text truncated - open the document above for the full version.
