AMWUT890Portable Marine VHF Transmitter with GPS

Operating Guide Mystic OMc.book Page 1 Wednesday, August 13, 2003 5:26 PM Maritime Radio Services Operation Warning For individuals requiring a license, such as commercial users, you should obtain a license application from your nearest FCC field office. This transmitter will operate on channels/frequencies that have restricted use in the United States. The channel assignments include frequencies assigned for exclusive use of the U.S. Coast Guard, use in Canada, and use in international waters. Operation in these frequencies without proper authorization is strictly forbidden. For frequencies/channels that are currently for use in the U.S. without an individual license, please contact the FCC Call Center at 1-888-CALL- FCC. Mystic OMc.book Page 2 Wednesday, August 13, 2003 5:26 PM 1 Included with your Mystic VHF/GPS Marine Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Mystic Controls and Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Channel and Navigation Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Mystic LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Basic VHF Radio Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Weather Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Instant Channel 16/channel 9 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Triple Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Transmitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Marine Distress Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Instant Distress Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Advanced VHF Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Position Fix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 GPS Basic Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Navigational Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Accessing the Navigation Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Waypoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Saving a Waypoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using GOTO Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Creating a GOTO Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Navigating on a GOTO Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Digital Selective Calling (DSC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Advanced VHF Radio Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Modifying a Waypoint with a Custom Icon and Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Adding a Message to a Waypoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 GPS Advanced Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Navigational Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Using the Mystic keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 NAV Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Entering Channel numbers into Memory Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Mystic Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 FIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 VHF FM Marine Radio Telephone Channel and Functions (USA Channels). . . . . . . . 48 VHF FM Marine Radio Telephone …

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230729364.AMW Test Dates: August 25-28, 2003 EUT Type: VHF Marine Radio FCC ID: AMWUT890 Page 1 of 22 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN ENGINEERING SERVICES Dates of Tests: August 25-28, 2003 216 John Street Test Report S/N: SAR.230729364.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia, MD USA Lake City, SC 29560-0580 FCC ID: AMWUT890 APPLICANT: UNIDEN ENGINEERING SERVICES EUT Type: 2-Way Portable VHF Marine Radio Transceiver (GMDSS) Tx Frequency Range: 156.050 ~ 157.425MHz Rx Frequency Range: 156.050 ~ 163.275MHz Max. RF Output Power: 5.0 W (HI) / 1.0 W (LOW); 36.92 dBm Conducted Max. SAR Measurement: 1.165 W/kg Face SAR; 1.415 W/kg Body SAR @ 50% Duty Cycle Trade Name/Model(s): Mystic FCC Classification: Part 80 VHF Handheld Transmitter (GMDSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230729364.AMW PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230729364.AMW Test Dates: August 25-28, 2003 EUT Type: VHF Marine Radio FCC ID: AMWUT890 Page 2 of 22 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ..........................................................................................3 SAR DEFINITION .........................................................................................3 2. SAR MEASUREMENT SETUP...........................................................................4 Robotic System..............................................................................................4 System Hardware...........................................................................................4 System Electronics..........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM......................................................................5 Probe Measurement System.............................................................................5 Probe Specifications.......................................................................................5 4. Probe Calibration Process................................................................................6 Dosimetric Assessment Procedure....................................................................6 Free Space Assessment....................................................................................6 Temperature Assessment.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................7 SAM Phantom................................................................................................7 Brain & Muscle Simulating Mixture Characterization..........................................7 Device Holder for Transmitters........................................................................7 6. TEST SYSTEM SPECIFICATIONS.......................................................................8 Automated Test System Specifications...............................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure.................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications...............................9 8. DEFINITION OF REFERENCE POINTS............................................................10 EAR Reference Point.....................................................................................10 Handset Reference Points..............................................................................10 9. TEST CONFIGURATION POSITIONS.............................................................11 Positioning for Cheek/Touch..........................................................................11 Positioning for Ear / 15° Tilt...........................................................................12 Body Holster /Belt Clip Configurations............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS...............................................14 Uncontrolled Environment............................................................................14 Controlled Environment................................................................................14 11. MEASUREMENT UNCERTAINTIES.................................................................15 SAR Measurement Uncertainties....................................................................15 12. SYSTEM VERIFICATION................................................................................…

Text truncated - open the document above for the full version.

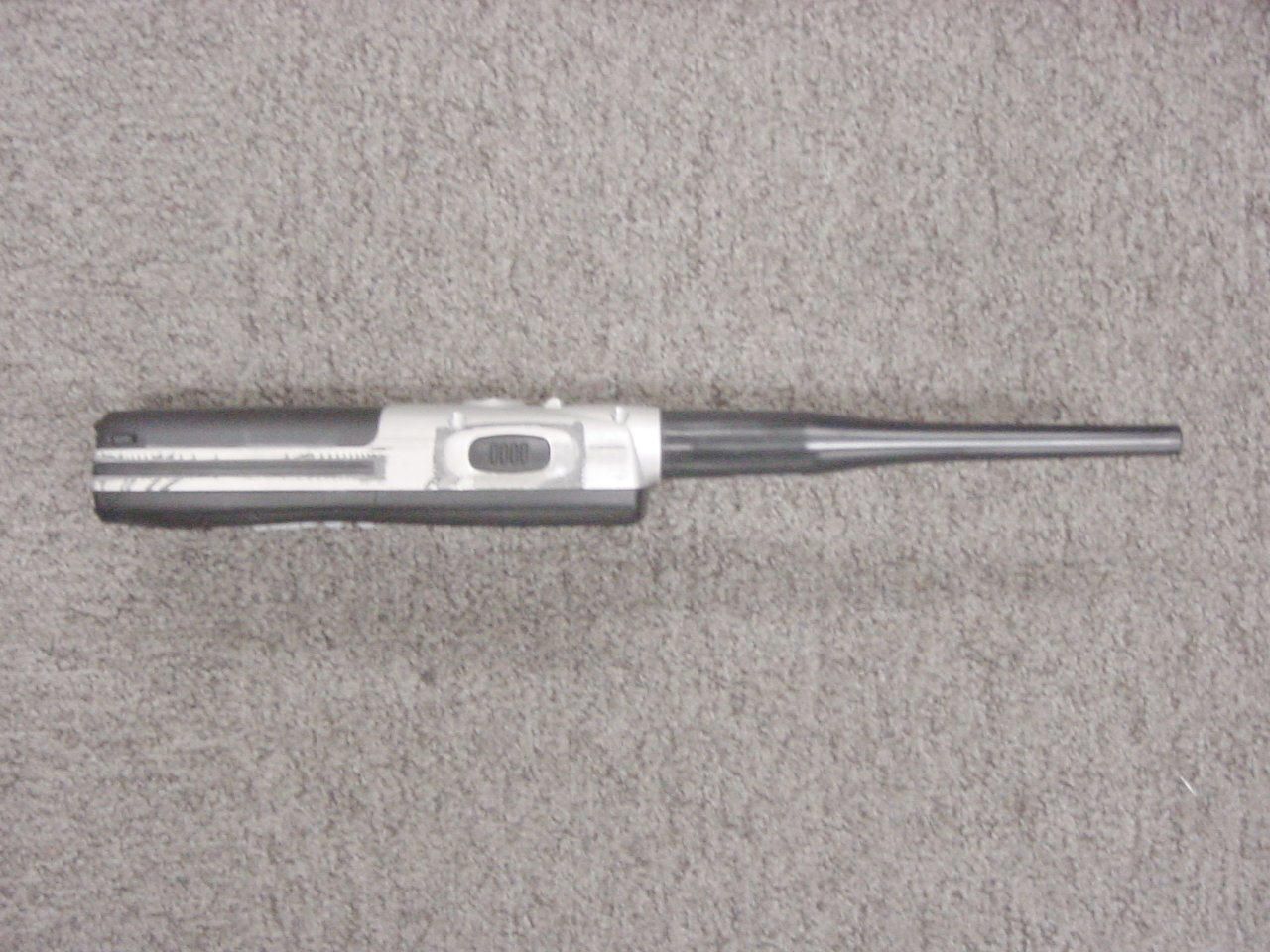

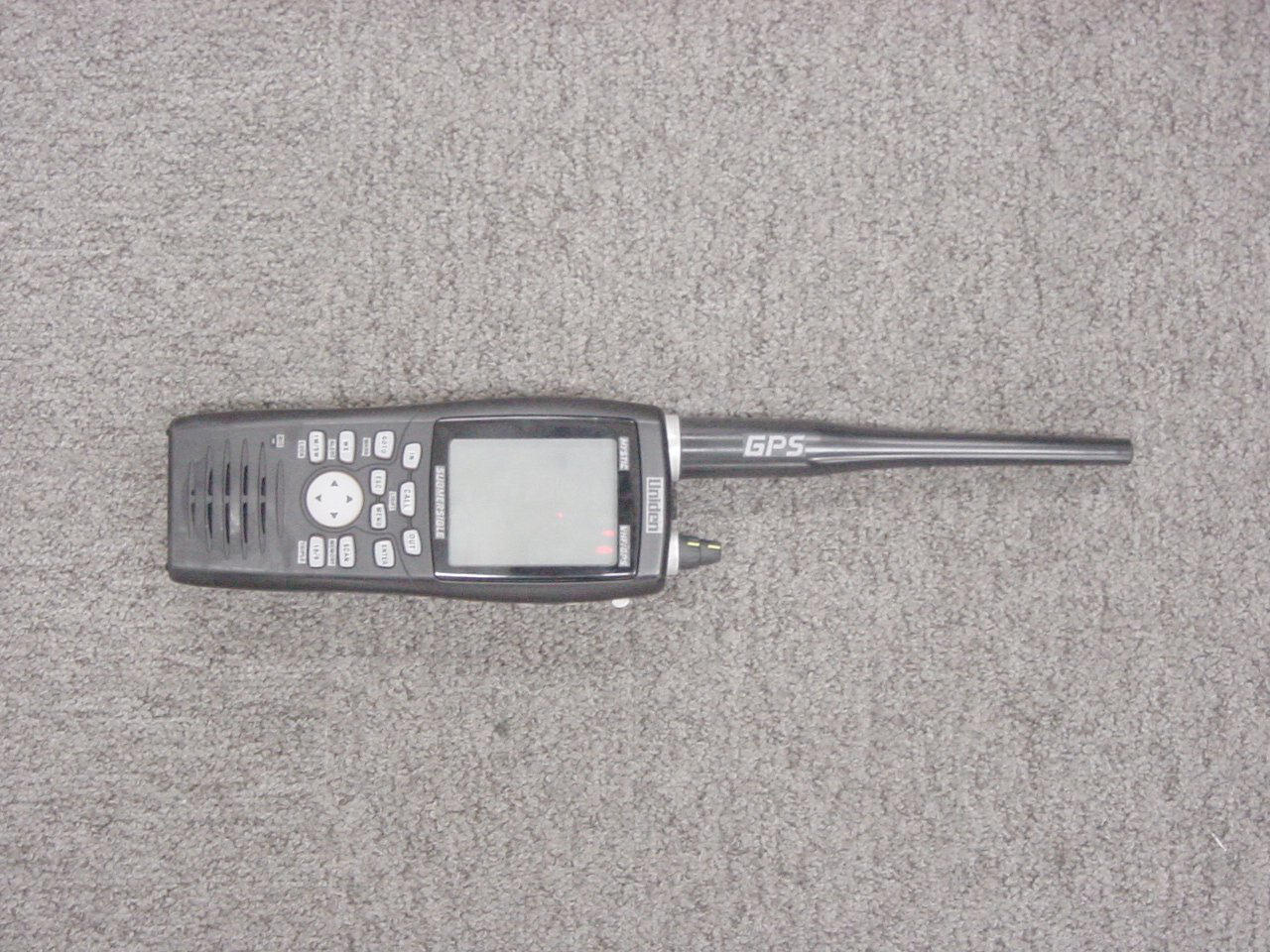

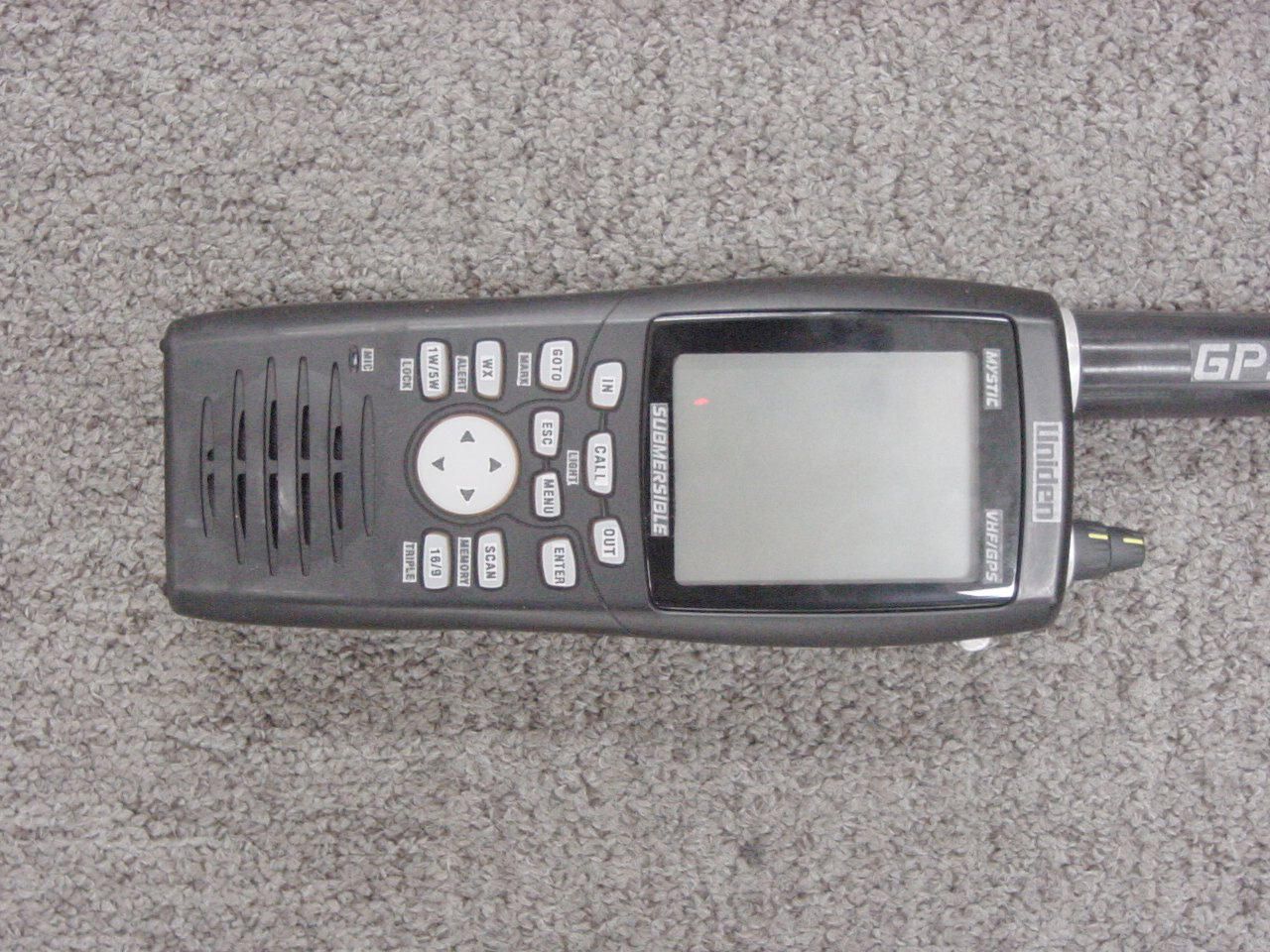

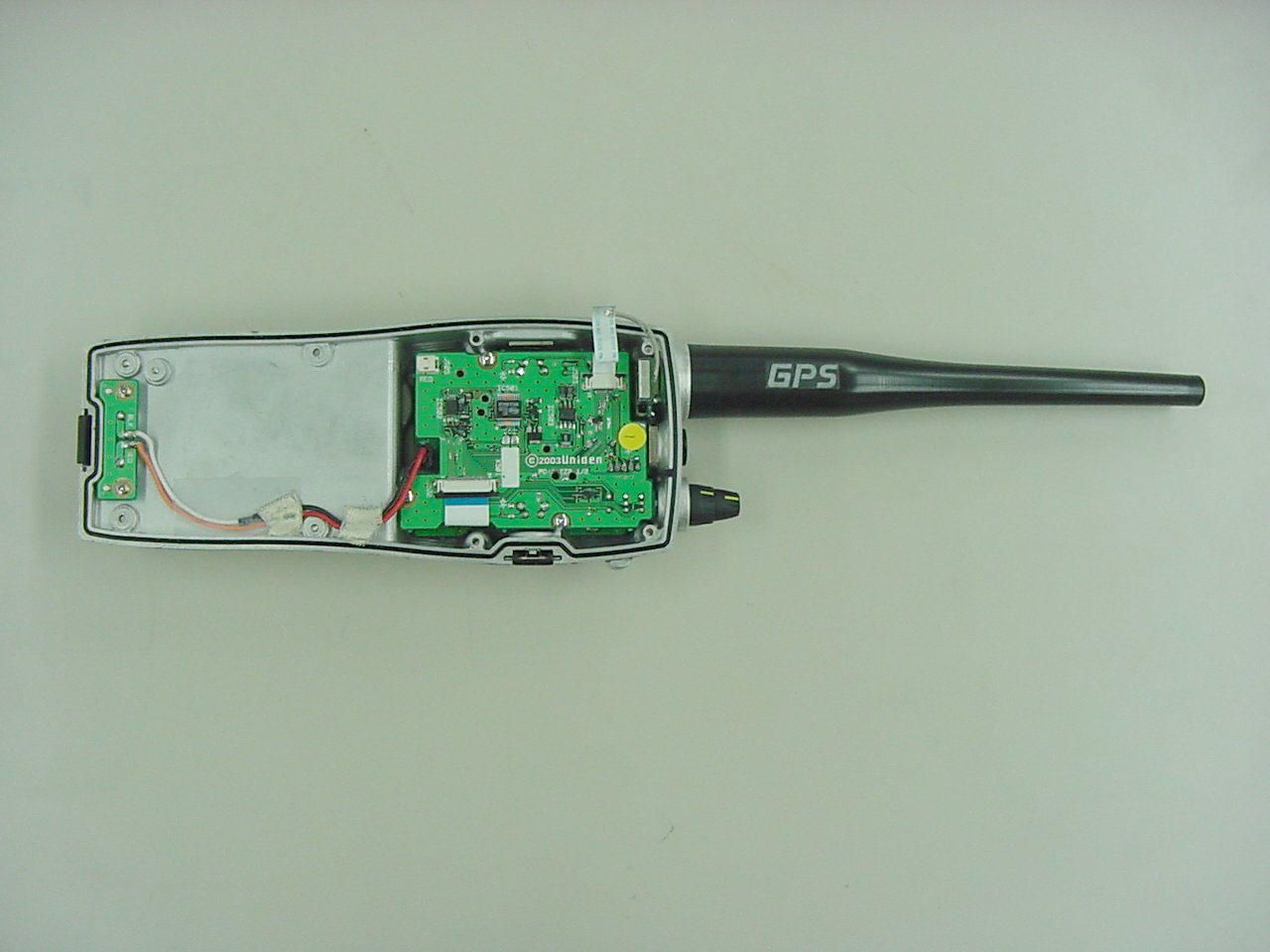

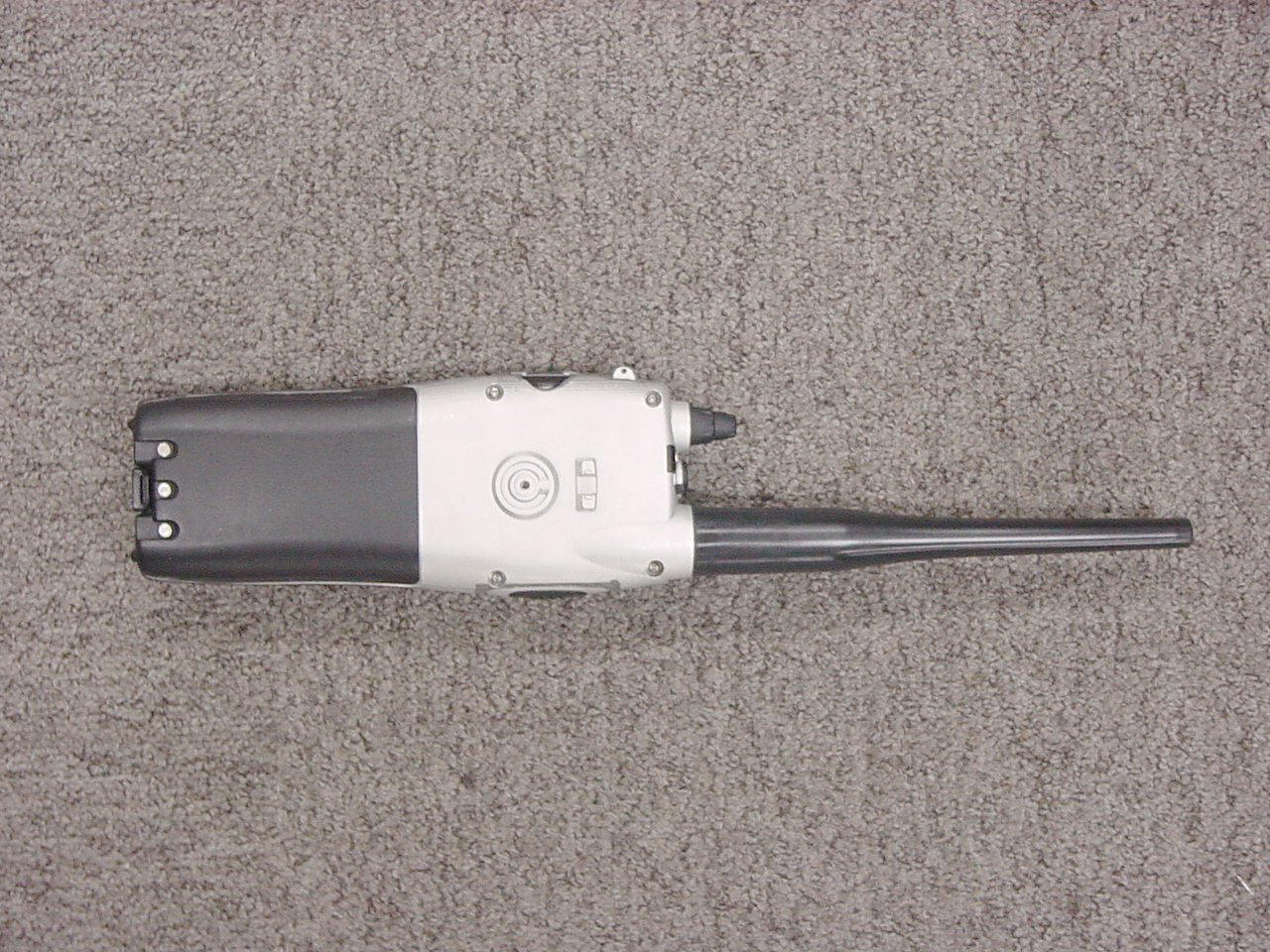

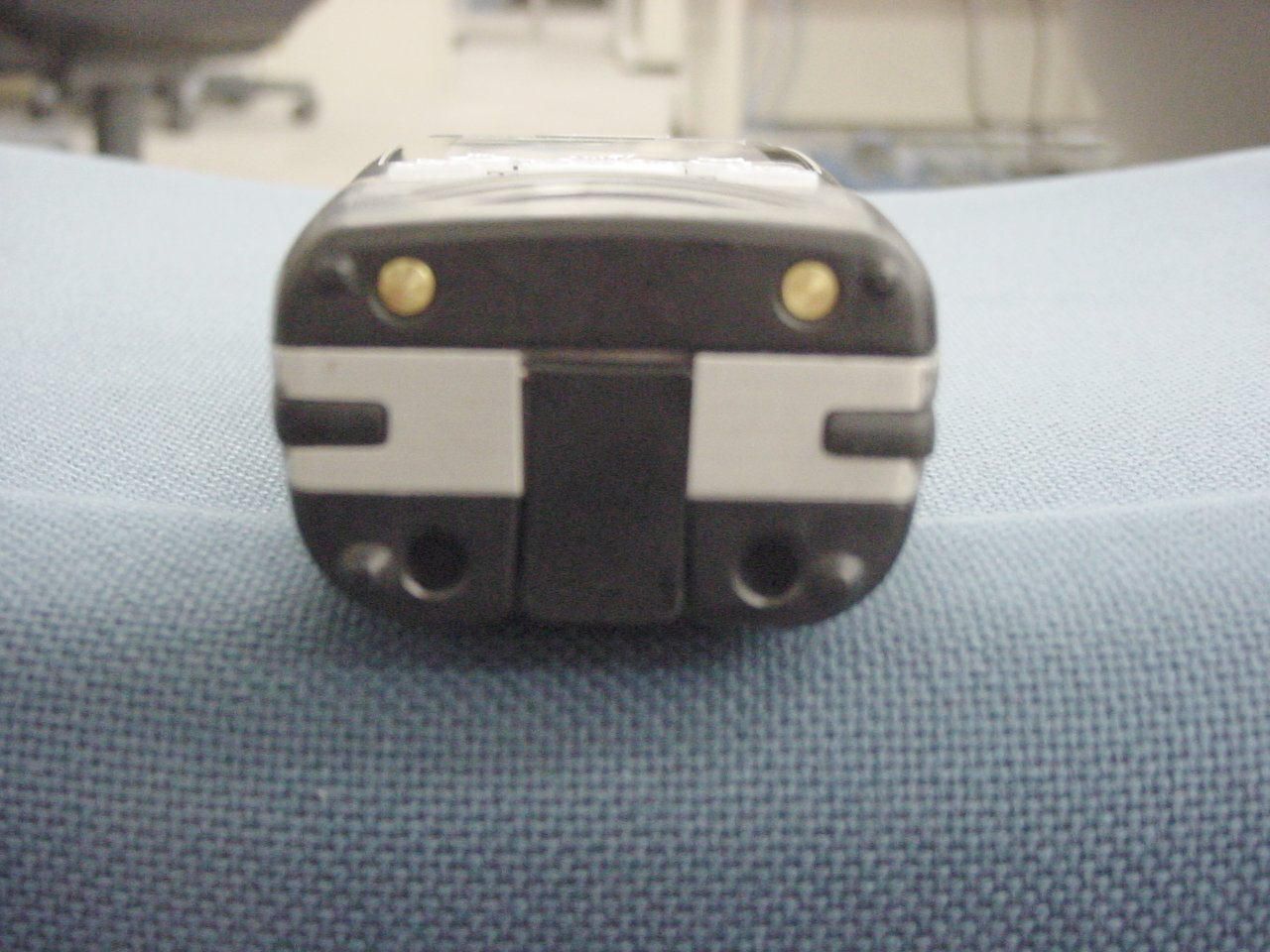

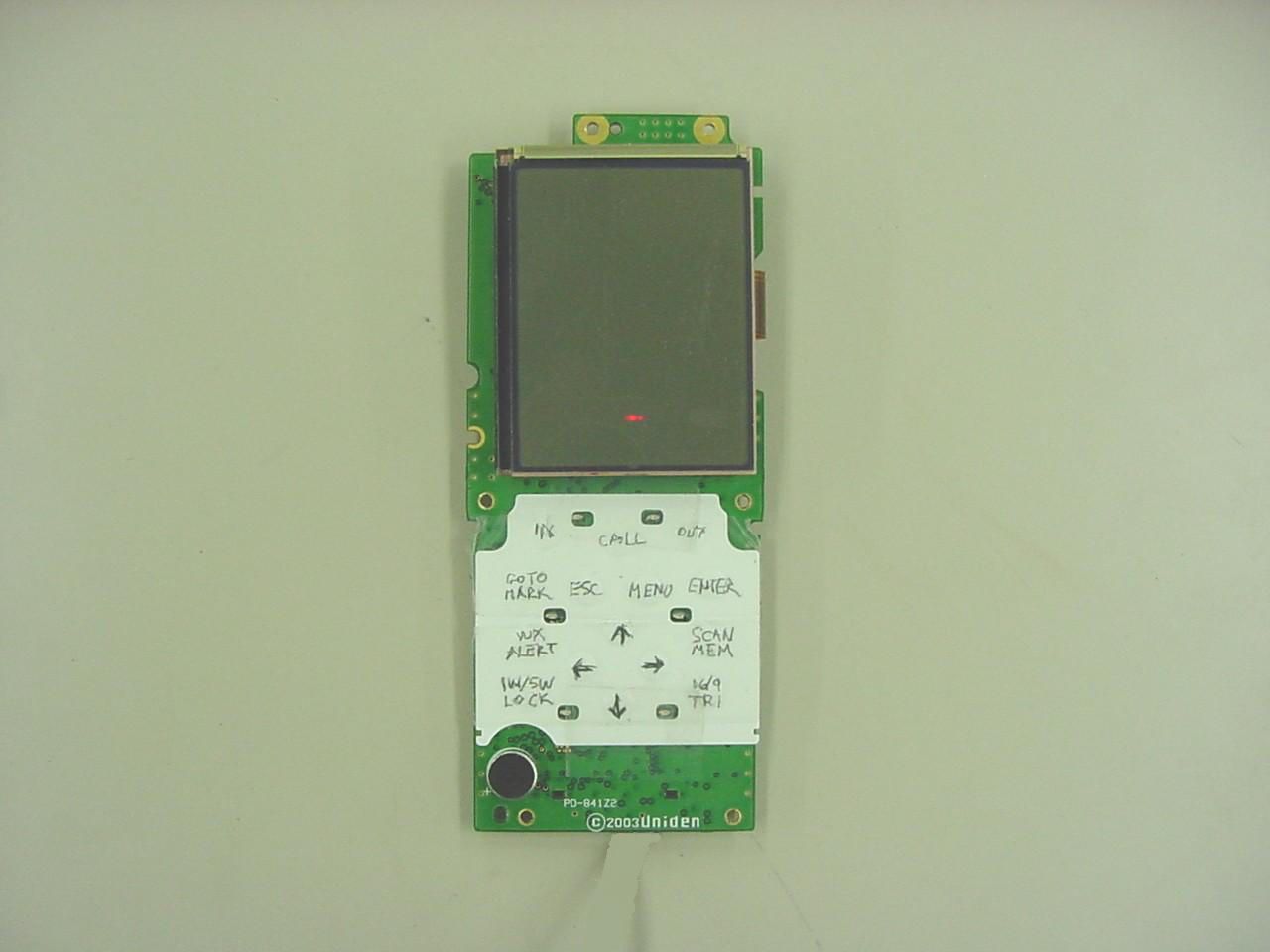

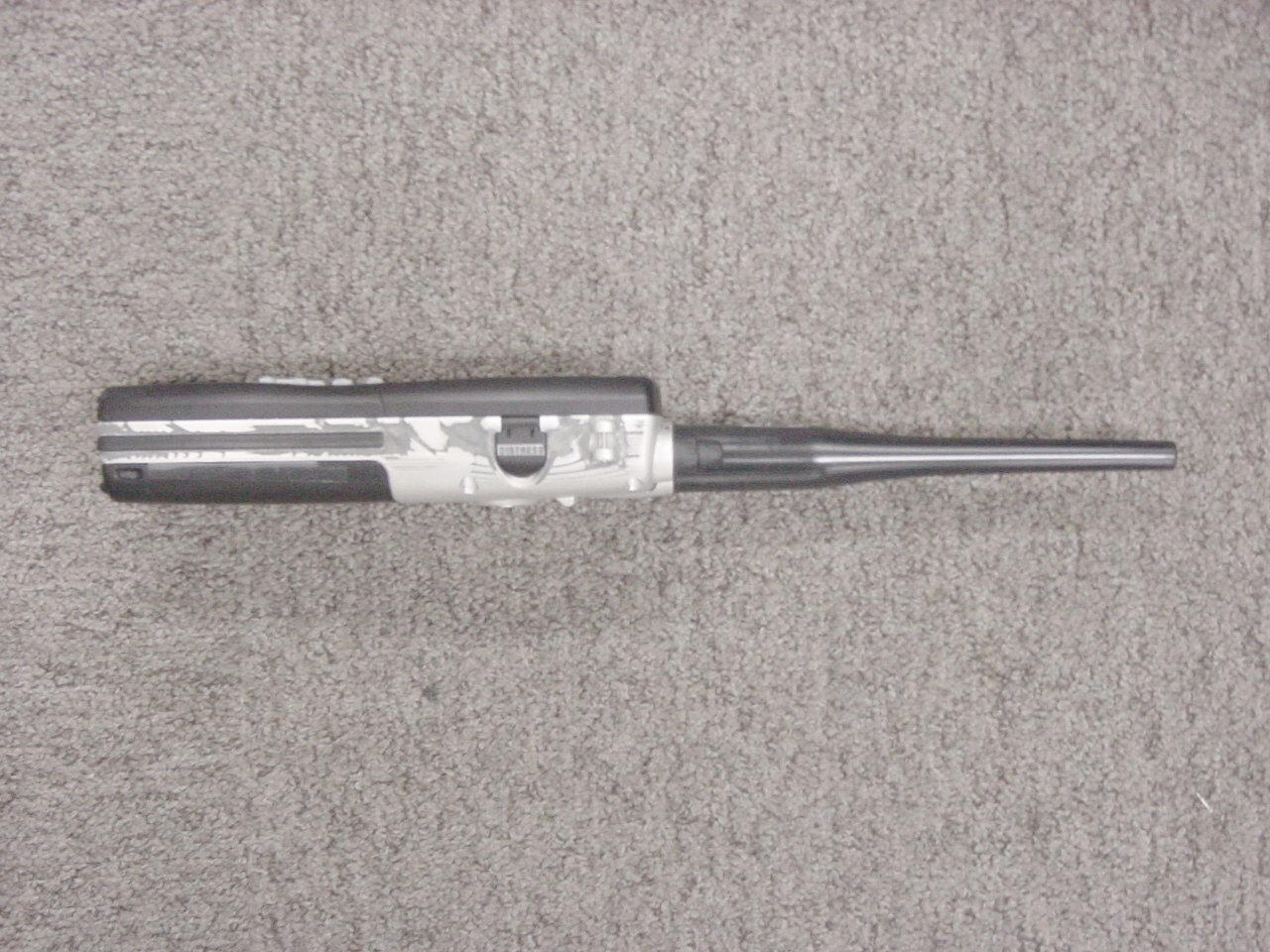

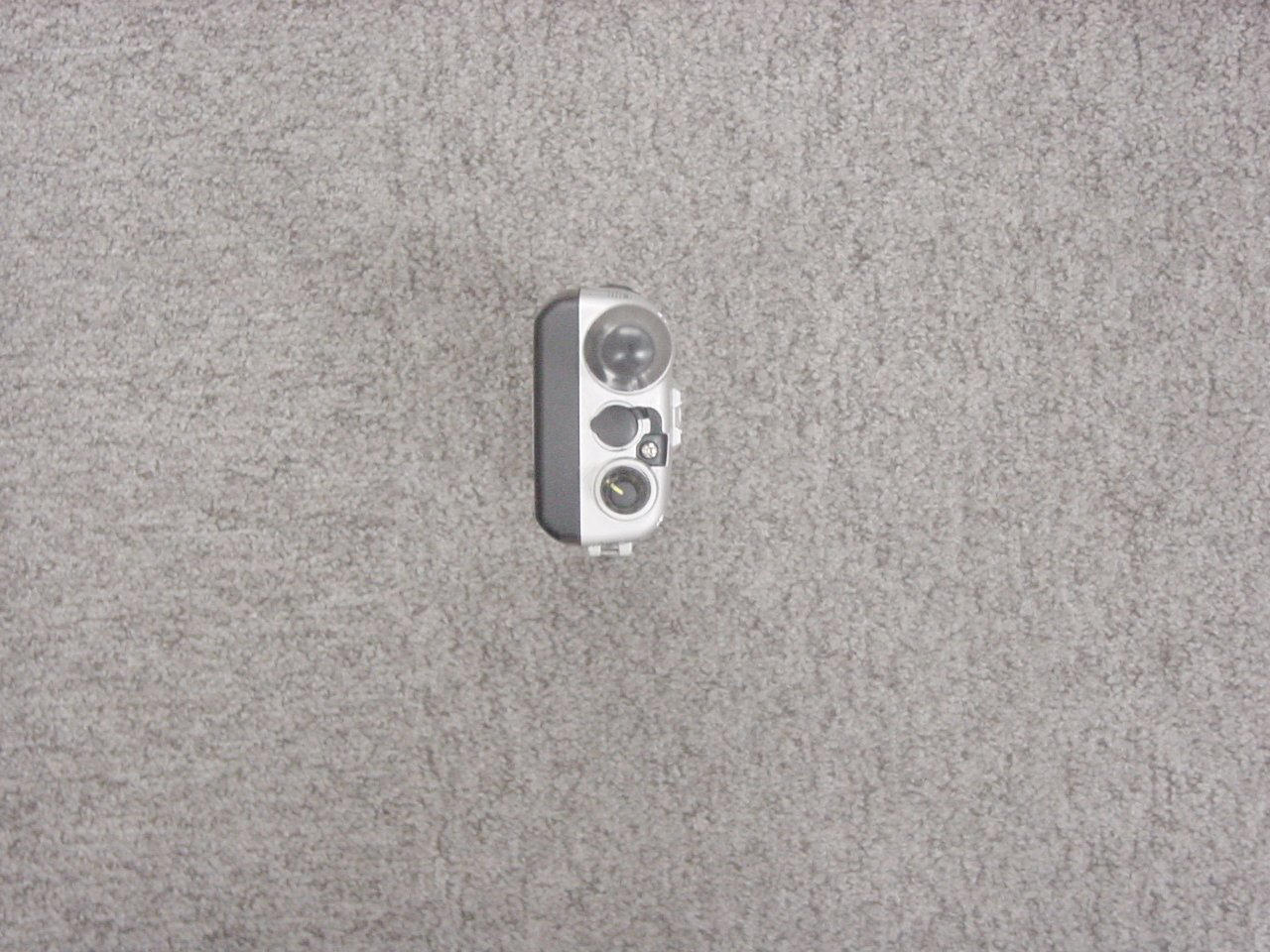

UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230729364.AMW Test Dates: August 25-28, 2003 EUT Type: VHF Marine Radio FCC ID: AMWUT890 Page 1 of 22 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN ENGINEERING SERVICES Dates of Tests: August 25-28, 2003 216 John Street Test Report S/N: SAR.230729364.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia, MD USA Lake City, SC 29560-0580 FCC ID: AMWUT890 APPLICANT: UNIDEN ENGINEERING SERVICES EUT Type: 2-Way Portable VHF Marine Radio Transceiver (GMDSS) Tx Frequency Range: 156.050 ~ 157.425MHz Rx Frequency Range: 156.050 ~ 163.275MHz Max. RF Output Power: 5.0 W (HI) / 1.0 W (LOW); 36.92 dBm Conducted Max. SAR Measurement: 1.165 W/kg Face SAR; 1.415 W/kg Body SAR @ 50% Duty Cycle Trade Name/Model(s): Mystic FCC Classification: Part 80 VHF Handheld Transmitter (GMDSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230729364.AMW PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230729364.AMW Test Dates: August 25-28, 2003 EUT Type: VHF Marine Radio FCC ID: AMWUT890 Page 2 of 22 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ..........................................................................................3 SAR DEFINITION .........................................................................................3 2. SAR MEASUREMENT SETUP...........................................................................4 Robotic System..............................................................................................4 System Hardware...........................................................................................4 System Electronics..........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM......................................................................5 Probe Measurement System.............................................................................5 Probe Specifications.......................................................................................5 4. Probe Calibration Process................................................................................6 Dosimetric Assessment Procedure....................................................................6 Free Space Assessment....................................................................................6 Temperature Assessment.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................7 SAM Phantom................................................................................................7 Brain & Muscle Simulating Mixture Characterization..........................................7 Device Holder for Transmitters........................................................................7 6. TEST SYSTEM SPECIFICATIONS.......................................................................8 Automated Test System Specifications...............................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure.................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications...............................9 8. DEFINITION OF REFERENCE POINTS............................................................10 EAR Reference Point.....................................................................................10 Handset Reference Points..............................................................................10 9. TEST CONFIGURATION POSITIONS.............................................................11 Positioning for Cheek/Touch..........................................................................11 Positioning for Ear / 15° Tilt...........................................................................12 Body Holster /Belt Clip Configurations............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS...............................................14 Uncontrolled Environment............................................................................14 Controlled Environment................................................................................14 11. MEASUREMENT UNCERTAINTIES.................................................................15 SAR Measurement Uncertainties....................................................................15 12. SYSTEM VERIFICATION................................................................................…

Text truncated - open the document above for the full version.

UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230729364.AMW Test Dates: August 25-28, 2003 EUT Type: VHF Marine Radio FCC ID: AMWUT890 Page 1 of 22 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN ENGINEERING SERVICES Dates of Tests: August 25-28, 2003 216 John Street Test Report S/N: SAR.230729364.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia, MD USA Lake City, SC 29560-0580 FCC ID: AMWUT890 APPLICANT: UNIDEN ENGINEERING SERVICES EUT Type: 2-Way Portable VHF Marine Radio Transceiver (GMDSS) Tx Frequency Range: 156.050 ~ 157.425MHz Rx Frequency Range: 156.050 ~ 163.275MHz Max. RF Output Power: 5.0 W (HI) / 1.0 W (LOW); 36.92 dBm Conducted Max. SAR Measurement: 1.165 W/kg Face SAR; 1.415 W/kg Body SAR @ 50% Duty Cycle Trade Name/Model(s): Mystic FCC Classification: Part 80 VHF Handheld Transmitter (GMDSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230729364.AMW PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230729364.AMW Test Dates: August 25-28, 2003 EUT Type: VHF Marine Radio FCC ID: AMWUT890 Page 2 of 22 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ..........................................................................................3 SAR DEFINITION .........................................................................................3 2. SAR MEASUREMENT SETUP...........................................................................4 Robotic System..............................................................................................4 System Hardware...........................................................................................4 System Electronics..........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM......................................................................5 Probe Measurement System.............................................................................5 Probe Specifications.......................................................................................5 4. Probe Calibration Process................................................................................6 Dosimetric Assessment Procedure....................................................................6 Free Space Assessment....................................................................................6 Temperature Assessment.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................7 SAM Phantom................................................................................................7 Brain & Muscle Simulating Mixture Characterization..........................................7 Device Holder for Transmitters........................................................................7 6. TEST SYSTEM SPECIFICATIONS.......................................................................8 Automated Test System Specifications...............................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure.................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications...............................9 8. DEFINITION OF REFERENCE POINTS............................................................10 EAR Reference Point.....................................................................................10 Handset Reference Points..............................................................................10 9. TEST CONFIGURATION POSITIONS.............................................................11 Positioning for Cheek/Touch..........................................................................11 Positioning for Ear / 15° Tilt...........................................................................12 Body Holster /Belt Clip Configurations............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS...............................................14 Uncontrolled Environment............................................................................14 Controlled Environment................................................................................14 11. MEASUREMENT UNCERTAINTIES.................................................................15 SAR Measurement Uncertainties....................................................................15 12. SYSTEM VERIFICATION................................................................................…

Text truncated - open the document above for the full version.

UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic UNIDEN FCC ID: AMWUT890 EUT Photographs © 2003 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: Mystic
