AMWUT919Portable Marine VHF Transmitter

UT919ZH(MHS350)ENG.QX 12/19/03 5:26 PM Page 1 www.uniden.com UT919ZH(MHS350)ENG.QX 12/19/03 5:26 PM Page 2 Contents Controls and Indicators...................................................................... 2 Warning!.............................................................................................. 4 Introduction........................................................................................ 5 Features ........................................................................................... 5 Technical Support and Service ........................................................ 6 Maritime Radio Services Operation ................................................. 6 Included in Your Package ................................................................. 7 Getting Started................................................................................... 8 Mounting the Charging Cradle ......................................................... 8 Attaching the Antenna ...................................................................... 8 Attaching the Rechargeable Battery Pack ....................................... 8 Attaching the Beltclip ........................................................................ 9 Charging the Battery Pack ............................................................. 10 Operation.......................................................................................... 11 Turning On the Unit and Setting Squelch ....................................... 11 Selecting a Channel ....................................................................... 12 One-touch Channel 16/9/TRI ......................................................... 12 Triple Watch ................................................................................... 13 Monitoring Weather Channels ........................................................ 14 Emergency/Weather Alert .............................................................. 15 SAME Alert.......................................................................................16 FIPS Code........................................................................................16 USA, International and Canadian Channels .................................. 17 Programming a Channel into Memory ........................................... 18 Deleting a Channel from Memory .................................................. 18 Scanning ........................................................................................ 18 Transmitting ................................................................................... 19 Lighted Keys and Display ............................................................... 19 Turning and reactivating the Key Beep .......................................... 19 Battery Indicator ............................................................................. 20 Key Lock ........................................................................................ 20 Marine Channels - USA................................................................... 21 Marine Channels - International . .................................................... 23 Marine Channels - Canada.............................................................. 25 NWR-SAME EVENT CODE................................................................27 Optional Parts and Replacement Accessories. ............................ 29 Specifications................................................................................... 30 Troubleshooting............................................................................... 31 FCC RF EXPOSURE INFORMATION.............................................. 32 Three-Year Limited Warranty.......................................................... 33 UT919ZH(MHS350)ENG.QX 12/19/03 5:26 PM Page 1 Controls and Indicators 2 1 Antenna 2 Belt Clip 3 PTT (Push to Talk) Key 4 Battery 5 USA/International/Canadian Button (UIC) 6 WX Mode/Weather Alert Button (WX/ALERT) 7 TX Power/Lock Button (1/5W/LOCK) 8 Channel Up Button () 9 Channel Down Button () 10 Speaker 11 Speaker MIC (Optional) Jack 12 Squelch Knob (SQ) 13 Volume Knob (VOL) 14 LCD Display 15 Memory/FIPS Button (MEM/FIPS) 16 Scan Button (SCAN) 17 16/9 - Triple Watch Button ( 16/9/TRI) 18 Microphone 19 Charge Contacts 20 Battery Release Clip 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 UT919ZH(MHS350)ENG.QX 12/19/03 5:26 PM Page 2 3 A Channel Number Display B Battery Indicator C Memory Indicator D Transmit Indicator E Triple Watch Indicator F TX Power Indicator G Key Lock Indicator H USA/International/Canadian (US/INT/CAN) Indicator I Weather Mode Indicator J Scan Indicator K Weather Alert Indicator A B C DE FGHI J K LCD Display UT919ZH(MHS350)ENG.QX 12/19/03 5:26 PM Page 3 Warning! • The MHS350is waterproof only when both the antenna and the battery are properly attached. • Do not operate the transmitter of any radio equipment unless all the Radio Frequency (RF) connectors are secure and any open connectors are properly terminated. • Do not operate the transmitter of any radio equipment near electrical blasting caps or in an explosive atmosphere. • Do not let children operate any transmitter-equipped radio equipment without proper supervision. • Have your radio equipment serviced by a qualified technician. • Do not operate the transmitter of any radio equipment with the antenna touching or close to the eyes, face, or exposed body parts. Ni-MH Battery Pack Warning • This equipment contains a Ni-MH Battery Pack. • The Ni-MH Battery Pack contained in this equipment may explode if disposed of in a fire. • Do not short-circuit the Battery Pack. • Do not charge the Ni-MH Battery Pack used in this equipment with any Adapter other than the one designed to charge this Battery Pack. Using another Adapter may damage the Battery Pack or cause the Battery Pack to explode. • Ni-MH batteries must be disposed of properly. The exclamation point within an…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY January 30, 2004 To: Federal Communications Commission Equipment Authorization Branch Laboratory Division Office of Engineering and Technology 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Data for FCC Certification Applicant: Uniden America Corporation 181 N. Country Club Road, P.O. Box 580 Lake City, South Carolina 29560 James R. Haynes, Vice President, Engineering and Regulatory Affairs TYPE OF EQUIPMENT: Portable VHF Marine Transceiver FCC IDENTIFIER: AMWUT919 Dear Sir or Madam: Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Circuit Description Schematic Diagrams Block Diagrams Trade secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Sections 0.457(d) and 0.459. Please contact the undersigned if you have any questions or need any further information. Regards, James R. Haynes Vice President, Engineering and Regulatory Affairs

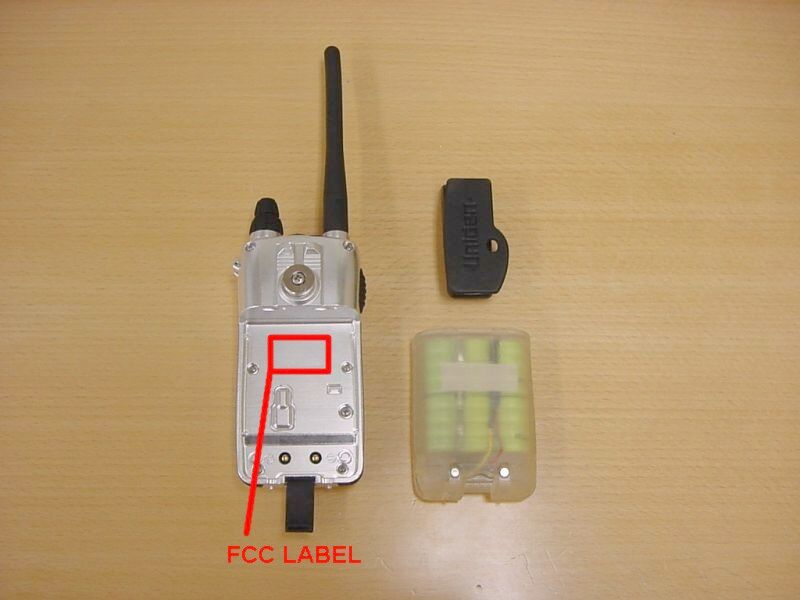

ID Label/Location Info 1) Equipment Identification Label The FCC Label complies with the section 2.925(d) of the FCC Rules and will be permanently affixed to the equipment. 1) Rating label: 30 mm (W) x 20 mm (H) ㊉㊀

FORM-4 REFERENCE DIAGRAM NO. PAGE MODEL UNIT BLOCKISSUE DATE ISSUED UT919ZH TITLEADJUST POINTSUB TITLE REF DIAGRAM ADJUST POINT 1)TOP VIEW2) BOTTOM VIEW TX ADJ LEVEL L116DISCRI RX AF ADJUST RT101RX SQ ADJUST RT291TX HI-POWER ADJUSTTX POWER : 5W ADJ @ 14CH RT421PLL REF ADJUSTTX FREQ ADJ 156.7MHz @14CH RT201 TX LO-POWER ADJUSTTX POWER : 1W ADJ @ 14CH RT501 MIC DEVIATION LEVEL ADJUST4.5KHz DEV @ 0.1V ENGLISH VERSION95.06 E0132RO (JED-207Z) <E0132.XLS> 2003/12/22 ALIGNMENT PROCEDURE

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231229004.AMW Test Dates: January 20-21, 2004 EUT Type: VHF Marine Radio FCC ID: AMWUT919 Page 1 of 22 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: UNIDEN ENGINEERING SERVICES Dates of Tests: January 20-21, 2004 181 N. Country Club Road Test Report S/N: SAR.231229004.AMW P.O. Box 580 Test Site: PCTEST Lab, Columbia, MD USA Lake City, SC 29560-0580 FCC ID: AMWUT919 APPLICANT: UNIDEN ENGINEERING SERVICES EUT Type: 2-Way Portable VHF Marine Radio Transceiver (GMDSS) Tx Frequency Range: 156.050 ~ 157.425MHz Rx Frequency Range: 156.050 ~ 163.275MHz Max. RF Output Power: 5.0 W (HI) / 1.0 W (LOW); 36.98dBm Conducted Max. SAR Measurement: 1.20 W/kg Face SAR; 1.455 W/kg Body SAR @ 50% Duty Cycle Trade Name/Model(s): MHS350 FCC Classification: Part 80 VHF Handheld Transmitter (GMDSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231229004.AMW Test Dates: January 20-21, 2004 EUT Type: VHF Marine Radio FCC ID: AMWUT919 Page 2 of 22 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ...........................................................................................3 SAR DEFINITION ..........................................................................................3 2. SAR MEASUREMENT SETUP............................................................................4 Robotic System................................................................................................4 System Hardware............................................................................................4 System Electronics...........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.......................................................................5 Probe Measurement System..............................................................................5 Probe Specifications.........................................................................................5 4. Probe Calibration Process.................................................................................6 Dosimetric Assessment Procedure.....................................................................6 Free Space Assessment.....................................................................................6 Temperature Assessment..................................................................................6 5. PHANTOM & EQUIVALENT TISSUES...............................................................7 SAM Phantom.................................................................................................7 Brain & Muscle Simulating Mixture Characterization...........................................7 Device Holder for Transmitters.........................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................8 Automated Test System Specifications................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure...................................................................................9 8. DEFINITION OF REFERENCE POINTS.............................................................10 EAR Reference Point......................................................................................10 Handset Reference Points...............................................................................10 9. TEST CONFIGURATION POSITIONS..............................................................11 Positioning for Cheek/Touch...........................................................................11 Positioning for Ear / 15° Tilt............................................................................12 Body Holster /Belt Clip Configurations.............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................14 Uncontrolled Environment.............................................................................14 Controlled Environment.................................................................................14 11. MEASUREMENT UNCERTAINTIES..................................................................15 SAR Measurement Uncertainties.....................................................................15 12. SYSTEM VERIFICATION.................................................................................16 Tissue Verification..................................................…

Text truncated - open the document above for the full version.

PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231229004.AMW Test Dates: January 20-21, 2004 EUT Type: VHF Marine Radio FCC ID: AMWUT919 Page 18 of 22 © 2004 PCTEST Engineering Laboratory, Inc SAR DATA SUMMARY Mixture Type: 150MHz Brain 14.1 MEASUREMENT RESULTS (150 MHz Face SAR) FREQUENCY Begin / End POWER ‡ MHz Ch. Modulation (dBm) Battery Separation Distance (cm) ‡‡ Antenna Position SAR (W/kg) 100% Duty Cycle SAR (W/kg) 50% Duty Cycle 156.050 01 FM 37.06 36.90 Ni-MH 2.5 Fixed 2.130 1.065 156.800 16 FM 37.08 36.92 Ni-MH 2.5 Fixed 2.200 1.100 157.425 88 FM 37.10 36.93 Ni-MH 2.5 Fixed 2.400 1.200 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Brain 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. Test procedures used are according to FCC/OET Bulletin 65, Supp.C [July 2001]. 2. All modes of operation were investigated, and worst-case results are reported. 3. Battery is fully charged for all readings. ‡ Power Measured x Conducted o ERP o EIRP 4. SAR Measurement System x DASY4 o IDX o Phantom Configuration o Left Head x Flat Phantom o Right Head 5. SAR Configuration x Face o Body o Hand 6. Test Signal Call Mode x Manu. Test Codes o Base Station Simulator 7. ‡‡ Test Configuration o With Belt clip x Without Belt clip 8. Tissue parameters and temperatures are listed on the SAR plots. 9. Liquid tissue depth is 21.8 cm. ± 0.1 SAR DATA SUMMARY (Continued) Figure 14.1 Face SAR Test Setup PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231229004.AMW Test Dates: January 20-21, 2004 EUT Type: VHF Marine Radio FCC ID: AMWUT919 Page 19 of 22 © 2004 PCTEST Engineering Laboratory, Inc SAR DATA SUMMARY (Continued) R DATA SUMMARY (Continued) Mixture Type: 150MHz Muscle 14.2 MEASUREMENT RESULTS (150 MHz Body SAR w/ Belt Clip) FREQUENCY Begin / End POWER ‡ MHz Ch. Modulation (dBm) Battery Separation Distance (cm) ‡‡ Antenna Position SAR (W/kg) 100% Duty Cycle SAR (W/kg) 50% Duty Cycle 156.050 01 FM 37.10 36.95 Ni-MH 2.4 Fixed 2.780 1.390 156.800 16 FM 37.12 36.98 Ni-MH 2.4 Fixed 2.910 1.455 157.425 88 FM 37.03 36.94 Ni-MH 2.4 Fixed 2.740 1.370 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Muscle 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. Test procedures used are according to FCC/OET Bulletin 65, Supp.C [July 2001]. 2. All modes of operation were investigated, and worst-case results are reported. 3. Battery is fully charged for all readings. ‡ Power Measured x Conducted o ERP o EIRP 4. SAR Measurement System x DASY4 o IDX o Phantom Configuration o Left Head x Flat Phantom o Right Head 5. SAR Configuration o Face x Body o Hand 6. Test Signal Call Mode x Manu. Test Codes o Base Station Simulator 7. ‡‡ Test Configuration x With Belt clip o Without Belt clip 8. Tissue parameters and temperatures are listed on the SAR plots. 9. Liquid tissue depth is 21.8 cm. ± 0.1 Figure 14.2 Body SAR Test Setup -- w/ Belt clip -- PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231229004.AMW Test Dates: January 20-21, 2004 EUT Type: VHF Marine Radio FCC ID: AMWUT919 Page 20 of 22 © 2004 PCTEST Engineering Laboratory, Inc 15. SAR TEST EQUIPMENT Equipment Calibration Table 15.1 Test Equipment Calibration NOTE: The E-field probe was calibrated by SPEAG, by waveguide technique procedure. Dipole Validation measurement is performed by PCTEST Lab. before each test. The brain simulating material is calibrated by PCTEST using the dielectric probe system and network analyzer to determine the conductivity and permittivity (dielectric constant) of the brain-equivalent material. EQUIPMENT SPECIFICATIONS Type Calibration Date Serial Number St ̈ubli Robot RX60L February 2003 599131-01 St ̈ubli Robot Controller February 2003 PCT592 St ̈ubli Teach Pendant (Joystick) February 2003 3323-00161 Micron Computer, 450 MHz Pentium III, Windows NT February 2003 PCT577 SPEAG EDC3 February 2003 321 SPEAG DAE3 February 2003 330 SPEAG E-Field Probe ET3DV6 September 2003 1560 SPEAG Dummy Probe February 2003 PCT583 SPEAG Plexiglas Planar Phantom V1.0 February 2003 PCT150 SPEAG Light Alignment Sensor February 2003 205 PCTEST Validation Dipole D300V2 September 2003 PCT301 SPEAG Validation Dipole D835V2 February 2003 PCT512 SPEAG Validation Dipole D1900V2 February 2003 PCT613 Brain Equivalent Matter (150MHz) January 2004 PCTBEM501 Muscle Equivalent Matter (150MHz) January 2004 PCTMEM501 Brain Equivalent Matter (300MHz) January 2004 PCTBEM601 Muscle Equivalent Matter (300MHz) January 2004 PCTMEM701 Microwave Amp. Model: 5S1G4, (800MHz - 4.2GHz) January 2004 22332 Gigatronics 8651A Power Meter January 2004 1835299 HP-8648D (9kHz ~ 4GHz) Signal Generator January 2004 PCT530 Amplifier Research 5S1G4 Power Amp January 2004 PCT540 HP-8753E (30kHz ~ 3GHz) Network Analyzer January 2004 PCT552 HP85070B Dielectric Probe Kit January 2004 PCT501 Ambient Noise/Reflection, etc. January 2004 January 2003 Anechoic Room PCT01 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231229004.AMW Test Dates: January 20-21, 2004 EUT Type: VHF Marine Radio FCC ID: AMWUT919 Page 21 of 22 © 2004 PCTEST Engineering Laboratory, Inc 16. CONCLUSION Measurement Conclusion The SAR measurement indicates that the EUT complies with the RF radiation exposure limits of the FCC. These measurements are taken to simulate the RF effects exposure under worst-case conditions. Precise laboratory measures were taken to assure repeatability of the tests. The tested device complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and di…

Text truncated - open the document above for the full version.

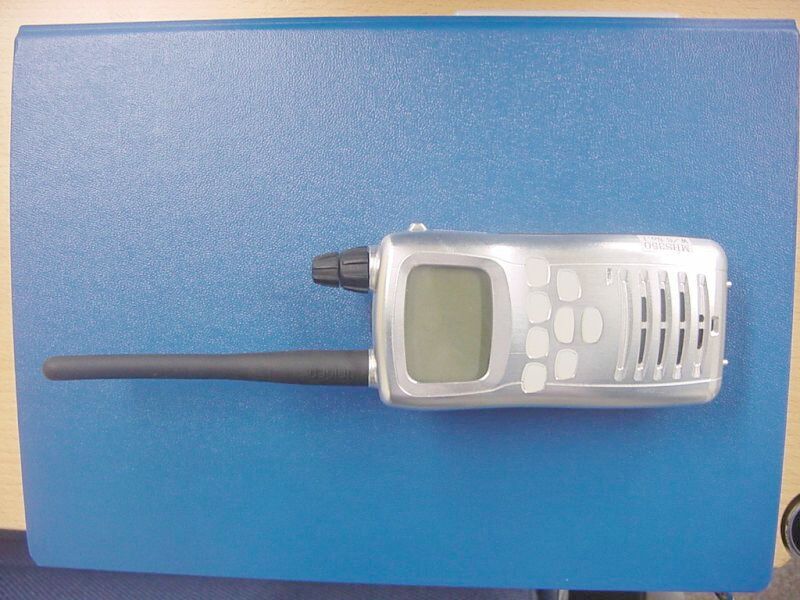

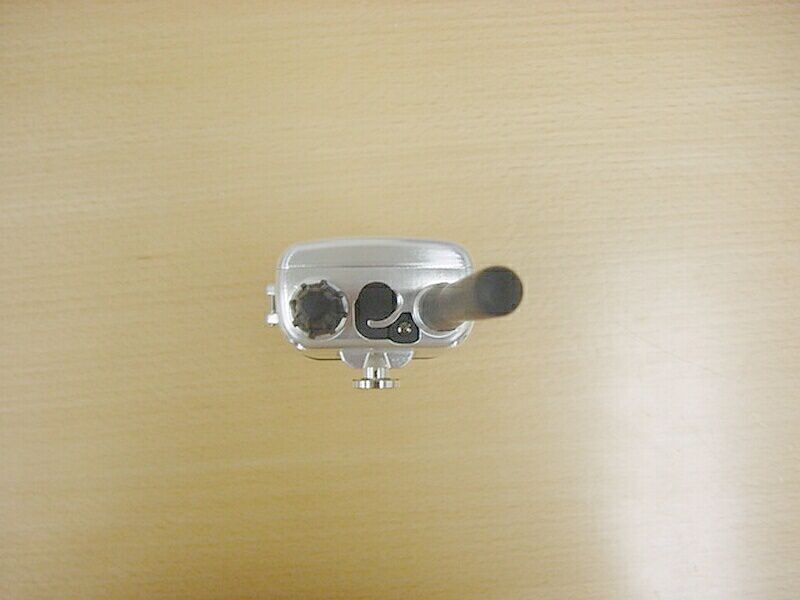

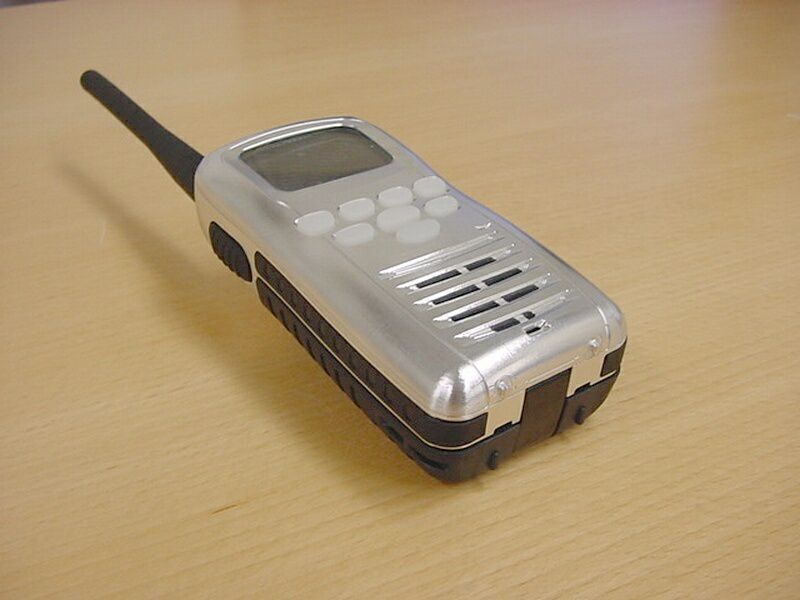

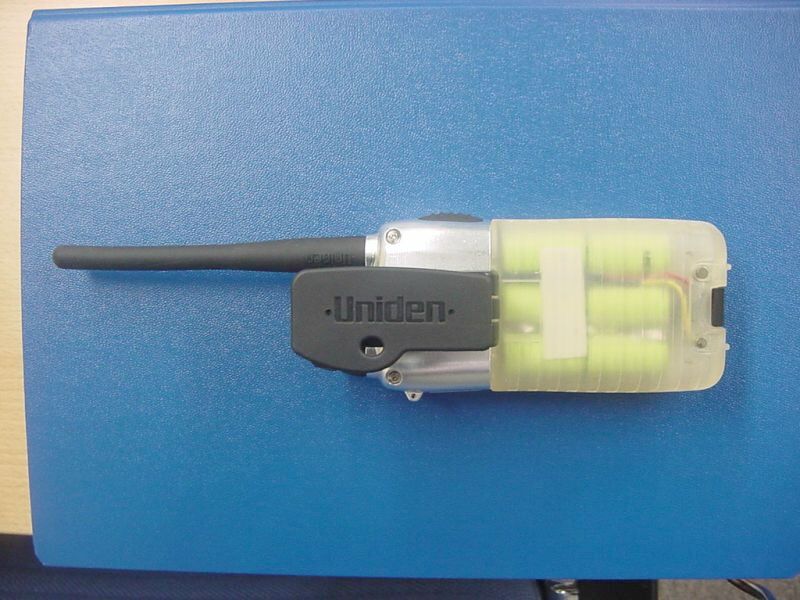

Uniden FCC ID: AMWUT919 EUT Photographs © 2004 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: MHS350 Uniden FCC ID: AMWUT919 EUT Photographs © 2004 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: MHS350 Uniden FCC ID: AMWUT919 EUT Photographs © 2004 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: MHS350 Uniden FCC ID: AMWUT919 EUT Photographs © 2004 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: MHS350 Uniden FCC ID: AMWUT919 EUT Photographs © 2004 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: MHS350 Uniden FCC ID: AMWUT919 EUT Photographs © 2004 PCTEST Lab. 2-Way Portable VHF Marine Radio Model: MHS350

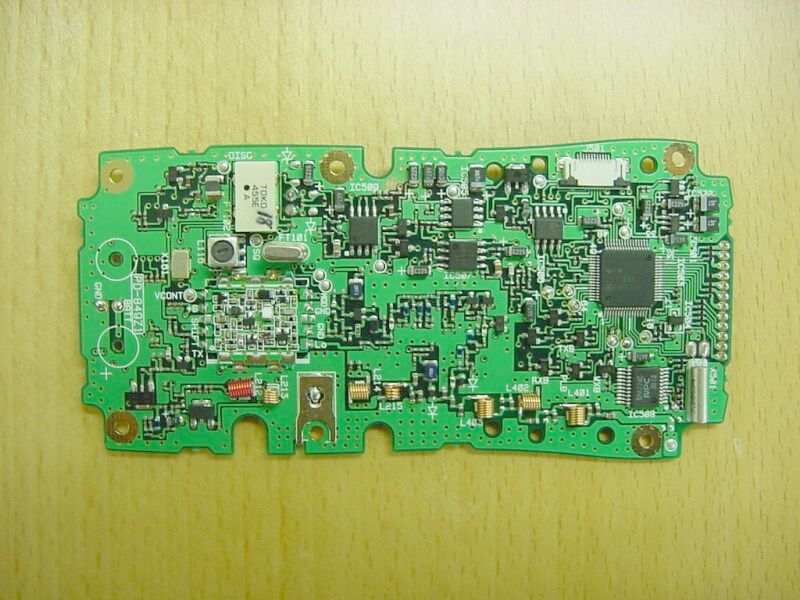

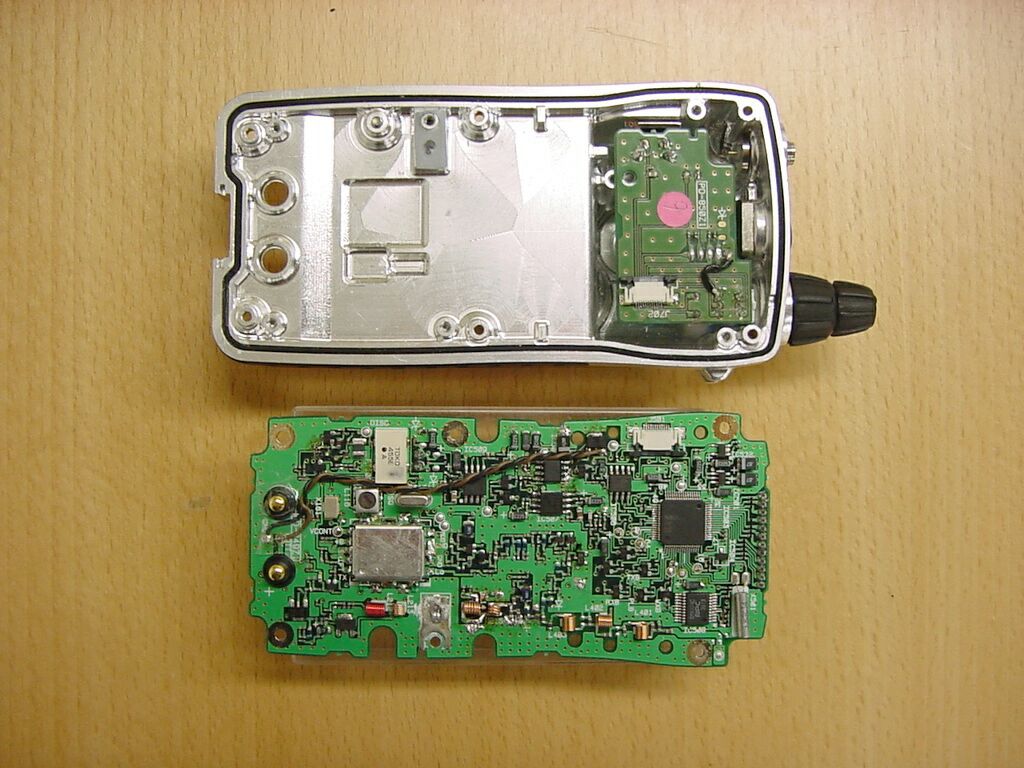

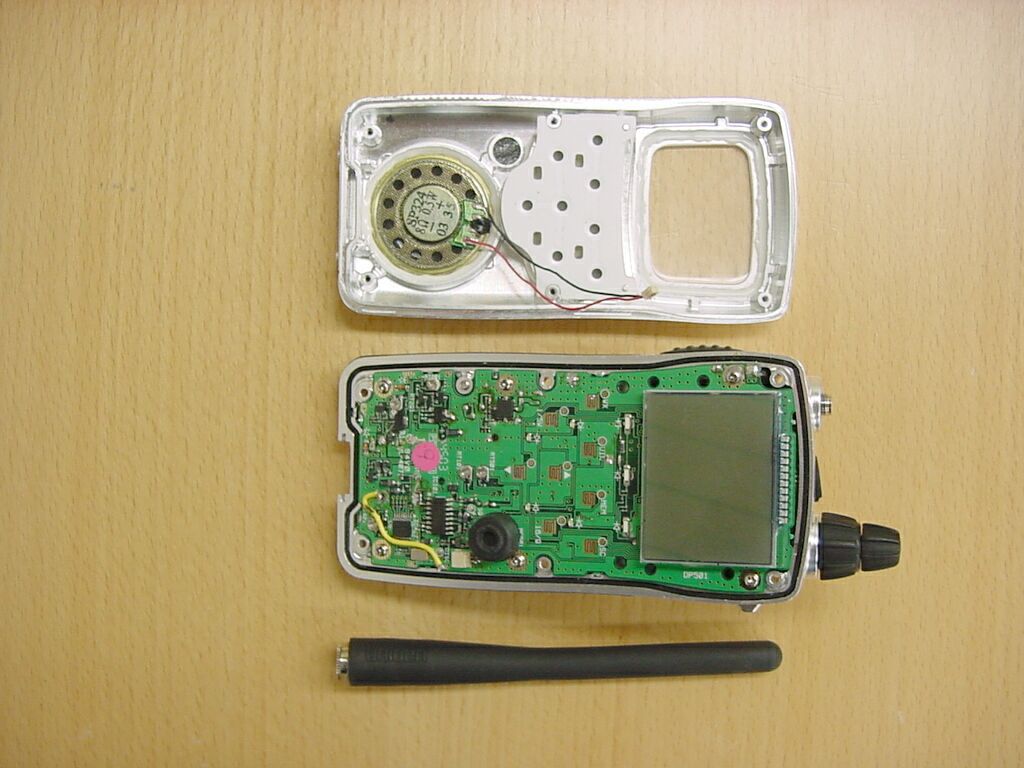

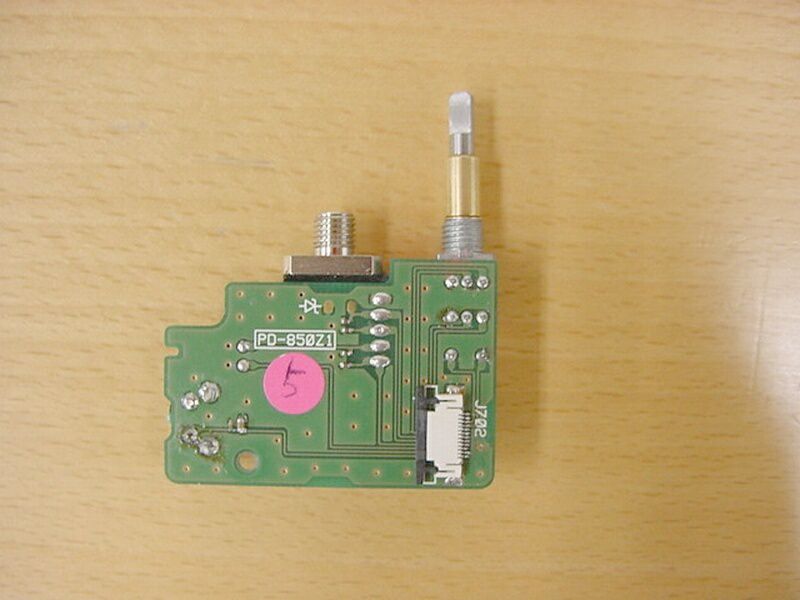

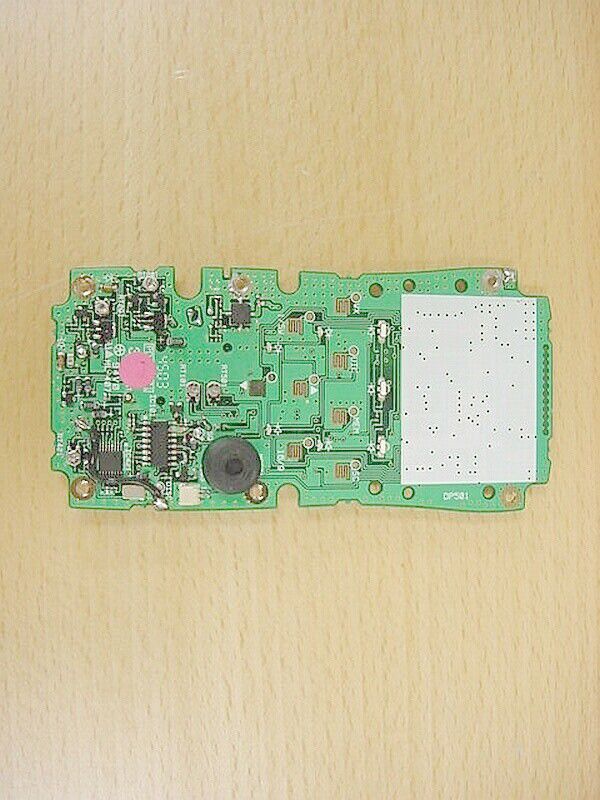

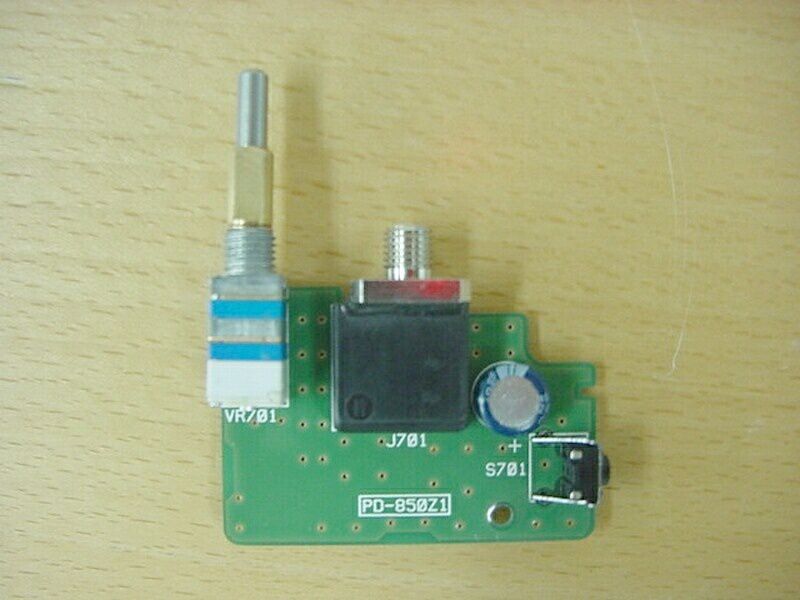

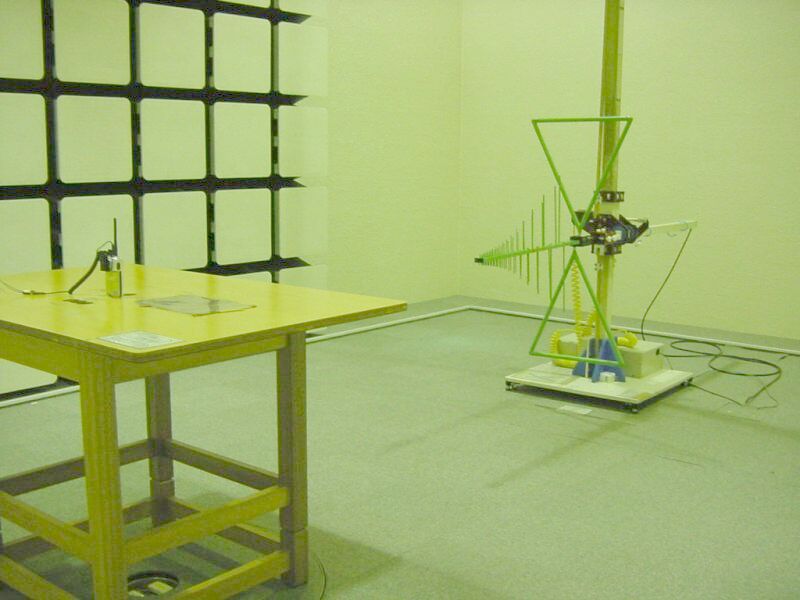

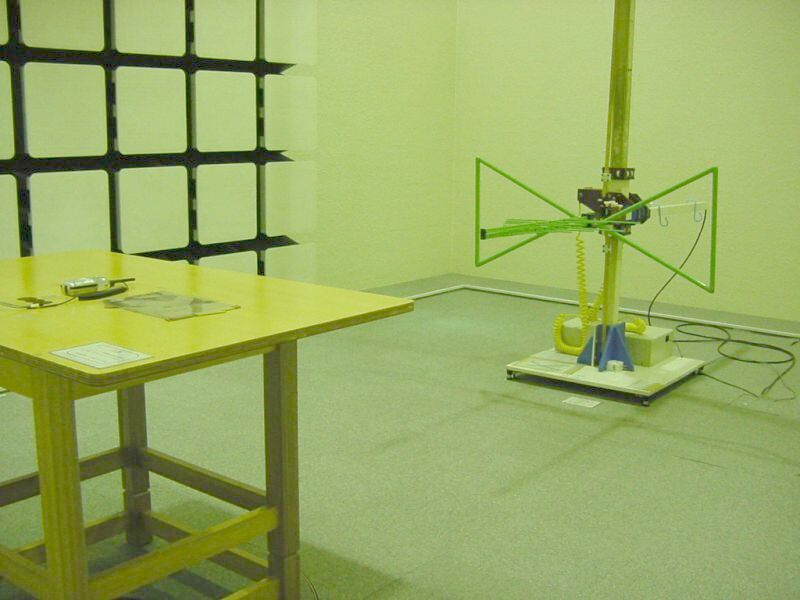

Test Report TEST PROCEDURES AND TEST SITE DESCRIPTION FCC ID: AMWUT919 UNI-NO.: UT-919Z MODEL: MHS350 Description: VHF HANDHELD MARINE MEASUREMENT ITEMS Section No. 1. DC Voltage & Current into Final Device 2.1033(C)(8) 2. RF Output Power 2.1046 3. Modulation Characteristics (Audio Roll-off) 2.1047 & 80.213 4. Modulation Characteristics (Audio Frequency Response) 2.1047 5. Modulation Characteristics (Modulation Limiting) 2.1047 6. Occupied Bandwidth 2.1049(c)(1) & 80.211 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 8. Field Strength of Spurious & Harmonic Radiation 2.1053 9. Frequency Stability (Temperature) 2.1055 & 80.209 10. Frequency Stability (Voltage) 2.1055 & 80.209 11. Receiver radiated spurious emissions 80.217(b) NOTE: List of measurement equipment and test site description are included in this EXHIBIT. 1. DC Voltage & Current into Final Device 2.1033(C)(8) ------------------------------------------ To measure the DC Voltage and Current into Final Amplifying Device, the measuring equipment was connected to the actual P.C.Board of the transmitter. FCC limits: Not specified Test Results: Refer to test data 2. RF Output Power 2.1046 ------------------- The unit was tuned-up in accordance with the alignment procedure stated in the EXHIBIT-6, and was loaded into a 50-ohm resistive termination. The unit was powered through its normally supplied power cable by a DC power supply. Power supply voltage was set to nominal voltage at the power supply terminals with the transmitter off. The unit was operated for three consecutive test cycles of 15 minutes standby and 5 minutes in transmitting. At the end of the third 5 minutes period, the RF output power is measured. During the test, no components of the emission spectrum exceed the limit specified in the applicable rule part for occupied bandwidth or emission limitations. FCC limits: Not specified Test Results: Refer to test data 3. Modulation Characteristics (Audio Roll-off) 2.1047 & 80.213 ----------------------------------------------- To measure the audio roll-off filter response, an audio frequency oscillator and AF VTVM were connected to the actual P.C.Board of the transmitter. AF VTVM and an oscilloscope monitored the output of the audio filter. An AF input level was maintained was maintained constant at least 10 dB below the saturation level at maximum response frequency. The measurement was made under the above conditions by varying the frequency between 1 kHz and 100 kHz. FCC limits: 3 kHz - 15 kHz: -40 log 10 (F/3) dB Above 20kHz : At least -28 dB Test Results: Refer to test data 4. Modulation Characteristics (Audio Frequency Response) 2.1047 --------------------------------------------------------- Operate the unit under the standard test conditions and monitor the output with a modulation or a calibrated test receiver. With a 1000 Hz sine wave (applied through a dummy microphone circuit) used as a 0 dB reference, vary the modulating frequency from 300 to 3000 Hz and observe the level necessary to maintain a constant 30% modulation. FCC limits: 300 - 3000 Hz: 6dB/octave roll-off (+1/-3 dB) Test Results: Refer to test data 5. Modulation Characteristics (Modulation Limiting) 2.1047 ---------------------------------------------------- The transmitter shall be adjusted for full rated system deviation, 1000 Hz and reference it as 0dB input. With modulation frequencies of 300, 1000 and 3000 Hz respectively, vary the audio input to a level 20dB above that required at 100 Hz to produce 60% of rated system deviation. This is required for both up to and down modulation. Record the percent of full system deviation obtained as a function of input level. FCC limits: +/-5 kHz deviation Test Results: Refer to test data 6. Occupied Bandwidth 2.1049(c)(1) & 80.211 ---------------------- The spectrum of the modulated carrier was monitored by a panoramic method capable of 60dB amplitude range. The unit was modulated with a 2500 Hz audio signal at an input level 16dB above that required for 50% of maximum system deviation. In case the 100Hz of CTCSS tone or 100 bps of digital coded data modulation is indicated for this transmitter, a representative measurement data for this operation is also presented. Since the total deviation of the unit is designed as 4.7 kHz Div., the deviation of 2500Hz audio signal was set to 3.7 kHz Div., as the maximum deviation of tone or digital coded signal was continuously set to 1.0 kHz Div. At first, tone or digital signal was disabled and set the 2500 Hz audio signal to 1.85 kHz deviation (= 50% of 3.7 kHz deviation). Then, the input level of 2500Hz audio signal was increased by 16dB. In this condition, the tone or digital coded signal was then enabled and imposed with 2500Hz audio signal. FCC limits: a) -25dB (50 - 100% of assigned frequency) b) -35dB (100 - 250% of assigned frequency) c) 43 + 10log 10 (RF output power in Watts) dB or 80dB, whichever is lesser attenuation for more than 250% of assigned frequency Test Results: Refer to test data 7. Spurious & Harmonic Emission at Antenna Terminal 2.1051 ---------------------------------------------------- Spurious radiation is the radio frequency voltage or power generated within the equipment and appearing at the equipment's output terminals when properly loaded with its characteristic non-radiating load. The unit was modulated with a 2500 Hz tone at an input level 16dB greater than that required 50% modulation. The spectrum was scanned from the lowest frequency generated in the equipment to the tenth harmonic of the carrier. FCC limits: 43 + 10log 10 (RF output power in Watts) dB Test Results: Refer to test data 8. Field Strength of Spurious & Harmonic Radiation 2.1053 --------------------------------------------------- Measurement Procedure & Test Site Description Field strength measurements of radiated spurious emissions were made on a 3-meter range maintained by Uniden Corporation in Japan. Complete description and measurement data of this test si…
